SAXSdb — 2cp5

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Restin

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–128	Fragment：CAP-Gly domain	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 7；298 K；Ionic strength (raw mmCIF value) 120；Pressure ambient NMR sample composition：1mM protein, 20mM d-Tris-HCl, pH7.0, 100mM NaCl, 1mM d-DTT, 0.02% NaN3, 10% D2O \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2CP5	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2CP6 Solution structure of the 2nd CAP-Gly domain in human CLIP-170/restin Deposited 2005-05-19	Different construct	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 181–339（159 aa） Fragment：CAP-Gly domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 120；Pressure ambient NMR sample composition 1mM protein, 20mM d-Tris-HCl, pH7.0, 100mM NaCl, 1mM d-DTT, 0.02% NaN3, 10% D2O \| 90% H2O/10% D2O	Resolution not provided
2E3H Crystal structure of the CLIP-170 CAP-Gly domain 2 Deposited 2006-11-26	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 211–300（90 aa） Fragment：CAP-Gly domain 2	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.45 Å R-free 0.215
2E3I Crystal structure of the CLIP-170 CAP-Gly domain 1 Deposited 2006-11-26	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 56–141（86 aa） Fragment：CAP-Gly domain 1	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；VAPOR DIFFUSION, HANGING DROP	Resolution 2.00 Å R-free 0.259
2E4H Solution structure of cytoskeletal protein in complex with tubulin tail Deposited 2006-12-08	Different construct Different oligomeric state Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 203–300（98 aa） Fragment：CAP-Gly domain 2, residues 203-300	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.9；303 K；Pressure ambient NMR sample composition 0.9mM U-15N,13C CLIP: Nonlabel tubulin; 30mM BisTris buffer K; 1mM DTT; 100% D2O \| 100% D2O NMR sample composition 0.9mM U-15N CLIP: Nonlabel tubulin; 30mM BisTris buffer K; 1mM DTT; 90% H2O, 10% D2O \| 90% H2O/10% D2O NMR sample composition 0.9mM U-15N,13C tubulin: Nonlabel CLIP; 30mM BisTris buffer K; 1mM DTT; 100% D2O \| 100% D2O NMR sample composition 0.9mM U-15N tubulin: Nonlabel CLIP; 30mM BisTris buffer K; 1mM DTT; 90% H2O, 10% D2O \| 90% H2O/10% D2O	Resolution not provided
2HQH Crystal structure of p150Glued and CLIP-170 Deposited 2006-07-18	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 1405–1427（23 aa） Fragment：second zinc finger domain, residues 1405-1427	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；4M sodium formate, pH 7, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.80 Å R-free 0.215
2HQH Crystal structure of p150Glued and CLIP-170 Deposited 2006-07-18	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 1405–1427（23 aa） Fragment：second zinc finger domain, residues 1405-1427	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；4M sodium formate, pH 7, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.80 Å R-free 0.215
2HQH Crystal structure of p150Glued and CLIP-170 Deposited 2006-07-18	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 1405–1427（23 aa） Fragment：second zinc finger domain, residues 1405-1427	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；4M sodium formate, pH 7, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.80 Å R-free 0.215
2HQH Crystal structure of p150Glued and CLIP-170 Deposited 2006-07-18	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 1405–1427（23 aa） Fragment：second zinc finger domain, residues 1405-1427	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；4M sodium formate, pH 7, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.80 Å R-free 0.215
2HQH Crystal structure of p150Glued and CLIP-170 Deposited 2006-07-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain E 1405–1427（23 aa） Fragment：second zinc finger domain, residues 1405-1427 Chain F 1405–1427（23 aa） Fragment：second zinc finger domain, residues 1405-1427 Chain G 1405–1427（23 aa） Fragment：second zinc finger domain, residues 1405-1427 Chain H 1405–1427（23 aa） Fragment：second zinc finger domain, residues 1405-1427	Not recorded	ZN ZINC ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；4M sodium formate, pH 7, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.80 Å R-free 0.215
2QK0 Structural Basis of Microtubule Plus End Tracking by XMAP215, CLIP-170 and EB1 Deposited 2007-07-09	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 57–128（72 aa） Fragment：Cap-Gly domain 1	Mutation：L124M Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；293 K；1.2 M Sodium malonate, 100 mM Glycine, 1.1 mM Lanthanum chloride, Protein concentration 15 mg/ml, pH 9.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.233
3E2U Crystal structure of the zink-knuckle 2 domain of human CLIP-170 in complex with CAP-Gly domain of human dynactin-1 (p150-GLUED) Deposited 2008-08-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 1388–1427（40 aa） Fragment：Zn-knuckle 2	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；1.2M Trisodium Citrate, 0.1M HEPES, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.60 Å R-free 0.238
3E2U Crystal structure of the zink-knuckle 2 domain of human CLIP-170 in complex with CAP-Gly domain of human dynactin-1 (p150-GLUED) Deposited 2008-08-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 1388–1427（40 aa） Fragment：Zn-knuckle 2	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；1.2M Trisodium Citrate, 0.1M HEPES, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.60 Å R-free 0.238
3E2U Crystal structure of the zink-knuckle 2 domain of human CLIP-170 in complex with CAP-Gly domain of human dynactin-1 (p150-GLUED) Deposited 2008-08-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 1388–1427（40 aa） Fragment：Zn-knuckle 2	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；1.2M Trisodium Citrate, 0.1M HEPES, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.60 Å R-free 0.238
3E2U Crystal structure of the zink-knuckle 2 domain of human CLIP-170 in complex with CAP-Gly domain of human dynactin-1 (p150-GLUED) Deposited 2008-08-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 1388–1427（40 aa） Fragment：Zn-knuckle 2	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；1.2M Trisodium Citrate, 0.1M HEPES, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.60 Å R-free 0.238
3E2U Crystal structure of the zink-knuckle 2 domain of human CLIP-170 in complex with CAP-Gly domain of human dynactin-1 (p150-GLUED) Deposited 2008-08-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain E 1388–1427（40 aa） Fragment：Zn-knuckle 2 Chain F 1388–1427（40 aa） Fragment：Zn-knuckle 2 Chain G 1388–1427（40 aa） Fragment：Zn-knuckle 2 Chain H 1388–1427（40 aa） Fragment：Zn-knuckle 2	Not recorded	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；1.2M Trisodium Citrate, 0.1M HEPES, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.60 Å R-free 0.238
3RDV Structure of the SLAIN2c-CLIPCG1 complex Deposited 2011-04-01	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 56–127（72 aa） Fragment：CAP-Gly 1 domain, residues 56-127	Not recorded	NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 4.5；298 K；36% PEG 6000, 100mM citric acid, pH 4.5, vapor diffusion, temperature 298K	Resolution 1.75 Å R-free 0.229
3RDV Structure of the SLAIN2c-CLIPCG1 complex Deposited 2011-04-01	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 56–127（72 aa） Fragment：CAP-Gly 1 domain, residues 56-127	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 4.5；298 K；36% PEG 6000, 100mM citric acid, pH 4.5, vapor diffusion, temperature 298K	Resolution 1.75 Å R-free 0.229
3RDV Structure of the SLAIN2c-CLIPCG1 complex Deposited 2011-04-01	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 56–127（72 aa） Fragment：CAP-Gly 1 domain, residues 56-127	Not recorded	BME BETA-MERCAPTOETHANOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 4.5；298 K；36% PEG 6000, 100mM citric acid, pH 4.5, vapor diffusion, temperature 298K	Resolution 1.75 Å R-free 0.229
3RDV Structure of the SLAIN2c-CLIPCG1 complex Deposited 2011-04-01	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 56–127（72 aa） Fragment：CAP-Gly 1 domain, residues 56-127	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 4.5；298 K；36% PEG 6000, 100mM citric acid, pH 4.5, vapor diffusion, temperature 298K	Resolution 1.75 Å R-free 0.229

8 other PDB entries and 19 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	REST_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 8–135； UniProt 1–128

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2cp5
Deposition date deposition_date	2005-05-19
Structure title title	Solution structure of the 1st CAP-Gly domain in human CLIP-170/restin
Keywords keywords	;microtubule binding, cytoskeleton associated protein, restin, structural genomics, NPPSFA, National Project on Protein Structural and Functional Analyses, RIKEN Structural Genomics/Proteomics Initiative, RSGI, PROTEIN BINDING ;; PROTEIN BINDING
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	28.35 Å
Radius of gyration Rg (electron density) rg_electron	28.76 Å
Forward intensity I(0) i0	1252090000.00
Molecular weight molecular_weight	296700.0 kDa
Excluded volume excluded_volume	372470 Å³
Envelope volume envelope_volume	304210 Å³
Hydration-shell volume shell_volume	62218 Å³
Envelope diameter envelope_diameter	155.9 Å
Shell Rg shell_rg	45.69 Å
Envelope Rg envelope_rg	41.48 Å
Shape Rg shape_rg	28.54 Å
Total Rg total_rg	30.17 Å
Total atoms total_atoms	41960
Residues n_residues	2820
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	75.9 Å
Rg (real space) rg_real	26.14 Å
Rg uncertainty (real space) rg_real_error	0.21 Å
I(0) (real space) i0_real	1.1890e+09
I(0) uncertainty (real space) i0_real_error	1.4040e+07
Rg (reciprocal space) rg_reciprocal	28.94 Å
I(0) (reciprocal space) i0_reciprocal	1252000000.0000
Solution quality estimate total_estimate	0.6213
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	17.6 Å
Skewness Skewness skewness	0.375
Kurtosis Kurtosis kurtosis	-0.798
Angular range angular_range	— – 0.2800 Å⁻¹
Current regularization parameter α current_alpha	2.1330
Highest regularization parameter α highest_alpha	694000.0000
Real-space data points n_real_points	57
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.004; Oscil: 0.880; Stabil: 0.984; Sysdev: 0.000; Positv: 1.000; Valcen: 0.510; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d2cp5a1
Class class	b — All beta proteins
Fold Fold fold	b.34 — SH3-like barrel
Superfamily Superfamily superfamily	b.34.10 — Cap-Gly domain
Family Family family	b.34.10.1 — Cap-Gly domain

Domain ID domain_id	d2cp5a2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2cp5a3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id	2cp5A01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	190 — CAP Gly-rich-like domain

▶

8. Citations (1)

▶

Description description	Restin
Molecular weight formula_weight	14847.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	41960

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606

fit	/app/data/saxs_computation/cp/2cp5/2cp5.fit
pddf	/app/data/pr_computation/cp/2cp5/2cp5.pr.out
profile	/app/data/saxs_computation/cp/2cp5/2cp5.dat

Solution structure of the 1st CAP-Gly domain in human CLIP-170/restin

1. Protein Identity and Related Structures Protein Identity & Related Structures

Restin

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

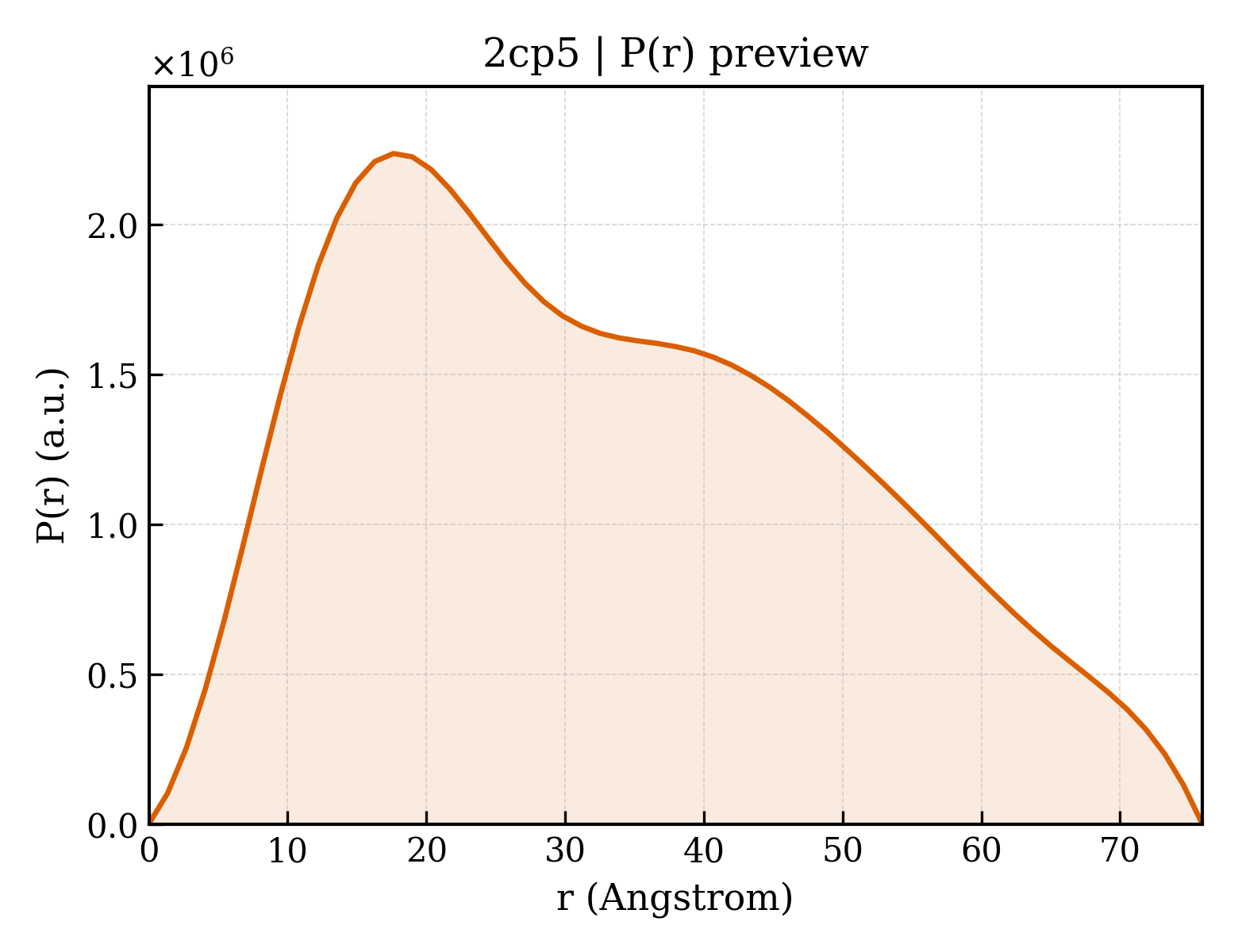

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

6. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (3 domains)

CATH v4.4 (1 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
