SAXSdb — 2e6e

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

;5'-nucleotidase surE ;

Thermus thermophilus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SURE_THET8
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–244； UniProt 1–244 Author chain B； PDBConstruct 1–244； UniProt 1–244 Author chain C； PDBConstruct 1–244； UniProt 1–244 Author chain D； PDBConstruct 1–244； UniProt 1–244

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2e6e
Deposition date deposition_date	2006-12-26
Structure title title	Crystal structure of the stationary phase survival protein SurE from Thermus thermophilus HB8
Keywords keywords	SurE protein, Hydrolase; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2e6e__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2e6e__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

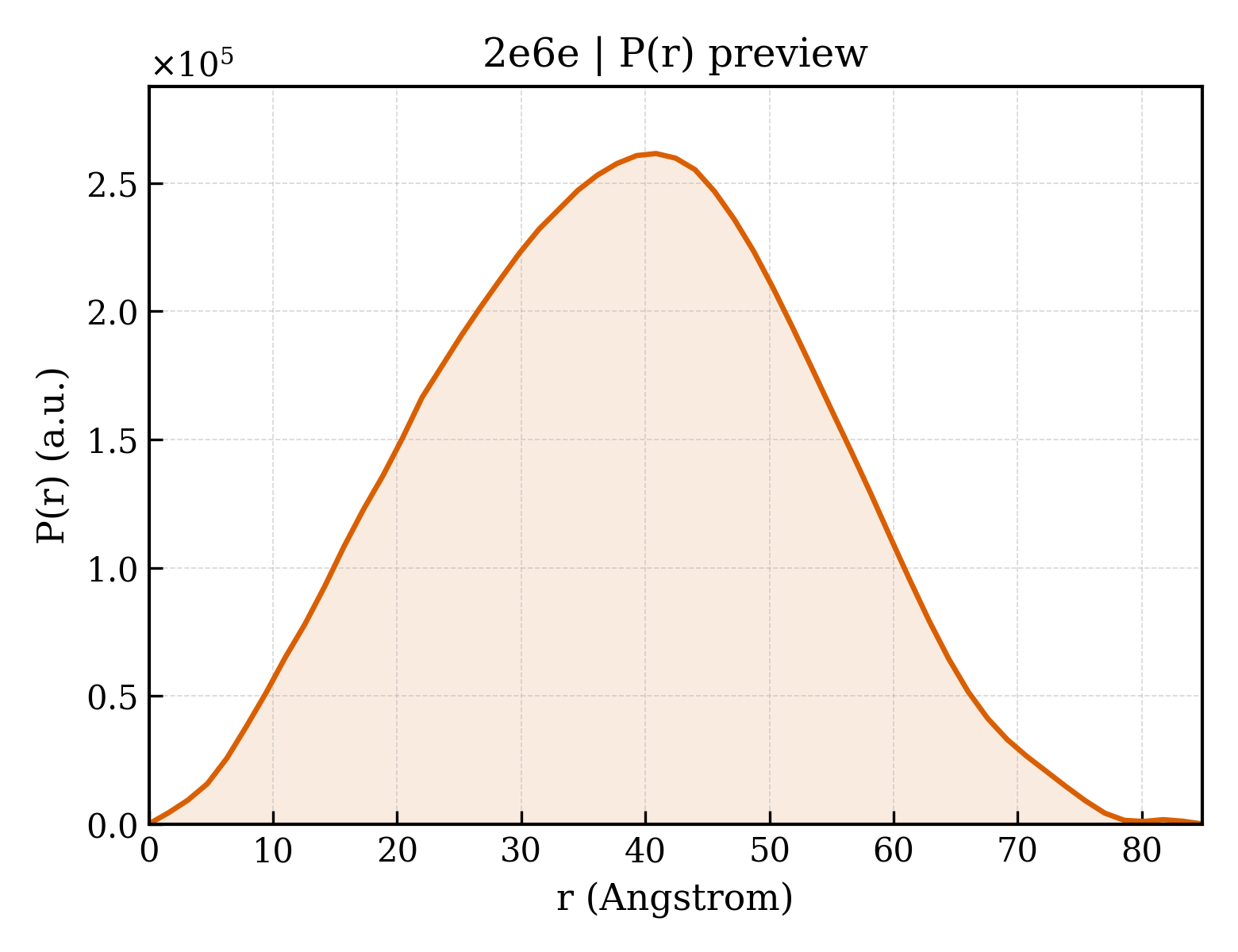

2e6e__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	29.28 Å
Rg (electron density)	28.23 Å
Total Rg	29.14 Å
Atom count	6659
Residues	853
Excluded volume	119080 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2e6e__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2e6ea_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.106 — SurE-like
Superfamily Superfamily superfamily	c.106.1 — SurE-like
Family Family family	c.106.1.0 — automated matches

Domain ID domain_id	d2e6eb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.106 — SurE-like
Superfamily Superfamily superfamily	c.106.1 — SurE-like
Family Family family	c.106.1.0 — automated matches

Domain ID domain_id	d2e6ec_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.106 — SurE-like
Superfamily Superfamily superfamily	c.106.1 — SurE-like
Family Family family	c.106.1.0 — automated matches

Domain ID domain_id	d2e6ed_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.106 — SurE-like
Superfamily Superfamily superfamily	c.106.1 — SurE-like
Family Family family	c.106.1.0 — automated matches

CATH v4.4 (4 domains)

Domain ID domain_id	2e6eA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1210 — Stationary-phase Survival Protein Sure Homolog; Chain: A,
Homologous superfamily homologous superfamily	10 — Survival protein SurE-like phosphatase/nucleotidase

Domain ID domain_id	2e6eB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1210 — Stationary-phase Survival Protein Sure Homolog; Chain: A,
Homologous superfamily homologous superfamily	10 — Survival protein SurE-like phosphatase/nucleotidase

Domain ID domain_id	2e6eC00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1210 — Stationary-phase Survival Protein Sure Homolog; Chain: A,
Homologous superfamily homologous superfamily	10 — Survival protein SurE-like phosphatase/nucleotidase

Domain ID domain_id	2e6eD00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1210 — Stationary-phase Survival Protein Sure Homolog; Chain: A,
Homologous superfamily homologous superfamily	10 — Survival protein SurE-like phosphatase/nucleotidase

▶

Unit-cell length a length_a	58.222 Å
Unit-cell length b length_b	68.635 Å
Unit-cell length c length_c	220.390 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	45.630 Å
R factor r_factor	0.2220
R_work r_work	0.2220
R_free r_free	0.2880

Description description	;5'-nucleotidase surE ;
Molecular weight formula_weight	26625.3 kDa
EC 编号 ec_number	3.1.3.5
Source method src_method	man
Copy count entity_count	4

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	6737

Crystal structure of the stationary phase survival protein SurE from Thermus thermophilus HB8

1. Protein Identity and Related Structures Protein Identity & Related Structures

;5'-nucleotidase surE ;

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

2e6e__assembly_1__model_1

2e6e__assembly_1__model_1 | I(q)

2e6e__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

CATH v4.4 (4 domains)

7. Citations (1)

Source organism organism	Thermus thermophilus
NCBI taxonomy ID ncbi_taxonomy_id	300852
Host organism host_organism	Escherichia coli BL21(DE3)

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	78
