2e6g

Crystal structure of the stationary phase survival protein SurE from Thermus thermophilus HB8 in complex with phosphate

Method: X-RAY DIFFRACTION D_max: 184.2 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

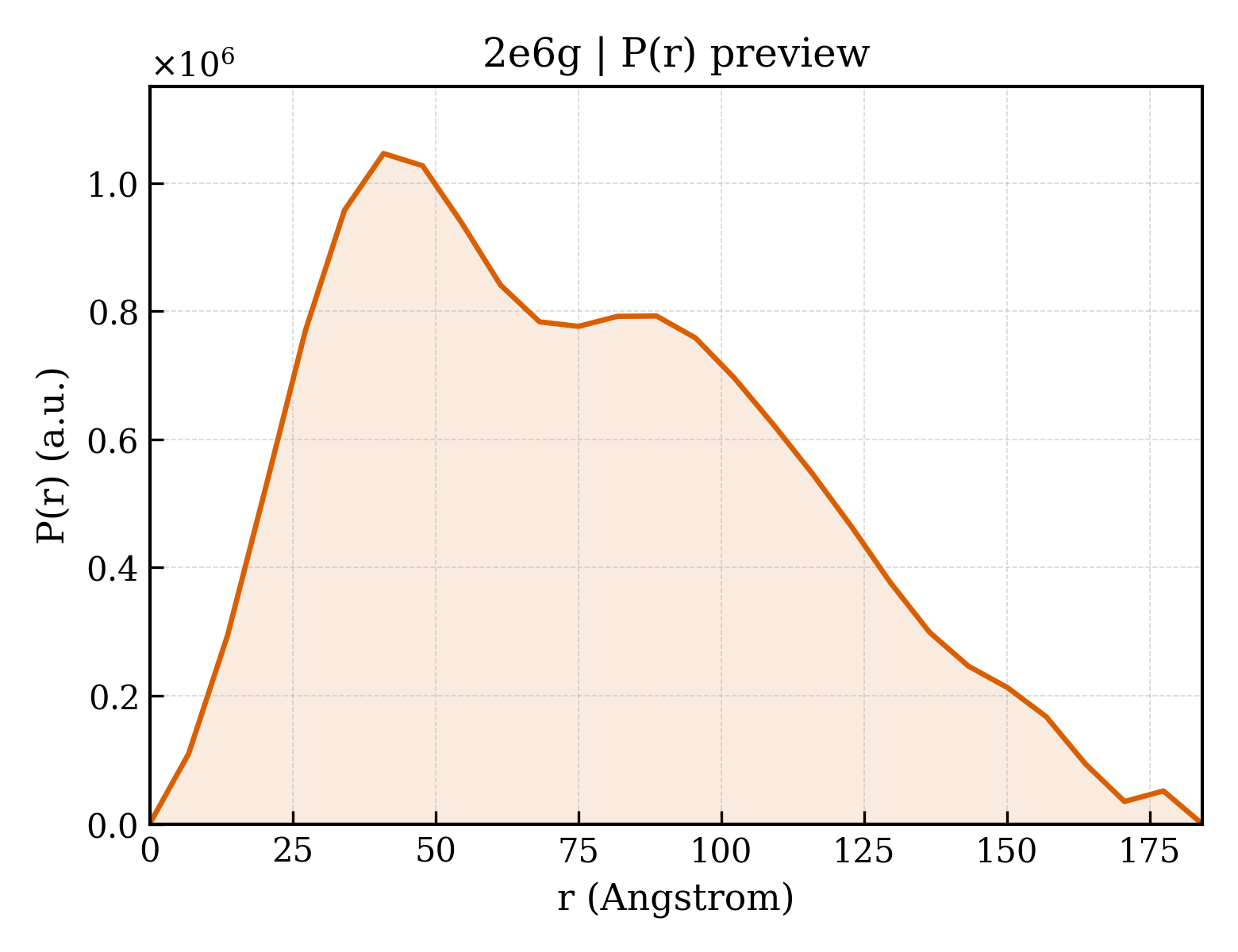

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2e6g
沉积日期 deposition_date	2006-12-26
结构标题 title	Crystal structure of the stationary phase survival protein SurE from Thermus thermophilus HB8 in complex with phosphate
关键词 keywords	SurE protein, complexed with phosphate ion, Hydrolase; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	58.40 Å
回转半径 Rg (电子) rg_electron	59.05 Å
零角强度 I(0) i0	1219890000.00
分子量 molecular_weight	300280.0 kDa
排除体积 excluded_volume	378430 Å³
包络体积 envelope_volume	525860 Å³
水化壳体积 shell_volume	78174 Å³
包络直径 envelope_diameter	197.1 Å
壳层 Rg shell_rg	56.23 Å
包络 Rg envelope_rg	57.63 Å
形状 Rg shape_rg	59.05 Å
总 Rg total_rg	58.96 Å
总原子数 total_atoms	21271
残基数 n_residues	2722
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	184.2 Å
Rg (实空间) rg_real	58.86 Å
Rg 误差 (实空间) rg_real_error	1.89 Å
I(0) (实空间) i0_real	1.2200e+09
I(0) 误差 (实空间) i0_real_error	2.4860e+07
Rg (倒空间) rg_reciprocal	57.96 Å
I(0) (倒空间) i0_reciprocal	1218000000.0000
解质量估计 total_estimate	0.7825
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	3
主峰位置 r_peak_primary	40.9 Å
偏度 Skewness skewness	0.414
峰度 Kurtosis kurtosis	-0.619
角度范围 angular_range	— – 0.1350 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	355400000.0000
实空间数据点数 n_real_points	28
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.775; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.823; Smooth: 0.022

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	;5'-nucleotidase surE ;
分子量 formula_weight	26625.3 kDa
EC 编号 ec_number	3.1.3.5
来源方法 src_method	man
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H,I,J,K,L
原子数 atom_count	21357

MRILVTNDDGIYSPGLWALAEAASQFGEVFVAAPDTEQSAAGHAITIAHPVRAYPHPSPLHAPHFPAYRVRGTPADCVALGLHLFGPVDLVLSGVNLGSNLGHEIWHSGTVAAAKQGYLFGLSAAAFSVPLNGEVPDFAGLRPWLLRTLETLLRLERPFLVNVNLPLRPKGFLWTRQSVRAYEGVVIPGEDPMGRPFYWFAPRPLKEAEEGTDRWAVAQGFVSATPLRLDLTDETRLQPTLAHD

来源 Source

来源生物 organism	Thermus thermophilus
NCBI 分类编号 ncbi_taxonomy_id	300852
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	PHOSPHATE ION
分子量 formula_weight	95.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	25

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	86

▼

6. 折叠分类 (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

结构域编号 domain_id	d2e6ga_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.106 — SurE-like
超家族 Superfamily superfamily	c.106.1 — SurE-like
家族 Family family	c.106.1.0 — automated matches

结构域编号 domain_id	d2e6gb_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.106 — SurE-like
超家族 Superfamily superfamily	c.106.1 — SurE-like
家族 Family family	c.106.1.0 — automated matches

结构域编号 domain_id	d2e6gc_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.106 — SurE-like
超家族 Superfamily superfamily	c.106.1 — SurE-like
家族 Family family	c.106.1.0 — automated matches

结构域编号 domain_id	d2e6gd_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.106 — SurE-like
超家族 Superfamily superfamily	c.106.1 — SurE-like
家族 Family family	c.106.1.0 — automated matches

结构域编号 domain_id	d2e6ge_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.106 — SurE-like
超家族 Superfamily superfamily	c.106.1 — SurE-like
家族 Family family	c.106.1.0 — automated matches

结构域编号 domain_id	d2e6gf_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.106 — SurE-like
超家族 Superfamily superfamily	c.106.1 — SurE-like
家族 Family family	c.106.1.0 — automated matches

结构域编号 domain_id	d2e6gg_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.106 — SurE-like
超家族 Superfamily superfamily	c.106.1 — SurE-like
家族 Family family	c.106.1.0 — automated matches

结构域编号 domain_id	d2e6gh_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.106 — SurE-like
超家族 Superfamily superfamily	c.106.1 — SurE-like
家族 Family family	c.106.1.0 — automated matches

结构域编号 domain_id	d2e6gi_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.106 — SurE-like
超家族 Superfamily superfamily	c.106.1 — SurE-like
家族 Family family	c.106.1.0 — automated matches

结构域编号 domain_id	d2e6gj_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.106 — SurE-like
超家族 Superfamily superfamily	c.106.1 — SurE-like
家族 Family family	c.106.1.0 — automated matches

结构域编号 domain_id	d2e6gk_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.106 — SurE-like
超家族 Superfamily superfamily	c.106.1 — SurE-like
家族 Family family	c.106.1.0 — automated matches

结构域编号 domain_id	d2e6gl_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.106 — SurE-like
超家族 Superfamily superfamily	c.106.1 — SurE-like
家族 Family family	c.106.1.0 — automated matches

CATH v4.4 (12 domains)

结构域编号 domain_id	2e6gA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	1210 — Stationary-phase Survival Protein Sure Homolog; Chain: A,
同源超家族 H-superfamily homologous superfamily	10 — Survival protein SurE-like phosphatase/nucleotidase

结构域编号 domain_id	2e6gB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	1210 — Stationary-phase Survival Protein Sure Homolog; Chain: A,
同源超家族 H-superfamily homologous superfamily	10 — Survival protein SurE-like phosphatase/nucleotidase

结构域编号 domain_id	2e6gC00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	1210 — Stationary-phase Survival Protein Sure Homolog; Chain: A,
同源超家族 H-superfamily homologous superfamily	10 — Survival protein SurE-like phosphatase/nucleotidase

结构域编号 domain_id	2e6gD00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	1210 — Stationary-phase Survival Protein Sure Homolog; Chain: A,
同源超家族 H-superfamily homologous superfamily	10 — Survival protein SurE-like phosphatase/nucleotidase

结构域编号 domain_id	2e6gE00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	1210 — Stationary-phase Survival Protein Sure Homolog; Chain: A,
同源超家族 H-superfamily homologous superfamily	10 — Survival protein SurE-like phosphatase/nucleotidase

结构域编号 domain_id	2e6gF00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	1210 — Stationary-phase Survival Protein Sure Homolog; Chain: A,
同源超家族 H-superfamily homologous superfamily	10 — Survival protein SurE-like phosphatase/nucleotidase

结构域编号 domain_id	2e6gG00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	1210 — Stationary-phase Survival Protein Sure Homolog; Chain: A,
同源超家族 H-superfamily homologous superfamily	10 — Survival protein SurE-like phosphatase/nucleotidase

结构域编号 domain_id	2e6gH00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	1210 — Stationary-phase Survival Protein Sure Homolog; Chain: A,
同源超家族 H-superfamily homologous superfamily	10 — Survival protein SurE-like phosphatase/nucleotidase

结构域编号 domain_id	2e6gI00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	1210 — Stationary-phase Survival Protein Sure Homolog; Chain: A,
同源超家族 H-superfamily homologous superfamily	10 — Survival protein SurE-like phosphatase/nucleotidase

结构域编号 domain_id	2e6gJ00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	1210 — Stationary-phase Survival Protein Sure Homolog; Chain: A,
同源超家族 H-superfamily homologous superfamily	10 — Survival protein SurE-like phosphatase/nucleotidase

结构域编号 domain_id	2e6gK00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	1210 — Stationary-phase Survival Protein Sure Homolog; Chain: A,
同源超家族 H-superfamily homologous superfamily	10 — Survival protein SurE-like phosphatase/nucleotidase

结构域编号 domain_id	2e6gL00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	1210 — Stationary-phase Survival Protein Sure Homolog; Chain: A,
同源超家族 H-superfamily homologous superfamily	10 — Survival protein SurE-like phosphatase/nucleotidase

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	60.642 Å
晶胞边长 b length_b	196.077 Å
晶胞边长 c length_c	253.852 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	48

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	2.600 Å
最低分辨率 resolution_low	45.530 Å
R 因子 r_factor	0.2180
R_work r_work	0.2180
R_free r_free	0.2840
