1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2ebs
沉积日期 deposition_date	2007-02-09
结构标题 title	;Crystal Structure Anaalysis of Oligoxyloglucan reducing-end-specific cellobiohydrolase (OXG-RCBH) D465N Mutant Complexed with a Xyloglucan Heptasaccharide ;
关键词 keywords	;BETA-PROPELLER, HYDROLASE, Structural Genomics, NPPSFA, National Project on Protein Structural and Functional Analyses, RIKEN Structural Genomics/Proteomics Initiative, RSGI ;; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	47.39 Å
回转半径 Rg (电子) rg_electron	48.31 Å
零角强度 I(0) i0	430525000.00
分子量 molecular_weight	167700.0 kDa
排除体积 excluded_volume	207710 Å³
包络体积 envelope_volume	263470 Å³
水化壳体积 shell_volume	48977 Å³
包络直径 envelope_diameter	160.9 Å
壳层 Rg shell_rg	46.43 Å
包络 Rg envelope_rg	48.09 Å
形状 Rg shape_rg	48.31 Å
总 Rg total_rg	48.23 Å
总原子数 total_atoms	11853
残基数 n_residues	1541
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	152.7 Å
Rg (实空间) rg_real	48.21 Å
Rg 误差 (实空间) rg_real_error	1.65 Å
I(0) (实空间) i0_real	4.3050e+08
I(0) 误差 (实空间) i0_real_error	7.8310e+06
Rg (倒空间) rg_reciprocal	47.40 Å
I(0) (倒空间) i0_reciprocal	430100000.0000
解质量估计 total_estimate	0.4982
解质量评级 solution_quality	SUSPICIOUS a SUSPICIOUS solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	32.4 Å
偏度 Skewness skewness	0.543
峰度 Kurtosis kurtosis	-0.620
角度范围 angular_range	— – 0.1650 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	38340000.0000
实空间数据点数 n_real_points	34
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.609; Stabil: 1.000; Sysdev: 0.006; Positv: 1.000; Valcen: 0.612; Smooth: 0.018

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Oligoxyloglucan reducing end-specific cellobiohydrolase
分子量 formula_weight	84973.7 kDa
EC 编号 ec_number	3.2.1.150
突变 mutation	D465N
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	12931

KEHYEFKNVAIGGGGYITGIVAHPKTKDLLYARTDIGGAYRWDAGTSKWIPLNDFIEAQDMNIMGTESIALDPNNPDRLYLAQGRYVGDEWAAFYVSEDRGQSFTIYESPFPMGANDMGRNNGERLAVNPFNSNEVWMGTRTEGIWKSSDRAKTWTNVTSIPDAFTNGIGYTSVIFDPERNGTIYASATAPQGMYVTHDGGVSWEPVAGQPSSWLNRTTGAFPDKKPASIAPQPMKVALTPNFLYVTYADYPGPWGVTFGEVWRQNRTSGAWDDITPRVGNSSPAPYNNQTFPAGGFCGLSVDATNPNRLVVITLDRDPGPALDSIYLSTDAGATWKDVTQLSSPSNLEGNWGHPTNAARYKDGTPVPWLDFNNGPQWGGYGAPHGTPGLTKFGWWMSAVLIDPFNPEHLMYGTGATIWATDTLSRVEKDWAPSWYLQIDGIEENAILSLRSPKSGAALLSGIGNISGMKHDDLTKPQKMFGAPQFSNLDSIDAAGNFPNVVVRAGSSGHEYDSACARGAYATDGGDAWTIFPTCPPGMNASHYQGSTIAVDASGSQIVWSTKLDEQASGPWYSHDYGKTWSVPAGDLKAQTANVLSDKVQDGTFYATDGGKFFVSTDGGKSYAAKGAGLVTGTSLMPAVNPWVAGDVWVPVPEGGLFHSTDFGASFTRVGTANATLVSVGAPKSKSDGKKASAPSAVFIWGTDKPGSDIGLYRSDDNGSTWTRVNDQEHNYSGPTMIEADPKVYGRVYLGTNGRGIVYADLTNKKSNEEKSTAKCANGQKGTHCYVKK

来源 Source

来源生物 organism	Geotrichum sp. M128
NCBI 分类编号 ncbi_taxonomy_id	203496
宿主生物 host_organism	Escherichia coli

Entity 2 branched

描述 description	;alpha-D-xylopyranose-(1-6)-beta-D-glucopyranose-(1-4)-[alpha-D-xylopyranose-(1-6)]beta-D-glucopyranose-(1-4)-[alpha-D-xylopyranose-(1-6)]beta-D-glucopyranose-(1-4)-beta-D-glucopyranose ;
分子量 formula_weight	1062.9 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1078

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d2ebsa1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.69 — 7-bladed beta-propeller
超家族 Superfamily superfamily	b.69.13 — Oligoxyloglucan reducing end-specific cellobiohydrolase
家族 Family family	b.69.13.1 — Oligoxyloglucan reducing end-specific cellobiohydrolase

结构域编号 domain_id	d2ebsa2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.69 — 7-bladed beta-propeller
超家族 Superfamily superfamily	b.69.13 — Oligoxyloglucan reducing end-specific cellobiohydrolase
家族 Family family	b.69.13.1 — Oligoxyloglucan reducing end-specific cellobiohydrolase

结构域编号 domain_id	d2ebsb1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.69 — 7-bladed beta-propeller
超家族 Superfamily superfamily	b.69.13 — Oligoxyloglucan reducing end-specific cellobiohydrolase
家族 Family family	b.69.13.1 — Oligoxyloglucan reducing end-specific cellobiohydrolase

结构域编号 domain_id	d2ebsb2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.69 — 7-bladed beta-propeller
超家族 Superfamily superfamily	b.69.13 — Oligoxyloglucan reducing end-specific cellobiohydrolase
家族 Family family	b.69.13.1 — Oligoxyloglucan reducing end-specific cellobiohydrolase

CATH v4.4 (4 domains)

结构域编号 domain_id	2ebsA01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	130 — 7 Propeller
拓扑 Topology topology	10 — Methylamine Dehydrogenase; Chain H
同源超家族 H-superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

结构域编号 domain_id	2ebsA02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	130 — 7 Propeller
拓扑 Topology topology	10 — Methylamine Dehydrogenase; Chain H
同源超家族 H-superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

结构域编号 domain_id	2ebsB01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	130 — 7 Propeller
拓扑 Topology topology	10 — Methylamine Dehydrogenase; Chain H
同源超家族 H-superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

结构域编号 domain_id	2ebsB02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	130 — 7 Propeller
拓扑 Topology topology	10 — Methylamine Dehydrogenase; Chain H
同源超家族 H-superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	60.970 Å
晶胞边长 b length_b	147.515 Å
晶胞边长 c length_c	212.230 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	2.400 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	0.1616
R_work r_work	0.1585
R_free r_free	0.2193

fit	/app/data/saxs_computation/eb/2ebs/2ebs.fit
pddf	/app/data/pr_computation/eb/2ebs/2ebs.pr.out
profile	/app/data/saxs_computation/eb/2ebs/2ebs.dat

;Crystal Structure Anaalysis of Oligoxyloglucan reducing-end-specific cellobiohydrolase (OXG-RCBH) D465N Mutant Complexed with a Xyloglucan Heptasaccharide ;

SAXS 散射曲线 SAXS Profile

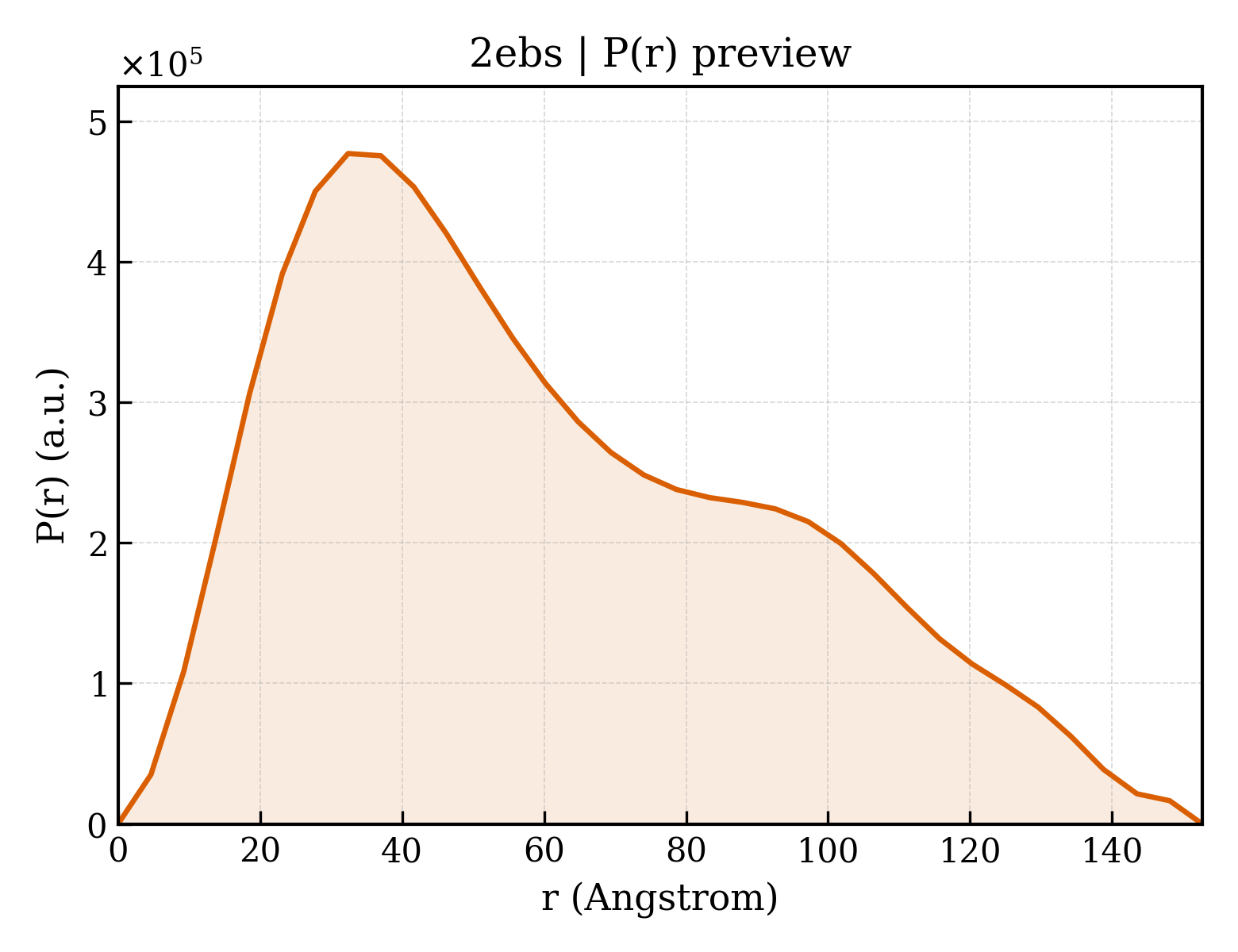

P(r) 距离分布 P(r) Distribution
