1. Protein Identity and Related Structures Protein Identity & Related Structures

Replication termination protein

Bacillus subtilis

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Homooligomer Protein × 2 DNA 2 PDB declaration: tetrameric（4） Consistent with all polymer counts	Chain A； UniProt 1–122 Chain B； UniProt 1–122	Mutation：C110S	;DNA (5'-D(DCPDTDAPDTPDGPDTPDAPDCPDCPDAPDAPDAPDTPDGPDTPDTPDCPDAPDGPDTPDC)-3') ; × 1 ;DNA (5'-D(DGPDAPDCPDTPDGPDAPDAPDCPDAPDTPDTPDTPDGPDGPDTPDAPDCPDAPDTPDAPDG)-3') ; × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 4.6；295 K；2% PEG 4000, 125mM sodium acetate, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.50 Å R-free 0.332
2	Protein–DNA Homooligomer Protein × 2 DNA 2 PDB declaration: tetrameric（4） Consistent with all polymer counts	Chain F； UniProt 1–122 Chain G； UniProt 1–122	Mutation：C110S	;DNA (5'-D(DCPDTDAPDTPDGPDTPDAPDCPDCPDAPDAPDAPDTPDGPDTPDTPDCPDAPDGPDTPDC)-3') ; × 1 ;DNA (5'-D(DGPDAPDCPDTPDGPDAPDAPDCPDAPDTPDTPDTPDGPDGPDTPDAPDCPDAPDTPDAPDG)-3') ; × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 4.6；295 K；2% PEG 4000, 125mM sodium acetate, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.50 Å R-free 0.332

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2EFW	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BM9 REPLICATION TERMINATOR PROTEIN FROM BACILLUS SUBTILIS Deposited 1998-07-29	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–122（122 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；pH 6.0	Resolution 2.00 Å R-free 0.281
1BM9 REPLICATION TERMINATOR PROTEIN FROM BACILLUS SUBTILIS Deposited 1998-07-29	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 1–122（122 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；pH 6.0	Resolution 2.00 Å R-free 0.281
1F4K CRYSTAL STRUCTURE OF THE REPLICATION TERMINATOR PROTEIN/B-SITE DNA COMPLEX Deposited 2000-06-08	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 1–122（122 aa） Chain B 1–122（122 aa）	Mutation：C110S Mutation：C110S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；298 K；5% PEG 4000, 0.1M sodium acetate, pH 4.6, VAPOR DIFFUSION, HANGING DROP at 298K	Resolution 2.50 Å R-free 0.276
1J0R Crystal structure of the replication termination protein mutant C110S Deposited 2002-11-20	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–122（122 aa）	Mutation：C110S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；295 K；22% PEG 2000, 150mM MES, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.50 Å R-free 0.279
1J0R Crystal structure of the replication termination protein mutant C110S Deposited 2002-11-20	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 1–122（122 aa）	Mutation：C110S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；295 K；22% PEG 2000, 150mM MES, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.50 Å R-free 0.279
2DPD Crystal structure of the Replication Termination Protein in complex with a pseudosymmetric B-site Deposited 2006-05-09	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 1–122（122 aa） Chain B 1–122（122 aa）	Mutation：C110S Mutation：C110S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；298 K；25% MPD, 75mM sodium acetate pH 4.6, 20mM calcium chloride, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.17 Å R-free 0.278
2DPU Crystal structure of the replication termination protein in complex with a pseudosymmetric 21mer B-site DNA Deposited 2006-05-15	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: hexameric	Chain A 8–129（122 aa）	Mutation：C110S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；298 K；1.75M ammonium sulfate, 0.1M sodium acetate pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.10 Å R-free 0.306
2DQR Crystal structure of the replication terminator protein mutant RTP.E39K.R42Q Deposited 2006-05-29	Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–122（122 aa） Chain B 1–122（122 aa）	Mutation：E39K,R42Q Mutation：E39K,R42Q	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；295 K；22% PEG 4000, 0.2M sodium acetate, 0.225M Tris HCl pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 3.01 Å R-free 0.276
2DQR Crystal structure of the replication terminator protein mutant RTP.E39K.R42Q Deposited 2006-05-29	Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 1–122（122 aa） Chain D 1–122（122 aa）	Mutation：E39K,R42Q Mutation：E39K,R42Q	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；295 K；22% PEG 4000, 0.2M sodium acetate, 0.225M Tris HCl pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 3.01 Å R-free 0.276

6 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RTP_BACSU
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain A； PDBConstruct 1–122； UniProt 1–122 Author chain B； PDBConstruct 1–122； UniProt 1–122 Author chain F； PDBConstruct 1–122； UniProt 1–122 Author chain G； PDBConstruct 1–122； UniProt 1–122

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2efw
Deposition date deposition_date	2007-02-26
Structure title title	Crystal structure of the RTP:nRB complex from Bacillus subtilis
Keywords keywords	;protein-DNA complex, 'winged'-helix protein, DNA replication termination, replication fork arrest, REPLICATION-DNA COMPLEX ;; REPLICATION/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

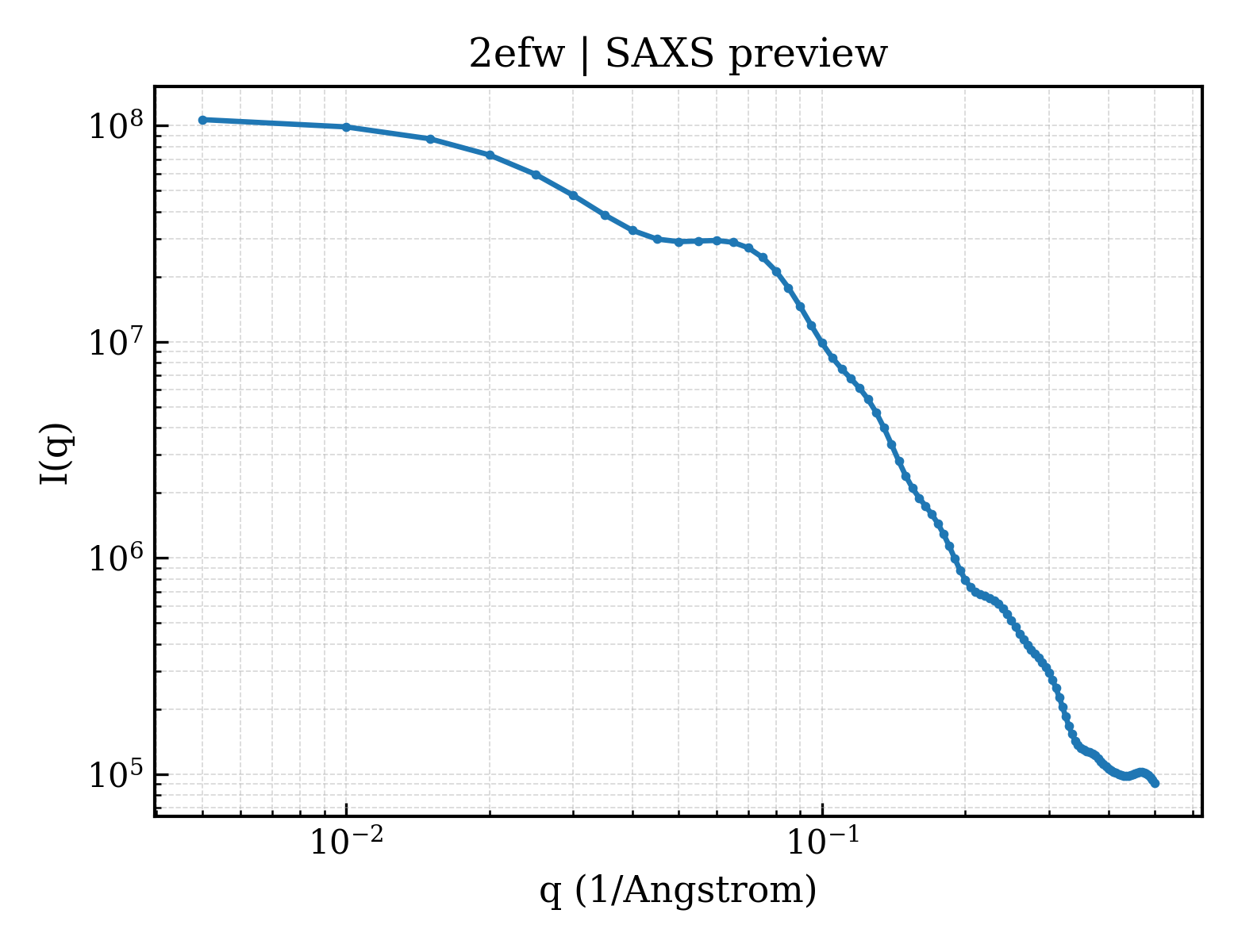

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	55.37 Å
Radius of gyration Rg (electron density) rg_electron	54.29 Å
Forward intensity I(0) i0	109406000.00
Molecular weight molecular_weight	76952.0 kDa
Excluded volume excluded_volume	91926 Å³
Envelope volume envelope_volume	161130 Å³
Hydration-shell volume shell_volume	24413 Å³
Envelope diameter envelope_diameter	156.6 Å
Shell Rg shell_rg	61.77 Å
Envelope Rg envelope_rg	50.23 Å
Shape Rg shape_rg	54.21 Å
Total Rg total_rg	54.73 Å
Total atoms total_atoms	5333
Residues n_residues	529
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

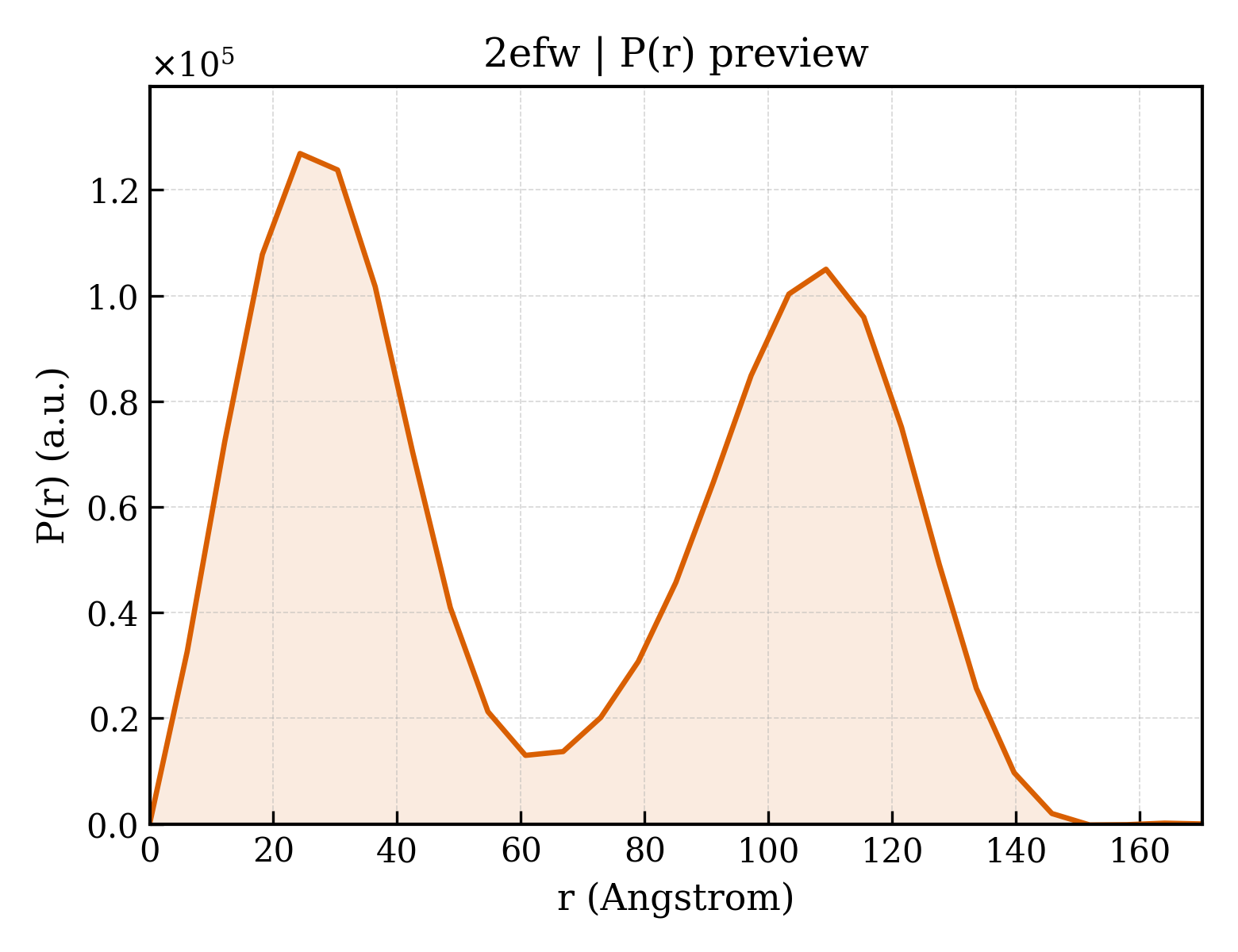

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	170.1 Å
Rg (real space) rg_real	55.82 Å
Rg uncertainty (real space) rg_real_error	1.66 Å
I(0) (real space) i0_real	1.0940e+08
I(0) uncertainty (real space) i0_real_error	2.0720e+06
Rg (reciprocal space) rg_reciprocal	54.89 Å
I(0) (reciprocal space) i0_reciprocal	109200000.0000
Solution quality estimate total_estimate	0.5442
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	24.3 Å
Skewness Skewness skewness	0.071
Kurtosis Kurtosis kurtosis	-1.573
Angular range angular_range	— – 0.1400 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1915000.0000
Real-space data points n_real_points	29
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.002; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.066; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	;DNA (5'-D(DCPDTDAPDTPDGPDTPDAPDCPDCPDAPDAPDAPDTPDGPDTPDTPDCPDAPDGPDTP*DC)-3') ;
Molecular weight formula_weight	6397.2 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	D,I
Atom count atom_count	5357

CTATGTACCAAATGTTCAGTC

Entity 2 Entity 2 polymer

Description description	;DNA (5'-D(DGPDAPDCPDTPDGPDAPDAPDCPDAPDTPDTPDTPDGPDGPDTPDAPDCPDAPDTPDAP*DG)-3') ;
Molecular weight formula_weight	6486.2 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	E,J

GACTGAACATTTGGTACATAG

Entity 3 Entity 3 polymer

Description description	Replication termination protein
Molecular weight formula_weight	14531.1 kDa
Mutation mutation	C110S
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,F,G

MKEEKRSSTGFLVKQRAFLKLYMITMTEQERLYGLKLLEVLRSEFKEIGFKPNHTEVYRSLHELLDDGILKQIKVKKEGAKLQEVVLYQFKDYEAAKLYKKQLKVELDRSKKLIEKALSDNF

来源 Source

来源生物 organism	Bacillus subtilis
NCBI Class编号 ncbi_taxonomy_id	1423
宿主生物 host_organism	Escherichia coli BL21

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	24

▼

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2efwa_
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
Family Family family	a.4.5.7 — Replication terminator protein (RTP)

Domain ID domain_id	d2efwb_
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
Family Family family	a.4.5.7 — Replication terminator protein (RTP)

Domain ID domain_id	d2efwf_
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
Family Family family	a.4.5.7 — Replication terminator protein (RTP)

Domain ID domain_id	d2efwg_
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
Family Family family	a.4.5.7 — Replication terminator protein (RTP)

CATH v4.4 (4 domains)

Domain ID domain_id	2efwA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

Domain ID domain_id	2efwB00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

Domain ID domain_id	2efwF00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

Domain ID domain_id	2efwG00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	124.012 Å
Unit-cell length b length_b	129.626 Å
Unit-cell length c length_c	125.221 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	32

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	0.2930
R_work r_work	0.2909
R_free r_free	0.3322

fit	/app/data/saxs_computation/ef/2efw/2efw.fit
pddf	/app/data/pr_computation/ef/2efw/2efw.pr.out
profile	/app/data/saxs_computation/ef/2efw/2efw.dat
