SAXSdb — 2eq8

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2eq8
沉积日期 deposition_date	2007-03-30
结构标题 title	Crystal structure of lipoamide dehydrogenase from thermus thermophilus HB8 with psbdp
关键词 keywords	;PROTEIN-PROTEIN COMPLEX, OXIDOREDUCTASE, Structural Genomics, NPPSFA, National Project on Protein Structural and Functional Analyses, RIKEN Structural Genomics/Proteomics Initiative, RSGI ;; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	49.45 Å
回转半径 Rg (电子) rg_electron	49.92 Å
零角强度 I(0) i0	588891000.00
分子量 molecular_weight	205150.0 kDa
排除体积 excluded_volume	258920 Å³
包络体积 envelope_volume	344130 Å³
水化壳体积 shell_volume	59353 Å³
包络直径 envelope_diameter	174.4 Å
壳层 Rg shell_rg	50.41 Å
包络 Rg envelope_rg	49.41 Å
形状 Rg shape_rg	49.92 Å
总 Rg total_rg	49.96 Å
总原子数 total_atoms	14438
残基数 n_residues	1906
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	173.8 Å
Rg (实空间) rg_real	49.99 Å
Rg 误差 (实空间) rg_real_error	1.68 Å
I(0) (实空间) i0_real	5.8890e+08
I(0) 误差 (实空间) i0_real_error	1.0390e+07
Rg (倒空间) rg_reciprocal	49.45 Å
I(0) (倒空间) i0_reciprocal	588500000.0000
解质量估计 total_estimate	0.5846
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	38.0 Å
偏度 Skewness skewness	0.440
峰度 Kurtosis kurtosis	-0.588
角度范围 angular_range	— – 0.1600 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	82090000.0000
实空间数据点数 n_real_points	33
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.655; Stabil: 1.000; Sysdev: 0.087; Positv: 1.000; Valcen: 0.679; Smooth: 0.691

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Pyruvate dehydrogenase complex, dihydrolipoamide dehydrogenase E3 component
分子量 formula_weight	49151.8 kDa
EC 编号 ec_number	1.8.1.4
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,D,E
原子数 atom_count	16327

MTPMKTYDLIVIGTGPGGYHAAIRAAQLGLKVLAVEAGEVGGVCLNVGCIPTKALLHAAETLHHLKVAEGFGLKAKPELDLKKLGGWRDQVVKKLTGGVGTLLKGNGVELLRGFARLVGPKEVEVGGERYGAKSLILATGSEPLELKGFPFGEDVWDSTRALKVEEGLPKRLLVIGGGAVGLELGQVYRRLGAEVTLIEYMPEILPQGDPETAALLRRALEKEGIRVRTKTKAVGYEKKKDGLHVRLEPAEGGEGEEVVVDKVLVAVGRKPRTEGLGLEKAGVKVDERGFIRVNARMETSVPGVYAIGDAARPPLLAHKAMREGLIAAENAAGKDSAFDYQVPSVVYTSPEWAGVGLTEEEAKRAGYKVKVGKFPLAASGRALTLGGAEGMVKVVGDEETDLLLGVFIVGPQAGELIAEAALALEMGATLTDLALTVHPHPTLSESLMEAAEAFHKQAIHILNR

来源 Source

来源生物 organism	Thermus thermophilus
NCBI 分类编号 ncbi_taxonomy_id	300852
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	Pyruvate dehydrogenase complex, dihydrolipoamide acetyltransferase E2 component
分子量 formula_weight	4292.9 kDa
EC 编号 ec_number	2.3.1.12
来源方法 src_method	syn
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,F

PAAPSIRRLARELGVDLTRLRGTGLAGRITEEDVRRAAGL

Entity 3 non-polymer

描述 description	FLAVIN-ADENINE DINUCLEOTIDE
分子量 formula_weight	785.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1889

▼

6. 折叠分类 (SCOP + CATH) 12 domains

CATH v4.4 (12 domains)

结构域编号 domain_id	2eq8A01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	2eq8A02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	2eq8A03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	390 — Enolase-like; domain 1
同源超家族 H-superfamily homologous superfamily	30 — FAD/NAD-linked reductase, C-terminal dimerisation domain

结构域编号 domain_id	2eq8B01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	2eq8B02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	2eq8B03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	390 — Enolase-like; domain 1
同源超家族 H-superfamily homologous superfamily	30 — FAD/NAD-linked reductase, C-terminal dimerisation domain

结构域编号 domain_id	2eq8D01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	2eq8D02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	2eq8D03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	390 — Enolase-like; domain 1
同源超家族 H-superfamily homologous superfamily	30 — FAD/NAD-linked reductase, C-terminal dimerisation domain

结构域编号 domain_id	2eq8E01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	2eq8E02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	2eq8E03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	390 — Enolase-like; domain 1
同源超家族 H-superfamily homologous superfamily	30 — FAD/NAD-linked reductase, C-terminal dimerisation domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	85.758 Å
晶胞边长 b length_b	104.082 Å
晶胞边长 c length_c	112.856 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	107.30 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	1.940 Å
最低分辨率 resolution_low	46.860 Å
R 因子 r_factor	0.2070
R_work r_work	0.2070
R_free r_free	0.2440

fit	/app/data/saxs_computation/eq/2eq8/2eq8.fit
pddf	/app/data/pr_computation/eq/2eq8/2eq8.pr.out
profile	/app/data/saxs_computation/eq/2eq8/2eq8.dat

Crystal structure of lipoamide dehydrogenase from thermus thermophilus HB8 with psbdp

SAXS 散射曲线 SAXS Profile

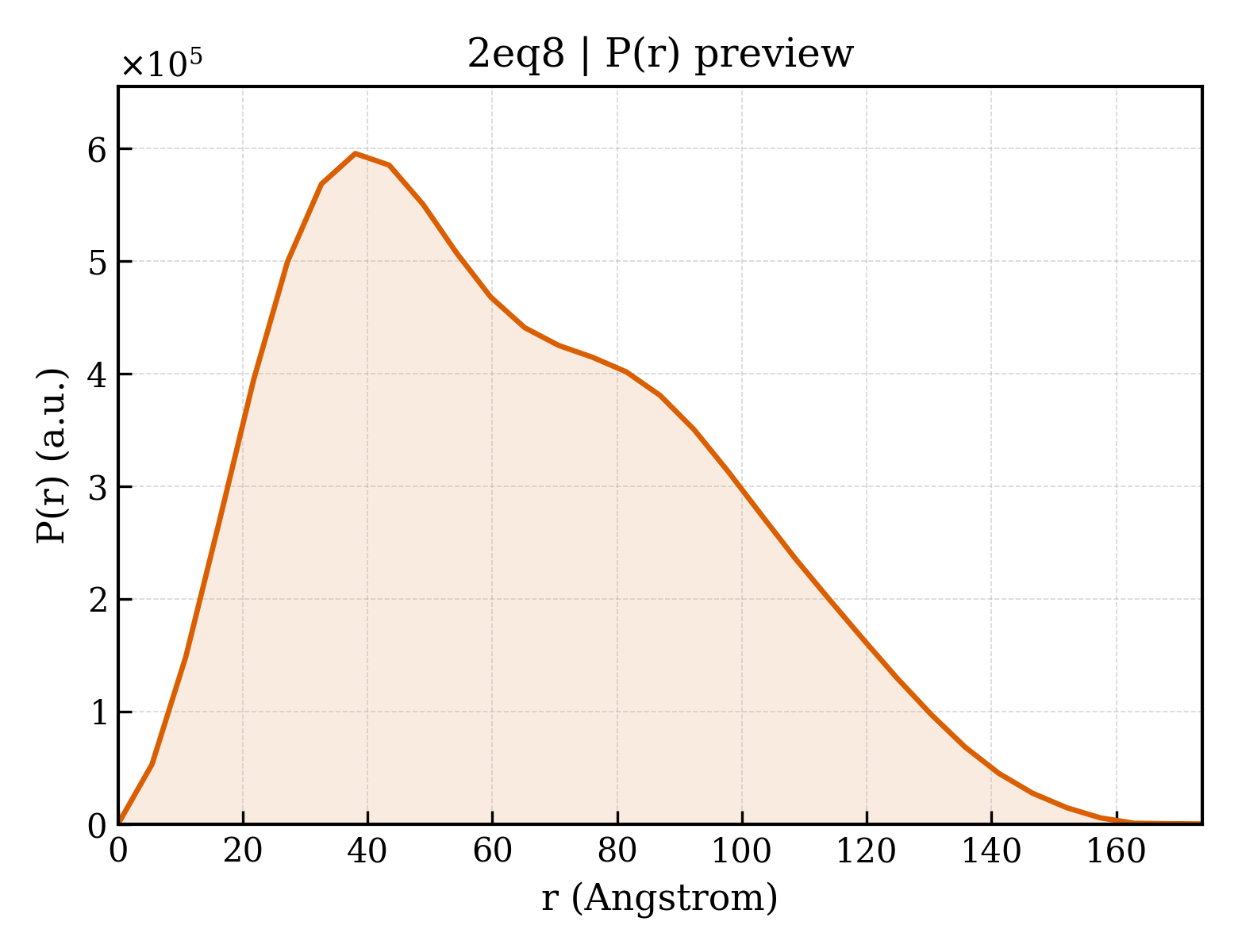

P(r) 距离分布 P(r) Distribution
