2f95
M intermediate structure of sensory rhodopsin II/transducer complex in combination with the ground state structure

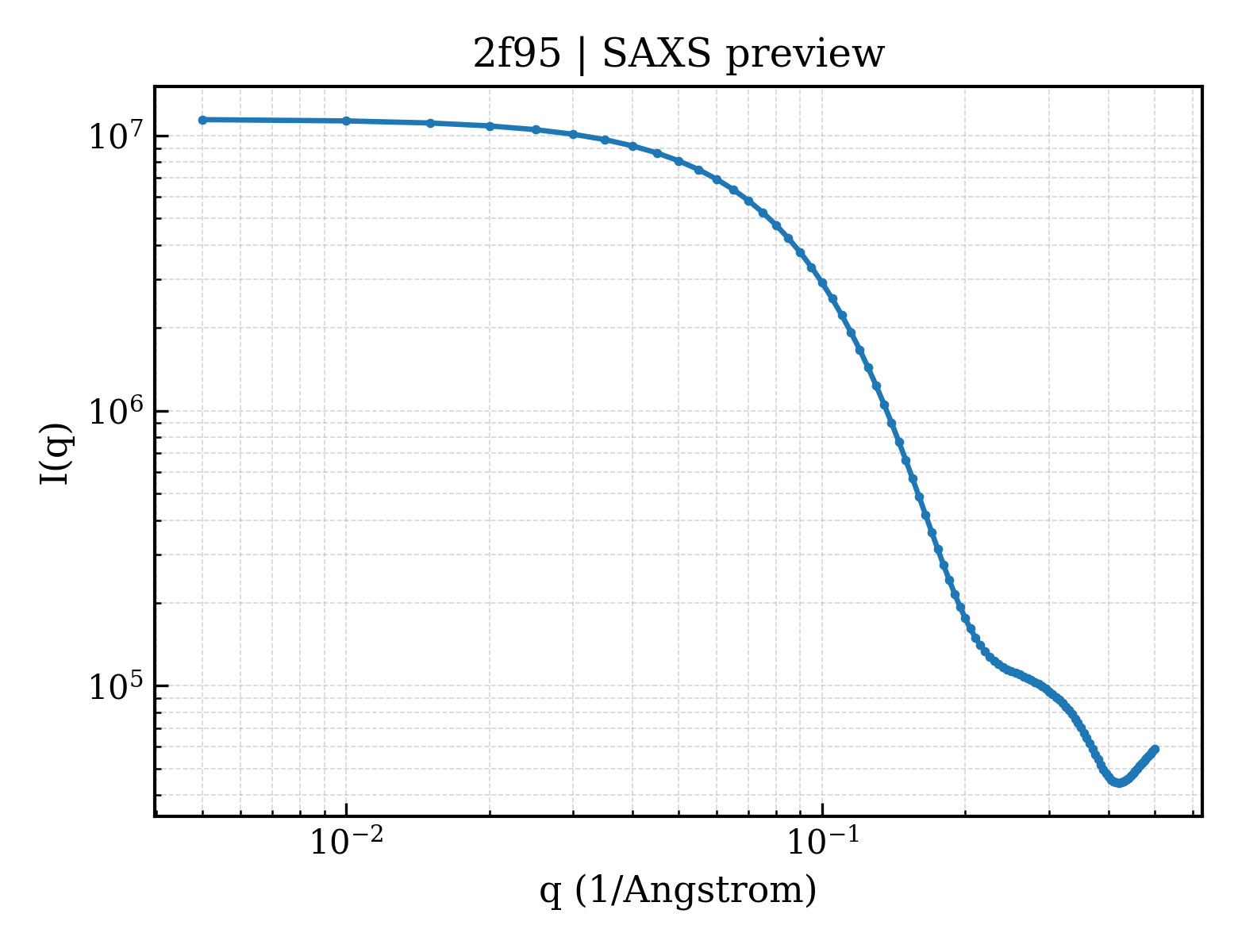

SAXS 散射曲线 SAXS Profile
P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 2f95 |
| 沉积日期 deposition_date | 2005-12-05 |
| 结构标题 title | M intermediate structure of sensory rhodopsin II/transducer complex in combination with the ground state structure |
| 关键词 keywords | MEMBRANE PROTEIN COMPLEX, SIGNAL TRANSDUCTION, PHOTOCYCLE STATE, MEMBRANE PROTEIN; MEMBRANE PROTEIN |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 20.45 Å |
| 回转半径 Rg (电子) rg_electron | 18.94 Å |
| 零角强度 I(0) i0 | 11451700.00 |
| 分子量 molecular_weight | 29098.0 kDa |
| 排除体积 excluded_volume | 38112 ų |
| 包络体积 envelope_volume | 41564 ų |
| 水化壳体积 shell_volume | 18667 ų |
| 包络直径 envelope_diameter | 70.2 Å |
| 壳层 Rg shell_rg | 25.14 Å |
| 包络 Rg envelope_rg | 19.35 Å |
| 形状 Rg shape_rg | 18.93 Å |
| 总 Rg total_rg | 20.04 Å |
| 总原子数 total_atoms | 2060 |
| 残基数 n_residues | 273 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 68.3 Å |
| Rg (实空间) rg_real | 20.47 Å |
| Rg 误差 (实空间) rg_real_error | 0.48 Å |
| I(0) (实空间) i0_real | 1.1450e+07 |
| I(0) 误差 (实空间) i0_real_error | 1.5830e+05 |
| Rg (倒空间) rg_reciprocal | 20.46 Å |
| I(0) (倒空间) i0_reciprocal | 11450000.0000 |
| 解质量估计 total_estimate | 0.7998 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 3 |
| 主峰位置 r_peak_primary | 25.4 Å |
| 偏度 Skewness skewness | 0.411 |
| 峰度 Kurtosis kurtosis | -0.130 |
| 角度范围 angular_range | — – 0.3900 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 1616000.0000 |
| 实空间数据点数 n_real_points | 71 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.802; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.000 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (5)
6. 折叠分类 (SCOP + CATH) 4 domains
SCOP 2.08 (2 domains)
| 结构域编号 domain_id | d2f95a_ |
| 类 Class class | f — Membrane and cell surface proteins and peptides |
| 折叠类型 Fold fold | f.13 — Class A G protein-coupled receptor (GPCR)-like |
| 超家族 Superfamily superfamily | f.13.1 — Class A G protein-coupled receptor (GPCR)-like |
| 家族 Family family | f.13.1.1 — Bacteriorhodopsin-like |
| 结构域编号 domain_id | d2f95b1 |
| 类 Class class | f — Membrane and cell surface proteins and peptides |
| 折叠类型 Fold fold | f.17 — Transmembrane helix hairpin |
| 超家族 Superfamily superfamily | f.17.4 — Htr2 transmembrane domain-like |
| 家族 Family family | f.17.4.1 — Htr2 transmembrane domain-like |
CATH v4.4 (2 domains)
| 结构域编号 domain_id | 2f95A00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 1070 — Rhopdopsin 7-helix transmembrane proteins |
| 同源超家族 H-superfamily homologous superfamily | 10 — Rhodopsin 7-helix transmembrane proteins |
| 结构域编号 domain_id | 2f95B00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 287 — Helix Hairpins |
| 同源超家族 H-superfamily homologous superfamily | 470 — Helix hairpin bin |
