1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2fel
沉积日期 deposition_date	2005-12-16
结构标题 title	3-carboxy-cis,cis-muconate lactonizing enzyme from Agrobacterium radiobacter S2
关键词 keywords	biodegradation, sulphonic acids, 3-sulphomuconate, cycloisomerase, Agrobacterium radiobacter S2, ISOMERASE; ISOMERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	52.75 Å
回转半径 Rg (电子) rg_electron	52.18 Å
零角强度 I(0) i0	2714610000.00
分子量 molecular_weight	433240.0 kDa
排除体积 excluded_volume	541010 Å³
包络体积 envelope_volume	698040 Å³
水化壳体积 shell_volume	107850 Å³
包络直径 envelope_diameter	185.7 Å
壳层 Rg shell_rg	59.03 Å
包络 Rg envelope_rg	51.23 Å
形状 Rg shape_rg	52.19 Å
总 Rg total_rg	52.33 Å
总原子数 total_atoms	30455
残基数 n_residues	4053
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	174.6 Å
Rg (实空间) rg_real	52.61 Å
Rg 误差 (实空间) rg_real_error	1.33 Å
I(0) (实空间) i0_real	2.7150e+09
I(0) 误差 (实空间) i0_real_error	5.2590e+07
Rg (倒空间) rg_reciprocal	52.86 Å
I(0) (倒空间) i0_reciprocal	2716000000.0000
解质量估计 total_estimate	0.8876
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	69.8 Å
偏度 Skewness skewness	0.171
峰度 Kurtosis kurtosis	-0.533
角度范围 angular_range	— – 0.1500 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	407300000.0000
实空间数据点数 n_real_points	31
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.890; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.982; Smooth: 0.883

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	3-carboxy-cis,cis-muconate lactonizing enzyme
分子量 formula_weight	38387.4 kDa
来源方法 src_method	man
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,D,C,E,F,G,H,I,J,L,K
原子数 atom_count	31917

MSLSPFEHPFLSGLFGDSEIIELFSAKADIDAMIRFETALAQAEAEASIFADDEAEAIVSGLSEFAADMSALRHGVAKDGVVVPELIRQMRAAVAGQAADKVHFGATSQDVIDTSLMLRLKMAAEIIATRLGHLIDTLGDLASRDGHKPLTGYTRMQAAIGITVADRAAGWIAPLERHLLRLETFAQNGFALQFGGAAGTLEKLGDNAGAVRADLAKRLGLADRPQWHNQRDGIAEFANLLSLVTGTLGKFGQDIALMAEIGSEIRLSGGGGSSAMPHKQNPVNAETLVTLARFNAVQISALHQSLVQEQERSGAGWMLEWLTLPQMVTATGTSLLVAERLAAQIDRLGADESHHHHHH

来源 Source

来源生物 organism	Agrobacterium tumefaciens
NCBI 分类编号 ncbi_taxonomy_id	358
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	CHLORIDE ION
分子量 formula_weight	35.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	11

Entity 3 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	12

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1252

▼

6. 折叠分类 (SCOP + CATH) 12 domains

CATH v4.4 (12 domains)

结构域编号 domain_id	2felA00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	200 — Fumarase C; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

结构域编号 domain_id	2felB00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	200 — Fumarase C; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

结构域编号 domain_id	2felC00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	200 — Fumarase C; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

结构域编号 domain_id	2felD00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	200 — Fumarase C; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

结构域编号 domain_id	2felE00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	200 — Fumarase C; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

结构域编号 domain_id	2felF00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	200 — Fumarase C; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

结构域编号 domain_id	2felG00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	200 — Fumarase C; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

结构域编号 domain_id	2felH00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	200 — Fumarase C; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

结构域编号 domain_id	2felI00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	200 — Fumarase C; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

结构域编号 domain_id	2felJ00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	200 — Fumarase C; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

结构域编号 domain_id	2felK00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	200 — Fumarase C; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

结构域编号 domain_id	2felL00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	200 — Fumarase C; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	90.860 Å
晶胞边长 b length_b	208.510 Å
晶胞边长 c length_c	123.930 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	108.35 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	24

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.200 Å
最低分辨率 resolution_low	19.960 Å
R 因子 r_factor	0.1903
R_work r_work	0.1880
R_free r_free	0.2357

fit	/app/data/saxs_computation/fe/2fel/2fel.fit
pddf	/app/data/pr_computation/fe/2fel/2fel.pr.out
profile	/app/data/saxs_computation/fe/2fel/2fel.dat

3-carboxy-cis,cis-muconate lactonizing enzyme from Agrobacterium radiobacter S2

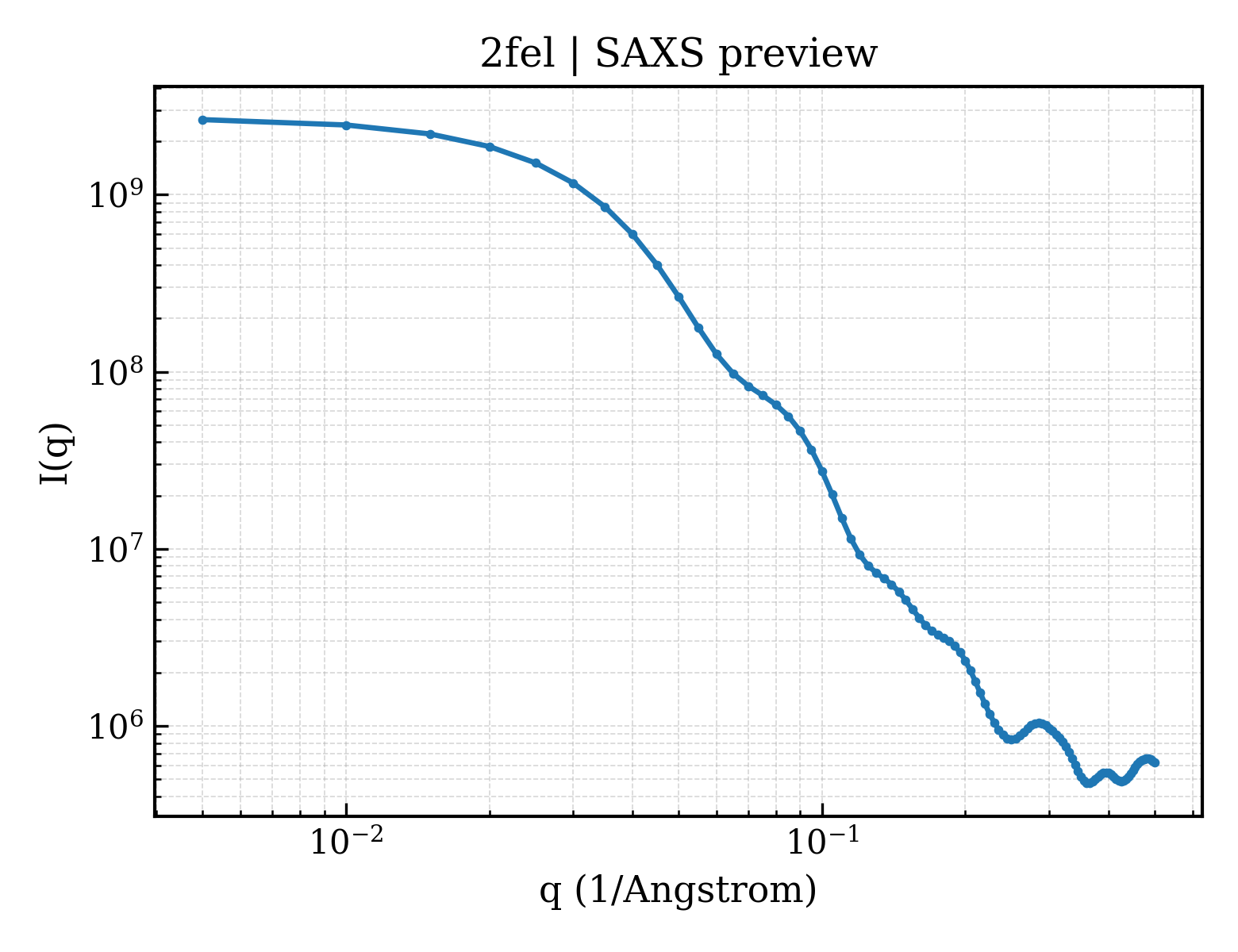

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution
