2fen

3-carboxy-cis,cis-muconate lactonizing enzyme from Agrobacterium radiobacter S2

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

3-carboxy-cis,cis-muconate lactonizing enzyme

Agrobacterium tumefaciens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	CHLORIDE ION × 3 SULFATE ION × 2 water × 4	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 4	SULFATE ION × 2 water × 4	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 4	CHLORIDE ION × 2 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q2HNZ1_9RHIZ
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–353； UniProt 1–353 Author chain B； PDBConstruct 1–353； UniProt 1–353 Author chain C； PDBConstruct 1–353； UniProt 1–353 Author chain D； PDBConstruct 1–353； UniProt 1–353 Author chain E； PDBConstruct 1–353； UniProt 1–353 Author chain F； PDBConstruct 1–353； UniProt 1–353 Author chain G； PDBConstruct 1–353； UniProt 1–353 Author chain H； PDBConstruct 1–353； UniProt 1–353 Author chain I； PDBConstruct 1–353； UniProt 1–353 Author chain J； PDBConstruct 1–353； UniProt 1–353 Author chain K； PDBConstruct 1–353； UniProt 1–353 Author chain L； PDBConstruct 1–353； UniProt 1–353

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2fen
Deposition date deposition_date	2005-12-16
Structure title title	3-carboxy-cis,cis-muconate lactonizing enzyme from Agrobacterium radiobacter S2
Keywords keywords	biodegradation, sulphonic acids, 3-sulphomuconate, cycloisomerase, Agrobacterium radiobacter S2, ISOMERASE; ISOMERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2fen__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

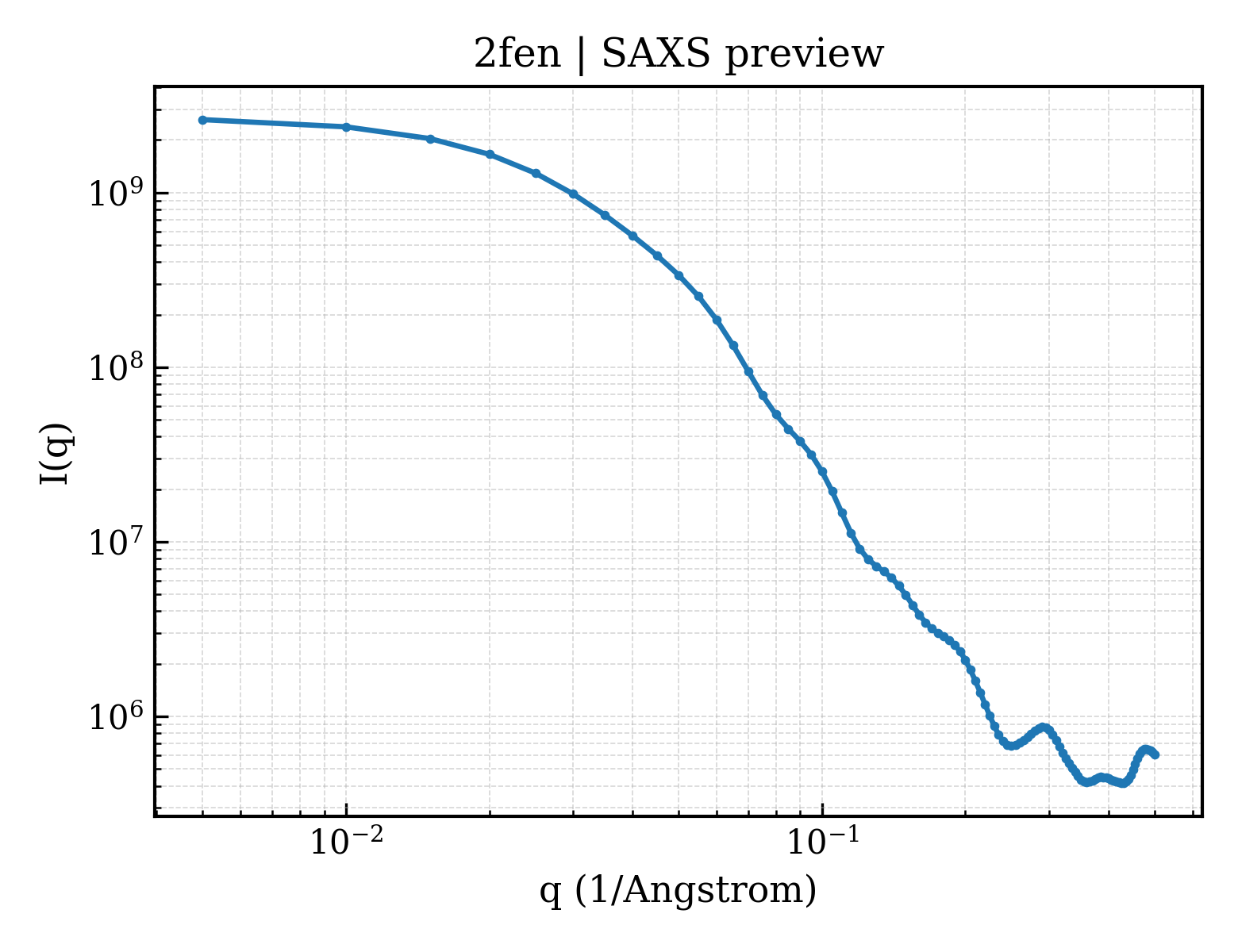

2fen__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

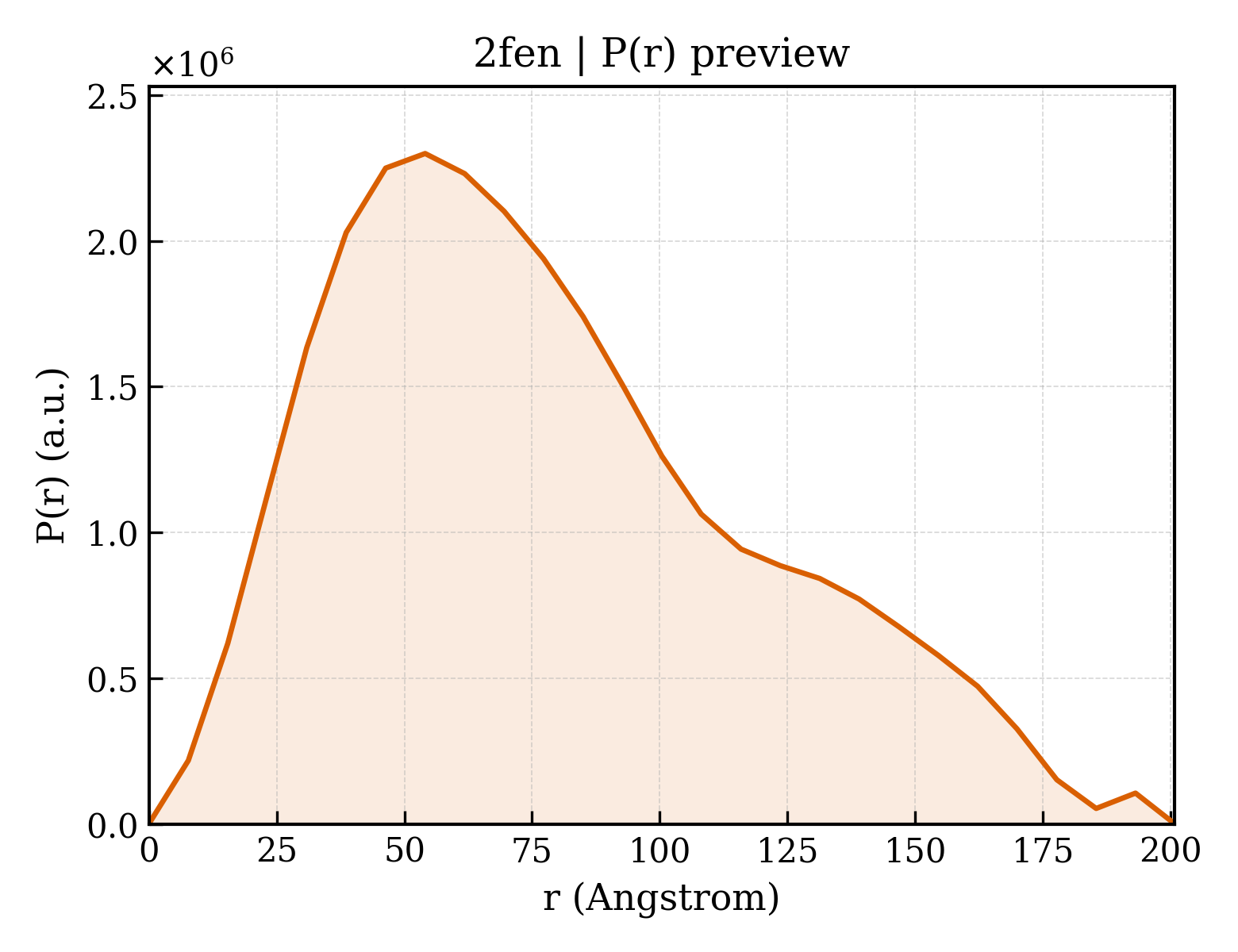

2fen__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.47 Å
Rg (electron density)	31.18 Å
Total Rg	31.80 Å
Atom count	10210
Residues	1362
Excluded volume	181350 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2fen__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2fen__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`2fen__assembly_3__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	3-carboxy-cis,cis-muconate lactonizing enzyme
Molecular weight formula_weight	38387.4 kDa
Source method src_method	man
Copy count entity_count	12

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,D,C,E,F,H,G,I,J,L,K
Atom count atom_count	31433

MSLSPFEHPFLSGLFGDSEIIELFSAKADIDAMIRFETALAQAEAEASIFADDEAEAIVSGLSEFAADMSALRHGVAKDGVVVPELIRQMRAAVAGQAADKVHFGATSQDVIDTSLMLRLKMAAEIIATRLGHLIDTLGDLASRDGHKPLTGYTRMQAAIGITVADRAAGWIAPLERHLLRLETFAQNGFALQFGGAAGTLEKLGDNAGAVRADLAKRLGLADRPQWHNQRDGIAEFANLLSLVTGTLGKFGQDIALMAEIGSEIRLSGGGGSSAMPHKQNPVNAETLVTLARFNAVQISALHQSLVQEQERSGAGWMLEWLTLPQMVTATGTSLLVAERLAAQIDRLGADESHHHHHH

Source Source

Source organism organism	Agrobacterium tumefaciens
NCBI taxonomy ID ncbi_taxonomy_id	358
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	825

▼

6. Fold Classification (SCOP + CATH) 12 domains

CATH v4.4 (12 domains)

Domain ID domain_id	2fenA00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	200 — Fumarase C; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

Domain ID domain_id	2fenB00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	200 — Fumarase C; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

Domain ID domain_id	2fenC00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	200 — Fumarase C; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

Domain ID domain_id	2fenD00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	200 — Fumarase C; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

Domain ID domain_id	2fenE00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	200 — Fumarase C; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

Domain ID domain_id	2fenF00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	200 — Fumarase C; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

Domain ID domain_id	2fenG00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	200 — Fumarase C; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

Domain ID domain_id	2fenH00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	200 — Fumarase C; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

Domain ID domain_id	2fenI00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	200 — Fumarase C; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

Domain ID domain_id	2fenJ00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	200 — Fumarase C; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

Domain ID domain_id	2fenK00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	200 — Fumarase C; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

Domain ID domain_id	2fenL00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	200 — Fumarase C; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

▶

Unit-cell length a length_a	94.030 Å
Unit-cell length b length_b	205.320 Å
Unit-cell length c length_c	235.740 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	48

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	19.990 Å
R factor r_factor	0.2031
R_work r_work	0.2000
R_free r_free	0.2620
