2fgh

ATP bound gelsolin

Method: X-RAY DIFFRACTION Dmax: 170.8 Å Quality: REASONABLE
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

gelsolin

OrganismNot specified

UniProt Q28372

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain A； UniProt 1–730 Chain B； UniProt 1–730 Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 8；crystals were grown from drops containing a 1:1 ratio of 34% saturated ammonium sulfate solution, 100mM Tris-HCL reservoir solution, pH 8.0, VAPOR DIFFUSION Resolution 2.80 Å R-free 0.265
2 Protein homooligomer Homooligomer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count Chain A； UniProt 1–730 Chain B； UniProt 1–730 Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 8 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 8；crystals were grown from drops containing a 1:1 ratio of 34% saturated ammonium sulfate solution, 100mM Tris-HCL reservoir solution, pH 8.0, VAPOR DIFFUSION Resolution 2.80 Å R-free 0.265

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 2FGH Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1D0N THE CRYSTAL STRUCTURE OF CALCIUM-FREE EQUINE PLASMA GELSOLIN. Deposited 1999-09-13 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 2–730（729 aa）
Chain B 2–730（729 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291 K；ammonium sulfate, Tris-HCl, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 18K
Resolution 2.50 Å R-free 0.238
1D0N THE CRYSTAL STRUCTURE OF CALCIUM-FREE EQUINE PLASMA GELSOLIN. Deposited 1999-09-13 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric
Chain A 2–730（729 aa）
Chain B 2–730（729 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291 K；ammonium sulfate, Tris-HCl, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 18K
Resolution 2.50 Å R-free 0.238
1RGI Crystal structure of gelsolin domains G1-G3 bound to actin Deposited 2003-11-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain G 1–346（346 aa） Fragment：domains G1-G3
Not recorded CA CALCIUM ION × 4 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；277 K；2% PEG 8000, 100 mM Sodium acetate, 1 mM CaCl2, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.00 Å R-free 0.258

2 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name GELS_HORSE
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 2–731； UniProt 1–730 Author chain B； PDBConstruct 2–731； UniProt 1–730

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 2fgh

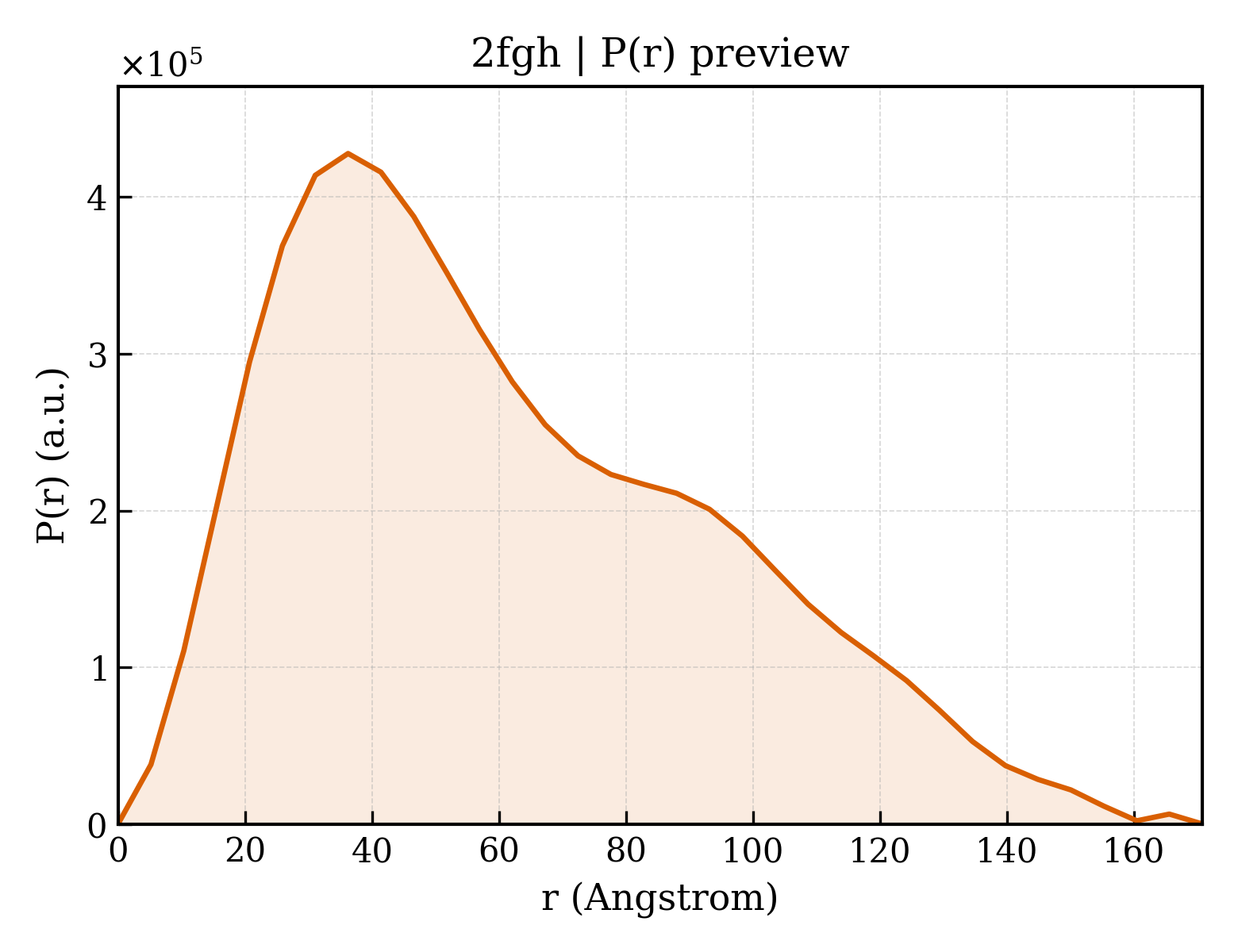

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 2fgh
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id2fgh
Deposition date deposition_date2005-12-22
Structure title titleATP bound gelsolin
Keywords keywordsgelsolin; ATP, CONTRACTILE PROTEIN, STRUCTURAL PROTEIN; CONTRACTILE PROTEIN, STRUCTURAL PROTEIN
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier48.07 Å
Radius of gyration Rg (electron density) rg_electron48.89 Å
Forward intensity I(0) i0389569000.00
Molecular weight molecular_weight160520.0 kDa
Excluded volume excluded_volume199850 ų
Envelope volume envelope_volume274520 ų
Hydration-shell volume shell_volume51566 ų
Envelope diameter envelope_diameter178.3 Å
Shell Rg shell_rg46.46 Å
Envelope Rg envelope_rg48.99 Å
Shape Rg shape_rg48.88 Å
Total Rg total_rg48.83 Å
Total atoms total_atoms11328
Residues n_residues1442
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax170.8 Å
Rg (real space) rg_real49.00 Å
Rg uncertainty (real space) rg_real_error2.31 Å
I(0) (real space) i0_real3.8960e+08
I(0) uncertainty (real space) i0_real_error7.6790e+06
Rg (reciprocal space) rg_reciprocal48.08 Å
I(0) (reciprocal space) i0_reciprocal389100000.0000
Solution quality estimate total_estimate0.7198
Solution quality rating solution_quality REASONABLE a REASONABLE solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary36.2 Å
Skewness Skewness skewness0.608
Kurtosis Kurtosis kurtosis-0.405
Angular range angular_range— – 0.1650 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha43880000.0000
Real-space data points n_real_points34
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.449; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.498; Smooth: 0.509
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

▼

7. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

Domain ID domain_idd2fgha1
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.109 — Gelsolin-like
Superfamily Superfamily superfamilyd.109.1 — Actin depolymerizing proteins
Family Family familyd.109.1.0 — automated matches
Domain ID domain_idd2fgha2
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.109 — Gelsolin-like
Superfamily Superfamily superfamilyd.109.1 — Actin depolymerizing proteins
Family Family familyd.109.1.0 — automated matches
Domain ID domain_idd2fgha3
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.109 — Gelsolin-like
Superfamily Superfamily superfamilyd.109.1 — Actin depolymerizing proteins
Family Family familyd.109.1.0 — automated matches
Domain ID domain_idd2fgha4
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.109 — Gelsolin-like
Superfamily Superfamily superfamilyd.109.1 — Actin depolymerizing proteins
Family Family familyd.109.1.0 — automated matches
Domain ID domain_idd2fgha5
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.109 — Gelsolin-like
Superfamily Superfamily superfamilyd.109.1 — Actin depolymerizing proteins
Family Family familyd.109.1.0 — automated matches
Domain ID domain_idd2fgha6
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.109 — Gelsolin-like
Superfamily Superfamily superfamilyd.109.1 — Actin depolymerizing proteins
Family Family familyd.109.1.0 — automated matches
Domain ID domain_idd2fghb1
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.109 — Gelsolin-like
Superfamily Superfamily superfamilyd.109.1 — Actin depolymerizing proteins
Family Family familyd.109.1.0 — automated matches
Domain ID domain_idd2fghb2
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.109 — Gelsolin-like
Superfamily Superfamily superfamilyd.109.1 — Actin depolymerizing proteins
Family Family familyd.109.1.0 — automated matches
Domain ID domain_idd2fghb3
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.109 — Gelsolin-like
Superfamily Superfamily superfamilyd.109.1 — Actin depolymerizing proteins
Family Family familyd.109.1.0 — automated matches
Domain ID domain_idd2fghb4
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.109 — Gelsolin-like
Superfamily Superfamily superfamilyd.109.1 — Actin depolymerizing proteins
Family Family familyd.109.1.0 — automated matches
Domain ID domain_idd2fghb5
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.109 — Gelsolin-like
Superfamily Superfamily superfamilyd.109.1 — Actin depolymerizing proteins
Family Family familyd.109.1.0 — automated matches
Domain ID domain_idd2fghb6
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.109 — Gelsolin-like
Superfamily Superfamily superfamilyd.109.1 — Actin depolymerizing proteins
Family Family familyd.109.1.0 — automated matches

CATH v4.4 (12 domains)

Domain ID domain_id2fghA01
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology20 — Severin
Homologous superfamily homologous superfamily10 — Severin
Domain ID domain_id2fghA02
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology20 — Severin
Homologous superfamily homologous superfamily10 — Severin
Domain ID domain_id2fghA03
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology20 — Severin
Homologous superfamily homologous superfamily10 — Severin
Domain ID domain_id2fghA04
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology20 — Severin
Homologous superfamily homologous superfamily10 — Severin
Domain ID domain_id2fghA05
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology20 — Severin
Homologous superfamily homologous superfamily10 — Severin
Domain ID domain_id2fghA06
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology20 — Severin
Homologous superfamily homologous superfamily10 — Severin
Domain ID domain_id2fghB01
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology20 — Severin
Homologous superfamily homologous superfamily10 — Severin
Domain ID domain_id2fghB02
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology20 — Severin
Homologous superfamily homologous superfamily10 — Severin
Domain ID domain_id2fghB03
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology20 — Severin
Homologous superfamily homologous superfamily10 — Severin
Domain ID domain_id2fghB04
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology20 — Severin
Homologous superfamily homologous superfamily10 — Severin
Domain ID domain_id2fghB05
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology20 — Severin
Homologous superfamily homologous superfamily10 — Severin
Domain ID domain_id2fghB06
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology20 — Severin
Homologous superfamily homologous superfamily10 — Severin
▶

8. Citations (1)

▶

9. Files and Curves (10)
