1d0n

THE CRYSTAL STRUCTURE OF CALCIUM-FREE EQUINE PLASMA GELSOLIN.

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HORSE PLASMA GELSOLIN

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 8	water × 8	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GELS_HORSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–729； UniProt 2–730 Author chain B； PDBConstruct 1–729； UniProt 2–730

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1d0n
Deposition date deposition_date	1999-09-13
Structure title title	THE CRYSTAL STRUCTURE OF CALCIUM-FREE EQUINE PLASMA GELSOLIN.
Keywords keywords	MIXED ALPHA-BETA STRUCTURE, ACTIN-BINDING PROTEIN, PROTEIN DOMAIN PACKING, CONTRACTILE PROTEIN; CONTRACTILE PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1d0n__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1d0n__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

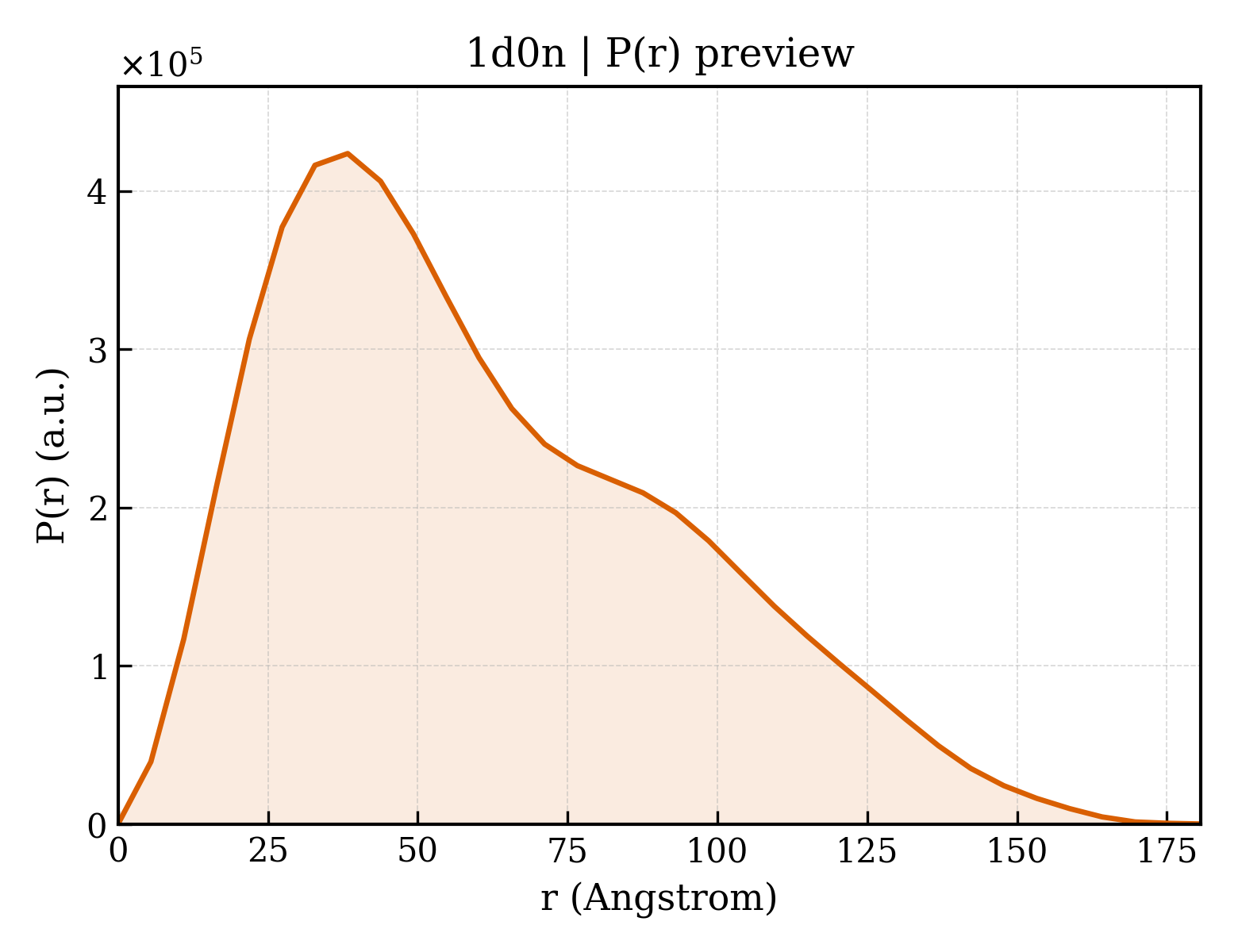

1d0n__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	48.29 Å
Rg (electron density)	49.20 Å
Total Rg	49.11 Å
Atom count	11382
Residues	1458
Excluded volume	201050 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1d0n__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1d0n__assembly_2__model_1`	octameric （8）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

Domain ID domain_id	d1d0na1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.109 — Gelsolin-like
Superfamily Superfamily superfamily	d.109.1 — Actin depolymerizing proteins
Family Family family	d.109.1.1 — Gelsolin-like

Domain ID domain_id	d1d0na2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.109 — Gelsolin-like
Superfamily Superfamily superfamily	d.109.1 — Actin depolymerizing proteins
Family Family family	d.109.1.1 — Gelsolin-like

Domain ID domain_id	d1d0na3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.109 — Gelsolin-like
Superfamily Superfamily superfamily	d.109.1 — Actin depolymerizing proteins
Family Family family	d.109.1.1 — Gelsolin-like

Domain ID domain_id	d1d0na4
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.109 — Gelsolin-like
Superfamily Superfamily superfamily	d.109.1 — Actin depolymerizing proteins
Family Family family	d.109.1.1 — Gelsolin-like

Domain ID domain_id	d1d0na5
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.109 — Gelsolin-like
Superfamily Superfamily superfamily	d.109.1 — Actin depolymerizing proteins
Family Family family	d.109.1.1 — Gelsolin-like

Domain ID domain_id	d1d0na6
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.109 — Gelsolin-like
Superfamily Superfamily superfamily	d.109.1 — Actin depolymerizing proteins
Family Family family	d.109.1.1 — Gelsolin-like

Domain ID domain_id	d1d0nb1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.109 — Gelsolin-like
Superfamily Superfamily superfamily	d.109.1 — Actin depolymerizing proteins
Family Family family	d.109.1.1 — Gelsolin-like

Domain ID domain_id	d1d0nb2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.109 — Gelsolin-like
Superfamily Superfamily superfamily	d.109.1 — Actin depolymerizing proteins
Family Family family	d.109.1.1 — Gelsolin-like

Domain ID domain_id	d1d0nb3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.109 — Gelsolin-like
Superfamily Superfamily superfamily	d.109.1 — Actin depolymerizing proteins
Family Family family	d.109.1.1 — Gelsolin-like

Domain ID domain_id	d1d0nb4
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.109 — Gelsolin-like
Superfamily Superfamily superfamily	d.109.1 — Actin depolymerizing proteins
Family Family family	d.109.1.1 — Gelsolin-like

Domain ID domain_id	d1d0nb5
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.109 — Gelsolin-like
Superfamily Superfamily superfamily	d.109.1 — Actin depolymerizing proteins
Family Family family	d.109.1.1 — Gelsolin-like

Domain ID domain_id	d1d0nb6
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.109 — Gelsolin-like
Superfamily Superfamily superfamily	d.109.1 — Actin depolymerizing proteins
Family Family family	d.109.1.1 — Gelsolin-like

CATH v4.4 (12 domains)

Domain ID domain_id	1d0nA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	20 — Severin
Homologous superfamily homologous superfamily	10 — Severin

Domain ID domain_id	1d0nA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	20 — Severin
Homologous superfamily homologous superfamily	10 — Severin

Domain ID domain_id	1d0nA03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	20 — Severin
Homologous superfamily homologous superfamily	10 — Severin

Domain ID domain_id	1d0nA04
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	20 — Severin
Homologous superfamily homologous superfamily	10 — Severin

Domain ID domain_id	1d0nA05
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	20 — Severin
Homologous superfamily homologous superfamily	10 — Severin

Domain ID domain_id	1d0nA06
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	20 — Severin
Homologous superfamily homologous superfamily	10 — Severin

Domain ID domain_id	1d0nB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	20 — Severin
Homologous superfamily homologous superfamily	10 — Severin

Domain ID domain_id	1d0nB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	20 — Severin
Homologous superfamily homologous superfamily	10 — Severin

Domain ID domain_id	1d0nB03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	20 — Severin
Homologous superfamily homologous superfamily	10 — Severin

Domain ID domain_id	1d0nB04
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	20 — Severin
Homologous superfamily homologous superfamily	10 — Severin

Domain ID domain_id	1d0nB05
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	20 — Severin
Homologous superfamily homologous superfamily	10 — Severin

Domain ID domain_id	1d0nB06
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	20 — Severin
Homologous superfamily homologous superfamily	10 — Severin

▶

Unit-cell length a length_a	169.400 Å
Unit-cell length b length_b	169.400 Å
Unit-cell length c length_c	154.200 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 4 21 2
Space-group number int_tables_number	90
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2116
R_work r_work	0.2049
R_free r_free	0.2376

Description description	HORSE PLASMA GELSOLIN
Molecular weight formula_weight	80691.5 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	11666

THE CRYSTAL STRUCTURE OF CALCIUM-FREE EQUINE PLASMA GELSOLIN.

1. Protein Identity and Related Structures Protein Identity & Related Structures

HORSE PLASMA GELSOLIN

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1d0n__assembly_1__model_1

1d0n__assembly_1__model_1 | I(q)

1d0n__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

CATH v4.4 (12 domains)

7. Citations (1)

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	284
