SAXSdb — 1rgi

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Gelsolin

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Actin, alpha skeletal muscle × 1 （P68135） CALCIUM ION × 4 ADENOSINE-5'-TRIPHOSPHATE × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GELS_HORSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain G； PDBConstruct 1–346； UniProt 1–346

Actin, alpha skeletal muscle

OrganismNot specified

UniProt P68135

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Gelsolin × 1 （Q28372） CALCIUM ION × 4 ADENOSINE-5'-TRIPHOSPHATE × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ACTS_RABIT
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 1–377； UniProt 1–377

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1rgi
Deposition date deposition_date	2003-11-12
Structure title title	Crystal structure of gelsolin domains G1-G3 bound to actin
Keywords keywords	Domain movement, CONTRACTILE PROTEIN; CONTRACTILE PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1rgi__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1rgi__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

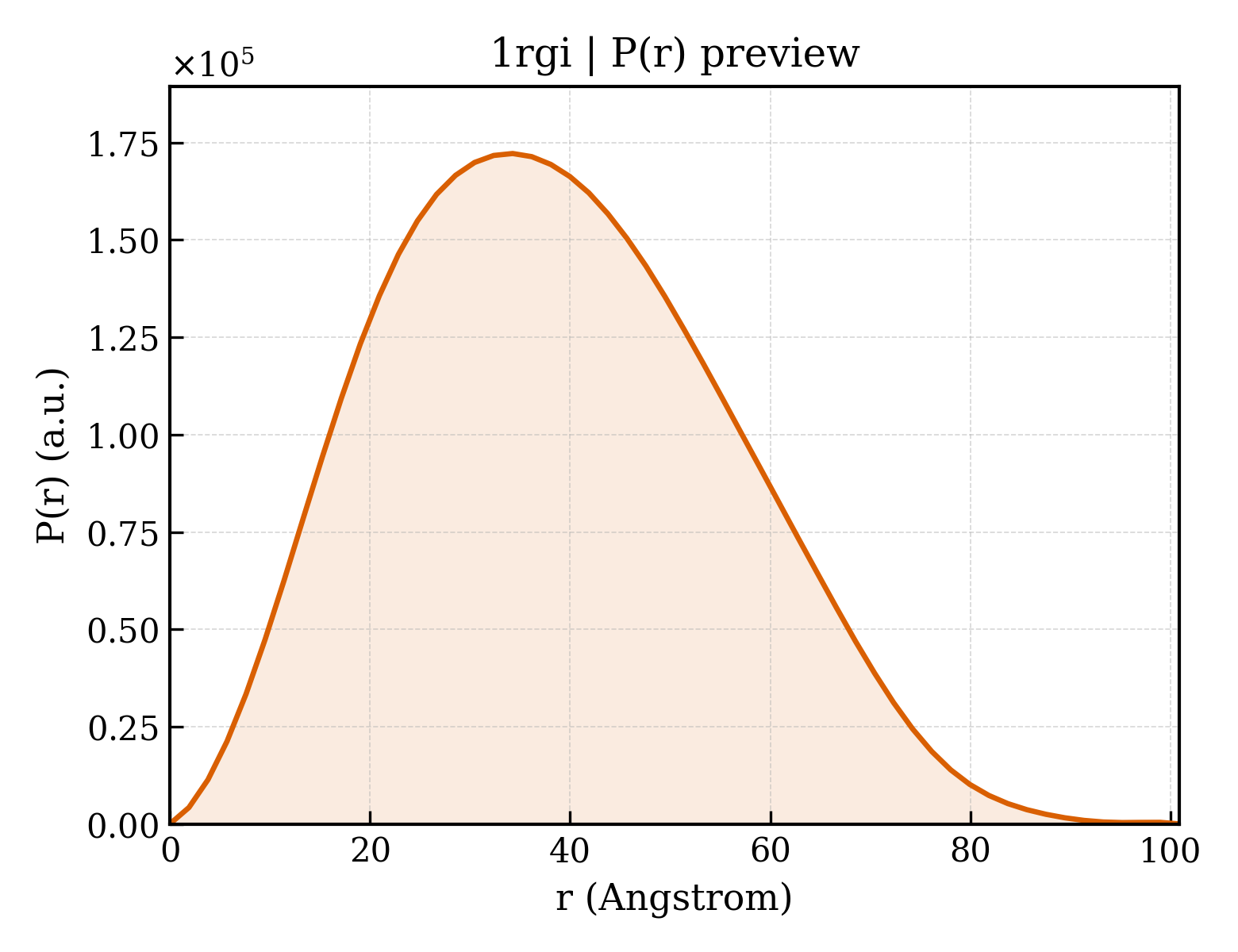

1rgi__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	29.76 Å
Rg (electron density)	29.10 Å
Total Rg	29.78 Å
Atom count	5515
Residues	695
Excluded volume	98136 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1rgi__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Gelsolin
Molecular weight formula_weight	38839.0 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G
Atom count atom_count	5541

VVEHPEFLKAGKEPGLQIWRVEKFDLVPVPPNLYGDFFTGDAYVILKTVQLRNGILQYDLHYWLGNECSQDESGAAAIFTVQLDDYLNGRAVQHREVQGFESATFLGYFKSGLKYKKGGVASGFKHVVPNEVVVQRLLQVKGRRVVRATEVPVSWESFNNGDCFILDLGNNIYQWCGSKSNRFERLKATQVSKGIRDNERSGRAQVSVFEEGAEPEAMLQVLGPKPTLPEATEDTVKEDAANRKLAKLYKVSNGAGPMVVSLVADENPFAQGALRSEDCFILDHGKDGKIFVWKGKQANMEERKAALKTASDFISKMDYPKQTQVSVLPEGGETPLFRQFFKNWRD

Entity 2 Entity 2 polymer

Description description	Actin, alpha skeletal muscle
Molecular weight formula_weight	42097.0 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

MCDEDETTALVCDNGSGLVKAGFAGDDAPRAVFPSIVGRPRHQGVMVGMGQKDSYVGDEAQSKRGILTLKYPIEHGIITNWDDMEKIWHHTFYNELRVAPEEHPTLLTEAPLNPKANREKMTQIMFETFNVPAMYVAIQAVLSLYASGRTTGIVLDSGDGVTHNVPIYEGYALPHAIMRLDLAGRDLTDYLMKILTERGYSFVTTAEREIVRDIKEKLCYVALDFENEMATAASSSSLEKSYELPDGQVITIGNERFRCPETLFQPSFIGMESAGIHETTYNSIMKCDIDIRKDLYANNVMSGGTTMYPGIADRMQKEITALAPSTMKIKIIAPPERKYSVWIGGSILASLSTFQQMWITKQEYDEAGPSIVHRKCF

Entity 3 Entity 3 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	ADENOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	26

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (5 domains)

Domain ID domain_id	d1rgia1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamily	c.55.1 — Actin-like ATPase domain
Family Family family	c.55.1.1 — Actin/HSP70

Domain ID domain_id	d1rgia2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamily	c.55.1 — Actin-like ATPase domain
Family Family family	c.55.1.1 — Actin/HSP70

Domain ID domain_id	d1rgig1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.109 — Gelsolin-like
Superfamily Superfamily superfamily	d.109.1 — Actin depolymerizing proteins
Family Family family	d.109.1.1 — Gelsolin-like

Domain ID domain_id	d1rgig2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.109 — Gelsolin-like
Superfamily Superfamily superfamily	d.109.1 — Actin depolymerizing proteins
Family Family family	d.109.1.1 — Gelsolin-like

Domain ID domain_id	d1rgig3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.109 — Gelsolin-like
Superfamily Superfamily superfamily	d.109.1 — Actin depolymerizing proteins
Family Family family	d.109.1.1 — Gelsolin-like

CATH v4.4 (7 domains)

Domain ID domain_id	1rgiA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

Domain ID domain_id	1rgiA02
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	36 — Actin; Chain A, domain 2
Homologous superfamily homologous superfamily	70 — Actin; Chain A, domain 2

Domain ID domain_id	1rgiA03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

Domain ID domain_id	1rgiA04
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	640 — Actin; Chain A, domain 4
Homologous superfamily homologous superfamily	10 — ATPase, substrate binding domain, subdomain 4

Domain ID domain_id	1rgiG01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	20 — Severin
Homologous superfamily homologous superfamily	10 — Severin

Domain ID domain_id	1rgiG02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	20 — Severin
Homologous superfamily homologous superfamily	10 — Severin

Domain ID domain_id	1rgiG03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	20 — Severin
Homologous superfamily homologous superfamily	10 — Severin

▶

Unit-cell length a length_a	145.245 Å
Unit-cell length b length_b	145.245 Å
Unit-cell length c length_c	129.948 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	3.000 Å
Low-resolution limit resolution_low	19.960 Å
R factor r_factor	0.2258
R_work r_work	0.2241
R_free r_free	0.2576

Crystal structure of gelsolin domains G1-G3 bound to actin
