2fok

STRUCTURE OF RESTRICTION ENDONUCLEASE FOKI

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

FOKI RESTRICTION ENDONUCLEASE

Planomicrobium okeanokoites

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	T2F1_FLAOK
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–579； UniProt 5–583 Author chain B； PDBConstruct 1–579； UniProt 5–583

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2fok
Deposition date deposition_date	1998-03-30
Structure title title	STRUCTURE OF RESTRICTION ENDONUCLEASE FOKI
Keywords keywords	;NUCLEIC ACID RECOGNITION, DNA-BINDING PROTEIN, TYPE IIS RESTRICTION ENDONUCLEASE, DEOXYRIBONUCLEASE, DNA HYDROLYSIS, DNA CLEAVAGE, METALLOENZYME, METAL ION CATALYSIS ;; NUCLEIC ACID RECOGNITION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2fok__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2fok__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

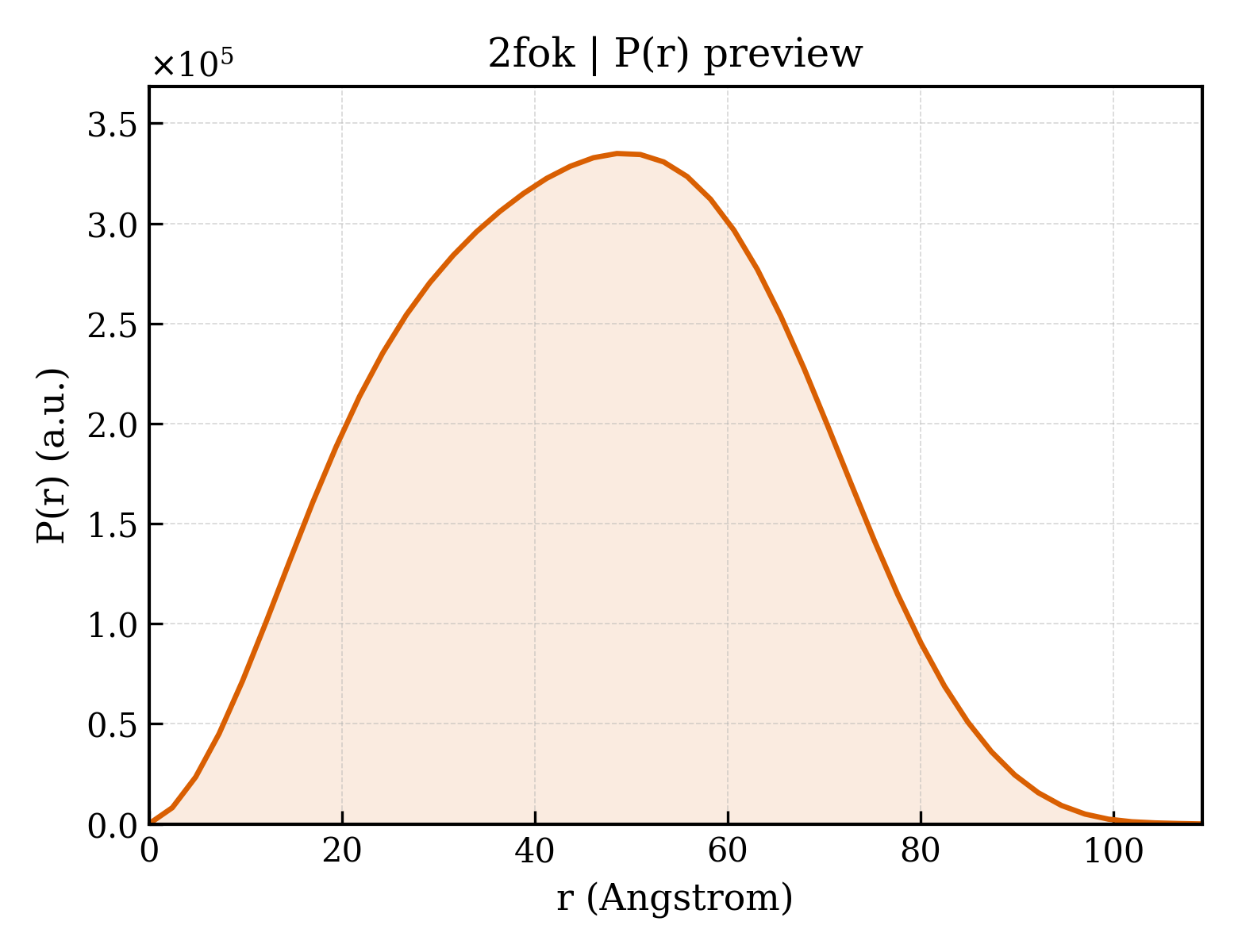

2fok__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.34 Å
Rg (electron density)	26.36 Å
Total Rg	27.21 Å
Atom count	4458
Residues	558
Excluded volume	79928 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2fok__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2fok__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	FOKI RESTRICTION ENDONUCLEASE
Molecular weight formula_weight	65833.6 kDa
EC 编号 ec_number	3.1.21.4
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	9427

MVSKIRTFGWVQNPGKFENLKRVVQVFDRNSKVHNEVKNIKIPTLVKESKIQKELVAIMNQHDLIYTYKELVGTGTSIRSEAPCDAIIQATIADQGNKKGYIDNWSSDGFLRWAHALGFIEYINKSDSFVITDVGLAYSKSADGSAIEKEILIEAISSYPPAIRILTLLEDGQHLTKFDLGKNLGFSGESGFTSLPEGILLDTLANAMPKDKGEIRNNWEGSSDKYARMIGGWLDKLGLVKQGKKEFIIPTLGKPDNKEFISHAFKITGEGLKVLRRAKGSTKFTRVPKRVYWEMLATNLTDKEYVRTRRALILEILIKAGSLKIEQIQDNLKKLGFDEVIETIENDIKGLINTGIFIEIKGRFYQLKDHILQFVIPNRLGKPDLVKSELEEKKSELRHKLKYVPHEYIELIEIARNSTQDRILEMKVMEFFMKVYGYRGKHLGGSRKPDGAIYTVGSPIDYGVIVDTKAYSGGYNLPIGQADEMQRYVEENQTRNKHINPNEWWKVYPSSVTEFKFLFVSGHFKGNYKAQLTRLNHITNCNGAVLSVEELLIGGEMIKAGTLTLEEVRRKFNNGEINF

Source Source

Source organism organism	Planomicrobium okeanokoites
NCBI taxonomy ID ncbi_taxonomy_id	244
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	516

▼

6. Fold Classification (SCOP + CATH) 14 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d2foka1
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
Family Family family	a.4.5.12 — Restriction endonuclease FokI, N-terminal (recognition) domain

Domain ID domain_id	d2foka2
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
Family Family family	a.4.5.12 — Restriction endonuclease FokI, N-terminal (recognition) domain

Domain ID domain_id	d2foka3
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
Family Family family	a.4.5.12 — Restriction endonuclease FokI, N-terminal (recognition) domain

Domain ID domain_id	d2foka4
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.52 — Restriction endonuclease-like
Superfamily Superfamily superfamily	c.52.1 — Restriction endonuclease-like
Family Family family	c.52.1.12 — Restriction endonuclease FokI, C-terminal (catalytic) domain

Domain ID domain_id	d2fokb1
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
Family Family family	a.4.5.12 — Restriction endonuclease FokI, N-terminal (recognition) domain

Domain ID domain_id	d2fokb2
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
Family Family family	a.4.5.12 — Restriction endonuclease FokI, N-terminal (recognition) domain

Domain ID domain_id	d2fokb3
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
Family Family family	a.4.5.12 — Restriction endonuclease FokI, N-terminal (recognition) domain

Domain ID domain_id	d2fokb4
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.52 — Restriction endonuclease-like
Superfamily Superfamily superfamily	c.52.1 — Restriction endonuclease-like
Family Family family	c.52.1.12 — Restriction endonuclease FokI, C-terminal (catalytic) domain

CATH v4.4 (6 domains)

Domain ID domain_id	2fokA01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	241 — FokI Restriction Endonuclease; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Foki Restriction Endonuclease, Chain A, domain 1

Domain ID domain_id	2fokA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

Domain ID domain_id	2fokA03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	91 — Restriction Endonuclease
Homologous superfamily homologous superfamily	30 —

Domain ID domain_id	2fokB01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	241 — FokI Restriction Endonuclease; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Foki Restriction Endonuclease, Chain A, domain 1

Domain ID domain_id	2fokB02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

Domain ID domain_id	2fokB03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	91 — Restriction Endonuclease
Homologous superfamily homologous superfamily	30 —

▶

Unit-cell length a length_a	54.010 Å
Unit-cell length b length_b	137.170 Å
Unit-cell length c length_c	188.870 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	6.000 Å
R factor r_factor	0.2110
R_work r_work	0.2110
R_free r_free	0.3060
