SAXSdb — 2gb0

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2gb0
沉积日期 deposition_date	2006-03-09
结构标题 title	Monomeric sarcosine oxidase: structure of a covalently flavinylated amine oxidizing enzyme
关键词 keywords	FLAVOPROTEIN OXIDASE, OXIDOREDUCTASE; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	30.75 Å
回转半径 Rg (电子) rg_electron	30.20 Å
零角强度 I(0) i0	125274000.00
分子量 molecular_weight	87858.0 kDa
排除体积 excluded_volume	109200 Å³
包络体积 envelope_volume	128620 Å³
水化壳体积 shell_volume	36527 Å³
包络直径 envelope_diameter	113.1 Å
壳层 Rg shell_rg	36.19 Å
包络 Rg envelope_rg	30.25 Å
形状 Rg shape_rg	30.15 Å
总 Rg total_rg	30.84 Å
总原子数 total_atoms	6192
残基数 n_residues	776
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	85.3 Å
Rg (实空间) rg_real	29.45 Å
Rg 误差 (实空间) rg_real_error	0.16 Å
I(0) (实空间) i0_real	1.2010e+08
I(0) 误差 (实空间) i0_real_error	1.3120e+06
Rg (倒空间) rg_reciprocal	30.85 Å
I(0) (倒空间) i0_reciprocal	125300000.0000
解质量估计 total_estimate	0.6812
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	31.2 Å
偏度 Skewness skewness	0.381
峰度 Kurtosis kurtosis	-0.428
角度范围 angular_range	— – 0.2600 Å⁻¹
当前正则化参数 α current_alpha	1.8210
最高正则化参数 α highest_alpha	45460000.0000
实空间数据点数 n_real_points	53
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.972; Stabil: 0.981; Sysdev: 0.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Monomeric sarcosine oxidase
分子量 formula_weight	43101.4 kDa
EC 编号 ec_number	1.5.3.1
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	6928

STHFDVIVVGAGSMGMAAGYQLAKQGVKTLLVDAFDPPHTNGSHHGDTRIIRHAYGEGREYVPLALRSQELWYELEKETHHKIFTKTGVLVFGPKGESAFVAETMEAAKEHSLTVDLLEGDEINKRWPGITVPENYNAIFEPNSGVLFSENCIRAYRELAEARGAKVLTHTRVEDFDISPDSVKIETANGSYTADKLIVSMGAWNSKLLSKLNLDIPLQPYRQVVGFFESDESKYSNDIDFPGFMVEVPNGIYYGFPSFGGCGLKLGYHTFGQKIDPDTINREFGVYPEDESNLRAFLEEYMPGANGELKRGAVCMYTKTLDEHFIIDLHPEHSNVVIAAGFSGHGFKFSSGVGEVLSQLALTGKTEHDISIFSINRPALKESLQKTTI

来源 Source

来源生物 organism	Bacillus sp.
NCBI 分类编号 ncbi_taxonomy_id	69000
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	PHOSPHATE ION
分子量 formula_weight	95.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 3 non-polymer

描述 description	CHLORIDE ION
分子量 formula_weight	35.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 non-polymer

描述 description	FLAVIN-ADENINE DINUCLEOTIDE
分子量 formula_weight	785.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	671

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d2gb0a1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.3 — FAD/NAD(P)-binding domain
超家族 Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
家族 Family family	c.3.1.2 — FAD-linked reductases, N-terminal domain

结构域编号 domain_id	d2gb0a2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.16 — FAD-linked reductases, C-terminal domain
超家族 Superfamily superfamily	d.16.1 — FAD-linked reductases, C-terminal domain
家族 Family family	d.16.1.3 — D-aminoacid oxidase-like

结构域编号 domain_id	d2gb0b1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.3 — FAD/NAD(P)-binding domain
超家族 Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
家族 Family family	c.3.1.2 — FAD-linked reductases, N-terminal domain

结构域编号 domain_id	d2gb0b2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.16 — FAD-linked reductases, C-terminal domain
超家族 Superfamily superfamily	d.16.1 — FAD-linked reductases, C-terminal domain
家族 Family family	d.16.1.3 — D-aminoacid oxidase-like

CATH v4.4 (4 domains)

结构域编号 domain_id	2gb0A01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	2gb0A02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	9 — D-Amino Acid Oxidase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — D-Amino Acid Oxidase, subunit A, domain 2

结构域编号 domain_id	2gb0B01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	2gb0B02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	9 — D-Amino Acid Oxidase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — D-Amino Acid Oxidase, subunit A, domain 2

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	72.562 Å
晶胞边长 b length_b	69.555 Å
晶胞边长 c length_c	74.117 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	94.26 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	1.850 Å
最低分辨率 resolution_low	42.530 Å
R 因子 r_factor	—
R_work r_work	0.1650
R_free r_free	0.1980

fit	/app/data/saxs_computation/gb/2gb0/2gb0.fit
pddf	/app/data/pr_computation/gb/2gb0/2gb0.pr.out
profile	/app/data/saxs_computation/gb/2gb0/2gb0.dat

Monomeric sarcosine oxidase: structure of a covalently flavinylated amine oxidizing enzyme

SAXS 散射曲线 SAXS Profile

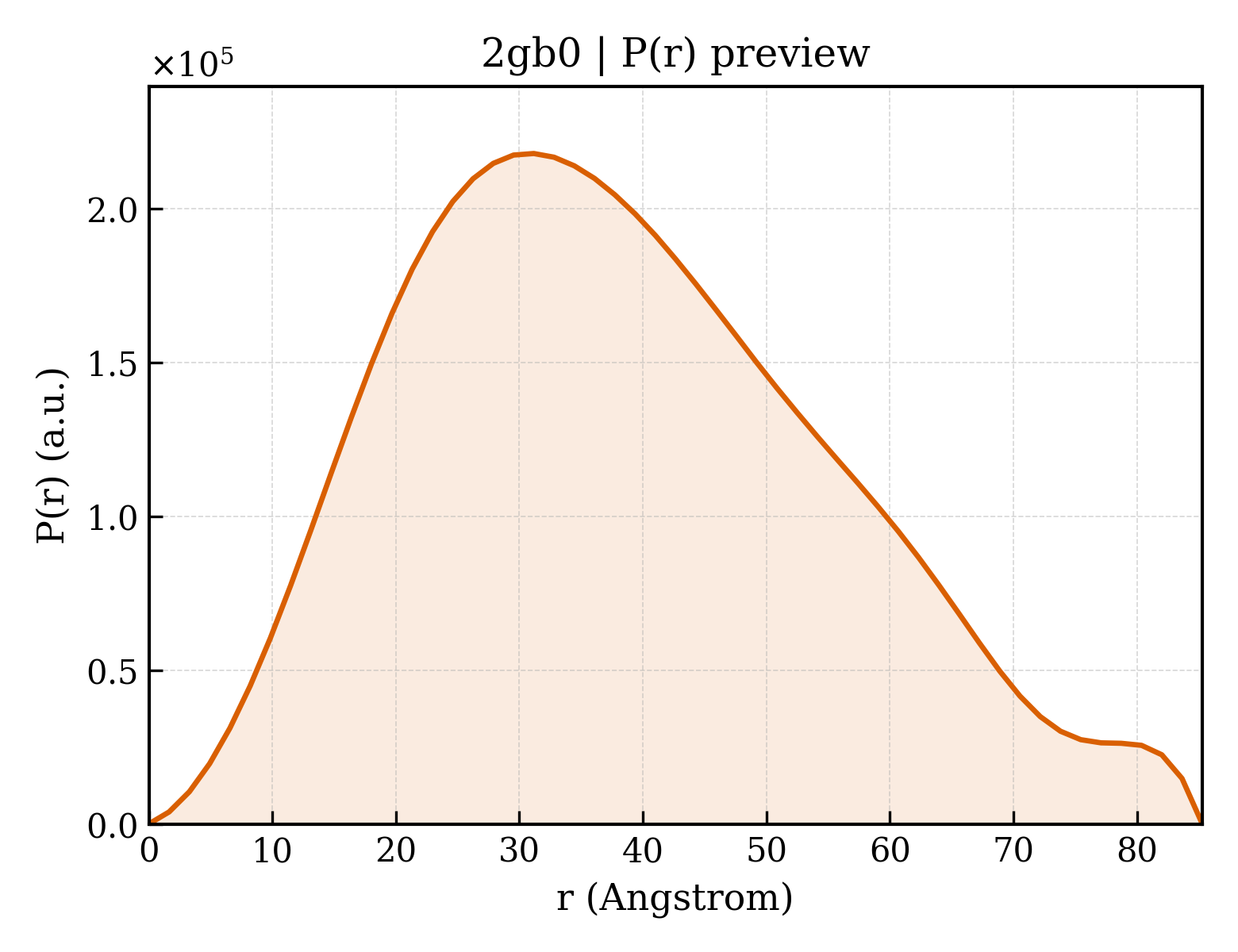

P(r) 距离分布 P(r) Distribution
