2gbw

Crystal Structure of Biphenyl 2,3-Dioxygenase from Sphingomonas yanoikuyae B1

Method: X-RAY DIFFRACTION D_max: 111.3 Å Quality: EXCELLENT

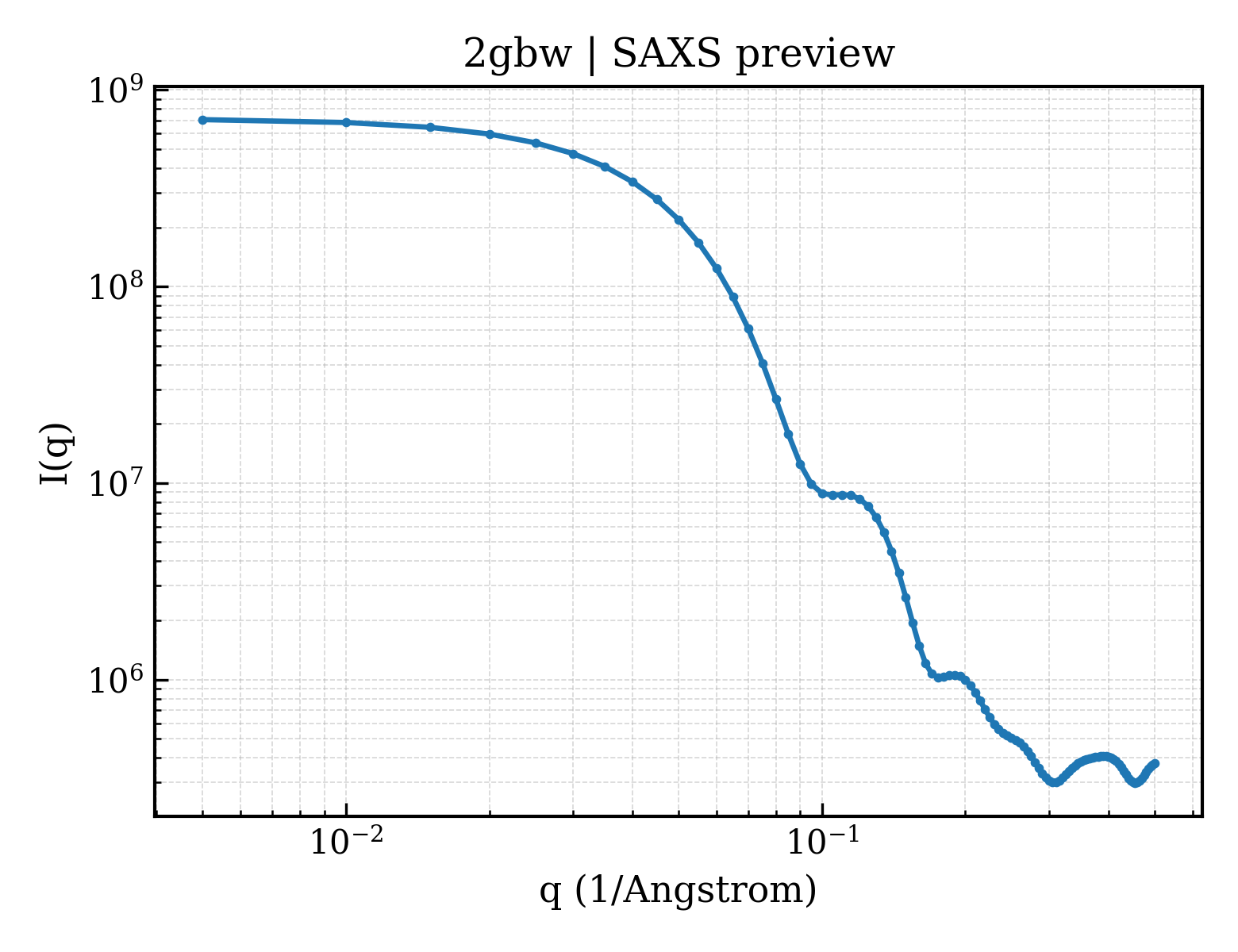

SAXS 散射曲线 SAXS Profile

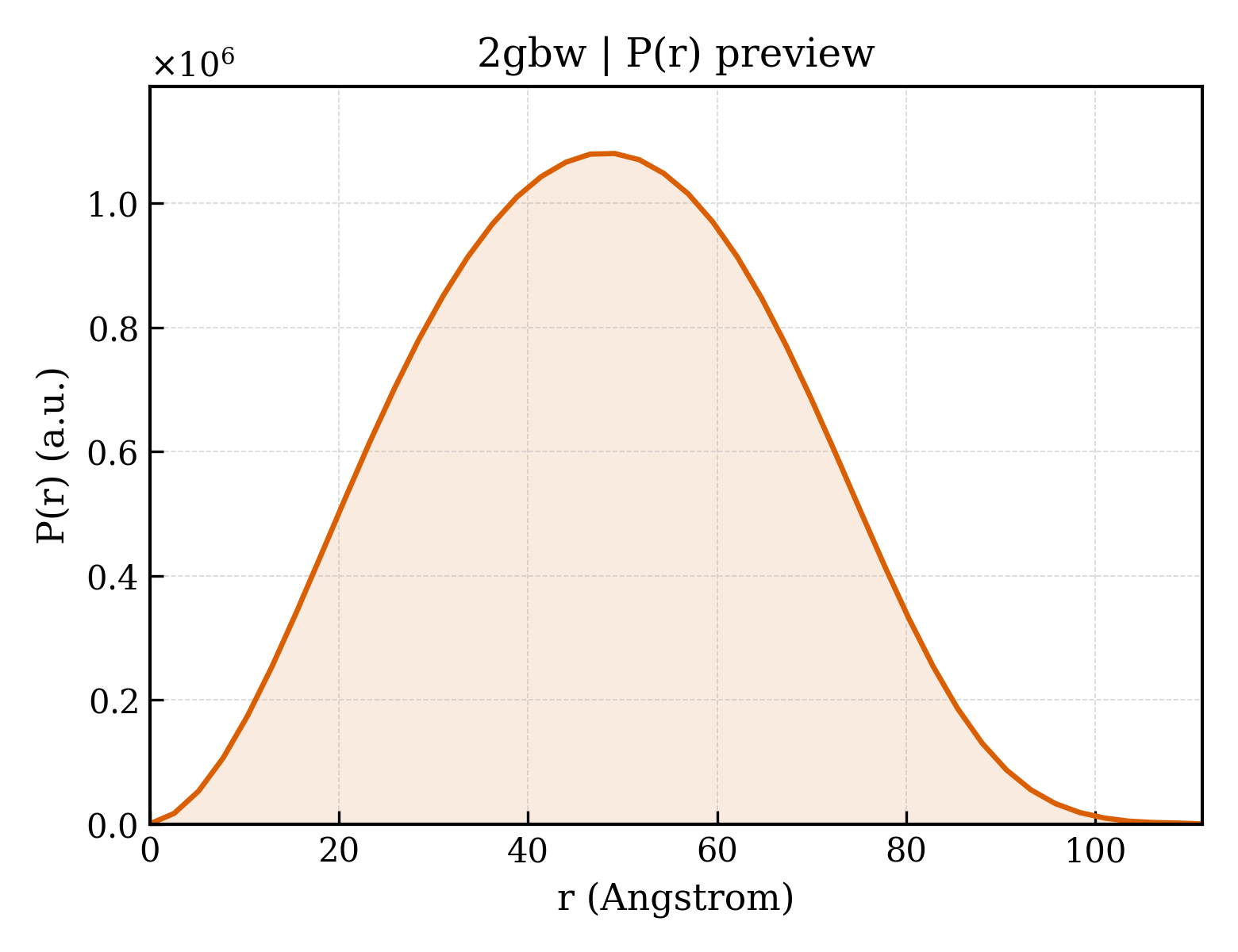

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2gbw
沉积日期 deposition_date	2006-03-12
结构标题 title	Crystal Structure of Biphenyl 2,3-Dioxygenase from Sphingomonas yanoikuyae B1
关键词 keywords	RIESKE OXYGENASE, OXIDOREDUCTASE, NON HEME IRON, DIOXYGENASE; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	36.81 Å
回转半径 Rg (电子) rg_electron	35.84 Å
零角强度 I(0) i0	714584000.00
分子量 molecular_weight	212850.0 kDa
排除体积 excluded_volume	263450 Å³
包络体积 envelope_volume	317050 Å³
水化壳体积 shell_volume	69236 Å³
包络直径 envelope_diameter	119.2 Å
壳层 Rg shell_rg	45.20 Å
包络 Rg envelope_rg	35.75 Å
形状 Rg shape_rg	35.87 Å
总 Rg total_rg	36.28 Å
总原子数 total_atoms	15008
残基数 n_residues	1854
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	111.3 Å
Rg (实空间) rg_real	36.54 Å
Rg 误差 (实空间) rg_real_error	0.60 Å
I(0) (实空间) i0_real	7.1460e+08
I(0) 误差 (实空间) i0_real_error	1.1390e+07
Rg (倒空间) rg_reciprocal	36.71 Å
I(0) (倒空间) i0_reciprocal	714700000.0000
解质量估计 total_estimate	0.9027
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	49.2 Å
偏度 Skewness skewness	0.066
峰度 Kurtosis kurtosis	-0.585
角度范围 angular_range	— – 0.2150 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	245300000.0000
实空间数据点数 n_real_points	44
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.941; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.977; Smooth: 0.929

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	Biphenyl 2,3-Dioxygenase Alpha Subunit
分子量 formula_weight	51036.9 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C,E
原子数 atom_count	17030

MSSDATLVDTVNASQSRQVFWDEDVYALEIERIFSRAWLMLGHESLVPKPGDFITTYMAEDKVILSHQSDGTFRAFINSCSHRGNQICHADSGNAKAFVCNYHGWVFGQDGSLVDVPLESRCYHNSLDKQKLAAKSVRVETYKGFIFGCHDPEAPSLEDYLGEFRYYLDTIWEGAGGGMELLGPPMKSLLQCNWKVPAENFIGDGYHVGWTHAAALSQIGGELAGLAGNRADIPFDDLGLQFTTRHGHGFGVIDNAAAGLHIKREGWTKFLEDTRGEVRRKFGPERERLYLGHWNCSIFPNCSFLYGTNTFKIWHPRGPHEIEVWTYTIVPRDADPATKSMIQREAIRTFGTAGTLESDDGENMSSATYINRGVITRNGRMNSTMGVGYEGPHPVYPGIVGISFIGETSYRGFYRFWKEMIDAPDWASVKANDDTWDSVFPNRNFWNEKLNAAE

来源 Source

来源生物 organism	Sphingobium yanoikuyae
NCBI 分类编号 ncbi_taxonomy_id	13690
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 polymer

描述 description	Biphenyl 2,3-Dioxygenase Beta Subunit
分子量 formula_weight	20786.3 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D,F

MSSEQIPVTPDVHYDIEAHYRAEVRMFQTGQYREWLQGMVAEDIHYWMPIYEQRLTRDRRPDPTPDDAAIYNDDFGELKQRVERLYSGQVWMEDPPSKIRYFVSNVEAFEAGNGELDVLSNILVYRNRRQTEVTVHTLGREDKLRRDGNGFKVFRRKLILDARVTQDKNLYFFC

来源 Source

来源生物 organism	Sphingobium yanoikuyae
NCBI 分类编号 ncbi_taxonomy_id	13690
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 3 non-polymer

描述 description	FE (III) ION
分子量 formula_weight	55.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 4 non-polymer

描述 description	FE2/S2 (INORGANIC) CLUSTER
分子量 formula_weight	175.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 5 non-polymer

描述 description	OXYGEN MOLECULE
分子量 formula_weight	32.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 6 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1978

▼

6. 折叠分类 (SCOP + CATH) 18 domains

SCOP 2.08 (9 domains)

结构域编号 domain_id	d2gbwa1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.33 — ISP domain
超家族 Superfamily superfamily	b.33.1 — ISP domain
家族 Family family	b.33.1.0 — automated matches

结构域编号 domain_id	d2gbwa2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.129 — TBP-like
超家族 Superfamily superfamily	d.129.3 — Bet v1-like
家族 Family family	d.129.3.0 — automated matches

结构域编号 domain_id	d2gbwb_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.17 — Cystatin-like
超家族 Superfamily superfamily	d.17.4 — NTF2-like
家族 Family family	d.17.4.0 — automated matches

结构域编号 domain_id	d2gbwc1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.33 — ISP domain
超家族 Superfamily superfamily	b.33.1 — ISP domain
家族 Family family	b.33.1.0 — automated matches

结构域编号 domain_id	d2gbwc2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.129 — TBP-like
超家族 Superfamily superfamily	d.129.3 — Bet v1-like
家族 Family family	d.129.3.0 — automated matches

结构域编号 domain_id	d2gbwd_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.17 — Cystatin-like
超家族 Superfamily superfamily	d.17.4 — NTF2-like
家族 Family family	d.17.4.0 — automated matches

结构域编号 domain_id	d2gbwe1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.33 — ISP domain
超家族 Superfamily superfamily	b.33.1 — ISP domain
家族 Family family	b.33.1.0 — automated matches

结构域编号 domain_id	d2gbwe2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.129 — TBP-like
超家族 Superfamily superfamily	d.129.3 — Bet v1-like
家族 Family family	d.129.3.0 — automated matches

结构域编号 domain_id	d2gbwf_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.17 — Cystatin-like
超家族 Superfamily superfamily	d.17.4 — NTF2-like
家族 Family family	d.17.4.0 — automated matches

CATH v4.4 (9 domains)

结构域编号 domain_id	2gbwA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	380 — Naphthalene 1,2-dioxygenase Alpha Subunit; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Naphthalene 1,2-dioxygenase Alpha Subunit; Chain A, domain 1

结构域编号 domain_id	2gbwA02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	102 — 3-layer Sandwich
拓扑 Topology topology	10 — Rieske Iron-sulfur Protein
同源超家族 H-superfamily homologous superfamily	10 — Rieske [2Fe-2S] iron-sulphur domain

结构域编号 domain_id	2gbwB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
同源超家族 H-superfamily homologous superfamily	50 —

结构域编号 domain_id	2gbwC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	380 — Naphthalene 1,2-dioxygenase Alpha Subunit; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Naphthalene 1,2-dioxygenase Alpha Subunit; Chain A, domain 1

结构域编号 domain_id	2gbwC02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	102 — 3-layer Sandwich
拓扑 Topology topology	10 — Rieske Iron-sulfur Protein
同源超家族 H-superfamily homologous superfamily	10 — Rieske [2Fe-2S] iron-sulphur domain

结构域编号 domain_id	2gbwD00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
同源超家族 H-superfamily homologous superfamily	50 —

结构域编号 domain_id	2gbwE01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	380 — Naphthalene 1,2-dioxygenase Alpha Subunit; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Naphthalene 1,2-dioxygenase Alpha Subunit; Chain A, domain 1

结构域编号 domain_id	2gbwE02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	102 — 3-layer Sandwich
拓扑 Topology topology	10 — Rieske Iron-sulfur Protein
同源超家族 H-superfamily homologous superfamily	10 — Rieske [2Fe-2S] iron-sulphur domain

结构域编号 domain_id	2gbwF00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
同源超家族 H-superfamily homologous superfamily	50 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	134.958 Å
晶胞边长 b length_b	134.958 Å
晶胞边长 c length_c	219.887 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	18

空间群 space_group	P 31 2 1
空间群编号 int_tables_number	152
晶系 crystal_system	—

分辨率 resolution	1.700 Å
最低分辨率 resolution_low	19.800 Å
R 因子 r_factor	0.1901
R_work r_work	0.1881
R_free r_free	0.2283

fit	/app/data/saxs_computation/gb/2gbw/2gbw.fit
pddf	/app/data/pr_computation/gb/2gbw/2gbw.pr.out
profile	/app/data/saxs_computation/gb/2gbw/2gbw.dat
