2gbx

Crystal Structure of Biphenyl 2,3-Dioxygenase from Sphingomonas yanoikuyae B1 Bound to Biphenyl

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Biphenyl 2,3-Dioxygenase Alpha Subunit

Sphingobium yanoikuyae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Biphenyl 2,3-Dioxygenase Beta Subunit × 3 （A2TC88） FE (III) ION × 3 FE2/S2 (INORGANIC) CLUSTER × 3 BIPHENYL × 3 ZINC ION × 9 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A2TC87_SPHYA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–454； UniProt 1–454 Author chain C； PDBConstruct 1–454； UniProt 1–454 Author chain E； PDBConstruct 1–454； UniProt 1–454

Biphenyl 2,3-Dioxygenase Beta Subunit

Sphingobium yanoikuyae

UniProt A2TC88

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Biphenyl 2,3-Dioxygenase Alpha Subunit × 3 （A2TC87） FE (III) ION × 3 FE2/S2 (INORGANIC) CLUSTER × 3 BIPHENYL × 3 ZINC ION × 9 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A2TC88_SPHYA
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–174； UniProt 1–174 Author chain D； PDBConstruct 1–174； UniProt 1–174 Author chain F； PDBConstruct 1–174； UniProt 1–174

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2gbx
Deposition date deposition_date	2006-03-12
Structure title title	Crystal Structure of Biphenyl 2,3-Dioxygenase from Sphingomonas yanoikuyae B1 Bound to Biphenyl
Keywords keywords	RIESKE OXYGENASE, OXIDOREDUCTASE, NON HEME IRON, DIOXYGENASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2gbx__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

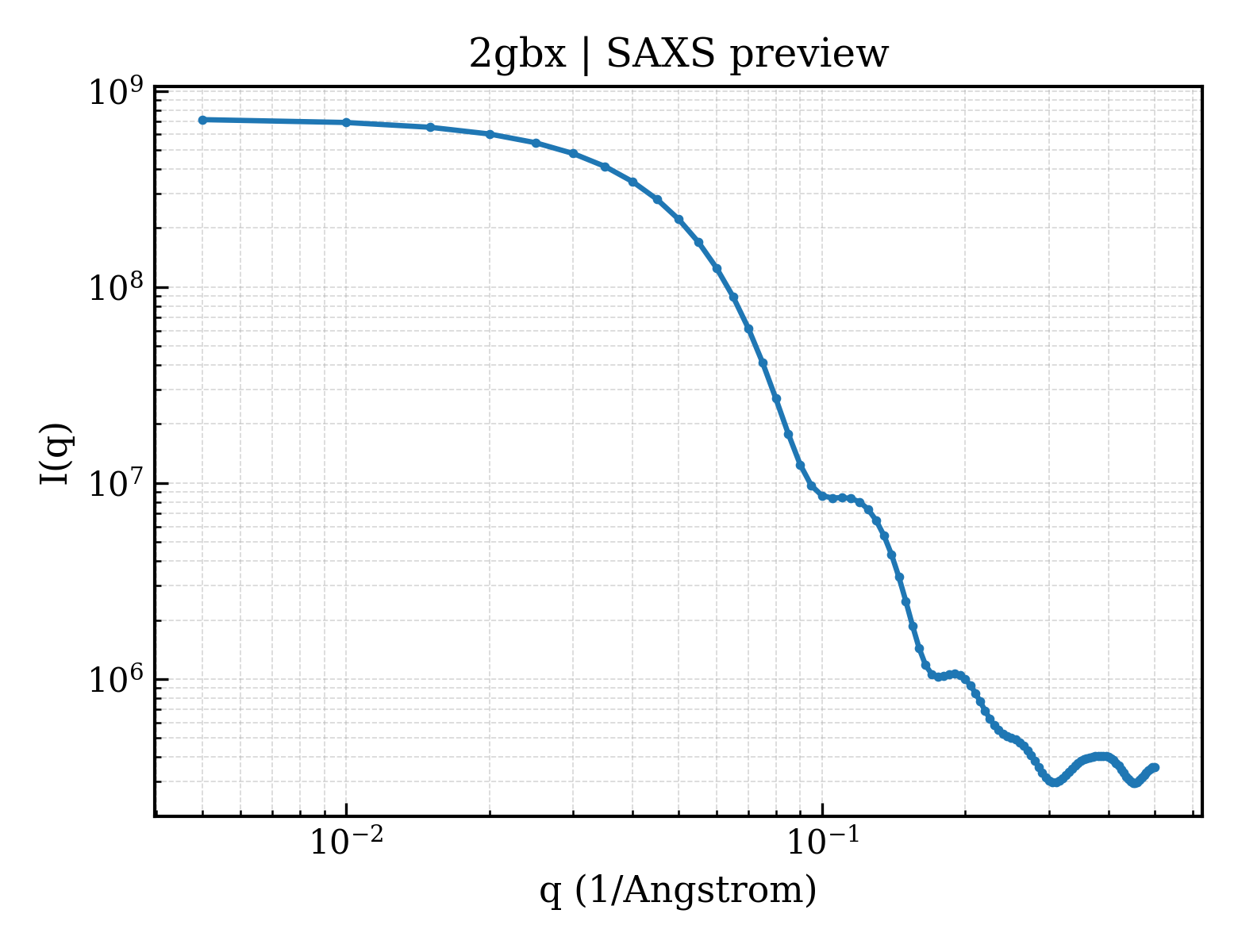

2gbx__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

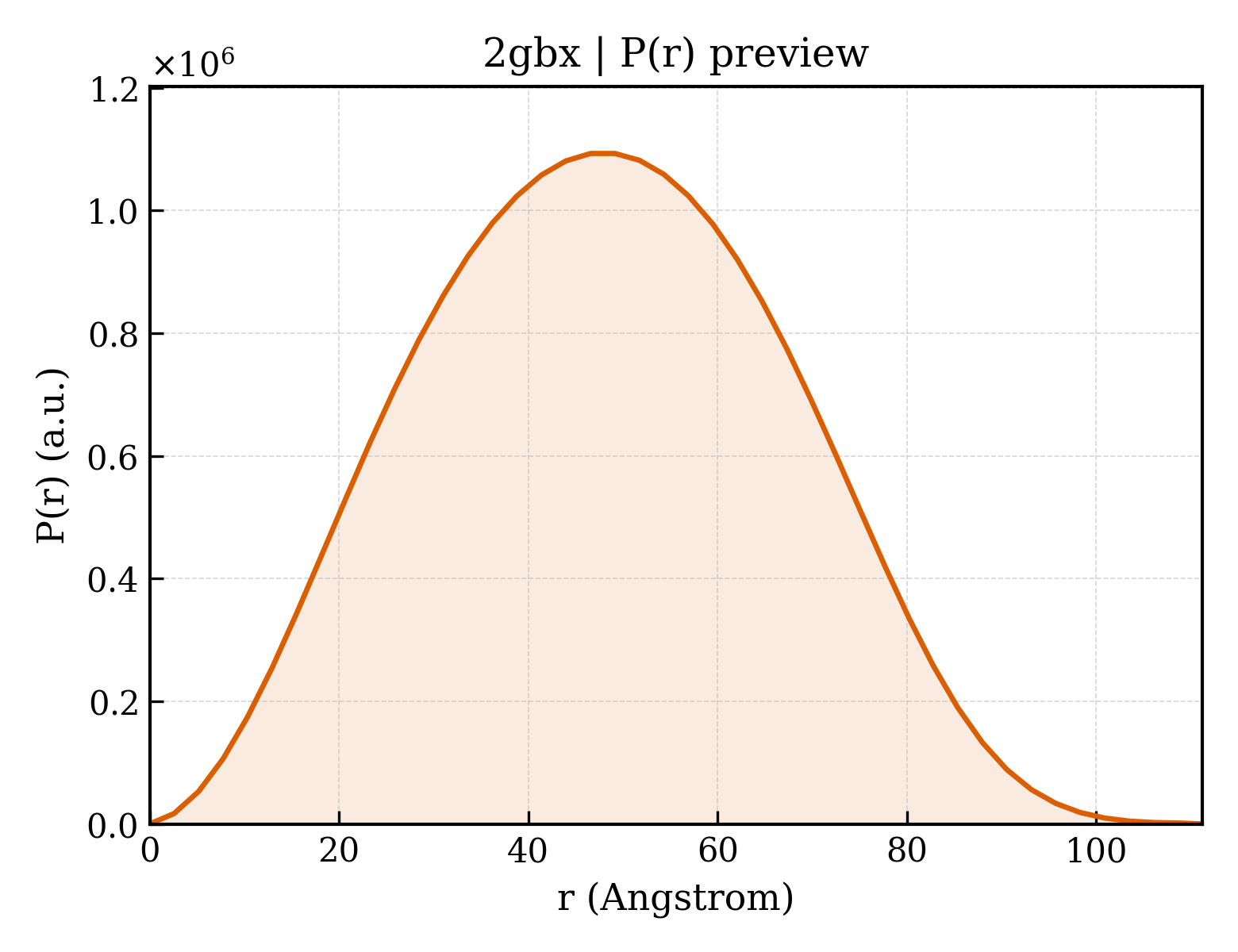

2gbx__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	36.79 Å
Rg (electron density)	35.82 Å
Total Rg	36.25 Å
Atom count	15047
Residues	1854
Excluded volume	264450 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2gbx__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Biphenyl 2,3-Dioxygenase Alpha Subunit
Molecular weight formula_weight	51036.9 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,E
Atom count atom_count	15278

MSSDATLVDTVNASQSRQVFWDEDVYALEIERIFSRAWLMLGHESLVPKPGDFITTYMAEDKVILSHQSDGTFRAFINSCSHRGNQICHADSGNAKAFVCNYHGWVFGQDGSLVDVPLESRCYHNSLDKQKLAAKSVRVETYKGFIFGCHDPEAPSLEDYLGEFRYYLDTIWEGAGGGMELLGPPMKSLLQCNWKVPAENFIGDGYHVGWTHAAALSQIGGELAGLAGNRADIPFDDLGLQFTTRHGHGFGVIDNAAAGLHIKREGWTKFLEDTRGEVRRKFGPERERLYLGHWNCSIFPNCSFLYGTNTFKIWHPRGPHEIEVWTYTIVPRDADPATKSMIQREAIRTFGTAGTLESDDGENMSSATYINRGVITRNGRMNSTMGVGYEGPHPVYPGIVGISFIGETSYRGFYRFWKEMIDAPDWASVKANDDTWDSVFPNRNFWNEKLNAAE

Source Source

Source organism organism	Sphingobium yanoikuyae
NCBI taxonomy ID ncbi_taxonomy_id	13690
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Biphenyl 2,3-Dioxygenase Beta Subunit
Molecular weight formula_weight	20786.3 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,F

MSSEQIPVTPDVHYDIEAHYRAEVRMFQTGQYREWLQGMVAEDIHYWMPIYEQRLTRDRRPDPTPDDAAIYNDDFGELKQRVERLYSGQVWMEDPPSKIRYFVSNVEAFEAGNGELDVLSNILVYRNRRQTEVTVHTLGREDKLRRDGNGFKVFRRKLILDARVTQDKNLYFFC

Source Source

Source organism organism	Sphingobium yanoikuyae
NCBI taxonomy ID ncbi_taxonomy_id	13690
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 non-polymer

Description description	FE (III) ION
Molecular weight formula_weight	55.8 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 non-polymer

Description description	FE2/S2 (INORGANIC) CLUSTER
Molecular weight formula_weight	175.8 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 non-polymer

Description description	BIPHENYL
Molecular weight formula_weight	154.2 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 6 Entity 6 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	9

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	187

▼

6. Fold Classification (SCOP + CATH) 18 domains

SCOP 2.08 (9 domains)

Domain ID domain_id	d2gbxa1
Class class	b — All beta proteins
Fold Fold fold	b.33 — ISP domain
Superfamily Superfamily superfamily	b.33.1 — ISP domain
Family Family family	b.33.1.0 — automated matches

Domain ID domain_id	d2gbxa2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.129 — TBP-like
Superfamily Superfamily superfamily	d.129.3 — Bet v1-like
Family Family family	d.129.3.0 — automated matches

Domain ID domain_id	d2gbxb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.17 — Cystatin-like
Superfamily Superfamily superfamily	d.17.4 — NTF2-like
Family Family family	d.17.4.0 — automated matches

Domain ID domain_id	d2gbxc1
Class class	b — All beta proteins
Fold Fold fold	b.33 — ISP domain
Superfamily Superfamily superfamily	b.33.1 — ISP domain
Family Family family	b.33.1.0 — automated matches

Domain ID domain_id	d2gbxc2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.129 — TBP-like
Superfamily Superfamily superfamily	d.129.3 — Bet v1-like
Family Family family	d.129.3.0 — automated matches

Domain ID domain_id	d2gbxd_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.17 — Cystatin-like
Superfamily Superfamily superfamily	d.17.4 — NTF2-like
Family Family family	d.17.4.0 — automated matches

Domain ID domain_id	d2gbxe1
Class class	b — All beta proteins
Fold Fold fold	b.33 — ISP domain
Superfamily Superfamily superfamily	b.33.1 — ISP domain
Family Family family	b.33.1.0 — automated matches

Domain ID domain_id	d2gbxe2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.129 — TBP-like
Superfamily Superfamily superfamily	d.129.3 — Bet v1-like
Family Family family	d.129.3.0 — automated matches

Domain ID domain_id	d2gbxf_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.17 — Cystatin-like
Superfamily Superfamily superfamily	d.17.4 — NTF2-like
Family Family family	d.17.4.0 — automated matches

CATH v4.4 (9 domains)

Domain ID domain_id	2gbxA01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	380 — Naphthalene 1,2-dioxygenase Alpha Subunit; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Naphthalene 1,2-dioxygenase Alpha Subunit; Chain A, domain 1

Domain ID domain_id	2gbxA02
Class class	2 — Mainly Beta
Architecture architecture	102 — 3-layer Sandwich
Topology topology	10 — Rieske Iron-sulfur Protein
Homologous superfamily homologous superfamily	10 — Rieske [2Fe-2S] iron-sulphur domain

Domain ID domain_id	2gbxB00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
Homologous superfamily homologous superfamily	50 —

Domain ID domain_id	2gbxC01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	380 — Naphthalene 1,2-dioxygenase Alpha Subunit; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Naphthalene 1,2-dioxygenase Alpha Subunit; Chain A, domain 1

Domain ID domain_id	2gbxC02
Class class	2 — Mainly Beta
Architecture architecture	102 — 3-layer Sandwich
Topology topology	10 — Rieske Iron-sulfur Protein
Homologous superfamily homologous superfamily	10 — Rieske [2Fe-2S] iron-sulphur domain

Domain ID domain_id	2gbxD00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
Homologous superfamily homologous superfamily	50 —

Domain ID domain_id	2gbxE01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	380 — Naphthalene 1,2-dioxygenase Alpha Subunit; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Naphthalene 1,2-dioxygenase Alpha Subunit; Chain A, domain 1

Domain ID domain_id	2gbxE02
Class class	2 — Mainly Beta
Architecture architecture	102 — 3-layer Sandwich
Topology topology	10 — Rieske Iron-sulfur Protein
Homologous superfamily homologous superfamily	10 — Rieske [2Fe-2S] iron-sulphur domain

Domain ID domain_id	2gbxF00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
Homologous superfamily homologous superfamily	50 —

▶

Unit-cell length a length_a	133.940 Å
Unit-cell length b length_b	133.940 Å
Unit-cell length c length_c	219.708 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	18

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	19.480 Å
R factor r_factor	0.2380
R_work r_work	0.2370
R_free r_free	0.2680
