2gds

Interrupting the Hydrogen Bonding Network at the Active Site of Human Manganese Superoxide Dismutase

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Superoxide dismutase

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	MANGANESE (II) ION × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SODM_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–198； UniProt 25–222 Author chain B； PDBConstruct 1–198； UniProt 25–222 Author chain C； PDBConstruct 1–198； UniProt 25–222 Author chain D； PDBConstruct 1–198； UniProt 25–222

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2gds
Deposition date deposition_date	2006-03-16
Structure title title	Interrupting the Hydrogen Bonding Network at the Active Site of Human Manganese Superoxide Dismutase
Keywords keywords	Human Manganese Superoxide Dismutase, H30N mutation, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2gds__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2gds__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

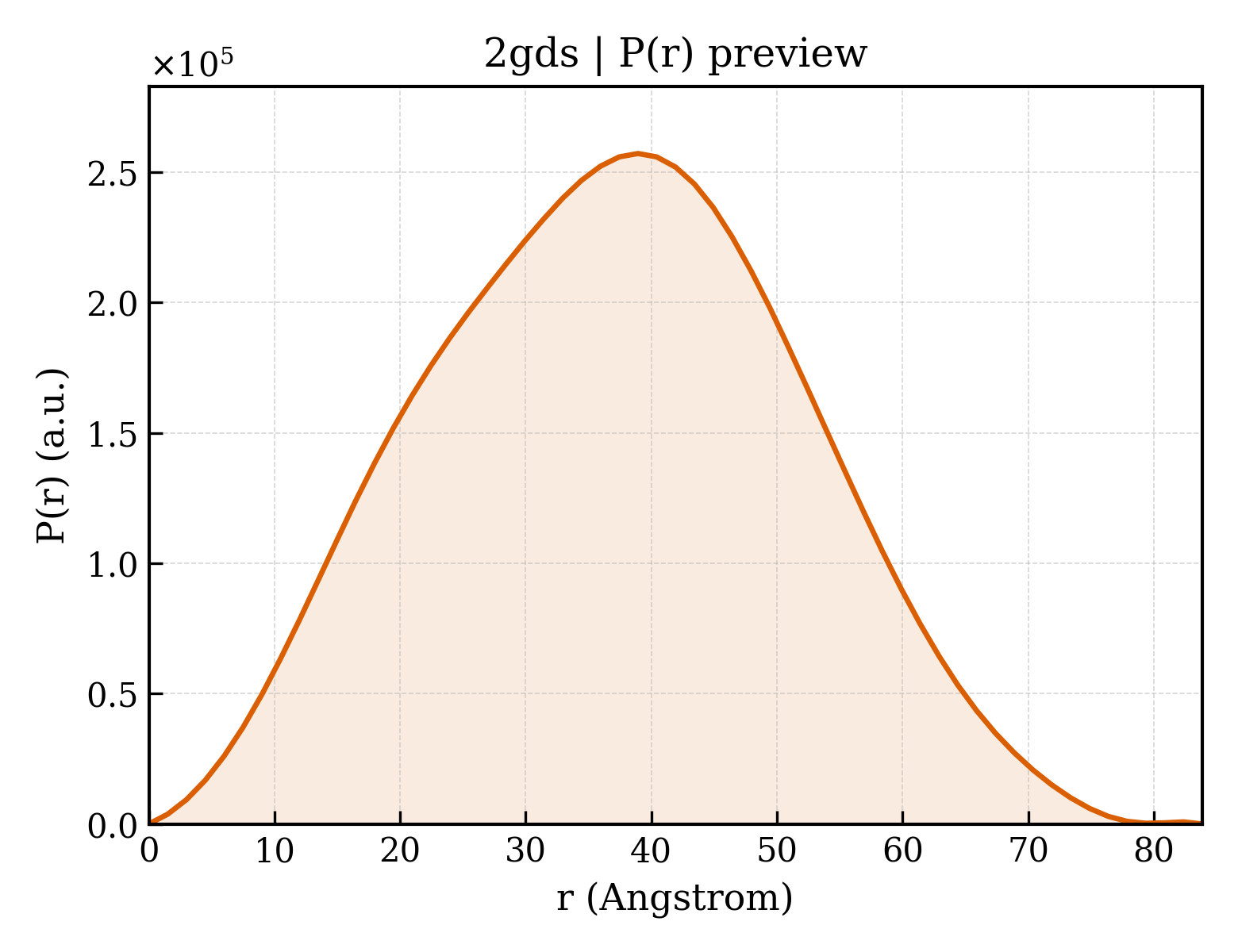

2gds__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.46 Å
Rg (electron density)	27.44 Å
Total Rg	28.32 Å
Atom count	6288
Residues	792
Excluded volume	111370 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2gds__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Superoxide dismutase
Molecular weight formula_weight	22209.1 kDa
EC 编号 ec_number	1.15.1.1
Mutation mutation	H30N
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	7033

KHSLPDLPYDYGALEPHINAQIMQLHHSKNHAAYVNNLNVTEEKYQEALAKGDVTAQIALQPALKFNGGGHINHSIFWTNLSPNGGGEPKGELLEAIKRDFGSFDKFKEKLTAASVGVQGSGWGWLGFNKERGHLQIAACPNQDPLQGTTGLIPLLGIDVWEHAYYLQYKNVRPDYLKAIWNVINWENVTERYMACKK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	745

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d2gdsa1
Class class	a — All alpha proteins
Fold Fold fold	a.2 — Long alpha-hairpin
Superfamily Superfamily superfamily	a.2.11 — Fe,Mn superoxide dismutase (SOD), N-terminal domain
Family Family family	a.2.11.1 — Fe,Mn superoxide dismutase (SOD), N-terminal domain

Domain ID domain_id	d2gdsa2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.44 — Fe,Mn superoxide dismutase (SOD), C-terminal domain
Superfamily Superfamily superfamily	d.44.1 — Fe,Mn superoxide dismutase (SOD), C-terminal domain
Family Family family	d.44.1.1 — Fe,Mn superoxide dismutase (SOD), C-terminal domain

Domain ID domain_id	d2gdsb1
Class class	a — All alpha proteins
Fold Fold fold	a.2 — Long alpha-hairpin
Superfamily Superfamily superfamily	a.2.11 — Fe,Mn superoxide dismutase (SOD), N-terminal domain
Family Family family	a.2.11.1 — Fe,Mn superoxide dismutase (SOD), N-terminal domain

Domain ID domain_id	d2gdsb2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.44 — Fe,Mn superoxide dismutase (SOD), C-terminal domain
Superfamily Superfamily superfamily	d.44.1 — Fe,Mn superoxide dismutase (SOD), C-terminal domain
Family Family family	d.44.1.1 — Fe,Mn superoxide dismutase (SOD), C-terminal domain

Domain ID domain_id	d2gdsc1
Class class	a — All alpha proteins
Fold Fold fold	a.2 — Long alpha-hairpin
Superfamily Superfamily superfamily	a.2.11 — Fe,Mn superoxide dismutase (SOD), N-terminal domain
Family Family family	a.2.11.1 — Fe,Mn superoxide dismutase (SOD), N-terminal domain

Domain ID domain_id	d2gdsc2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.44 — Fe,Mn superoxide dismutase (SOD), C-terminal domain
Superfamily Superfamily superfamily	d.44.1 — Fe,Mn superoxide dismutase (SOD), C-terminal domain
Family Family family	d.44.1.1 — Fe,Mn superoxide dismutase (SOD), C-terminal domain

Domain ID domain_id	d2gdsd1
Class class	a — All alpha proteins
Fold Fold fold	a.2 — Long alpha-hairpin
Superfamily Superfamily superfamily	a.2.11 — Fe,Mn superoxide dismutase (SOD), N-terminal domain
Family Family family	a.2.11.1 — Fe,Mn superoxide dismutase (SOD), N-terminal domain

Domain ID domain_id	d2gdsd2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.44 — Fe,Mn superoxide dismutase (SOD), C-terminal domain
Superfamily Superfamily superfamily	d.44.1 — Fe,Mn superoxide dismutase (SOD), C-terminal domain
Family Family family	d.44.1.1 — Fe,Mn superoxide dismutase (SOD), C-terminal domain

CATH v4.4 (8 domains)

Domain ID domain_id	2gdsA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	990 — Fe,Mn superoxide dismutase (SOD) domain

Domain ID domain_id	2gdsA02
Class class	3 — Alpha Beta
Architecture architecture	55 — 3-Layer(bab) Sandwich
Topology topology	40 — minor pseudopilin epsh fold
Homologous superfamily homologous superfamily	20 — Iron/manganese superoxide dismutase, C-terminal domain

Domain ID domain_id	2gdsB01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	990 — Fe,Mn superoxide dismutase (SOD) domain

Domain ID domain_id	2gdsB02
Class class	3 — Alpha Beta
Architecture architecture	55 — 3-Layer(bab) Sandwich
Topology topology	40 — minor pseudopilin epsh fold
Homologous superfamily homologous superfamily	20 — Iron/manganese superoxide dismutase, C-terminal domain

Domain ID domain_id	2gdsC01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	990 — Fe,Mn superoxide dismutase (SOD) domain

Domain ID domain_id	2gdsC02
Class class	3 — Alpha Beta
Architecture architecture	55 — 3-Layer(bab) Sandwich
Topology topology	40 — minor pseudopilin epsh fold
Homologous superfamily homologous superfamily	20 — Iron/manganese superoxide dismutase, C-terminal domain

Domain ID domain_id	2gdsD01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	990 — Fe,Mn superoxide dismutase (SOD) domain

Domain ID domain_id	2gdsD02
Class class	3 — Alpha Beta
Architecture architecture	55 — 3-Layer(bab) Sandwich
Topology topology	40 — minor pseudopilin epsh fold
Homologous superfamily homologous superfamily	20 — Iron/manganese superoxide dismutase, C-terminal domain

▶

Unit-cell length a length_a	73.700 Å
Unit-cell length b length_b	77.570 Å
Unit-cell length c length_c	135.460 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	0.1990
R_work r_work	0.1990
R_free r_free	0.3000
