SAXSdb — 2ggu

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2ggu
沉积日期 deposition_date	2006-03-24
结构标题 title	;crystal structure of the trimeric neck and carbohydrate recognition domain of human surfactant protein D in complex with maltotriose ;
关键词 keywords	protein-carbohydrate ligand complex, SUGAR BINDING PROTEIN; SUGAR BINDING PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	26.87 Å
回转半径 Rg (电子) rg_electron	25.58 Å
零角强度 I(0) i0	45771500.00
分子量 molecular_weight	51060.0 kDa
排除体积 excluded_volume	63313 Å³
包络体积 envelope_volume	75959 Å³
水化壳体积 shell_volume	25834 Å³
包络直径 envelope_diameter	81.4 Å
壳层 Rg shell_rg	31.62 Å
包络 Rg envelope_rg	25.67 Å
形状 Rg shape_rg	25.52 Å
总 Rg total_rg	26.44 Å
总原子数 total_atoms	3573
残基数 n_residues	453
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	77.9 Å
Rg (实空间) rg_real	26.73 Å
Rg 误差 (实空间) rg_real_error	0.53 Å
I(0) (实空间) i0_real	4.5770e+07
I(0) 误差 (实空间) i0_real_error	6.3950e+05
Rg (倒空间) rg_reciprocal	26.78 Å
I(0) (倒空间) i0_reciprocal	45770000.0000
解质量估计 total_estimate	0.9133
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	39.6 Å
偏度 Skewness skewness	0.011
峰度 Kurtosis kurtosis	-0.787
角度范围 angular_range	— – 0.2950 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	17120000.0000
实空间数据点数 n_real_points	60
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.971; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.960

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Pulmonary surfactant-associated protein D
分子量 formula_weight	17272.2 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C
原子数 atom_count	3848

AMADIGSDVASLRQQVEALQGQVQHLQAAFSQYKKVELFPNGQSVGEKIFKTAGFVKPFTEAQLLCTQAGGQLASPRSAAENAALQQLVVAKNEAAFLSMTDSKTEGKFTYPTGESLVYSNWAPGEPNDDGGSEDCVEIFTNGKWNDRACGEKRLVVCEF

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 branched

描述 description	alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose
分子量 formula_weight	504.4 kDa
来源方法 src_method	man
拷贝数 entity_count	3

Entity 3 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	9

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	275

▼

6. 折叠分类 (SCOP + CATH) 9 domains

SCOP 2.08 (6 domains)

结构域编号 domain_id	d2ggua1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.169 — C-type lectin-like
超家族 Superfamily superfamily	d.169.1 — C-type lectin-like
家族 Family family	d.169.1.1 — C-type lectin domain

结构域编号 domain_id	d2ggua2
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.1 — Triple coiled coil domain of C-type lectins
家族 Family family	h.1.1.1 — Triple coiled coil domain of C-type lectins

结构域编号 domain_id	d2ggub1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.169 — C-type lectin-like
超家族 Superfamily superfamily	d.169.1 — C-type lectin-like
家族 Family family	d.169.1.1 — C-type lectin domain

结构域编号 domain_id	d2ggub2
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.1 — Triple coiled coil domain of C-type lectins
家族 Family family	h.1.1.1 — Triple coiled coil domain of C-type lectins

结构域编号 domain_id	d2gguc1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.169 — C-type lectin-like
超家族 Superfamily superfamily	d.169.1 — C-type lectin-like
家族 Family family	d.169.1.1 — C-type lectin domain

结构域编号 domain_id	d2gguc2
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.1 — Triple coiled coil domain of C-type lectins
家族 Family family	h.1.1.1 — Triple coiled coil domain of C-type lectins

CATH v4.4 (3 domains)

结构域编号 domain_id	2gguA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	100 — Mannose-Binding Protein A; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Mannose-Binding Protein A, subunit A

结构域编号 domain_id	2gguB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	100 — Mannose-Binding Protein A; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Mannose-Binding Protein A, subunit A

结构域编号 domain_id	2gguC00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	100 — Mannose-Binding Protein A; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Mannose-Binding Protein A, subunit A

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	55.730 Å
晶胞边长 b length_b	108.930 Å
晶胞边长 c length_c	55.840 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	91.12 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	6

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	1.900 Å
最低分辨率 resolution_low	50.000 Å
R 因子 r_factor	0.2250
R_work r_work	0.2210
R_free r_free	0.2480

fit	/app/data/saxs_computation/gg/2ggu/2ggu.fit
pddf	/app/data/pr_computation/gg/2ggu/2ggu.pr.out
profile	/app/data/saxs_computation/gg/2ggu/2ggu.dat

;crystal structure of the trimeric neck and carbohydrate recognition domain of human surfactant protein D in complex with maltotriose ;

SAXS 散射曲线 SAXS Profile

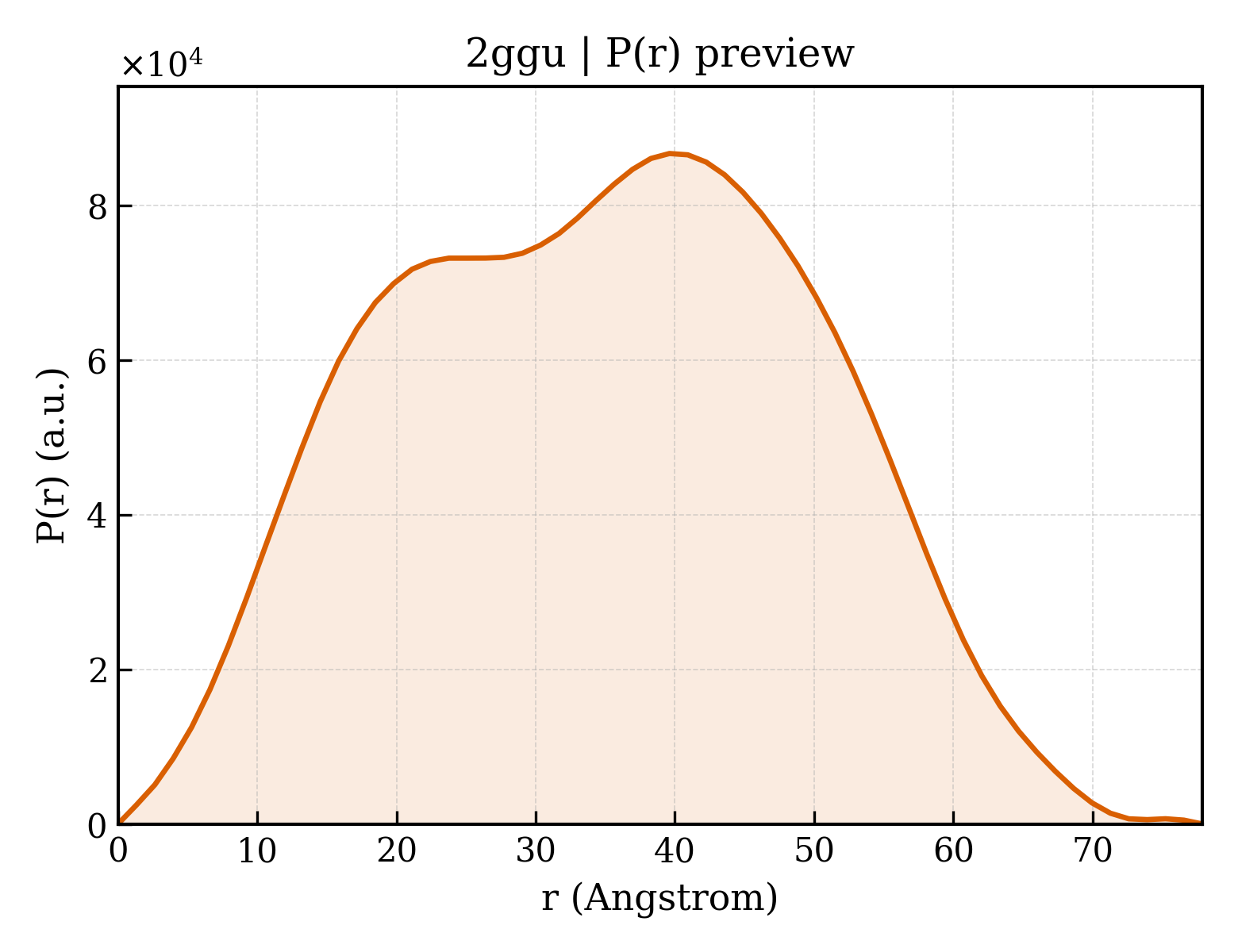

P(r) 距离分布 P(r) Distribution
