1. Protein Identity and Related Structures Protein Identity & Related Structures

Regulator of nonsense transcripts 1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 295–914	Fragment：helicase core domain(residues 295-914)	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：EVAPORATION；pH 5.8；295 K；100mM Na/K Phosphate, 6-8% PEG3350, 10mM DTT, pH 5.8, EVAPORATION, temperature 295K	Resolution 2.80 Å R-free 0.298

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2GK7	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2GJK Structural and functional insights into the human Upf1 helicase core Deposited 2006-03-31	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 295–914（620 aa） Fragment：helicase core domain(residues 295-914)	Not recorded	MG MAGNESIUM ION × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 6；295 K；50mM MES, 0.5-3% PEG4000, 0.005mM MgSO4, 10mM DTT, pH 6.0, EVAPORATION, temperature 295K	Resolution 2.60 Å R-free 0.271
2GK6 Structural and Functional insights into the human Upf1 helicase core Deposited 2006-03-31	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 295–914（620 aa） Fragment：helicase core domain(residues 295-914)	Not recorded	MG MAGNESIUM ION × 1 PO4 PHOSPHATE ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 7.5；295 K；100mM Tris, 8-13% PEG3350, 140mM (NH4)3PO4, 10% EG, 10mM DTT, pH 7.5, EVAPORATION, temperature 295K	Resolution 2.40 Å R-free 0.272
2GK6 Structural and Functional insights into the human Upf1 helicase core Deposited 2006-03-31	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 295–914（620 aa） Fragment：helicase core domain(residues 295-914)	Not recorded	MG MAGNESIUM ION × 1 PO4 PHOSPHATE ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 7.5；295 K；100mM Tris, 8-13% PEG3350, 140mM (NH4)3PO4, 10% EG, 10mM DTT, pH 7.5, EVAPORATION, temperature 295K	Resolution 2.40 Å R-free 0.272
2IYK Crystal structure of the UPF2-interacting domain of nonsense mediated mRNA decay factor UPF1 Deposited 2006-07-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 115–272（158 aa） Fragment：UPF2-INTERACTING DOMAIN, RESIDUES 115-272	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；30% PENTAERYTHRITOL ETHOXYLATE (15/4EO/OH) (V/V), 50 MM AMMONIUM SULPHATE,50 MM BIS-TRIS PH 6.5	Resolution 2.95 Å R-free 0.259
2IYK Crystal structure of the UPF2-interacting domain of nonsense mediated mRNA decay factor UPF1 Deposited 2006-07-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 115–272（158 aa） Fragment：UPF2-INTERACTING DOMAIN, RESIDUES 115-272	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；30% PENTAERYTHRITOL ETHOXYLATE (15/4EO/OH) (V/V), 50 MM AMMONIUM SULPHATE,50 MM BIS-TRIS PH 6.5	Resolution 2.95 Å R-free 0.259
2WJV Crystal structure of the complex between human nonsense mediated decay factors UPF1 and UPF2 Deposited 2009-06-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 115–914（800 aa） Fragment：CH-DOMAIN AND HELICASE DOMAIN, RESIDUES 115-914	Not recorded	ZN ZINC ION × 3 SO4 SULFATE ION × 13	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；1.5-1.6M AMMONIUM SULPHATE, 100 MM MES PH 6.3-6.5 AND 2% V/V GLYCEROL	Resolution 2.85 Å R-free 0.248
2WJV Crystal structure of the complex between human nonsense mediated decay factors UPF1 and UPF2 Deposited 2009-06-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 115–914（800 aa） Fragment：CH-DOMAIN AND HELICASE DOMAIN, RESIDUES 115-914	Not recorded	ZN ZINC ION × 3 SO4 SULFATE ION × 10	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；1.5-1.6M AMMONIUM SULPHATE, 100 MM MES PH 6.3-6.5 AND 2% V/V GLYCEROL	Resolution 2.85 Å R-free 0.248
2WJY Crystal structure of the complex between human nonsense mediated decay factors UPF1 and UPF2 Orthorhombic form Deposited 2009-06-01	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 115–914（800 aa） Fragment：CH-DOMAIN AND HELICASE DOMAIN, RESIDUES 115-914	Not recorded	ZN ZINC ION × 3 SO4 SULFATE ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；1.6M AMMONIUM SULPHATE, 100 MM MES PH 6, 10% DIOXANE	Resolution 2.50 Å R-free 0.240
2XZO Upf1 helicase - RNA complex Deposited 2010-11-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 295–914（620 aa） Fragment：HELICASE DOMAIN, RESIDUES 295-914	Not recorded	1PE PENTAETHYLENE GLYCOL × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ALF TETRAFLUOROALUMINATE ION × 1 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.6；100 MM SODIUM ACETATE PH 4.6, 20 MM CACL2, 15% MPD	Resolution 2.40 Å R-free 0.233
2XZP Upf1 helicase Deposited 2010-11-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 295–914（620 aa） Fragment：HELICASE DOMAIN, RESIDUES 295-914	Not recorded	GOL GLYCEROL × 9 MLI MALONATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；50MM SODIUM CITRATE PH 6.0, 1.5M SODIUM MALONATE	Resolution 2.72 Å R-free 0.214
6EJ5 A conserved structural element in the RNA helicase UPF1 regulates its catalytic activity in an isoform-specific manner Deposited 2017-09-20	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 295–925（631 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions BATCH MODE；291 K；1.4 M sodium malonate, 50 mM sodium citrate pH 6.2	Resolution 3.34 Å R-free 0.309
6Z3R Structure of SMG1-8-9 kinase complex bound to UPF1-LSQ Deposited 2020-05-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 1085–1095（11 aa）	Not recorded	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 IHP INOSITOL HEXAKISPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 2.97 Å
8RXB Human UPF1 CH domain in complex with SMG6 peptide Deposited 2024-02-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric	Chain A 115–287（173 aa） Chain D 115–287（173 aa） Chain E 115–287（173 aa） Chain I 115–287（173 aa） Chain L 115–287（173 aa） Chain P 115–287（173 aa）	Not recorded	ZN ZINC ION × 13	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；solution (28% (w/v) PEG 3500, 0.2M Lithium sulfate and 0.1 M Tris pH 7.8)	Resolution 2.60 Å R-free 0.295
9QWN Human UPF1 in complex with the histone stem loop RNA Deposited 2025-04-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 115–914（800 aa）	Not recorded	ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å

11 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RENT1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 5–624； UniProt 295–914

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2gk7
Deposition date deposition_date	2006-03-31
Structure title title	Structural and Functional insights into the human Upf1 helicase core
Keywords keywords	Upf1, helicase, NMD, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	26.21 Å
Radius of gyration Rg (electron density) rg_electron	25.23 Å
Forward intensity I(0) i0	73419100.00
Molecular weight molecular_weight	67190.0 kDa
Excluded volume excluded_volume	84424 Å³
Envelope volume envelope_volume	104510 Å³
Hydration-shell volume shell_volume	33516 Å³
Envelope diameter envelope_diameter	82.0 Å
Shell Rg shell_rg	33.40 Å
Envelope Rg envelope_rg	25.31 Å
Shape Rg shape_rg	25.25 Å
Total Rg total_rg	26.06 Å
Total atoms total_atoms	4724
Residues n_residues	596
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

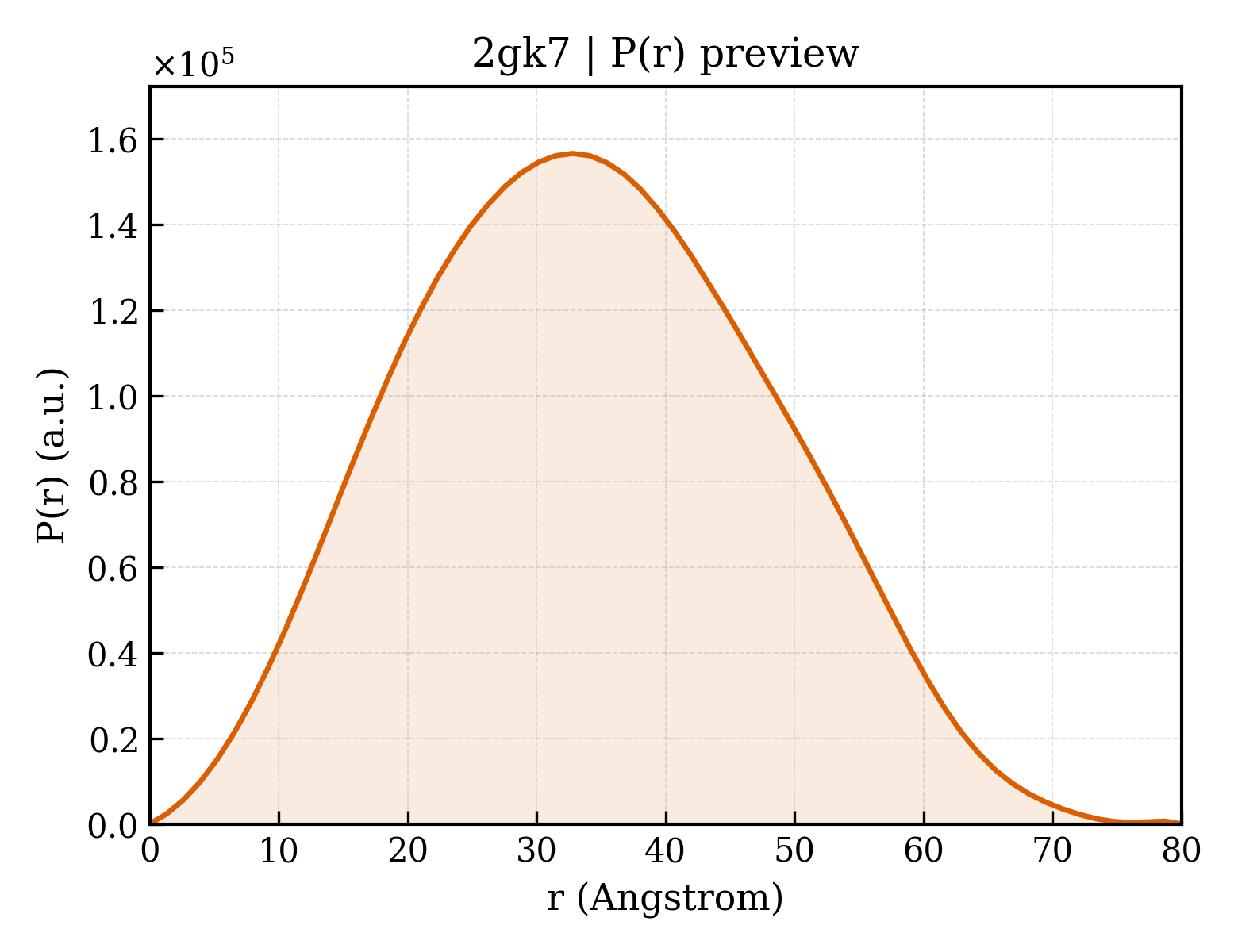

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	80.0 Å
Rg (real space) rg_real	26.06 Å
Rg uncertainty (real space) rg_real_error	0.38 Å
I(0) (real space) i0_real	7.3420e+07
I(0) uncertainty (real space) i0_real_error	1.0010e+06
Rg (reciprocal space) rg_reciprocal	26.11 Å
I(0) (reciprocal space) i0_reciprocal	73420000.0000
Solution quality estimate total_estimate	0.9089
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	32.8 Å
Skewness Skewness skewness	0.138
Kurtosis Kurtosis kurtosis	-0.537
Angular range angular_range	— – 0.3050 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	16630000.0000
Real-space data points n_real_points	62
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.944; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.990

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Regulator of nonsense transcripts 1
Molecular weight formula_weight	70056.4 kDa
EC 编号 ec_number	3.6.1.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4782

PLGSRYEDAYQYQNIFGPLVKLEADYDKKLKESQTQDNITVRWDLGLNKKRIAYFTLPKTDSDMRLMQGDEICLRYKGDLAPLWKGIGHVIKVPDNYGDEIAIELRSSVGAPVEVTHNFQVDFVWKSTSFDRMQSALKTFAVDETSVSGYIYHKLLGHEVEDVIIKCQLPKRFTAQGLPDLNHSQVYAVKTVLQRPLSLIQGPPGTGKTVTSATIVYHLARQGNGPVLVCAPSNIAVDQLTEKIHQTGLKVVRLCAKSREAIDSPVSFLALHNQIRNMDSMPELQKLQQLKDETGELSSADEKRYRALKRTAERELLMNADVICCTCVGAGDPRLAKMQFRSILIDESTQATEPECMVPVVLGAKQLILVGDHCQLGPVVMCKKAAKAGLSQSLFERLVVLGIRPIRLQVQYRMHPALSAFPSNIFYEGSLQNGVTAADRVKKGFDFQWPQPDKPMFFYVTQGQEEIASSGTSYLNRTEAANVEKITTKLLKAGAKPDQIGIITPYEGQRSYLVQYMQFSGSLHTKLYQEVEIASVDAFQGREKDFIILSCVRANEHQGIGFLNDPRRLNVALTRARYGVIIVGNPKALSKQPLWNHLLNYYKEQKVLVEGPLNNLRESLMQFS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	58

▼

7. Fold Classification (SCOP + CATH) 7 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d2gk7a1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.19 — Tandem AAA-ATPase domain

Domain ID domain_id	d2gk7a2
Class class	b — All beta proteins
Fold Fold fold	b.49 — Domain of alpha and beta subunits of F1 ATP synthase-like
Superfamily Superfamily superfamily	b.49.4 — Upf1 barrel domain-like
Family Family family	b.49.4.1 — Upf1 barrel domain-like

Domain ID domain_id	d2gk7a3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.19 — Tandem AAA-ATPase domain

CATH v4.4 (4 domains)

Domain ID domain_id	2gk7A01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2gk7A02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	230 —

Domain ID domain_id	2gk7A03
Class class	6 — Special
Architecture architecture	10 — Helix non-globular
Topology topology	140 — Helix Hairpins
Homologous superfamily homologous superfamily	1240 —

Domain ID domain_id	2gk7A04
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

▶

8. Citations (1)

▶

Unit-cell length a length_a	195.189 Å
Unit-cell length b length_b	195.189 Å
Unit-cell length c length_c	45.458 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 43 21 2
Space-group number int_tables_number	96
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2599
R_work r_work	0.2578
R_free r_free	0.2983

fit	/app/data/saxs_computation/gk/2gk7/2gk7.fit
pddf	/app/data/pr_computation/gk/2gk7/2gk7.pr.out
profile	/app/data/saxs_computation/gk/2gk7/2gk7.dat
