Rattus norvegicus
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | water × 1 | Consistent with protein count |
| UniProt name | ANXA5_RAT |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 2–318； UniProt 1–317 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 2h0m |
| Deposition date deposition_date | 2006-05-15 |
| Structure title title | Structure of a Mutant of Rat Annexin A5 |
| Keywords keywords | CALCIUM, PHOSPHOLIPID MEMBRANE BINDING PROTEINS, BLOOD CLOTTING; BLOOD CLOTTING |
| Experimental Method method | X-RAY DIFFRACTION |

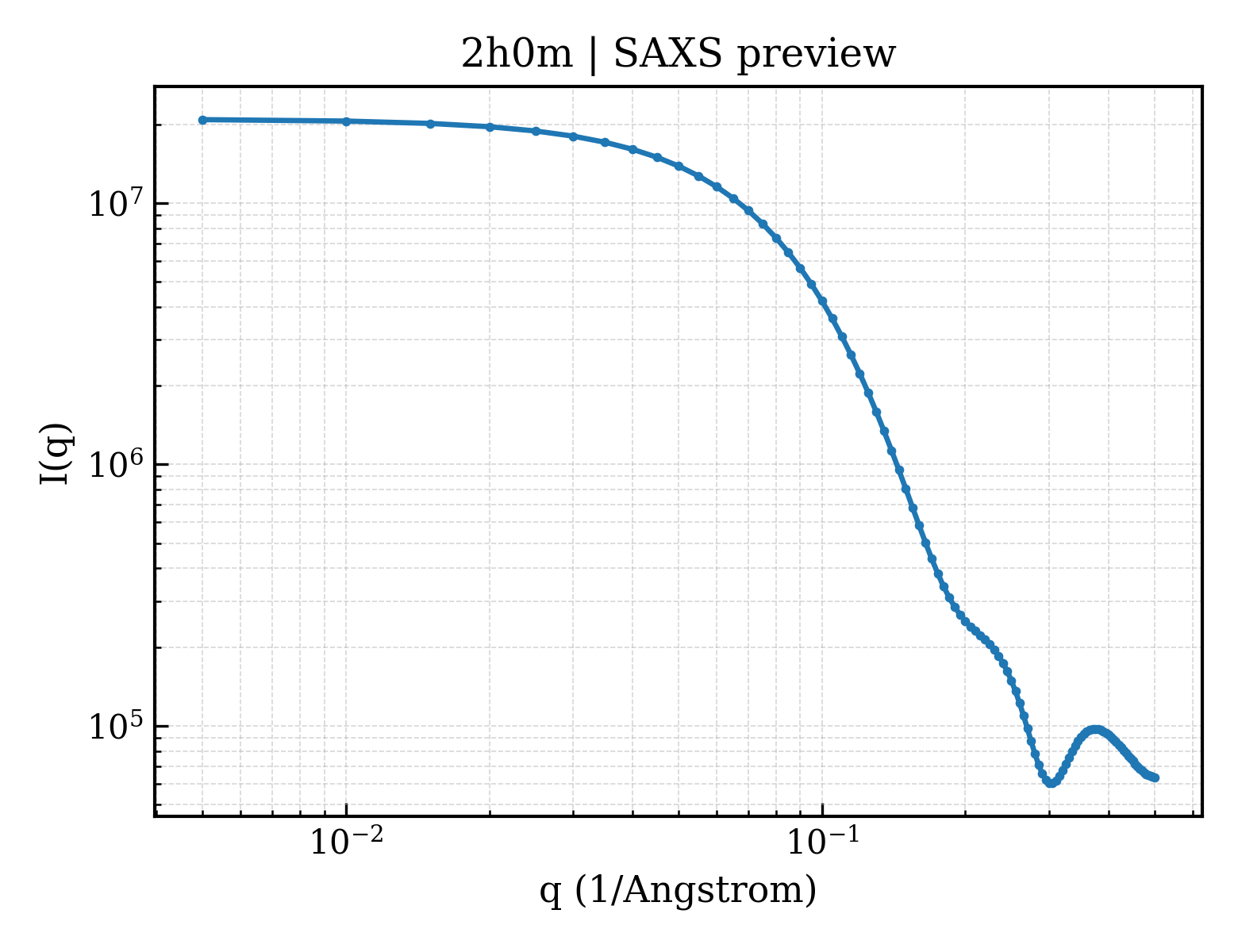

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 22.30 Å |
| Rg (electron density) | 21.36 Å |
| Total Rg | 22.13 Å |
| Atom count | 2423 |
| Residues | 318 |
| Excluded volume | 42940 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d2h0ma_ |
| Class class | a — All alpha proteins |
| Fold Fold fold | a.65 — Annexin |
| Superfamily Superfamily superfamily | a.65.1 — Annexin |
| Family Family family | a.65.1.1 — Annexin |
| Domain ID domain_id | 2h0mA01 |
| Class class | 1 — Mainly Alpha |
| Architecture architecture | 10 — Orthogonal Bundle |
| Topology topology | 220 — Annexin V; domain 1 |
| Homologous superfamily homologous superfamily | 10 — Annexin |
| Domain ID domain_id | 2h0mA02 |
| Class class | 1 — Mainly Alpha |
| Architecture architecture | 10 — Orthogonal Bundle |
| Topology topology | 220 — Annexin V; domain 1 |
| Homologous superfamily homologous superfamily | 10 — Annexin |
| Domain ID domain_id | 2h0mA03 |
| Class class | 1 — Mainly Alpha |
| Architecture architecture | 10 — Orthogonal Bundle |
| Topology topology | 220 — Annexin V; domain 1 |
| Homologous superfamily homologous superfamily | 10 — Annexin |
| Domain ID domain_id | 2h0mA04 |
| Class class | 1 — Mainly Alpha |
| Architecture architecture | 10 — Orthogonal Bundle |
| Topology topology | 220 — Annexin V; domain 1 |
| Homologous superfamily homologous superfamily | 10 — Annexin |
