SAXSdb — 2h2n

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Soluble calcium-activated nucleotidase 1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	CALCIUM ION × 2 ACETATE ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CANT1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 7–339； UniProt 69–401 Author chain B； PDBConstruct 7–339； UniProt 69–401

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2h2n
Deposition date deposition_date	2006-05-19
Structure title title	Crystal structure of human soluble calcium-activated nucleotidase (SCAN) with calcium ion
Keywords keywords	NUCLEOTIDASE, FIVE-BLADE BETA PROPELLER, CALCIUM-BINDING PROTEIN, NUCLEOTIDE-BINDING, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2h2n__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2h2n__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

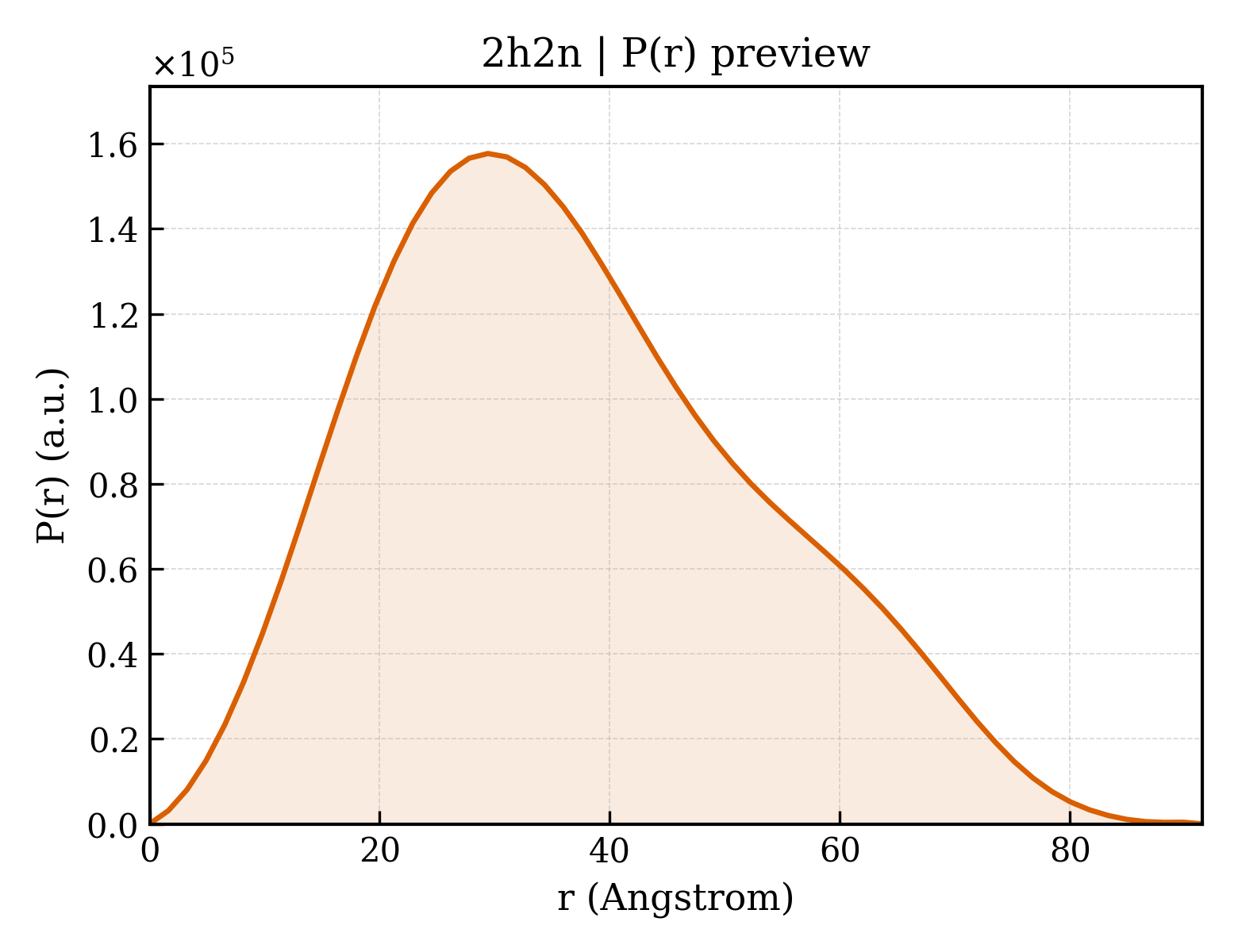

2h2n__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.15 Å
Rg (electron density)	27.34 Å
Total Rg	28.19 Å
Atom count	5004
Residues	632
Excluded volume	88499 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2h2n__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Soluble calcium-activated nucleotidase 1
Molecular weight formula_weight	37808.0 kDa
EC 编号 ec_number	3.6.1.6
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5232

GSHMASPPTHNAHNWRLGQAPANWYNDTYPLSPPQRTPAGIRYRIAVIADLDTESRAQEENTWFSYLKKGYLTLSDSGDKVAVEWDKDHGVLESHLAEKGRGMELSDLIVFNGKLYSVDDRTGVVYQIEGSKAVPWVILSDGDGTVEKGFKAEWLAVKDERLYVGGLGKEWTTTTGDVVNENPEWVKVVGYKGSVDHENWVSNYNALRAAAGIQPPGYLIHESACWSDTLQRWFFLPRRASQERYSEKDDERKGANLLLSASPDFGDIAVSHVGAVVPTHGFSSFKFIPNTDDQIIVALKSEEDSGRVASYIMAFTLDGRFLLPETKIGSVKYEGIEFI

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	ACETATE ION
Molecular weight formula_weight	59.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	228

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2h2na_
Class class	b — All beta proteins
Fold Fold fold	b.67 — 5-bladed beta-propeller
Superfamily Superfamily superfamily	b.67.3 — Apyrase
Family Family family	b.67.3.1 — Apyrase

Domain ID domain_id	d2h2nb_
Class class	b — All beta proteins
Fold Fold fold	b.67 — 5-bladed beta-propeller
Superfamily Superfamily superfamily	b.67.3 — Apyrase
Family Family family	b.67.3.1 — Apyrase

CATH v4.4 (2 domains)

Domain ID domain_id	2h2nA00
Class class	2 — Mainly Beta
Architecture architecture	120 — 6 Propeller
Topology topology	10 — Neuraminidase
Homologous superfamily homologous superfamily	100 — Apyrase

Domain ID domain_id	2h2nB00
Class class	2 — Mainly Beta
Architecture architecture	120 — 6 Propeller
Topology topology	10 — Neuraminidase
Homologous superfamily homologous superfamily	100 — Apyrase

▶

Unit-cell length a length_a	43.094 Å
Unit-cell length b length_b	52.368 Å
Unit-cell length c length_c	77.426 Å
Unit-cell angle α angle_alpha	75.06 °
Unit-cell angle β angle_beta	74.52 °
Unit-cell angle γ angle_gamma	79.47 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	31.080 Å
R factor r_factor	0.1720
R_work r_work	0.1680
R_free r_free	0.2490
