2hg4

Structure of the ketosynthase-acyltransferase didomain of module 5 from DEBS.

Method: X-RAY DIFFRACTION D_max: 268.6 Å Quality: GOOD

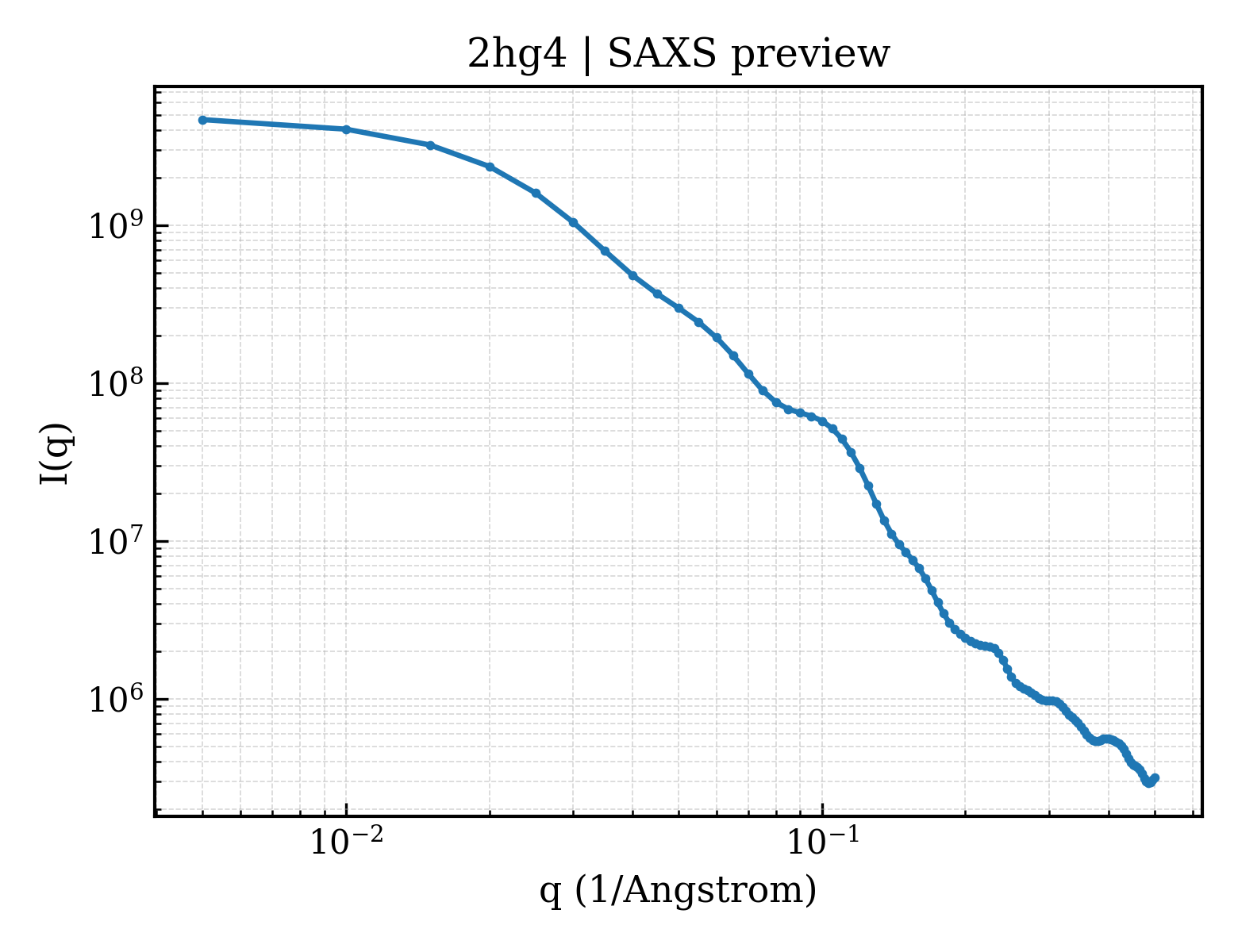

SAXS 散射曲线 SAXS Profile

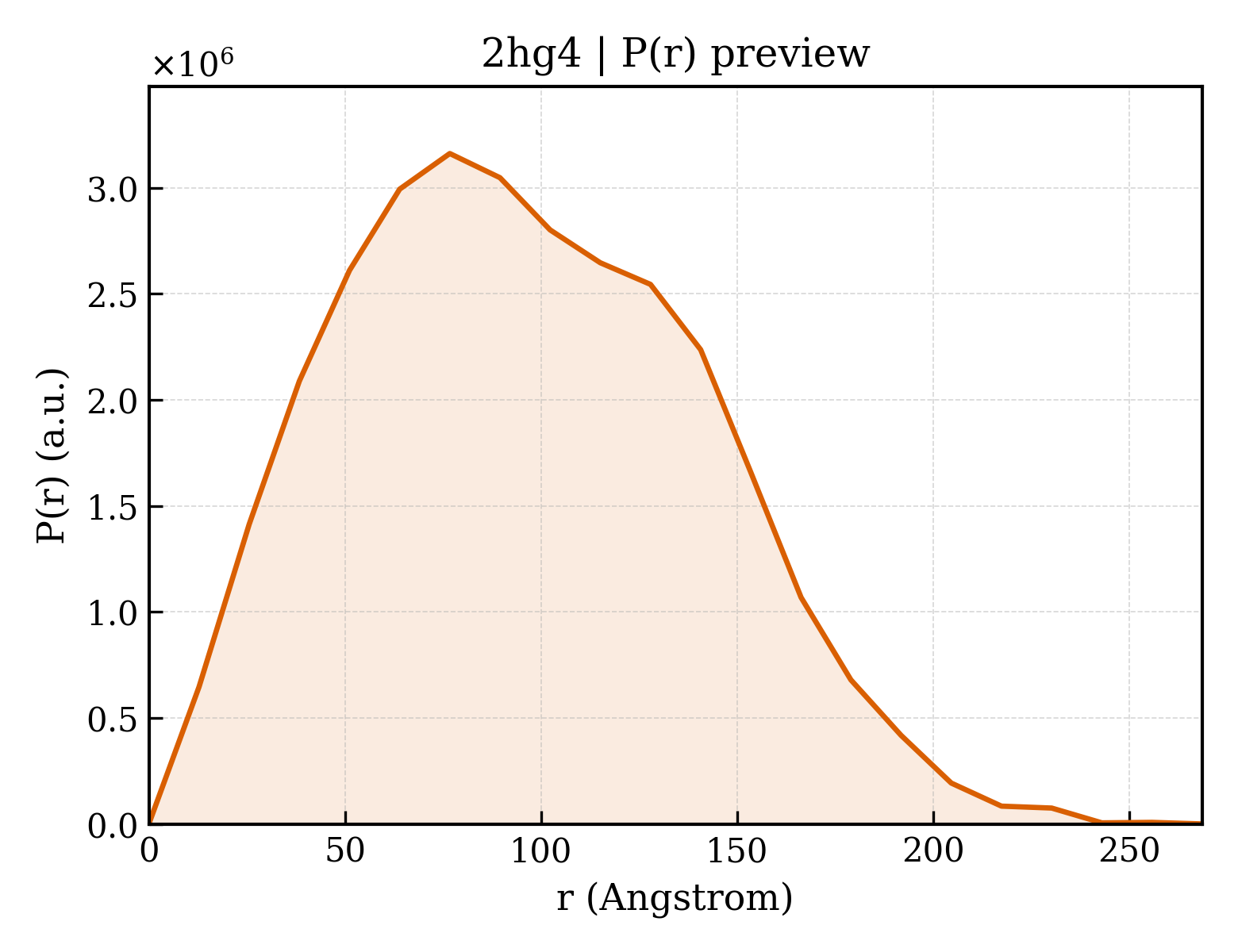

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2hg4
沉积日期 deposition_date	2006-06-26
结构标题 title	Structure of the ketosynthase-acyltransferase didomain of module 5 from DEBS.
关键词 keywords	ketosynthase, acyltransferase, module 5, DEBS, TRANSFERASE; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	74.58 Å
回转半径 Rg (电子) rg_electron	74.77 Å
零角强度 I(0) i0	4881140000.00
分子量 molecular_weight	559740.0 kDa
排除体积 excluded_volume	686660 Å³
包络体积 envelope_volume	1101300 Å³
水化壳体积 shell_volume	128180 Å³
包络直径 envelope_diameter	272.6 Å
壳层 Rg shell_rg	68.80 Å
包络 Rg envelope_rg	71.92 Å
形状 Rg shape_rg	74.79 Å
总 Rg total_rg	74.62 Å
总原子数 total_atoms	39092
残基数 n_residues	5190
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	268.6 Å
Rg (实空间) rg_real	74.70 Å
Rg 误差 (实空间) rg_real_error	4.16 Å
I(0) (实空间) i0_real	4.8810e+09
I(0) 误差 (实空间) i0_real_error	1.1190e+08
Rg (倒空间) rg_reciprocal	73.96 Å
I(0) (倒空间) i0_reciprocal	4873000000.0000
解质量估计 total_estimate	0.8626
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	76.7 Å
偏度 Skewness skewness	0.293
峰度 Kurtosis kurtosis	-0.487
角度范围 angular_range	— – 0.1050 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	119200000.0000
实空间数据点数 n_real_points	22
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.809; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.781

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	6-Deoxyerythronolide B Synthase
分子量 formula_weight	97980.9 kDa
EC 编号 ec_number	2.3.1.94
来源方法 src_method	man
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F
原子数 atom_count	39402

MSGDNGMTEEKLRRYLKRTVTELDSVTARLREVEHRAGEPIAIVGMACRFPGDVDSPESFWEFVSGGGDAIAEAPADRGWEPDPDARLGGMLAAAGDFDAGFFGISPREALAMDPQQRIMLEISWEALERAGHDPVSLRGSATGVFTGVGTVDYGPRPDEAPDEVLGYVGTGTASSVASGRVAYCLGLEGPAMTVDTACSSGLTALHLAMESLRRDECGLALAGGVTVMSSPGAFTEFRSQGGLAADGRCKPFSKAADGFGLAEGAGVLVLQRLSAARREGRPVLAVLRGSAVNQDGASNGLTAPSGPAQQRVIRRALENAGVRAGDVDYVEAHGTGTRLGDPIEVHALLSTYGAERDPDDPLWIGSVKSNIGHTQAAAGVAGVMKAVLALRHGEMPRTLHFDEPSPQIEWDLGAVSVVSQARSWPAGERPRRAGVSSFGISGTNAHVIVEEAPEADEPEPAPDSGPVPLVLSGRDEQAMRAQAGRLADHLAREPRNSLRDTGFTLATRRSAWEHRAVVVGDRDEALAGLRAVADGRIADRTATGQARTRRGVAMVFPGQGAQWQGMARDLLRESQVFADSIRDCERALAPHVDWSLTDLLSGARPLDRVDVVQPALFAVMVSLAALWRSHGVEPAAVVGHSQGEIAAAHVAGALTLEDAAKLVAVRSRVLRRLGGQGGMASFGLGTEQAAERIGRFAGALSIASVNGPRSVVVAGESGPLDELIAECEAEAHKARRIPVDYASHSPQVESLREELLTELAGISPVSADVALYSTTTGQPIDTATMDTAYWYANLREQVRFQDATRQLAEAGFDAFVEVSPHPVLTVGIEATLDSALPADAGACVVGTLRRDRGGLADFHTALGEAYAQGVEVDWSPAFADARPVELPVYPFQRQRYWLPIPTGGRARDEDDDWRYQ

来源 Source

来源生物 organism	Saccharopolyspora erythraea
NCBI 分类编号 ncbi_taxonomy_id	1836
宿主生物 host_organism	Escherichia coli BL21

Entity 2 non-polymer

描述 description	ACETATE ION
分子量 formula_weight	59.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

Entity 3 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	5

Entity 4 non-polymer

描述 description	CHLORIDE ION
分子量 formula_weight	35.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	5

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	310

▼

6. 折叠分类 (SCOP + CATH) 60 domains

SCOP 2.08 (42 domains)

结构域编号 domain_id	d2hg4a1
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.38 — N-terminal linker of 6-deoxyerythronolide B synthase (DEBS)
家族 Family family	h.1.38.1 — N-terminal linker of 6-deoxyerythronolide B synthase (DEBS)

结构域编号 domain_id	d2hg4a2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.95 — Thiolase-like
超家族 Superfamily superfamily	c.95.1 — Thiolase-like
家族 Family family	c.95.1.1 — Thiolase-related

结构域编号 domain_id	d2hg4a3
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.95 — Thiolase-like
超家族 Superfamily superfamily	c.95.1 — Thiolase-like
家族 Family family	c.95.1.1 — Thiolase-related

结构域编号 domain_id	d2hg4a4
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.390 — KS-to-AT linker domain from 6-deoxyerythronolide B synthase (DEBS)-like
超家族 Superfamily superfamily	d.390.1 — KS-to-AT linker domain from 6-deoxyerythronolide B synthase (DEBS)-like
家族 Family family	d.390.1.1 — KS-to-AT linker domain from 6-deoxyerythronolide B synthase (DEBS)-like

结构域编号 domain_id	d2hg4a5
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.58 — Ferredoxin-like
超家族 Superfamily superfamily	d.58.23 — Probable ACP-binding domain of malonyl-CoA ACP transacylase
家族 Family family	d.58.23.1 — Probable ACP-binding domain of malonyl-CoA ACP transacylase

结构域编号 domain_id	d2hg4a6
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.19 — FabD/lysophospholipase-like
超家族 Superfamily superfamily	c.19.1 — FabD/lysophospholipase-like
家族 Family family	c.19.1.1 — FabD-like

结构域编号 domain_id	d2hg4a7
类 Class class	j — Peptides
折叠类型 Fold fold	j.134 — C-terminal linker of 6-deoxyerythronolide B synthase (DEBS)-like
超家族 Superfamily superfamily	j.134.1 — C-terminal linker of 6-deoxyerythronolide B synthase (DEBS)-like
家族 Family family	j.134.1.1 — C-terminal linker of 6-deoxyerythronolide B synthase (DEBS)-like

结构域编号 domain_id	d2hg4b1
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.38 — N-terminal linker of 6-deoxyerythronolide B synthase (DEBS)
家族 Family family	h.1.38.1 — N-terminal linker of 6-deoxyerythronolide B synthase (DEBS)

结构域编号 domain_id	d2hg4b2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.95 — Thiolase-like
超家族 Superfamily superfamily	c.95.1 — Thiolase-like
家族 Family family	c.95.1.1 — Thiolase-related

结构域编号 domain_id	d2hg4b3
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.95 — Thiolase-like
超家族 Superfamily superfamily	c.95.1 — Thiolase-like
家族 Family family	c.95.1.1 — Thiolase-related

结构域编号 domain_id	d2hg4b4
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.390 — KS-to-AT linker domain from 6-deoxyerythronolide B synthase (DEBS)-like
超家族 Superfamily superfamily	d.390.1 — KS-to-AT linker domain from 6-deoxyerythronolide B synthase (DEBS)-like
家族 Family family	d.390.1.1 — KS-to-AT linker domain from 6-deoxyerythronolide B synthase (DEBS)-like

结构域编号 domain_id	d2hg4b5
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.58 — Ferredoxin-like
超家族 Superfamily superfamily	d.58.23 — Probable ACP-binding domain of malonyl-CoA ACP transacylase
家族 Family family	d.58.23.1 — Probable ACP-binding domain of malonyl-CoA ACP transacylase

结构域编号 domain_id	d2hg4b6
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.19 — FabD/lysophospholipase-like
超家族 Superfamily superfamily	c.19.1 — FabD/lysophospholipase-like
家族 Family family	c.19.1.1 — FabD-like

结构域编号 domain_id	d2hg4b7
类 Class class	j — Peptides
折叠类型 Fold fold	j.134 — C-terminal linker of 6-deoxyerythronolide B synthase (DEBS)-like
超家族 Superfamily superfamily	j.134.1 — C-terminal linker of 6-deoxyerythronolide B synthase (DEBS)-like
家族 Family family	j.134.1.1 — C-terminal linker of 6-deoxyerythronolide B synthase (DEBS)-like

结构域编号 domain_id	d2hg4c1
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.38 — N-terminal linker of 6-deoxyerythronolide B synthase (DEBS)
家族 Family family	h.1.38.1 — N-terminal linker of 6-deoxyerythronolide B synthase (DEBS)

结构域编号 domain_id	d2hg4c2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.95 — Thiolase-like
超家族 Superfamily superfamily	c.95.1 — Thiolase-like
家族 Family family	c.95.1.1 — Thiolase-related

结构域编号 domain_id	d2hg4c3
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.95 — Thiolase-like
超家族 Superfamily superfamily	c.95.1 — Thiolase-like
家族 Family family	c.95.1.1 — Thiolase-related

结构域编号 domain_id	d2hg4c4
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.390 — KS-to-AT linker domain from 6-deoxyerythronolide B synthase (DEBS)-like
超家族 Superfamily superfamily	d.390.1 — KS-to-AT linker domain from 6-deoxyerythronolide B synthase (DEBS)-like
家族 Family family	d.390.1.1 — KS-to-AT linker domain from 6-deoxyerythronolide B synthase (DEBS)-like

结构域编号 domain_id	d2hg4c5
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.58 — Ferredoxin-like
超家族 Superfamily superfamily	d.58.23 — Probable ACP-binding domain of malonyl-CoA ACP transacylase
家族 Family family	d.58.23.1 — Probable ACP-binding domain of malonyl-CoA ACP transacylase

结构域编号 domain_id	d2hg4c6
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.19 — FabD/lysophospholipase-like
超家族 Superfamily superfamily	c.19.1 — FabD/lysophospholipase-like
家族 Family family	c.19.1.1 — FabD-like

结构域编号 domain_id	d2hg4c7
类 Class class	j — Peptides
折叠类型 Fold fold	j.134 — C-terminal linker of 6-deoxyerythronolide B synthase (DEBS)-like
超家族 Superfamily superfamily	j.134.1 — C-terminal linker of 6-deoxyerythronolide B synthase (DEBS)-like
家族 Family family	j.134.1.1 — C-terminal linker of 6-deoxyerythronolide B synthase (DEBS)-like

结构域编号 domain_id	d2hg4d1
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.38 — N-terminal linker of 6-deoxyerythronolide B synthase (DEBS)
家族 Family family	h.1.38.1 — N-terminal linker of 6-deoxyerythronolide B synthase (DEBS)

结构域编号 domain_id	d2hg4d2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.95 — Thiolase-like
超家族 Superfamily superfamily	c.95.1 — Thiolase-like
家族 Family family	c.95.1.1 — Thiolase-related

结构域编号 domain_id	d2hg4d3
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.95 — Thiolase-like
超家族 Superfamily superfamily	c.95.1 — Thiolase-like
家族 Family family	c.95.1.1 — Thiolase-related

结构域编号 domain_id	d2hg4d4
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.390 — KS-to-AT linker domain from 6-deoxyerythronolide B synthase (DEBS)-like
超家族 Superfamily superfamily	d.390.1 — KS-to-AT linker domain from 6-deoxyerythronolide B synthase (DEBS)-like
家族 Family family	d.390.1.1 — KS-to-AT linker domain from 6-deoxyerythronolide B synthase (DEBS)-like

结构域编号 domain_id	d2hg4d5
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.58 — Ferredoxin-like
超家族 Superfamily superfamily	d.58.23 — Probable ACP-binding domain of malonyl-CoA ACP transacylase
家族 Family family	d.58.23.1 — Probable ACP-binding domain of malonyl-CoA ACP transacylase

结构域编号 domain_id	d2hg4d6
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.19 — FabD/lysophospholipase-like
超家族 Superfamily superfamily	c.19.1 — FabD/lysophospholipase-like
家族 Family family	c.19.1.1 — FabD-like

结构域编号 domain_id	d2hg4d7
类 Class class	j — Peptides
折叠类型 Fold fold	j.134 — C-terminal linker of 6-deoxyerythronolide B synthase (DEBS)-like
超家族 Superfamily superfamily	j.134.1 — C-terminal linker of 6-deoxyerythronolide B synthase (DEBS)-like
家族 Family family	j.134.1.1 — C-terminal linker of 6-deoxyerythronolide B synthase (DEBS)-like

结构域编号 domain_id	d2hg4e1
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.38 — N-terminal linker of 6-deoxyerythronolide B synthase (DEBS)
家族 Family family	h.1.38.1 — N-terminal linker of 6-deoxyerythronolide B synthase (DEBS)

结构域编号 domain_id	d2hg4e2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.95 — Thiolase-like
超家族 Superfamily superfamily	c.95.1 — Thiolase-like
家族 Family family	c.95.1.1 — Thiolase-related

结构域编号 domain_id	d2hg4e3
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.95 — Thiolase-like
超家族 Superfamily superfamily	c.95.1 — Thiolase-like
家族 Family family	c.95.1.1 — Thiolase-related

结构域编号 domain_id	d2hg4e4
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.390 — KS-to-AT linker domain from 6-deoxyerythronolide B synthase (DEBS)-like
超家族 Superfamily superfamily	d.390.1 — KS-to-AT linker domain from 6-deoxyerythronolide B synthase (DEBS)-like
家族 Family family	d.390.1.1 — KS-to-AT linker domain from 6-deoxyerythronolide B synthase (DEBS)-like

结构域编号 domain_id	d2hg4e5
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.58 — Ferredoxin-like
超家族 Superfamily superfamily	d.58.23 — Probable ACP-binding domain of malonyl-CoA ACP transacylase
家族 Family family	d.58.23.1 — Probable ACP-binding domain of malonyl-CoA ACP transacylase

结构域编号 domain_id	d2hg4e6
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.19 — FabD/lysophospholipase-like
超家族 Superfamily superfamily	c.19.1 — FabD/lysophospholipase-like
家族 Family family	c.19.1.1 — FabD-like

结构域编号 domain_id	d2hg4e7
类 Class class	j — Peptides
折叠类型 Fold fold	j.134 — C-terminal linker of 6-deoxyerythronolide B synthase (DEBS)-like
超家族 Superfamily superfamily	j.134.1 — C-terminal linker of 6-deoxyerythronolide B synthase (DEBS)-like
家族 Family family	j.134.1.1 — C-terminal linker of 6-deoxyerythronolide B synthase (DEBS)-like

结构域编号 domain_id	d2hg4f1
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.38 — N-terminal linker of 6-deoxyerythronolide B synthase (DEBS)
家族 Family family	h.1.38.1 — N-terminal linker of 6-deoxyerythronolide B synthase (DEBS)

结构域编号 domain_id	d2hg4f2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.95 — Thiolase-like
超家族 Superfamily superfamily	c.95.1 — Thiolase-like
家族 Family family	c.95.1.1 — Thiolase-related

结构域编号 domain_id	d2hg4f3
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.95 — Thiolase-like
超家族 Superfamily superfamily	c.95.1 — Thiolase-like
家族 Family family	c.95.1.1 — Thiolase-related

结构域编号 domain_id	d2hg4f4
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.390 — KS-to-AT linker domain from 6-deoxyerythronolide B synthase (DEBS)-like
超家族 Superfamily superfamily	d.390.1 — KS-to-AT linker domain from 6-deoxyerythronolide B synthase (DEBS)-like
家族 Family family	d.390.1.1 — KS-to-AT linker domain from 6-deoxyerythronolide B synthase (DEBS)-like

结构域编号 domain_id	d2hg4f5
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.58 — Ferredoxin-like
超家族 Superfamily superfamily	d.58.23 — Probable ACP-binding domain of malonyl-CoA ACP transacylase
家族 Family family	d.58.23.1 — Probable ACP-binding domain of malonyl-CoA ACP transacylase

结构域编号 domain_id	d2hg4f6
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.19 — FabD/lysophospholipase-like
超家族 Superfamily superfamily	c.19.1 — FabD/lysophospholipase-like
家族 Family family	c.19.1.1 — FabD-like

结构域编号 domain_id	d2hg4f7
类 Class class	j — Peptides
折叠类型 Fold fold	j.134 — C-terminal linker of 6-deoxyerythronolide B synthase (DEBS)-like
超家族 Superfamily superfamily	j.134.1 — C-terminal linker of 6-deoxyerythronolide B synthase (DEBS)-like
家族 Family family	j.134.1.1 — C-terminal linker of 6-deoxyerythronolide B synthase (DEBS)-like

CATH v4.4 (18 domains)

结构域编号 domain_id	2hg4A01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

结构域编号 domain_id	2hg4A02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	3290 —

结构域编号 domain_id	2hg4A03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	366 — Malonyl-Coenzyme A Acyl Carrier Protein; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Malonyl-Coenzyme A Acyl Carrier Protein, domain 2

结构域编号 domain_id	2hg4B01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

结构域编号 domain_id	2hg4B02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	3290 —

结构域编号 domain_id	2hg4B03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	366 — Malonyl-Coenzyme A Acyl Carrier Protein; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Malonyl-Coenzyme A Acyl Carrier Protein, domain 2

结构域编号 domain_id	2hg4C01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

结构域编号 domain_id	2hg4C02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	3290 —

结构域编号 domain_id	2hg4C03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	366 — Malonyl-Coenzyme A Acyl Carrier Protein; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Malonyl-Coenzyme A Acyl Carrier Protein, domain 2

结构域编号 domain_id	2hg4D01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

结构域编号 domain_id	2hg4D02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	3290 —

结构域编号 domain_id	2hg4D03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	366 — Malonyl-Coenzyme A Acyl Carrier Protein; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Malonyl-Coenzyme A Acyl Carrier Protein, domain 2

结构域编号 domain_id	2hg4E01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

结构域编号 domain_id	2hg4E02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	3290 —

结构域编号 domain_id	2hg4E03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	366 — Malonyl-Coenzyme A Acyl Carrier Protein; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Malonyl-Coenzyme A Acyl Carrier Protein, domain 2

结构域编号 domain_id	2hg4F01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

结构域编号 domain_id	2hg4F02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	3290 —

结构域编号 domain_id	2hg4F03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	366 — Malonyl-Coenzyme A Acyl Carrier Protein; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Malonyl-Coenzyme A Acyl Carrier Protein, domain 2

▶

7. 引用文献 (3)

▶

晶胞边长 a length_a	305.258 Å
晶胞边长 b length_b	150.149 Å
晶胞边长 c length_c	184.378 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	110.03 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	24

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	2.730 Å
最低分辨率 resolution_low	48.030 Å
R 因子 r_factor	0.2181
R_work r_work	0.2161
R_free r_free	0.2550
