2him

Crystal Structure and Allosteric Regulation of the Cytoplasmic Escherichia coli L-Asparaginase I

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

L-asparaginase 1

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	ASPARTIC ACID × 4 ASPARAGINE × 8 1,2-ETHANEDIOL × 8 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ASPG1_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 21–358； UniProt 1–338 Author chain B； PDBConstruct 21–358； UniProt 1–338 Author chain C； PDBConstruct 21–358； UniProt 1–338 Author chain D； PDBConstruct 21–358； UniProt 1–338

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2him
Deposition date deposition_date	2006-06-29
Structure title title	Crystal Structure and Allosteric Regulation of the Cytoplasmic Escherichia coli L-Asparaginase I
Keywords keywords	Asparaginase, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2him__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2him__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

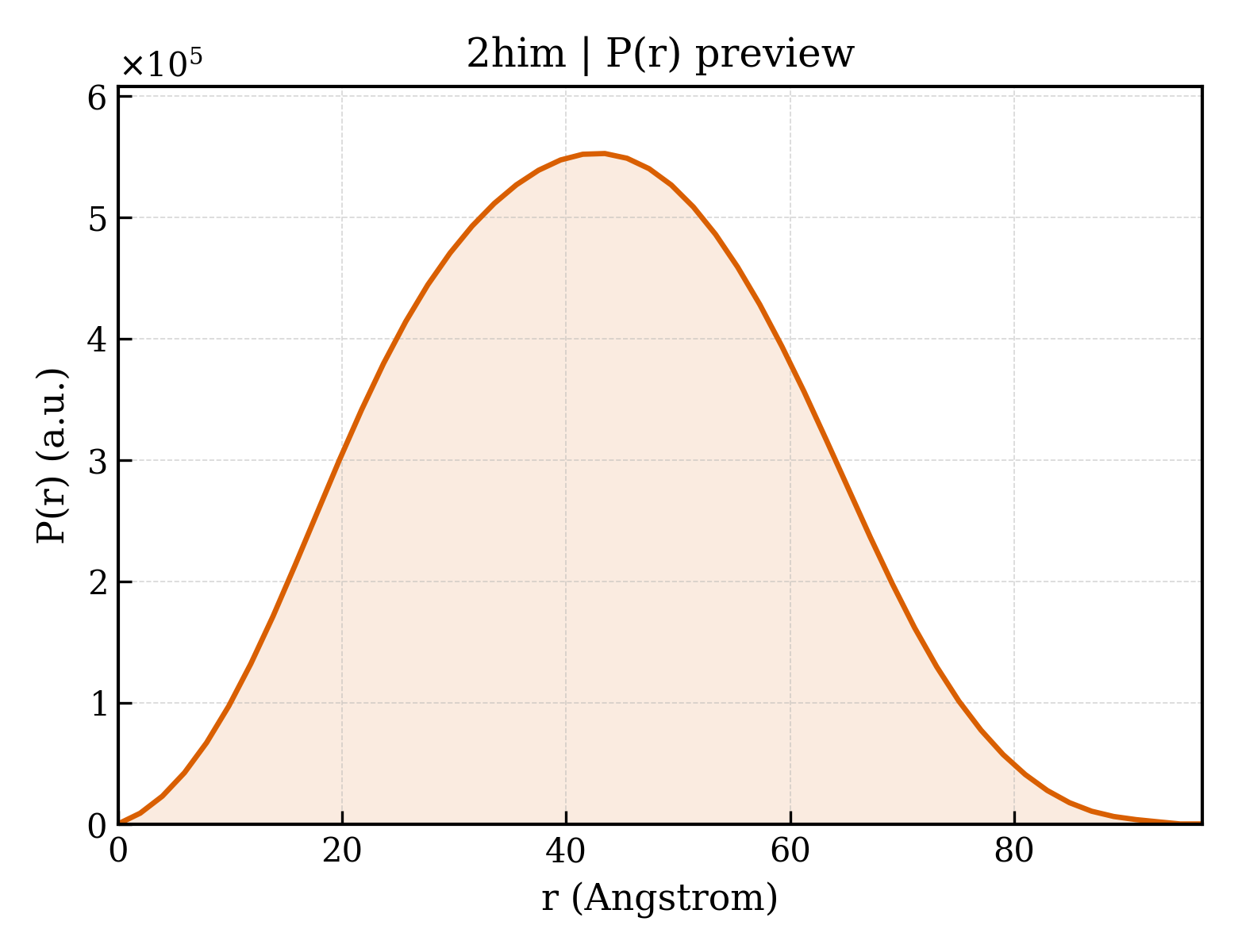

2him__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.52 Å
Rg (electron density)	31.49 Å
Total Rg	32.16 Å
Atom count	10113
Residues	1308
Excluded volume	179710 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2him__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	L-asparaginase 1
Molecular weight formula_weight	39305.4 kDa
EC 编号 ec_number	3.5.1.1
Mutation mutation	T162A
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	10664

MGSSHHHHHHSSGLVPRGSHMQKKSIYVAYTGGTIGMQRSEQGYIPVSGHLQRQLALMPEFHRPEMPDFTIHEYTPLMDSSDMTPEDWQHIAEDIKAHYDDYDGFVILHGTDTMAYTASALSFMLENLGKPVIVTGSQIPLAELRSDGQINLLNALYVAANYPINEVTLFFNNRLYRGNRTAKAHADGFDAFASPNLPPLLEAGIHIRRLNTPPAPHGEGELIVHPITPQPIGVVTIYPGISADVVRNFLRQPVKALILRSYGVGNAPQNKAFLQELQEASDRGIVVVNLTQCMSGKVNMGGYATGNALAHAGVIGGADMTVEATLTKLHYLLSQELDTETIRKAMSQNLRGELTPDD

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	ASPARTIC ACID
Molecular weight formula_weight	133.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	ASPARAGINE
Molecular weight formula_weight	132.1 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 4 Entity 4 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	515

▼

6. Fold Classification (SCOP + CATH) 14 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d2hima_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.88 — Glutaminase/Asparaginase
Superfamily Superfamily superfamily	c.88.1 — Glutaminase/Asparaginase
Family Family family	c.88.1.1 — Glutaminase/Asparaginase

Domain ID domain_id	d2himb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.88 — Glutaminase/Asparaginase
Superfamily Superfamily superfamily	c.88.1 — Glutaminase/Asparaginase
Family Family family	c.88.1.1 — Glutaminase/Asparaginase

Domain ID domain_id	d2himb2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2himc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.88 — Glutaminase/Asparaginase
Superfamily Superfamily superfamily	c.88.1 — Glutaminase/Asparaginase
Family Family family	c.88.1.1 — Glutaminase/Asparaginase

Domain ID domain_id	d2himd1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.88 — Glutaminase/Asparaginase
Superfamily Superfamily superfamily	c.88.1 — Glutaminase/Asparaginase
Family Family family	c.88.1.1 — Glutaminase/Asparaginase

Domain ID domain_id	d2himd2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (8 domains)

Domain ID domain_id	2himA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1170 — L-asparaginase, N-terminal domain

Domain ID domain_id	2himA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	2himB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1170 — L-asparaginase, N-terminal domain

Domain ID domain_id	2himB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	2himC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1170 — L-asparaginase, N-terminal domain

Domain ID domain_id	2himC02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	2himD01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1170 — L-asparaginase, N-terminal domain

Domain ID domain_id	2himD02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	40 —

▶

Unit-cell length a length_a	90.524 Å
Unit-cell length b length_b	89.766 Å
Unit-cell length c length_c	93.290 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	117.14 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.820 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	0.2090
R_work r_work	0.2090
R_free r_free	0.2260
