2hj8

Solution NMR structure of the C-terminal domain of the interferon alpha-inducible ISG15 protein from Homo sapiens. Northeast Structural Genomics target HR2873B

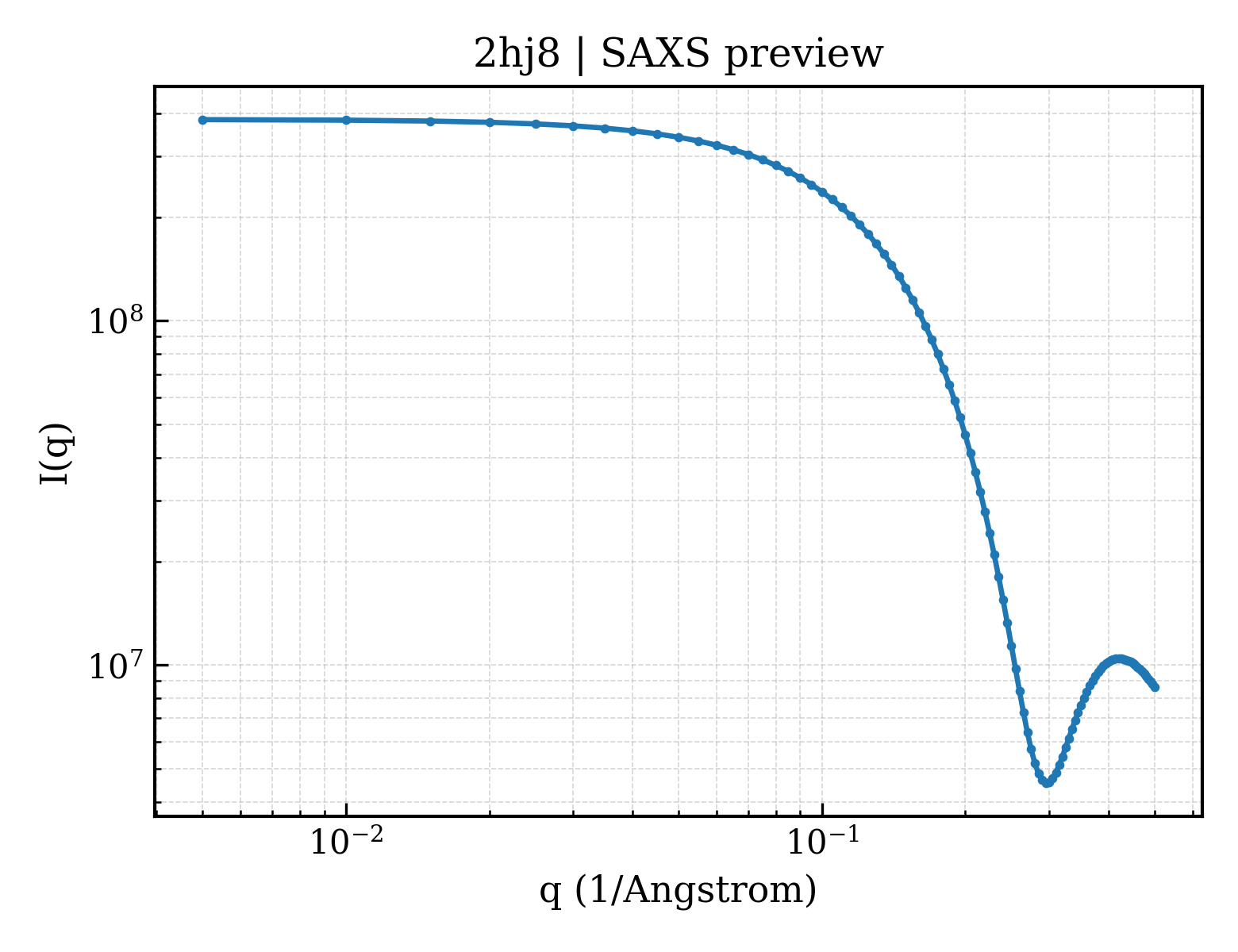

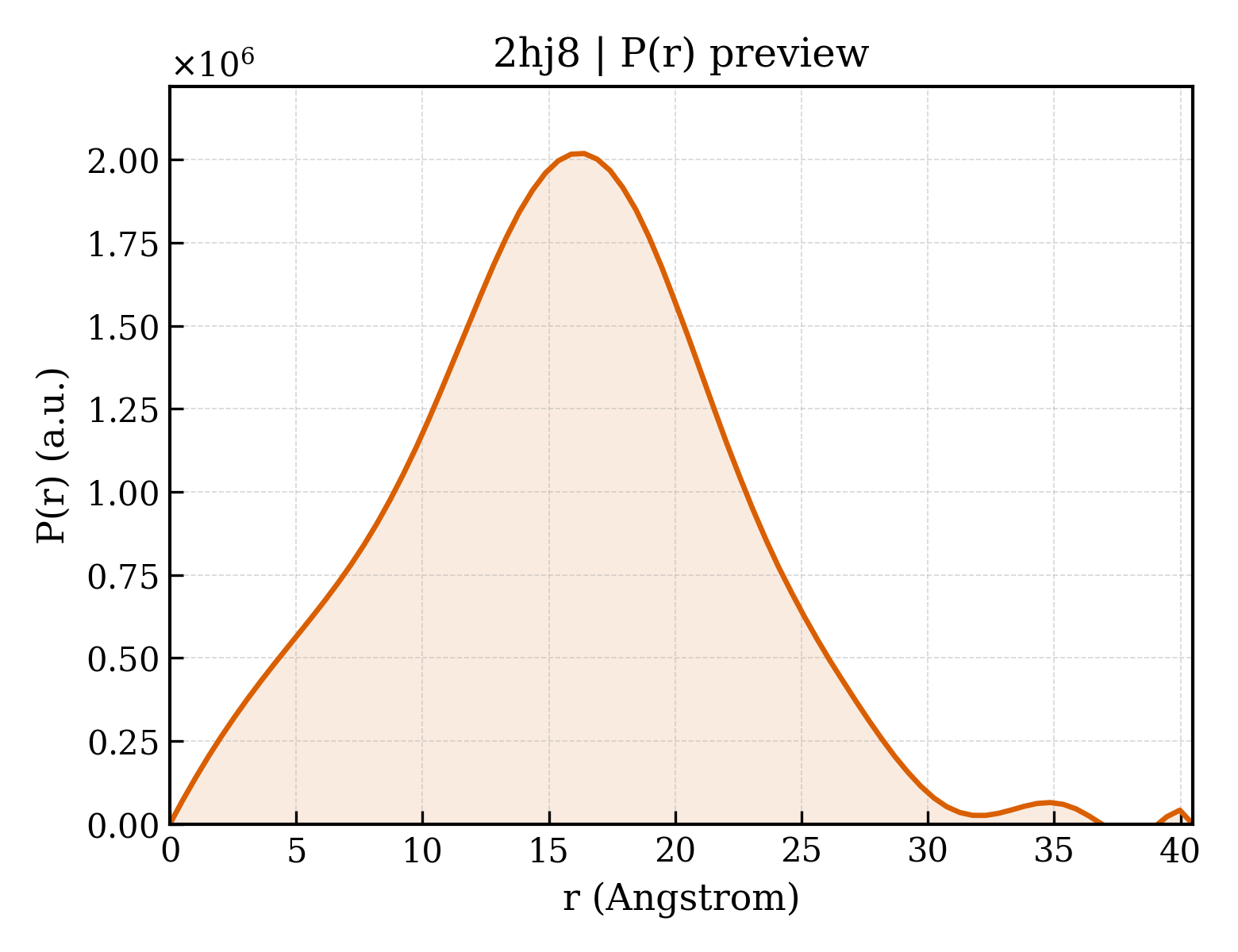

Method: SOLUTION NMR Dmax: 40.5 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Interferon-induced 17 kDa protein

Homo sapiens

UniProt P05161

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count Chain A； UniProt 78–156 Fragment：ISG15 C-terminal domain (8.9 kDa), Ubiquitin-like 2 No other associated polymer SOLUTION NMR NMR measurement conditions：pH 6.5；293 K；Ionic strength (raw mmCIF value) 50 mM ammonium citrate, 5 mM CaCl2；Pressure ambient NMR sample composition：0.81 mM U-13C,15N HR2873B, 50 mM ammonium citrate, 5 mM CaCl2, 1x protease inhibitor, 0.02% NaN3, pH 6.5, 5% D2O / 95% H2O | 5% D2O / 95% H2O NMR sample composition：0.9 mM 5%-13C,U-15N HR2873B, 50 mM ammonium citrate, 5 mM CaCl2, 1x protease inhibitor, 0.02% NaN3, pH 6.5, 5% D2O / 95% H2O | 5% D2O / 95% H2O Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 2HJ8 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1Z2M Crystal Structure of ISG15, the Interferon-Induced Ubiquitin Cross Reactive Protein Deposited 2005-03-08 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 0–154（155 aa）
Mutation：c78s OS4 OSMIUM 4+ ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；292 K；Tris-HCl buffer, PEG4K, MgCl2, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 292K
Resolution 2.50 Å R-free 0.223
3PHX OTU Domain of Crimean Congo Hemorrhagic Fever Virus in complex with ISG15 Deposited 2010-11-04 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 79–156（78 aa） Fragment：UNP residues 79-156
Not recorded ZN ZINC ION × 12 ACY ACETIC ACID × 2 NEH ETHANAMINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；10% PEG8K, 0.2M zinc acetate, 0.1M MES sodium salt, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.60 Å R-free 0.192
3PHX OTU Domain of Crimean Congo Hemorrhagic Fever Virus in complex with ISG15 Deposited 2010-11-04 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 79–156（78 aa） Fragment：UNP residues 79-156
Not recorded ZN ZINC ION × 12 ACY ACETIC ACID × 2 NEH ETHANAMINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；10% PEG8K, 0.2M zinc acetate, 0.1M MES sodium salt, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.60 Å R-free 0.192
3PSE Structure of a viral OTU domain protease bound to interferon-stimulated gene 15 (ISG15) Deposited 2010-12-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–156（156 aa）
Mutation：C78S 4LJ 1.7.6 3-bromanylpropan-1-amine × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；293 K；100 mM MES, 23% PEG6000, pH 6.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.30 Å R-free 0.224
3R66 Crystal structure of human ISG15 in complex with NS1 N-terminal region from influenza virus B, Northeast Structural Genomics Consortium Target IDs HX6481, HR2873, and OR2 Deposited 2011-03-21 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–157（157 aa）
Chain D 1–157（157 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；15% PEG3350, 1% dioxane, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.30 Å R-free 0.265
3RT3 Complex of influenza virus protein with host anti-viral factor Deposited 2011-05-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–158（158 aa）
Mutation：C78S SIN SUCCINIC ACID × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；291 K；20% PEG 8000, 0.1M HEPES, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 2.01 Å R-free 0.243
3SDL Crystal structure of human ISG15 in complex with NS1 N-terminal region from influenza B virus, Northeast Structural Genomics Consortium Target IDs HX6481, HR2873, and OR2 Deposited 2011-06-09 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–157（157 aa）
Chain D 1–157（157 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 7.5；293 K；15% PEG3350, 1% dioxane, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K, EVAPORATION
Resolution 2.29 Å R-free 0.261
5TL6 Crystal structure of SARS-CoV papain-like protease in complex with the C-terminal domain of human ISG15 Deposited 2016-10-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 80–157（78 aa） Fragment：C-terminal domain (UNP residues 80-157)
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.1 M lithium sulfate, 0.1 M Bis-tris [pH 6.5], 22% PEG 3350, supplemented with 30% (v/v) glycerol additive in a 1:5 dilution
Resolution 2.62 Å R-free 0.250
5TL6 Crystal structure of SARS-CoV papain-like protease in complex with the C-terminal domain of human ISG15 Deposited 2016-10-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 80–157（78 aa） Fragment：C-terminal domain (UNP residues 80-157)
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.1 M lithium sulfate, 0.1 M Bis-tris [pH 6.5], 22% PEG 3350, supplemented with 30% (v/v) glycerol additive in a 1:5 dilution
Resolution 2.62 Å R-free 0.250
5W8T Crystal structure of MERS-CoV papain-like protease in complex with the C-terminal domain of human ISG15 Deposited 2017-06-22 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 80–156（77 aa）
Not recorded AYE prop-2-en-1-amine × 1 ZN ZINC ION × 5 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；200 mM CaCl2, 100 mM NaO2C2H3 pH 4.6, 28% (v/v) MPD
Resolution 2.76 Å R-free 0.224
5W8T Crystal structure of MERS-CoV papain-like protease in complex with the C-terminal domain of human ISG15 Deposited 2017-06-22 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 80–156（77 aa）
Not recorded AYE prop-2-en-1-amine × 1 ZN ZINC ION × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；200 mM CaCl2, 100 mM NaO2C2H3 pH 4.6, 28% (v/v) MPD
Resolution 2.76 Å R-free 0.224
5W8U Crystal structure of MERS-CoV papain-like protease in complex with the C-terminal domain of human ISG15 Deposited 2017-06-22 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 80–156（77 aa） Fragment：UNP residues 80-156
Not recorded ZN ZINC ION × 3 AYE prop-2-en-1-amine × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；200 mM CaCl2, 100 mM NaO2C2H3 pH 4.6, 28% (v/v) MPD
Resolution 2.41 Å R-free 0.237
5W8U Crystal structure of MERS-CoV papain-like protease in complex with the C-terminal domain of human ISG15 Deposited 2017-06-22 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 80–156（77 aa） Fragment：UNP residues 80-156
Not recorded ZN ZINC ION × 3 AYE prop-2-en-1-amine × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；200 mM CaCl2, 100 mM NaO2C2H3 pH 4.6, 28% (v/v) MPD
Resolution 2.41 Å R-free 0.237
6BI8 X-ray structure of MERS coronavirus papain-like protease in complex with human ISG15 Deposited 2017-11-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 1–156（156 aa）
Mutation：C78S PGE TRIETHYLENE GLYCOL × 2 ZN ZINC ION × 1 GOL GLYCEROL × 2 AYE prop-2-en-1-amine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.3；293.15 K；0.25 M Potassium Citrate, pH 8.3 20% PEG3350
Resolution 2.29 Å R-free 0.215
6BI8 X-ray structure of MERS coronavirus papain-like protease in complex with human ISG15 Deposited 2017-11-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 1–156（156 aa）
Mutation：C78S PGE TRIETHYLENE GLYCOL × 2 ZN ZINC ION × 1 GOL GLYCEROL × 3 AYE prop-2-en-1-amine × 1 CIT CITRIC ACID × 1 EDO 1,2-ETHANEDIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.3；293.15 K；0.25 M Potassium Citrate, pH 8.3 20% PEG3350
Resolution 2.29 Å R-free 0.215
6FFA FMDV Leader protease bound to substrate ISG15 Deposited 2018-01-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 79–155（77 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) GOL GLYCEROL × 5 SO4 SULFATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；2 M Ammonium Sulfate 0.2 M Sodium potassium tartrate tetrahydrate 0.1 M Sodium citrate tribasic (pH 5.6)
Resolution 1.50 Å R-free 0.186
6XA9 SARS CoV-2 PLpro in complex with ISG15 C-terminal domain propargylamide Deposited 2020-06-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 79–157（79 aa） Fragment：C-terminal domain (UNP residues 79-157)
Mutation：G176 replaced with propargylamide Non-standard monomer：Yes (specific site not provided by mmCIF) GOL GLYCEROL × 3 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.2 M lithium sulfate, 25% PEG3350, 0.1 M Bis-Tris chloride, pH 6.5
Resolution 2.90 Å R-free 0.231
6XA9 SARS CoV-2 PLpro in complex with ISG15 C-terminal domain propargylamide Deposited 2020-06-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 79–157（79 aa） Fragment：C-terminal domain (UNP residues 79-157)
Mutation：G176 replaced with propargylamide Non-standard monomer：Yes (specific site not provided by mmCIF) GOL GLYCEROL × 3 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.2 M lithium sulfate, 25% PEG3350, 0.1 M Bis-Tris chloride, pH 6.5
Resolution 2.90 Å R-free 0.231
6XA9 SARS CoV-2 PLpro in complex with ISG15 C-terminal domain propargylamide Deposited 2020-06-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 79–157（79 aa） Fragment：C-terminal domain (UNP residues 79-157)
Mutation：G176 replaced with propargylamide Non-standard monomer：Yes (specific site not provided by mmCIF) GOL GLYCEROL × 2 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.2 M lithium sulfate, 25% PEG3350, 0.1 M Bis-Tris chloride, pH 6.5
Resolution 2.90 Å R-free 0.231
7RBS The crystal structure of Papain-Like Protease of SARS CoV-2, C111S mutant, in complex with human ISG15 Deposited 2021-07-06 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 2–157（156 aa）
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；289 K；0.02 M MgCl2, 0.1 M HEPES buffer, 22% poly(acrylicacid sodium salt) 5100
Resolution 2.98 Å R-free 0.236
7RBS The crystal structure of Papain-Like Protease of SARS CoV-2, C111S mutant, in complex with human ISG15 Deposited 2021-07-06 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 2–157（156 aa）
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；289 K；0.02 M MgCl2, 0.1 M HEPES buffer, 22% poly(acrylicacid sodium salt) 5100
Resolution 2.98 Å R-free 0.236
7RBS The crystal structure of Papain-Like Protease of SARS CoV-2, C111S mutant, in complex with human ISG15 Deposited 2021-07-06 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 2–157（156 aa）
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；289 K；0.02 M MgCl2, 0.1 M HEPES buffer, 22% poly(acrylicacid sodium salt) 5100
Resolution 2.98 Å R-free 0.236
7RBS The crystal structure of Papain-Like Protease of SARS CoV-2, C111S mutant, in complex with human ISG15 Deposited 2021-07-06 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 2–157（156 aa）
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；289 K；0.02 M MgCl2, 0.1 M HEPES buffer, 22% poly(acrylicacid sodium salt) 5100
Resolution 2.98 Å R-free 0.236
7RBS The crystal structure of Papain-Like Protease of SARS CoV-2, C111S mutant, in complex with human ISG15 Deposited 2021-07-06 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain J 2–157（156 aa）
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；289 K；0.02 M MgCl2, 0.1 M HEPES buffer, 22% poly(acrylicacid sodium salt) 5100
Resolution 2.98 Å R-free 0.236
7S6P The crystal structure of human ISG15 Deposited 2021-09-14 Different construct Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–157（156 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；289 K；0.04 M potassium phosphate, 16% PEG8000, 20% glycerol
Resolution 2.15 Å R-free 0.268
7S6P The crystal structure of human ISG15 Deposited 2021-09-14 Different construct Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 2–157（156 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；289 K；0.04 M potassium phosphate, 16% PEG8000, 20% glycerol
Resolution 2.15 Å R-free 0.268
7S6P The crystal structure of human ISG15 Deposited 2021-09-14 Different construct Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 2–157（156 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；289 K；0.04 M potassium phosphate, 16% PEG8000, 20% glycerol
Resolution 2.15 Å R-free 0.268
7S6P The crystal structure of human ISG15 Deposited 2021-09-14 Different construct Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 2–157（156 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；289 K；0.04 M potassium phosphate, 16% PEG8000, 20% glycerol
Resolution 2.15 Å R-free 0.268
7S6P The crystal structure of human ISG15 Deposited 2021-09-14 Different construct Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain E 2–157（156 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；289 K；0.04 M potassium phosphate, 16% PEG8000, 20% glycerol
Resolution 2.15 Å R-free 0.268
7S6P The crystal structure of human ISG15 Deposited 2021-09-14 Different construct Different experimental method Different experimental conditions Different structure-quality metrics Assembly 6 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain F 2–157（156 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；289 K；0.04 M potassium phosphate, 16% PEG8000, 20% glycerol
Resolution 2.15 Å R-free 0.268
8OIF Structure of the UBE1L activating enzyme bound to ISG15 and UBE2L6 Deposited 2023-03-22 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain I 1–157（157 aa）
Not recorded AMP ADENOSINE MONOPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8SE9 Cryo-EM structure of a double loaded human UBA7-UBE2L6-ISG15 thioester mimetic complex (Form 2) Deposited 2023-04-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–157（157 aa）
Chain D 1–157（157 aa）
Mutation：C78S Mutation：C78S AMP ADENOSINE MONOPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8SEA Cryo-EM structure of a double loaded human UBA7-UBE2L6-ISG15 thioester mimetic complex (Form 1) Deposited 2023-04-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–157（157 aa）
Chain D 1–157（157 aa）
Mutation：C78S Mutation：C78S AMP ADENOSINE MONOPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8SEB Cryo-EM structure of a single loaded human UBA7-UBE2L6-ISG15 adenylate complex Deposited 2023-04-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–157（157 aa）
Mutation：C78S AMP ADENOSINE MONOPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.24 Å
8SV8 Cryo-EM structure of a double loaded human UBA7-UBE2L6-ISG15 thioester mimetic complex from a composite map Deposited 2023-05-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–157（157 aa）
Chain D 1–157（157 aa）
Mutation：C78S Mutation：C78S AMP ADENOSINE MONOPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.38 Å
9NN9 ISG15 complexed with nanobody Deposited 2025-03-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–157（157 aa） Fragment：residues 1-157
Mutation：C78S EDO 1,2-ETHANEDIOL × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；292 K；25 % PEG 3350, 0.1 M trisodium citrate pH 5.6, 0.2 M ammonium sulfate
Resolution 2.59 Å R-free 0.244
9NN9 ISG15 complexed with nanobody Deposited 2025-03-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 1–157（157 aa） Fragment：residues 1-157
Mutation：C78S EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；292 K；25 % PEG 3350, 0.1 M trisodium citrate pH 5.6, 0.2 M ammonium sulfate
Resolution 2.59 Å R-free 0.244
9NN9 ISG15 complexed with nanobody Deposited 2025-03-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 1–157（157 aa） Fragment：residues 1-157
Mutation：C78S EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；292 K；25 % PEG 3350, 0.1 M trisodium citrate pH 5.6, 0.2 M ammonium sulfate
Resolution 2.59 Å R-free 0.244
9ZFO Cryo-EM Structure of Human STAT2-USP18-ISG15 Complex Deposited 2025-12-01 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain I 1–157（157 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；25mM HEPES (pH 8.0), 200mM NaCl and 1.0mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.05 Å

21 other PDB entries and 39 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name UCRP_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 2–80； UniProt 78–156

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 2hj8

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 2hj8
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id2hj8
Deposition date deposition_date2006-06-30
Structure title titleSolution NMR structure of the C-terminal domain of the interferon alpha-inducible ISG15 protein from Homo sapiens. Northeast Structural Genomics target HR2873B
Keywords keywordsHR2873B, human ISG15, Northeast Structural Genomics Consortium, Protein Structure Initiative, NESG, PSI-1, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method methodSOLUTION NMR
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier12.00 Å
Radius of gyration Rg (electron density) rg_electron11.80 Å
Forward intensity I(0) i0384441000.00
Molecular weight molecular_weight169970.0 kDa
Excluded volume excluded_volume214540 ų
Envelope volume envelope_volume19546 ų
Hydration-shell volume shell_volume12172 ų
Envelope diameter envelope_diameter47.1 Å
Shell Rg shell_rg19.51 Å
Envelope Rg envelope_rg13.90 Å
Shape Rg shape_rg11.76 Å
Total Rg total_rg12.09 Å
Total atoms total_atoms24100
Residues n_residues1500
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax40.5 Å
Rg (real space) rg_real11.91 Å
Rg uncertainty (real space) rg_real_error0.36 Å
I(0) (real space) i0_real3.8440e+08
I(0) uncertainty (real space) i0_real_error4.3210e+06
Rg (reciprocal space) rg_reciprocal11.91 Å
I(0) (reciprocal space) i0_reciprocal384400000.0000
Solution quality estimate total_estimate0.7549
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks3
Primary peak position r_peak_primary16.4 Å
Skewness Skewness skewness0.047
Kurtosis Kurtosis kurtosis-0.132
Angular range angular_range— – 0.5000 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha116900.0000
Real-space data points n_real_points80
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.604; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.000
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_idd2hj8a_
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamilyd.15.1 — Ubiquitin-like
Family Family familyd.15.1.0 — automated matches

CATH v4.4 (1 domains)

Domain ID domain_id2hj8A00
Class class3 — Alpha Beta
Architecture architecture10 — Roll
Topology topology20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1
▶

8. Citations (1)

▶

9. Files and Curves (10)
