2hv2

Crystal Structure of Conserved Protein of Unknown Function from Enterococcus faecalis V583 at 2.4 A Resolution, Probable N-Acyltransferase

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Hypothetical protein

Enterococcus faecalis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 5 TETRAETHYLENE GLYCOL × 6 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q836T6_ENTFA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–400； UniProt 1–397 Author chain B； PDBConstruct 4–400； UniProt 1–397 Author chain C； PDBConstruct 4–400； UniProt 1–397 Author chain D； PDBConstruct 4–400； UniProt 1–397 Author chain E； PDBConstruct 4–400； UniProt 1–397 Author chain F； PDBConstruct 4–400； UniProt 1–397

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2hv2
Deposition date deposition_date	2006-07-27
Structure title title	Crystal Structure of Conserved Protein of Unknown Function from Enterococcus faecalis V583 at 2.4 A Resolution, Probable N-Acyltransferase
Keywords keywords	PSI, PROTEIN STRUCTURE INITIATIVE, MIDWEST CENTER FOR STRUCTURAL GENOMICS, MCSG, Structural Genomics, UNKNOWN FUNCTION; STRUCTURAL GENOMICS, UNKNOWN FUNCTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2hv2__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

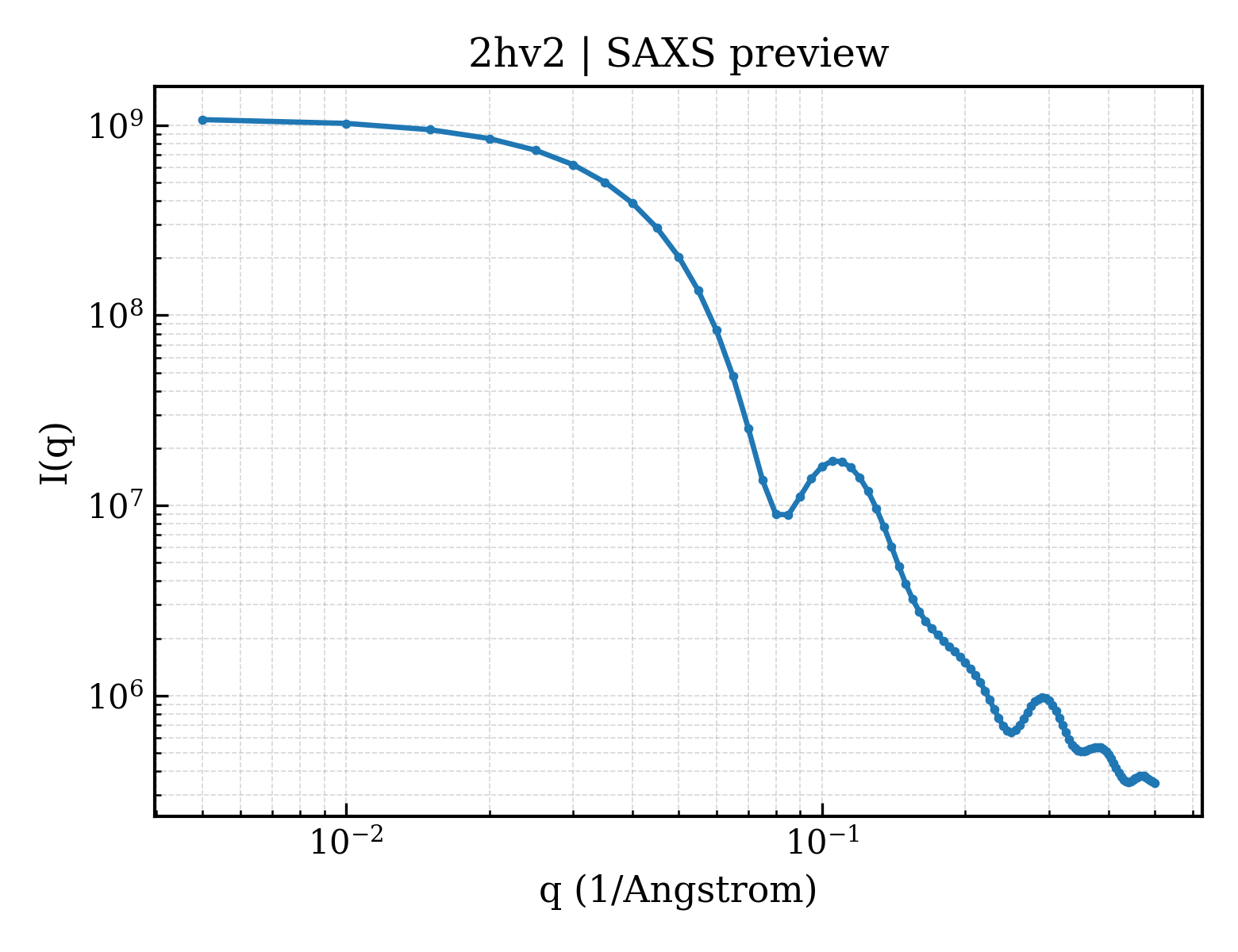

2hv2__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

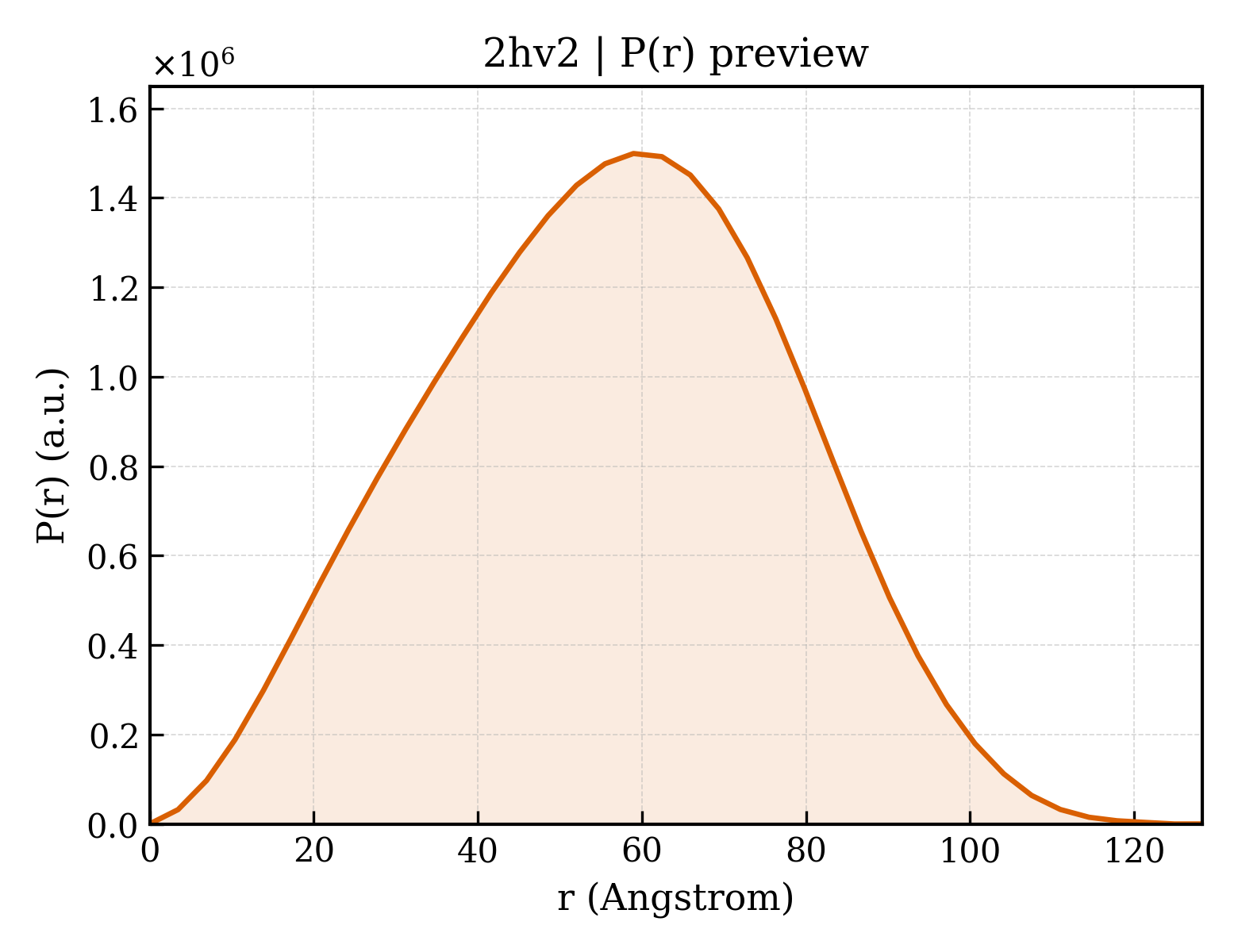

2hv2__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	42.78 Å
Rg (electron density)	42.01 Å
Total Rg	42.48 Å
Atom count	19146
Residues	2279
Excluded volume	342650 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2hv2__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Hypothetical protein
Molecular weight formula_weight	46251.3 kDa
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	19692

SNAMTTKRVKKMGKEEMKEMFDLVIYAFNQEPTAERQERFEKLLSHTQSYGFLIDEQLTSQVMATPFQVNFHGVRYPMAGIGYVASYPEYRGEGGISAIMKEMLADLAKQKVALSYLAPFSYPFYRQYGYEQTFEQAEYTIKTEDWPRVKRVPGTIKRVSWADGKEVIKDVYLENQRAHSGGVIRETWWLDYTLNRASKPNNQAIYYSSEGKAEGYVIYRIAAGTFEIVEWNYLTNTAFKALAGFIGSHSGSVQSFHWINGFAGKDLNDLMPTPAASVKILPYMMARIVELQTFLEKYPFQSGEKETYSLEIEDSYGPWNEGIWTITIDEQGKATVTKGAAEKEGTAALKADIQTWTQLFLGYRSAETLSFYERLQGDATIAQRLGQRLVKGMPILEDYF

Source Source

Source organism organism	Enterococcus faecalis
NCBI taxonomy ID ncbi_taxonomy_id	1351
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID
Molecular weight formula_weight	238.3 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 3 Entity 3 non-polymer

Description description	TETRAETHYLENE GLYCOL
Molecular weight formula_weight	194.2 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	541

▼

6. Fold Classification (SCOP + CATH) 30 domains

SCOP 2.08 (12 domains)

Domain ID domain_id	d2hv2a1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.106 — SCP-like
Superfamily Superfamily superfamily	d.106.1 — SCP-like
Family Family family	d.106.1.4 — EF1021 C-terminal domain-like

Domain ID domain_id	d2hv2a2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.108 — Acyl-CoA N-acyltransferases (Nat)
Superfamily Superfamily superfamily	d.108.1 — Acyl-CoA N-acyltransferases (Nat)
Family Family family	d.108.1.10 — EF1021-like

Domain ID domain_id	d2hv2b1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.106 — SCP-like
Superfamily Superfamily superfamily	d.106.1 — SCP-like
Family Family family	d.106.1.4 — EF1021 C-terminal domain-like

Domain ID domain_id	d2hv2b2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.108 — Acyl-CoA N-acyltransferases (Nat)
Superfamily Superfamily superfamily	d.108.1 — Acyl-CoA N-acyltransferases (Nat)
Family Family family	d.108.1.10 — EF1021-like

Domain ID domain_id	d2hv2c1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.106 — SCP-like
Superfamily Superfamily superfamily	d.106.1 — SCP-like
Family Family family	d.106.1.4 — EF1021 C-terminal domain-like

Domain ID domain_id	d2hv2c2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.108 — Acyl-CoA N-acyltransferases (Nat)
Superfamily Superfamily superfamily	d.108.1 — Acyl-CoA N-acyltransferases (Nat)
Family Family family	d.108.1.10 — EF1021-like

Domain ID domain_id	d2hv2d1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.106 — SCP-like
Superfamily Superfamily superfamily	d.106.1 — SCP-like
Family Family family	d.106.1.4 — EF1021 C-terminal domain-like

Domain ID domain_id	d2hv2d2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.108 — Acyl-CoA N-acyltransferases (Nat)
Superfamily Superfamily superfamily	d.108.1 — Acyl-CoA N-acyltransferases (Nat)
Family Family family	d.108.1.10 — EF1021-like

Domain ID domain_id	d2hv2e1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.106 — SCP-like
Superfamily Superfamily superfamily	d.106.1 — SCP-like
Family Family family	d.106.1.4 — EF1021 C-terminal domain-like

Domain ID domain_id	d2hv2e2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.108 — Acyl-CoA N-acyltransferases (Nat)
Superfamily Superfamily superfamily	d.108.1 — Acyl-CoA N-acyltransferases (Nat)
Family Family family	d.108.1.10 — EF1021-like

Domain ID domain_id	d2hv2f1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.106 — SCP-like
Superfamily Superfamily superfamily	d.106.1 — SCP-like
Family Family family	d.106.1.4 — EF1021 C-terminal domain-like

Domain ID domain_id	d2hv2f2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.108 — Acyl-CoA N-acyltransferases (Nat)
Superfamily Superfamily superfamily	d.108.1 — Acyl-CoA N-acyltransferases (Nat)
Family Family family	d.108.1.10 — EF1021-like

CATH v4.4 (18 domains)

Domain ID domain_id	2hv2A01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	630 — Aminopeptidase
Homologous superfamily homologous superfamily	30 — Gcn5-related N-acetyltransferase (GNAT)

Domain ID domain_id	2hv2A02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1050 — Nonspecific Lipid-transfer Protein; Chain A
Homologous superfamily homologous superfamily	10 — SCP2 sterol-binding domain

Domain ID domain_id	2hv2A03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	630 — Aminopeptidase
Homologous superfamily homologous superfamily	30 — Gcn5-related N-acetyltransferase (GNAT)

Domain ID domain_id	2hv2B01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	630 — Aminopeptidase
Homologous superfamily homologous superfamily	30 — Gcn5-related N-acetyltransferase (GNAT)

Domain ID domain_id	2hv2B02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1050 — Nonspecific Lipid-transfer Protein; Chain A
Homologous superfamily homologous superfamily	10 — SCP2 sterol-binding domain

Domain ID domain_id	2hv2B03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	630 — Aminopeptidase
Homologous superfamily homologous superfamily	30 — Gcn5-related N-acetyltransferase (GNAT)

Domain ID domain_id	2hv2C01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	630 — Aminopeptidase
Homologous superfamily homologous superfamily	30 — Gcn5-related N-acetyltransferase (GNAT)

Domain ID domain_id	2hv2C02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1050 — Nonspecific Lipid-transfer Protein; Chain A
Homologous superfamily homologous superfamily	10 — SCP2 sterol-binding domain

Domain ID domain_id	2hv2C03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	630 — Aminopeptidase
Homologous superfamily homologous superfamily	30 — Gcn5-related N-acetyltransferase (GNAT)

Domain ID domain_id	2hv2D01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	630 — Aminopeptidase
Homologous superfamily homologous superfamily	30 — Gcn5-related N-acetyltransferase (GNAT)

Domain ID domain_id	2hv2D02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1050 — Nonspecific Lipid-transfer Protein; Chain A
Homologous superfamily homologous superfamily	10 — SCP2 sterol-binding domain

Domain ID domain_id	2hv2D03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	630 — Aminopeptidase
Homologous superfamily homologous superfamily	30 — Gcn5-related N-acetyltransferase (GNAT)

Domain ID domain_id	2hv2E01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	630 — Aminopeptidase
Homologous superfamily homologous superfamily	30 — Gcn5-related N-acetyltransferase (GNAT)

Domain ID domain_id	2hv2E02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1050 — Nonspecific Lipid-transfer Protein; Chain A
Homologous superfamily homologous superfamily	10 — SCP2 sterol-binding domain

Domain ID domain_id	2hv2E03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	630 — Aminopeptidase
Homologous superfamily homologous superfamily	30 — Gcn5-related N-acetyltransferase (GNAT)

Domain ID domain_id	2hv2F01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	630 — Aminopeptidase
Homologous superfamily homologous superfamily	30 — Gcn5-related N-acetyltransferase (GNAT)

Domain ID domain_id	2hv2F02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1050 — Nonspecific Lipid-transfer Protein; Chain A
Homologous superfamily homologous superfamily	10 — SCP2 sterol-binding domain

Domain ID domain_id	2hv2F03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	630 — Aminopeptidase
Homologous superfamily homologous superfamily	30 — Gcn5-related N-acetyltransferase (GNAT)

▶

Unit-cell length a length_a	189.626 Å
Unit-cell length b length_b	104.277 Å
Unit-cell length c length_c	152.281 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	98.26 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.1875
R_work r_work	0.1850
R_free r_free	0.2335

Crystal Structure of Conserved Protein of Unknown Function from Enterococcus faecalis V583 at 2.4 A Resolution, Probable N-Acyltransferase

1. Protein Identity and Related Structures Protein Identity & Related Structures

Hypothetical protein

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

2hv2__assembly_1__model_1

2hv2__assembly_1__model_1 | I(q)

2hv2__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 water

6. Fold Classification (SCOP + CATH) 30 domains

SCOP 2.08 (12 domains)

CATH v4.4 (18 domains)

7. Citations (1)

Crystal Structure of Conserved Protein of Unknown Function from Enterococcus faecalis V583 at 2.4 A Resolution, Probable N-Acyltransferase

1. Protein Identity and Related Structures Protein Identity & Related Structures

Hypothetical protein

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

2hv2__assembly_1__model_1

2hv2__assembly_1__model_1 | I(q)

2hv2__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 water

6. Fold Classification (SCOP + CATH) 30 domains

SCOP 2.08 (12 domains)

CATH v4.4 (18 domains)

7. Citations (1)
