SAXSdb — 2i3t

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2i3t
沉积日期 deposition_date	2006-08-20
结构标题 title	Bub3 complex with Mad3 (BubR1) GLEBS motif
关键词 keywords	WD40 protein, beta propeller, mitotic spindle checkpoint, CELL CYCLE; CELL CYCLE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	39.99 Å
回转半径 Rg (电子) rg_electron	39.25 Å
零角强度 I(0) i0	410279000.00
分子量 molecular_weight	168140.0 kDa
排除体积 excluded_volume	211410 Å³
包络体积 envelope_volume	273910 Å³
水化壳体积 shell_volume	56568 Å³
包络直径 envelope_diameter	133.7 Å
壳层 Rg shell_rg	46.52 Å
包络 Rg envelope_rg	38.71 Å
形状 Rg shape_rg	39.24 Å
总 Rg total_rg	39.67 Å
总原子数 total_atoms	11816
残基数 n_residues	1484
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	127.1 Å
Rg (实空间) rg_real	39.82 Å
Rg 误差 (实空间) rg_real_error	0.81 Å
I(0) (实空间) i0_real	4.1030e+08
I(0) 误差 (实空间) i0_real_error	6.9900e+06
Rg (倒空间) rg_reciprocal	39.93 Å
I(0) (倒空间) i0_reciprocal	410300000.0000
解质量估计 total_estimate	0.8996
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	57.2 Å
偏度 Skewness skewness	0.119
峰度 Kurtosis kurtosis	-0.657
角度范围 angular_range	— – 0.2000 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	349100000.0000
实空间数据点数 n_real_points	41
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.919; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.935

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	Cell cycle arrest protein
分子量 formula_weight	38483.5 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C,E,G
原子数 atom_count	11816

MQIVQIEQAPKDYISDIKIIPSKSLLLITSWDGSLTVYKFDIQAKNVDLLQSLRYKHPLLCCNFIDNTDLQIYVGTVQGEILKVDLIGSPSFQALTNNEANLGICRICKYGDDKLIAASWDGLIEVIDPRNYGDGVIAVKNLNSNNTKVKNKIFTMDTNSSRLIVGMNNSQVQWFRLPLCEDDNGTIEESGLKYQIRDVALLPKEQEGYACSSIDGRVAVEFFDDQGDDYNSSKRFAFRCHRLNLKDTNLAYPVNSIEFSPRHKFLYTAGSDGIISCWNLQTRKKIKNFAKFNEDSVVKIACSDNILCLATSDDTFKTNAAIDQTIELNASSIYIIFDYEN

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	Spindle assembly checkpoint component
分子量 formula_weight	6576.5 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D,F,H

MKPEKIDCNFKLIYCEDEESKGGRLEFSLEEVLAISRNVYKRVRTNRKHHHHHH

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

▼

6. 折叠分类 (SCOP + CATH) 9 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d2i3ta_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.69 — 7-bladed beta-propeller
超家族 Superfamily superfamily	b.69.4 — WD40 repeat-like
家族 Family family	b.69.4.2 — Cell cycle arrest protein BUB3

结构域编号 domain_id	d2i3tc_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.69 — 7-bladed beta-propeller
超家族 Superfamily superfamily	b.69.4 — WD40 repeat-like
家族 Family family	b.69.4.2 — Cell cycle arrest protein BUB3

结构域编号 domain_id	d2i3te_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.69 — 7-bladed beta-propeller
超家族 Superfamily superfamily	b.69.4 — WD40 repeat-like
家族 Family family	b.69.4.2 — Cell cycle arrest protein BUB3

结构域编号 domain_id	d2i3tg_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.69 — 7-bladed beta-propeller
超家族 Superfamily superfamily	b.69.4 — WD40 repeat-like
家族 Family family	b.69.4.2 — Cell cycle arrest protein BUB3

CATH v4.4 (5 domains)

结构域编号 domain_id	2i3tA00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	130 — 7 Propeller
拓扑 Topology topology	10 — Methylamine Dehydrogenase; Chain H
同源超家族 H-superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

结构域编号 domain_id	2i3tC00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	130 — 7 Propeller
拓扑 Topology topology	10 — Methylamine Dehydrogenase; Chain H
同源超家族 H-superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

结构域编号 domain_id	2i3tD01
类 Class class	6 — Special
架构 Architecture architecture	20 — Other non-globular
拓扑 Topology topology	50 — N-terminal domain of TfIIb
同源超家族 H-superfamily homologous superfamily	40 —

结构域编号 domain_id	2i3tE00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	130 — 7 Propeller
拓扑 Topology topology	10 — Methylamine Dehydrogenase; Chain H
同源超家族 H-superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

结构域编号 domain_id	2i3tG00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	130 — 7 Propeller
拓扑 Topology topology	10 — Methylamine Dehydrogenase; Chain H
同源超家族 H-superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	51.352 Å
晶胞边长 b length_b	173.335 Å
晶胞边长 c length_c	90.019 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	95.30 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.800 Å
最低分辨率 resolution_low	50.000 Å
R 因子 r_factor	0.2420
R_work r_work	0.2381
R_free r_free	0.2673

fit	/app/data/saxs_computation/i3/2i3t/2i3t.fit
pddf	/app/data/pr_computation/i3/2i3t/2i3t.pr.out
profile	/app/data/saxs_computation/i3/2i3t/2i3t.dat

Bub3 complex with Mad3 (BubR1) GLEBS motif

SAXS 散射曲线 SAXS Profile

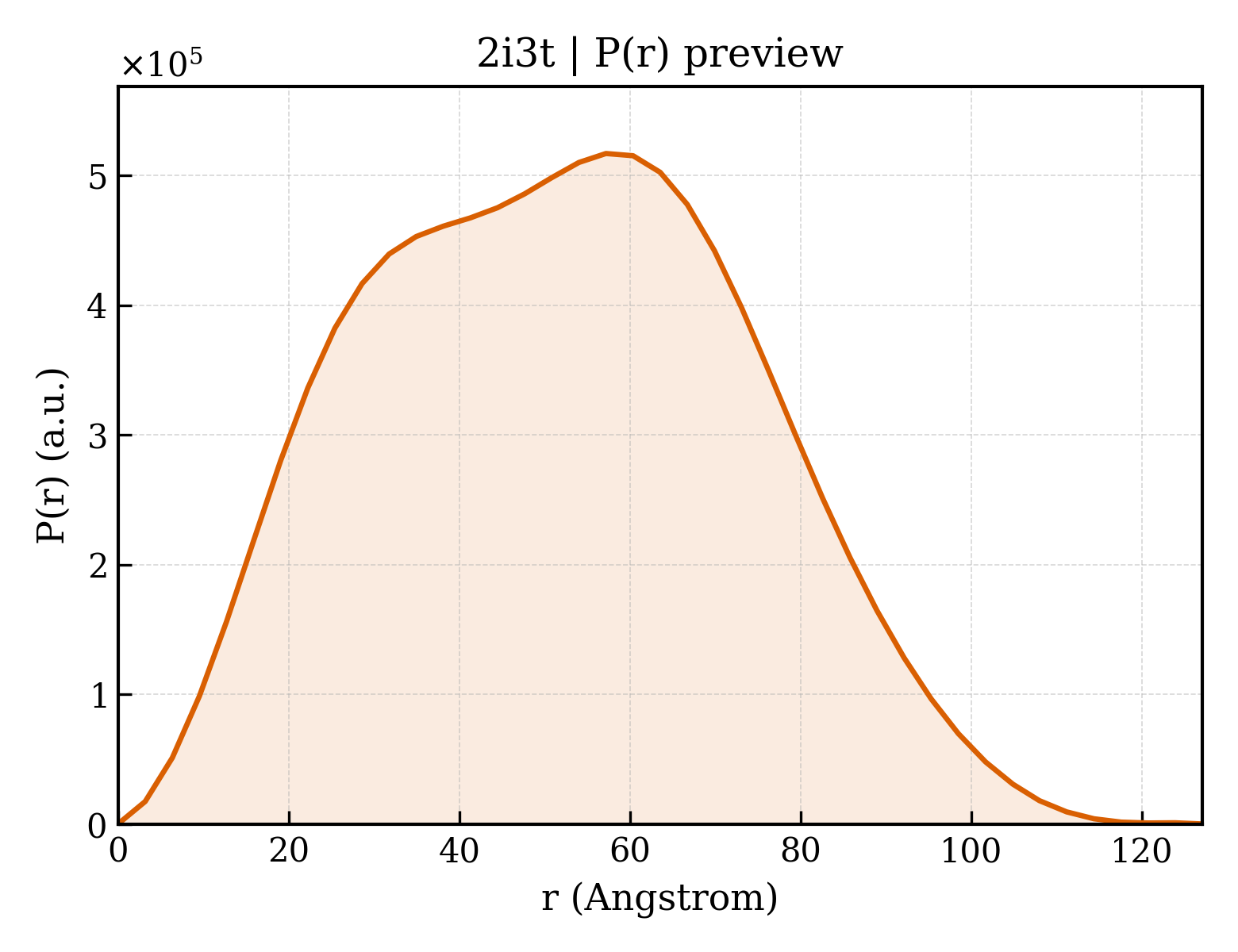

P(r) 距离分布 P(r) Distribution
