2ih2

;Crystal structure of the adenine-specific DNA methyltransferase M.TaqI complexed with the cofactor analog AETA and a 10 bp DNA containing 5-methylpyrimidin-2(1H)-one at the target base partner position ;

Method: X-RAY DIFFRACTION D_max: 134.3 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

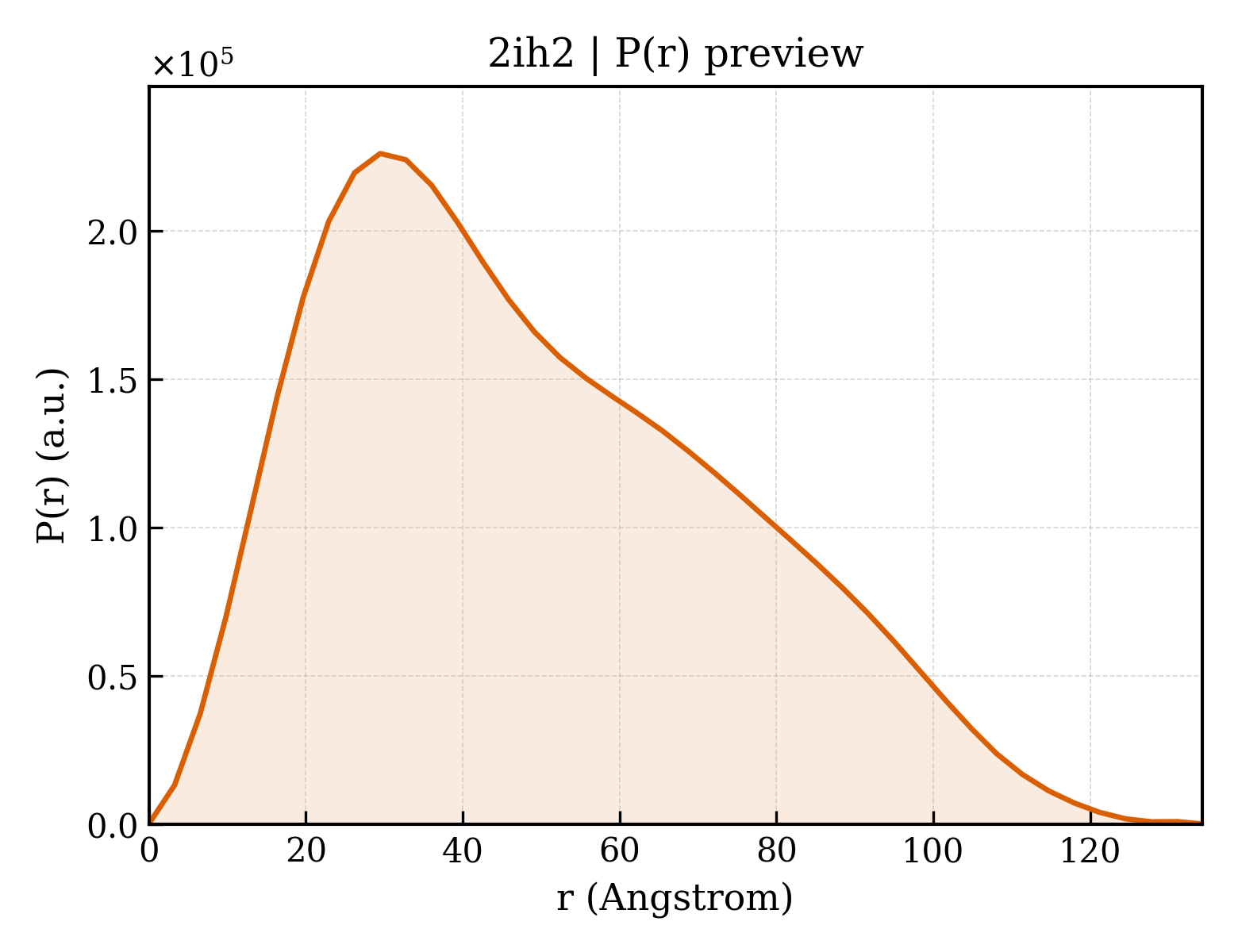

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2ih2
沉积日期 deposition_date	2006-09-25
结构标题 title	;Crystal structure of the adenine-specific DNA methyltransferase M.TaqI complexed with the cofactor analog AETA and a 10 bp DNA containing 5-methylpyrimidin-2(1H)-one at the target base partner position ;
关键词 keywords	;DNA, DNA methyltransferase, target base partner, 5-methylpyrimidin-2(1H)-one, base flipping, nucleotide flipping, TRANSFERASE-DNA COMPLEX ;; TRANSFERASE/DNA
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	38.65 Å
回转半径 Rg (电子) rg_electron	39.25 Å
零角强度 I(0) i0	170395000.00
分子量 molecular_weight	103080.0 kDa
排除体积 excluded_volume	127640 Å³
包络体积 envelope_volume	163550 Å³
水化壳体积 shell_volume	37397 Å³
包络直径 envelope_diameter	142.5 Å
壳层 Rg shell_rg	41.26 Å
包络 Rg envelope_rg	38.90 Å
形状 Rg shape_rg	39.25 Å
总 Rg total_rg	39.36 Å
总原子数 total_atoms	7260
残基数 n_residues	822
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	134.3 Å
Rg (实空间) rg_real	39.16 Å
Rg 误差 (实空间) rg_real_error	1.41 Å
I(0) (实空间) i0_real	1.7040e+08
I(0) 误差 (实空间) i0_real_error	2.9220e+06
Rg (倒空间) rg_reciprocal	38.85 Å
I(0) (倒空间) i0_reciprocal	170300000.0000
解质量估计 total_estimate	0.7871
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	29.5 Å
偏度 Skewness skewness	0.495
峰度 Kurtosis kurtosis	-0.561
角度范围 angular_range	— – 0.2050 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	28320000.0000
实空间数据点数 n_real_points	42
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.619; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.572; Smooth: 0.799

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	5'-D(GPTPTPCPGPAPTPGPTPC)-3'
分子量 formula_weight	3051.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	B,E
原子数 atom_count	8673

GTTCGATGTC

Entity 2 polymer

描述 description	5'-D(GPAPCPAP(5PY)PCPGP(6MA)PAPC)-3'
分子量 formula_weight	3036.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	C,F

GACATCGAAC

Entity 3 polymer

描述 description	Modification methylase TaqI
分子量 formula_weight	47931.2 kDa
EC 编号 ec_number	2.1.1.72
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,D

MGLPPLLSLPSNSAPRSLGRVETPPEVVDFMVSLAEAPRGGRVLEPACAHGPFLRAFREAHGTAYRFVGVEIDPKALDLPPWAEGILADFLLWEPGEAFDLILGNPPYGIVGEASKYPIHVFKAVKDLYKKAFSTWKGKYNLYGAFLEKAVRLLKPGGVLVFVVPATWLVLEDFALLREFLAREGKTSVYYLGEVFPQKKVSAVVIRFQKSGKGLSLWDTQESESGFTPILWAEYPHWEGEIIRFETEETRKLEISGMPLGDLFHIRFAARSPEFKKHPAVRKEPGPGLVPVLTGRNLKPGWVDYEKNHSGLWMPKERAKELRDFYATPHLVVAHTKGTRVVAAWDERAYPWREEFHLLPKEGVRLDPSSLVQWLNSEAMQKHVRTLYRDFVPHLTLRMLERLPVRREYGFHTSPESARNF

来源 Source

来源生物 organism	Thermus aquaticus
NCBI 分类编号 ncbi_taxonomy_id	271
宿主生物 host_organism	Escherichia coli

Entity 4 non-polymer

描述 description	GLYCEROL
分子量 formula_weight	92.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	5

Entity 5 non-polymer

描述 description	5'-DEOXY-5'-[2-(AMINO)ETHYLTHIO]ADENOSINE
分子量 formula_weight	326.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 6 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1413

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d2ih2a1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
超家族 Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
家族 Family family	c.66.1.27 — DNA methylase TaqI, N-terminal domain

结构域编号 domain_id	d2ih2a2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.287 — DNA methylase specificity domain
超家族 Superfamily superfamily	d.287.1 — DNA methylase specificity domain
家族 Family family	d.287.1.1 — TaqI C-terminal domain-like

结构域编号 domain_id	d2ih2d1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
超家族 Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
家族 Family family	c.66.1.27 — DNA methylase TaqI, N-terminal domain

结构域编号 domain_id	d2ih2d2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.287 — DNA methylase specificity domain
超家族 Superfamily superfamily	d.287.1 — DNA methylase specificity domain
家族 Family family	d.287.1.1 — TaqI C-terminal domain-like

CATH v4.4 (4 domains)

结构域编号 domain_id	2ih2A01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

结构域编号 domain_id	2ih2A02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	220 — Adenine-n6-DNA-methyltransferase TaqI; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Adenine-n6-DNA-methyltransferase Taqi, Chain A, domain 2

结构域编号 domain_id	2ih2D01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

结构域编号 domain_id	2ih2D02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	220 — Adenine-n6-DNA-methyltransferase TaqI; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Adenine-n6-DNA-methyltransferase Taqi, Chain A, domain 2

▶

7. 引用文献 (3)

▶

晶胞边长 a length_a	59.439 Å
晶胞边长 b length_b	68.875 Å
晶胞边长 c length_c	114.349 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	92.27 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	1.610 Å
最低分辨率 resolution_low	19.640 Å
R 因子 r_factor	0.1620
R_work r_work	0.1602
R_free r_free	0.1951

fit	/app/data/saxs_computation/ih/2ih2/2ih2.fit
pddf	/app/data/pr_computation/ih/2ih2/2ih2.pr.out
profile	/app/data/saxs_computation/ih/2ih2/2ih2.dat
