SAXSdb — 2jg3

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2jg3
沉积日期 deposition_date	2007-02-07
结构标题 title	MtaqI with BAZ
关键词 keywords	TRANSFERASE-DNA COMPLEX, DNA, TRANSFERASE, BASE FLIPPING, RESTRICTION SYSTEM; TRANSFERASE/DNA
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	38.70 Å
回转半径 Rg (电子) rg_electron	39.30 Å
零角强度 I(0) i0	167427000.00
分子量 molecular_weight	102440.0 kDa
排除体积 excluded_volume	126930 Å³
包络体积 envelope_volume	163770 Å³
水化壳体积 shell_volume	37396 Å³
包络直径 envelope_diameter	142.3 Å
壳层 Rg shell_rg	41.36 Å
包络 Rg envelope_rg	38.96 Å
形状 Rg shape_rg	39.31 Å
总 Rg total_rg	39.40 Å
总原子数 total_atoms	7215
残基数 n_residues	822
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	132.7 Å
Rg (实空间) rg_real	39.21 Å
Rg 误差 (实空间) rg_real_error	1.49 Å
I(0) (实空间) i0_real	1.6740e+08
I(0) 误差 (实空间) i0_real_error	3.0440e+06
Rg (倒空间) rg_reciprocal	38.90 Å
I(0) (倒空间) i0_reciprocal	167400000.0000
解质量估计 total_estimate	0.7913
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	29.1 Å
偏度 Skewness skewness	0.495
峰度 Kurtosis kurtosis	-0.558
角度范围 angular_range	— – 0.2050 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	26070000.0000
实空间数据点数 n_real_points	42
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.654; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.605; Smooth: 0.715

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (7)

Entity 1 polymer

描述 description	MODIFICATION METHYLASE TAQI
分子量 formula_weight	47931.2 kDa
EC 编号 ec_number	2.1.1.72
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,D
原子数 atom_count	7895

MGLPPLLSLPSNSAPRSLGRVETPPEVVDFMVSLAEAPRGGRVLEPACAHGPFLRAFREAHGTAYRFVGVEIDPKALDLPPWAEGILADFLLWEPGEAFDLILGNPPYGIVGEASKYPIHVFKAVKDLYKKAFSTWKGKYNLYGAFLEKAVRLLKPGGVLVFVVPATWLVLEDFALLREFLAREGKTSVYYLGEVFPQKKVSAVVIRFQKSGKGLSLWDTQESESGFTPILWAEYPHWEGEIIRFETEETRKLEISGMPLGDLFHIRFAARSPEFKKHPAVRKEPGPGLVPVLTGRNLKPGWVDYEKNHSGLWMPKERAKELRDFYATPHLVVAHTKGTRVVAAWDERAYPWREEFHLLPKEGVRLDPSSLVQWLNSEAMQKHVRTLYRDFVPHLTLRMLERLPVRREYGFHTSPESARNF

来源 Source

来源生物 organism	THERMUS AQUATICUS
NCBI 分类编号 ncbi_taxonomy_id	271
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 polymer

描述 description	5'-D(GPTPTPCPGPAPTPGPTPCP)-3'
分子量 formula_weight	3051.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	B,E

GTTCGATGTC

Entity 3 polymer

描述 description	5'-D(GPAPCPAPTPCPGP6MAPAPCP)-3'
分子量 formula_weight	3052.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	C,F

GACATCGAAC

Entity 4 non-polymer

描述 description	5'-DEOXY-5'-(ETHYLAMINO)-8-{[4-({5-[(3AS,4S,6AR)-2-OXOHEXAHYDRO-1H-THIENO[3,4-D]IMIDAZOL-4-YL]PENTANOYL}AMINO)BUTYL]AMINO}ADENOSINE
分子量 formula_weight	606.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 5 non-polymer

描述 description	GLYCEROL
分子量 formula_weight	92.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 6 non-polymer

描述 description	POTASSIUM ION
分子量 formula_weight	39.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 7 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	680

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d2jg3a1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
超家族 Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
家族 Family family	c.66.1.27 — DNA methylase TaqI, N-terminal domain

结构域编号 domain_id	d2jg3a2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.287 — DNA methylase specificity domain
超家族 Superfamily superfamily	d.287.1 — DNA methylase specificity domain
家族 Family family	d.287.1.1 — TaqI C-terminal domain-like

结构域编号 domain_id	d2jg3d1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
超家族 Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
家族 Family family	c.66.1.27 — DNA methylase TaqI, N-terminal domain

结构域编号 domain_id	d2jg3d2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.287 — DNA methylase specificity domain
超家族 Superfamily superfamily	d.287.1 — DNA methylase specificity domain
家族 Family family	d.287.1.1 — TaqI C-terminal domain-like

CATH v4.4 (4 domains)

结构域编号 domain_id	2jg3A01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

结构域编号 domain_id	2jg3A02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	220 — Adenine-n6-DNA-methyltransferase TaqI; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Adenine-n6-DNA-methyltransferase Taqi, Chain A, domain 2

结构域编号 domain_id	2jg3D01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

结构域编号 domain_id	2jg3D02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	220 — Adenine-n6-DNA-methyltransferase TaqI; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Adenine-n6-DNA-methyltransferase Taqi, Chain A, domain 2

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	59.404 Å
晶胞边长 b length_b	69.193 Å
晶胞边长 c length_c	114.390 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	92.16 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	1.900 Å
最低分辨率 resolution_low	19.730 Å
R 因子 r_factor	0.1870
R_work r_work	0.1850
R_free r_free	0.2260

fit	/app/data/saxs_computation/jg/2jg3/2jg3.fit
pddf	/app/data/pr_computation/jg/2jg3/2jg3.pr.out
profile	/app/data/saxs_computation/jg/2jg3/2jg3.dat

MtaqI with BAZ

SAXS 散射曲线 SAXS Profile

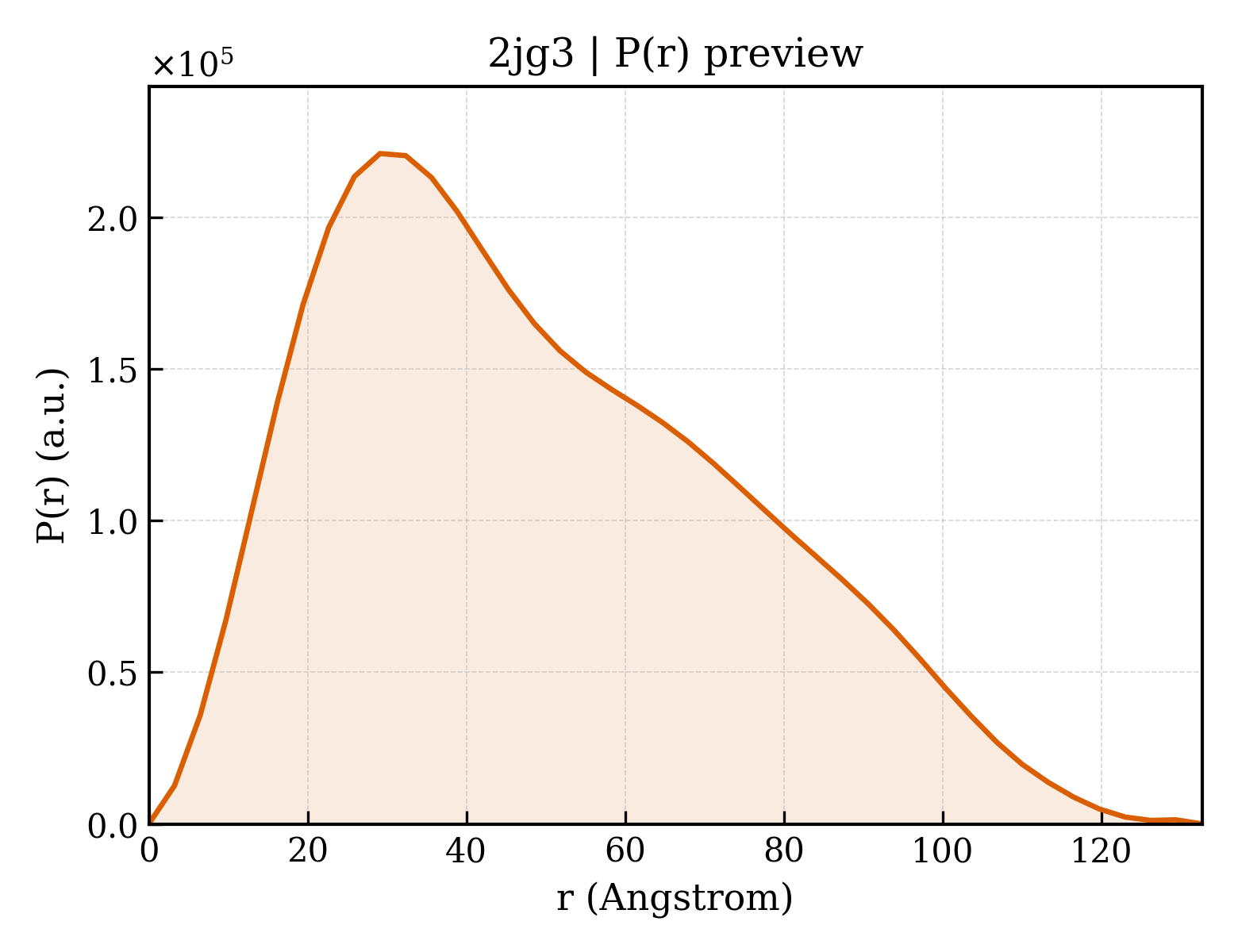

P(r) 距离分布 P(r) Distribution
