SAXSdb — 2ihc

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Transcription regulator protein BACH1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 7–128 Chain B； UniProt 7–128	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；20 % PEG3350, 200 mM MgCl2, 0.1M Tris buffer, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.44 Å R-free 0.278
2	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 7–128 Chain D； UniProt 7–128	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；20 % PEG3350, 200 mM MgCl2, 0.1M Tris buffer, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.44 Å R-free 0.278
3	Protein homooligomer Homooligomer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 7–128 Chain B； UniProt 7–128 Chain C； UniProt 7–128 Chain D； UniProt 7–128	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；20 % PEG3350, 200 mM MgCl2, 0.1M Tris buffer, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.44 Å R-free 0.278

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2IHC	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
29HH Cryo-EM structure of the CUL1-RBX1-SKP1-FBXO22 SCF ubiquition ligase in complex with NSD2, UNC10088 and Bach1 Deposited 2026-03-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain G 1–736（736 aa） Chain H 1–736（736 aa）	Not recorded	A1J20 ~{N}-cyclopropyl-~{N}-[[4-[[2-(6-oxidanylhexanoyl)-1~{H}-isoquinolin-6-yl]carbamoyl]phenyl]methyl]-3-oxidanylidene-4~{H}-1,4-benzoxazine-7-carboxamide × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.20 Å
8S7D Cryo-EM structure of SKP1-FBXO22 in complex with a BACH1 BTB dimer at 3.2A resolution Deposited 2024-02-29	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 7–128（122 aa） Chain B 7–128（122 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
8UA3 Cryo-EM Structure of FBOX22-BACH1BTB Deposited 2023-09-20	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 7–128（122 aa） Fragment：BTB domain (UNP residues 7-128) Chain E 7–128（122 aa） Fragment：BTB domain (UNP residues 7-128)	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
8UA6 Cryo-EM Structure of SCF-FBOX22-BACH1BTB Deposited 2023-09-20	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain D 7–128（122 aa） Fragment：BTB domain (UNP residues 7-128) Chain E 7–128（122 aa） Fragment：BTB domain (UNP residues 7-128)	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
8UAH Structure of BACH1 BTB domain-bound FBXL17 ubiquitin ligase Deposited 2023-09-21	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 7–132（126 aa） Fragment：BTB domain (UNP residues 7-132)	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
8UBT Structure of SCF-FBXL17-BACH1BTB E3 ligase complex Deposited 2023-09-24	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 7–128（122 aa） Fragment：BTB domain (UNP residues 7-128)	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
8UBU Cryo-EM structure of dimeric SCF-FBXL17-BACH1BTB E3 ligase complex close conformation Deposited 2023-09-25	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain E 7–128（122 aa） Fragment：BTB domain (UNP residues 7-128) Chain L 7–128（122 aa） Fragment：BTB domain (UNP residues 7-128)	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.60 Å
8UBV Cryo-EM structure of dimeric FBXL17-BACH1BTB E3 ubiquitin ligase complex Deposited 2023-09-25	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 7–128（122 aa） Fragment：BTB domain (UNP residues 7-128) Chain I 7–128（122 aa） Fragment：BTB domain (UNP residues 7-128)	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
9GP5 Homodimer of BACH1 F9A mutant BTB domain Deposited 2024-09-06	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 7–128（122 aa） Chain D 7–128（122 aa）	Mutation：F9A Mutation：F9A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；294 K；0.02 M HEPES, 0.15 M NaCl, 5% (w/v) glycerol, 0.001 M TCEP	Resolution 1.90 Å R-free 0.226
9GR9 Homodimer of BACH1 BTB domain Deposited 2024-09-11	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 7–128（122 aa） Chain B 7–128（122 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；294 K；0.1 M Tris-HCL, 0.2 M Li2SO4, 30 % (w/v) PEG4000	Resolution 2.25 Å R-free 0.246
9GR9 Homodimer of BACH1 BTB domain Deposited 2024-09-11	Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 7–128（122 aa） Chain D 7–128（122 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；294 K；0.1 M Tris-HCL, 0.2 M Li2SO4, 30 % (w/v) PEG4000	Resolution 2.25 Å R-free 0.246
9GRA Homodimer of BACH1 BTB domain in complex with 2-Methyl-2,4-pentanediol Deposited 2024-09-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 7–128（122 aa） Chain B 7–128（122 aa）	Not recorded	MRD (4R)-2-METHYLPENTANE-2,4-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；294 K；0.16 M Ammonium sulfate, 0.08 M Tris-HCl, 14.4 % (w/v) PEG3350, 6 % (v/v) MPD	Resolution 1.47 Å R-free 0.234

11 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	BACH1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–124； UniProt 7–128 Author chain B； PDBConstruct 1–124； UniProt 7–128 Author chain C； PDBConstruct 1–124； UniProt 7–128 Author chain D； PDBConstruct 3–124； UniProt 7–128

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2ihc
Deposition date deposition_date	2006-09-26
Structure title title	Crystal structure of the bric-a-brac (BTB) domain of human BACH1
Keywords keywords	;BACH1, bric-a-brac domain, transcription factor, protein-protein interaction, cap'n'collar type of basic region leucine zipper factor family, Structural Genomics, Structural Genomics Consortium, SGC, TRANSCRIPTION ;; TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	27.04 Å
Radius of gyration Rg (electron density) rg_electron	26.39 Å
Forward intensity I(0) i0	37635100.00
Molecular weight molecular_weight	47958.0 kDa
Excluded volume excluded_volume	60088 Å³
Envelope volume envelope_volume	75233 Å³
Hydration-shell volume shell_volume	24482 Å³
Envelope diameter envelope_diameter	89.3 Å
Shell Rg shell_rg	32.76 Å
Envelope Rg envelope_rg	26.34 Å
Shape Rg shape_rg	26.41 Å
Total Rg total_rg	27.02 Å
Total atoms total_atoms	3382
Residues n_residues	462
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	87.1 Å
Rg (real space) rg_real	27.09 Å
Rg uncertainty (real space) rg_real_error	0.73 Å
I(0) (real space) i0_real	3.7640e+07
I(0) uncertainty (real space) i0_real_error	5.4670e+05
Rg (reciprocal space) rg_reciprocal	27.08 Å
I(0) (reciprocal space) i0_reciprocal	37630000.0000
Solution quality estimate total_estimate	0.8135
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	23.6 Å
Skewness Skewness skewness	0.314
Kurtosis Kurtosis kurtosis	-0.580
Angular range angular_range	— – 0.2950 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	17070000.0000
Real-space data points n_real_points	60
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.897; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.884; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d2ihca_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.42 — POZ domain
Superfamily Superfamily superfamily	d.42.1 — POZ domain
Family Family family	d.42.1.0 — automated matches

Domain ID domain_id	d2ihcb1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.42 — POZ domain
Superfamily Superfamily superfamily	d.42.1 — POZ domain
Family Family family	d.42.1.0 — automated matches

Domain ID domain_id	d2ihcb2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2ihcc1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.42 — POZ domain
Superfamily Superfamily superfamily	d.42.1 — POZ domain
Family Family family	d.42.1.0 — automated matches

Domain ID domain_id	d2ihcc2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2ihcd_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.42 — POZ domain
Superfamily Superfamily superfamily	d.42.1 — POZ domain
Family Family family	d.42.1.0 — automated matches

CATH v4.4 (4 domains)

Domain ID domain_id	2ihcA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	710 — Potassium Channel Kv1.1; Chain A
Homologous superfamily homologous superfamily	10 — Potassium Channel Kv1.1; Chain A

Domain ID domain_id	2ihcB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	710 — Potassium Channel Kv1.1; Chain A
Homologous superfamily homologous superfamily	10 — Potassium Channel Kv1.1; Chain A

Domain ID domain_id	2ihcC01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	710 — Potassium Channel Kv1.1; Chain A
Homologous superfamily homologous superfamily	10 — Potassium Channel Kv1.1; Chain A

Domain ID domain_id	2ihcD01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	710 — Potassium Channel Kv1.1; Chain A
Homologous superfamily homologous superfamily	10 — Potassium Channel Kv1.1; Chain A

▶

8. Citations (1)

▶

Unit-cell length a length_a	83.440 Å
Unit-cell length b length_b	53.664 Å
Unit-cell length c length_c	123.891 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	106.15 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.440 Å
Low-resolution limit resolution_low	33.300 Å
R factor r_factor	0.2484
R_work r_work	0.2467
R_free r_free	0.2777

Description description	Transcription regulator protein BACH1
Molecular weight formula_weight	14058.0 kDa
Source method src_method	man
Copy count entity_count	4

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	3415

Crystal structure of the bric-a-brac (BTB) domain of human BACH1

1. Protein Identity and Related Structures Protein Identity & Related Structures

Transcription regulator protein BACH1

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

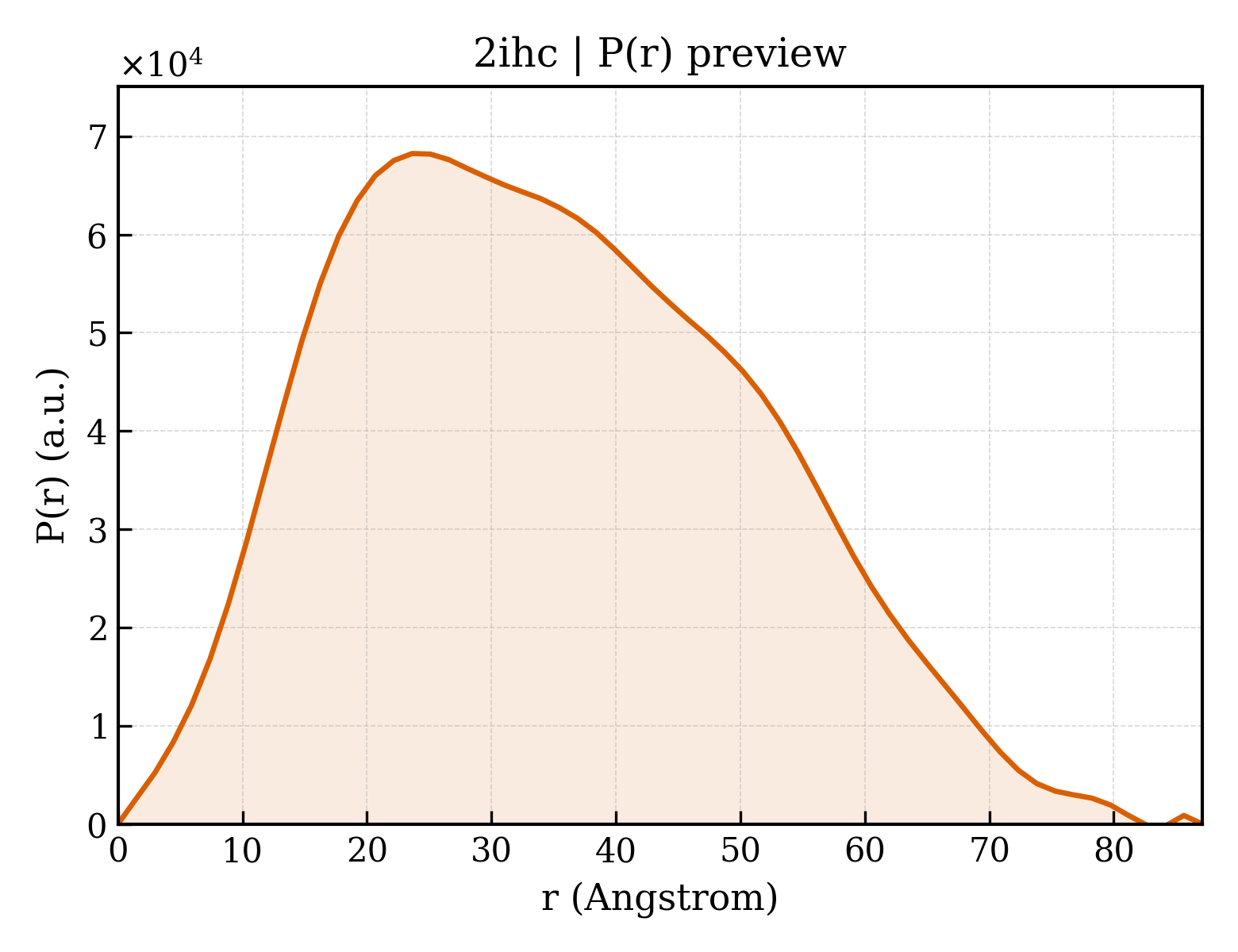

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 water

7. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (6 domains)

CATH v4.4 (4 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	33

fit	/app/data/saxs_computation/ih/2ihc/2ihc.fit
pddf	/app/data/pr_computation/ih/2ihc/2ihc.pr.out
profile	/app/data/saxs_computation/ih/2ihc/2ihc.dat
