SAXSdb — 8ubu

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cullin-1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 10	E3 ubiquitin-protein ligase RBX1, N-terminally processed × 2 （P62877） S-phase kinase-associated protein 1 × 2 （P63208） F-box/LRR-repeat protein 17 × 2 （Q9UF56） Transcription regulator protein BACH1 × 2 （O14867）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CUL1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–764； UniProt 13–776 Author chain H； PDBConstruct 1–764； UniProt 13–776

E3 ubiquitin-protein ligase RBX1, N-terminally processed

Homo sapiens

UniProt P62877

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 10	Cullin-1 × 2 （Q13616） S-phase kinase-associated protein 1 × 2 （P63208） F-box/LRR-repeat protein 17 × 2 （Q9UF56） Transcription regulator protein BACH1 × 2 （O14867）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RBX1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–93； UniProt 16–108 Author chain I； PDBConstruct 1–93； UniProt 16–108

S-phase kinase-associated protein 1

Homo sapiens

UniProt P63208

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 10	Cullin-1 × 2 （Q13616） E3 ubiquitin-protein ligase RBX1, N-terminally processed × 2 （P62877） F-box/LRR-repeat protein 17 × 2 （Q9UF56） Transcription regulator protein BACH1 × 2 （O14867）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SKP1_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–162； UniProt 1–163 Author chain G； PDBConstruct 1–162； UniProt 1–163

F-box/LRR-repeat protein 17

Homo sapiens

UniProt Q9UF56

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 10	Cullin-1 × 2 （Q13616） E3 ubiquitin-protein ligase RBX1, N-terminally processed × 2 （P62877） S-phase kinase-associated protein 1 × 2 （P63208） Transcription regulator protein BACH1 × 2 （O14867）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FXL17_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–392； UniProt 310–701 Author chain K； PDBConstruct 1–392； UniProt 310–701

Transcription regulator protein BACH1

Homo sapiens

UniProt O14867

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 10	Cullin-1 × 2 （Q13616） E3 ubiquitin-protein ligase RBX1, N-terminally processed × 2 （P62877） S-phase kinase-associated protein 1 × 2 （P63208） F-box/LRR-repeat protein 17 × 2 （Q9UF56）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BACH1_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain E； PDBConstruct 1–122； UniProt 7–128 Author chain L； PDBConstruct 1–122； UniProt 7–128

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8ubu
Deposition date deposition_date	2023-09-25
Structure title title	Cryo-EM structure of dimeric SCF-FBXL17-BACH1BTB E3 ligase complex close conformation
Keywords keywords	SCF, FBXL17, BACH1, F-box protein, CUL1, Cullin, E3 ligase, LIGASE; LIGASE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8ubu__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8ubu__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

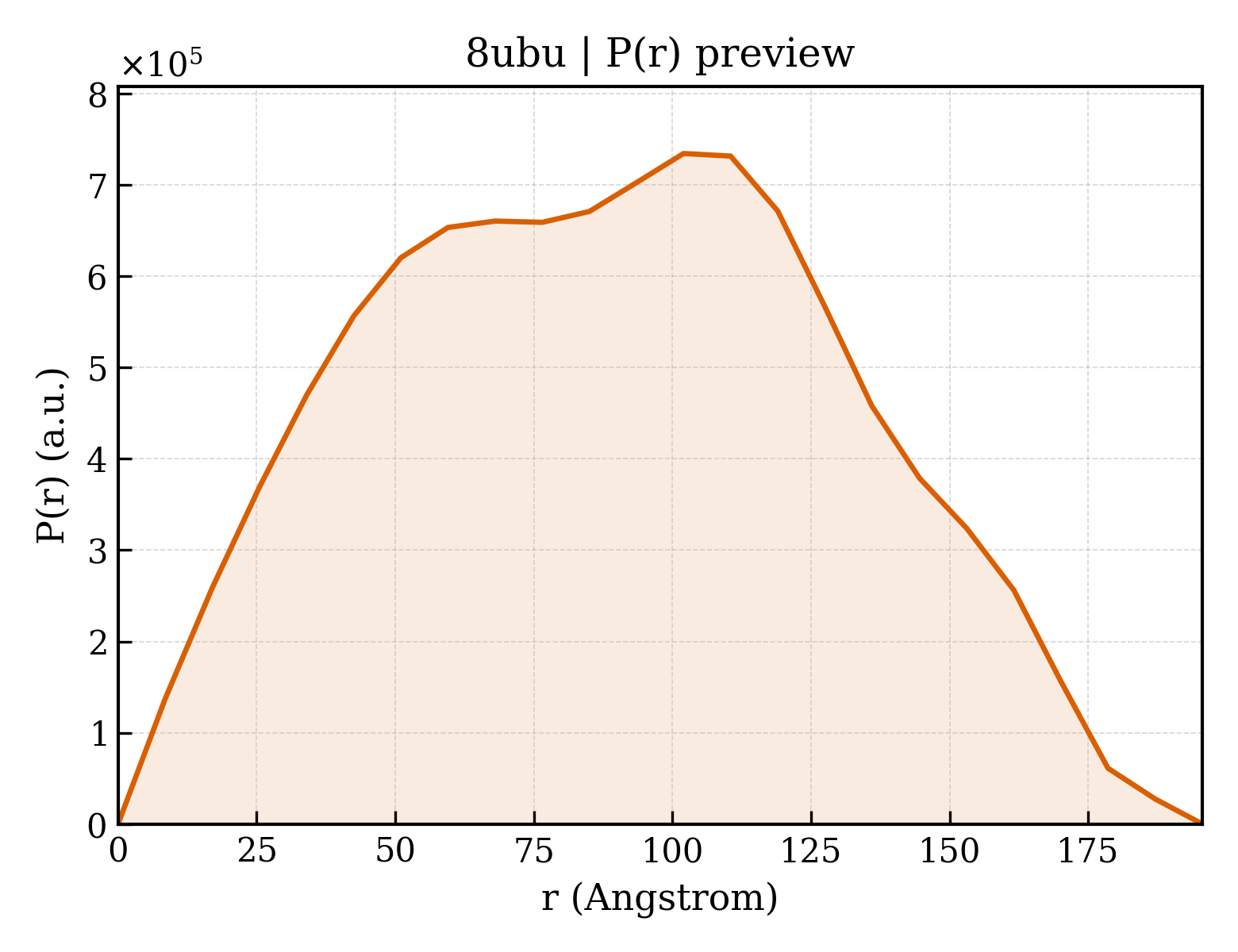

8ubu__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	69.31 Å
Rg (electron density)	69.13 Å
Total Rg	69.02 Å
Atom count	19760
Residues	2464
Excluded volume	353850 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8ubu__assembly_1__model_1`	decameric （10）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Cullin-1
Molecular weight formula_weight	88501.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,H
Atom count atom_count	19760

KQIGLDQIWDDLRAGIQQVYTRQSMAKSRYMELYTHVYNYCTSVHQSNQARGAGVPPSKSKKGQTPGGAQFVGLELYKRLKEFLKNYLTNLLKDGEDLMDESVLKFYTQQWEDYRFSSKVLNGICAYLNRHWVRRECDEGRKGIYEIYSLALVTWRDCLFRPLNKQVTNAVLKLIEKERNGETINTRLISGVVQSYVELGLNEDDAFAKGPTLTVYKESFESQFLADTERFYTRESTEFLQQNPVTEYMKKAEARLLEEQRRVQVYLHESTQDELARKCEQVLIEKHLEIFHTEFQNLLDADKNEDLGRMYNLVSRIQDGLGELKKLLETHIHNQGLAAIEKCGEAALNDPKMYVQTVLDVHKKYNALVMSAFNNDAGFVAALDKACGRFINNNAVTKMAQSSSKSPELLARYCDSLLKKSSKNPEEAELEDTLNQVMVVFKYIEDKDVFQKFYAKMLAKRLVHQNSASDDAEASMISKLKQACGFEYTSKLQRMFQDIGVSKDLNEQFKKHLTNSEPLDLDFSIQVLSSGSWPFQQSCTFALPSELERSYQRFTAFYASRHSGRKLTWLYQLSKGELVTNCFKNRYTLQASTFQMAILLQYNTEDAYTVQQLTDSTQIKMDILAQVLQILLKSKLLVLEDENANVDEVELKPDTLIKLYLGYKNKKLRVNINVPMKTEQKQEQETTHKNIEEDRKLLIQAAIVRIMKMRKVLKHQQLLGEVLTQLSSRFKPRVPVIKKCIDILIEKEYLERVDGEKDTYSYLA

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21

Entity 2 Entity 2 polymer

Description description	E3 ubiquitin-protein ligase RBX1, N-terminally processed
Molecular weight formula_weight	10840.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,I

GAGKKRFEVKKWNAVALWAWDIVVDNCAICRNHIMDLCIECQANQASATSEECTVAWGVCNHAFHFHCISRWLKTRQVCPLDNREWEFQKYGH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21

Entity 3 Entity 3 polymer

Description description	S-phase kinase-associated protein 1
Molecular weight formula_weight	18580.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,G

MPSIKLQSSDGEIFEVDVEIAKQSTIKTMLEDLGMDDEGDDDPVPLPNVNAAILKKVIQWCTHHKDDPPPPEDDENKEKRTDDIPVWDQEFLKVDQGTLFELILAANYLDIKGLLDVTCKTVANMIKGKTPEEIRKTFNIKNDFTEEEEAQVRKENQWCEEK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 4 Entity 4 polymer

Description description	F-box/LRR-repeat protein 17
Molecular weight formula_weight	44505.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,K

CHREPPPETPDINQLPPSILLKIFSNLSLDERCLSASLVCKYWRDLCLDFQFWKQLDLSSRQQVTDELLEKIASRSQNIIEINISDCRSMSDNGVCVLAFKCPGLLRYTAYRCKQLSDTSIIAVASHCPLLQKVHVGNQDKLTDEGLKQLGSKCRELKDIHFGQCYKISDEGMIVIAKGCLKLQRIYMQENKLVTDQSVKAFAEHCPELQYVGFMGCSVTSKGVIHLTKLRNLSSLDLRHITELDNETVMEIVKRCKNLSSLNLCLNWIINDRCVEVIAKEGQNLKELYLVSCKITDYALIAIGRYSMTIETVDVGWCKEITDQGATLIAQSSKSLRYLGLMRCDKVNEVTVEQLVQQYPHITFSTVLQDCKRTLERAYQMGWTPNMSAASS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 5 Entity 5 polymer

Description description	Transcription regulator protein BACH1
Molecular weight formula_weight	13839.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,L

SVFAYESSVHSTNVLLSLNDQRKKDVLCDVTIFVEGQRFRAHRSVLAACSSYFHSRIVGQADGELNITLPEEVTVKGFEPLIQFAYTAKLILSKENVDEVCKCVEFLSVHNIEESCFQFLKF

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	4.60 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	71155
