SAXSdb — 6vcd

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Iron-responsive element binding protein 2, isoform CRA_a

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	F-box/LRR-repeat protein 5 × 1 （Q9UKA1） S-phase kinase-associated protein 1 × 1 （P63208） FE2/S2 (INORGANIC) CLUSTER × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	D3DW85_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–963； UniProt 1–963

F-box/LRR-repeat protein 5

Homo sapiens

UniProt Q9UKA1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Iron-responsive element binding protein 2, isoform CRA_a × 1 （D3DW85） S-phase kinase-associated protein 1 × 1 （P63208） FE2/S2 (INORGANIC) CLUSTER × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FBXL5_HUMAN
Isoform	Q9UKA1-2
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–492； UniProt 183–674

S-phase kinase-associated protein 1

Homo sapiens

UniProt P63208

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Iron-responsive element binding protein 2, isoform CRA_a × 1 （D3DW85） F-box/LRR-repeat protein 5 × 1 （Q9UKA1） FE2/S2 (INORGANIC) CLUSTER × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SKP1_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–163； UniProt 1–163

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6vcd
Deposition date deposition_date	2019-12-20
Structure title title	Cryo-EM structure of IRP2-FBXL5-SKP1 complex
Keywords keywords	E3 ligase, [2Fe-2S] cluster, Iron metabolism, LIGASE; LIGASE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6vcd__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

6vcd__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

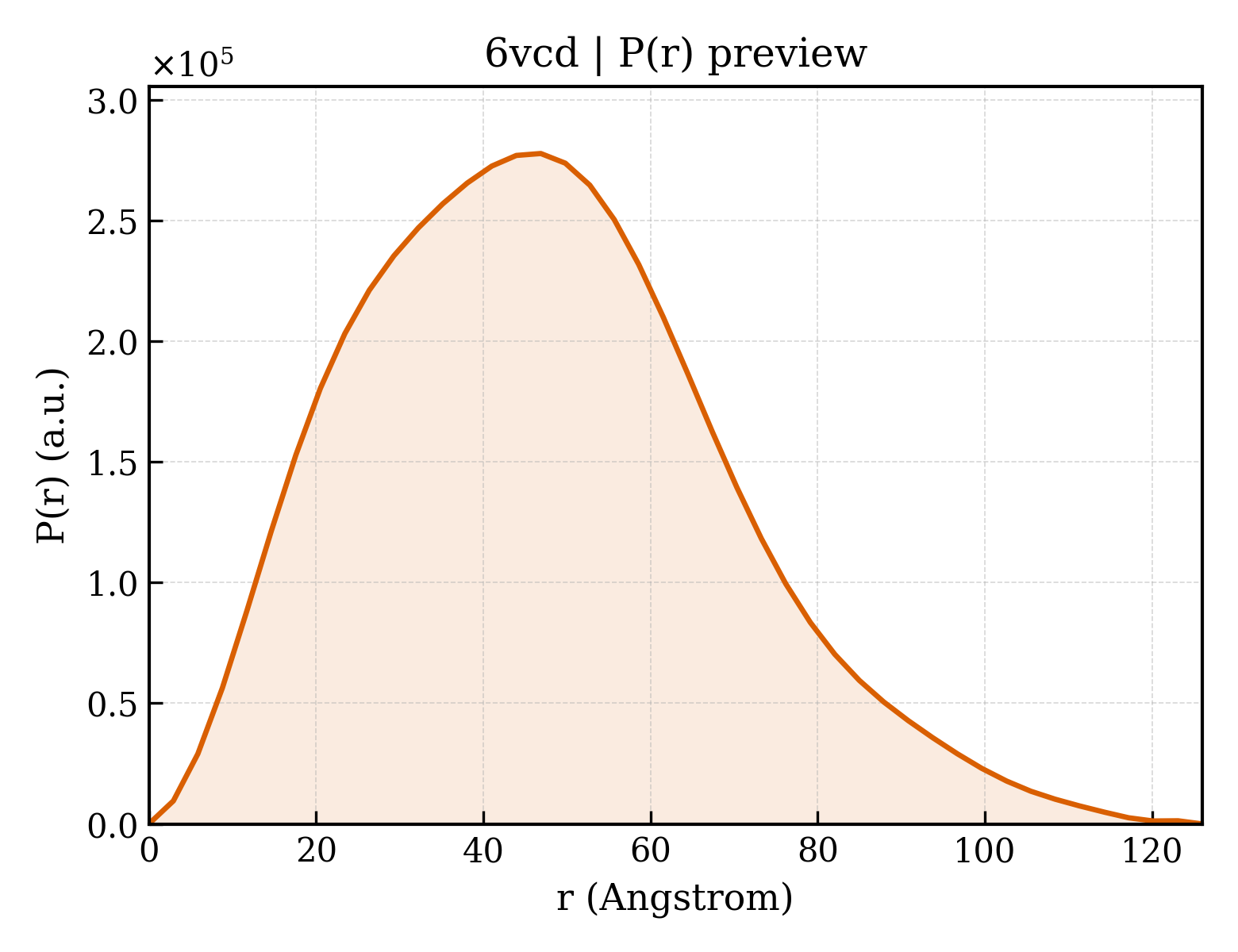

6vcd__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	36.38 Å
Rg (electron density)	36.20 Å
Total Rg	36.61 Å
Atom count	8082
Residues	1033
Excluded volume	144880 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6vcd__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Iron-responsive element binding protein 2, isoform CRA_a
Molecular weight formula_weight	105165.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	8082

MDAPKAGYAFEYLIETLNDSSHKKFFDVSKLGTKYDVLPYSIRVLLEAAVRNCDGFLMKKEDVMNILDWKTKQSNVEVPFFPARVLLQDFTGIPAMVDFAAMREAVKTLGGDPEKVHPACPTDLTVDHSLQIDFSKCAIQNAPNPGGGDLQKAGKLSPLKVQPKKLPCRGQTTCRGSCDSGELGRNSGTFSSQIENTPILCPFHLQPVPEPETVLKNQEVEFGRNRERLQFFKWSSRVFKNVAVIPPGTGMAHQINLEYLSRVVFEEKDLLFPDSVVGTDSHITMVNGLGILGWGVGGIETEAVMLGLPVSLTLPEVVGCELTGSSNPFVTSIDVVLGITKHLRQVGVAGKFVEFFGSGVSQLSIVDRTTIANMCPEYGAILSFFPVDNVTLKHLEHTGFSKAKLESMETYLKAVKLFRNDQNSSGEPEYSQVIQINLNSIVPSVSGPKRPQDRVAVTDMKSDFQACLNEKVGFKGFQIAAEKQKDIVSIHYEGSEYKLSHGSVVIAAVISCTNNCNPSVMLAAGLLAKKAVEAGLRVKPYIRTSLSPGSGMVTHYLSSSGVLPYLSKLGFEIVGYGCSTCVGNTAPLSDAVLNAVKQGDLVTCGILSGNKNFEGRLCDCVRANYLASPPLVVAYAIAGTVNIDFQTEPLGTDPTGKNIYLHDIWPSREEVHRVEEEHVILSMFKALKDKIEMGNKRWNSLEAPDSVLFPWDLKSTYIRCPSFFDKLTKEPIALQAIENAHVLLYLGDSVTTDHISPAGSIARNSAAAKYLTNRGLTPREFNSYGARRGNDAVMTRGTFANIKLFNKFIGKPAPKTIHFPSGQTLDVFEAAELYQKEGIPLIILAGKKYGSGNSRDWAAKGPYLLGVKAVLAESYEKIHKDHLIGIGIAPLQFLPGENADSLGLSGRETFSLTFPEELSPGITLNIQTSTGKVFSVIASFEDDVEITLYKHGGLLNFVARKFS

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 2 Entity 2 polymer

Description description	F-box/LRR-repeat protein 5
Molecular weight formula_weight	54832.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

EHSTGITHLPPEVMLSIFSYLNPQELCRCSQVSMKWSQLTKTGSLWKHLYPVHWARGDWYSGPATELDTEPDDEWVKNRKDESRAFHEWDEDADIDESEESAEESIAISIAQMEKRLLHGLIHNVLPYVGTSVKTLVLAYSSAVSSKMVRQILELCPNLEHLDLTQTDISDSAFDSWSWLGCCQSLRHLDLSGCEKITDVALEKISRALGILTSHQSGFLKTSTSKITSTAWKNKDITMQSTKQYACLHDLTNKGIGEEIDNEHPWTKPVSSENFTSPYVWMLDAEDLADIEDTVEWRHRNVESLCVMETASNFSCSTSGCFSKDIVGLRTSVCWQQHCASPAFAYCGHSFCCTGTALRTMSSLPESSAMCRKAARTRLPRGKDLIYFGSEKSDQETGRVLLFLSLSGCYQITDHGLRVLTLGGGLPYLEHLNLSGCLTITGAGLQDLVSACPSLNDEYFYYCDNINGPHADTASGCQNLQCGFRACCRSGE

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	S-phase kinase-associated protein 1
Molecular weight formula_weight	18680.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MPSIKLQSSDGEIFEVDVEIAKQSVTIKTMLEDLGMDDEGDDDPVPLPNVNAAILKKVIQWCTHHKDDPPPPEDDENKEKRTDDIPVWDQEFLKVDQGTLFELILAANYLDIKGLLDVTCKTVANMIKGKTPEEIRKTFNIKNDFTEEEEAQVRKENQWCEEK

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 non-polymer

Description description	FE2/S2 (INORGANIC) CLUSTER
Molecular weight formula_weight	175.8 kDa
Source method src_method	syn
Copy count entity_count	1

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d6vcdc1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.42 — POZ domain
Superfamily Superfamily superfamily	d.42.1 — POZ domain
Family Family family	d.42.1.0 — automated matches

Domain ID domain_id	d6vcdc2
Class class	a — All alpha proteins
Fold Fold fold	a.157 — Skp1 dimerisation domain-like
Superfamily Superfamily superfamily	a.157.1 — Skp1 dimerisation domain-like
Family Family family	a.157.1.1 — Skp1 dimerisation domain-like

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	3.00 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	955060
