6m90

Monophosphorylated pSer33 b-Catenin peptide, b-TrCP/Skp1, NRX-2776 ternary complex

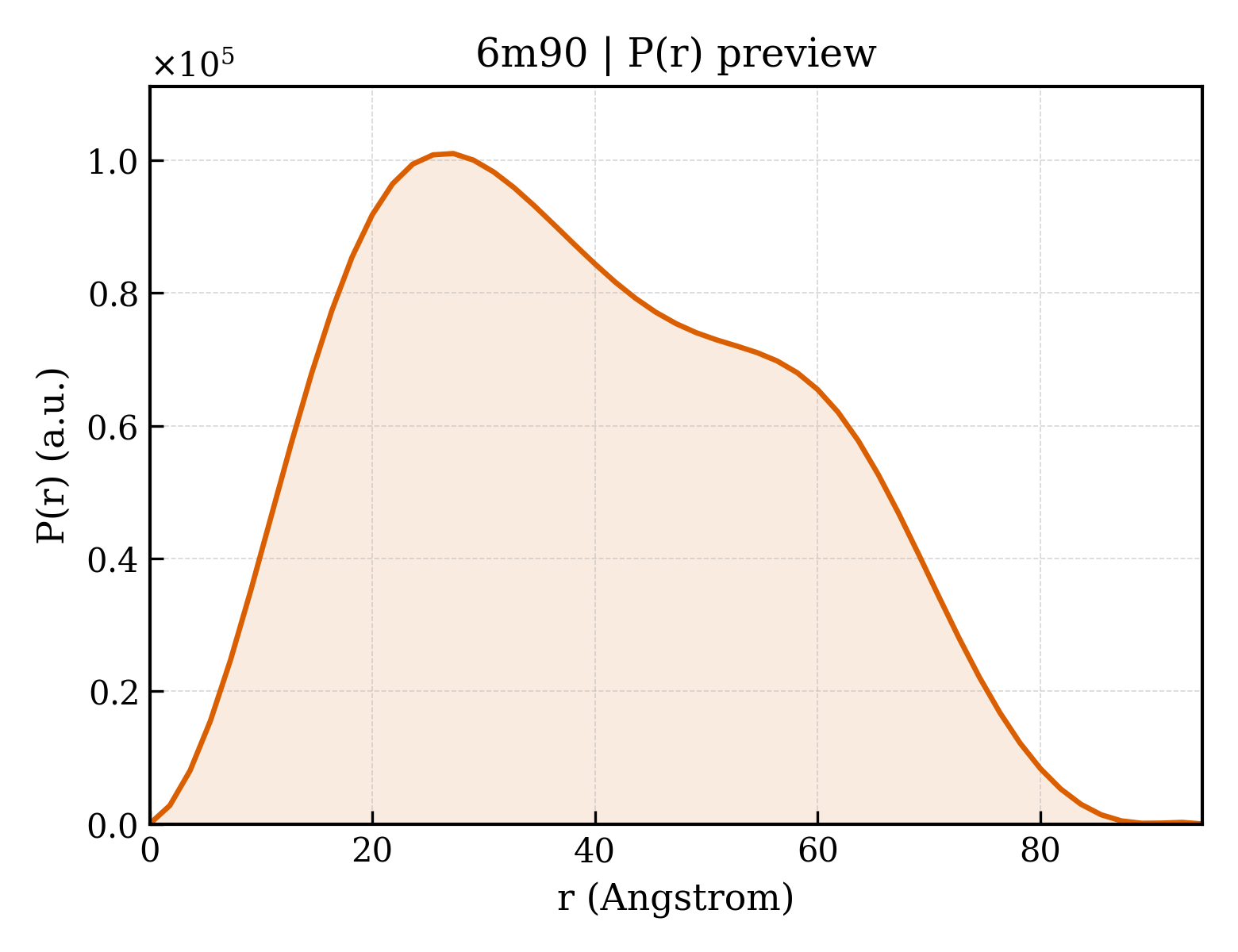

Method: X-RAY DIFFRACTION Dmax: 94.6 Å Quality: REASONABLE
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

F-box/WD repeat-containing protein 1A

Homo sapiens

UniProt Q9Y297

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count Chain A； UniProt 175–605 Not recorded Skp1 × 1 （P63208） Catenin beta-1 × 1 （P35222） J91 2-(2-fluorophenoxy)-3-{[2-oxo-6-(trifluoromethyl)-1,2-dihydropyridine-3-carbonyl]amino}benzoic acid × 2 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；8% PEG 4000 0.1M BTP pH 5.5 Resolution 2.05 Å R-free 0.212

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 6M90 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1P22 Structure of a beta-TrCP1-Skp1-beta-catenin complex: destruction motif binding and lysine specificity on the SCFbeta-TrCP1 ubiquitin ligase Deposited 2003-04-14 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 175–605（431 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；298 K；PEG4000, sodium citrate, Bis-Tris Propane, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K
Resolution 2.95 Å R-free 0.286
2P64 D domain of b-TrCP Deposited 2007-03-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 128–177（50 aa） Fragment：D domain
Chain B 128–177（50 aa） Fragment：D domain
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) CD CADMIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；200 mM MgCl2, 5 mM CdCl2, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.50 Å R-free 0.267
6M91 Monophosphorylated pSer33 b-Catenin peptide, b-TrCP/Skp1, NRX-103094 ternary complex Deposited 2018-08-22 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 175–605（431 aa）
Not recorded J97 3-({4-[(2,6-dichlorophenyl)sulfanyl]-2-oxo-6-(trifluoromethyl)-1,2-dihydropyridine-3-carbonyl}amino)benzoic acid × 1 PO4 PHOSPHATE ION × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；8% PEG 4000 0.1M BTP pH 5.5
Resolution 2.40 Å R-free 0.216
6M92 Monophosphorylated pSer33 b-Catenin peptide, b-TrCP/Skp1, NRX-2663 ternary complex Deposited 2018-08-22 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 175–605（431 aa）
Not recorded J8V 3-{[2-oxo-4-phenoxy-6-(trifluoromethyl)-1,2-dihydropyridine-3-carbonyl]amino}benzoic acid × 1 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；8% PEG 4000 0.1M BTP pH 5.5
Resolution 2.35 Å R-free 0.221
6M93 Monophosphorylated pSer33 b-Catenin peptide, b-TrCP/Skp1, NRX-1933 ternary complex Deposited 2018-08-22 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 175–605（431 aa）
Not recorded J8Y 2-oxo-N-[3-(1H-tetrazol-5-yl)phenyl]-6-(trifluoromethyl)-1,2-dihydropyridine-3-carboxamide × 1 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；8% PEG 4000 0.1M BTP pH 5.5
Resolution 2.50 Å R-free 0.230
6M94 Monophosphorylated pSer33 b-Catenin peptide bound to b-TrCP/Skp1 Complex Deposited 2018-08-22 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 175–605（431 aa）
Not recorded PO4 PHOSPHATE ION × 1 DMS DIMETHYL SULFOXIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；8% PEG 4000 0.1M BTP pH5.5
Resolution 2.70 Å R-free 0.238
6TTU Ubiquitin Ligation to substrate by a cullin-RING E3 ligase at 3.7A resolution: NEDD8-CUL1-RBX1 N98R-SKP1-monomeric b-TRCP1dD-IkBa-UB~UBE2D2 Deposited 2019-12-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain T 1–605（605 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.70 Å
9T8Y Crystal structure of beta-TrCP bound by monophosphorylated NRF2 degron peptide. Deposited 2025-11-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 222–584（363 aa）
Mutation：L188E, L192E No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；19% PEG3350, 0.1 M PCTP pH 6.2
Resolution 1.79 Å R-free 0.265
9T95 Crystal structure of beta-TrCP bound by diphosphorylated NRF2 degron peptide. Deposited 2025-11-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 222–584（363 aa）
Mutation：L188E, L192E No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；25% PEG3350, 0.1 M Na HEPES pH 7.5
Resolution 2.15 Å R-free 0.277
9T9W Crystal structure of beta-TrCP bound by diphosphorylated I-kappa-B-alpha degron peptide Deposited 2025-11-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 222–584（363 aa）
Not recorded EDO 1,2-ETHANEDIOL × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；18% PEG8K
Resolution 1.16 Å R-free 0.213
9TDZ Crystal structure of beta-TrCP bound by diphosphorylated claspin degron peptide Deposited 2025-11-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 222–584（363 aa）
Mutation：L188E, L192E EDO 1,2-ETHANEDIOL × 8 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；30% PEG4K, 0.2 M ammonium sulfate, 0.1 M sodium citrate pH 5.6
Resolution 1.35 Å R-free 0.204
9TES Crystal structure of beta-TrCP bound by diphosphorylated PDCD4 degron peptide Deposited 2025-11-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 222–584（363 aa）
Mutation：L188E, L192E MG MAGNESIUM ION × 1 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20% PEG10K, 0.1 M Na-Hepes pH 7.5
Resolution 1.22 Å R-free 0.240
9TFU Crystal structure of beta-TrCP bound by monophosphorylated ATF4 degron peptide Deposited 2025-11-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 222–584（363 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20% PEGMME2K, 0.1 M Bis-tris pH 6.5
Resolution 2.00 Å R-free 0.236
9TG7 Crystal structure of beta-TrCP bound by monophosphorylated WEE1 degron peptide Deposited 2025-11-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 222–584（363 aa）
Mutation：L188E, L192E No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；297 K；20% PEG10K, 0.1 M Na-Hepes pH 7.5
Resolution 1.68 Å R-free 0.252

14 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name FBW1A_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 2–432； UniProt 175–605

Skp1

Homo sapiens

UniProt P63208

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count Chain B； UniProt 2–163 Not recorded F-box/WD repeat-containing protein 1A × 1 （Q9Y297） Catenin beta-1 × 1 （P35222） J91 2-(2-fluorophenoxy)-3-{[2-oxo-6-(trifluoromethyl)-1,2-dihydropyridine-3-carbonyl]amino}benzoic acid × 2 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；8% PEG 4000 0.1M BTP pH 5.5 Resolution 2.05 Å R-free 0.212

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 6M90 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1FQV Insights into scf ubiquitin ligases from the structure of the skp1-skp2 complex Deposited 2000-09-06 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–162（162 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；PEG 4000, Tris-Cl, ammonium acetate, DTT, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.80 Å R-free 0.314
1FQV Insights into scf ubiquitin ligases from the structure of the skp1-skp2 complex Deposited 2000-09-06 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 1–162（162 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；PEG 4000, Tris-Cl, ammonium acetate, DTT, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.80 Å R-free 0.314
1FQV Insights into scf ubiquitin ligases from the structure of the skp1-skp2 complex Deposited 2000-09-06 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 1–162（162 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；PEG 4000, Tris-Cl, ammonium acetate, DTT, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.80 Å R-free 0.314
1FQV Insights into scf ubiquitin ligases from the structure of the skp1-skp2 complex Deposited 2000-09-06 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 1–162（162 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；PEG 4000, Tris-Cl, ammonium acetate, DTT, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.80 Å R-free 0.314
1FQV Insights into scf ubiquitin ligases from the structure of the skp1-skp2 complex Deposited 2000-09-06 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain J 1–162（162 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；PEG 4000, Tris-Cl, ammonium acetate, DTT, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.80 Å R-free 0.314
1FQV Insights into scf ubiquitin ligases from the structure of the skp1-skp2 complex Deposited 2000-09-06 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain L 1–162（162 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；PEG 4000, Tris-Cl, ammonium acetate, DTT, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.80 Å R-free 0.314
1FQV Insights into scf ubiquitin ligases from the structure of the skp1-skp2 complex Deposited 2000-09-06 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 7 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain N 1–162（162 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；PEG 4000, Tris-Cl, ammonium acetate, DTT, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.80 Å R-free 0.314
1FQV Insights into scf ubiquitin ligases from the structure of the skp1-skp2 complex Deposited 2000-09-06 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 8 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain P 1–162（162 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；PEG 4000, Tris-Cl, ammonium acetate, DTT, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.80 Å R-free 0.314
1FS1 INSIGHTS INTO SCF UBIQUITIN LIGASES FROM THE STRUCTURE OF THE SKP1-SKP2 COMPLEX Deposited 2000-09-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–147（147 aa） Fragment：RESIDUES 1-147
Chain D 1–147（147 aa） Fragment：RESIDUES 1-147
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；277 K；PEG 1500, sodium acetate, ammonium acetate, DTT, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.80 Å R-free 0.274
1FS2 INSIGHTS INTO SCF UBIQUITIN LIGASES FROM THE STRUCTURE OF THE SKP1-SKP2 COMPLEX Deposited 2000-09-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–146（146 aa） Fragment：RESIDUES 1-37; 43-147
Chain D 1–146（146 aa） Fragment：RESIDUES 1-37; 43-147
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.90 Å R-free 0.287
1LDK Structure of the Cul1-Rbx1-Skp1-F boxSkp2 SCF Ubiquitin Ligase Complex Deposited 2002-04-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain D 1–139（139 aa）
Not recorded ZN ZINC ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；peg4k, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.10 Å R-free 0.331
1LDK Structure of the Cul1-Rbx1-Skp1-F boxSkp2 SCF Ubiquitin Ligase Complex Deposited 2002-04-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain D 1–139（139 aa）
Not recorded ZN ZINC ION × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；peg4k, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.10 Å R-free 0.331
1P22 Structure of a beta-TrCP1-Skp1-beta-catenin complex: destruction motif binding and lysine specificity on the SCFbeta-TrCP1 ubiquitin ligase Deposited 2003-04-14 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–162（162 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；298 K；PEG4000, sodium citrate, Bis-Tris Propane, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K
Resolution 2.95 Å R-free 0.286
29HG Cryo-EM structure of the CUL1-RBX1-SKP1-FBXO22 SCF ubiquition ligase in complex with NSD2 via UNC10088 Deposited 2026-03-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain C 1–163（163 aa）
Not recorded A1J20 ~{N}-cyclopropyl-~{N}-[[4-[[2-(6-oxidanylhexanoyl)-1~{H}-isoquinolin-6-yl]carbamoyl]phenyl]methyl]-3-oxidanylidene-4~{H}-1,4-benzoxazine-7-carboxamide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
29HH Cryo-EM structure of the CUL1-RBX1-SKP1-FBXO22 SCF ubiquition ligase in complex with NSD2, UNC10088 and Bach1 Deposited 2026-03-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain C 1–163（163 aa）
Not recorded A1J20 ~{N}-cyclopropyl-~{N}-[[4-[[2-(6-oxidanylhexanoyl)-1~{H}-isoquinolin-6-yl]carbamoyl]phenyl]methyl]-3-oxidanylidene-4~{H}-1,4-benzoxazine-7-carboxamide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
29HI Cryo-EM structure of the CUL1-RBX1-SKP1-FBXO22 SCF ubiquition ligase in complex with NSD2 via UNC10415667 Deposited 2026-03-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain C 1–163（163 aa）
Not recorded A1J21 4-[[cyclopropyl-[(~{Z})-2-methyl-4-(5-oxidanylidene-2~{H}-1,4-oxazin-3-yl)but-3-enoyl]amino]methyl]-~{N}-[3-[2-[[4-(hydroxymethyl)phenyl]carbonyl-methyl-amino]ethyl]phenyl]benzamide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.90 Å
2ASS Crystal structure of the Skp1-Skp2-Cks1 complex Deposited 2005-08-24 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–159（159 aa）
Mutation：P1A PO4 PHOSPHATE ION × 3 BEN BENZAMIDINE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；277 K；BTP, sodium/potassium phosphate, benzamidine, pH 7.6, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.00 Å R-free 0.242
2ASS Crystal structure of the Skp1-Skp2-Cks1 complex Deposited 2005-08-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–159（159 aa）
Mutation：P1A PO4 PHOSPHATE ION × 6 BEN BENZAMIDINE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；277 K；BTP, sodium/potassium phosphate, benzamidine, pH 7.6, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.00 Å R-free 0.242
2ASS Crystal structure of the Skp1-Skp2-Cks1 complex Deposited 2005-08-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–159（159 aa）
Mutation：P1A PO4 PHOSPHATE ION × 6 BEN BENZAMIDINE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；277 K；BTP, sodium/potassium phosphate, benzamidine, pH 7.6, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.00 Å R-free 0.242
2AST Crystal structure of Skp1-Skp2-Cks1 in complex with a p27 peptide Deposited 2005-08-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–159（159 aa）
Not recorded BEN BENZAMIDINE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；PEG8K, 5% benzamidine, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.30 Å R-free 0.221
2AST Crystal structure of Skp1-Skp2-Cks1 in complex with a p27 peptide Deposited 2005-08-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 1–159（159 aa）
Not recorded BEN BENZAMIDINE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；PEG8K, 5% benzamidine, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.30 Å R-free 0.221
2AST Crystal structure of Skp1-Skp2-Cks1 in complex with a p27 peptide Deposited 2005-08-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 1–159（159 aa）
Not recorded BEN BENZAMIDINE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；PEG8K, 5% benzamidine, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.30 Å R-free 0.221
2E31 Structural basis for selection of glycosylated substrate by SCFFbs1 ubiquitin ligase Deposited 2006-11-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 0–162（163 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.7；293 K；2.0M ammonium sulphate, 0.1M sodium citrate, 30mM chitobiose, pH 5.7, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.40 Å R-free 0.291
2E32 Structural basis for selection of glycosylated substrate by SCFFbs1 ubiquitin ligase Deposited 2006-11-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 0–162（163 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.7；293 K；2.0M ammonium sulphate, 0.1M sodium citrate, 30mM chitobiose, pH 5.7, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 3.52 Å R-free 0.299
2E32 Structural basis for selection of glycosylated substrate by SCFFbs1 ubiquitin ligase Deposited 2006-11-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 0–162（163 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.7；293 K；2.0M ammonium sulphate, 0.1M sodium citrate, 30mM chitobiose, pH 5.7, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 3.52 Å R-free 0.299
2OVP Structure of the Skp1-Fbw7 complex Deposited 2007-02-14 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–163（163 aa） Fragment：residues 1-147
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；0.1 M HEPES-Na, 1.2 M Li2SO4, 7.5% glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 2.90 Å R-free 0.268
2OVP Structure of the Skp1-Fbw7 complex Deposited 2007-02-14 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 1–163（163 aa） Fragment：residues 1-147
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；0.1 M HEPES-Na, 1.2 M Li2SO4, 7.5% glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 2.90 Å R-free 0.268
2OVQ Structure of the Skp1-Fbw7-CyclinEdegC complex Deposited 2007-02-14 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–163（163 aa） Fragment：residues 1-147
Not recorded SO4 SULFATE ION × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；294 K；0.1 M Bicine, 1.4 M Li2SO4, pH 9.0, VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 2.60 Å R-free 0.266
2OVQ Structure of the Skp1-Fbw7-CyclinEdegC complex Deposited 2007-02-14 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain A 1–163（163 aa） Fragment：residues 1-147
Not recorded SO4 SULFATE ION × 32 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；294 K；0.1 M Bicine, 1.4 M Li2SO4, pH 9.0, VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 2.60 Å R-free 0.266
2OVR Structure of the Skp1-Fbw7-CyclinEdegN complex Deposited 2007-02-14 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–163（163 aa） Fragment：residues 1-147
Not recorded SO4 SULFATE ION × 12 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；0.1 M Hepes-Na, 1.12 M Li2SO4, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 2.50 Å R-free 0.251
3L2O Structure-Based Mechanism of Dimerization-Dependent Ubiquitination by the SCFFbx4 Ubiquitin Ligase Deposited 2009-12-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–163（163 aa）
Mutation：deletion: 38-43, 70-81; P2A; insertion: GGSG between 69 and 82 No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；1.5-2 M sodium chloride, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 277.0K
Resolution 2.80 Å R-free 0.295
3L2O Structure-Based Mechanism of Dimerization-Dependent Ubiquitination by the SCFFbx4 Ubiquitin Ligase Deposited 2009-12-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–163（163 aa）
Mutation：deletion: 38-43, 70-81; P2A; insertion: GGSG between 69 and 82 No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；1.5-2 M sodium chloride, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 277.0K
Resolution 2.80 Å R-free 0.295
3WSO Crystal structure of the Skp1-FBG3 complex Deposited 2014-03-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–163（163 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；288 K；8% 2-propanol, 16% PEG4000, 0.1M Na PIPES , pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 288K
Resolution 2.60 Å R-free 0.266
4I6J A ubiquitin ligase-substrate complex Deposited 2012-11-29 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–163（163 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；0.2M ammonium citrate, 13-14% PEG3350 7% Acetonitrile, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.70 Å R-free 0.265
5IBK Skp1-F-box in complex with a ubiquitin variant Deposited 2016-02-22 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–69（69 aa） Fragment：;UNP resdiues 1-61(deletion 37-42) and 70-163 linked by LINKER GGSG,UNP resdiues 1-61(deletion 37-42) and 70-163 linked by LINKER GGSG ;
Chain A 82–163（82 aa） Fragment：;UNP resdiues 1-61(deletion 37-42) and 70-163 linked by LINKER GGSG,UNP resdiues 1-61(deletion 37-42) and 70-163 linked by LINKER GGSG ;
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；293 K；100 mM Acetate pH 4.5, 12% PEG 4000, 15% glyerol
Resolution 2.50 Å R-free 0.240
5IBK Skp1-F-box in complex with a ubiquitin variant Deposited 2016-02-22 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–69（69 aa） Fragment：;UNP resdiues 1-61(deletion 37-42) and 70-163 linked by LINKER GGSG,UNP resdiues 1-61(deletion 37-42) and 70-163 linked by LINKER GGSG ;
Chain D 82–163（82 aa） Fragment：;UNP resdiues 1-61(deletion 37-42) and 70-163 linked by LINKER GGSG,UNP resdiues 1-61(deletion 37-42) and 70-163 linked by LINKER GGSG ;
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；293 K；100 mM Acetate pH 4.5, 12% PEG 4000, 15% glyerol
Resolution 2.50 Å R-free 0.240
5JH5 Structural Basis for the Hierarchical Assembly of the Core of PRC1.1 Deposited 2016-04-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 2–163（162 aa） Fragment：Residues 2-163
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.25；298 K；100 mM HEPES, 10 % 2-methyl-2,4-pentanediol, 10 mM NaCl
Resolution 2.55 Å R-free 0.257
5K35 Structure of the Legionella effector, AnkB, in complex with human Skp1 Deposited 2016-05-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–163（163 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.2 M trimethylamine N-oxide, 0.1 M Tris pH 8.5, 20% (w/v) PEG 2000 MME
Resolution 2.85 Å R-free 0.275
5V4B Crystal structure of the Skp1-FBXW7-DISC1 complex Deposited 2017-03-08 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–69（69 aa）
Chain A 82–163（82 aa）
Not recorded SO4 SULFATE ION × 9 IMD IMIDAZOLE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；277.15 K；100 mM Hepes, 1.2M lithium sulfate
Resolution 2.60 Å R-free 0.219
5V4B Crystal structure of the Skp1-FBXW7-DISC1 complex Deposited 2017-03-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain A 1–69（69 aa）
Chain A 82–163（82 aa）
Not recorded SO4 SULFATE ION × 36 IMD IMIDAZOLE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；277.15 K；100 mM Hepes, 1.2M lithium sulfate
Resolution 2.60 Å R-free 0.219
5VZT Crystal structure of the Skp1-FBXO31 complex Deposited 2017-05-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–163（163 aa）
Mutation：P2A ZN ZINC ION × 1 DTT 2,3-DIHYDROXY-1,4-DITHIOBUTANE × 1 PO4 PHOSPHATE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.3；277 K；100 mM sodium citrate (pH 5.3), 0.27 M ammonium acetate, 13-17% MPD, 0.02 M CaCl2
Resolution 2.70 Å R-free 0.242
5VZT Crystal structure of the Skp1-FBXO31 complex Deposited 2017-05-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 1–163（163 aa）
Mutation：P2A ZN ZINC ION × 1 DTT 2,3-DIHYDROXY-1,4-DITHIOBUTANE × 1 PO4 PHOSPHATE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.3；277 K；100 mM sodium citrate (pH 5.3), 0.27 M ammonium acetate, 13-17% MPD, 0.02 M CaCl2
Resolution 2.70 Å R-free 0.242
5VZU Crystal structure of the Skp1-FBXO31-cyclin D1 complex Deposited 2017-05-29 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–163（163 aa）
Mutation：P2A ZN ZINC ION × 1 PO4 PHOSPHATE ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.3；277 K；100 mM sodium citrate (pH 5.3), 0.27 M ammonium acetate, 13-17% MPD, 0.02 M CaCl2
Resolution 2.70 Å R-free 0.233
5VZU Crystal structure of the Skp1-FBXO31-cyclin D1 complex Deposited 2017-05-29 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–163（163 aa）
Mutation：P2A ZN ZINC ION × 1 PO4 PHOSPHATE ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.3；277 K；100 mM sodium citrate (pH 5.3), 0.27 M ammonium acetate, 13-17% MPD, 0.02 M CaCl2
Resolution 2.70 Å R-free 0.233
5XYL Solution Structure of Skp1 from Homo sapiens Deposited 2017-07-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–163（163 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 100；Pressure 1
NMR sample composition 20 mM sodium phosphate, 100 mM sodium chloride, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 20 mM sodium phosphate, 100 mM sodium chloride, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 20 mM sodium phosphate, 100 mM sodium chloride, 100% D2O | 100% D2O
Resolution not provided
6BVA Ubiquitin Variant (UbV.Fl10.1) bound to a human Skp1-Fbl10 fragment complex. Deposited 2017-12-12 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–163（163 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1 M Hepes pH 7.5, 0.2 M calcium chloride, 18% (w/v) PEG 6000
Resolution 2.66 Å R-free 0.263
6BVA Ubiquitin Variant (UbV.Fl10.1) bound to a human Skp1-Fbl10 fragment complex. Deposited 2017-12-12 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–163（163 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1 M Hepes pH 7.5, 0.2 M calcium chloride, 18% (w/v) PEG 6000
Resolution 2.66 Å R-free 0.263
6BYH Ubiquitin Variant (UbV.Fl11.1) bound to a human Skp1-Fbl11 fragment complex. Deposited 2017-12-20 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–163（163 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；0.1 M PCTP buffer pH6, 25% (w/v) PEG 1500
Resolution 2.61 Å R-free 0.294
6BYH Ubiquitin Variant (UbV.Fl11.1) bound to a human Skp1-Fbl11 fragment complex. Deposited 2017-12-20 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–163（163 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；0.1 M PCTP buffer pH6, 25% (w/v) PEG 1500
Resolution 2.61 Å R-free 0.294
6BYH Ubiquitin Variant (UbV.Fl11.1) bound to a human Skp1-Fbl11 fragment complex. Deposited 2017-12-20 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–163（163 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；0.1 M PCTP buffer pH6, 25% (w/v) PEG 1500
Resolution 2.61 Å R-free 0.294
6C16 Ubiquitin variant (UbV.Fbl10.1) bound to a human Skp1-Fbl11 fragment complex. Deposited 2018-01-04 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–163（163 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；293 K；0.1 M malic acid pH 4.5, 0.15 M sodium chloride, 27% (w/v) PEG3350
Resolution 3.27 Å R-free 0.317
6C16 Ubiquitin variant (UbV.Fbl10.1) bound to a human Skp1-Fbl11 fragment complex. Deposited 2018-01-04 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–163（163 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；293 K；0.1 M malic acid pH 4.5, 0.15 M sodium chloride, 27% (w/v) PEG3350
Resolution 3.27 Å R-free 0.317
6M91 Monophosphorylated pSer33 b-Catenin peptide, b-TrCP/Skp1, NRX-103094 ternary complex Deposited 2018-08-22 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 2–163（162 aa）
Not recorded J97 3-({4-[(2,6-dichlorophenyl)sulfanyl]-2-oxo-6-(trifluoromethyl)-1,2-dihydropyridine-3-carbonyl}amino)benzoic acid × 1 PO4 PHOSPHATE ION × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；8% PEG 4000 0.1M BTP pH 5.5
Resolution 2.40 Å R-free 0.216
6M92 Monophosphorylated pSer33 b-Catenin peptide, b-TrCP/Skp1, NRX-2663 ternary complex Deposited 2018-08-22 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 2–163（162 aa）
Not recorded J8V 3-{[2-oxo-4-phenoxy-6-(trifluoromethyl)-1,2-dihydropyridine-3-carbonyl]amino}benzoic acid × 1 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；8% PEG 4000 0.1M BTP pH 5.5
Resolution 2.35 Å R-free 0.221
6M93 Monophosphorylated pSer33 b-Catenin peptide, b-TrCP/Skp1, NRX-1933 ternary complex Deposited 2018-08-22 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 2–163（162 aa）
Not recorded J8Y 2-oxo-N-[3-(1H-tetrazol-5-yl)phenyl]-6-(trifluoromethyl)-1,2-dihydropyridine-3-carboxamide × 1 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；8% PEG 4000 0.1M BTP pH 5.5
Resolution 2.50 Å R-free 0.230
6M94 Monophosphorylated pSer33 b-Catenin peptide bound to b-TrCP/Skp1 Complex Deposited 2018-08-22 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 2–163（162 aa）
Not recorded PO4 PHOSPHATE ION × 1 DMS DIMETHYL SULFOXIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；8% PEG 4000 0.1M BTP pH5.5
Resolution 2.70 Å R-free 0.238
6O60 Crystal structure of GGTase3-FBXL2-SKP1 complex Deposited 2019-03-04 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 1–163（163 aa）
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M MES pH6.0, 20%-22% (v/v) PEG 400
Resolution 2.50 Å R-free 0.247
6TTU Ubiquitin Ligation to substrate by a cullin-RING E3 ligase at 3.7A resolution: NEDD8-CUL1-RBX1 N98R-SKP1-monomeric b-TRCP1dD-IkBa-UB~UBE2D2 Deposited 2019-12-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain S 1–163（163 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.70 Å
6VCD Cryo-EM structure of IRP2-FBXL5-SKP1 complex Deposited 2019-12-20 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–163（163 aa）
Not recorded FES FE2/S2 (INORGANIC) CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
6W66 The structure of the F64A, S172A mutant Keap1-BTB domain in complex with SKP1-FBXL17 Deposited 2020-03-16 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–163（163 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；well solution 37.5 ul of 50 mM MgCl2, 100 mM HEPES pH 7.5, 30% (v/v) PEG MME 550 (E7 Hampton Index) + 12.5ul H2O mixed 1:1 with complex at 15mg/ml in 150 mM NaCl, 25 mM Tris/HCl pH 8.0
Resolution 3.21 Å R-free 0.290
6WCQ Structure of a substrate-bound DQC ubiquitin ligase Deposited 2020-03-31 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–163（163 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 8.50 Å
6WNX FBXW11-SKP1 in complex with a pSer33/pSer37 Beta-Catenin peptide Deposited 2020-04-23 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–163（163 aa）
Not recorded GOL GLYCEROL × 4 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.12M Ethylene Glycol, 0.1M Morpheus Buffer 1 pH 6.5, 30.0% GOL_P4K
Resolution 2.50 Å R-free 0.251
6WNX FBXW11-SKP1 in complex with a pSer33/pSer37 Beta-Catenin peptide Deposited 2020-04-23 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 1–163（163 aa）
Not recorded GOL GLYCEROL × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.12M Ethylene Glycol, 0.1M Morpheus Buffer 1 pH 6.5, 30.0% GOL_P4K
Resolution 2.50 Å R-free 0.251
6WNX FBXW11-SKP1 in complex with a pSer33/pSer37 Beta-Catenin peptide Deposited 2020-04-23 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain H 1–163（163 aa）
Not recorded GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.12M Ethylene Glycol, 0.1M Morpheus Buffer 1 pH 6.5, 30.0% GOL_P4K
Resolution 2.50 Å R-free 0.251
7B5L Ubiquitin ligation to F-box protein substrates by SCF-RBR E3-E3 super-assembly: NEDD8-CUL1-RBX1-SKP1-SKP2-CKSHS1-Cyclin A-CDK2-p27-UBE2L3~Ub~ARIH1. Transition State 1 Deposited 2020-12-04 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain S 1–163（163 aa）
Not recorded ZN ZINC ION × 9 SY8 5-azanylpentan-2-one × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
7B5M Ubiquitin ligation to F-box protein substrates by SCF-RBR E3-E3 super-assembly: CUL1-RBX1-SKP1-SKP2-CKSHS1-p27~Ub~ARIH1. Transition State 2 Deposited 2020-12-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain S 1–163（163 aa）
Not recorded ZN ZINC ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.91 Å
7B5R Ubiquitin ligation to F-box protein substrates by SCF-RBR E3-E3 super-assembly: CUL1-RBX1-SKP1-SKP2-CKSHS1-Cyclin A-CDK2-p27 Deposited 2020-12-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain S 1–163（163 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
7T1Y Structure of the Fbw7-Skp1-MycCdegron complex Deposited 2021-12-02 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 2–163（162 aa）
Not recorded SO4 SULFATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298.15 K；0.1 M Bicine pH6.5, 1.6 M Li2SO4
Resolution 2.55 Å R-free 0.268
7T1Z Structure of the Fbw7-Skp1-MycNdegron complex Deposited 2021-12-02 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 2–163（162 aa）
Not recorded SO4 SULFATE ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298.15 K；0.1 M Bicine pH6.5, 1.6 M Li2SO4
Resolution 2.77 Å R-free 0.248
7Z8B Structure of CRL7FBXW8 reveals coupling with CUL1-RBX1/ROC1 for multi-cullin-RING E3-catalyzed ubiquitin ligation Deposited 2022-03-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain S 1–163（163 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
7Z8T CAND1-SCF-SKP2 CAND1 engaged SCF rocked Deposited 2022-03-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain S 1–163（163 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
7Z8V CAND1-SCF-SKP2 (SKP1deldel) CAND1 engaged SCF rocked Deposited 2022-03-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain S 1–163（163 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.70 Å
7ZBW CAND1-SCF-SKP2 CAND1 rolling-2 SCF engaged Deposited 2022-03-24 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain S 1–163（163 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
7ZBZ CAND1 delhairpin-SCF-SKP2 CAND1 partly engaged SCF partly rocked Deposited 2022-03-24 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain S 1–163（163 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
8BYA Cryo-EM structure of SKP1-SKP2-CKS1-CDK2-CyclinA-p27KIP1 Complex Deposited 2022-12-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 1–163（163 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.38 Å
8BYL Cryo-EM structure of SKP1-SKP2-CKS1 from the SCFSKP2 E3 ligase complex Deposited 2022-12-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–163（163 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8CDJ CAND1 b-hairpin++-SCF-SKP2 CAND1 rolling SCF engaged Deposited 2023-01-31 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain S 1–163（163 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8CDK CAND1 b-hairpin++-SCF-SKP2 CAND1 partly engaged SCF partly rocked Deposited 2023-01-31 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain S 1–163（163 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.32 Å
8OR0 CAND1-CUL1-RBX1-SKP1-SKP2-CKS1-CDK2 Deposited 2023-04-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 1–163（163 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
8OR3 CAND1-CUL1-RBX1-SKP1-SKP2-DCNL1 Deposited 2023-04-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 1–163（163 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
8OR4 Partially dissociated CAND1-CUL1-RBX1-SKP1-SKP2-CKS1-CDK2 Deposited 2023-04-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 1–163（163 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8S7D Cryo-EM structure of SKP1-FBXO22 in complex with a BACH1 BTB dimer at 3.2A resolution Deposited 2024-02-29 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–163（163 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8S7E Cryo-EM structure of SKP1-FBXO22 Deposited 2024-02-29 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 2–163（162 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8UA6 Cryo-EM Structure of SCF-FBOX22-BACH1BTB Deposited 2023-09-20 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 1–160（160 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
8UBT Structure of SCF-FBXL17-BACH1BTB E3 ligase complex Deposited 2023-09-24 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–163（163 aa） Fragment：BTB domain (UNP residues 7-128)
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
8UBU Cryo-EM structure of dimeric SCF-FBXL17-BACH1BTB E3 ligase complex close conformation Deposited 2023-09-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain C 1–163（163 aa）
Chain G 1–163（163 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
9CB3 E2F1-Cyclin F Interface Deposited 2024-06-18 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–163（163 aa） Fragment：BTB domain (UNP residues 7-128)
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.47 Å
9JKB Cryo-EM structure of the CUL1-RBX1-SKP1-FBXO4 SCF ubiquition ligase complex Deposited 2024-09-15 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 1–163（163 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.93 Å
9KBD Cryo-EM structure of the CUL1-RBX1-SKP1-FBXO3 SCF ubiquition ligase complex Deposited 2024-10-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–163（163 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
9KBF Cryo-EM structure of the SKP1-FBXO3 complex Deposited 2024-10-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–163（163 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.74 Å
9QO0 Pre-activated 9-subunit COP9 signalosome and neddylated SCF (Skp1-Skp2-Cks1) complex structure Deposited 2025-03-25 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: 15-meric
Chain L 1–163（163 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；15 mM Hepes pH 7.5, 120 mM NaCl, 0.5 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.26 Å
9QO2 Dissociation-state-1 of 9-subunit CSN and SCF (SKP1-SKP2-CKS1) complex Deposited 2025-03-25 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: 14-meric
Chain L 1–163（163 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；15 mM Hepes pH 7.5, 120 mM NaCl, 0.5 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
9QO3 Dissociation-state-2 of 9-subunit CSN and SCF (SKP1-SKP2-CKS1) complex Deposited 2025-03-25 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: 13-meric
Chain L 1–163（163 aa）
Not recorded ZN ZINC ION × 1 IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；15 mM Hepes pH 7.5, 120 mM NaCl, 0.5 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
9QO4 Dissociation-state-3 of 9-subunit CSN and SCF (SKP1-SKP2-CKS1) complex Deposited 2025-03-25 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: 14-meric
Chain L 1–163（163 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；15 mM Hepes pH 7.5, 120 mM NaCl, 0.5 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.95 Å
9QO5 Dissociation-state-4 of 9-subunit CSN and SCF (SKP1-SKP2-CKS1) complex Deposited 2025-03-25 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: 14-meric
Chain L 1–163（163 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；15 mM Hepes pH 7.5, 120 mM NaCl, 0.5 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
9XZJ Cryo-EM structure of F-box helicase 1 (FBH1) bound to an SCF ubiquitin ligase complex and a 3-way DNA fork (consensus structure) Deposited 2025-08-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: octameric
Chain S 1–163（163 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.13 Å
9XZL Cryo-EM structure of F-box helicase 1 (FBH1) bound to an SCF ubiquitin ligase complex and a 3-way DNA fork (body structure) Deposited 2025-08-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: tetrameric
Chain S 1–163（163 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å

71 other PDB entries and 97 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name SKP1_HUMAN
Isoform —
PDB entities 2
Chains and sequence ranges Author chain B； PDBConstruct 1–144； UniProt 2–163

Catenin beta-1

OrganismNot specified

UniProt P35222

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count Chain C； UniProt 17–48 Non-standard monomer：Yes (specific site not provided by mmCIF) F-box/WD repeat-containing protein 1A × 1 （Q9Y297） Skp1 × 1 （P63208） J91 2-(2-fluorophenoxy)-3-{[2-oxo-6-(trifluoromethyl)-1,2-dihydropyridine-3-carbonyl]amino}benzoic acid × 2 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；8% PEG 4000 0.1M BTP pH 5.5 Resolution 2.05 Å R-free 0.212

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 6M90 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1G3J CRYSTAL STRUCTURE OF THE XTCF3-CBD/BETA-CATENIN ARMADILLO REPEAT COMPLEX Deposited 2000-10-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 133–664（532 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.2；298 K；2.5% PEG-8000, 44mM Phosphate-Citrate, 2mM DTT, pH 4.2, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K
Resolution 2.10 Å R-free 0.255
1G3J CRYSTAL STRUCTURE OF THE XTCF3-CBD/BETA-CATENIN ARMADILLO REPEAT COMPLEX Deposited 2000-10-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 133–664（532 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.2；298 K；2.5% PEG-8000, 44mM Phosphate-Citrate, 2mM DTT, pH 4.2, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K
Resolution 2.10 Å R-free 0.255
1JDH CRYSTAL STRUCTURE OF BETA-CATENIN AND HTCF-4 Deposited 2001-06-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 135–663（529 aa） Fragment：Residues 135-663
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.90 Å R-free 0.231
1JPW Crystal Structure of a Human Tcf-4 / beta-Catenin Complex Deposited 2001-08-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 131–670（540 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；295 K；PEG 400, MES, ammonium sulfate, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 22K
Resolution 2.50 Å R-free 0.390
1JPW Crystal Structure of a Human Tcf-4 / beta-Catenin Complex Deposited 2001-08-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 131–670（540 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；295 K；PEG 400, MES, ammonium sulfate, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 22K
Resolution 2.50 Å R-free 0.390
1JPW Crystal Structure of a Human Tcf-4 / beta-Catenin Complex Deposited 2001-08-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 131–670（540 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；295 K；PEG 400, MES, ammonium sulfate, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 22K
Resolution 2.50 Å R-free 0.390
1LUJ Crystal Structure of the Beta-catenin/ICAT Complex Deposited 2002-05-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 150–663（514 aa） Fragment：residues 150-666
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；PEG800, magnesium chloride, Tris, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.50 Å R-free 0.255
1P22 Structure of a beta-TrCP1-Skp1-beta-catenin complex: destruction motif binding and lysine specificity on the SCFbeta-TrCP1 ubiquitin ligase Deposited 2003-04-14 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 19–44（26 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；298 K；PEG4000, sodium citrate, Bis-Tris Propane, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K
Resolution 2.95 Å R-free 0.286
1QZ7 Beta-catenin binding domain of Axin in complex with beta-catenin Deposited 2003-09-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 133–665（533 aa） Fragment：Armadillo repeat region
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；298 K；PEG 6000, sodium citrate, isopropanol, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.20 Å R-free 0.256
1T08 Crystal structure of beta-catenin/ICAT helical domain/unphosphorylated APC R3 Deposited 2004-04-07 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 146–664（519 aa） Fragment：armadillo repeat (RESIDUES 146-664)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 6.5；297 K；PEG3400, Potassium phosphate, pH 6.5, EVAPORATION, temperature 297K
Resolution 2.10 Å R-free 0.241
1TH1 Beta-catenin in complex with a phosphorylated APC 20aa repeat fragment Deposited 2004-05-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 133–664（532 aa） Fragment：armadillo repeat
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；Tris, sidium chloride, PEG2000MME, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.50 Å R-free 0.257
1TH1 Beta-catenin in complex with a phosphorylated APC 20aa repeat fragment Deposited 2004-05-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 133–664（532 aa） Fragment：armadillo repeat
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；Tris, sidium chloride, PEG2000MME, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.50 Å R-free 0.257
2G57 Structure of the Phosphorylation Motif of the oncogenic Protein beta-Catenin Recognized By a Selective Monoclonal Antibody Deposited 2006-02-22 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 19–44（26 aa） Fragment：Residues 19-44
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7.4；278 K；Ionic strength (raw mmCIF value) 20mM；Pressure 1
NMR sample composition 1mM P-beta-Cat peptide with 0.01mM antibody; 20mM phosphate buffered saline(pH 7.4); 15mM sodium azide; 90% H2O, 10% D2O | 90% H2O/10% D2O
Resolution not provided
2GL7 Crystal Structure of a beta-catenin/BCL9/Tcf4 complex Deposited 2006-04-04 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 138–686（549 aa） Fragment：Residues 138-686
Mutation：Y142E No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；13% PEG 3350, 125mM sodium thiocyanate, 5% Glycerol, 10mM DTT, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K
Resolution 2.60 Å R-free 0.267
2GL7 Crystal Structure of a beta-catenin/BCL9/Tcf4 complex Deposited 2006-04-04 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 138–686（549 aa） Fragment：Residues 138-686
Mutation：Y142E No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；13% PEG 3350, 125mM sodium thiocyanate, 5% Glycerol, 10mM DTT, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K
Resolution 2.60 Å R-free 0.267
2Z6H Crystal Structure of Beta-Catenin Armadillo Repeat Region and Its C-Terminal domain Deposited 2007-08-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 138–781（644 aa） Fragment：Armadillo Repeat Region and C-terminal Domain (UNP residues 138-781)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；298 K；0.1M Na Citrate, 0.4M NaCl, 7% JEFFAMINE ED-2001, pH 5.60, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.20 Å R-free 0.249
2Z6H Crystal Structure of Beta-Catenin Armadillo Repeat Region and Its C-Terminal domain Deposited 2007-08-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 138–781（644 aa） Fragment：Armadillo Repeat Region and C-terminal Domain (UNP residues 138-781)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；298 K；0.1M Na Citrate, 0.4M NaCl, 7% JEFFAMINE ED-2001, pH 5.60, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.20 Å R-free 0.249
3DIW c-terminal beta-catenin bound TIP-1 structure Deposited 2008-06-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 772–781（10 aa） Fragment：C-terminal domain, UNP residues 772-781
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；293 K；3.0M sodium formate, 0.1M sodium acetate, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.10 Å R-free 0.265
3DIW c-terminal beta-catenin bound TIP-1 structure Deposited 2008-06-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 772–781（10 aa） Fragment：C-terminal domain, UNP residues 772-781
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；293 K；3.0M sodium formate, 0.1M sodium acetate, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.10 Å R-free 0.265
3SL9 X-ray structure of Beta catenin in complex with Bcl9 Deposited 2011-06-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 141–305（165 aa）
Not recorded EDO 1,2-ETHANEDIOL × 4 PEG DI(HYDROXYETHYL)ETHER × 2 IMD IMIDAZOLE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；298 K；0.12M ethylene glycol, 1M MES 62% MES, 1M Imidazol 38%, 10% PEG 4K, 20% glycerol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.20 Å R-free 0.249
3SL9 X-ray structure of Beta catenin in complex with Bcl9 Deposited 2011-06-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 141–305（165 aa）
Not recorded EDO 1,2-ETHANEDIOL × 3 PEG DI(HYDROXYETHYL)ETHER × 2 IMD IMIDAZOLE × 1 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；298 K；0.12M ethylene glycol, 1M MES 62% MES, 1M Imidazol 38%, 10% PEG 4K, 20% glycerol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.20 Å R-free 0.249
3SL9 X-ray structure of Beta catenin in complex with Bcl9 Deposited 2011-06-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 141–305（165 aa）
Not recorded EDO 1,2-ETHANEDIOL × 4 PEG DI(HYDROXYETHYL)ETHER × 1 IMD IMIDAZOLE × 1 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；298 K；0.12M ethylene glycol, 1M MES 62% MES, 1M Imidazol 38%, 10% PEG 4K, 20% glycerol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.20 Å R-free 0.249
3SL9 X-ray structure of Beta catenin in complex with Bcl9 Deposited 2011-06-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain G 141–305（165 aa）
Not recorded IMD IMIDAZOLE × 3 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；298 K；0.12M ethylene glycol, 1M MES 62% MES, 1M Imidazol 38%, 10% PEG 4K, 20% glycerol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.20 Å R-free 0.249
3SLA X-ray structure of first four repeats of human beta-catenin Deposited 2011-06-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 141–306（166 aa）
Not recorded GOL GLYCEROL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.98M sodium acetate trihydrate, 30% glycerol, 0.07M sodium cacodylate, 30% w/v galactose , pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.50 Å R-free 0.277
3SLA X-ray structure of first four repeats of human beta-catenin Deposited 2011-06-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 141–306（166 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.98M sodium acetate trihydrate, 30% glycerol, 0.07M sodium cacodylate, 30% w/v galactose , pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.50 Å R-free 0.277
3SLA X-ray structure of first four repeats of human beta-catenin Deposited 2011-06-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 141–306（166 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.98M sodium acetate trihydrate, 30% glycerol, 0.07M sodium cacodylate, 30% w/v galactose , pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.50 Å R-free 0.277
3SLA X-ray structure of first four repeats of human beta-catenin Deposited 2011-06-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 141–306（166 aa）
Not recorded GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.98M sodium acetate trihydrate, 30% glycerol, 0.07M sodium cacodylate, 30% w/v galactose , pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.50 Å R-free 0.277
3SLA X-ray structure of first four repeats of human beta-catenin Deposited 2011-06-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain E 141–306（166 aa）
Not recorded GOL GLYCEROL × 2 NA SODIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.98M sodium acetate trihydrate, 30% glycerol, 0.07M sodium cacodylate, 30% w/v galactose , pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.50 Å R-free 0.277
3TX7 Crystal structure of LRH-1/beta-catenin complex Deposited 2011-09-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 138–663（526 aa）
Not recorded P6L (2S)-3-{[{[(2S)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-2-[(6E)-HEXADEC-6-ENOYLOXY]PROPYL (8E)-OCTADEC-8-ENOATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；20 mM Tris-HCl, 40% PEG200, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.76 Å R-free 0.243
4DJS Structure of beta-catenin in complex with a stapled peptide inhibitor Deposited 2012-02-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 148–665（518 aa） Fragment：armadillo repeats 1-12 (UNP residues 148-665)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；298 K；1.4-2.0 M sodium chloride, 100 mM Bis-Tris, 100 mM potassium phosphate monobasic, pH 6.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.03 Å R-free 0.291
6M91 Monophosphorylated pSer33 b-Catenin peptide, b-TrCP/Skp1, NRX-103094 ternary complex Deposited 2018-08-22 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 17–48（32 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) J97 3-({4-[(2,6-dichlorophenyl)sulfanyl]-2-oxo-6-(trifluoromethyl)-1,2-dihydropyridine-3-carbonyl}amino)benzoic acid × 1 PO4 PHOSPHATE ION × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；8% PEG 4000 0.1M BTP pH 5.5
Resolution 2.40 Å R-free 0.216
6M92 Monophosphorylated pSer33 b-Catenin peptide, b-TrCP/Skp1, NRX-2663 ternary complex Deposited 2018-08-22 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 17–48（32 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) J8V 3-{[2-oxo-4-phenoxy-6-(trifluoromethyl)-1,2-dihydropyridine-3-carbonyl]amino}benzoic acid × 1 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；8% PEG 4000 0.1M BTP pH 5.5
Resolution 2.35 Å R-free 0.221
6M93 Monophosphorylated pSer33 b-Catenin peptide, b-TrCP/Skp1, NRX-1933 ternary complex Deposited 2018-08-22 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 17–48（32 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) J8Y 2-oxo-N-[3-(1H-tetrazol-5-yl)phenyl]-6-(trifluoromethyl)-1,2-dihydropyridine-3-carboxamide × 1 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；8% PEG 4000 0.1M BTP pH 5.5
Resolution 2.50 Å R-free 0.230
6M94 Monophosphorylated pSer33 b-Catenin peptide bound to b-TrCP/Skp1 Complex Deposited 2018-08-22 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 17–48（32 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) PO4 PHOSPHATE ION × 1 DMS DIMETHYL SULFOXIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；8% PEG 4000 0.1M BTP pH5.5
Resolution 2.70 Å R-free 0.238
6O9B Crystal structure of HLA-A3*01 in complex with a wild-type beta-catenin peptide Deposited 2019-03-13 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 41–49（9 aa） Fragment：UNP residues 41-49
Not recorded PG4 TETRAETHYLENE GLYCOL × 2 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 3 IMD IMIDAZOLE × 2 PEG DI(HYDROXYETHYL)ETHER × 4 EDO 1,2-ETHANEDIOL × 7 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；292 K；0.1 M MES/imidazole, pH 6.5, 0.03 M diethylene glycol, 0.03 M triethylene glycol, 0.03 M tetraethylene glycol, 0.03 M pentaethylene glycol, 20% PEG500 MME, 10% PEG20000
Resolution 2.20 Å R-free 0.227
6O9C Crystal structure of HLA-A3*01 in complex with a mutant beta-catenin peptide Deposited 2019-03-13 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 41–49（9 aa） Fragment：UNP residues 41-49
Mutation：S45F MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2 SO4 SULFATE ION × 10 PEG DI(HYDROXYETHYL)ETHER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；292 K；0.1 M MES, pH 6.5, 0.2 M ammonium sulfate, 30% PEG5000 MME
Resolution 2.45 Å R-free 0.259
6WLX PAK4 kinase domain in complex with beta-catenin Ser675 substrate peptide Deposited 2020-04-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 671–677（7 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；295 K；0.1M Tris-HCl, 2M Na acetate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K, 5mM peptide
Resolution 2.20 Å R-free 0.229
6WNX FBXW11-SKP1 in complex with a pSer33/pSer37 Beta-Catenin peptide Deposited 2020-04-23 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 31–39（9 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) GOL GLYCEROL × 4 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.12M Ethylene Glycol, 0.1M Morpheus Buffer 1 pH 6.5, 30.0% GOL_P4K
Resolution 2.50 Å R-free 0.251
6WNX FBXW11-SKP1 in complex with a pSer33/pSer37 Beta-Catenin peptide Deposited 2020-04-23 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain F 31–39（9 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) GOL GLYCEROL × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.12M Ethylene Glycol, 0.1M Morpheus Buffer 1 pH 6.5, 30.0% GOL_P4K
Resolution 2.50 Å R-free 0.251
6WNX FBXW11-SKP1 in complex with a pSer33/pSer37 Beta-Catenin peptide Deposited 2020-04-23 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain I 31–39（9 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.12M Ethylene Glycol, 0.1M Morpheus Buffer 1 pH 6.5, 30.0% GOL_P4K
Resolution 2.50 Å R-free 0.251
7AFW Beta-Catenin in complex with compound 6 Deposited 2020-09-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 141–305（165 aa）
Not recorded R9Q 3-[(2~{R})-4-methyl-5-oxidanylidene-2,3-dihydro-1,4-benzoxazepin-2-yl]benzenecarbonitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；278 K；25% PEG 3350, 100 mM BIS-TRIS buffer pH 5.5 and 0.2 M Magnesium chloride
Resolution 1.81 Å R-free 0.281
7AR4 Crystal structure of beta-catenin in complex with cyclic peptide inhibitor Deposited 2020-10-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain AAA 134–665（532 aa）
Not recorded EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293.15 K；0.1 M HEPES, 4% PEG6000, 20 mM TRIS, 150 mM NaCl, 0.5 % Glycerol, 2 mM DTT
Resolution 2.60 Å R-free 0.242
7UWI Structure of beta-catenin in complex with FP01567, a Helicon Polypeptide Deposited 2022-05-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 143–663（521 aa）
Not recorded PO4 PHOSPHATE ION × 1 GOL GLYCEROL × 6 WHL N,N'-(1,4-phenylene)diacetamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293.15 K；0.1 M Sodium phosphate monobasic monohydrate, 0.1 M Potassium phosphate monobasic, 0.1 M MES monohydrate pH 6.5, 2.0 M Sodium chloride
Resolution 2.32 Å R-free 0.278
7UWO Structure of beta-catenin in complex with FP05874, a Helicon Polypeptide Deposited 2022-05-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 134–665（532 aa）
Not recorded WHL N,N'-(1,4-phenylene)diacetamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；0.05M MgCl2, 0.1M MES pH6.5, 5% (w/v) PEG 4000
Resolution 2.75 Å R-free 0.253
8EI9 Crystal structure of beta-catenin and the MDM2 p53-binding domain in complex with H332, a Helicon Polypeptide Deposited 2022-09-14 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 134–665（532 aa）
Not recorded WHL N,N'-(1,4-phenylene)diacetamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；291 K；0.1M MES Sodium Salt pH6.5, 10% v/v 2-Propanol, 25% v/v PEG 400
Resolution 3.90 Å R-free 0.315
8EIA Crystal structure of beta-catenin and the MDM2 p53-binding domain in complex with H333, a Helicon Polypeptide Deposited 2022-09-14 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 134–665（532 aa）
Not recorded WHL N,N'-(1,4-phenylene)diacetamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；0.1 M Potassium chloride, 0.1 M HEPES pH 7, 15% w/v PEG 5000 MME
Resolution 3.60 Å R-free 0.373
8EIB Crystal structure of beta-catenin and the MDM2 p53-binding domain in complex with H329, a Helicon Polypeptide Deposited 2022-09-14 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 134–665（532 aa）
Not recorded WHL N,N'-(1,4-phenylene)diacetamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；291 K；0.2 M Calcium acetate pH 7.5, 20% w/v PEG 3350
Resolution 3.76 Å R-free 0.298
8EIC Crystal structure of beta-catenin and the MDM2 p53-binding domain in complex with H330, a Helicon Polypeptide Deposited 2022-09-14 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 134–665（532 aa）
Not recorded WHL N,N'-(1,4-phenylene)diacetamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；4M Sodium formate
Resolution 2.62 Å R-free 0.269
8RU3 Crystal structure of beta-catenin in complex with alpha-helical peptide inhibitor Deposited 2024-01-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 134–665（532 aa）
Not recorded CL CHLORIDE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；300 K；Crystals grown in 100 mM NaKPO4, 2M NaCl.
Resolution 2.00 Å R-free 0.232
8RU4 Crystal structure of Human Catenin Beta-1 in complex with stitched peptide inhibitor Deposited 2024-01-30 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 145–665（521 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) GLC alpha-D-glucopyranose × 3 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 2 CL CHLORIDE ION × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；100 mM TRIS pH 8.75, 2%(w/v) PEG-6000, cryoprotected in 30% (w/v) Glucose.
Resolution 2.13 Å R-free 0.240
8RU4 Crystal structure of Human Catenin Beta-1 in complex with stitched peptide inhibitor Deposited 2024-01-30 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 145–665（521 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) GLC alpha-D-glucopyranose × 4 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 2 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；100 mM TRIS pH 8.75, 2%(w/v) PEG-6000, cryoprotected in 30% (w/v) Glucose.
Resolution 2.13 Å R-free 0.240
8VME Crystal structure of the GSK-3/Axin complex bound to a phosphorylated beta-catenin T41A peptide Deposited 2024-01-13 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 35–61（27 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 2 GOL GLYCEROL × 6 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICRODIALYSIS；pH 7.5；277 K；10% PEG35000, 20 mM Tris, pH 7.5, 300 mM sodium chloride, 5% glycerol, 10 mM magnesium chloride, 200 uM ATP, 5 mM DTT
Resolution 2.30 Å R-free 0.230
8VMF Crystal structure of a transition-state mimic of the GSK-3/Axin complex bound to a beta-catenin S45D peptide Deposited 2024-01-13 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 35–61（27 aa）
Mutation：S45D MG MAGNESIUM ION × 2 AF3 ALUMINUM FLUORIDE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 GOL GLYCEROL × 3 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICRODIALYSIS；pH 7.5；277 K；10% PEG35000, 20 mM Tris, pH 7.5, 300 mM sodium chloride, 5% glycerol, 10 mM magnesium chloride, 5 mM DTT, 200 uM ADP, 200 uM aluminum nitrate, 1.2 mM sodium fluoride
Resolution 2.50 Å R-free 0.251
8Y0G Human beta-catenin crystal structure Deposited 2024-01-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 138–686（549 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；Apo crystals of beta-Catenin were grown from 14% PEG3350, 0.1M Hepes pH 7.5, 0.2M L-proline Crystal were transferred into soaking solution and incubated at RT for 1 days. Crystals were transferred into cryoprotectant (14% PEG3350, 0.1M Hepes pH 7.5, 0.2M L-proline, 20% glycerol), and then flash frozen in liquid nitrogen.
Resolution 2.50 Å R-free 0.287
8Y0P Beta-Catenin in complex with peptide 301 Deposited 2024-01-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 138–686（549 aa）
Not recorded PRO PROLINE × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；14% PEG 3350, 0.1M Hepes pH 7.5, 0.2M L-proline, 20% glycerol
Resolution 2.62 Å R-free 0.279
8Y0P Beta-Catenin in complex with peptide 301 Deposited 2024-01-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 138–686（549 aa）
Not recorded PRO PROLINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；14% PEG 3350, 0.1M Hepes pH 7.5, 0.2M L-proline, 20% glycerol
Resolution 2.62 Å R-free 0.279
8Y14 Beta-catenin Crystal Structure Deposited 2024-01-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 138–686（549 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；14% PEG 3350, 0.1M Hepes pH 7.5, 0.2M L-proline, 20% glycerol
Resolution 2.80 Å R-free 0.264
8Z0U Human beta-catenin crystal structure Deposited 2024-04-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 138–686（549 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；Apo crystals of beta-Catenin were grown from 14% PEG3350, 0.1M Hepes pH 7.5, 0.2M L-proline. Crystal were transferred into soaking solution and incubated at RT for 4 days. Crystals were transferred into cryoprotectant (14% PEG3350, 0.1M Hepes pH 7.5, 0.2M L-proline, 20% glycerol), and then flash frozen in liquid nitrogen.
Resolution 2.21 Å R-free 0.281
8Z10 Human beta-catenin crystal structure Deposited 2024-04-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 138–686（549 aa）
Not recorded PRO PROLINE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；Apo crystals of beta-Catenin were grown from 14% PEG3350, 0.1M Hepes pH 7.5, 0.2M L-proline. Crystal was transferred into a soaking solution and incubated at RT for 4 days. Crystals were transferred into cryoprotectant (14% PEG3350, 0.1M Hepes pH 7.5, 0.2M L-proline, 20% glycerol), and then flash frozen in liquid nitrogen.
Resolution 2.35 Å R-free 0.275
8Z5J Beta-catenin Crystal Structure Deposited 2024-04-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 138–686（549 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；14% PEG 3350, 0.1M Hepes pH 7.5, 0.2M L-proline, 20% glycerol
Resolution 2.80 Å R-free 0.264
8Z61 Human beta-catenin crystal structure Deposited 2024-04-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 138–686（549 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；Apo crystals of beta-Catenin were grown from 14% PEG 3350, 0.1M Hepes pH 7.5, 0.2M L-proline (Crystal were transferred into soaking solution and incubated at RT for 1 days. Crystals were transferred into cryoprotectant (14% PEG3350, 0.1M Hepes pH 7.5, 0.2M L-proline, 20% glycerol), and then flash frozen in liquid nitrogen.)
Resolution 2.50 Å R-free 0.287
9I8K Beta-catenin armadillo (150-663) Deposited 2025-02-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 150–663（514 aa）
Chain B 150–663（514 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；293 K；Buffer system 1 pH 6.5, 0.12 M monosaccharides mix, 50% precipitant mix 4
Resolution 2.00 Å R-free 0.239
9I8W Beta-catenin armadillo with cyclic peptide and Compound 3 Deposited 2025-02-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 134–671（538 aa）
Not recorded HHT 2-(4-bromanyl-2-methoxy-phenyl)ethanoic acid × 1 SO4 SULFATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M ADA pH 6.5, 100 mM ammonium sulfate, 30 % w/v PEG MME 5000
Resolution 2.20 Å R-free 0.244
9I8X Beta-catenin armadillo with cyclic peptide and Compound 2 Deposited 2025-02-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 134–671（538 aa）
Not recorded IJX ~{N}-(4-bromophenyl)ethanamide × 1 SO4 SULFATE ION × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M Bis-TRIS pH 6.5, 0.2 M Lithium sulfate monohydrate, 26% PEG 3350
Resolution 2.00 Å R-free 0.286

46 other PDB entries and 64 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CTNB1_HUMAN
Isoform —
PDB entities 3
Chains and sequence ranges Author chain C； PDBConstruct 2–33； UniProt 17–48

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 6m90

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 6m90
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id6m90
Deposition date deposition_date2018-08-22
Structure title titleMonophosphorylated pSer33 b-Catenin peptide, b-TrCP/Skp1, NRX-2776 ternary complex
Keywords keywordsUbiquitin Molecular Glue Enhancer, LIGASE; LIGASE
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier30.26 Å
Radius of gyration Rg (electron density) rg_electron29.59 Å
Forward intensity I(0) i063005800.00
Molecular weight molecular_weight61698.0 kDa
Excluded volume excluded_volume76756 ų
Envelope volume envelope_volume98214 ų
Hydration-shell volume shell_volume28084 ų
Envelope diameter envelope_diameter95.7 Å
Shell Rg shell_rg36.48 Å
Envelope Rg envelope_rg28.92 Å
Shape Rg shape_rg29.58 Å
Total Rg total_rg30.25 Å
Total atoms total_atoms4333
Residues n_residues546
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax94.6 Å
Rg (real space) rg_real30.31 Å
Rg uncertainty (real space) rg_real_error0.66 Å
I(0) (real space) i0_real6.3010e+07
I(0) uncertainty (real space) i0_real_error1.0060e+06
Rg (reciprocal space) rg_reciprocal30.30 Å
I(0) (reciprocal space) i0_reciprocal63000000.0000
Solution quality estimate total_estimate0.6757
Solution quality rating solution_quality REASONABLE a REASONABLE solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary27.3 Å
Skewness Skewness skewness0.244
Kurtosis Kurtosis kurtosis-0.842
Angular range angular_range— – 0.2600 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha12360000.0000
Real-space data points n_real_points53
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.905; Stabil: 1.000; Sysdev: 0.077; Positv: 1.000; Valcen: 0.884; Smooth: 0.950
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

▼

7. Fold Classification (SCOP + CATH) 3 domains

CATH v4.4 (3 domains)

Domain ID domain_id6m90A01
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology1280 — Monooxygenase
Homologous superfamily homologous superfamily50 —
Domain ID domain_id6m90A02
Class class2 — Mainly Beta
Architecture architecture130 — 7 Propeller
Topology topology10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily10 — YVTN repeat-like/Quinoprotein amine dehydrogenase
Domain ID domain_id6m90B00
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology710 — Potassium Channel Kv1.1; Chain A
Homologous superfamily homologous superfamily10 — Potassium Channel Kv1.1; Chain A
▶

8. Citations (1)

▶

9. Files and Curves (10)
