8eia

Crystal structure of beta-catenin and the MDM2 p53-binding domain in complex with H333, a Helicon Polypeptide

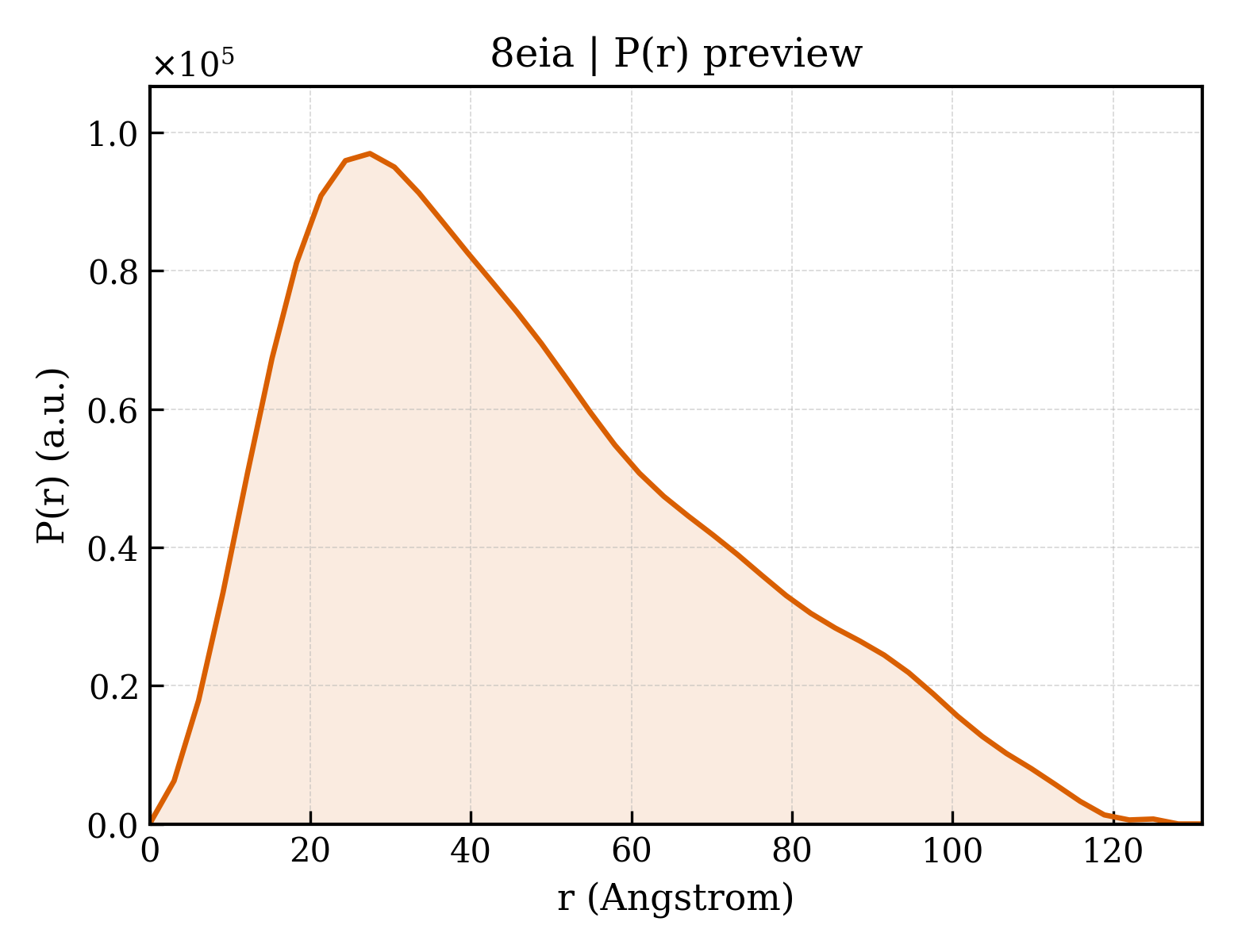

Method: X-RAY DIFFRACTION Dmax: 131.1 Å Quality: REASONABLE
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Catenin beta-1

Homo sapiens

UniProt P35222

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count Chain A； UniProt 134–665 Not recorded E3 ubiquitin-protein ligase Mdm2 × 1 （Q00987） H333 × 1 WHL N,N'-(1,4-phenylene)diacetamide × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；0.1 M Potassium chloride, 0.1 M HEPES pH 7, 15% w/v PEG 5000 MME Resolution 3.60 Å R-free 0.373

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8EIA Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1G3J CRYSTAL STRUCTURE OF THE XTCF3-CBD/BETA-CATENIN ARMADILLO REPEAT COMPLEX Deposited 2000-10-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 133–664（532 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.2；298 K；2.5% PEG-8000, 44mM Phosphate-Citrate, 2mM DTT, pH 4.2, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K
Resolution 2.10 Å R-free 0.255
1G3J CRYSTAL STRUCTURE OF THE XTCF3-CBD/BETA-CATENIN ARMADILLO REPEAT COMPLEX Deposited 2000-10-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 133–664（532 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.2；298 K；2.5% PEG-8000, 44mM Phosphate-Citrate, 2mM DTT, pH 4.2, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K
Resolution 2.10 Å R-free 0.255
1JDH CRYSTAL STRUCTURE OF BETA-CATENIN AND HTCF-4 Deposited 2001-06-13 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 135–663（529 aa） Fragment：Residues 135-663
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.90 Å R-free 0.231
1JPW Crystal Structure of a Human Tcf-4 / beta-Catenin Complex Deposited 2001-08-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 131–670（540 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；295 K；PEG 400, MES, ammonium sulfate, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 22K
Resolution 2.50 Å R-free 0.390
1JPW Crystal Structure of a Human Tcf-4 / beta-Catenin Complex Deposited 2001-08-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 131–670（540 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；295 K；PEG 400, MES, ammonium sulfate, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 22K
Resolution 2.50 Å R-free 0.390
1JPW Crystal Structure of a Human Tcf-4 / beta-Catenin Complex Deposited 2001-08-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 131–670（540 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；295 K；PEG 400, MES, ammonium sulfate, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 22K
Resolution 2.50 Å R-free 0.390
1LUJ Crystal Structure of the Beta-catenin/ICAT Complex Deposited 2002-05-22 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 150–663（514 aa） Fragment：residues 150-666
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；PEG800, magnesium chloride, Tris, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.50 Å R-free 0.255
1P22 Structure of a beta-TrCP1-Skp1-beta-catenin complex: destruction motif binding and lysine specificity on the SCFbeta-TrCP1 ubiquitin ligase Deposited 2003-04-14 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 19–44（26 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；298 K；PEG4000, sodium citrate, Bis-Tris Propane, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K
Resolution 2.95 Å R-free 0.286
1QZ7 Beta-catenin binding domain of Axin in complex with beta-catenin Deposited 2003-09-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 133–665（533 aa） Fragment：Armadillo repeat region
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；298 K；PEG 6000, sodium citrate, isopropanol, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.20 Å R-free 0.256
1T08 Crystal structure of beta-catenin/ICAT helical domain/unphosphorylated APC R3 Deposited 2004-04-07 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 146–664（519 aa） Fragment：armadillo repeat (RESIDUES 146-664)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 6.5；297 K；PEG3400, Potassium phosphate, pH 6.5, EVAPORATION, temperature 297K
Resolution 2.10 Å R-free 0.241
1TH1 Beta-catenin in complex with a phosphorylated APC 20aa repeat fragment Deposited 2004-05-31 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 133–664（532 aa） Fragment：armadillo repeat
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；Tris, sidium chloride, PEG2000MME, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.50 Å R-free 0.257
1TH1 Beta-catenin in complex with a phosphorylated APC 20aa repeat fragment Deposited 2004-05-31 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 133–664（532 aa） Fragment：armadillo repeat
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；Tris, sidium chloride, PEG2000MME, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.50 Å R-free 0.257
2G57 Structure of the Phosphorylation Motif of the oncogenic Protein beta-Catenin Recognized By a Selective Monoclonal Antibody Deposited 2006-02-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 19–44（26 aa） Fragment：Residues 19-44
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7.4；278 K；Ionic strength (raw mmCIF value) 20mM；Pressure 1
NMR sample composition 1mM P-beta-Cat peptide with 0.01mM antibody; 20mM phosphate buffered saline(pH 7.4); 15mM sodium azide; 90% H2O, 10% D2O | 90% H2O/10% D2O
Resolution not provided
2GL7 Crystal Structure of a beta-catenin/BCL9/Tcf4 complex Deposited 2006-04-04 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 138–686（549 aa） Fragment：Residues 138-686
Mutation：Y142E No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；13% PEG 3350, 125mM sodium thiocyanate, 5% Glycerol, 10mM DTT, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K
Resolution 2.60 Å R-free 0.267
2GL7 Crystal Structure of a beta-catenin/BCL9/Tcf4 complex Deposited 2006-04-04 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 138–686（549 aa） Fragment：Residues 138-686
Mutation：Y142E No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；13% PEG 3350, 125mM sodium thiocyanate, 5% Glycerol, 10mM DTT, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K
Resolution 2.60 Å R-free 0.267
2Z6H Crystal Structure of Beta-Catenin Armadillo Repeat Region and Its C-Terminal domain Deposited 2007-08-01 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 138–781（644 aa） Fragment：Armadillo Repeat Region and C-terminal Domain (UNP residues 138-781)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；298 K；0.1M Na Citrate, 0.4M NaCl, 7% JEFFAMINE ED-2001, pH 5.60, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.20 Å R-free 0.249
2Z6H Crystal Structure of Beta-Catenin Armadillo Repeat Region and Its C-Terminal domain Deposited 2007-08-01 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 138–781（644 aa） Fragment：Armadillo Repeat Region and C-terminal Domain (UNP residues 138-781)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；298 K；0.1M Na Citrate, 0.4M NaCl, 7% JEFFAMINE ED-2001, pH 5.60, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.20 Å R-free 0.249
3DIW c-terminal beta-catenin bound TIP-1 structure Deposited 2008-06-21 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 772–781（10 aa） Fragment：C-terminal domain, UNP residues 772-781
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；293 K；3.0M sodium formate, 0.1M sodium acetate, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.10 Å R-free 0.265
3DIW c-terminal beta-catenin bound TIP-1 structure Deposited 2008-06-21 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 772–781（10 aa） Fragment：C-terminal domain, UNP residues 772-781
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；293 K；3.0M sodium formate, 0.1M sodium acetate, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.10 Å R-free 0.265
3SL9 X-ray structure of Beta catenin in complex with Bcl9 Deposited 2011-06-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 141–305（165 aa）
Not recorded EDO 1,2-ETHANEDIOL × 4 PEG DI(HYDROXYETHYL)ETHER × 2 IMD IMIDAZOLE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；298 K；0.12M ethylene glycol, 1M MES 62% MES, 1M Imidazol 38%, 10% PEG 4K, 20% glycerol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.20 Å R-free 0.249
3SL9 X-ray structure of Beta catenin in complex with Bcl9 Deposited 2011-06-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 141–305（165 aa）
Not recorded EDO 1,2-ETHANEDIOL × 3 PEG DI(HYDROXYETHYL)ETHER × 2 IMD IMIDAZOLE × 1 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；298 K；0.12M ethylene glycol, 1M MES 62% MES, 1M Imidazol 38%, 10% PEG 4K, 20% glycerol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.20 Å R-free 0.249
3SL9 X-ray structure of Beta catenin in complex with Bcl9 Deposited 2011-06-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 141–305（165 aa）
Not recorded EDO 1,2-ETHANEDIOL × 4 PEG DI(HYDROXYETHYL)ETHER × 1 IMD IMIDAZOLE × 1 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；298 K；0.12M ethylene glycol, 1M MES 62% MES, 1M Imidazol 38%, 10% PEG 4K, 20% glycerol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.20 Å R-free 0.249
3SL9 X-ray structure of Beta catenin in complex with Bcl9 Deposited 2011-06-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain G 141–305（165 aa）
Not recorded IMD IMIDAZOLE × 3 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；298 K；0.12M ethylene glycol, 1M MES 62% MES, 1M Imidazol 38%, 10% PEG 4K, 20% glycerol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.20 Å R-free 0.249
3SLA X-ray structure of first four repeats of human beta-catenin Deposited 2011-06-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 141–306（166 aa）
Not recorded GOL GLYCEROL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.98M sodium acetate trihydrate, 30% glycerol, 0.07M sodium cacodylate, 30% w/v galactose , pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.50 Å R-free 0.277
3SLA X-ray structure of first four repeats of human beta-catenin Deposited 2011-06-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 141–306（166 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.98M sodium acetate trihydrate, 30% glycerol, 0.07M sodium cacodylate, 30% w/v galactose , pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.50 Å R-free 0.277
3SLA X-ray structure of first four repeats of human beta-catenin Deposited 2011-06-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 141–306（166 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.98M sodium acetate trihydrate, 30% glycerol, 0.07M sodium cacodylate, 30% w/v galactose , pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.50 Å R-free 0.277
3SLA X-ray structure of first four repeats of human beta-catenin Deposited 2011-06-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 141–306（166 aa）
Not recorded GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.98M sodium acetate trihydrate, 30% glycerol, 0.07M sodium cacodylate, 30% w/v galactose , pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.50 Å R-free 0.277
3SLA X-ray structure of first four repeats of human beta-catenin Deposited 2011-06-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain E 141–306（166 aa）
Not recorded GOL GLYCEROL × 2 NA SODIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.98M sodium acetate trihydrate, 30% glycerol, 0.07M sodium cacodylate, 30% w/v galactose , pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.50 Å R-free 0.277
3TX7 Crystal structure of LRH-1/beta-catenin complex Deposited 2011-09-22 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 138–663（526 aa）
Not recorded P6L (2S)-3-{[{[(2S)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-2-[(6E)-HEXADEC-6-ENOYLOXY]PROPYL (8E)-OCTADEC-8-ENOATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；20 mM Tris-HCl, 40% PEG200, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.76 Å R-free 0.243
4DJS Structure of beta-catenin in complex with a stapled peptide inhibitor Deposited 2012-02-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 148–665（518 aa） Fragment：armadillo repeats 1-12 (UNP residues 148-665)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；298 K；1.4-2.0 M sodium chloride, 100 mM Bis-Tris, 100 mM potassium phosphate monobasic, pH 6.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.03 Å R-free 0.291
6M90 Monophosphorylated pSer33 b-Catenin peptide, b-TrCP/Skp1, NRX-2776 ternary complex Deposited 2018-08-22 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 17–48（32 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) J91 2-(2-fluorophenoxy)-3-{[2-oxo-6-(trifluoromethyl)-1,2-dihydropyridine-3-carbonyl]amino}benzoic acid × 2 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；8% PEG 4000 0.1M BTP pH 5.5
Resolution 2.05 Å R-free 0.212
6M91 Monophosphorylated pSer33 b-Catenin peptide, b-TrCP/Skp1, NRX-103094 ternary complex Deposited 2018-08-22 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 17–48（32 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) J97 3-({4-[(2,6-dichlorophenyl)sulfanyl]-2-oxo-6-(trifluoromethyl)-1,2-dihydropyridine-3-carbonyl}amino)benzoic acid × 1 PO4 PHOSPHATE ION × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；8% PEG 4000 0.1M BTP pH 5.5
Resolution 2.40 Å R-free 0.216
6M92 Monophosphorylated pSer33 b-Catenin peptide, b-TrCP/Skp1, NRX-2663 ternary complex Deposited 2018-08-22 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 17–48（32 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) J8V 3-{[2-oxo-4-phenoxy-6-(trifluoromethyl)-1,2-dihydropyridine-3-carbonyl]amino}benzoic acid × 1 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；8% PEG 4000 0.1M BTP pH 5.5
Resolution 2.35 Å R-free 0.221
6M93 Monophosphorylated pSer33 b-Catenin peptide, b-TrCP/Skp1, NRX-1933 ternary complex Deposited 2018-08-22 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 17–48（32 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) J8Y 2-oxo-N-[3-(1H-tetrazol-5-yl)phenyl]-6-(trifluoromethyl)-1,2-dihydropyridine-3-carboxamide × 1 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；8% PEG 4000 0.1M BTP pH 5.5
Resolution 2.50 Å R-free 0.230
6M94 Monophosphorylated pSer33 b-Catenin peptide bound to b-TrCP/Skp1 Complex Deposited 2018-08-22 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 17–48（32 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) PO4 PHOSPHATE ION × 1 DMS DIMETHYL SULFOXIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；8% PEG 4000 0.1M BTP pH5.5
Resolution 2.70 Å R-free 0.238
6O9B Crystal structure of HLA-A3*01 in complex with a wild-type beta-catenin peptide Deposited 2019-03-13 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 41–49（9 aa） Fragment：UNP residues 41-49
Not recorded PG4 TETRAETHYLENE GLYCOL × 2 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 3 IMD IMIDAZOLE × 2 PEG DI(HYDROXYETHYL)ETHER × 4 EDO 1,2-ETHANEDIOL × 7 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；292 K；0.1 M MES/imidazole, pH 6.5, 0.03 M diethylene glycol, 0.03 M triethylene glycol, 0.03 M tetraethylene glycol, 0.03 M pentaethylene glycol, 20% PEG500 MME, 10% PEG20000
Resolution 2.20 Å R-free 0.227
6O9C Crystal structure of HLA-A3*01 in complex with a mutant beta-catenin peptide Deposited 2019-03-13 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 41–49（9 aa） Fragment：UNP residues 41-49
Mutation：S45F MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2 SO4 SULFATE ION × 10 PEG DI(HYDROXYETHYL)ETHER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；292 K；0.1 M MES, pH 6.5, 0.2 M ammonium sulfate, 30% PEG5000 MME
Resolution 2.45 Å R-free 0.259
6WLX PAK4 kinase domain in complex with beta-catenin Ser675 substrate peptide Deposited 2020-04-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 671–677（7 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；295 K；0.1M Tris-HCl, 2M Na acetate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K, 5mM peptide
Resolution 2.20 Å R-free 0.229
6WNX FBXW11-SKP1 in complex with a pSer33/pSer37 Beta-Catenin peptide Deposited 2020-04-23 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 31–39（9 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) GOL GLYCEROL × 4 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.12M Ethylene Glycol, 0.1M Morpheus Buffer 1 pH 6.5, 30.0% GOL_P4K
Resolution 2.50 Å R-free 0.251
6WNX FBXW11-SKP1 in complex with a pSer33/pSer37 Beta-Catenin peptide Deposited 2020-04-23 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain F 31–39（9 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) GOL GLYCEROL × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.12M Ethylene Glycol, 0.1M Morpheus Buffer 1 pH 6.5, 30.0% GOL_P4K
Resolution 2.50 Å R-free 0.251
6WNX FBXW11-SKP1 in complex with a pSer33/pSer37 Beta-Catenin peptide Deposited 2020-04-23 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain I 31–39（9 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.12M Ethylene Glycol, 0.1M Morpheus Buffer 1 pH 6.5, 30.0% GOL_P4K
Resolution 2.50 Å R-free 0.251
7AFW Beta-Catenin in complex with compound 6 Deposited 2020-09-21 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 141–305（165 aa）
Not recorded R9Q 3-[(2~{R})-4-methyl-5-oxidanylidene-2,3-dihydro-1,4-benzoxazepin-2-yl]benzenecarbonitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；278 K；25% PEG 3350, 100 mM BIS-TRIS buffer pH 5.5 and 0.2 M Magnesium chloride
Resolution 1.81 Å R-free 0.281
7AR4 Crystal structure of beta-catenin in complex with cyclic peptide inhibitor Deposited 2020-10-23 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain AAA 134–665（532 aa）
Not recorded EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293.15 K；0.1 M HEPES, 4% PEG6000, 20 mM TRIS, 150 mM NaCl, 0.5 % Glycerol, 2 mM DTT
Resolution 2.60 Å R-free 0.242
7UWI Structure of beta-catenin in complex with FP01567, a Helicon Polypeptide Deposited 2022-05-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 143–663（521 aa）
Not recorded PO4 PHOSPHATE ION × 1 GOL GLYCEROL × 6 WHL N,N'-(1,4-phenylene)diacetamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293.15 K；0.1 M Sodium phosphate monobasic monohydrate, 0.1 M Potassium phosphate monobasic, 0.1 M MES monohydrate pH 6.5, 2.0 M Sodium chloride
Resolution 2.32 Å R-free 0.278
7UWO Structure of beta-catenin in complex with FP05874, a Helicon Polypeptide Deposited 2022-05-03 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 134–665（532 aa）
Not recorded WHL N,N'-(1,4-phenylene)diacetamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；0.05M MgCl2, 0.1M MES pH6.5, 5% (w/v) PEG 4000
Resolution 2.75 Å R-free 0.253
8EI9 Crystal structure of beta-catenin and the MDM2 p53-binding domain in complex with H332, a Helicon Polypeptide Deposited 2022-09-14 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 134–665（532 aa）
Not recorded WHL N,N'-(1,4-phenylene)diacetamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；291 K；0.1M MES Sodium Salt pH6.5, 10% v/v 2-Propanol, 25% v/v PEG 400
Resolution 3.90 Å R-free 0.315
8EIB Crystal structure of beta-catenin and the MDM2 p53-binding domain in complex with H329, a Helicon Polypeptide Deposited 2022-09-14 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 134–665（532 aa）
Not recorded WHL N,N'-(1,4-phenylene)diacetamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；291 K；0.2 M Calcium acetate pH 7.5, 20% w/v PEG 3350
Resolution 3.76 Å R-free 0.298
8EIC Crystal structure of beta-catenin and the MDM2 p53-binding domain in complex with H330, a Helicon Polypeptide Deposited 2022-09-14 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 134–665（532 aa）
Not recorded WHL N,N'-(1,4-phenylene)diacetamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；4M Sodium formate
Resolution 2.62 Å R-free 0.269
8RU3 Crystal structure of beta-catenin in complex with alpha-helical peptide inhibitor Deposited 2024-01-30 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 134–665（532 aa）
Not recorded CL CHLORIDE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；300 K；Crystals grown in 100 mM NaKPO4, 2M NaCl.
Resolution 2.00 Å R-free 0.232
8RU4 Crystal structure of Human Catenin Beta-1 in complex with stitched peptide inhibitor Deposited 2024-01-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 145–665（521 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) GLC alpha-D-glucopyranose × 3 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 2 CL CHLORIDE ION × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；100 mM TRIS pH 8.75, 2%(w/v) PEG-6000, cryoprotected in 30% (w/v) Glucose.
Resolution 2.13 Å R-free 0.240
8RU4 Crystal structure of Human Catenin Beta-1 in complex with stitched peptide inhibitor Deposited 2024-01-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 145–665（521 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) GLC alpha-D-glucopyranose × 4 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 2 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；100 mM TRIS pH 8.75, 2%(w/v) PEG-6000, cryoprotected in 30% (w/v) Glucose.
Resolution 2.13 Å R-free 0.240
8VME Crystal structure of the GSK-3/Axin complex bound to a phosphorylated beta-catenin T41A peptide Deposited 2024-01-13 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 35–61（27 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 2 GOL GLYCEROL × 6 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICRODIALYSIS；pH 7.5；277 K；10% PEG35000, 20 mM Tris, pH 7.5, 300 mM sodium chloride, 5% glycerol, 10 mM magnesium chloride, 200 uM ATP, 5 mM DTT
Resolution 2.30 Å R-free 0.230
8VMF Crystal structure of a transition-state mimic of the GSK-3/Axin complex bound to a beta-catenin S45D peptide Deposited 2024-01-13 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 35–61（27 aa）
Mutation：S45D MG MAGNESIUM ION × 2 AF3 ALUMINUM FLUORIDE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 GOL GLYCEROL × 3 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICRODIALYSIS；pH 7.5；277 K；10% PEG35000, 20 mM Tris, pH 7.5, 300 mM sodium chloride, 5% glycerol, 10 mM magnesium chloride, 5 mM DTT, 200 uM ADP, 200 uM aluminum nitrate, 1.2 mM sodium fluoride
Resolution 2.50 Å R-free 0.251
8Y0G Human beta-catenin crystal structure Deposited 2024-01-22 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 138–686（549 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；Apo crystals of beta-Catenin were grown from 14% PEG3350, 0.1M Hepes pH 7.5, 0.2M L-proline Crystal were transferred into soaking solution and incubated at RT for 1 days. Crystals were transferred into cryoprotectant (14% PEG3350, 0.1M Hepes pH 7.5, 0.2M L-proline, 20% glycerol), and then flash frozen in liquid nitrogen.
Resolution 2.50 Å R-free 0.287
8Y0P Beta-Catenin in complex with peptide 301 Deposited 2024-01-22 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 138–686（549 aa）
Not recorded PRO PROLINE × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；14% PEG 3350, 0.1M Hepes pH 7.5, 0.2M L-proline, 20% glycerol
Resolution 2.62 Å R-free 0.279
8Y0P Beta-Catenin in complex with peptide 301 Deposited 2024-01-22 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 138–686（549 aa）
Not recorded PRO PROLINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；14% PEG 3350, 0.1M Hepes pH 7.5, 0.2M L-proline, 20% glycerol
Resolution 2.62 Å R-free 0.279
8Y14 Beta-catenin Crystal Structure Deposited 2024-01-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 138–686（549 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；14% PEG 3350, 0.1M Hepes pH 7.5, 0.2M L-proline, 20% glycerol
Resolution 2.80 Å R-free 0.264
8Z0U Human beta-catenin crystal structure Deposited 2024-04-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 138–686（549 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；Apo crystals of beta-Catenin were grown from 14% PEG3350, 0.1M Hepes pH 7.5, 0.2M L-proline. Crystal were transferred into soaking solution and incubated at RT for 4 days. Crystals were transferred into cryoprotectant (14% PEG3350, 0.1M Hepes pH 7.5, 0.2M L-proline, 20% glycerol), and then flash frozen in liquid nitrogen.
Resolution 2.21 Å R-free 0.281
8Z10 Human beta-catenin crystal structure Deposited 2024-04-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 138–686（549 aa）
Not recorded PRO PROLINE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；Apo crystals of beta-Catenin were grown from 14% PEG3350, 0.1M Hepes pH 7.5, 0.2M L-proline. Crystal was transferred into a soaking solution and incubated at RT for 4 days. Crystals were transferred into cryoprotectant (14% PEG3350, 0.1M Hepes pH 7.5, 0.2M L-proline, 20% glycerol), and then flash frozen in liquid nitrogen.
Resolution 2.35 Å R-free 0.275
8Z5J Beta-catenin Crystal Structure Deposited 2024-04-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 138–686（549 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；14% PEG 3350, 0.1M Hepes pH 7.5, 0.2M L-proline, 20% glycerol
Resolution 2.80 Å R-free 0.264
8Z61 Human beta-catenin crystal structure Deposited 2024-04-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 138–686（549 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；Apo crystals of beta-Catenin were grown from 14% PEG 3350, 0.1M Hepes pH 7.5, 0.2M L-proline (Crystal were transferred into soaking solution and incubated at RT for 1 days. Crystals were transferred into cryoprotectant (14% PEG3350, 0.1M Hepes pH 7.5, 0.2M L-proline, 20% glycerol), and then flash frozen in liquid nitrogen.)
Resolution 2.50 Å R-free 0.287
9I8K Beta-catenin armadillo (150-663) Deposited 2025-02-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 150–663（514 aa）
Chain B 150–663（514 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；293 K；Buffer system 1 pH 6.5, 0.12 M monosaccharides mix, 50% precipitant mix 4
Resolution 2.00 Å R-free 0.239
9I8W Beta-catenin armadillo with cyclic peptide and Compound 3 Deposited 2025-02-06 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 134–671（538 aa）
Not recorded HHT 2-(4-bromanyl-2-methoxy-phenyl)ethanoic acid × 1 SO4 SULFATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M ADA pH 6.5, 100 mM ammonium sulfate, 30 % w/v PEG MME 5000
Resolution 2.20 Å R-free 0.244
9I8X Beta-catenin armadillo with cyclic peptide and Compound 2 Deposited 2025-02-06 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 134–671（538 aa）
Not recorded IJX ~{N}-(4-bromophenyl)ethanamide × 1 SO4 SULFATE ION × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M Bis-TRIS pH 6.5, 0.2 M Lithium sulfate monohydrate, 26% PEG 3350
Resolution 2.00 Å R-free 0.286

46 other PDB entries and 64 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CTNB1_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 2–533； UniProt 134–665

E3 ubiquitin-protein ligase Mdm2

Homo sapiens

UniProt Q00987

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count Chain B； UniProt 17–111 Fragment：P53 binding domain Catenin beta-1 × 1 （P35222） H333 × 1 WHL N,N'-(1,4-phenylene)diacetamide × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；0.1 M Potassium chloride, 0.1 M HEPES pH 7, 15% w/v PEG 5000 MME Resolution 3.60 Å R-free 0.373

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8EIA Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1RV1 CRYSTAL STRUCTURE OF HUMAN MDM2 WITH AN IMIDAZOLINE INHIBITOR Deposited 2003-12-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric
Chain A 25–109（85 aa） Fragment：RESIDUES 25-109
Chain B 25–109（85 aa） Fragment：RESIDUES 25-109
Chain C 25–109（85 aa） Fragment：RESIDUES 25-109
Mutation：L33E Mutation：L33E Mutation：L33E IMZ CIS-[4,5-BIS-(4-BROMOPHENYL)-2-(2-ETHOXY-4-METHOXYPHENYL)-4,5-DIHYDROIMIDAZOL-1-YL]-[4-(2-HYDROXYETHYL)PIPERAZIN-1-YL]METHANONE × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；278 K；54% SATD, AMMONIUM SULFATE, 2.5% PEG 200, 50mM GLUCOSE, 5mM DTT, 100mM TRIS, pH 7.8, VAPOR DIFFUSION, HANGING DROP, temperature 278K
Resolution 2.30 Å R-free 0.322
1T4E Structure of Human MDM2 in complex with a Benzodiazepine Inhibitor Deposited 2004-04-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 17–111（95 aa） Fragment：p53-binding domain
Chain B 17–111（95 aa） Fragment：p53-binding domain
Mutation：17-111, additional GLY at N-terminus Mutation：17-111, additional GLY at N-terminus DIZ (4-CHLOROPHENYL)[3-(4-CHLOROPHENYL)-7-IODO-2,5-DIOXO-1,2,3,5-TETRAHYDRO-4H-1,4-BENZODIAZEPIN-4-YL]ACETIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；(NH4)2SO4, PEG400, NaSCN, pH 6.5, VAPOR DIFFUSION, HANGING DROP
Resolution 2.60 Å R-free 0.276
1T4F Structure of human MDM2 in complex with an optimized p53 peptide Deposited 2004-04-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain M 17–125（109 aa）
Mutation：17-125, additional Gly at N-terminus SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；277 K；(NH4)2SO4, Bicine, pH 9.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.90 Å R-free 0.231
1YCR MDM2 BOUND TO THE TRANSACTIVATION DOMAIN OF P53 Deposited 1996-09-30 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 17–125（109 aa） Fragment：RESIDUES 17 - 125
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.60 Å R-free 0.276
1Z1M NMR structure of unliganded MDM2 Deposited 2005-03-04 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–118（118 aa） Fragment：N-terminal domain
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7.3
NMR sample composition 0.5mM HDM2(1-118), 60mM deuterated sodium acetate, 60mM phosphate buffer | 90% H2O/10% D2O
NMR sample composition 0.5mM HDM2(1-118), 60mM deuterated sodium acetate, 60mM phosphate buffer | 99.5% D2O
Resolution not provided
2C6A Solution structure of the C4 zinc-finger domain of HDM2 Deposited 2005-11-08 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 290–335（46 aa）
Not recorded ZN ZINC ION × 1 SOLUTION NMR
NMR measurement conditions pH 6.5；293 K；Ionic strength (raw mmCIF value) 100
NMR sample composition 90% WATER/10% D2O
Resolution not provided
2C6B Solution structure of the C4 zinc-finger domain of HDM2 Deposited 2005-11-08 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 290–335（46 aa）
Not recorded ZN ZINC ION × 1 SOLUTION NMR
NMR measurement conditions pH 6.5；293 K；Ionic strength (raw mmCIF value) 100
NMR sample composition 90% WATER/10% D2O
Resolution not provided
2F1Y Crystal structure of the TRAF-like domain of HAUSP/USP7 bound to a MDM2 peptide Deposited 2005-11-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 224–232（9 aa） Fragment：HAUSP N-terminal domain with MDM2 peptide fused to its C-terminal
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；26% PEG4000, 300 mM calcium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.70 Å R-free 0.237
2GV2 MDM2 in complex with an 8-mer p53 peptide analogue Deposited 2006-05-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 17–125（109 aa） Fragment：p53 binding domain (Residues: 17-125)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9.5；298 K；2 M (NH4)2SO4, 100 mM Bicine, pH 9.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.80 Å R-free 0.219
2HDP Solution Structure of Hdm2 RING Finger Domain Deposited 2006-06-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 429–491（63 aa） Fragment：RING finger domain
Chain B 429–491（63 aa） Fragment：RING finger domain
Not recorded ZN ZINC ION × 4 SOLUTION NMR
NMR measurement conditions pH 7.1；298 K；Ionic strength (raw mmCIF value) 0.15 M NaCl；Pressure ambient
NMR sample composition 0.1 mM Hdm2 RING domain, U-15N, 20 mM Tris, pH 7.1, 0.15M NaCl, 0.25M Arg, 0.5 mM TCEP, 5 uM ZnSO4, 90% H2O, 10% D2O | 90% H2O/10% D2O
NMR sample composition 0.1 mM Hdm2 RING domain, U-15N,13C, 20 mM Tris, pH 7.1, 0.15M NaCl, 0.5 mM TCEP, 5 uM ZnSO4, 90% H2O, 10% D2O | 90% H2O/10% D2O
NMR sample composition 0.1 mM Hdm2 RING domain, unlabled | 20 mM Tris, pH 7.1, 0.15M NaCl, 0.5 mM TCEP, 5 uM ZnSO4, 90% H2O, 10% D2O
Resolution not provided
2LZG NMR Structure of Mdm2 (6-125) with Pip-1 Deposited 2012-10-02 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–125（125 aa）
Not recorded 13Q [(3R,5R,6S)-5-(3-chlorophenyl)-6-(4-chlorophenyl)-1-(cyclopropylmethyl)-2-oxopiperidin-3-yl]acetic acid × 1 SOLUTION NMR
NMR measurement conditions pH 7；288.15 K；Ionic strength (raw mmCIF value) 50；Pressure ambient
NMR sample composition 500 uM [U-100% 13C; U-100% 15N] protein, 50 mM sodium chloride, 20 mM sodium phosphate, 5 mM [U-100% 2H] DTT, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
2M86 Solution structure of Hdm2 with engineered cyclotide Deposited 2013-05-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 17–125（109 aa） Fragment：UNP residues 17-125
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.5；300 K；Ionic strength (raw mmCIF value) 0.133；Pressure ambient
NMR sample composition 0.2 mM MCo-PMI, 0.2 mM [U-99% 13C; U-99% 15N] Hdm2, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 0.2 mM [U-99% 15N] Mo-PMI, 0.2 mM Hdm2, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 0.2 mM MCo-PMI, 0.2 mM Hdm2, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
2MPS Structure of complex of MDM2(3-109) and P73 TAD(10-25) Deposited 2014-06-02 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 3–109（107 aa） Fragment：UNP residues 3-109
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.5；283 K；Ionic strength (raw mmCIF value) 50；Pressure ambient
NMR sample composition 0.9 mM [U-99% 13C; U-99% 15N] E3 Ubiquitin-protein Ligase MDM2-1, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 0.9 mM [U-99% 13C; U-99% 15N] Tumor protein P73-2, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
2RUH Chemical Shift Assignments for MIP and MDM2 in bound state Deposited 2014-06-03 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 6–102（97 aa） Fragment：MIP-MDM2 fusion, UNP residues 6-120
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7.6；298 K；Ionic strength (raw mmCIF value) 160；Pressure ambient
NMR sample composition 650 uM [U-100% 13C; U-100% 15N] MIP-MDM2 fusion-1, 20 mM TRIS-2, 300 mM sodium chloride-3, 95% H2O/5% D2O | 95% H2O/5% D2O
Resolution not provided
2VJE Crystal Structure of the MDM2-MDMX RING Domain Heterodimer Deposited 2007-12-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 383–446（64 aa） Fragment：RESIDUES 383-446
Not recorded ZN ZINC ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；1.8 M NH4(SO4)2, 0.5 M NACL, 0.1 M NA CITRATE, PH 6.5
Resolution 2.20 Å R-free 0.223
2VJE Crystal Structure of the MDM2-MDMX RING Domain Heterodimer Deposited 2007-12-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 383–446（64 aa） Fragment：RESIDUES 383-446
Not recorded ZN ZINC ION × 4 FLC CITRATE ANION × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；1.8 M NH4(SO4)2, 0.5 M NACL, 0.1 M NA CITRATE, PH 6.5
Resolution 2.20 Å R-free 0.223
2VJF Crystal Structure of the MDM2-MDMX RING Domain Heterodimer Deposited 2007-12-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 383–446（64 aa） Fragment：RESIDUES 383-446
Not recorded ZN ZINC ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；1.8 M NH4(SO4)2, 0.5 M NACL, 0.1 M NA CITRATE, PH 6.5
Resolution 2.30 Å R-free 0.234
2VJF Crystal Structure of the MDM2-MDMX RING Domain Heterodimer Deposited 2007-12-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 383–446（64 aa） Fragment：RESIDUES 383-446
Not recorded ZN ZINC ION × 4 FLC CITRATE ANION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；1.8 M NH4(SO4)2, 0.5 M NACL, 0.1 M NA CITRATE, PH 6.5
Resolution 2.30 Å R-free 0.234
3EQS Crystal structure of human MDM2 in complex with a 12-mer peptide inhibitor Deposited 2008-10-01 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 25–109（85 aa） Fragment：UNP residues 25-109
Not recorded GAI GUANIDINE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；298 K；0.2 M Ammonium acetate, 0.1M Sodium citrate, 30% PEG 4000, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.65 Å R-free 0.193
3EQS Crystal structure of human MDM2 in complex with a 12-mer peptide inhibitor Deposited 2008-10-01 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 25–109（85 aa） Fragment：UNP residues 25-109
Not recorded GAI GUANIDINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；298 K；0.2 M Ammonium acetate, 0.1M Sodium citrate, 30% PEG 4000, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.65 Å R-free 0.193
3G03 Structure of human MDM2 in complex with high affinity peptide Deposited 2009-01-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 18–125（108 aa） Fragment：N-terminal p53 binding domain, UNP residues 18-125
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；290 K；0.1M TRIS-HCl, 0.2M Ammonium Sulphate, pH7.5, 28% PEG5000 MME, VAPOR DIFFUSION, SITTING DROP, temperature 290K
Resolution 1.80 Å R-free 0.268
3G03 Structure of human MDM2 in complex with high affinity peptide Deposited 2009-01-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 18–125（108 aa） Fragment：N-terminal p53 binding domain, UNP residues 18-125
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；290 K；0.1M TRIS-HCl, 0.2M Ammonium Sulphate, pH7.5, 28% PEG5000 MME, VAPOR DIFFUSION, SITTING DROP, temperature 290K
Resolution 1.80 Å R-free 0.268
3IUX Crystal structure of human MDM2 in complex with a potent miniature protein inhibitor (18-residues) Deposited 2009-08-31 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 25–109（85 aa） Fragment：UNP residues 25-109, p53 binding domain, SWIB domain
Not recorded ACT ACETATE ION × 3 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；273 K；2% PEG 400, 0.1 M HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 273K
Resolution 1.65 Å R-free 0.206
3IUX Crystal structure of human MDM2 in complex with a potent miniature protein inhibitor (18-residues) Deposited 2009-08-31 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 25–109（85 aa） Fragment：UNP residues 25-109, p53 binding domain, SWIB domain
Not recorded CL CHLORIDE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；273 K；2% PEG 400, 0.1 M HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 273K
Resolution 1.65 Å R-free 0.206
3IWY Crystal structure of human MDM2 complexed with D-peptide (12 residues) Deposited 2009-09-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 25–109（85 aa） Fragment：UNP residues 25-109, SWIB domain
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；273 K；0.05 M potassium phosphate monobasic, 20% PEG 8,000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 273K
Resolution 1.93 Å R-free 0.259
3IWY Crystal structure of human MDM2 complexed with D-peptide (12 residues) Deposited 2009-09-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 25–109（85 aa） Fragment：UNP residues 25-109, SWIB domain
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；273 K；0.05 M potassium phosphate monobasic, 20% PEG 8,000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 273K
Resolution 1.93 Å R-free 0.259
3JZK crystal structure of MDM2 with chromenotriazolopyrimidine 1 Deposited 2009-09-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 17–111（95 aa） Fragment：MDM2 N-terminal domain, residues 17-111
Not recorded YIN (6R,7S)-6,7-bis(4-bromophenyl)-7,11-dihydro-6H-chromeno[4,3-d][1,2,4]triazolo[1,5-a]pyrimidine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；2.4 M (NH4)2SO4, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.10 Å R-free 0.320
3JZR Human MDM2 liganded with a 12mer peptide inhibitor (pDI6W) Deposited 2009-09-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 17–125（109 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；292 K；2.2 M DL-Malic acid, 100 mM Tris HCl, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 292K
Resolution 2.10 Å R-free 0.228
3JZS Human MDM2 liganded with a 12mer peptide inhibitor (pDIQ) Deposited 2009-09-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–109（86 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；292 K；30% PEGmme2000, 100 mM Tris HCl, 200 mM MgCl2, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 292K
Resolution 1.78 Å R-free 0.253
3LBK Structure of human MDM2 protein in complex with a small molecule inhibitor Deposited 2010-01-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 18–111（94 aa） Fragment：p53 binding domain
Mutation：L33E K23 6-chloro-3-[1-(4-chlorobenzyl)-4-phenyl-1H-imidazol-5-yl]-1H-indole-2-carboxylic acid × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；300 K；0.1M sodium-acetate-trihydrate, 2M ammonium sulfate, pH 4.5, VAPOR DIFFUSION, SITTING DROP, temperature 300K
Resolution 2.30 Å R-free 0.251
3LBK Structure of human MDM2 protein in complex with a small molecule inhibitor Deposited 2010-01-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 18–111（94 aa） Fragment：p53 binding domain
Mutation：L33E K23 6-chloro-3-[1-(4-chlorobenzyl)-4-phenyl-1H-imidazol-5-yl]-1H-indole-2-carboxylic acid × 2 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；300 K；0.1M sodium-acetate-trihydrate, 2M ammonium sulfate, pH 4.5, VAPOR DIFFUSION, SITTING DROP, temperature 300K
Resolution 2.30 Å R-free 0.251
3LBL Structure of human MDM2 protein in complex with Mi-63-analog Deposited 2010-01-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 18–111（94 aa） Fragment：p53 binding domain
Not recorded MI6 (2'R,3R,4'R,5'R)-6-chloro-4'-(3-chloro-2-fluorophenyl)-2'-(2,2-dimethylpropyl)-N-(2-morpholin-4-ylethyl)-2-oxo-1,2-dihydrospiro[indole-3,3'-pyrrolidine]-5'-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；300 K；0.1M sodium-acetate-trihydrate, 2M ammonium sulfate, pH 4.5, VAPOR DIFFUSION, SITTING DROP, temperature 300K
Resolution 1.60 Å R-free 0.236
3LBL Structure of human MDM2 protein in complex with Mi-63-analog Deposited 2010-01-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 18–111（94 aa） Fragment：p53 binding domain
Not recorded MI6 (2'R,3R,4'R,5'R)-6-chloro-4'-(3-chloro-2-fluorophenyl)-2'-(2,2-dimethylpropyl)-N-(2-morpholin-4-ylethyl)-2-oxo-1,2-dihydrospiro[indole-3,3'-pyrrolidine]-5'-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；300 K；0.1M sodium-acetate-trihydrate, 2M ammonium sulfate, pH 4.5, VAPOR DIFFUSION, SITTING DROP, temperature 300K
Resolution 1.60 Å R-free 0.236
3LBL Structure of human MDM2 protein in complex with Mi-63-analog Deposited 2010-01-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain E 18–111（94 aa） Fragment：p53 binding domain
Not recorded MI6 (2'R,3R,4'R,5'R)-6-chloro-4'-(3-chloro-2-fluorophenyl)-2'-(2,2-dimethylpropyl)-N-(2-morpholin-4-ylethyl)-2-oxo-1,2-dihydrospiro[indole-3,3'-pyrrolidine]-5'-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；300 K；0.1M sodium-acetate-trihydrate, 2M ammonium sulfate, pH 4.5, VAPOR DIFFUSION, SITTING DROP, temperature 300K
Resolution 1.60 Å R-free 0.236
3LNJ Crystal structure of human MDM2 in complex with D-peptide inhibitor (DPMI-alpha) Deposited 2010-02-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 25–109（85 aa） Fragment：UNP residues 25-109, P53 BINDING DOMAIN
Chain C 25–109（85 aa） Fragment：UNP residues 25-109, P53 BINDING DOMAIN
Not recorded SO4 SULFATE ION × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；273 K；0.2 M ammonium sulfate, 0.1 M sodium cacodylate trihydrate, and 30% PEG 8000, pH 6.5., VAPOR DIFFUSION, HANGING DROP, temperature 273K
Resolution 2.40 Å R-free 0.255
3LNJ Crystal structure of human MDM2 in complex with D-peptide inhibitor (DPMI-alpha) Deposited 2010-02-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain E 25–109（85 aa） Fragment：UNP residues 25-109, P53 BINDING DOMAIN
Not recorded GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；273 K；0.2 M ammonium sulfate, 0.1 M sodium cacodylate trihydrate, and 30% PEG 8000, pH 6.5., VAPOR DIFFUSION, HANGING DROP, temperature 273K
Resolution 2.40 Å R-free 0.255
3LNZ Crystal structure of human MDM2 with a 12-mer peptide inhibitor PMI (N8A mutant) Deposited 2010-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 25–109（85 aa） Fragment：UNP residues 25-109, P53 BINDING DOMAIN
Not recorded CL CHLORIDE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；273 K；0.2 M Mg acetate tetrahydrate sulfate, 0.1 M cacodylate trihydrate, 20% PEG 8000, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 273K
Resolution 1.95 Å R-free 0.267
3LNZ Crystal structure of human MDM2 with a 12-mer peptide inhibitor PMI (N8A mutant) Deposited 2010-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 25–109（85 aa） Fragment：UNP residues 25-109, P53 BINDING DOMAIN
Not recorded CL CHLORIDE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；273 K；0.2 M Mg acetate tetrahydrate sulfate, 0.1 M cacodylate trihydrate, 20% PEG 8000, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 273K
Resolution 1.95 Å R-free 0.267
3LNZ Crystal structure of human MDM2 with a 12-mer peptide inhibitor PMI (N8A mutant) Deposited 2010-02-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain E 25–109（85 aa） Fragment：UNP residues 25-109, P53 BINDING DOMAIN
Chain G 25–109（85 aa） Fragment：UNP residues 25-109, P53 BINDING DOMAIN
Not recorded CL CHLORIDE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；273 K；0.2 M Mg acetate tetrahydrate sulfate, 0.1 M cacodylate trihydrate, 20% PEG 8000, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 273K
Resolution 1.95 Å R-free 0.267
3LNZ Crystal structure of human MDM2 with a 12-mer peptide inhibitor PMI (N8A mutant) Deposited 2010-02-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain I 25–109（85 aa） Fragment：UNP residues 25-109, P53 BINDING DOMAIN
Chain K 25–109（85 aa） Fragment：UNP residues 25-109, P53 BINDING DOMAIN
Not recorded CL CHLORIDE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；273 K；0.2 M Mg acetate tetrahydrate sulfate, 0.1 M cacodylate trihydrate, 20% PEG 8000, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 273K
Resolution 1.95 Å R-free 0.267
3LNZ Crystal structure of human MDM2 with a 12-mer peptide inhibitor PMI (N8A mutant) Deposited 2010-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain M 25–109（85 aa） Fragment：UNP residues 25-109, P53 BINDING DOMAIN
Not recorded CL CHLORIDE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；273 K；0.2 M Mg acetate tetrahydrate sulfate, 0.1 M cacodylate trihydrate, 20% PEG 8000, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 273K
Resolution 1.95 Å R-free 0.267
3LNZ Crystal structure of human MDM2 with a 12-mer peptide inhibitor PMI (N8A mutant) Deposited 2010-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 6 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain O 25–109（85 aa） Fragment：UNP residues 25-109, P53 BINDING DOMAIN
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；273 K；0.2 M Mg acetate tetrahydrate sulfate, 0.1 M cacodylate trihydrate, 20% PEG 8000, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 273K
Resolution 1.95 Å R-free 0.267
3TJ2 Structure of a novel submicromolar MDM2 inhibitor Deposited 2011-08-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 18–111（94 aa） Fragment：p53 binding domain (UNP Residues 18-111)
Not recorded TJ2 3-{(1S)-2-(tert-butylamino)-1-[(4-chlorobenzyl)(formyl)amino]-2-oxoethyl}-6-chloro-1H-indole-2-carboxylic acid × 1 K POTASSIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；277.15 K；0.15 M Potassium bromide, 30% Polyethylene glycol mono methyl ether 2000, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 277.15K
Resolution 2.10 Å R-free 0.308
3TJ2 Structure of a novel submicromolar MDM2 inhibitor Deposited 2011-08-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 18–111（94 aa） Fragment：p53 binding domain (UNP Residues 18-111)
Not recorded TJ2 3-{(1S)-2-(tert-butylamino)-1-[(4-chlorobenzyl)(formyl)amino]-2-oxoethyl}-6-chloro-1H-indole-2-carboxylic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；277.15 K；0.15 M Potassium bromide, 30% Polyethylene glycol mono methyl ether 2000, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 277.15K
Resolution 2.10 Å R-free 0.308
3TPX Crystal structure of human MDM2 in complex with a trifluoromethylated D-peptide inhibitor Deposited 2011-09-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 25–109（85 aa） Fragment：p53 binding domain (UNP residues 25-109)
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；0.1 M MES, pH 5.5, 25% PEG4000, 0.15 M ammonium sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.80 Å R-free 0.231
3TPX Crystal structure of human MDM2 in complex with a trifluoromethylated D-peptide inhibitor Deposited 2011-09-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 25–109（85 aa） Fragment：p53 binding domain (UNP residues 25-109)
Not recorded SO4 SULFATE ION × 2 CL CHLORIDE ION × 2 ACT ACETATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；0.1 M MES, pH 5.5, 25% PEG4000, 0.15 M ammonium sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.80 Å R-free 0.231
3TPX Crystal structure of human MDM2 in complex with a trifluoromethylated D-peptide inhibitor Deposited 2011-09-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 25–109（85 aa） Fragment：p53 binding domain (UNP residues 25-109)
Not recorded CL CHLORIDE ION × 3 ACT ACETATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；0.1 M MES, pH 5.5, 25% PEG4000, 0.15 M ammonium sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.80 Å R-free 0.231
3TU1 Exhaustive Fluorine Scanning towards Potent p53-MDM2 Antagonist Deposited 2011-09-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 18–125（108 aa） Fragment：p53 binding domain (UNP Residues 18-105)
Not recorded 07G 3-[(1S)-2-(tert-butylamino)-1-{N-[(3,4-difluorophenyl)methyl]formamido}-2-oxoethyl]-6-chloro-1H-indole-2-carboxylic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.8；277 K；0.1 M sodium acetate 18% PEG 4000 , pH 4.8, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 1.60 Å R-free 0.245
3V3B Structure of the Stapled p53 Peptide Bound to Mdm2 Deposited 2011-12-13 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–110（87 aa）
Not recorded CL CHLORIDE ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.75；290 K；100 mM Na-acetate, 2.5M NaCl, pH 4.75, VAPOR DIFFUSION, SITTING DROP, temperature 290K
Resolution 2.00 Å R-free 0.216
3V3B Structure of the Stapled p53 Peptide Bound to Mdm2 Deposited 2011-12-13 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 24–110（87 aa）
Not recorded CL CHLORIDE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.75；290 K；100 mM Na-acetate, 2.5M NaCl, pH 4.75, VAPOR DIFFUSION, SITTING DROP, temperature 290K
Resolution 2.00 Å R-free 0.216
3V3B Structure of the Stapled p53 Peptide Bound to Mdm2 Deposited 2011-12-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 24–110（87 aa）
Chain B 24–110（87 aa）
Not recorded CL CHLORIDE ION × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.75；290 K；100 mM Na-acetate, 2.5M NaCl, pH 4.75, VAPOR DIFFUSION, SITTING DROP, temperature 290K
Resolution 2.00 Å R-free 0.216
3VBG Structure of hDM2 with Dimer Inducing Indolyl Hydantoin RO-2443 Deposited 2012-01-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 25–109（85 aa） Fragment：unp residues 25-109
Chain B 25–109（85 aa） Fragment：unp residues 25-109
Not recorded 03M (5Z)-5-[(6-chloro-7-methyl-1H-indol-3-yl)methylidene]-3-(3,4-difluorobenzyl)imidazolidine-2,4-dione × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；54% saturated ammonium sulfate, 0.1M Tris, 5% PEG 550 mme, VAPOR DIFFUSION, HANGING DROP, temperature 277K, pH 6.5
Resolution 2.80 Å R-free 0.220
3VBG Structure of hDM2 with Dimer Inducing Indolyl Hydantoin RO-2443 Deposited 2012-01-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 25–109（85 aa） Fragment：unp residues 25-109
Chain D 25–109（85 aa） Fragment：unp residues 25-109
Not recorded 03M (5Z)-5-[(6-chloro-7-methyl-1H-indol-3-yl)methylidene]-3-(3,4-difluorobenzyl)imidazolidine-2,4-dione × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；54% saturated ammonium sulfate, 0.1M Tris, 5% PEG 550 mme, VAPOR DIFFUSION, HANGING DROP, temperature 277K, pH 6.5
Resolution 2.80 Å R-free 0.220
3VZV Crystal structure of human mdm2 with a dihydroimidazothiazole inhibitor Deposited 2012-10-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 25–109（85 aa） Fragment：SWIB domain, UNP residues 25-109
Mutation：L33E VZV 1-{[(5R,6S)-5,6-bis(4-chlorophenyl)-6-methyl-3-(propan-2-yl)-5,6-dihydroimidazo[2,1-b][1,3]thiazol-2-yl]carbonyl}-N,N-dimethyl-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.1；293 K；2.4M Ammonium sulfate, 5% PEG 200, 0.1M Tris HCl, pH 8.1, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.80 Å R-free 0.284
3VZV Crystal structure of human mdm2 with a dihydroimidazothiazole inhibitor Deposited 2012-10-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 25–109（85 aa） Fragment：SWIB domain, UNP residues 25-109
Mutation：L33E VZV 1-{[(5R,6S)-5,6-bis(4-chlorophenyl)-6-methyl-3-(propan-2-yl)-5,6-dihydroimidazo[2,1-b][1,3]thiazol-2-yl]carbonyl}-N,N-dimethyl-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.1；293 K；2.4M Ammonium sulfate, 5% PEG 200, 0.1M Tris HCl, pH 8.1, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.80 Å R-free 0.284
3W69 Crystal structure of human mdm2 with a dihydroimidazothiazole inhibitor Deposited 2013-02-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 25–109（85 aa） Fragment：UNP residues 25-109
Mutation：L33E LTZ (5R,6S)-2-[((2S,5R)-2-{[(3R)-4-acetyl-3-methylpiperazin-1-yl]carbonyl}-5-ethylpyrrolidin-1-yl)carbonyl]-5,6-bis(4-chlorophenyl)-3-isopropyl-6-methyl-5,6-dihydroimidazo[2,1-b][1,3]thiazole × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.1；293 K；2.4M Ammonium sulfate, 5% PEG 200, 0.1M Tris HCl, pH 8.1 , VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 1.90 Å R-free 0.238
3W69 Crystal structure of human mdm2 with a dihydroimidazothiazole inhibitor Deposited 2013-02-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 25–109（85 aa） Fragment：UNP residues 25-109
Mutation：L33E LTZ (5R,6S)-2-[((2S,5R)-2-{[(3R)-4-acetyl-3-methylpiperazin-1-yl]carbonyl}-5-ethylpyrrolidin-1-yl)carbonyl]-5,6-bis(4-chlorophenyl)-3-isopropyl-6-methyl-5,6-dihydroimidazo[2,1-b][1,3]thiazole × 1 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.1；293 K；2.4M Ammonium sulfate, 5% PEG 200, 0.1M Tris HCl, pH 8.1 , VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 1.90 Å R-free 0.238
4DIJ The Central Valine Concept Provides an Entry in a New Class of Non Peptide Inhibitors of the P53-MDM2 Interaction Deposited 2012-01-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 17–111（95 aa） Fragment：N-TERMINAL DOMAIN, P53-BINDING DOMAIN, UNP RESIDUES 17-111
Mutation：L33E BLF 6-chloro-3-[1-(4-chlorobenzyl)-4-phenyl-1H-imidazol-5-yl]-N-[2-(morpholin-4-yl)ethyl]-1H-indole-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；0.1M Tris, 0.2M LiSO4, 22% PEG3350, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.90 Å R-free 0.224
4DIJ The Central Valine Concept Provides an Entry in a New Class of Non Peptide Inhibitors of the P53-MDM2 Interaction Deposited 2012-01-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 17–111（95 aa） Fragment：N-TERMINAL DOMAIN, P53-BINDING DOMAIN, UNP RESIDUES 17-111
Mutation：L33E BLF 6-chloro-3-[1-(4-chlorobenzyl)-4-phenyl-1H-imidazol-5-yl]-N-[2-(morpholin-4-yl)ethyl]-1H-indole-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；0.1M Tris, 0.2M LiSO4, 22% PEG3350, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.90 Å R-free 0.224
4ERE crystal structure of MDM2 (17-111) in complex with compound 23 Deposited 2012-04-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 17–111（95 aa） Fragment：unp residues 17-111
Not recorded 0R2 [(3R,5R,6S)-1-[(2S)-1-tert-butoxy-1-oxobutan-2-yl]-5-(3-chlorophenyl)-6-(4-chlorophenyl)-2-oxopiperidin-3-yl]acetic acid × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；100 mM MES, 2.7-3.2 M Ammonium Sulfate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.80 Å R-free 0.270
4ERE crystal structure of MDM2 (17-111) in complex with compound 23 Deposited 2012-04-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 17–111（95 aa） Fragment：unp residues 17-111
Not recorded 0R2 [(3R,5R,6S)-1-[(2S)-1-tert-butoxy-1-oxobutan-2-yl]-5-(3-chlorophenyl)-6-(4-chlorophenyl)-2-oxopiperidin-3-yl]acetic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；100 mM MES, 2.7-3.2 M Ammonium Sulfate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.80 Å R-free 0.270
4ERF crystal structure of MDM2 (17-111) in complex with compound 29 (AM-8553) Deposited 2012-04-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 17–111（95 aa） Fragment：unp residues 17-111
Not recorded 0R3 {(3R,5R,6S)-5-(3-chlorophenyl)-6-(4-chlorophenyl)-1-[(2S,3S)-2-hydroxypentan-3-yl]-3-methyl-2-oxopiperidin-3-yl}acetic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；100 mM Citrate, 1.9-2.4 M Ammonium Sulfate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.00 Å R-free 0.250
4ERF crystal structure of MDM2 (17-111) in complex with compound 29 (AM-8553) Deposited 2012-04-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 17–111（95 aa） Fragment：unp residues 17-111
Not recorded 0R3 {(3R,5R,6S)-5-(3-chlorophenyl)-6-(4-chlorophenyl)-1-[(2S,3S)-2-hydroxypentan-3-yl]-3-methyl-2-oxopiperidin-3-yl}acetic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；100 mM Citrate, 1.9-2.4 M Ammonium Sulfate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.00 Å R-free 0.250
4ERF crystal structure of MDM2 (17-111) in complex with compound 29 (AM-8553) Deposited 2012-04-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain E 17–111（95 aa） Fragment：unp residues 17-111
Not recorded 0R3 {(3R,5R,6S)-5-(3-chlorophenyl)-6-(4-chlorophenyl)-1-[(2S,3S)-2-hydroxypentan-3-yl]-3-methyl-2-oxopiperidin-3-yl}acetic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；100 mM Citrate, 1.9-2.4 M Ammonium Sulfate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.00 Å R-free 0.250
4HBM Ordering of the N Terminus of Human MDM2 by Small Molecule Inhibitors Deposited 2012-09-28 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 6–125（120 aa）
Not recorded 0Y7 {(3R,5R,6S)-5-(3-chlorophenyl)-6-(4-chlorophenyl)-1-[(2S)-1-hydroxybutan-2-yl]-2-oxopiperidin-3-yl}acetic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；100 mM Citrate, pH 5.0 1.5-2.0 M (NH4)2SO4 , VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.90 Å R-free 0.240
4HBM Ordering of the N Terminus of Human MDM2 by Small Molecule Inhibitors Deposited 2012-09-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 10 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 6–125（120 aa）
Chain E 6–125（120 aa）
Not recorded 0Y7 {(3R,5R,6S)-5-(3-chlorophenyl)-6-(4-chlorophenyl)-1-[(2S)-1-hydroxybutan-2-yl]-2-oxopiperidin-3-yl}acetic acid × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；100 mM Citrate, pH 5.0 1.5-2.0 M (NH4)2SO4 , VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.90 Å R-free 0.240
4HBM Ordering of the N Terminus of Human MDM2 by Small Molecule Inhibitors Deposited 2012-09-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 11 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain D 6–125（120 aa）
Chain F 6–125（120 aa）
Not recorded 0Y7 {(3R,5R,6S)-5-(3-chlorophenyl)-6-(4-chlorophenyl)-1-[(2S)-1-hydroxybutan-2-yl]-2-oxopiperidin-3-yl}acetic acid × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；100 mM Citrate, pH 5.0 1.5-2.0 M (NH4)2SO4 , VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.90 Å R-free 0.240
4HBM Ordering of the N Terminus of Human MDM2 by Small Molecule Inhibitors Deposited 2012-09-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 12 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain G 6–125（120 aa）
Chain H 6–125（120 aa）
Not recorded 0Y7 {(3R,5R,6S)-5-(3-chlorophenyl)-6-(4-chlorophenyl)-1-[(2S)-1-hydroxybutan-2-yl]-2-oxopiperidin-3-yl}acetic acid × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；100 mM Citrate, pH 5.0 1.5-2.0 M (NH4)2SO4 , VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.90 Å R-free 0.240
4HBM Ordering of the N Terminus of Human MDM2 by Small Molecule Inhibitors Deposited 2012-09-28 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 6–125（120 aa）
Not recorded 0Y7 {(3R,5R,6S)-5-(3-chlorophenyl)-6-(4-chlorophenyl)-1-[(2S)-1-hydroxybutan-2-yl]-2-oxopiperidin-3-yl}acetic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；100 mM Citrate, pH 5.0 1.5-2.0 M (NH4)2SO4 , VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.90 Å R-free 0.240
4HBM Ordering of the N Terminus of Human MDM2 by Small Molecule Inhibitors Deposited 2012-09-28 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 6–125（120 aa）
Not recorded 0Y7 {(3R,5R,6S)-5-(3-chlorophenyl)-6-(4-chlorophenyl)-1-[(2S)-1-hydroxybutan-2-yl]-2-oxopiperidin-3-yl}acetic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；100 mM Citrate, pH 5.0 1.5-2.0 M (NH4)2SO4 , VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.90 Å R-free 0.240
4HBM Ordering of the N Terminus of Human MDM2 by Small Molecule Inhibitors Deposited 2012-09-28 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 6–125（120 aa）
Not recorded 0Y7 {(3R,5R,6S)-5-(3-chlorophenyl)-6-(4-chlorophenyl)-1-[(2S)-1-hydroxybutan-2-yl]-2-oxopiperidin-3-yl}acetic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；100 mM Citrate, pH 5.0 1.5-2.0 M (NH4)2SO4 , VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.90 Å R-free 0.240
4HBM Ordering of the N Terminus of Human MDM2 by Small Molecule Inhibitors Deposited 2012-09-28 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain E 6–125（120 aa）
Not recorded 0Y7 {(3R,5R,6S)-5-(3-chlorophenyl)-6-(4-chlorophenyl)-1-[(2S)-1-hydroxybutan-2-yl]-2-oxopiperidin-3-yl}acetic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；100 mM Citrate, pH 5.0 1.5-2.0 M (NH4)2SO4 , VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.90 Å R-free 0.240
4HBM Ordering of the N Terminus of Human MDM2 by Small Molecule Inhibitors Deposited 2012-09-28 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 6 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain F 6–125（120 aa）
Not recorded 0Y7 {(3R,5R,6S)-5-(3-chlorophenyl)-6-(4-chlorophenyl)-1-[(2S)-1-hydroxybutan-2-yl]-2-oxopiperidin-3-yl}acetic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；100 mM Citrate, pH 5.0 1.5-2.0 M (NH4)2SO4 , VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.90 Å R-free 0.240
4HBM Ordering of the N Terminus of Human MDM2 by Small Molecule Inhibitors Deposited 2012-09-28 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 7 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain G 6–125（120 aa）
Not recorded 0Y7 {(3R,5R,6S)-5-(3-chlorophenyl)-6-(4-chlorophenyl)-1-[(2S)-1-hydroxybutan-2-yl]-2-oxopiperidin-3-yl}acetic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；100 mM Citrate, pH 5.0 1.5-2.0 M (NH4)2SO4 , VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.90 Å R-free 0.240
4HBM Ordering of the N Terminus of Human MDM2 by Small Molecule Inhibitors Deposited 2012-09-28 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 8 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain H 6–125（120 aa）
Not recorded 0Y7 {(3R,5R,6S)-5-(3-chlorophenyl)-6-(4-chlorophenyl)-1-[(2S)-1-hydroxybutan-2-yl]-2-oxopiperidin-3-yl}acetic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；100 mM Citrate, pH 5.0 1.5-2.0 M (NH4)2SO4 , VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.90 Å R-free 0.240
4HBM Ordering of the N Terminus of Human MDM2 by Small Molecule Inhibitors Deposited 2012-09-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 9 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 6–125（120 aa）
Chain B 6–125（120 aa）
Not recorded 0Y7 {(3R,5R,6S)-5-(3-chlorophenyl)-6-(4-chlorophenyl)-1-[(2S)-1-hydroxybutan-2-yl]-2-oxopiperidin-3-yl}acetic acid × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；100 mM Citrate, pH 5.0 1.5-2.0 M (NH4)2SO4 , VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.90 Å R-free 0.240
4HFZ Crystal Structure of an MDM2/P53 Peptide Complex Deposited 2012-10-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 17–125（109 aa） Fragment：p53 binding domain (residues 17-125)
Mutation：E69A, K70A SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；277 K；0.2 M (NH4)2SO4, pH 4.6 and 30% w/v PEG 8000, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.69 Å R-free 0.247
4HFZ Crystal Structure of an MDM2/P53 Peptide Complex Deposited 2012-10-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 17–125（109 aa） Fragment：p53 binding domain (residues 17-125)
Mutation：E69A, K70A No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；277 K；0.2 M (NH4)2SO4, pH 4.6 and 30% w/v PEG 8000, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.69 Å R-free 0.247
4HG7 Crystal Structure of an MDM2/Nutlin-3a complex Deposited 2012-10-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 17–108（92 aa） Fragment：p53 binding domain (residues 17-125)
Mutation：E69A, K70A NUT 4-({(4S,5R)-4,5-bis(4-chlorophenyl)-2-[4-methoxy-2-(propan-2-yloxy)phenyl]-4,5-dihydro-1H-imidazol-1-yl}carbonyl)piperazin-2-one × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；277 K；0.5 M ammonium sulfate, 0.1 M sodium citrate, 1.0 M lithium sulfate, pH 5.6, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 1.60 Å R-free 0.215
4HG7 Crystal Structure of an MDM2/Nutlin-3a complex Deposited 2012-10-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 17–108（92 aa） Fragment：p53 binding domain (residues 17-125)
Mutation：E69A, K70A NUT 4-({(4S,5R)-4,5-bis(4-chlorophenyl)-2-[4-methoxy-2-(propan-2-yloxy)phenyl]-4,5-dihydro-1H-imidazol-1-yl}carbonyl)piperazin-2-one × 2 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；277 K；0.5 M ammonium sulfate, 0.1 M sodium citrate, 1.0 M lithium sulfate, pH 5.6, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 1.60 Å R-free 0.215
4JV7 Co-crystal structure of MDM2 with inhibitor (2S,5R,6S)-2-benzyl-5,6-bis(4-bromophenyl)-4-methylmorpholin-3-one Deposited 2013-03-25 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 18–111（94 aa） Fragment：UNP residues 18-111
Not recorded 1MN (2S,5R,6S)-2-benzyl-5,6-bis(4-bromophenyl)-4-methylmorpholin-3-one × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；100 mM HEPES, pH 7.0, 2.1-2.6 M ammonium sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.20 Å R-free 0.281
4JV9 Co-crystal structure of MDM2 with inhibitor (2S,5R,6S)-2-benzyl-5,6-bis(4-chlorophenyl)-4-methylmorpholin-3-one Deposited 2013-03-25 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 18–111（94 aa） Fragment：UNP residues 18-111
Not recorded 1MO (2S,5R,6S)-2-benzyl-5,6-bis(4-chlorophenyl)-4-methylmorpholin-3-one × 1 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；100 mM HEPES, pH 7.0, 2.1-2.6 M ammonium sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.50 Å R-free 0.270
4JVE Co-crystal structure of MDM2 with inhibitor (2R,3E)-2-[(2S,3R,6S)-2,3-bis(4-chlorophenyl)-6-(4-fluorobenzyl)-5-oxomorpholin-4-yl]pent-3-enoic acid Deposited 2013-03-25 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 18–111（94 aa） Fragment：UNP residues 18-111
Not recorded 1MQ (2R,3E)-2-[(2S,3R,6S)-2,3-bis(4-chlorophenyl)-6-(4-fluorobenzyl)-5-oxomorpholin-4-yl]pent-3-enoic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；277 K；100 mM Bicine, pH 9.0, 1.6 M ammonium sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.30 Å R-free 0.298
4JVR Co-crystal structure of MDM2 with inhibitor (2'S,3R,4'S,5'R)-N-(2-aminoethyl)-6-chloro-4'-(3-chloro-2-fluorophenyl)-2'-(2,2-dimethylpropyl)-2-oxo-1,2-dihydrospiro[indole-3,3'-pyrrolidine]-5'-carboxamide Deposited 2013-03-26 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 18–111（94 aa） Fragment：UNP residues 18-111
Not recorded 1MT (2'S,3R,4'S,5'R)-N-(2-aminoethyl)-6-chloro-4'-(3-chloro-2-fluorophenyl)-2'-(2,2-dimethylpropyl)-2-oxo-1,2-dihydrospiro[indole-3,3'-pyrrolidine]-5'-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；100 mM citrate, pH 5.0, 1.5-2.0 M ammonium sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.70 Å R-free 0.270
4JVR Co-crystal structure of MDM2 with inhibitor (2'S,3R,4'S,5'R)-N-(2-aminoethyl)-6-chloro-4'-(3-chloro-2-fluorophenyl)-2'-(2,2-dimethylpropyl)-2-oxo-1,2-dihydrospiro[indole-3,3'-pyrrolidine]-5'-carboxamide Deposited 2013-03-26 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 18–111（94 aa） Fragment：UNP residues 18-111
Not recorded 1MT (2'S,3R,4'S,5'R)-N-(2-aminoethyl)-6-chloro-4'-(3-chloro-2-fluorophenyl)-2'-(2,2-dimethylpropyl)-2-oxo-1,2-dihydrospiro[indole-3,3'-pyrrolidine]-5'-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；100 mM citrate, pH 5.0, 1.5-2.0 M ammonium sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.70 Å R-free 0.270
4JVR Co-crystal structure of MDM2 with inhibitor (2'S,3R,4'S,5'R)-N-(2-aminoethyl)-6-chloro-4'-(3-chloro-2-fluorophenyl)-2'-(2,2-dimethylpropyl)-2-oxo-1,2-dihydrospiro[indole-3,3'-pyrrolidine]-5'-carboxamide Deposited 2013-03-26 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain E 18–111（94 aa） Fragment：UNP residues 18-111
Not recorded 1MT (2'S,3R,4'S,5'R)-N-(2-aminoethyl)-6-chloro-4'-(3-chloro-2-fluorophenyl)-2'-(2,2-dimethylpropyl)-2-oxo-1,2-dihydrospiro[indole-3,3'-pyrrolidine]-5'-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；100 mM citrate, pH 5.0, 1.5-2.0 M ammonium sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.70 Å R-free 0.270
4JWR Co-crystal structure of MDM2 with inhibitor {(2S,5R,6S)-6-(3-chlorophenyl)-5-(4-chlorophenyl)-4-[(2S)-1-hydroxybutan-2-yl]-3-oxomorpholin-2-yl}acetic acid Deposited 2013-03-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 17–111（95 aa） Fragment：UNP residues 17-111
Not recorded 1MY {(2S,5R,6S)-6-(3-chlorophenyl)-5-(4-chlorophenyl)-4-[(2S)-1-hydroxybutan-2-yl]-3-oxomorpholin-2-yl}acetic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；100 mM citrate, pH 5.0, 1.9-2.4 M ammonium sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.35 Å R-free 0.266
4JWR Co-crystal structure of MDM2 with inhibitor {(2S,5R,6S)-6-(3-chlorophenyl)-5-(4-chlorophenyl)-4-[(2S)-1-hydroxybutan-2-yl]-3-oxomorpholin-2-yl}acetic acid Deposited 2013-03-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 17–111（95 aa） Fragment：UNP residues 17-111
Not recorded 1MY {(2S,5R,6S)-6-(3-chlorophenyl)-5-(4-chlorophenyl)-4-[(2S)-1-hydroxybutan-2-yl]-3-oxomorpholin-2-yl}acetic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；100 mM citrate, pH 5.0, 1.9-2.4 M ammonium sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.35 Å R-free 0.266
4JWR Co-crystal structure of MDM2 with inhibitor {(2S,5R,6S)-6-(3-chlorophenyl)-5-(4-chlorophenyl)-4-[(2S)-1-hydroxybutan-2-yl]-3-oxomorpholin-2-yl}acetic acid Deposited 2013-03-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 17–111（95 aa） Fragment：UNP residues 17-111
Not recorded 1MY {(2S,5R,6S)-6-(3-chlorophenyl)-5-(4-chlorophenyl)-4-[(2S)-1-hydroxybutan-2-yl]-3-oxomorpholin-2-yl}acetic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；100 mM citrate, pH 5.0, 1.9-2.4 M ammonium sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.35 Å R-free 0.266
4MDN Structure of a novel submicromolar MDM2 inhibitor Deposited 2013-08-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 18–110（93 aa） Fragment：UNP residues 18-110
Not recorded Y30 3-{(1S)-2-(tert-butylamino)-1-[{4-[(4-chlorobenzyl)oxy]benzyl}(formyl)amino]-2-oxoethyl}-6-chloro-1H-indole-2-carboxylic acid × 1 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；277 K；0.2 M ammonium nitrate, 20% w/v PEG3350, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 1.91 Å R-free 0.203
4MDQ Structure of a novel submicromolar MDM2 inhibitor Deposited 2013-08-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 25–110（86 aa） Fragment：UNP residues 25-110
Not recorded 28W 3-[(1R)-2-(benzylamino)-1-{[(2S)-1-(hydroxyamino)-4-methyl-1-oxopentan-2-yl]amino}-2-oxoethyl]-6-chloro-N-hydroxy-1H-indole-2-carboxamide × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；277 K；0.2 M ammonium nitrate, 20% w/v PEG3350, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.12 Å R-free 0.221
4OAS co-crystal structure of MDM2 (17-111) in complex with compound 25 Deposited 2014-01-06 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 17–111（95 aa） Fragment：UNP Residues 17-111
Not recorded 2SW [(3R,5R,6S)-1-[(2S)-1-(tert-butylsulfonyl)butan-2-yl]-5-(3-chlorophenyl)-6-(4-chlorophenyl)-3-methyl-2-oxopiperidin-3-yl]acetic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；100 mM Citrate, 1.9-2.4 M Ammonium Sulfate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.70 Å R-free 0.239
4OAS co-crystal structure of MDM2 (17-111) in complex with compound 25 Deposited 2014-01-06 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 17–111（95 aa） Fragment：UNP Residues 17-111
Not recorded 2SW [(3R,5R,6S)-1-[(2S)-1-(tert-butylsulfonyl)butan-2-yl]-5-(3-chlorophenyl)-6-(4-chlorophenyl)-3-methyl-2-oxopiperidin-3-yl]acetic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；100 mM Citrate, 1.9-2.4 M Ammonium Sulfate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.70 Å R-free 0.239
4OAS co-crystal structure of MDM2 (17-111) in complex with compound 25 Deposited 2014-01-06 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain E 17–111（95 aa） Fragment：UNP Residues 17-111
Not recorded 2SW [(3R,5R,6S)-1-[(2S)-1-(tert-butylsulfonyl)butan-2-yl]-5-(3-chlorophenyl)-6-(4-chlorophenyl)-3-methyl-2-oxopiperidin-3-yl]acetic acid × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；100 mM Citrate, 1.9-2.4 M Ammonium Sulfate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.70 Å R-free 0.239
4OBA Co-crystal structure of MDM2 with Inhibitor Compound 4 Deposited 2014-01-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 17–111（95 aa） Fragment：UNP Residues 17-111
Not recorded 2TW [(2R,5R,6R)-4-[(1S)-2-(tert-butylsulfonyl)-1-cyclopropylethyl]-6-(3-chlorophenyl)-5-(4-chlorophenyl)-3-oxomorpholin-2-yl]acetic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；1.6-2.3M Ammonium Sulfate, 0.1M citrate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.60 Å R-free 0.313
4OBA Co-crystal structure of MDM2 with Inhibitor Compound 4 Deposited 2014-01-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 17–111（95 aa） Fragment：UNP Residues 17-111
Not recorded 2TW [(2R,5R,6R)-4-[(1S)-2-(tert-butylsulfonyl)-1-cyclopropylethyl]-6-(3-chlorophenyl)-5-(4-chlorophenyl)-3-oxomorpholin-2-yl]acetic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；1.6-2.3M Ammonium Sulfate, 0.1M citrate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.60 Å R-free 0.313
4OBA Co-crystal structure of MDM2 with Inhibitor Compound 4 Deposited 2014-01-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 17–111（95 aa） Fragment：UNP Residues 17-111
Not recorded 2TW [(2R,5R,6R)-4-[(1S)-2-(tert-butylsulfonyl)-1-cyclopropylethyl]-6-(3-chlorophenyl)-5-(4-chlorophenyl)-3-oxomorpholin-2-yl]acetic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；1.6-2.3M Ammonium Sulfate, 0.1M citrate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.60 Å R-free 0.313
4OCC co-crystal structure of MDM2(17-111) in complex with compound 48 Deposited 2014-01-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 17–111（95 aa）
Not recorded 2TZ [(2R,5R,6R)-4-[(2S)-1-(tert-butylsulfonyl)butan-2-yl]-6-(3-chlorophenyl)-5-(4-chlorophenyl)-3-oxomorpholin-2-yl]acetic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；100 mM Citrate, 1.9-2.4 M Ammonium Sulfate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.80 Å R-free 0.216
4OCC co-crystal structure of MDM2(17-111) in complex with compound 48 Deposited 2014-01-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 17–111（95 aa）
Not recorded 2TZ [(2R,5R,6R)-4-[(2S)-1-(tert-butylsulfonyl)butan-2-yl]-6-(3-chlorophenyl)-5-(4-chlorophenyl)-3-oxomorpholin-2-yl]acetic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；100 mM Citrate, 1.9-2.4 M Ammonium Sulfate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.80 Å R-free 0.216
4OCC co-crystal structure of MDM2(17-111) in complex with compound 48 Deposited 2014-01-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain E 17–111（95 aa）
Not recorded 2TZ [(2R,5R,6R)-4-[(2S)-1-(tert-butylsulfonyl)butan-2-yl]-6-(3-chlorophenyl)-5-(4-chlorophenyl)-3-oxomorpholin-2-yl]acetic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；100 mM Citrate, 1.9-2.4 M Ammonium Sulfate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.80 Å R-free 0.216
4ODE Co-Crystal Structure of MDM2 with Inhibitor Compound 4 Deposited 2014-01-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 6–110（105 aa） Fragment：UNP Residues 6-110
Not recorded 2U0 (2-{[(3R,5R,6S)-1-[(1S)-2-(tert-butylsulfonyl)-1-cyclopropylethyl]-6-(4-chloro-3-fluorophenyl)-5-(3-chlorophenyl)-3-methyl-2-oxopiperidin-3-yl]methyl}-1,3-thiazol-5-yl)acetic acid × 1 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；0.8-1.8M Ammonium Sulfate, 0.1M sodium citrate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.80 Å R-free 0.216
4ODF Co-Crystal Structure of MDM2 with Inhibitor Compound 47 Deposited 2014-01-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 6–110（105 aa） Fragment：UNP Residues 6-110
Not recorded 2U1 6-{[(2S,5R,6R)-4-[(1S)-2-(tert-butylsulfonyl)-1-cyclopropylethyl]-6-(3-chlorophenyl)-5-(4-chlorophenyl)-2-methyl-3-oxomorpholin-2-yl]methyl}pyridine-3-carboxylic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；0.8-1.8M Ammonium Sulfate, 0.1M sodium Citrate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.20 Å R-free 0.305
4OGN Co-Crystal Structure of MDM2 with Inhbitor Compound 3 Deposited 2014-01-16 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 6–110（105 aa） Fragment：UNP Residues 6-110
Not recorded 2U5 6-{[(3R,5R,6S)-1-[(1S)-2-(tert-butylsulfonyl)-1-cyclopropylethyl]-5-(3-chlorophenyl)-6-(4-chlorophenyl)-3-methyl-2-oxopiperidin-3-yl]methyl}pyridine-3-carboxylic acid × 1 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；0.8-1.8M Ammonium Sulfate, 0.1M sodium citrate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.38 Å R-free 0.223
4OGT Co-Crystal Structure of MDM2 with Inhbitor Compound 46 Deposited 2014-01-16 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 6–110（105 aa） Fragment：UNP Residue 6-110
Not recorded 2U6 6-{[(2R,5R,6R)-4-[(1S)-2-(tert-butylsulfonyl)-1-cyclopropylethyl]-6-(3-chlorophenyl)-5-(4-chlorophenyl)-2-methyl-3-oxomorpholin-2-yl]methyl}pyridine-3-carboxylic acid × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；0.8-1.8M Ammonium Sulfate, 0.1M sodium citrate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.54 Å R-free 0.225
4OGV Co-Crystal Structure of MDM2 with Inhibitor Compound 49 Deposited 2014-01-16 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 17–111（95 aa） Fragment：UNP Residues 7-111
Not recorded 2U7 [(2S,5R,6R)-4-[(2S)-1-(tert-butylsulfonyl)butan-2-yl]-6-(3-chlorophenyl)-5-(4-chlorophenyl)-3-oxomorpholin-2-yl]acetic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；1.6-2.3M Ammonium Sulfate, 0.1M sodium citrate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.20 Å R-free 0.283
4OGV Co-Crystal Structure of MDM2 with Inhibitor Compound 49 Deposited 2014-01-16 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 17–111（95 aa） Fragment：UNP Residues 7-111
Not recorded 2U7 [(2S,5R,6R)-4-[(2S)-1-(tert-butylsulfonyl)butan-2-yl]-6-(3-chlorophenyl)-5-(4-chlorophenyl)-3-oxomorpholin-2-yl]acetic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；1.6-2.3M Ammonium Sulfate, 0.1M sodium citrate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.20 Å R-free 0.283
4OGV Co-Crystal Structure of MDM2 with Inhibitor Compound 49 Deposited 2014-01-16 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 17–111（95 aa） Fragment：UNP Residues 7-111
Not recorded 2U7 [(2S,5R,6R)-4-[(2S)-1-(tert-butylsulfonyl)butan-2-yl]-6-(3-chlorophenyl)-5-(4-chlorophenyl)-3-oxomorpholin-2-yl]acetic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；1.6-2.3M Ammonium Sulfate, 0.1M sodium citrate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.20 Å R-free 0.283
4OQ3 Tetra-substituted imidazoles as a new class of inhibitors of the p53-MDM2 interaction Deposited 2014-02-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 17–111（95 aa） Fragment：N-TERMINAL DOMAIN, UNP residues 17-111
Mutation：L33E 2V8 1-(5-chloro-2-methylphenyl)-5-(3-chlorophenyl)-2-(3-methylphenyl)-1H-imidazole-4-carboxylic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；2.4M AmSO4, 0.1M Tris, 0.1M NaCitrate, pH 8.0, vapor diffusion, hanging drop, temperature 298K
Resolution 2.30 Å R-free 0.224
4OQ3 Tetra-substituted imidazoles as a new class of inhibitors of the p53-MDM2 interaction Deposited 2014-02-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 17–111（95 aa） Fragment：N-TERMINAL DOMAIN, UNP residues 17-111
Mutation：L33E 2V8 1-(5-chloro-2-methylphenyl)-5-(3-chlorophenyl)-2-(3-methylphenyl)-1H-imidazole-4-carboxylic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；2.4M AmSO4, 0.1M Tris, 0.1M NaCitrate, pH 8.0, vapor diffusion, hanging drop, temperature 298K
Resolution 2.30 Å R-free 0.224
4OQ3 Tetra-substituted imidazoles as a new class of inhibitors of the p53-MDM2 interaction Deposited 2014-02-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 17–111（95 aa） Fragment：N-TERMINAL DOMAIN, UNP residues 17-111
Mutation：L33E 2V8 1-(5-chloro-2-methylphenyl)-5-(3-chlorophenyl)-2-(3-methylphenyl)-1H-imidazole-4-carboxylic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；2.4M AmSO4, 0.1M Tris, 0.1M NaCitrate, pH 8.0, vapor diffusion, hanging drop, temperature 298K
Resolution 2.30 Å R-free 0.224
4OQ3 Tetra-substituted imidazoles as a new class of inhibitors of the p53-MDM2 interaction Deposited 2014-02-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 17–111（95 aa） Fragment：N-TERMINAL DOMAIN, UNP residues 17-111
Mutation：L33E 2V8 1-(5-chloro-2-methylphenyl)-5-(3-chlorophenyl)-2-(3-methylphenyl)-1H-imidazole-4-carboxylic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；2.4M AmSO4, 0.1M Tris, 0.1M NaCitrate, pH 8.0, vapor diffusion, hanging drop, temperature 298K
Resolution 2.30 Å R-free 0.224
4QO4 co-crystal structure of MDM2 (17-111) with compound 16, {(3R,5R,6S)-5-(3-CHLOROPHENYL)-6-(4-CHLOROPHENYL)-1-[(1S)-1-(6-CYCLOPROPYLPYRIDIN-2-YL)PROPYL]-3-METHYL-2-OXOPIPERIDIN-3-YL}ACETIC ACID Deposited 2014-06-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 17–111（95 aa）
Not recorded 35S {(3R,5R,6S)-5-(3-chlorophenyl)-6-(4-chlorophenyl)-1-[(1S)-1-(6-cyclopropylpyridin-2-yl)propyl]-3-methyl-2-oxopiperidin-3-yl}acetic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；100 mM Citrate, 1.9-2.4 M Ammonium Sulfate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.70 Å R-free 0.302
4QOC crystal structure of compound 16 bound to MDM2(17-111), {(3R,5R,6S)-5-(3-CHLOROPHENYL)-6-(4-CHLOROPHENYL)-1-[(1S)-1-CYCLOPROPYL-2-(PYRROLIDIN-1-YLSULFONYL)ETHYL]-3-METHYL-2-OXOPIPERIDIN-3-YL}ACETIC ACID Deposited 2014-06-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 17–111（95 aa）
Not recorded 35T {(3R,5R,6S)-5-(3-chlorophenyl)-6-(4-chlorophenyl)-1-[(1S)-1-cyclopropyl-2-(pyrrolidin-1-ylsulfonyl)ethyl]-3-methyl-2-oxopiperidin-3-yl}acetic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；100 mM Citrate, 1.9-2.4 M Ammonium Sulfate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.70 Å R-free 0.253
4QOC crystal structure of compound 16 bound to MDM2(17-111), {(3R,5R,6S)-5-(3-CHLOROPHENYL)-6-(4-CHLOROPHENYL)-1-[(1S)-1-CYCLOPROPYL-2-(PYRROLIDIN-1-YLSULFONYL)ETHYL]-3-METHYL-2-OXOPIPERIDIN-3-YL}ACETIC ACID Deposited 2014-06-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 17–111（95 aa）
Not recorded 35T {(3R,5R,6S)-5-(3-chlorophenyl)-6-(4-chlorophenyl)-1-[(1S)-1-cyclopropyl-2-(pyrrolidin-1-ylsulfonyl)ethyl]-3-methyl-2-oxopiperidin-3-yl}acetic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；100 mM Citrate, 1.9-2.4 M Ammonium Sulfate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.70 Å R-free 0.253
4QOC crystal structure of compound 16 bound to MDM2(17-111), {(3R,5R,6S)-5-(3-CHLOROPHENYL)-6-(4-CHLOROPHENYL)-1-[(1S)-1-CYCLOPROPYL-2-(PYRROLIDIN-1-YLSULFONYL)ETHYL]-3-METHYL-2-OXOPIPERIDIN-3-YL}ACETIC ACID Deposited 2014-06-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain E 17–111（95 aa）
Not recorded 35T {(3R,5R,6S)-5-(3-chlorophenyl)-6-(4-chlorophenyl)-1-[(1S)-1-cyclopropyl-2-(pyrrolidin-1-ylsulfonyl)ethyl]-3-methyl-2-oxopiperidin-3-yl}acetic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；100 mM Citrate, 1.9-2.4 M Ammonium Sulfate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.70 Å R-free 0.253
4QOC crystal structure of compound 16 bound to MDM2(17-111), {(3R,5R,6S)-5-(3-CHLOROPHENYL)-6-(4-CHLOROPHENYL)-1-[(1S)-1-CYCLOPROPYL-2-(PYRROLIDIN-1-YLSULFONYL)ETHYL]-3-METHYL-2-OXOPIPERIDIN-3-YL}ACETIC ACID Deposited 2014-06-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain G 17–111（95 aa）
Not recorded 35T {(3R,5R,6S)-5-(3-chlorophenyl)-6-(4-chlorophenyl)-1-[(1S)-1-cyclopropyl-2-(pyrrolidin-1-ylsulfonyl)ethyl]-3-methyl-2-oxopiperidin-3-yl}acetic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；100 mM Citrate, 1.9-2.4 M Ammonium Sulfate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.70 Å R-free 0.253
4QOC crystal structure of compound 16 bound to MDM2(17-111), {(3R,5R,6S)-5-(3-CHLOROPHENYL)-6-(4-CHLOROPHENYL)-1-[(1S)-1-CYCLOPROPYL-2-(PYRROLIDIN-1-YLSULFONYL)ETHYL]-3-METHYL-2-OXOPIPERIDIN-3-YL}ACETIC ACID Deposited 2014-06-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain I 17–111（95 aa）
Not recorded 35T {(3R,5R,6S)-5-(3-chlorophenyl)-6-(4-chlorophenyl)-1-[(1S)-1-cyclopropyl-2-(pyrrolidin-1-ylsulfonyl)ethyl]-3-methyl-2-oxopiperidin-3-yl}acetic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；100 mM Citrate, 1.9-2.4 M Ammonium Sulfate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.70 Å R-free 0.253
4QOC crystal structure of compound 16 bound to MDM2(17-111), {(3R,5R,6S)-5-(3-CHLOROPHENYL)-6-(4-CHLOROPHENYL)-1-[(1S)-1-CYCLOPROPYL-2-(PYRROLIDIN-1-YLSULFONYL)ETHYL]-3-METHYL-2-OXOPIPERIDIN-3-YL}ACETIC ACID Deposited 2014-06-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 6 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain K 17–111（95 aa）
Not recorded 35T {(3R,5R,6S)-5-(3-chlorophenyl)-6-(4-chlorophenyl)-1-[(1S)-1-cyclopropyl-2-(pyrrolidin-1-ylsulfonyl)ethyl]-3-methyl-2-oxopiperidin-3-yl}acetic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；100 mM Citrate, 1.9-2.4 M Ammonium Sulfate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 1.70 Å R-free 0.253
4UD7 Structure of the stapled peptide YS-02 bound to MDM2 Deposited 2014-12-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 17–125（109 aa） Fragment：P53 BINDING DOMAIN, UNP RESIDUES 17-125
Mutation：YES No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 4；0.1 M SODIUM CITRATE PH 4.0 AND 15 % PEG8000
Resolution 1.60 Å R-free 0.178
4UD7 Structure of the stapled peptide YS-02 bound to MDM2 Deposited 2014-12-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 17–125（109 aa） Fragment：P53 BINDING DOMAIN, UNP RESIDUES 17-125
Mutation：YES No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 4；0.1 M SODIUM CITRATE PH 4.0 AND 15 % PEG8000
Resolution 1.60 Å R-free 0.178
4UD7 Structure of the stapled peptide YS-02 bound to MDM2 Deposited 2014-12-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 17–125（109 aa） Fragment：P53 BINDING DOMAIN, UNP RESIDUES 17-125
Mutation：YES No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 4；0.1 M SODIUM CITRATE PH 4.0 AND 15 % PEG8000
Resolution 1.60 Å R-free 0.178
4UD7 Structure of the stapled peptide YS-02 bound to MDM2 Deposited 2014-12-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 17–125（109 aa） Fragment：P53 BINDING DOMAIN, UNP RESIDUES 17-125
Mutation：YES No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 4；0.1 M SODIUM CITRATE PH 4.0 AND 15 % PEG8000
Resolution 1.60 Å R-free 0.178
4UE1 Structure of the stapled peptide YS-01 bound to MDM2 Deposited 2014-12-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 17–125（109 aa） Fragment：P53 BINDING DOMAIN, RESIDUES 17-125
Mutation：YES No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 4.2；0.1 M SODIUM CITRATE PH 4.2, 0.2 M SODIUM CHLORIDE AND 20 % PEG8000
Resolution 1.45 Å R-free 0.184
4UE1 Structure of the stapled peptide YS-01 bound to MDM2 Deposited 2014-12-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 17–125（109 aa） Fragment：P53 BINDING DOMAIN, RESIDUES 17-125
Mutation：YES No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 4.2；0.1 M SODIUM CITRATE PH 4.2, 0.2 M SODIUM CHLORIDE AND 20 % PEG8000
Resolution 1.45 Å R-free 0.184
4UE1 Structure of the stapled peptide YS-01 bound to MDM2 Deposited 2014-12-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 17–125（109 aa） Fragment：P53 BINDING DOMAIN, RESIDUES 17-125
Mutation：YES No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 4.2；0.1 M SODIUM CITRATE PH 4.2, 0.2 M SODIUM CHLORIDE AND 20 % PEG8000
Resolution 1.45 Å R-free 0.184
4UE1 Structure of the stapled peptide YS-01 bound to MDM2 Deposited 2014-12-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 17–125（109 aa） Fragment：P53 BINDING DOMAIN, RESIDUES 17-125
Mutation：YES No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 4.2；0.1 M SODIUM CITRATE PH 4.2, 0.2 M SODIUM CHLORIDE AND 20 % PEG8000
Resolution 1.45 Å R-free 0.184
4UMN Structure of a stapled peptide antagonist bound to Nutlin-resistant Mdm2. Deposited 2014-05-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 6–125（120 aa） Fragment：P53 BINDING DOMAIN, RESIDUES 6-125
Chain B 6–125（120 aa） Fragment：P53 BINDING DOMAIN, RESIDUES 6-125
Mutation：YES Mutation：YES No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.4；289 K；0.04 M CITRIC ACID, 0.06 M BIS-TRIS PROPANE PH 6.4, AND 20% PEG 3350
Resolution 1.99 Å R-free 0.237
4WT2 Co-crystal Structure of MDM2 in Complex with AM-7209 Deposited 2014-10-30 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 12–116（105 aa） Fragment：UNP RESIDUES 12-116
Not recorded 3UD 4-({[(3R,5R,6S)-1-[(1S)-2-(tert-butylsulfonyl)-1-cyclopropylethyl]-6-(4-chloro-3-fluorophenyl)-5-(3-chlorophenyl)-3-methyl-2-oxopiperidin-3-yl]acetyl}amino)-2-methoxybenzoic acid × 1 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；1.4M Ammonium Sulfate, 0.1M Sodium Citrate
Resolution 1.42 Å R-free 0.192
4XXB Crystal structure of human MDM2-RPL11 Deposited 2015-01-30 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 290–437（148 aa） Fragment：UNP residues 293-334
Not recorded IMD IMIDAZOLE × 1 BME BETA-MERCAPTOETHANOL × 1 ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；peg
Resolution 2.40 Å R-free 0.227
4ZFI Structure of Mdm2 with low molecular weight inhibitor Deposited 2015-04-21 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 24–119（96 aa） Fragment：UNP RESIDUES 18-113
Not recorded 4NJ (5S)-3,5-bis(4-chlorobenzyl)-4-(6-chloro-1H-indol-3-yl)-5-hydroxy-1-methyl-1,5-dihydro-2H-pyrrol-2-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；0.1 M HEPES pH 7.5, 0.2 M sodium chloride, 25% (w/v) PEG 3350
Resolution 2.00 Å R-free 0.243
4ZFI Structure of Mdm2 with low molecular weight inhibitor Deposited 2015-04-21 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 24–119（96 aa） Fragment：UNP RESIDUES 18-113
Not recorded 4NJ (5S)-3,5-bis(4-chlorobenzyl)-4-(6-chloro-1H-indol-3-yl)-5-hydroxy-1-methyl-1,5-dihydro-2H-pyrrol-2-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；0.1 M HEPES pH 7.5, 0.2 M sodium chloride, 25% (w/v) PEG 3350
Resolution 2.00 Å R-free 0.243
4ZFI Structure of Mdm2 with low molecular weight inhibitor Deposited 2015-04-21 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 24–119（96 aa） Fragment：UNP RESIDUES 18-113
Not recorded 4NJ (5S)-3,5-bis(4-chlorobenzyl)-4-(6-chloro-1H-indol-3-yl)-5-hydroxy-1-methyl-1,5-dihydro-2H-pyrrol-2-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；0.1 M HEPES pH 7.5, 0.2 M sodium chloride, 25% (w/v) PEG 3350
Resolution 2.00 Å R-free 0.243
4ZFI Structure of Mdm2 with low molecular weight inhibitor Deposited 2015-04-21 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 24–119（96 aa） Fragment：UNP RESIDUES 18-113
Not recorded 4NJ (5S)-3,5-bis(4-chlorobenzyl)-4-(6-chloro-1H-indol-3-yl)-5-hydroxy-1-methyl-1,5-dihydro-2H-pyrrol-2-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；0.1 M HEPES pH 7.5, 0.2 M sodium chloride, 25% (w/v) PEG 3350
Resolution 2.00 Å R-free 0.243
4ZGK Structure of Mdm2 with low molecular weight inhibitor. Deposited 2015-04-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 18–114（97 aa） Fragment：UNP residues 18-114
Not recorded 4NX (5R)-3,5-bis(4-chlorobenzyl)-4-(6-chloro-1H-indol-3-yl)-5-hydroxyfuran-2(5H)-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；0.1 M HEPES pH 7.5 containing 30% PEG 1000
Resolution 2.00 Å R-free 0.247
4ZGK Structure of Mdm2 with low molecular weight inhibitor. Deposited 2015-04-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 18–114（97 aa） Fragment：UNP residues 18-114
Not recorded 4NX (5R)-3,5-bis(4-chlorobenzyl)-4-(6-chloro-1H-indol-3-yl)-5-hydroxyfuran-2(5H)-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；0.1 M HEPES pH 7.5 containing 30% PEG 1000
Resolution 2.00 Å R-free 0.247
4ZYC Discovery of dihydroisoquinolinone derivatives as novel inhibitors of the p53-MDM2 interaction with a distinct binding mode: Hdm2 (MDM2) complexed with cpd5 Deposited 2015-05-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 17–111（95 aa） Fragment：N-TERMINAL DOMAIN, P53-BINDING DOMAIN, UNP residues 17-111
Mutation：L33E 4SS (S)-2-(2-((2H-tetrazol-5-yl)methoxy)-4-methylphenyl)-1-(4-chlorophenyl)-6,7-diethoxy-1,2-dihydroisoquinolin-3(4H)-one × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；reservoir: 2.2M ammonium sulphate, 0.2M KNa tartrate, protein: 10mg/ml Hdm2 in 50mM TRIS pH 8.0, 200mM NaCl, 1mM TCEP, 10% glycerol, drop: 0.2ul reservoir + 0.2ul protein
Resolution 1.95 Å R-free 0.259
4ZYC Discovery of dihydroisoquinolinone derivatives as novel inhibitors of the p53-MDM2 interaction with a distinct binding mode: Hdm2 (MDM2) complexed with cpd5 Deposited 2015-05-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 17–111（95 aa） Fragment：N-TERMINAL DOMAIN, P53-BINDING DOMAIN, UNP residues 17-111
Mutation：L33E 4SS (S)-2-(2-((2H-tetrazol-5-yl)methoxy)-4-methylphenyl)-1-(4-chlorophenyl)-6,7-diethoxy-1,2-dihydroisoquinolin-3(4H)-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；reservoir: 2.2M ammonium sulphate, 0.2M KNa tartrate, protein: 10mg/ml Hdm2 in 50mM TRIS pH 8.0, 200mM NaCl, 1mM TCEP, 10% glycerol, drop: 0.2ul reservoir + 0.2ul protein
Resolution 1.95 Å R-free 0.259
4ZYC Discovery of dihydroisoquinolinone derivatives as novel inhibitors of the p53-MDM2 interaction with a distinct binding mode: Hdm2 (MDM2) complexed with cpd5 Deposited 2015-05-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 17–111（95 aa） Fragment：N-TERMINAL DOMAIN, P53-BINDING DOMAIN, UNP residues 17-111
Mutation：L33E SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；reservoir: 2.2M ammonium sulphate, 0.2M KNa tartrate, protein: 10mg/ml Hdm2 in 50mM TRIS pH 8.0, 200mM NaCl, 1mM TCEP, 10% glycerol, drop: 0.2ul reservoir + 0.2ul protein
Resolution 1.95 Å R-free 0.259
4ZYF Discovery of NVP-CGM097 - a highly potent and selective MDM2 inhibitor undergoing phase 1 clinical trials in p53wt tumors: Hdm2 (MDM2) complexed with NVP-CGM097 Deposited 2015-05-21 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 17–111（95 aa） Fragment：N-TERMINAL DOMAIN, P53-BINDING DOMAIN, UNP residues 17-111
Not recorded 4T4 (S)-1-(4-chlorophenyl)-7-isopropoxy-6-methoxy-2-(4-(methyl(((1r,4S)-4-(4-methyl-3-oxopiperazin-1-yl)cyclohexyl)methyl)amino)phenyl)-1,2-dihydroisoquinolin-3(4H)-one × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；298 K；reservoir: 2M AmSulfate, 0.1M cictric acid, pH4.5, protein: 7mg/ml Hdm2 in 50mM TRIS pH8.0, 200mM NaCl, 1mM TCEP, 10% glycerol, drop: 1ul reservoir + 1ul protein
Resolution 1.80 Å R-free 0.232
4ZYI Discovery of NVP-CGM097 - a highly potent and selective MDM2 inhibitor undergoing phase 1 clinical trials in p53wt tumors: Hdm2 (MDM2) complexed with cpd2 Deposited 2015-05-21 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 17–111（95 aa） Fragment：N-TERMINAL DOMAIN, P53-BINDING DOMAIN, UNP residues 17-111
Not recorded 4TH (S)-7-((R)-sec-butoxy)-1-(4-chlorophenyl)-6-methoxy-2-(4-(methyl(pyridin-4-ylmethyl)amino)phenyl)-1,2-dihydroisoquinolin-3(4H)-one × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.7；298 K；reservoir: 2.2M AmmoniumSulfate, 0.1M cictric acid, pH4.7. protein: 7mg/ml Hdm2 in 50mM TRIS pH8.0, 200mM NaCl, 1mM TCEP, 10% glycerol. drop: 1ul reservoir + 1ul protein
Resolution 1.67 Å R-free 0.247
5AFG Structure of the Stapled Peptide Bound to Mdm2 Deposited 2015-01-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 17–108（92 aa） Fragment：P53 BINDING DOMAIN (RESIDUES 17-108)
Mutation：YES P07 1,8-DIETHYL-1,8-DIHYDRODIBENZO[3,4:7,8][1,2,3]TRIAZOLO[4',5':5,6]CYCLOOCTA[1,2-D][1,2,3]TRIAZOLE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 4.5；100 MM SODIUM ACETATE, 1 M AMMONIUM DI-HYDROGEN PHOSPHATE, PH 4.5
Resolution 1.90 Å R-free 0.226
5C5A Crystal Structure of HDM2 in complex with Nutlin-3a Deposited 2015-06-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 20–111（92 aa）
Not recorded NUT 4-({(4S,5R)-4,5-bis(4-chlorophenyl)-2-[4-methoxy-2-(propan-2-yloxy)phenyl]-4,5-dihydro-1H-imidazol-1-yl}carbonyl)piperazin-2-one × 1 SO4 SULFATE ION × 1 CL CHLORIDE ION × 1 IOD IODIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2M Potassium iodide, 2.2M Ammonium Sulfate
Resolution 1.15 Å R-free 0.168
5C5A Crystal Structure of HDM2 in complex with Nutlin-3a Deposited 2015-06-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 20–111（92 aa）
Not recorded NUT 4-({(4S,5R)-4,5-bis(4-chlorophenyl)-2-[4-methoxy-2-(propan-2-yloxy)phenyl]-4,5-dihydro-1H-imidazol-1-yl}carbonyl)piperazin-2-one × 1 SO4 SULFATE ION × 1 CL CHLORIDE ION × 1 IOD IODIDE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2M Potassium iodide, 2.2M Ammonium Sulfate
Resolution 1.15 Å R-free 0.168
5HMH HDM2 in complex with a 3,3-Disubstituted Piperidine Deposited 2016-01-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 21–116（96 aa）
Mutation：F55Y, Y76H 62R 4-[2-(4-{[(2R,3S)-2-propyl-1-{[4-(trifluoromethyl)pyridin-3-yl]carbonyl}-3-{[5-(trifluoromethyl)thiophen-3-yl]oxy}piperidin-3-yl]carbonyl}piperazin-1-yl)phenoxy]butanoic acid × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.2；303 K；1.8-2.2 Ammonium sulfate
Resolution 1.79 Å R-free 0.239
5HMH HDM2 in complex with a 3,3-Disubstituted Piperidine Deposited 2016-01-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 21–116（96 aa）
Mutation：F55Y, Y76H 62R 4-[2-(4-{[(2R,3S)-2-propyl-1-{[4-(trifluoromethyl)pyridin-3-yl]carbonyl}-3-{[5-(trifluoromethyl)thiophen-3-yl]oxy}piperidin-3-yl]carbonyl}piperazin-1-yl)phenoxy]butanoic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.2；303 K；1.8-2.2 Ammonium sulfate
Resolution 1.79 Å R-free 0.239
5HMH HDM2 in complex with a 3,3-Disubstituted Piperidine Deposited 2016-01-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 21–116（96 aa）
Chain B 21–116（96 aa）
Mutation：F55Y, Y76H Mutation：F55Y, Y76H 62R 4-[2-(4-{[(2R,3S)-2-propyl-1-{[4-(trifluoromethyl)pyridin-3-yl]carbonyl}-3-{[5-(trifluoromethyl)thiophen-3-yl]oxy}piperidin-3-yl]carbonyl}piperazin-1-yl)phenoxy]butanoic acid × 2 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.2；303 K；1.8-2.2 Ammonium sulfate
Resolution 1.79 Å R-free 0.239
5HMI HDM2 in complex with a 3,3-Disubstituted Piperidine Deposited 2016-01-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 24–122（99 aa）
Mutation：F55Y, Y76H 62T {4-[2-(2-hydroxyethoxy)phenyl]piperazin-1-yl}[(2R,3S)-2-propyl-1-{[4-(trifluoromethyl)pyridin-3-yl]carbonyl}-3-{[5-(trifluoromethyl)thiophen-3-yl]oxy}piperidin-3-yl]methanone × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.2；303 K；1.8-2.2 M ammonium sulfate, 100 mM NaCitrate/Citric acid
Resolution 1.74 Å R-free 0.229
5HMI HDM2 in complex with a 3,3-Disubstituted Piperidine Deposited 2016-01-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 24–122（99 aa）
Mutation：F55Y, Y76H 62T {4-[2-(2-hydroxyethoxy)phenyl]piperazin-1-yl}[(2R,3S)-2-propyl-1-{[4-(trifluoromethyl)pyridin-3-yl]carbonyl}-3-{[5-(trifluoromethyl)thiophen-3-yl]oxy}piperidin-3-yl]methanone × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.2；303 K；1.8-2.2 M ammonium sulfate, 100 mM NaCitrate/Citric acid
Resolution 1.74 Å R-free 0.229
5HMI HDM2 in complex with a 3,3-Disubstituted Piperidine Deposited 2016-01-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 24–122（99 aa）
Chain B 24–122（99 aa）
Mutation：F55Y, Y76H Mutation：F55Y, Y76H 62T {4-[2-(2-hydroxyethoxy)phenyl]piperazin-1-yl}[(2R,3S)-2-propyl-1-{[4-(trifluoromethyl)pyridin-3-yl]carbonyl}-3-{[5-(trifluoromethyl)thiophen-3-yl]oxy}piperidin-3-yl]methanone × 2 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.2；303 K；1.8-2.2 M ammonium sulfate, 100 mM NaCitrate/Citric acid
Resolution 1.74 Å R-free 0.229
5HMK HDM2 in complex with a 3,3-Disubstituted Piperidine Deposited 2016-01-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 23–131（109 aa）
Mutation：F55Y, Y76H 62Q {4-[2-(2-hydroxyethoxy)phenyl]piperazin-1-yl}[(2R,3S)-2-propyl-3-[4-(trifluoromethyl)phenoxy]-1-{[4-(trifluoromethyl)pyridin-3-yl]carbonyl}piperidin-3-yl]methanone × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4；303 K；1.8-2.2 M ammonium sulfate, 100 mM Na Citrate/citric acid
Resolution 2.17 Å R-free 0.261
5HMK HDM2 in complex with a 3,3-Disubstituted Piperidine Deposited 2016-01-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 23–131（109 aa）
Mutation：F55Y, Y76H 62Q {4-[2-(2-hydroxyethoxy)phenyl]piperazin-1-yl}[(2R,3S)-2-propyl-3-[4-(trifluoromethyl)phenoxy]-1-{[4-(trifluoromethyl)pyridin-3-yl]carbonyl}piperidin-3-yl]methanone × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4；303 K；1.8-2.2 M ammonium sulfate, 100 mM Na Citrate/citric acid
Resolution 2.17 Å R-free 0.261
5HMK HDM2 in complex with a 3,3-Disubstituted Piperidine Deposited 2016-01-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 23–131（109 aa）
Chain B 23–131（109 aa）
Mutation：F55Y, Y76H Mutation：F55Y, Y76H 62Q {4-[2-(2-hydroxyethoxy)phenyl]piperazin-1-yl}[(2R,3S)-2-propyl-3-[4-(trifluoromethyl)phenoxy]-1-{[4-(trifluoromethyl)pyridin-3-yl]carbonyl}piperidin-3-yl]methanone × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4；303 K；1.8-2.2 M ammonium sulfate, 100 mM Na Citrate/citric acid
Resolution 2.17 Å R-free 0.261
5J7F Structure of MDM2 with low molecular weight inhibitor with aliphatic linker. Deposited 2016-04-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–125（125 aa）
Chain D 1–125（125 aa）
Not recorded 6GG 4-({6-[(6-chloro-3-{1-[(4-chlorophenyl)methyl]-4-(4-fluorophenyl)-1H-imidazol-5-yl}-1H-indole-2-carbonyl)oxy]hexyl}amino)-4-oxobutanoic acid × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；0.1 M HEPES pH 7.5 with 0.2 M NaCl and 25% PEG 3350
Resolution 2.00 Å R-free 0.242
5J7F Structure of MDM2 with low molecular weight inhibitor with aliphatic linker. Deposited 2016-04-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain B 1–125（125 aa）
Chain C 1–125（125 aa）
Not recorded 6GG 4-({6-[(6-chloro-3-{1-[(4-chlorophenyl)methyl]-4-(4-fluorophenyl)-1H-imidazol-5-yl}-1H-indole-2-carbonyl)oxy]hexyl}amino)-4-oxobutanoic acid × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；0.1 M HEPES pH 7.5 with 0.2 M NaCl and 25% PEG 3350
Resolution 2.00 Å R-free 0.242
5J7G Structure of MDM2 with low molecular weight inhibitor with aliphatic linker. Deposited 2016-04-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 18–125（108 aa）
Chain D 18–125（108 aa）
Not recorded 6GG 4-({6-[(6-chloro-3-{1-[(4-chlorophenyl)methyl]-4-(4-fluorophenyl)-1H-imidazol-5-yl}-1H-indole-2-carbonyl)oxy]hexyl}amino)-4-oxobutanoic acid × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；0.1 M Na HEPES pH 7.5 with 10% isopropanol and 20% PEG 4000
Resolution 1.85 Å R-free 0.234
5J7G Structure of MDM2 with low molecular weight inhibitor with aliphatic linker. Deposited 2016-04-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain B 18–125（108 aa）
Chain C 18–125（108 aa）
Not recorded 6GG 4-({6-[(6-chloro-3-{1-[(4-chlorophenyl)methyl]-4-(4-fluorophenyl)-1H-imidazol-5-yl}-1H-indole-2-carbonyl)oxy]hexyl}amino)-4-oxobutanoic acid × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；0.1 M Na HEPES pH 7.5 with 10% isopropanol and 20% PEG 4000
Resolution 1.85 Å R-free 0.234
5J7G Structure of MDM2 with low molecular weight inhibitor with aliphatic linker. Deposited 2016-04-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 18–125（108 aa）
Chain D 18–125（108 aa）
Not recorded 6GG 4-({6-[(6-chloro-3-{1-[(4-chlorophenyl)methyl]-4-(4-fluorophenyl)-1H-imidazol-5-yl}-1H-indole-2-carbonyl)oxy]hexyl}amino)-4-oxobutanoic acid × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；0.1 M Na HEPES pH 7.5 with 10% isopropanol and 20% PEG 4000
Resolution 1.85 Å R-free 0.234
5LAV Novel Spiro[3H-indole-3,2 -pyrrolidin]-2(1H)-one Inhibitors of the MDM2-p53 Interaction: HDM2 (MDM2) in complex with compound 6b Deposited 2016-06-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 19–111（93 aa）
Not recorded 6SK (3~{S},3'~{S},4'~{S})-4'-azanyl-6-chloranyl-3'-(3-chlorophenyl)-1'-(2,2-dimethylpropyl)spiro[1~{H}-indole-3,2'-pyrrolidine]-2-one × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；277 K；RESERVOIR SOLUTION : NULL
Resolution 1.73 Å R-free 0.273
5LAW Novel Spiro[3H-indole-3,2 -pyrrolidin]-2(1H)-one Inhibitors of the MDM2-p53 Interaction: HDM2 (MDM2) IN COMPLEX WITH COMPOUND 14 Deposited 2016-06-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 24–117（94 aa）
Not recorded 6SJ 2-[(3~{S},3'~{a}~{S},6'~{S},6'~{a}~{S})-6-chloranyl-6'-(3-chlorophenyl)-4'-(cyclopropylmethyl)-2-oxidanylidene-spiro[1~{H}-indole-3,5'-3,3~{a},6,6~{a}-tetrahydro-2~{H}-pyrrolo[3,2-b]pyrrole]-1'-yl]ethanoic acid × 1 SO4 SULFATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；277 K；RESERVOIR SOLUTION : NULL
Resolution 1.64 Å R-free 0.216
5LAY Discovery of New Natural-product-inspired Spiro-oxindole Compounds as Orally Active Inhibitors of the MDM2-p53 Interaction: HDM2 (MDM2) IN COMPLEX WITH COMPOUND 6g Deposited 2016-06-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 17–111（95 aa） Fragment：TRUNCATED N-TERMINAL DOMAIN
Not recorded GOL GLYCEROL × 3 SO4 SULFATE ION × 1 6SS (3~{S},3'~{S},4'~{S},5'~{S})-4'-azanyl-6-chloranyl-3'-(3-chloranyl-2-fluoranyl-phenyl)-1'-[(3-ethoxyphenyl)methyl]-5'-methyl-spiro[1~{H}-indole-3,2'-pyrrolidine]-2-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；277 K；NULL
Resolution 2.71 Å R-free 0.292
5LAY Discovery of New Natural-product-inspired Spiro-oxindole Compounds as Orally Active Inhibitors of the MDM2-p53 Interaction: HDM2 (MDM2) IN COMPLEX WITH COMPOUND 6g Deposited 2016-06-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 17–111（95 aa） Fragment：TRUNCATED N-TERMINAL DOMAIN
Not recorded SO4 SULFATE ION × 1 6SS (3~{S},3'~{S},4'~{S},5'~{S})-4'-azanyl-6-chloranyl-3'-(3-chloranyl-2-fluoranyl-phenyl)-1'-[(3-ethoxyphenyl)methyl]-5'-methyl-spiro[1~{H}-indole-3,2'-pyrrolidine]-2-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；277 K；NULL
Resolution 2.71 Å R-free 0.292
5LAY Discovery of New Natural-product-inspired Spiro-oxindole Compounds as Orally Active Inhibitors of the MDM2-p53 Interaction: HDM2 (MDM2) IN COMPLEX WITH COMPOUND 6g Deposited 2016-06-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 17–111（95 aa） Fragment：TRUNCATED N-TERMINAL DOMAIN
Not recorded GOL GLYCEROL × 1 6SS (3~{S},3'~{S},4'~{S},5'~{S})-4'-azanyl-6-chloranyl-3'-(3-chloranyl-2-fluoranyl-phenyl)-1'-[(3-ethoxyphenyl)methyl]-5'-methyl-spiro[1~{H}-indole-3,2'-pyrrolidine]-2-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；277 K；NULL
Resolution 2.71 Å R-free 0.292
5LAY Discovery of New Natural-product-inspired Spiro-oxindole Compounds as Orally Active Inhibitors of the MDM2-p53 Interaction: HDM2 (MDM2) IN COMPLEX WITH COMPOUND 6g Deposited 2016-06-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 17–111（95 aa） Fragment：TRUNCATED N-TERMINAL DOMAIN
Not recorded SO4 SULFATE ION × 1 6SS (3~{S},3'~{S},4'~{S},5'~{S})-4'-azanyl-6-chloranyl-3'-(3-chloranyl-2-fluoranyl-phenyl)-1'-[(3-ethoxyphenyl)methyl]-5'-methyl-spiro[1~{H}-indole-3,2'-pyrrolidine]-2-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；277 K；NULL
Resolution 2.71 Å R-free 0.292
5LAY Discovery of New Natural-product-inspired Spiro-oxindole Compounds as Orally Active Inhibitors of the MDM2-p53 Interaction: HDM2 (MDM2) IN COMPLEX WITH COMPOUND 6g Deposited 2016-06-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain E 17–111（95 aa） Fragment：TRUNCATED N-TERMINAL DOMAIN
Not recorded GOL GLYCEROL × 1 SO4 SULFATE ION × 1 6SS (3~{S},3'~{S},4'~{S},5'~{S})-4'-azanyl-6-chloranyl-3'-(3-chloranyl-2-fluoranyl-phenyl)-1'-[(3-ethoxyphenyl)methyl]-5'-methyl-spiro[1~{H}-indole-3,2'-pyrrolidine]-2-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；277 K；NULL
Resolution 2.71 Å R-free 0.292
5LAY Discovery of New Natural-product-inspired Spiro-oxindole Compounds as Orally Active Inhibitors of the MDM2-p53 Interaction: HDM2 (MDM2) IN COMPLEX WITH COMPOUND 6g Deposited 2016-06-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 6 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain F 17–111（95 aa） Fragment：TRUNCATED N-TERMINAL DOMAIN
Not recorded 6SS (3~{S},3'~{S},4'~{S},5'~{S})-4'-azanyl-6-chloranyl-3'-(3-chloranyl-2-fluoranyl-phenyl)-1'-[(3-ethoxyphenyl)methyl]-5'-methyl-spiro[1~{H}-indole-3,2'-pyrrolidine]-2-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；277 K；NULL
Resolution 2.71 Å R-free 0.292
5LAZ Novel Spiro[3H-indole-3,2 -pyrrolidin]-2(1H)-one Inhibitors of the MDM2-p53 Interaction: HDM2 (MDM2) IN COMPLEX WITH COMPOUND BI-0252 Deposited 2016-06-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 18–111（94 aa）
Not recorded 6ST 4-[(2~{R},3~{a}~{S},5~{S},6~{S},6~{a}~{S})-6'-chloranyl-6-(3-chloranyl-2-fluoranyl-phenyl)-4-(cyclopropylmethyl)-2'-oxidanylidene-spiro[1,2,3,3~{a},6,6~{a}-hexahydropyrrolo[3,2-b]pyrrole-5,3'-1~{H}-indole]-2-yl]benzoic acid × 1 ZN ZINC ION × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；RESERVOIR SOLUTION : NULL
Resolution 1.66 Å R-free 0.205
5LN2 Discovery of a novel class of highly potent inhibitors of the p53-MDM2 interaction by structure-based design starting from a conformational argument Deposited 2016-08-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 23–117（95 aa） Fragment：N-terminal domain, p53 binding domain
Not recorded 6ZT (4~{S})-5-[5-chloranyl-2-[2-(dimethylamino)ethoxy]phenyl]-4-(4-chloranyl-2-methyl-phenyl)-2-(2-methoxyphenyl)-3-propan-2-yl-4~{H}-pyrrolo[3,4-c]pyrazol-6-one × 1 SO4 SULFATE ION × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；298 K；2.5M (NH4)2SO4, 0.1M NaCitrate
Resolution 1.58 Å R-free 0.247
5MNJ Structure of MDM2-MDMX-UbcH5B-ubiquitin complex Deposited 2016-12-13 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 428–491（64 aa）
Not recorded ZN ZINC ION × 4 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；292 K；0.1 M Tris-HCl, pH 8.5, 0.175 M Li2SO4 and 16-20 %(v/v) PEG 3350
Resolution 2.16 Å R-free 0.231
5MNJ Structure of MDM2-MDMX-UbcH5B-ubiquitin complex Deposited 2016-12-13 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain G 428–491（64 aa）
Not recorded ZN ZINC ION × 4 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；292 K；0.1 M Tris-HCl, pH 8.5, 0.175 M Li2SO4 and 16-20 %(v/v) PEG 3350
Resolution 2.16 Å R-free 0.231
5OAI Structure of MDM2 with low molecular weight inhibitor Deposited 2017-06-22 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 18–113（96 aa）
Not recorded B5K 3-[(1~{R})-2-(~{tert}-butylamino)-1-[methanoyl-[[3,4,5-tris(fluoranyl)phenyl]methyl]amino]-2-oxidanylidene-ethyl]-6-chloranyl-1~{H}-indole-2-carboxylic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277.15 K；0.1 M Bis-Tris pH 6.5, 20% (w/v) PEG 5000 MME
Resolution 2.00 Å R-free 0.227
5OC8 HDM2 (17-111, WILD TYPE) COMPLEXED WITH NVP-HDM201 AT 1.56A Deposited 2017-06-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 23–117（95 aa） Fragment：N-terminal domain, p53 binding domain
Not recorded 9QW (4~{S})-5-(5-chloranyl-1-methyl-2-oxidanylidene-pyridin-3-yl)-4-(4-chlorophenyl)-2-(2,4-dimethoxypyrimidin-5-yl)-3-propan-2-yl-4~{H}-pyrrolo[3,4-d]imidazol-6-one × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；298 K；3M AmSO4, 0.1M citrate
Resolution 1.56 Å R-free 0.260
5SWK Crystal structure of p53 epitope-scaffold based on a inhibitor of cysteine proteases in complex with human MDM2 Deposited 2016-08-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–150（150 aa） Fragment：UNP residues 1-150
Chain B 1–150（150 aa） Fragment：UNP residues 1-150
Not recorded CL CHLORIDE ION × 7 SO4 SULFATE ION × 2 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；292 K；0.1 M NaCl 0.1 M HEPES pH 7.5 1.6 M (NH4)2SO4
Resolution 1.92 Å R-free 0.249
5TRF MDM2 in complex with SAR405838 Deposited 2016-10-26 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 10–118（109 aa） Fragment：residues 10-118
Not recorded 7HC (2'S,3R,4'S,5'R)-6-chloro-4'-(3-chloro-2-fluorophenyl)-2'-(2,2-dimethylpropyl)-N-(trans-4-hydroxycyclohexyl)-2-oxo-1,2-dihydrospiro[indole-3,3'-pyrrolidine]-5'-carboxamide × 1 SO4 SULFATE ION × 1 GOL GLYCEROL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；2m2M Ammonium Sulfate and 0.2M Lithium Nitrate
Resolution 2.10 Å R-free 0.208
5TRF MDM2 in complex with SAR405838 Deposited 2016-10-26 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 10–118（109 aa） Fragment：residues 10-118
Not recorded 7HC (2'S,3R,4'S,5'R)-6-chloro-4'-(3-chloro-2-fluorophenyl)-2'-(2,2-dimethylpropyl)-N-(trans-4-hydroxycyclohexyl)-2-oxo-1,2-dihydrospiro[indole-3,3'-pyrrolidine]-5'-carboxamide × 1 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；2m2M Ammonium Sulfate and 0.2M Lithium Nitrate
Resolution 2.10 Å R-free 0.208
5TRF MDM2 in complex with SAR405838 Deposited 2016-10-26 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 10–118（109 aa） Fragment：residues 10-118
Not recorded 7HC (2'S,3R,4'S,5'R)-6-chloro-4'-(3-chloro-2-fluorophenyl)-2'-(2,2-dimethylpropyl)-N-(trans-4-hydroxycyclohexyl)-2-oxo-1,2-dihydrospiro[indole-3,3'-pyrrolidine]-5'-carboxamide × 1 SO4 SULFATE ION × 1 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；2m2M Ammonium Sulfate and 0.2M Lithium Nitrate
Resolution 2.10 Å R-free 0.208
5TRF MDM2 in complex with SAR405838 Deposited 2016-10-26 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 10–118（109 aa） Fragment：residues 10-118
Not recorded 7HC (2'S,3R,4'S,5'R)-6-chloro-4'-(3-chloro-2-fluorophenyl)-2'-(2,2-dimethylpropyl)-N-(trans-4-hydroxycyclohexyl)-2-oxo-1,2-dihydrospiro[indole-3,3'-pyrrolidine]-5'-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；2m2M Ammonium Sulfate and 0.2M Lithium Nitrate
Resolution 2.10 Å R-free 0.208
5TRF MDM2 in complex with SAR405838 Deposited 2016-10-26 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain E 10–118（109 aa） Fragment：residues 10-118
Not recorded 7HC (2'S,3R,4'S,5'R)-6-chloro-4'-(3-chloro-2-fluorophenyl)-2'-(2,2-dimethylpropyl)-N-(trans-4-hydroxycyclohexyl)-2-oxo-1,2-dihydrospiro[indole-3,3'-pyrrolidine]-5'-carboxamide × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；2m2M Ammonium Sulfate and 0.2M Lithium Nitrate
Resolution 2.10 Å R-free 0.208
5TRF MDM2 in complex with SAR405838 Deposited 2016-10-26 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 6 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 10–118（109 aa） Fragment：residues 10-118
Not recorded 7HC (2'S,3R,4'S,5'R)-6-chloro-4'-(3-chloro-2-fluorophenyl)-2'-(2,2-dimethylpropyl)-N-(trans-4-hydroxycyclohexyl)-2-oxo-1,2-dihydrospiro[indole-3,3'-pyrrolidine]-5'-carboxamide × 2 SO4 SULFATE ION × 2 GOL GLYCEROL × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；2m2M Ammonium Sulfate and 0.2M Lithium Nitrate
Resolution 2.10 Å R-free 0.208
5TRF MDM2 in complex with SAR405838 Deposited 2016-10-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 7 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain B 10–118（109 aa） Fragment：residues 10-118
Chain D 10–118（109 aa） Fragment：residues 10-118
Not recorded 7HC (2'S,3R,4'S,5'R)-6-chloro-4'-(3-chloro-2-fluorophenyl)-2'-(2,2-dimethylpropyl)-N-(trans-4-hydroxycyclohexyl)-2-oxo-1,2-dihydrospiro[indole-3,3'-pyrrolidine]-5'-carboxamide × 2 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；2m2M Ammonium Sulfate and 0.2M Lithium Nitrate
Resolution 2.10 Å R-free 0.208
5TRF MDM2 in complex with SAR405838 Deposited 2016-10-26 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 8 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 10–118（109 aa） Fragment：residues 10-118
Not recorded 7HC (2'S,3R,4'S,5'R)-6-chloro-4'-(3-chloro-2-fluorophenyl)-2'-(2,2-dimethylpropyl)-N-(trans-4-hydroxycyclohexyl)-2-oxo-1,2-dihydrospiro[indole-3,3'-pyrrolidine]-5'-carboxamide × 2 SO4 SULFATE ION × 2 GOL GLYCEROL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；2m2M Ammonium Sulfate and 0.2M Lithium Nitrate
Resolution 2.10 Å R-free 0.208
5UMM CRYSTAL STRUCTURE OF HUMAN MDM2 IN COMPLEX WITH 12-MER PEPTIDE INHIBITOR M3 Deposited 2017-01-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 25–109（85 aa） Fragment：residues 25-109
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；0.1 M sodium cacodylate pH 5.5, 25% PEG (w/v) 4000
Resolution 1.65 Å R-free 0.231
5UMM CRYSTAL STRUCTURE OF HUMAN MDM2 IN COMPLEX WITH 12-MER PEPTIDE INHIBITOR M3 Deposited 2017-01-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 25–109（85 aa） Fragment：residues 25-109
Not recorded CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；0.1 M sodium cacodylate pH 5.5, 25% PEG (w/v) 4000
Resolution 1.65 Å R-free 0.231
5VK0 Crystal structure of human MDM2 in complex with a 12-mer lysine-cysteine side chain dithiocarbamate stapled peptide inhibitor PMI Deposited 2017-04-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 25–109（85 aa） Fragment：residues 25-109
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；1340 mM ammonium sulfate, 6.7% glycerol, 50 mM magnesium sulfate, 100 mM imidazole pH 6.5
Resolution 1.80 Å R-free 0.247
5VK0 Crystal structure of human MDM2 in complex with a 12-mer lysine-cysteine side chain dithiocarbamate stapled peptide inhibitor PMI Deposited 2017-04-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 10 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain S 25–109（85 aa） Fragment：residues 25-109
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；1340 mM ammonium sulfate, 6.7% glycerol, 50 mM magnesium sulfate, 100 mM imidazole pH 6.5
Resolution 1.80 Å R-free 0.247
5VK0 Crystal structure of human MDM2 in complex with a 12-mer lysine-cysteine side chain dithiocarbamate stapled peptide inhibitor PMI Deposited 2017-04-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 11 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain U 25–109（85 aa） Fragment：residues 25-109
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；1340 mM ammonium sulfate, 6.7% glycerol, 50 mM magnesium sulfate, 100 mM imidazole pH 6.5
Resolution 1.80 Å R-free 0.247
5VK0 Crystal structure of human MDM2 in complex with a 12-mer lysine-cysteine side chain dithiocarbamate stapled peptide inhibitor PMI Deposited 2017-04-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 12 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain W 25–109（85 aa） Fragment：residues 25-109
Not recorded CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；1340 mM ammonium sulfate, 6.7% glycerol, 50 mM magnesium sulfate, 100 mM imidazole pH 6.5
Resolution 1.80 Å R-free 0.247
5VK0 Crystal structure of human MDM2 in complex with a 12-mer lysine-cysteine side chain dithiocarbamate stapled peptide inhibitor PMI Deposited 2017-04-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 25–109（85 aa） Fragment：residues 25-109
Not recorded CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；1340 mM ammonium sulfate, 6.7% glycerol, 50 mM magnesium sulfate, 100 mM imidazole pH 6.5
Resolution 1.80 Å R-free 0.247
5VK0 Crystal structure of human MDM2 in complex with a 12-mer lysine-cysteine side chain dithiocarbamate stapled peptide inhibitor PMI Deposited 2017-04-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 25–109（85 aa） Fragment：residues 25-109
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；1340 mM ammonium sulfate, 6.7% glycerol, 50 mM magnesium sulfate, 100 mM imidazole pH 6.5
Resolution 1.80 Å R-free 0.247
5VK0 Crystal structure of human MDM2 in complex with a 12-mer lysine-cysteine side chain dithiocarbamate stapled peptide inhibitor PMI Deposited 2017-04-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain G 25–109（85 aa） Fragment：residues 25-109
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；1340 mM ammonium sulfate, 6.7% glycerol, 50 mM magnesium sulfate, 100 mM imidazole pH 6.5
Resolution 1.80 Å R-free 0.247
5VK0 Crystal structure of human MDM2 in complex with a 12-mer lysine-cysteine side chain dithiocarbamate stapled peptide inhibitor PMI Deposited 2017-04-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 25–109（85 aa） Fragment：residues 25-109
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；1340 mM ammonium sulfate, 6.7% glycerol, 50 mM magnesium sulfate, 100 mM imidazole pH 6.5
Resolution 1.80 Å R-free 0.247
5VK0 Crystal structure of human MDM2 in complex with a 12-mer lysine-cysteine side chain dithiocarbamate stapled peptide inhibitor PMI Deposited 2017-04-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain K 25–109（85 aa） Fragment：residues 25-109
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；1340 mM ammonium sulfate, 6.7% glycerol, 50 mM magnesium sulfate, 100 mM imidazole pH 6.5
Resolution 1.80 Å R-free 0.247
5VK0 Crystal structure of human MDM2 in complex with a 12-mer lysine-cysteine side chain dithiocarbamate stapled peptide inhibitor PMI Deposited 2017-04-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 7 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain M 25–109（85 aa） Fragment：residues 25-109
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；1340 mM ammonium sulfate, 6.7% glycerol, 50 mM magnesium sulfate, 100 mM imidazole pH 6.5
Resolution 1.80 Å R-free 0.247
5VK0 Crystal structure of human MDM2 in complex with a 12-mer lysine-cysteine side chain dithiocarbamate stapled peptide inhibitor PMI Deposited 2017-04-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 8 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain O 25–109（85 aa） Fragment：residues 25-109
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；1340 mM ammonium sulfate, 6.7% glycerol, 50 mM magnesium sulfate, 100 mM imidazole pH 6.5
Resolution 1.80 Å R-free 0.247
5VK0 Crystal structure of human MDM2 in complex with a 12-mer lysine-cysteine side chain dithiocarbamate stapled peptide inhibitor PMI Deposited 2017-04-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 9 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain Q 25–109（85 aa） Fragment：residues 25-109
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；1340 mM ammonium sulfate, 6.7% glycerol, 50 mM magnesium sulfate, 100 mM imidazole pH 6.5
Resolution 1.80 Å R-free 0.247
5WTS Green fluorescent protein linked MTide-02 inhibitor in complex with mdm2 Deposited 2016-12-14 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 6–125（120 aa） Fragment：UNP residues 6-125
Not recorded GOL GLYCEROL × 1 PO4 PHOSPHATE ION × 2 PG4 TETRAETHYLENE GLYCOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；288 K；0.2M sodium chloride, 0.1M Bis-Tris, 25% PEG3350
Resolution 3.00 Å R-free 0.244
5XXK Structure-activity studies of Mdm2/Mdm4-binding stapled peptides comprising non-natural amino acids Deposited 2017-07-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 6–125（120 aa） Fragment：UNP residues 6-125
Mutation：M62A No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.4；289 K；0.04M Citric acid, 0.06M Bis-Tris propane pH 6.4, 20% (v/v) PEG 3350
Resolution 1.66 Å R-free 0.209
5XXK Structure-activity studies of Mdm2/Mdm4-binding stapled peptides comprising non-natural amino acids Deposited 2017-07-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 6–125（120 aa） Fragment：UNP residues 6-125
Mutation：M62A No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.4；289 K；0.04M Citric acid, 0.06M Bis-Tris propane pH 6.4, 20% (v/v) PEG 3350
Resolution 1.66 Å R-free 0.209
5Z02 Crystal structure of HIS6-tagged Mdm2 with nutlin-3a Deposited 2017-12-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 24–112（89 aa） Fragment：UNP residues 24-112
Not recorded NUT 4-({(4S,5R)-4,5-bis(4-chlorophenyl)-2-[4-methoxy-2-(propan-2-yloxy)phenyl]-4,5-dihydro-1H-imidazol-1-yl}carbonyl)piperazin-2-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.2 Ammonium acetate, 20% ammonium sulfate
Resolution 1.35 Å R-free 0.254
5ZXF The 1.25A Crystal structure of His6-tagged Mdm2 in complex with nutlin-3a Deposited 2018-05-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 24–110（87 aa） Fragment：UNP residues 24-110
Not recorded NUT 4-({(4S,5R)-4,5-bis(4-chlorophenyl)-2-[4-methoxy-2-(propan-2-yloxy)phenyl]-4,5-dihydro-1H-imidazol-1-yl}carbonyl)piperazin-2-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.2M NaOAc, 1.2M AmSO4, Seeding.
Resolution 1.25 Å R-free 0.243
6AAW Mdm2 in complex with a D amino Acid Containing Stapled Peptide Deposited 2018-07-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 6–125（120 aa） Fragment：UNP residues 6-125
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；20 % w/v Polyethylene glycol 8,000, 100 mM HEPES pH 7.5, 200 mM Ammonium sulfate, 10 % v/v 2-Propanol
Resolution 2.00 Å R-free 0.223
6GGN In vitro and in vivo characterization of a novel, highly potent p53-MDM2 inhibitor Deposited 2018-05-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 17–111（95 aa） Fragment：N-terminal domain, p53 binding domain
Not recorded EYH (4~{S})-4-(4-chloranyl-2-methyl-phenyl)-5-(5-chloranyl-2-methyl-phenyl)-2-(2,4-dimethoxypyrimidin-5-yl)-3-propan-2-yl-4~{H}-pyrrolo[3,4-d]imidazol-6-one × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；298 K；2.5M (NH4)2SO4, 0.1M NaCitrate
Resolution 2.00 Å R-free 0.230
6H22 Crystal structure of Mdm2 bound to a stapled peptide Deposited 2018-07-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 17–108（92 aa）
Mutation：E69AK70A FL5 12-(dimethylamino)-3,10-diethyl-N,N,N-trimethyl-3,10-dihydrodibenzo[3,4:7,8]cycloocta[1,2-d:5,6-d']bis([1,2,3]triazole)-5-aminium × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；292.15 K；1.1 M sodium malonate dibasic, 0.1 M HEPES pH 7.0, 0.5% v/v Jeffamine ED-2003
Resolution 2.01 Å R-free 0.238
6H22 Crystal structure of Mdm2 bound to a stapled peptide Deposited 2018-07-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 17–108（92 aa）
Mutation：E69AK70A FL5 12-(dimethylamino)-3,10-diethyl-N,N,N-trimethyl-3,10-dihydrodibenzo[3,4:7,8]cycloocta[1,2-d:5,6-d']bis([1,2,3]triazole)-5-aminium × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；292.15 K；1.1 M sodium malonate dibasic, 0.1 M HEPES pH 7.0, 0.5% v/v Jeffamine ED-2003
Resolution 2.01 Å R-free 0.238
6HFA Crystal structure of hDM2 in complex with a C-terminal triurea capped peptide chimera foldamer. Deposited 2018-08-21 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 23–117（95 aa） Fragment：residues 17-111
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；90 mM HEPES, 1.26 M Na Citrate, 10% glycerol. Cryo: +30% Glycerol
Resolution 1.79 Å R-free 0.238
6HFA Crystal structure of hDM2 in complex with a C-terminal triurea capped peptide chimera foldamer. Deposited 2018-08-21 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 23–117（95 aa） Fragment：residues 17-111
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；90 mM HEPES, 1.26 M Na Citrate, 10% glycerol. Cryo: +30% Glycerol
Resolution 1.79 Å R-free 0.238
6I29 X-ray structure of the p53-MDM2 inhibitor NMI801 bound to HDM2 at 2.1A resolution Deposited 2018-11-01 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 23–117（95 aa） Fragment：N-terminal domain, p53 binding domain
Not recorded H0W 6-chloranyl-3-[3-[(1~{S})-1-(4-chlorophenyl)ethyl]-5-phenyl-imidazol-4-yl]-~{N}-[2-[4-(2-oxidanylidene-1,3-oxazinan-3-yl)piperidin-1-yl]pyridin-3-yl]-1~{H}-indole-2-carboxamide × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 3.5；298 K；2.1M (NH4)SO4, 0.1M Citrate pH 3.5
Resolution 2.10 Å R-free 0.277
6I3S Crystal structure of MDM2 in complex with compound 13. Deposited 2018-11-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 18–111（94 aa）
Not recorded H28 (3~{S},3'~{R},3'~{a}~{S},6'~{a}~{R})-6-chloranyl-3'-(3-chloranyl-2-fluoranyl-phenyl)-1'-(cyclopropylmethyl)spiro[1~{H}-indole-3,2'-3~{a},6~{a}-dihydro-3~{H}-pyrrolo[3,4-b]pyrrole]-2,4'-dione × 1 GOL GLYCEROL × 1 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；293 K；2.10 M (NH4)2SO4, 0.10 M Na acetate
Resolution 1.77 Å R-free 0.239
6IM9 MDM2 bound CueO-PM2 sensor Deposited 2018-10-22 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 6–125（120 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；4M sodium formate
Resolution 3.30 Å R-free 0.249
6KZU Macrocyclization of an all-D linear peptide improves target affinity and imparts cellular activity: A novel stapled alpha-helical peptide modality Deposited 2019-09-25 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 6–125（120 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；289 K；800 mM Sodium di-hydrogen phosphate, 800 mM di-Potassium hydrogen phosphate, 100 mM HEPES pH 7.5
Resolution 1.79 Å R-free 0.236
6Q96 HDM2 (17-111, WILD TYPE) COMPLEXED WITH COMPOUND 12 AT 1.8A; Structural states of Hdm2 and HdmX: X-ray elucidation of adaptations and binding interactions for different chemical compound classes Deposited 2018-12-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 17–111（95 aa） Fragment：N-terminal domain, p53 binding domain
Not recorded HRE 4-[(4~{S})-5-(5-chloranyl-2-oxidanylidene-1~{H}-pyridin-3-yl)-2-[2-(dimethylamino)-4-methoxy-pyrimidin-5-yl]-6-oxidanylidene-3-propan-2-yl-4~{H}-pyrrolo[3,4-c]pyrazol-4-yl]benzenecarbonitrile × 1 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；2.2M AmSO4, 0.2M citrate
Resolution 1.80 Å R-free 0.220
6Q96 HDM2 (17-111, WILD TYPE) COMPLEXED WITH COMPOUND 12 AT 1.8A; Structural states of Hdm2 and HdmX: X-ray elucidation of adaptations and binding interactions for different chemical compound classes Deposited 2018-12-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 17–111（95 aa） Fragment：N-terminal domain, p53 binding domain
Not recorded HRE 4-[(4~{S})-5-(5-chloranyl-2-oxidanylidene-1~{H}-pyridin-3-yl)-2-[2-(dimethylamino)-4-methoxy-pyrimidin-5-yl]-6-oxidanylidene-3-propan-2-yl-4~{H}-pyrrolo[3,4-c]pyrazol-4-yl]benzenecarbonitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；2.2M AmSO4, 0.2M citrate
Resolution 1.80 Å R-free 0.220
6Q9H HDM2 (17-111, WILD TYPE) COMPLEXED WITH COMPOUND 11 AT 2.0A; Structural states of Hdm2 and HdmX: X-ray elucidation of adaptations and binding interactions for different chemical compound classes Deposited 2018-12-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 17–111（95 aa） Fragment：N-terminal domain, p53 binding domain
Not recorded HRH (4~{S})-5-(3-chloranyl-2-fluoranyl-phenyl)-4-(4-chloranyl-2-methyl-phenyl)-3-propan-2-yl-1,4-dihydropyrrolo[3,4-c]pyrazol-6-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；2.2M AmSO4, 0.2M NH4PO4
Resolution 2.00 Å R-free 0.266
6Q9L HDM2 (17-111, WILDTYPE) COMPLEXED WITH COMPOUND 9 AT 1.13A; Structural states of Hdm2 and HdmX: X-ray elucidation of adaptations and binding interactions for different chemical compound classes Deposited 2018-12-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 17–111（95 aa） Fragment：N-terminal domain, p53 binding domain
Not recorded HTZ [6-chloranyl-3-[3-[[4-chloranyl-2-(hydroxymethyl)phenyl]methyl]-5-phenyl-imidazol-4-yl]-1~{H}-indol-2-yl]-[(3~{S})-3-[3-(dimethylamino)propyl-methyl-amino]pyrrolidin-1-yl]methanone × 1 CL CHLORIDE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；2.7M AmSO4, 0.2M NaI, 0.2M NaCl, 0.2M TRIS
Resolution 1.13 Å R-free 0.190
6Q9L HDM2 (17-111, WILDTYPE) COMPLEXED WITH COMPOUND 9 AT 1.13A; Structural states of Hdm2 and HdmX: X-ray elucidation of adaptations and binding interactions for different chemical compound classes Deposited 2018-12-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 17–111（95 aa） Fragment：N-terminal domain, p53 binding domain
Not recorded HTZ [6-chloranyl-3-[3-[[4-chloranyl-2-(hydroxymethyl)phenyl]methyl]-5-phenyl-imidazol-4-yl]-1~{H}-indol-2-yl]-[(3~{S})-3-[3-(dimethylamino)propyl-methyl-amino]pyrrolidin-1-yl]methanone × 1 CL CHLORIDE ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；2.7M AmSO4, 0.2M NaI, 0.2M NaCl, 0.2M TRIS
Resolution 1.13 Å R-free 0.190
6Q9O HDM2 (17-111, WILDTYPE) COMPLEXED WITH COMPOUND 10 AT 1.21A; Structural states of Hdm2 and HdmX: X-ray elucidation of adaptations and binding interactions for different chemical compound classes Deposited 2018-12-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 17–111（95 aa） Fragment：N-terminal domain, p53 binding domain
Not recorded HU8 ~{N}-~{tert}-butyl-2-[4-chloranyl-2-[5-(3-chloranyl-4-fluoranyl-phenyl)-2-cyclohexyl-4-(1~{H}-1,2,3,4-tetrazol-5-yl)imidazol-1-yl]phenyl]ethanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；2.4M AmSO4, 0.1M NaCitrate, 0.2M NaCl, 0.1M TRIS
Resolution 1.21 Å R-free 0.156
6Q9O HDM2 (17-111, WILDTYPE) COMPLEXED WITH COMPOUND 10 AT 1.21A; Structural states of Hdm2 and HdmX: X-ray elucidation of adaptations and binding interactions for different chemical compound classes Deposited 2018-12-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 17–111（95 aa） Fragment：N-terminal domain, p53 binding domain
Not recorded HU8 ~{N}-~{tert}-butyl-2-[4-chloranyl-2-[5-(3-chloranyl-4-fluoranyl-phenyl)-2-cyclohexyl-4-(1~{H}-1,2,3,4-tetrazol-5-yl)imidazol-1-yl]phenyl]ethanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；2.4M AmSO4, 0.1M NaCitrate, 0.2M NaCl, 0.1M TRIS
Resolution 1.21 Å R-free 0.156
6SQO Crystal structure of human MDM2 RING domain homodimer bound to UbcH5B-Ub Deposited 2019-09-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 430–491（62 aa）
Chain D 430–491（62 aa）
Not recorded ZN ZINC ION × 4 CL CHLORIDE ION × 4 NO3 NITRATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；292 K；0.1 M SPG, pH 7.0, 10% (w/v) PEG Smear Broad, 0.15 M NH4NO3
Resolution 1.41 Å R-free 0.173
6T2D Multicomponent Peptide Stapling as a Diversity-Driven Tool for the Development of Inhibitors of Protein-Protein Interactions Deposited 2019-10-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 25–109（85 aa）
Mutation：L33E EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1 DMS DIMETHYL SULFOXIDE × 1 M9E 2-(methylamino)-~{N}-[[4-[[2-(methylamino)ethanoylamino]methyl]phenyl]methyl]ethanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；295 K；0.1M TRIS pH 8, 0.2M Ammonium Sulfate, 30% PEG-3350
Resolution 1.80 Å R-free 0.226
6T2E Multicomponent Peptide Stapling as a Diversity-Driven Tool for the Development of Inhibitors of Protein-Protein Interactions Deposited 2019-10-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 25–109（85 aa）
Mutation：L33E No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；295 K；0.056 M Sodium phosphate monobasic monohydrate, 1.344 M Potassium phosphate dibasic, pH8.2
Resolution 2.40 Å R-free 0.290
6T2F Multicomponent Peptide Stapling as a Diversity-Driven Tool for the Development of Inhibitors of Protein-Protein Interactions Deposited 2019-10-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 25–109（85 aa）
Mutation：L33E M9H 2-(methylamino)-~{N}-[[3-[[2-(methylamino)ethanoylamino]methyl]phenyl]methyl]ethanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；295 K；0.1M TRIS pH 8, 0.2M Trimethyl N-oxide dihydrate, 20% PEG-2000
Resolution 2.09 Å R-free 0.272
6Y4Q Structure of a stapled peptide bound to MDM2 Deposited 2020-02-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 17–108（92 aa）
Mutation：E69A, K70A O9E ~{N}-[(1-ethyl-1,2,3-triazol-4-yl)methyl]-~{N},5-dimethyl-4-[2-[2-methyl-5-[methyl-[(1-propyl-1,2,3-triazol-4-yl)methyl]carbamoyl]thiophen-3-yl]cyclopenten-1-yl]thiophene-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；291 K；10% w/v PEG 8000 (precipitant), 0.1 M Tris-HCl pH 7.0 (buffer), 0.2 M Magnesium chloride hexahydrate (salt)
Resolution 1.63 Å R-free 0.229
6Y4Q Structure of a stapled peptide bound to MDM2 Deposited 2020-02-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 17–108（92 aa）
Mutation：E69A, K70A O9E ~{N}-[(1-ethyl-1,2,3-triazol-4-yl)methyl]-~{N},5-dimethyl-4-[2-[2-methyl-5-[methyl-[(1-propyl-1,2,3-triazol-4-yl)methyl]carbamoyl]thiophen-3-yl]cyclopenten-1-yl]thiophene-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；291 K；10% w/v PEG 8000 (precipitant), 0.1 M Tris-HCl pH 7.0 (buffer), 0.2 M Magnesium chloride hexahydrate (salt)
Resolution 1.63 Å R-free 0.229
7AD0 X-ray structure of Mdm2 with modified p53 peptide Deposited 2020-09-13 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 24–113（90 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；277 K；0.1 M Bis-Tris pH 5.5 with 0.2 M NaCl and 25% PEG 3350
Resolution 2.07 Å R-free 0.238
7AD0 X-ray structure of Mdm2 with modified p53 peptide Deposited 2020-09-13 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 24–113（90 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；277 K；0.1 M Bis-Tris pH 5.5 with 0.2 M NaCl and 25% PEG 3350
Resolution 2.07 Å R-free 0.238
7AD0 X-ray structure of Mdm2 with modified p53 peptide Deposited 2020-09-13 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 24–113（90 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；277 K；0.1 M Bis-Tris pH 5.5 with 0.2 M NaCl and 25% PEG 3350
Resolution 2.07 Å R-free 0.238
7AD0 X-ray structure of Mdm2 with modified p53 peptide Deposited 2020-09-13 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 24–113（90 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；277 K；0.1 M Bis-Tris pH 5.5 with 0.2 M NaCl and 25% PEG 3350
Resolution 2.07 Å R-free 0.238
7AD0 X-ray structure of Mdm2 with modified p53 peptide Deposited 2020-09-13 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 24–113（90 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；277 K；0.1 M Bis-Tris pH 5.5 with 0.2 M NaCl and 25% PEG 3350
Resolution 2.07 Å R-free 0.238
7AD0 X-ray structure of Mdm2 with modified p53 peptide Deposited 2020-09-13 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 24–113（90 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；277 K；0.1 M Bis-Tris pH 5.5 with 0.2 M NaCl and 25% PEG 3350
Resolution 2.07 Å R-free 0.238
7AI0 Crystal structure of human MDM2-G443T RING domain homodimer bound to UbcH5B-Ub (Crystal form 1) Deposited 2020-09-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain AAA 419–491（73 aa）
Chain DDD 419–491（73 aa）
Mutation：G443T Mutation：G443T CL CHLORIDE ION × 3 ZN ZINC ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；292 K；0.1 M Tris, 0.075 M NaOAc, 0.1 M NaCl, 15 % w/v PEG Smear Medium
Resolution 1.56 Å R-free 0.185
7AI0 Crystal structure of human MDM2-G443T RING domain homodimer bound to UbcH5B-Ub (Crystal form 1) Deposited 2020-09-25 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain AAA 419–491（73 aa）
Mutation：G443T CL CHLORIDE ION × 4 ZN ZINC ION × 2 EDO 1,2-ETHANEDIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；292 K；0.1 M Tris, 0.075 M NaOAc, 0.1 M NaCl, 15 % w/v PEG Smear Medium
Resolution 1.56 Å R-free 0.185
7AI0 Crystal structure of human MDM2-G443T RING domain homodimer bound to UbcH5B-Ub (Crystal form 1) Deposited 2020-09-25 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain DDD 419–491（73 aa）
Mutation：G443T CL CHLORIDE ION × 1 ZN ZINC ION × 2 EDO 1,2-ETHANEDIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；292 K；0.1 M Tris, 0.075 M NaOAc, 0.1 M NaCl, 15 % w/v PEG Smear Medium
Resolution 1.56 Å R-free 0.185
7AI1 Crystal structure of human MDM2-G443T RING domain homodimer bound to UbcH5B-Ub (Crystal form 2) Deposited 2020-09-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain AAA 419–491（73 aa）
Chain DDD 419–491（73 aa）
Mutation：G443T Mutation：G443T CL CHLORIDE ION × 2 ZN ZINC ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；292 K；0.1 M HEPES, 0.2 M NH4NO3, 20 % w/v PEG Smear Broad
Resolution 2.07 Å R-free 0.266
7AI1 Crystal structure of human MDM2-G443T RING domain homodimer bound to UbcH5B-Ub (Crystal form 2) Deposited 2020-09-25 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain AAA 419–491（73 aa）
Mutation：G443T CL CHLORIDE ION × 1 ZN ZINC ION × 2 EDO 1,2-ETHANEDIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；292 K；0.1 M HEPES, 0.2 M NH4NO3, 20 % w/v PEG Smear Broad
Resolution 2.07 Å R-free 0.266
7AI1 Crystal structure of human MDM2-G443T RING domain homodimer bound to UbcH5B-Ub (Crystal form 2) Deposited 2020-09-25 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain DDD 419–491（73 aa）
Mutation：G443T CL CHLORIDE ION × 1 ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；292 K；0.1 M HEPES, 0.2 M NH4NO3, 20 % w/v PEG Smear Broad
Resolution 2.07 Å R-free 0.266
7AYE Crystal structure of the computationally designed chemically disruptable heterodimer LD6-MDM2 Deposited 2020-11-12 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 23–131（109 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；1.5 M Ammonium sulfate, 0.1 M Sodium cacodylate pH 6.5
Resolution 2.95 Å R-free 0.260
7BIR Inhibitor of MDM2-p53 Interaction Deposited 2021-01-13 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 17–109（93 aa）
Not recorded SO4 SULFATE ION × 2 TUZ 1-[[(1~{R})-2-[(5-chloranylpyridin-2-yl)methyl]-1-(4-chlorophenyl)-7-fluoranyl-3-oxidanylidene-5-(2-oxidanylpropan-2-yl)isoindol-1-yl]oxymethyl]cyclopropane-1-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；2M (NH4)2SO4 5% PEG 400 .1M pH=6.5 Na MES/HCl
Resolution 2.02 Å R-free 0.243
7BIT Inhibitor of MDM2-p53 Interaction Deposited 2021-01-13 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 17–125（109 aa）
Not recorded SO4 SULFATE ION × 1 TV5 (3~{R})-2-[(5-chloranylpyridin-2-yl)methyl]-3-(4-chlorophenyl)-4-fluoranyl-3-[(1-oxidanylcyclopropyl)methoxy]-6-(2-oxidanylpropan-2-yl)isoindol-1-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；1.5M (NH4)2SO4 15% Glycerol .1M pH=8.5 Tris Cl/NaOH
Resolution 2.13 Å R-free 0.307
7BIV Inhibitor of MDM2-p53 Interaction Deposited 2021-01-13 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 17–109（93 aa）
Not recorded DMS DIMETHYL SULFOXIDE × 2 EDO 1,2-ETHANEDIOL × 1 SO4 SULFATE ION × 2 TUW 6-[[(1~{R})-1-(4-chlorophenyl)-7-fluoranyl-1-[[1-(hydroxymethyl)cyclopropyl]methoxy]-3-oxidanylidene-5-(2-oxidanylpropan-2-yl)isoindol-2-yl]methyl]pyridine-3-carbonitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；2.4M (NH4)2SO4 .1M pH=6 MES/NaOH
Resolution 1.64 Å R-free 0.237
7BJ0 Inhibitor of MDM2-p53 Interaction Deposited 2021-01-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 17–125（109 aa）
Chain B 17–125（109 aa）
Not recorded TVH (3~{R})-4-chloranyl-3-(4-chlorophenyl)-3-[[1-(hydroxymethyl)cyclopropyl]methoxy]-2-[(4-nitrophenyl)methyl]isoindol-1-one × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；2.2M (NH4)2SO4
Resolution 2.00 Å R-free 0.211
7BJ6 Inhibitor of MDM2-p53 Interaction Deposited 2021-01-14 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 17–109（93 aa）
Not recorded DMS DIMETHYL SULFOXIDE × 1 EDO 1,2-ETHANEDIOL × 2 SO4 SULFATE ION × 3 TVK (3~{R})-2-[(5-chloranylpyridin-2-yl)methyl]-3-(4-chlorophenyl)-4-fluoranyl-3-[[1-(hydroxymethyl)cyclopropyl]methoxy]-6-(2-oxidanylpropan-2-yl)isoindol-1-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；2.4M (NH4)2SO4 .1M pH=6 MES/NaOH
Resolution 1.59 Å R-free 0.258
7BMG Inhibitor of MDM2-p53 Interaction Deposited 2021-01-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 17–109（93 aa）
Mutation：E69A,K70A EDO 1,2-ETHANEDIOL × 3 U3Z (3~{R})-3-(4-chlorophenyl)-2-[(4-ethynylphenyl)methyl]-3-[[1-(hydroxymethyl)cyclopropyl]methoxy]-6-(2-oxidanylpropan-2-yl)isoindol-1-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；2.2M (NH4)2SO4
Resolution 1.83 Å R-free 0.251
7KJM CRYSTAL STRUCTURE OF HUMAN MDM2 IN COMPLEX WITH D-PEPTIDE INHIBITOR (DPMI-OMEGA) Deposited 2020-10-26 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 25–109（85 aa）
Not recorded PEG DI(HYDROXYETHYL)ETHER × 1 IPA ISOPROPYL ALCOHOL × 1 CL CHLORIDE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；294 K；30% isopropanol, 15% PEG 8000, 0.1 M imidazole pH 6.5
Resolution 1.40 Å R-free 0.210
7KJM CRYSTAL STRUCTURE OF HUMAN MDM2 IN COMPLEX WITH D-PEPTIDE INHIBITOR (DPMI-OMEGA) Deposited 2020-10-26 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 25–109（85 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；294 K；30% isopropanol, 15% PEG 8000, 0.1 M imidazole pH 6.5
Resolution 1.40 Å R-free 0.210
7NA1 HDM2 in complex with compound 2 Deposited 2021-06-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 23–131（109 aa）
Mutation：F55Y,Y76H 1GI 8-(1-benzothiophen-5-yl)-7-[(4-chlorophenyl)methyl]-6-{[(1R)-1-cyclopropylethyl]amino}-7H-purine-2-carboxylic acid × 1 SO4 SULFATE ION × 1 CIT CITRIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；285 K；2 M ammonium sulfate, 100 mM citrate pH 3.5
Resolution 2.30 Å R-free 0.354
7NA1 HDM2 in complex with compound 2 Deposited 2021-06-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 23–131（109 aa）
Mutation：F55Y,Y76H 1GI 8-(1-benzothiophen-5-yl)-7-[(4-chlorophenyl)methyl]-6-{[(1R)-1-cyclopropylethyl]amino}-7H-purine-2-carboxylic acid × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；285 K；2 M ammonium sulfate, 100 mM citrate pH 3.5
Resolution 2.30 Å R-free 0.354
7NA2 HDM2 in complex with compound 56 Deposited 2021-06-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 23–131（109 aa）
Not recorded 1I0 3-[4-(5-chloropyridin-3-yl)-2-[(4aR,7aR)-hexahydrocyclopenta[b][1,4]oxazin-4(4aH)-yl]-3-{[(1r,4R)-4-methylcyclohexyl]methyl}-3H-imidazo[4,5-c]pyridin-6-yl]-1,2,4-oxadiazol-5(4H)-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；293 K；undisclosed
Resolution 1.86 Å R-free 0.259
7NA2 HDM2 in complex with compound 56 Deposited 2021-06-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 23–131（109 aa）
Not recorded 1I0 3-[4-(5-chloropyridin-3-yl)-2-[(4aR,7aR)-hexahydrocyclopenta[b][1,4]oxazin-4(4aH)-yl]-3-{[(1r,4R)-4-methylcyclohexyl]methyl}-3H-imidazo[4,5-c]pyridin-6-yl]-1,2,4-oxadiazol-5(4H)-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；293 K；undisclosed
Resolution 1.86 Å R-free 0.259
7NA3 HDM2 in complex with compound 62 Deposited 2021-06-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 23–131（109 aa）
Not recorded 1I3 3-[4-(5-chloropyridin-3-yl)-2-[(2S)-1-methoxypropan-2-yl]-3-{(1R)-1-[(1r,4R)-4-methylcyclohexyl]ethyl}-3H-imidazo[4,5-c]pyridin-6-yl]-1,2,4-oxadiazol-5(4H)-one × 1 SO4 SULFATE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；293 K；undisclosed
Resolution 2.21 Å R-free 0.219
7NA4 HDM2 in complex with compound 63 Deposited 2021-06-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 23–131（109 aa）
Not recorded 1I9 3-[4-(5-chloropyridin-3-yl)-2-[(R)-cyclopropyl(ethoxy)methyl]-3-{(1R)-1-[(1r,4R)-4-methylcyclohexyl]ethyl}-3H-imidazo[4,5-c]pyridin-6-yl]-1,2,4-oxadiazol-5(4H)-one × 1 GOL GLYCEROL × 2 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；293 K；undisclosed
Resolution 1.84 Å R-free 0.217
7NUS X-RAY STRUCTURE OF HDM2/CMR19 AT 1.45A: Discovery, X-ray structure and CPP-conjugation enabled uptake of p53/MDM2 macrocyclic peptide inhibitors Deposited 2021-03-13 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 17–111（95 aa） Fragment：N-terminal domain, p53 binding domain
Not recorded SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；2.2 M AmSO4, 0.2 M NaAcetate
Resolution 1.45 Å R-free 0.197
7NUS X-RAY STRUCTURE OF HDM2/CMR19 AT 1.45A: Discovery, X-ray structure and CPP-conjugation enabled uptake of p53/MDM2 macrocyclic peptide inhibitors Deposited 2021-03-13 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 17–111（95 aa） Fragment：N-terminal domain, p53 binding domain
Not recorded CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；2.2 M AmSO4, 0.2 M NaAcetate
Resolution 1.45 Å R-free 0.197
7NUS X-RAY STRUCTURE OF HDM2/CMR19 AT 1.45A: Discovery, X-ray structure and CPP-conjugation enabled uptake of p53/MDM2 macrocyclic peptide inhibitors Deposited 2021-03-13 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 17–111（95 aa） Fragment：N-terminal domain, p53 binding domain
Not recorded CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；2.2 M AmSO4, 0.2 M NaAcetate
Resolution 1.45 Å R-free 0.197
7QDQ Crystal Structure of HDM2 in complex with Caylin-1 Deposited 2021-11-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 20–111（92 aa）
Not recorded CL CHLORIDE ION × 3 NA SODIUM ION × 2 SO4 SULFATE ION × 1 AU0 Caylin-1 × 1 DMS DIMETHYL SULFOXIDE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；2.8M Ammonium Sulfate, 100mM MES
Resolution 1.26 Å R-free 0.216
8AEU Structure of hMDM2 in complex with Nutlin-3a-aa Deposited 2022-07-13 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 18–113（96 aa）
Not recorded BME BETA-MERCAPTOETHANOL × 2 M0L 4-[[(4~{S},5~{R})-4,5-bis(4-chlorophenyl)-2-(4-methoxy-2-propan-2-yloxy-phenyl)-4,5-dihydroimidazol-1-yl]carbonyl]-3-methylidene-piperazin-2-one × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.01 M magnesium chloride hexahydrate, 0.05 M Tris hydrochloride pH 7.6, 1.6 M ammonium sulfate
Resolution 2.00 Å R-free 0.240
8BGU human MDM2-5S RNP Deposited 2022-10-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 3 PDB declaration: tetrameric
Chain F 1–491（491 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
8EI9 Crystal structure of beta-catenin and the MDM2 p53-binding domain in complex with H332, a Helicon Polypeptide Deposited 2022-09-14 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 17–111（95 aa） Fragment：P53 binding domain
Not recorded WHL N,N'-(1,4-phenylene)diacetamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；291 K；0.1M MES Sodium Salt pH6.5, 10% v/v 2-Propanol, 25% v/v PEG 400
Resolution 3.90 Å R-free 0.315
8EIB Crystal structure of beta-catenin and the MDM2 p53-binding domain in complex with H329, a Helicon Polypeptide Deposited 2022-09-14 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 17–111（95 aa） Fragment：P53 binding domain
Not recorded WHL N,N'-(1,4-phenylene)diacetamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；291 K；0.2 M Calcium acetate pH 7.5, 20% w/v PEG 3350
Resolution 3.76 Å R-free 0.298
8EIC Crystal structure of beta-catenin and the MDM2 p53-binding domain in complex with H330, a Helicon Polypeptide Deposited 2022-09-14 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 17–111（95 aa） Fragment：P53 binding domain
Not recorded WHL N,N'-(1,4-phenylene)diacetamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；4M Sodium formate
Resolution 2.62 Å R-free 0.269
8F0Z Structure of the MDM2 P53 binding domain in complex with H101, an all-D Helicon Polypeptide Deposited 2022-11-04 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 17–111（95 aa）
Not recorded CL CHLORIDE ION × 1 WHL N,N'-(1,4-phenylene)diacetamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；3.5 M Sodium Formate pH 7.0
Resolution 1.61 Å R-free 0.242
8F10 Structure of the MDM2 P53 binding domain in complex with H102, an all-D Helicon Polypeptide Deposited 2022-11-04 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 17–111（95 aa）
Not recorded EDO 1,2-ETHANEDIOL × 4 CL CHLORIDE ION × 1 GOL GLYCEROL × 2 WHL N,N'-(1,4-phenylene)diacetamide × 1 IMD IMIDAZOLE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.01 M tri-Sodium citrate, 33 % w/v PEG 6000
Resolution 1.28 Å R-free 0.167
8F12 Structure of the MDM2 P53 binding domain in complex with H103, an all-D Helicon Polypeptide Deposited 2022-11-04 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 17–111（95 aa）
Not recorded SO4 SULFATE ION × 2 CL CHLORIDE ION × 1 WHL N,N'-(1,4-phenylene)diacetamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；3.2 M Ammonium sulfate, 0.1 M Citrate pH 5.0
Resolution 1.86 Å R-free 0.241
8F13 Structure of the MDM2 P53 binding domain in complex with H103, an all-D Helicon Polypeptide, alternative C-terminus Deposited 2022-11-04 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 17–111（95 aa）
Not recorded EDO 1,2-ETHANEDIOL × 6 SO4 SULFATE ION × 1 DMS DIMETHYL SULFOXIDE × 1 WHL N,N'-(1,4-phenylene)diacetamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.2 M Potassium sodium tartrate, 0.1 M tri-Sodium citrate pH 5.6, 2.0 M Ammonium sulfate
Resolution 1.40 Å R-free 0.208
8GCG MDM2 bound to inhibitor Deposited 2023-03-01 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 17–125（109 aa） Fragment：residues 17-125
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；2.0 M Ammonium sulfate 0.2M Sodium/Potassium Tartrate
Resolution 1.47 Å R-free 0.234
8J81 MDM2 bound with a peptoid Deposited 2023-04-28 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 17–111（95 aa）
Not recorded UAC (2S)-2-[[(2S)-2-[(6-chloranyl-1H-indol-3-yl)methyl-[(2S)-2-[[(2S)-2-[ethanoyl-(phenylmethyl)amino]propanoyl]-methyl-amino]propanoyl]amino]propanoyl]-methyl-amino]-N-(3,3-dimethylbutyl)-N-[(2S)-1-oxidanylidene-1-piperazin-1-yl-propan-2-yl]propanamide × 1 CL CHLORIDE ION × 7 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；293 K；1M Sodium Acetate trihydrate pH4.5, 3.0 M Sodium Chrolide. Peptoid dissolved in DMSO was included. The final DMSO concentration was 2.4%
Resolution 1.35 Å R-free 0.190
8P0D Human 14-3-3 sigma in complex with human MDM2 peptide Deposited 2023-05-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 161–191（31 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) GOL GLYCEROL × 2 PEG DI(HYDROXYETHYL)ETHER × 2 CL CHLORIDE ION × 2 MG MAGNESIUM ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；1 M HEPES pH 7.4 to 7.6, 0.19 M CaCl2, 30 to 31 % PEG 400, 5 % glycerol
Resolution 1.31 Å R-free 0.204
8PWC Crystal structure of MDM2 with Brigimadlin Deposited 2023-07-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 17–125（109 aa）
Not recorded G7I Brigimadlin × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；22% PEG 3350, 0.1M sodium sulphate, 10 mM manganes chloride
Resolution 1.46 Å R-free 0.226
8PWC Crystal structure of MDM2 with Brigimadlin Deposited 2023-07-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 17–125（109 aa）
Not recorded G7I Brigimadlin × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；22% PEG 3350, 0.1M sodium sulphate, 10 mM manganes chloride
Resolution 1.46 Å R-free 0.226
8PWC Crystal structure of MDM2 with Brigimadlin Deposited 2023-07-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 17–125（109 aa）
Not recorded G7I Brigimadlin × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；22% PEG 3350, 0.1M sodium sulphate, 10 mM manganes chloride
Resolution 1.46 Å R-free 0.226
9CDZ Crystal Structure of MDM2-Peptide Complex Deposited 2024-06-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 18–125（108 aa）
Mutation：E52A, K53A NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；30 % w/v polyacylate 5100, sodium salt, 10% ethanol and 0.1 M MES-NaOH
Resolution 1.72 Å R-free 0.270
9CDZ Crystal Structure of MDM2-Peptide Complex Deposited 2024-06-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 18–125（108 aa）
Mutation：E52A, K53A NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；30 % w/v polyacylate 5100, sodium salt, 10% ethanol and 0.1 M MES-NaOH
Resolution 1.72 Å R-free 0.270
9FQL Crystal structure of hDM2 in complex with a peptidic ligand containing a di-urea insert. Deposited 2024-06-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 25–110（86 aa） Fragment：residues 17-111
Chain B 25–110（86 aa） Fragment：residues 17-111
Not recorded PO4 PHOSPHATE ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 8.5；298 K；1 M Na2HPO4/K2HPO4 pH 6.9, 30% Glycerol
Resolution 2.00 Å R-free 0.248
9FQL Crystal structure of hDM2 in complex with a peptidic ligand containing a di-urea insert. Deposited 2024-06-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain E 25–110（86 aa） Fragment：residues 17-111
Chain F 25–110（86 aa） Fragment：residues 17-111
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 8.5；298 K；1 M Na2HPO4/K2HPO4 pH 6.9, 30% Glycerol
Resolution 2.00 Å R-free 0.248
9FQL Crystal structure of hDM2 in complex with a peptidic ligand containing a di-urea insert. Deposited 2024-06-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain I 25–110（86 aa） Fragment：residues 17-111
Chain J 25–110（86 aa） Fragment：residues 17-111
Not recorded PO4 PHOSPHATE ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 8.5；298 K；1 M Na2HPO4/K2HPO4 pH 6.9, 30% Glycerol
Resolution 2.00 Å R-free 0.248
9GFC HDM2 complexed with stapled peptide-like ligand Deposited 2024-08-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 25–110（86 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；292 K；Ammonium Sulfate 2.5M + Tris 0.1M pH8.5
Resolution 2.50 Å R-free 0.318
9GFC HDM2 complexed with stapled peptide-like ligand Deposited 2024-08-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 25–110（86 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；292 K；Ammonium Sulfate 2.5M + Tris 0.1M pH8.5
Resolution 2.50 Å R-free 0.318
9GFC HDM2 complexed with stapled peptide-like ligand Deposited 2024-08-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 25–110（86 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；292 K；Ammonium Sulfate 2.5M + Tris 0.1M pH8.5
Resolution 2.50 Å R-free 0.318
9GFC HDM2 complexed with stapled peptide-like ligand Deposited 2024-08-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 25–110（86 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；292 K；Ammonium Sulfate 2.5M + Tris 0.1M pH8.5
Resolution 2.50 Å R-free 0.318
9GFK human MDM2 complex with stapled foldamer Deposited 2024-08-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 17–111（95 aa） Fragment：TRUNCATED N-TERMINAL DOMAIN
Chain B 17–111（95 aa） Fragment：TRUNCATED N-TERMINAL DOMAIN
Chain C 17–111（95 aa） Fragment：TRUNCATED N-TERMINAL DOMAIN
Chain D 17–111（95 aa） Fragment：TRUNCATED N-TERMINAL DOMAIN
Not recorded SO4 SULFATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；290 K；Ammonium Sulfate 2.5M + MES 0.1M pH5.5
Resolution 1.84 Å R-free 0.239

142 other PDB entries and 278 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name MDM2_HUMAN
Isoform —
PDB entities 2
Chains and sequence ranges Author chain B； PDBConstruct 1–95； UniProt 17–111

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 8eia

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 8eia
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id8eia
Deposition date deposition_date2022-09-14
Structure title titleCrystal structure of beta-catenin and the MDM2 p53-binding domain in complex with H333, a Helicon Polypeptide
Keywords keywordsE3 ligase, complex, stapled peptide, LIGASE; LIGASE
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier36.41 Å
Radius of gyration Rg (electron density) rg_electron36.96 Å
Forward intensity I(0) i068891800.00
Molecular weight molecular_weight67439.0 kDa
Excluded volume excluded_volume85150 ų
Envelope volume envelope_volume114150 ų
Hydration-shell volume shell_volume29186 ų
Envelope diameter envelope_diameter134.3 Å
Shell Rg shell_rg37.75 Å
Envelope Rg envelope_rg36.79 Å
Shape Rg shape_rg36.96 Å
Total Rg total_rg37.02 Å
Total atoms total_atoms4727
Residues n_residues608
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax131.1 Å
Rg (real space) rg_real37.06 Å
Rg uncertainty (real space) rg_real_error1.75 Å
I(0) (real space) i0_real6.8890e+07
I(0) uncertainty (real space) i0_real_error1.3850e+06
Rg (reciprocal space) rg_reciprocal36.66 Å
I(0) (reciprocal space) i0_reciprocal68870000.0000
Solution quality estimate total_estimate0.7236
Solution quality rating solution_quality REASONABLE a REASONABLE solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary27.4 Å
Skewness Skewness skewness0.630
Kurtosis Kurtosis kurtosis-0.357
Angular range angular_range— – 0.2150 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha9171000.0000
Real-space data points n_real_points44
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.481; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.204; Smooth: 0.759
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

▶

8. Citations (1)

▶

9. Files and Curves (10)
