SAXSdb — 2gl7

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Beta-catenin

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Transcription factor 7-like 2 × 1 （Q9NQB0） B-cell lymphoma 9 protein × 1 （O00512） water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	Transcription factor 7-like 2 × 1 （Q9NQB0） B-cell lymphoma 9 protein × 1 （O00512） water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CTNB1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–550； UniProt 138–686 Author chain D； PDBConstruct 2–550； UniProt 138–686

Transcription factor 7-like 2

Homo sapiens

UniProt Q9NQB0

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Beta-catenin × 1 （P35222） B-cell lymphoma 9 protein × 1 （O00512） water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	Beta-catenin × 1 （P35222） B-cell lymphoma 9 protein × 1 （O00512） water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TF7L2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–53； UniProt 1–53 Author chain E； PDBConstruct 1–53； UniProt 1–53

B-cell lymphoma 9 protein

Homo sapiens

UniProt O00512

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Beta-catenin × 1 （P35222） Transcription factor 7-like 2 × 1 （Q9NQB0） water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	Beta-catenin × 1 （P35222） Transcription factor 7-like 2 × 1 （Q9NQB0） water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BCL9_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–46； UniProt 347–392 Author chain F； PDBConstruct 1–46； UniProt 347–392

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2gl7
Deposition date deposition_date	2006-04-04
Structure title title	Crystal Structure of a beta-catenin/BCL9/Tcf4 complex
Keywords keywords	PROTEIN COMPLEX, ARMADILLO REPEAT, TRANSCRIPTION; TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2gl7__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2gl7__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

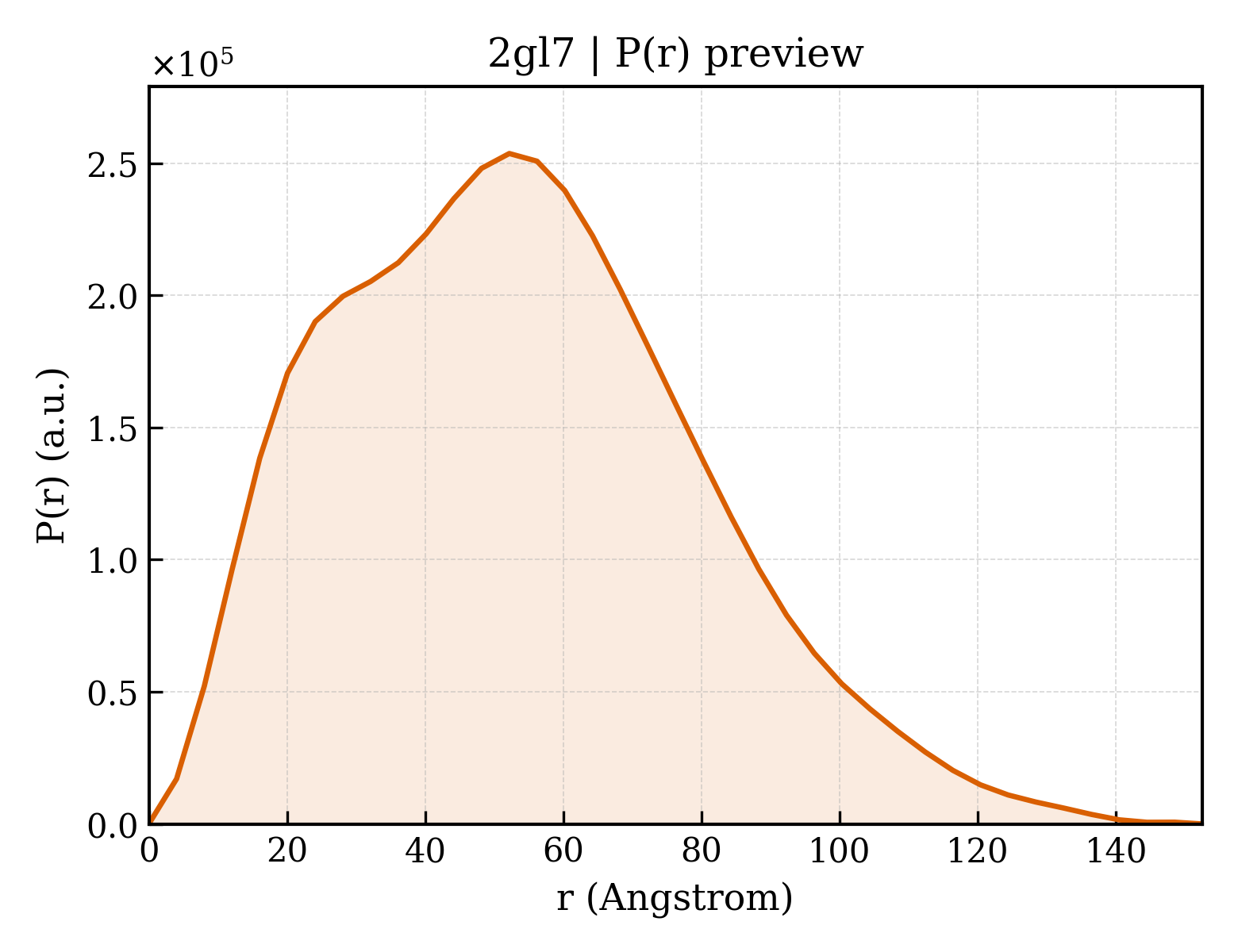

2gl7__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	34.30 Å
Rg (electron density)	34.59 Å
Total Rg	34.57 Å
Atom count	4215
Residues	565
Excluded volume	75412 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2gl7__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2gl7__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Beta-catenin
Molecular weight formula_weight	60240.7 kDa
Mutation mutation	Y142E
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,D
Atom count atom_count	8429

SNLINEQDDAELATRAIPELTKLLNDEDQVVVNKAAVMVHQLSKKEASRHAIMRSPQMVSAIVRTMQNTNDVETARCTAGTLHNLSHHREGLLAIFKSGGIPALVKMLGSPVDSVLFYAITTLHNLLLHQEGAKMAVRLAGGLQKMVALLNKTNVKFLAITTDCLQILAYGNQESKLIILASGGPQALVNIMRTYTYEKLLWTTSRVLKVLSVCSSNKPAIVEAGGMQALGLHLTDPSQRLVQNCLWTLRNLSDAATKQEGMEGLLGTLVQLLGSDDINVVTCAAGILSNLTCNNYKNKMMVCQVGGIEALVRTVLRAGDREDITEPAICALRHLTSRHQEAEMAQNAVRLHYGLPVVVKLLHPPSHWPLIKATVGLIRNLALCPANHAPLREQGAIPRLVQLLVRAHQDTQRRTSMGGTQQQFVEGVRMEEIVEGCTGALHILARDVHNRIVIRGLNTIPLFVQLLYSPIENIQRVAAGVLCELAQDKEAAEAIEAEGATAPLTELLHSRNEGVATYAAAVLFRMSEDKPQDYKKRLSVELTSSLFRTE

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Transcription factor 7-like 2
Molecular weight formula_weight	5632.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,E

MPQLNGGGGDDLGANDELISFKDEGEQEEKSSENSSAERDLADVKSSLVNESE

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	B-cell lymphoma 9 protein
Molecular weight formula_weight	5285.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,F

NPDGLSQEQLEHRERSLQTLRDIQRMLFPDEKEFTGAQSGGPQQNP

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	128

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2gl7a_
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.1 — ARM repeat
Family Family family	a.118.1.1 — Armadillo repeat

Domain ID domain_id	d2gl7d_
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.1 — ARM repeat
Family Family family	a.118.1.1 — Armadillo repeat

CATH v4.4 (2 domains)

Domain ID domain_id	2gl7A00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

Domain ID domain_id	2gl7D00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

▶

Unit-cell length a length_a	96.764 Å
Unit-cell length b length_b	119.441 Å
Unit-cell length c length_c	130.549 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.2231
R_work r_work	0.2208
R_free r_free	0.2670

Crystal Structure of a beta-catenin/BCL9/Tcf4 complex
