1g3j

CRYSTAL STRUCTURE OF THE XTCF3-CBD/BETA-CATENIN ARMADILLO REPEAT COMPLEX

Method: X-RAY DIFFRACTION D_max: 140.4 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

BETA-CATENIN ARMADILLO REPEAT REGION

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 133–664	Not recorded	TCF3-CBD (CATENIN BINDING DOMAIN) × 1 （P70062）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 4.2；298 K；2.5% PEG-8000, 44mM Phosphate-Citrate, 2mM DTT, pH 4.2, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 2.10 Å R-free 0.255
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 133–664	Not recorded	TCF3-CBD (CATENIN BINDING DOMAIN) × 1 （P70062）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 4.2；298 K；2.5% PEG-8000, 44mM Phosphate-Citrate, 2mM DTT, pH 4.2, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 2.10 Å R-free 0.255

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1G3J	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1JDH CRYSTAL STRUCTURE OF BETA-CATENIN AND HTCF-4 Deposited 2001-06-13	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 135–663（529 aa） Fragment：Residues 135-663	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.90 Å R-free 0.231
1JPW Crystal Structure of a Human Tcf-4 / beta-Catenin Complex Deposited 2001-08-03	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 131–670（540 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；295 K；PEG 400, MES, ammonium sulfate, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 22K	Resolution 2.50 Å R-free 0.390
1JPW Crystal Structure of a Human Tcf-4 / beta-Catenin Complex Deposited 2001-08-03	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 131–670（540 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；295 K；PEG 400, MES, ammonium sulfate, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 22K	Resolution 2.50 Å R-free 0.390
1JPW Crystal Structure of a Human Tcf-4 / beta-Catenin Complex Deposited 2001-08-03	Different construct Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 131–670（540 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；295 K；PEG 400, MES, ammonium sulfate, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 22K	Resolution 2.50 Å R-free 0.390
1LUJ Crystal Structure of the Beta-catenin/ICAT Complex Deposited 2002-05-22	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 150–663（514 aa） Fragment：residues 150-666	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；PEG800, magnesium chloride, Tris, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.50 Å R-free 0.255
1P22 Structure of a beta-TrCP1-Skp1-beta-catenin complex: destruction motif binding and lysine specificity on the SCFbeta-TrCP1 ubiquitin ligase Deposited 2003-04-14	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 19–44（26 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；298 K；PEG4000, sodium citrate, Bis-Tris Propane, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 2.95 Å R-free 0.286
1QZ7 Beta-catenin binding domain of Axin in complex with beta-catenin Deposited 2003-09-15	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 133–665（533 aa） Fragment：Armadillo repeat region	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；298 K；PEG 6000, sodium citrate, isopropanol, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.20 Å R-free 0.256
1T08 Crystal structure of beta-catenin/ICAT helical domain/unphosphorylated APC R3 Deposited 2004-04-07	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 146–664（519 aa） Fragment：armadillo repeat (RESIDUES 146-664)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 6.5；297 K；PEG3400, Potassium phosphate, pH 6.5, EVAPORATION, temperature 297K	Resolution 2.10 Å R-free 0.241
1TH1 Beta-catenin in complex with a phosphorylated APC 20aa repeat fragment Deposited 2004-05-31	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 133–664（532 aa） Fragment：armadillo repeat	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；Tris, sidium chloride, PEG2000MME, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.50 Å R-free 0.257
1TH1 Beta-catenin in complex with a phosphorylated APC 20aa repeat fragment Deposited 2004-05-31	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 133–664（532 aa） Fragment：armadillo repeat	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；Tris, sidium chloride, PEG2000MME, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.50 Å R-free 0.257
2G57 Structure of the Phosphorylation Motif of the oncogenic Protein beta-Catenin Recognized By a Selective Monoclonal Antibody Deposited 2006-02-22	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–44（26 aa） Fragment：Residues 19-44	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.4；278 K；Ionic strength (raw mmCIF value) 20mM；Pressure 1 NMR sample composition 1mM P-beta-Cat peptide with 0.01mM antibody; 20mM phosphate buffered saline(pH 7.4); 15mM sodium azide; 90% H2O, 10% D2O \| 90% H2O/10% D2O	Resolution not provided
2GL7 Crystal Structure of a beta-catenin/BCL9/Tcf4 complex Deposited 2006-04-04	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 138–686（549 aa） Fragment：Residues 138-686	Mutation：Y142E	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；13% PEG 3350, 125mM sodium thiocyanate, 5% Glycerol, 10mM DTT, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 2.60 Å R-free 0.267
2GL7 Crystal Structure of a beta-catenin/BCL9/Tcf4 complex Deposited 2006-04-04	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 138–686（549 aa） Fragment：Residues 138-686	Mutation：Y142E	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；13% PEG 3350, 125mM sodium thiocyanate, 5% Glycerol, 10mM DTT, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 2.60 Å R-free 0.267
2Z6H Crystal Structure of Beta-Catenin Armadillo Repeat Region and Its C-Terminal domain Deposited 2007-08-01	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 138–781（644 aa） Fragment：Armadillo Repeat Region and C-terminal Domain (UNP residues 138-781)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；298 K；0.1M Na Citrate, 0.4M NaCl, 7% JEFFAMINE ED-2001, pH 5.60, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.20 Å R-free 0.249
2Z6H Crystal Structure of Beta-Catenin Armadillo Repeat Region and Its C-Terminal domain Deposited 2007-08-01	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 138–781（644 aa） Fragment：Armadillo Repeat Region and C-terminal Domain (UNP residues 138-781)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；298 K；0.1M Na Citrate, 0.4M NaCl, 7% JEFFAMINE ED-2001, pH 5.60, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.20 Å R-free 0.249
3DIW c-terminal beta-catenin bound TIP-1 structure Deposited 2008-06-21	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 772–781（10 aa） Fragment：C-terminal domain, UNP residues 772-781	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；293 K；3.0M sodium formate, 0.1M sodium acetate, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.10 Å R-free 0.265
3DIW c-terminal beta-catenin bound TIP-1 structure Deposited 2008-06-21	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 772–781（10 aa） Fragment：C-terminal domain, UNP residues 772-781	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；293 K；3.0M sodium formate, 0.1M sodium acetate, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.10 Å R-free 0.265
3SL9 X-ray structure of Beta catenin in complex with Bcl9 Deposited 2011-06-24	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 141–305（165 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 4 PEG DI(HYDROXYETHYL)ETHER × 2 IMD IMIDAZOLE × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；298 K；0.12M ethylene glycol, 1M MES 62% MES, 1M Imidazol 38%, 10% PEG 4K, 20% glycerol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.20 Å R-free 0.249
3SL9 X-ray structure of Beta catenin in complex with Bcl9 Deposited 2011-06-24	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 141–305（165 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 3 PEG DI(HYDROXYETHYL)ETHER × 2 IMD IMIDAZOLE × 1 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；298 K；0.12M ethylene glycol, 1M MES 62% MES, 1M Imidazol 38%, 10% PEG 4K, 20% glycerol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.20 Å R-free 0.249
3SL9 X-ray structure of Beta catenin in complex with Bcl9 Deposited 2011-06-24	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 141–305（165 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 4 PEG DI(HYDROXYETHYL)ETHER × 1 IMD IMIDAZOLE × 1 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；298 K；0.12M ethylene glycol, 1M MES 62% MES, 1M Imidazol 38%, 10% PEG 4K, 20% glycerol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.20 Å R-free 0.249
3SL9 X-ray structure of Beta catenin in complex with Bcl9 Deposited 2011-06-24	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 141–305（165 aa）	Not recorded	IMD IMIDAZOLE × 3 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；298 K；0.12M ethylene glycol, 1M MES 62% MES, 1M Imidazol 38%, 10% PEG 4K, 20% glycerol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.20 Å R-free 0.249
3SLA X-ray structure of first four repeats of human beta-catenin Deposited 2011-06-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 141–306（166 aa）	Not recorded	GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.98M sodium acetate trihydrate, 30% glycerol, 0.07M sodium cacodylate, 30% w/v galactose , pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.50 Å R-free 0.277
3SLA X-ray structure of first four repeats of human beta-catenin Deposited 2011-06-24	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 141–306（166 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.98M sodium acetate trihydrate, 30% glycerol, 0.07M sodium cacodylate, 30% w/v galactose , pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.50 Å R-free 0.277
3SLA X-ray structure of first four repeats of human beta-catenin Deposited 2011-06-24	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 141–306（166 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.98M sodium acetate trihydrate, 30% glycerol, 0.07M sodium cacodylate, 30% w/v galactose , pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.50 Å R-free 0.277
3SLA X-ray structure of first four repeats of human beta-catenin Deposited 2011-06-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 141–306（166 aa）	Not recorded	GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.98M sodium acetate trihydrate, 30% glycerol, 0.07M sodium cacodylate, 30% w/v galactose , pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.50 Å R-free 0.277
3SLA X-ray structure of first four repeats of human beta-catenin Deposited 2011-06-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 141–306（166 aa）	Not recorded	GOL GLYCEROL × 2 NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.98M sodium acetate trihydrate, 30% glycerol, 0.07M sodium cacodylate, 30% w/v galactose , pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.50 Å R-free 0.277
3TX7 Crystal structure of LRH-1/beta-catenin complex Deposited 2011-09-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 138–663（526 aa）	Not recorded	P6L (2S)-3-{[{[(2S)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-2-[(6E)-HEXADEC-6-ENOYLOXY]PROPYL (8E)-OCTADEC-8-ENOATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；20 mM Tris-HCl, 40% PEG200, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.76 Å R-free 0.243
4DJS Structure of beta-catenin in complex with a stapled peptide inhibitor Deposited 2012-02-02	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 148–665（518 aa） Fragment：armadillo repeats 1-12 (UNP residues 148-665)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；298 K；1.4-2.0 M sodium chloride, 100 mM Bis-Tris, 100 mM potassium phosphate monobasic, pH 6.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.03 Å R-free 0.291
6M90 Monophosphorylated pSer33 b-Catenin peptide, b-TrCP/Skp1, NRX-2776 ternary complex Deposited 2018-08-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 17–48（32 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	J91 2-(2-fluorophenoxy)-3-{[2-oxo-6-(trifluoromethyl)-1,2-dihydropyridine-3-carbonyl]amino}benzoic acid × 2 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；8% PEG 4000 0.1M BTP pH 5.5	Resolution 2.05 Å R-free 0.212
6M91 Monophosphorylated pSer33 b-Catenin peptide, b-TrCP/Skp1, NRX-103094 ternary complex Deposited 2018-08-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 17–48（32 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	J97 3-({4-[(2,6-dichlorophenyl)sulfanyl]-2-oxo-6-(trifluoromethyl)-1,2-dihydropyridine-3-carbonyl}amino)benzoic acid × 1 PO4 PHOSPHATE ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；8% PEG 4000 0.1M BTP pH 5.5	Resolution 2.40 Å R-free 0.216
6M92 Monophosphorylated pSer33 b-Catenin peptide, b-TrCP/Skp1, NRX-2663 ternary complex Deposited 2018-08-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 17–48（32 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	J8V 3-{[2-oxo-4-phenoxy-6-(trifluoromethyl)-1,2-dihydropyridine-3-carbonyl]amino}benzoic acid × 1 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；8% PEG 4000 0.1M BTP pH 5.5	Resolution 2.35 Å R-free 0.221
6M93 Monophosphorylated pSer33 b-Catenin peptide, b-TrCP/Skp1, NRX-1933 ternary complex Deposited 2018-08-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 17–48（32 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	J8Y 2-oxo-N-[3-(1H-tetrazol-5-yl)phenyl]-6-(trifluoromethyl)-1,2-dihydropyridine-3-carboxamide × 1 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；8% PEG 4000 0.1M BTP pH 5.5	Resolution 2.50 Å R-free 0.230
6M94 Monophosphorylated pSer33 b-Catenin peptide bound to b-TrCP/Skp1 Complex Deposited 2018-08-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 17–48（32 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	PO4 PHOSPHATE ION × 1 DMS DIMETHYL SULFOXIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；8% PEG 4000 0.1M BTP pH5.5	Resolution 2.70 Å R-free 0.238
6O9B Crystal structure of HLA-A3*01 in complex with a wild-type beta-catenin peptide Deposited 2019-03-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 41–49（9 aa） Fragment：UNP residues 41-49	Not recorded	PG4 TETRAETHYLENE GLYCOL × 2 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 3 IMD IMIDAZOLE × 2 PEG DI(HYDROXYETHYL)ETHER × 4 EDO 1,2-ETHANEDIOL × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；292 K；0.1 M MES/imidazole, pH 6.5, 0.03 M diethylene glycol, 0.03 M triethylene glycol, 0.03 M tetraethylene glycol, 0.03 M pentaethylene glycol, 20% PEG500 MME, 10% PEG20000	Resolution 2.20 Å R-free 0.227
6O9C Crystal structure of HLA-A3*01 in complex with a mutant beta-catenin peptide Deposited 2019-03-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 41–49（9 aa） Fragment：UNP residues 41-49	Mutation：S45F	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2 SO4 SULFATE ION × 10 PEG DI(HYDROXYETHYL)ETHER × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；292 K；0.1 M MES, pH 6.5, 0.2 M ammonium sulfate, 30% PEG5000 MME	Resolution 2.45 Å R-free 0.259
6WLX PAK4 kinase domain in complex with beta-catenin Ser675 substrate peptide Deposited 2020-04-20	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 671–677（7 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；295 K；0.1M Tris-HCl, 2M Na acetate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K, 5mM peptide	Resolution 2.20 Å R-free 0.229
6WNX FBXW11-SKP1 in complex with a pSer33/pSer37 Beta-Catenin peptide Deposited 2020-04-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 31–39（9 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	GOL GLYCEROL × 4 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.12M Ethylene Glycol, 0.1M Morpheus Buffer 1 pH 6.5, 30.0% GOL_P4K	Resolution 2.50 Å R-free 0.251
6WNX FBXW11-SKP1 in complex with a pSer33/pSer37 Beta-Catenin peptide Deposited 2020-04-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 31–39（9 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	GOL GLYCEROL × 1 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.12M Ethylene Glycol, 0.1M Morpheus Buffer 1 pH 6.5, 30.0% GOL_P4K	Resolution 2.50 Å R-free 0.251
6WNX FBXW11-SKP1 in complex with a pSer33/pSer37 Beta-Catenin peptide Deposited 2020-04-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 31–39（9 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.12M Ethylene Glycol, 0.1M Morpheus Buffer 1 pH 6.5, 30.0% GOL_P4K	Resolution 2.50 Å R-free 0.251
7AFW Beta-Catenin in complex with compound 6 Deposited 2020-09-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 141–305（165 aa）	Not recorded	R9Q 3-[(2~{R})-4-methyl-5-oxidanylidene-2,3-dihydro-1,4-benzoxazepin-2-yl]benzenecarbonitrile × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；278 K；25% PEG 3350, 100 mM BIS-TRIS buffer pH 5.5 and 0.2 M Magnesium chloride	Resolution 1.81 Å R-free 0.281
7AR4 Crystal structure of beta-catenin in complex with cyclic peptide inhibitor Deposited 2020-10-23	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain AAA 134–665（532 aa）	Not recorded	EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293.15 K；0.1 M HEPES, 4% PEG6000, 20 mM TRIS, 150 mM NaCl, 0.5 % Glycerol, 2 mM DTT	Resolution 2.60 Å R-free 0.242
7UWI Structure of beta-catenin in complex with FP01567, a Helicon Polypeptide Deposited 2022-05-03	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 143–663（521 aa）	Not recorded	PO4 PHOSPHATE ION × 1 GOL GLYCEROL × 6 WHL N,N'-(1,4-phenylene)diacetamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293.15 K；0.1 M Sodium phosphate monobasic monohydrate, 0.1 M Potassium phosphate monobasic, 0.1 M MES monohydrate pH 6.5, 2.0 M Sodium chloride	Resolution 2.32 Å R-free 0.278
7UWO Structure of beta-catenin in complex with FP05874, a Helicon Polypeptide Deposited 2022-05-03	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 134–665（532 aa）	Not recorded	WHL N,N'-(1,4-phenylene)diacetamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；0.05M MgCl2, 0.1M MES pH6.5, 5% (w/v) PEG 4000	Resolution 2.75 Å R-free 0.253
8EI9 Crystal structure of beta-catenin and the MDM2 p53-binding domain in complex with H332, a Helicon Polypeptide Deposited 2022-09-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 134–665（532 aa）	Not recorded	WHL N,N'-(1,4-phenylene)diacetamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；291 K；0.1M MES Sodium Salt pH6.5, 10% v/v 2-Propanol, 25% v/v PEG 400	Resolution 3.90 Å R-free 0.315
8EIA Crystal structure of beta-catenin and the MDM2 p53-binding domain in complex with H333, a Helicon Polypeptide Deposited 2022-09-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 134–665（532 aa）	Not recorded	WHL N,N'-(1,4-phenylene)diacetamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；0.1 M Potassium chloride, 0.1 M HEPES pH 7, 15% w/v PEG 5000 MME	Resolution 3.60 Å R-free 0.373
8EIB Crystal structure of beta-catenin and the MDM2 p53-binding domain in complex with H329, a Helicon Polypeptide Deposited 2022-09-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 134–665（532 aa）	Not recorded	WHL N,N'-(1,4-phenylene)diacetamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；291 K；0.2 M Calcium acetate pH 7.5, 20% w/v PEG 3350	Resolution 3.76 Å R-free 0.298
8EIC Crystal structure of beta-catenin and the MDM2 p53-binding domain in complex with H330, a Helicon Polypeptide Deposited 2022-09-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 134–665（532 aa）	Not recorded	WHL N,N'-(1,4-phenylene)diacetamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；4M Sodium formate	Resolution 2.62 Å R-free 0.269
8RU3 Crystal structure of beta-catenin in complex with alpha-helical peptide inhibitor Deposited 2024-01-30	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 134–665（532 aa）	Not recorded	CL CHLORIDE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；300 K；Crystals grown in 100 mM NaKPO4, 2M NaCl.	Resolution 2.00 Å R-free 0.232
8RU4 Crystal structure of Human Catenin Beta-1 in complex with stitched peptide inhibitor Deposited 2024-01-30	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 145–665（521 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	GLC alpha-D-glucopyranose × 3 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 2 CL CHLORIDE ION × 1 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；100 mM TRIS pH 8.75, 2%(w/v) PEG-6000, cryoprotected in 30% (w/v) Glucose.	Resolution 2.13 Å R-free 0.240
8RU4 Crystal structure of Human Catenin Beta-1 in complex with stitched peptide inhibitor Deposited 2024-01-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 145–665（521 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	GLC alpha-D-glucopyranose × 4 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 2 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；100 mM TRIS pH 8.75, 2%(w/v) PEG-6000, cryoprotected in 30% (w/v) Glucose.	Resolution 2.13 Å R-free 0.240
8VME Crystal structure of the GSK-3/Axin complex bound to a phosphorylated beta-catenin T41A peptide Deposited 2024-01-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 35–61（27 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 2 GOL GLYCEROL × 6 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions MICRODIALYSIS；pH 7.5；277 K；10% PEG35000, 20 mM Tris, pH 7.5, 300 mM sodium chloride, 5% glycerol, 10 mM magnesium chloride, 200 uM ATP, 5 mM DTT	Resolution 2.30 Å R-free 0.230
8VMF Crystal structure of a transition-state mimic of the GSK-3/Axin complex bound to a beta-catenin S45D peptide Deposited 2024-01-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 35–61（27 aa）	Mutation：S45D	MG MAGNESIUM ION × 2 AF3 ALUMINUM FLUORIDE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 GOL GLYCEROL × 3 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions MICRODIALYSIS；pH 7.5；277 K；10% PEG35000, 20 mM Tris, pH 7.5, 300 mM sodium chloride, 5% glycerol, 10 mM magnesium chloride, 5 mM DTT, 200 uM ADP, 200 uM aluminum nitrate, 1.2 mM sodium fluoride	Resolution 2.50 Å R-free 0.251
8Y0G Human beta-catenin crystal structure Deposited 2024-01-22	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 138–686（549 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；Apo crystals of beta-Catenin were grown from 14% PEG3350, 0.1M Hepes pH 7.5, 0.2M L-proline Crystal were transferred into soaking solution and incubated at RT for 1 days. Crystals were transferred into cryoprotectant (14% PEG3350, 0.1M Hepes pH 7.5, 0.2M L-proline, 20% glycerol), and then flash frozen in liquid nitrogen.	Resolution 2.50 Å R-free 0.287
8Y0P Beta-Catenin in complex with peptide 301 Deposited 2024-01-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 138–686（549 aa）	Not recorded	PRO PROLINE × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；14% PEG 3350, 0.1M Hepes pH 7.5, 0.2M L-proline, 20% glycerol	Resolution 2.62 Å R-free 0.279
8Y0P Beta-Catenin in complex with peptide 301 Deposited 2024-01-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 138–686（549 aa）	Not recorded	PRO PROLINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；14% PEG 3350, 0.1M Hepes pH 7.5, 0.2M L-proline, 20% glycerol	Resolution 2.62 Å R-free 0.279
8Y14 Beta-catenin Crystal Structure Deposited 2024-01-23	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 138–686（549 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；14% PEG 3350, 0.1M Hepes pH 7.5, 0.2M L-proline, 20% glycerol	Resolution 2.80 Å R-free 0.264
8Z0U Human beta-catenin crystal structure Deposited 2024-04-10	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 138–686（549 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；Apo crystals of beta-Catenin were grown from 14% PEG3350, 0.1M Hepes pH 7.5, 0.2M L-proline. Crystal were transferred into soaking solution and incubated at RT for 4 days. Crystals were transferred into cryoprotectant (14% PEG3350, 0.1M Hepes pH 7.5, 0.2M L-proline, 20% glycerol), and then flash frozen in liquid nitrogen.	Resolution 2.21 Å R-free 0.281
8Z10 Human beta-catenin crystal structure Deposited 2024-04-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 138–686（549 aa）	Not recorded	PRO PROLINE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；Apo crystals of beta-Catenin were grown from 14% PEG3350, 0.1M Hepes pH 7.5, 0.2M L-proline. Crystal was transferred into a soaking solution and incubated at RT for 4 days. Crystals were transferred into cryoprotectant (14% PEG3350, 0.1M Hepes pH 7.5, 0.2M L-proline, 20% glycerol), and then flash frozen in liquid nitrogen.	Resolution 2.35 Å R-free 0.275
8Z5J Beta-catenin Crystal Structure Deposited 2024-04-18	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 138–686（549 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；14% PEG 3350, 0.1M Hepes pH 7.5, 0.2M L-proline, 20% glycerol	Resolution 2.80 Å R-free 0.264
8Z61 Human beta-catenin crystal structure Deposited 2024-04-18	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 138–686（549 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；Apo crystals of beta-Catenin were grown from 14% PEG 3350, 0.1M Hepes pH 7.5, 0.2M L-proline (Crystal were transferred into soaking solution and incubated at RT for 1 days. Crystals were transferred into cryoprotectant (14% PEG3350, 0.1M Hepes pH 7.5, 0.2M L-proline, 20% glycerol), and then flash frozen in liquid nitrogen.)	Resolution 2.50 Å R-free 0.287
9I8K Beta-catenin armadillo (150-663) Deposited 2025-02-05	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 150–663（514 aa） Chain B 150–663（514 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；Buffer system 1 pH 6.5, 0.12 M monosaccharides mix, 50% precipitant mix 4	Resolution 2.00 Å R-free 0.239
9I8W Beta-catenin armadillo with cyclic peptide and Compound 3 Deposited 2025-02-06	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 134–671（538 aa）	Not recorded	HHT 2-(4-bromanyl-2-methoxy-phenyl)ethanoic acid × 1 SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M ADA pH 6.5, 100 mM ammonium sulfate, 30 % w/v PEG MME 5000	Resolution 2.20 Å R-free 0.244
9I8X Beta-catenin armadillo with cyclic peptide and Compound 2 Deposited 2025-02-06	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 134–671（538 aa）	Not recorded	IJX ~{N}-(4-bromophenyl)ethanamide × 1 SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M Bis-TRIS pH 6.5, 0.2 M Lithium sulfate monohydrate, 26% PEG 3350	Resolution 2.00 Å R-free 0.286

46 other PDB entries and 63 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CTNB1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–532； UniProt 133–664 Author chain C； PDBConstruct 1–532； UniProt 133–664

TCF3-CBD (CATENIN BINDING DOMAIN)

Xenopus laevis

UniProt P70062

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 1–61	Not recorded	BETA-CATENIN ARMADILLO REPEAT REGION × 1 （P35222）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 4.2；298 K；2.5% PEG-8000, 44mM Phosphate-Citrate, 2mM DTT, pH 4.2, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 2.10 Å R-free 0.255
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain D； UniProt 1–61	Not recorded	BETA-CATENIN ARMADILLO REPEAT REGION × 1 （P35222）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 4.2；298 K；2.5% PEG-8000, 44mM Phosphate-Citrate, 2mM DTT, pH 4.2, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 2.10 Å R-free 0.255

Other States of the Same Protein in the Database

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	P70062_XENLA
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–61； UniProt 1–61 Author chain D； PDBConstruct 1–61； UniProt 1–61

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

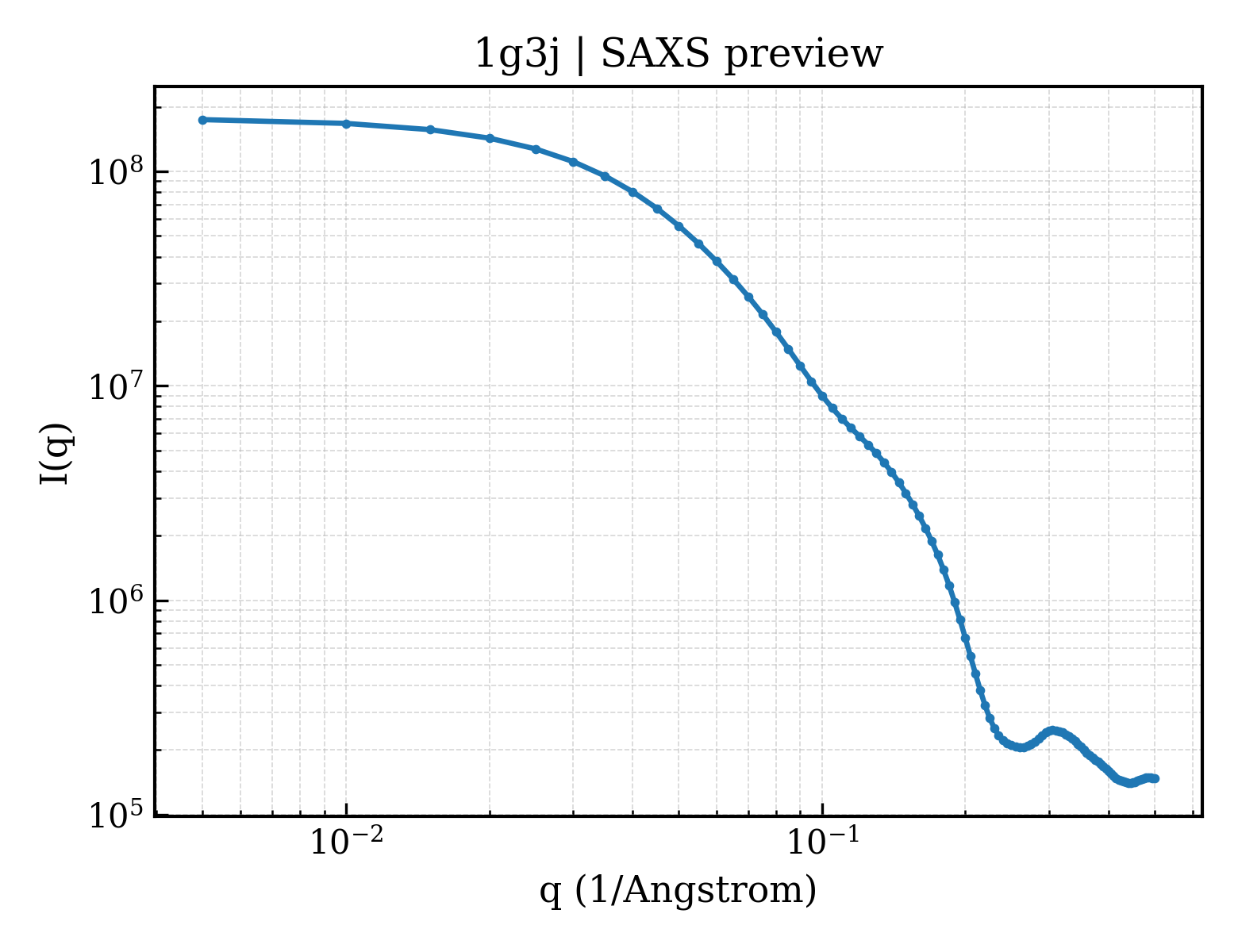

SAXS scattering curve SAXS Profile

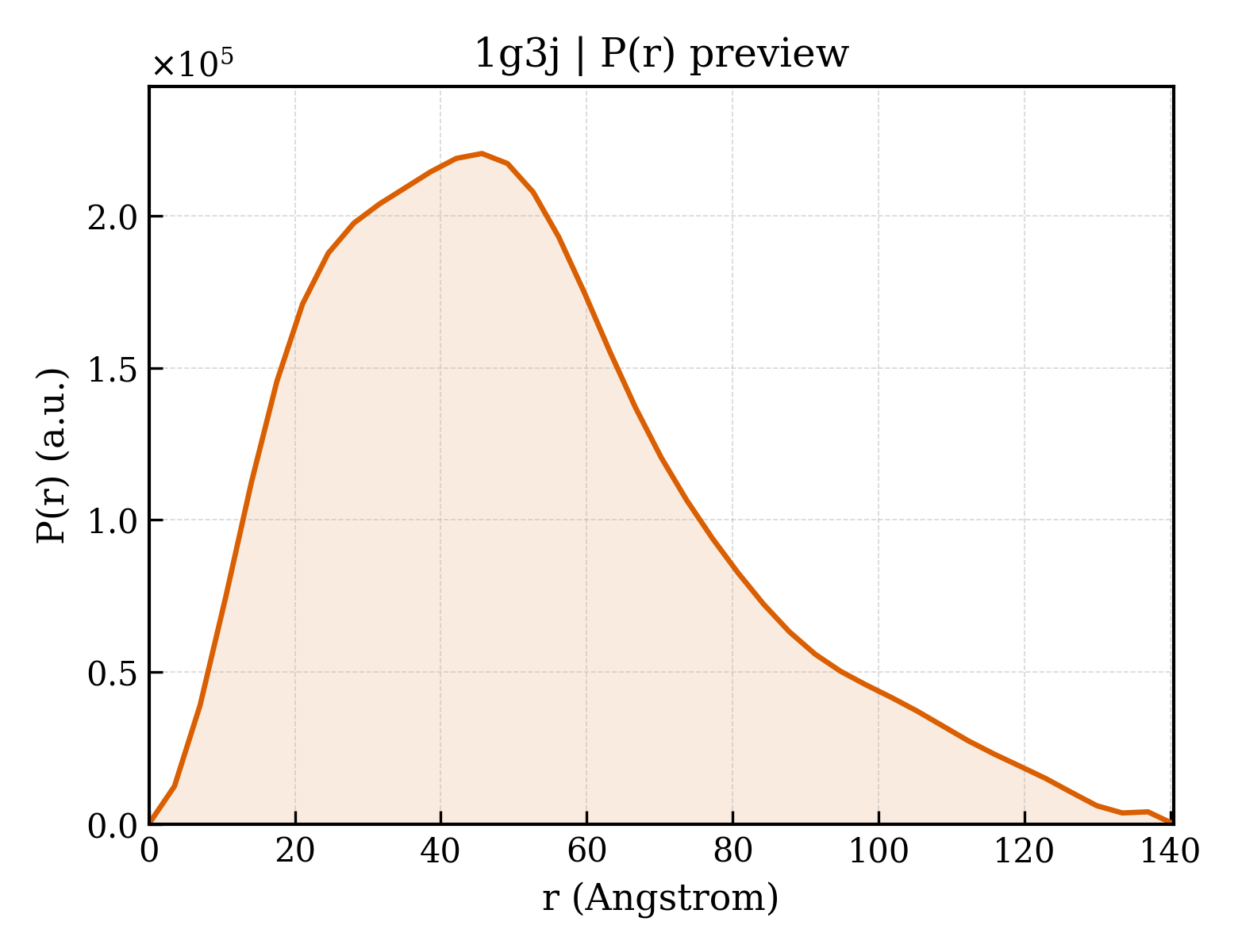

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1g3j
Deposition date deposition_date	2000-10-24
Structure title title	CRYSTAL STRUCTURE OF THE XTCF3-CBD/BETA-CATENIN ARMADILLO REPEAT COMPLEX
Keywords keywords	Beta-catenin, Tcf-3, Protein-Protein Complex, TRANSCRIPTION; TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	39.65 Å
Radius of gyration Rg (electron density) rg_electron	40.37 Å
Forward intensity I(0) i0	176614000.00
Molecular weight molecular_weight	107360.0 kDa
Excluded volume excluded_volume	134600 Å³
Envelope volume envelope_volume	176440 Å³
Hydration-shell volume shell_volume	40434 Å³
Envelope diameter envelope_diameter	148.5 Å
Shell Rg shell_rg	40.79 Å
Envelope Rg envelope_rg	40.59 Å
Shape Rg shape_rg	40.38 Å
Total Rg total_rg	40.34 Å
Total atoms total_atoms	7531
Residues n_residues	1036
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	140.4 Å
Rg (real space) rg_real	40.33 Å
Rg uncertainty (real space) rg_real_error	1.71 Å
I(0) (real space) i0_real	1.7660e+08
I(0) uncertainty (real space) i0_real_error	3.1760e+06
Rg (reciprocal space) rg_reciprocal	39.91 Å
I(0) (reciprocal space) i0_reciprocal	176500000.0000
Solution quality estimate total_estimate	0.7876
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	45.6 Å
Skewness Skewness skewness	0.667
Kurtosis Kurtosis kurtosis	0.039
Angular range angular_range	— – 0.2000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	13930000.0000
Real-space data points n_real_points	41
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.695; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.680; Smooth: 0.471

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	BETA-CATENIN ARMADILLO REPEAT REGION
Molecular weight formula_weight	58096.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	7794

KHAVVNLINYQDDAELATRAIPELTKLLNDEDQVVVNKAAVMVHQLSKKEASRHAIMRSPQMVSAIVRTMQNTNDVETARCTAGTLHNLSHHREGLLAIFKSGGIPALVKMLGSPVDSVLFYAITTLHNLLLHQEGAKMAVRLAGGLQKMVALLNKTNVKFLAITTDCLQILAYGNQESKLIILASGGPQALVNIMRTYTYEKLLWTTSRVLKVLSVCSSNKPAIVEAGGMQALGLHLTDPSQRLVQNCLWTLRNLSDAATKQEGMEGLLGTLVQLLGSDDINVVTCAAGILSNLTCNNYKNKMMVCQVGGIEALVRTVLRAGDREDITEPAICALRHLTSRHQEAEMAQNAVRLHYGLPVVVKLLHPPSHWPLIKATVGLIRNLALCPANHAPLREQGAIPRLVQLLVRAHQDTQRRTSMGGTQQQFVEGVRMEEIVEGCTGALHILARDVHNRIVIRGLNTIPLFVQLLYSPIENIQRVAAGVLCELAQDKEAAEAIEAEGATAPLTELLHSRNEGVATYAAAVLFRMSE

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	TCF3-CBD (CATENIN BINDING DOMAIN)
Molecular weight formula_weight	6400.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

MPQLNSGGGDELGANDELIRFKDEGEQEEKSPGEGSAEGDLADVKSSLVNESENHSSDSDS

来源 Source

来源生物 organism	Xenopus laevis
通用名 common_name	African clawed frog
NCBI Class编号 ncbi_taxonomy_id	8355
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	263

▼

7. Fold Classification (SCOP + CATH) 7 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1g3ja_
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.1 — ARM repeat
Family Family family	a.118.1.1 — Armadillo repeat

Domain ID domain_id	d1g3jb_
Class class	j — Peptides
Fold Fold fold	j.71 — beta-Catenine bound non-globular protein regions
Superfamily Superfamily superfamily	j.71.1 — beta-Catenine bound non-globular protein regions
Family Family family	j.71.1.1 — beta-Catenine bound non-globular protein regions

Domain ID domain_id	d1g3jc_
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.1 — ARM repeat
Family Family family	a.118.1.1 — Armadillo repeat

Domain ID domain_id	d1g3jd_
Class class	j — Peptides
Fold Fold fold	j.71 — beta-Catenine bound non-globular protein regions
Superfamily Superfamily superfamily	j.71.1 — beta-Catenine bound non-globular protein regions
Family Family family	j.71.1.1 — beta-Catenine bound non-globular protein regions

CATH v4.4 (3 domains)

Domain ID domain_id	1g3jA00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

Domain ID domain_id	1g3jB00
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	900 — TCF3-CBD (Catenin binding domain)
Homologous superfamily homologous superfamily	10 — TCF3-CBD (Catenin binding domain)

Domain ID domain_id	1g3jC00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

▶

8. Citations (1)

▶

Unit-cell length a length_a	52.135 Å
Unit-cell length b length_b	153.249 Å
Unit-cell length c length_c	188.124 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	25.000 Å
R factor r_factor	—
R_work r_work	0.2290
R_free r_free	0.2550

fit	/app/data/saxs_computation/g3/1g3j/1g3j.fit
pddf	/app/data/pr_computation/g3/1g3j/1g3j.pr.out
profile	/app/data/saxs_computation/g3/1g3j/1g3j.dat

CRYSTAL STRUCTURE OF THE XTCF3-CBD/BETA-CATENIN ARMADILLO REPEAT COMPLEX

1. Protein Identity and Related Structures Protein Identity & Related Structures

BETA-CATENIN ARMADILLO REPEAT REGION

State in the Current Structure

Other States of the Same Protein in the Database

TCF3-CBD (CATENIN BINDING DOMAIN)

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 water

7. Fold Classification (SCOP + CATH) 7 domains

SCOP 2.08 (4 domains)

CATH v4.4 (3 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
