SAXSdb — 5k35

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ankyrin-repeat protein B

Legionella pneumophila

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	S-phase kinase-associated protein 1 × 1 （P63208） water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A0A1EKG3_LEGPN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 15–182； UniProt 1–168

S-phase kinase-associated protein 1

Homo sapiens

UniProt P63208

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Ankyrin-repeat protein B × 1 （A0A0A1EKG3） water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SKP1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–163； UniProt 1–163

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5k35
Deposition date deposition_date	2016-05-19
Structure title title	Structure of the Legionella effector, AnkB, in complex with human Skp1
Keywords keywords	;bacterial effector, host-pathogen interaction, F-box protein, ankyrin repeats, Structural Genomics, Montreal-Kingston Bacterial Structural Genomics Initiative, BSGI, PROTEIN BINDING ;; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

5k35__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

5k35__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

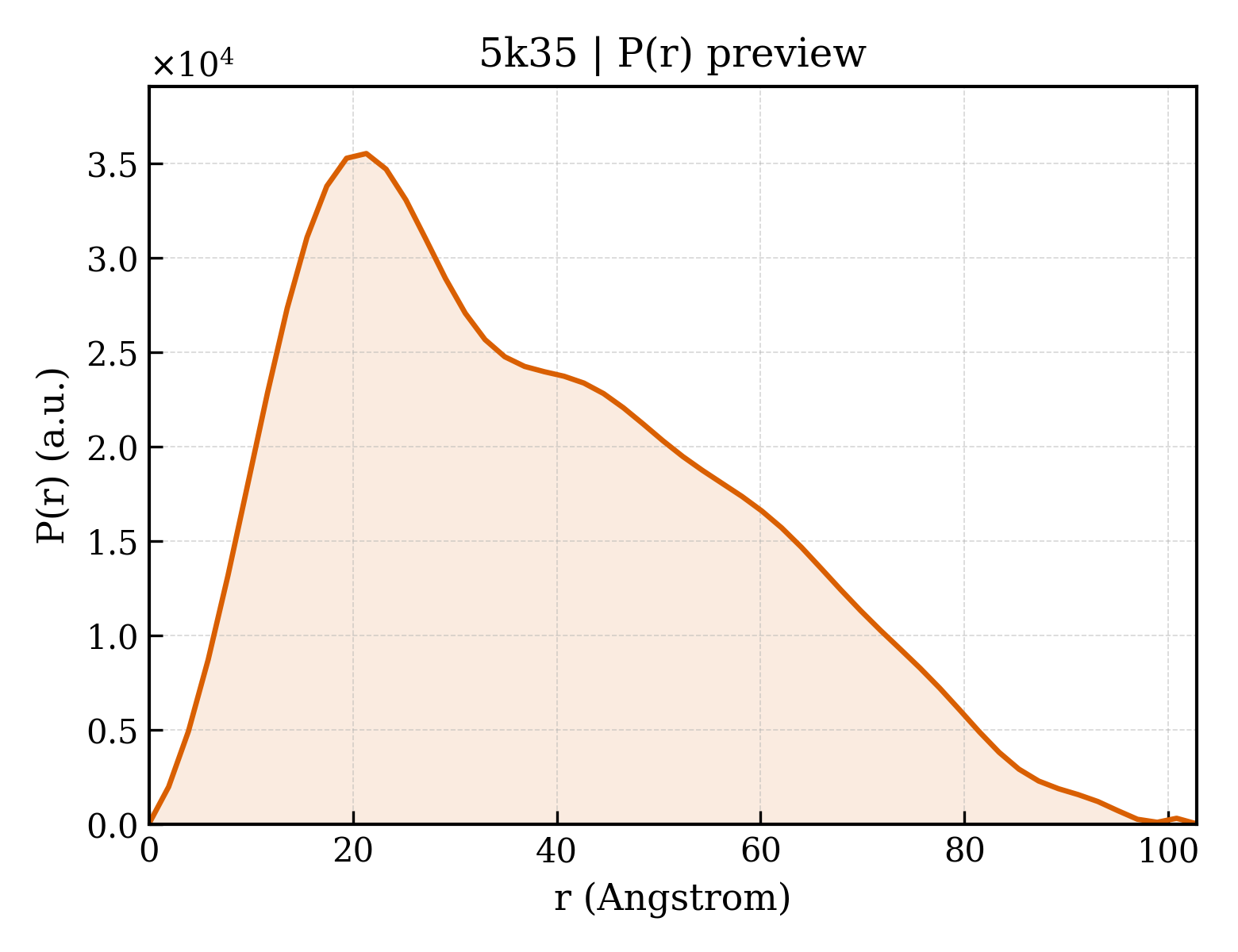

5k35__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	29.82 Å
Rg (electron density)	30.09 Å
Total Rg	30.50 Å
Atom count	2498
Residues	310
Excluded volume	44652 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`5k35__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Ankyrin-repeat protein B
Molecular weight formula_weight	21228.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2503

MGSSHHHHHHSQDPMKKNFFSDLPEETIVNTLSFLKANTLARIAQTCQFFNRLANDKHLELHQLRQQHIKRELWGNLMVAARSNNLEEVKKILKKGIDPTQTNSYHLNRTPLLAAIEGKAYQTANYLWRKYTFDPNFKDNYGDSPISLLKKQLANPAFKDKEKKQIRALIRGMQEEKIAQSK

Source Source

Source organism organism	Legionella pneumophila
NCBI taxonomy ID ncbi_taxonomy_id	446
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	S-phase kinase-associated protein 1
Molecular weight formula_weight	18680.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MPSIKLQSSDGEIFEVDVEIAKQSVTIKTMLEDLGMDDEGDDDPVPLPNVNAAILKKVIQWCTHHKDDPPPPEDDENKEKRTDDIPVWDQEFLKVDQGTLFELILAANYLDIKGLLDVTCKTVANMIKGKTPEEIRKTFNIKNDFTEEEEAQVRKENQWCEEK

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	5

▼

6. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d5k35b1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.42 — POZ domain
Superfamily Superfamily superfamily	d.42.1 — POZ domain
Family Family family	d.42.1.0 — automated matches

Domain ID domain_id	d5k35b2
Class class	a — All alpha proteins
Fold Fold fold	a.157 — Skp1 dimerisation domain-like
Superfamily Superfamily superfamily	a.157.1 — Skp1 dimerisation domain-like
Family Family family	a.157.1.1 — Skp1 dimerisation domain-like

CATH v4.4 (1 domains)

Domain ID domain_id	5k35B00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	710 — Potassium Channel Kv1.1; Chain A
Homologous superfamily homologous superfamily	10 — Potassium Channel Kv1.1; Chain A

▶

Unit-cell length a length_a	53.576 Å
Unit-cell length b length_b	57.039 Å
Unit-cell length c length_c	150.891 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.850 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	0.2220
R_work r_work	0.2193
R_free r_free	0.2747
