SAXSdb — 8h33

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Kelch repeat and BTB domain-containing protein 2

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 12	E3 ubiquitin-protein ligase RBX1 × 4 （P62877） Cullin-3 × 4 （Q13618） ZINC ION × 12	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	KBTB2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–623； UniProt 1–623 Author chain B； PDBConstruct 1–623； UniProt 1–623 Author chain G； PDBConstruct 1–623； UniProt 1–623 Author chain J； PDBConstruct 1–623； UniProt 1–623

E3 ubiquitin-protein ligase RBX1

Homo sapiens

UniProt P62877

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 12	Kelch repeat and BTB domain-containing protein 2 × 4 （Q8IY47） Cullin-3 × 4 （Q13618） ZINC ION × 12	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RBX1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain D； PDBConstruct 14–121； UniProt 1–108 Author chain E； PDBConstruct 14–121； UniProt 1–108 Author chain K； PDBConstruct 14–121； UniProt 1–108 Author chain L； PDBConstruct 14–121； UniProt 1–108

Cullin-3

Homo sapiens

UniProt Q13618

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 12	Kelch repeat and BTB domain-containing protein 2 × 4 （Q8IY47） E3 ubiquitin-protein ligase RBX1 × 4 （P62877） ZINC ION × 12	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CUL3_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 9–776； UniProt 1–768 Author chain F； PDBConstruct 9–776； UniProt 1–768 Author chain H； PDBConstruct 9–776； UniProt 1–768 Author chain I； PDBConstruct 9–776； UniProt 1–768

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8h33
Deposition date deposition_date	2022-10-07
Structure title title	Cryo-EM Structure of the KBTBD2-Cul3-Rbx1 tetrameric complex
Keywords keywords	ligase, complex; LIGASE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8h33__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8h33__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

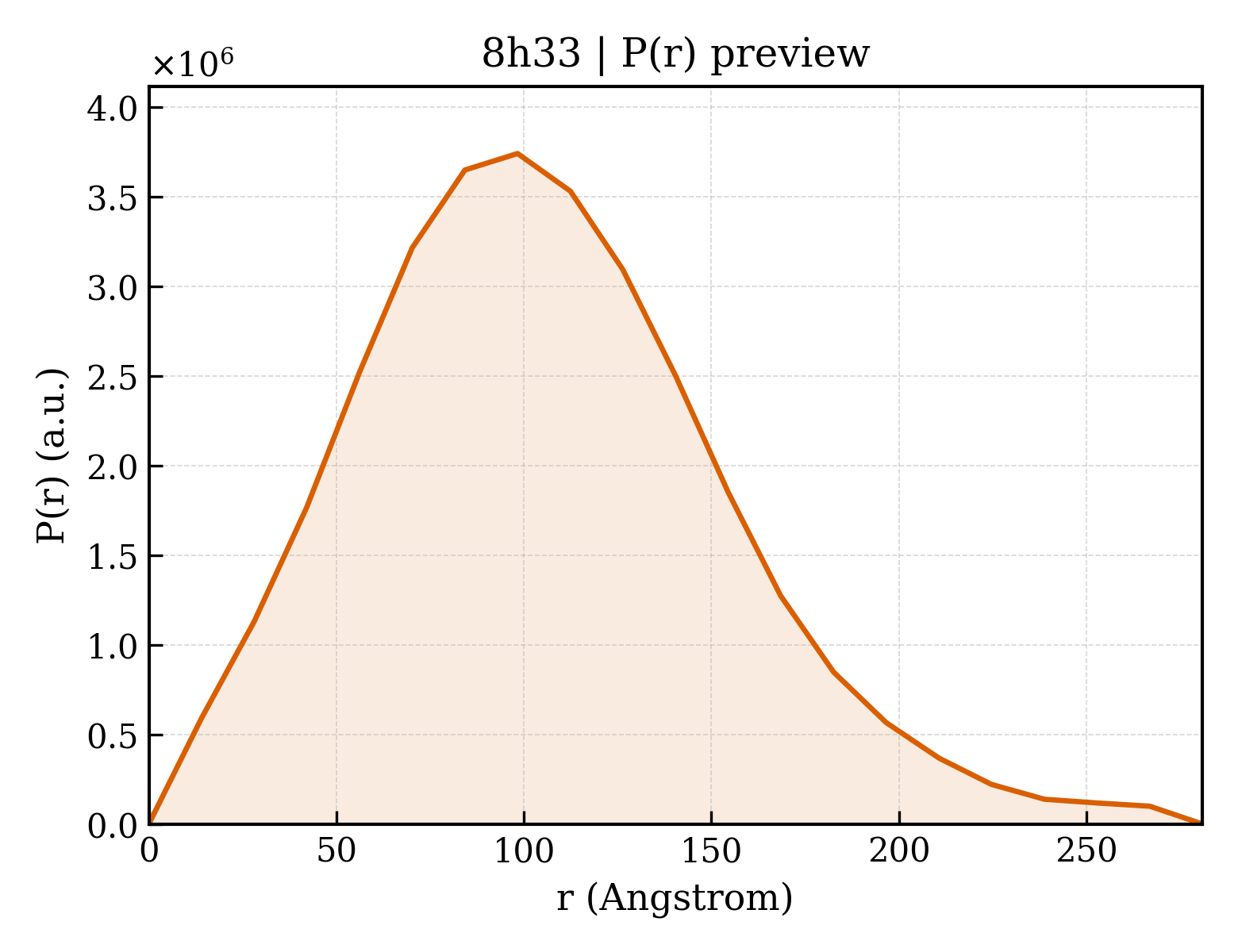

8h33__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	77.81 Å
Rg (electron density)	77.42 Å
Total Rg	77.44 Å
Atom count	43620
Residues	5472
Excluded volume	774400 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8h33__assembly_1__model_1`	dodecameric （12）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Kelch repeat and BTB domain-containing protein 2
Molecular weight formula_weight	71403.4 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,G,J
Atom count atom_count	43620

MSTQDERQINTEYAVSLLEQLKLFYEQQLFTDIVLIVEGTEFPCHKMVLATCSSYFRAMFMSGLSESKQTHVHLRNVDAATLQIIITYAYTGNLAMNDSTVEQLYETACFLQVEDVLQRCREYLIKKINAENCVRLLSFADLFSCEELKQSAKRMVEHKFTAVYHQDAFMQLSHDLLIDILSSDNLNVEKEETVREAAMLWLEYNTESRSQYLSSVLSQIRIDALSEVTQRAWFQGLPPNDKSVVVQGLYKSMPKFFKPRLGMTKEEMMIFIEASSENPCSLYSSVCYSPQAEKVYKLCSPPADLHKVGTVVTPDNDIYIAGGQVPLKNTKTNHSKTSKLQTAFRTVNCFYWFDAQQNTWFPKTPMLFVRIKPSLVCCEGYIYAIGGDSVGGELNRRTVERYDTEKDEWTMVSPLPCAWQWSAAVVVHDCIYVMTLNLMYCYFPRSDSWVEMAMRQTSRSFASAAAFGDKIFYIGGLHIATNSGIRLPSGTVDGSSVTVEIYDVNKNEWKMAANIPAKRYSDPCVRAVVISNSLCVFMRETHLNERAKYVTYQYDLELDRWSLRQHISERVLWDLGRDFRCTVGKLYPSCLEESPWKPPTYLFSTDGTEEFELDGEMVALPPV

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	E3 ubiquitin-protein ligase RBX1
Molecular weight formula_weight	13970.8 kDa
EC 编号 ec_number	2.3.2.27,2.3.2.32
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,K,L,E

HHHHHHENLYFQGMAAAMDVDTPSGTNSGAGKKRFEVKKWNAVALWAWDIVVDNCAICRNHIMDLCIECQANQASATSEECTVAWGVCNHAFHFHCISRWLKTRQVCPLDNREWEFQKYGH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 3 Entity 3 polymer

Description description	Cullin-3
Molecular weight formula_weight	90105.5 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F,H,I,C

WSHPQFEKMSNLSKGTGSRKDTKMRIRAFPMTMDEKYVNSIWDLLKNAIQEIQRKNNSGLSFEELYRNAYTMVLHKHGEKLYTGLREVVTEHLINKVREDVLNSLNNNFLQTLNQAWNDHQTAMVMIRDILMYMDRVYVQQNNVENVYNLGLIIFRDQVVRYGCIRDHLRQTLLDMIARERKGEVVDRGAIRNACQMLMILGLEGRSVYEEDFEAPFLEMSAEFFQMESQKFLAENSASVYIKKVEARINEEIERVMHCLDKSTEEPIVKVVERELISKHMKTIVEMENSGLVHMLKNGKTEDLGCMYKLFSRVPNGLKTMCECMSSYLREQGKALVSEEGEGKNPVDYIQGLLDLKSRFDRFLLESFNNDRLFKQTIAGDFEYFLNLNSRSPEYLSLFIDDKLKKGVKGLTEQEVETILDKAMVLFRFMQEKDVFERYYKQHLARRLLTNKSVSDDSEKNMISKLKTECGCQFTSKLEGMFRDMSISNTTMDEFRQHLQATGVSLGGVDLTVRVLTTGYWPTQSATPKCNIPPAPRHAFEIFRRFYLAKHSGRQLTLQHHMGSADLNATFYGPVKKEDGSEVGVGGAQVTGSNTRKHILQVSTFQMTILMLFNNREKYTFEEIQQETDIPERELVRALQSLACGKPTQRVLTKEPKSKEIENGHIFTVNDQFTSKLHRVKIQTVAAKQGESDPERKETRQKVDDDRKHEIEAAIVRIMKSRKKMQHNVLVAEVTQQLKARFLPSPVVIKKRIEGLIEREYLARTPEDRKVYTYVA

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 4 Entity 4 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	12

▶

Resolution resolution	7.86 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	50236
