4eoz

Crystal structure of the SPOP BTB domain complexed with the Cul3 N-terminal domain

Method: X-RAY DIFFRACTION D_max: 166.5 Å Quality: REASONABLE

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Speckle-type POZ protein

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 177–319 Chain C； UniProt 177–319	Fragment：BTB domain from SPOP, unp residues 177-319	Cullin-3 × 2 （Q13618）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.025M Hepes pH 6.5, 0.1M MgCl2, 13% PEG 2000, 11% 2,4-Methyl-2-Pentanediol, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.40 Å R-free 0.263
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 177–319	Fragment：BTB domain from SPOP, unp residues 177-319	Cullin-3 × 1 （Q13618）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.025M Hepes pH 6.5, 0.1M MgCl2, 13% PEG 2000, 11% 2,4-Methyl-2-Pentanediol, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.40 Å R-free 0.263
3	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 177–319	Fragment：BTB domain from SPOP, unp residues 177-319	Cullin-3 × 1 （Q13618）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.025M Hepes pH 6.5, 0.1M MgCl2, 13% PEG 2000, 11% 2,4-Methyl-2-Pentanediol, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.40 Å R-free 0.263

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4EOZ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2CR2 Solution structure of N-terminal domain of speckle-type POZ protein Deposited 2005-05-20	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 28–173（146 aa） Fragment：math domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 120mM；Pressure ambient NMR sample composition 1.25mM math domain U-13C,15N; 20mM TrisHCl, 100mM NaCl, 1mM DTT, 0.02% NaN3 \| 90% H2O/10% D2O	Resolution not provided
3HQI Structures of SPOP-Substrate Complexes: Insights into Molecular Architectures of BTB-Cul3 Ubiquitin Ligases: SPOPMATHx/BTB/3-box-PucSBC1 Deposited 2009-06-07	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 28–329（302 aa） Fragment：UNP residues 28-329 Chain B 28–329（302 aa） Fragment：UNP residues 28-329	Mutation：D140G Mutation：D140G	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；pH 5.5, VAPOR DIFFUSION, HANGING DROP	Resolution 2.62 Å R-free 0.275
3HQL Structures of SPOP-Substrate Complexes: Insights into Molecular Architectures of BTB-Cul3 Ubiquitin Ligases:SPOPMATHx-PucSBC1_pep2 Deposited 2009-06-07	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 28–166（139 aa） Fragment：UNP residues 28-166	Mutation：D140G	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；VAPOR DIFFUSION, HANGING DROP	Resolution 1.66 Å R-free 0.258
3HQL Structures of SPOP-Substrate Complexes: Insights into Molecular Architectures of BTB-Cul3 Ubiquitin Ligases:SPOPMATHx-PucSBC1_pep2 Deposited 2009-06-07	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 28–166（139 aa） Fragment：UNP residues 28-166	Mutation：D140G	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；VAPOR DIFFUSION, HANGING DROP	Resolution 1.66 Å R-free 0.258
3HQM Structures of SPOP-Substrate Complexes: Insights into Molecular Architectures of BTB-Cul3 Ubiquitin Ligases: SPOPMATHx-CiSBC2 Deposited 2009-06-07	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 28–166（139 aa） Fragment：UNP residues 28-166	Mutation：D140G	SO4 SULFATE ION × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.74 Å R-free 0.218
3HQM Structures of SPOP-Substrate Complexes: Insights into Molecular Architectures of BTB-Cul3 Ubiquitin Ligases: SPOPMATHx-CiSBC2 Deposited 2009-06-07	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 28–166（139 aa） Fragment：UNP residues 28-166	Mutation：D140G	SO4 SULFATE ION × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.74 Å R-free 0.218
3HSV Structures of SPOP-Substrate Complexes: Insights into Molecular Architectures of BTB-Cul3 Ubiquitin Ligases: SPOPMATHx-MacroH2ASBCpep2 Deposited 2009-06-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 28–166（139 aa） Chain B 28–166（139 aa）	Mutation：D140G Mutation：D140G	ZN ZINC ION × 3 SO4 SULFATE ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.43 Å R-free 0.206
3HTM Structures of SPOP-Substrate Complexes: Insights into Molecular Architectures of BTB-Cul3 Ubiquitin Ligases: SPOPBTB/3-box Deposited 2009-06-11	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 172–329（158 aa） Fragment：UNP residues 172-329 Chain B 172–329（158 aa） Fragment：UNP residues 172-329	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；VAPOR DIFFUSION, HANGING DROP	Resolution 2.50 Å R-free 0.256
3HTM Structures of SPOP-Substrate Complexes: Insights into Molecular Architectures of BTB-Cul3 Ubiquitin Ligases: SPOPBTB/3-box Deposited 2009-06-11	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 172–329（158 aa） Fragment：UNP residues 172-329 Chain D 172–329（158 aa） Fragment：UNP residues 172-329	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；VAPOR DIFFUSION, HANGING DROP	Resolution 2.50 Å R-free 0.256
3HU6 Structures of SPOP-Substrate Complexes: Insights into Molecular Architectures of BTB-Cul3 Ubiquitin Ligases: SPOPMATHx/BTB/3-box-PucSBC1 Deposited 2009-06-13	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 28–329（302 aa） Fragment：UNP residues 28-329 Chain B 28–329（302 aa） Fragment：UNP residues 28-329	Mutation：D140G Mutation：D140G	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.70 Å R-free 0.296
3IVB Structures of SPOP-Substrate Complexes: Insights into Architectures of BTB-Cul3 Ubiquitin Ligases: SPOPMATH-MacroH2ASBCpep1 Deposited 2009-08-31	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 28–166（139 aa） Fragment：UNP residues 28-166	Not recorded	ZN ZINC ION × 5 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；298 K；10-20% PEG3350, 0.1 M Tris pH 7.6, 50 mM zinc acetate. Cryoprotection 30% PEG400, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.75 Å R-free 0.247
3IVQ Structures of SPOP-Substrate Complexes: Insights into Molecular Architectures of BTB-Cul3 Ubiquitin Ligases: SPOPMATH-CiSBC2 Deposited 2009-09-01	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 28–166（139 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；298 K；28% PME 550, 0.1 M BTP, Cryoprotection: 35% PME 550, pH 6.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.10 Å R-free 0.279
3IVQ Structures of SPOP-Substrate Complexes: Insights into Molecular Architectures of BTB-Cul3 Ubiquitin Ligases: SPOPMATH-CiSBC2 Deposited 2009-09-01	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 28–166（139 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；298 K；28% PME 550, 0.1 M BTP, Cryoprotection: 35% PME 550, pH 6.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.10 Å R-free 0.279
3IVV Structures of SPOP-Substrate Complexes: Insights into Molecular Architectures of BTB-Cul3 Ubiquitin Ligases: SPOPMATH-PucSBC1_pep1 Deposited 2009-09-01	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 28–166（139 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；22% PME 550, 0.1 M HEPES, Cryoprotection: 30% glycerol, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.25 Å R-free 0.199
4HS2 Crystal Structure of the Human SPOP C-terminal Domain Deposited 2012-10-29	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 270–374（105 aa） Fragment：C-terminal domain (UNP residues 270-374)	Mutation：L273D, L282D, L285K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；26% PEG 1500, 7% isopropanol, 0.1M CaCl2, 0.1M imidazole pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.53 Å R-free 0.151
4J8Z Crystal Structure of the Human SPOP BTB Domain Deposited 2013-02-15	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 169–374（206 aa） Fragment：SPOP BTB domain, UNP residues 178-374	Mutation：Y353E	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；291 K；32% PEG3350, 17% isopropanol, 0.1M tris-HCl, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.42 Å R-free 0.255
4J8Z Crystal Structure of the Human SPOP BTB Domain Deposited 2013-02-15	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 169–374（206 aa） Fragment：SPOP BTB domain, UNP residues 178-374	Mutation：Y353E	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；291 K；32% PEG3350, 17% isopropanol, 0.1M tris-HCl, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.42 Å R-free 0.255
4O1V SPOP Promotes Tumorigenesis by Acting as a Key Regulatory Hub in Kidney Cancer Deposited 2013-12-16	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 28–166（139 aa） Fragment：MATH domain (UNP residues 28-166)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；100 mM Tris, 100 mM sodium malonate, 36% PEG400, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.00 Å R-free 0.221
6F8F Co-crystal structure of SPOP MATH domain and human Pdx1 fragment Deposited 2017-12-13	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 28–166（139 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；0.1 M HEPES pH 6.5, 10% (w/v) PEG6000 (final pH 7.0)	Resolution 2.00 Å R-free 0.274
6F8G Co-crystal structure of SPOP MATH domain and hamster Pdx1 fragment Deposited 2017-12-13	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 28–166（139 aa） Chain B 28–166（139 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；295 K；0.1 M Imidazole-HCl pH 8.0, 30% (w/v) MPD, 10% (w/v) PEG-4000	Resolution 2.03 Å R-free 0.262
6F8G Co-crystal structure of SPOP MATH domain and hamster Pdx1 fragment Deposited 2017-12-13	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 28–166（139 aa） Chain D 28–166（139 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；295 K；0.1 M Imidazole-HCl pH 8.0, 30% (w/v) MPD, 10% (w/v) PEG-4000	Resolution 2.03 Å R-free 0.262
6F8G Co-crystal structure of SPOP MATH domain and hamster Pdx1 fragment Deposited 2017-12-13	Different construct Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 28–166（139 aa） Chain D 28–166（139 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；295 K；0.1 M Imidazole-HCl pH 8.0, 30% (w/v) MPD, 10% (w/v) PEG-4000	Resolution 2.03 Å R-free 0.262
6I41 Co-crystal structure of human SPOP MATH domain (wild-type) and human BRD3 fragment Deposited 2018-11-08	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 28–166（139 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；294 K；100 mM Tris pH 8.5, 200 mM NaCl, 25% (w/v) PEG3350	Resolution 1.90 Å R-free 0.238
6I5P Co-crystal structure of human SPOP MATH domain (E47K) and human BRD3 fragment Deposited 2018-11-14	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 28–166（139 aa）	Mutation：E47K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；294 K；200mM Ammonium Acetate, 100mM Tris pH 8.5, 25% (w/v) PEG 3350	Resolution 1.81 Å R-free 0.227
6I5P Co-crystal structure of human SPOP MATH domain (E47K) and human BRD3 fragment Deposited 2018-11-14	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 28–166（139 aa）	Mutation：E47K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；294 K；200mM Ammonium Acetate, 100mM Tris pH 8.5, 25% (w/v) PEG 3350	Resolution 1.81 Å R-free 0.227
6I5P Co-crystal structure of human SPOP MATH domain (E47K) and human BRD3 fragment Deposited 2018-11-14	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 28–166（139 aa）	Mutation：E47K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；294 K；200mM Ammonium Acetate, 100mM Tris pH 8.5, 25% (w/v) PEG 3350	Resolution 1.81 Å R-free 0.227
6I5P Co-crystal structure of human SPOP MATH domain (E47K) and human BRD3 fragment Deposited 2018-11-14	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 28–166（139 aa）	Mutation：E47K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；294 K；200mM Ammonium Acetate, 100mM Tris pH 8.5, 25% (w/v) PEG 3350	Resolution 1.81 Å R-free 0.227
6I68 Co-crystal structure of human SPOP MATH domain (M117V) and human BRD3 fragment Deposited 2018-11-15	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 28–166（139 aa）	Mutation：M117V	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；294 K；200 mM Sodium formate, 100 mM Bis Tris propane pH 7.5, 20% (w/v) PEG 3350	Resolution 1.85 Å R-free 0.237
6I68 Co-crystal structure of human SPOP MATH domain (M117V) and human BRD3 fragment Deposited 2018-11-15	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 28–166（139 aa）	Mutation：M117V	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；294 K；200 mM Sodium formate, 100 mM Bis Tris propane pH 7.5, 20% (w/v) PEG 3350	Resolution 1.85 Å R-free 0.237
6I68 Co-crystal structure of human SPOP MATH domain (M117V) and human BRD3 fragment Deposited 2018-11-15	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 28–166（139 aa）	Mutation：M117V	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；294 K；200 mM Sodium formate, 100 mM Bis Tris propane pH 7.5, 20% (w/v) PEG 3350	Resolution 1.85 Å R-free 0.237
6I68 Co-crystal structure of human SPOP MATH domain (M117V) and human BRD3 fragment Deposited 2018-11-15	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 28–166（139 aa）	Mutation：M117V	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；294 K；200 mM Sodium formate, 100 mM Bis Tris propane pH 7.5, 20% (w/v) PEG 3350	Resolution 1.85 Å R-free 0.237
6I7A Co-crystal structure of human SPOP MATH domain (D140N) and human BRD3 fragment Deposited 2018-11-16	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 28–166（139 aa） Chain E 28–166（139 aa）	Mutation：D140N Mutation：D140N	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；294 K；200 mM Sodium chloride, 100 mM HEPES pH 7.0, 20% (w/v) PEG 6000	Resolution 2.20 Å R-free 0.234
6I7A Co-crystal structure of human SPOP MATH domain (D140N) and human BRD3 fragment Deposited 2018-11-16	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 28–166（139 aa） Chain G 28–166（139 aa）	Mutation：D140N Mutation：D140N	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；294 K；200 mM Sodium chloride, 100 mM HEPES pH 7.0, 20% (w/v) PEG 6000	Resolution 2.20 Å R-free 0.234
7D3D Crystal structure of SPOP bound with a peptide Deposited 2020-09-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 28–166（139 aa） Fragment：UNP residues 28-166	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；200 mM sodium acetate trihydrate, pH 7.0, 20%(w/v) polyethylene glycol 3350	Resolution 1.45 Å R-free 0.189
7D3D Crystal structure of SPOP bound with a peptide Deposited 2020-09-18	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 28–166（139 aa） Fragment：UNP residues 28-166	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；200 mM sodium acetate trihydrate, pH 7.0, 20%(w/v) polyethylene glycol 3350	Resolution 1.45 Å R-free 0.189
7KLZ Structure of SPOP MATH domain in complex with a Geminin peptide Deposited 2020-11-01	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 29–166（138 aa） Fragment：MATH domain	Mutation：D140G	PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295 K；One microliter of the protein complex in 20 mM Tris-HCl, pH 7.6, 50 mM NaCl and 5 mM dithiothreitol was mixed with on microliter of 0.2 M ammonium citrate dibasic and 20% (W/V) PEG 3350	Resolution 3.40 Å R-free 0.241
7KLZ Structure of SPOP MATH domain in complex with a Geminin peptide Deposited 2020-11-01	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 29–166（138 aa） Fragment：MATH domain	Mutation：D140G	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295 K；One microliter of the protein complex in 20 mM Tris-HCl, pH 7.6, 50 mM NaCl and 5 mM dithiothreitol was mixed with on microliter of 0.2 M ammonium citrate dibasic and 20% (W/V) PEG 3350	Resolution 3.40 Å R-free 0.241
7LIN X-ray structure of SPOP MATH domain (D140G) in complex with a 53BP1 peptide Deposited 2021-01-27	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 29–166（138 aa） Fragment：MATH domain	Mutation：D140G	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；SPOP MATH was at 24 mg/ml and 1:5 protein:53BP1 peptide molar ratio. Crystals were grown by the hanging drop method, mixing 2 ul of the protein sample in 20 mM Tris-HCl, pH 7.6, 150 mM NaCl, 5 mM DTT and 2 ul of the reservoir solution for the drop. The reservoir solution was 0.5 ml. Reservoir solution: 0.1 M sodium citrate tribasic dihydrate, pH 5.6, 0.2 M (NH4)2SO4, 1 M Li2SO4	Resolution 1.44 Å R-free 0.186
7LIO X-ray structure of SPOP MATH domain (S119D) in complex with a 53BP1 peptide Deposited 2021-01-27	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 29–166（138 aa） Fragment：MATH domain	Mutation：S119D	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；SPOP MATH (S119D) was at a concentration of 20 mg/ml with a 1:5 protein:53BP1 peptide molar ratio. Crystals were grown by the hanging drop method, mixing 2 ul of the protein sample in 20 mM Tris-HCl, pH 7.6, 150 mM NaCl, 5 mM DTT and 2 ul of the reservoir solution for the drop. The reservoir solution was 0.5 ml of 2 M (NH4)2SO4.	Resolution 3.01 Å R-free 0.277
7LIO X-ray structure of SPOP MATH domain (S119D) in complex with a 53BP1 peptide Deposited 2021-01-27	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 29–166（138 aa） Fragment：MATH domain	Mutation：S119D	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；SPOP MATH (S119D) was at a concentration of 20 mg/ml with a 1:5 protein:53BP1 peptide molar ratio. Crystals were grown by the hanging drop method, mixing 2 ul of the protein sample in 20 mM Tris-HCl, pH 7.6, 150 mM NaCl, 5 mM DTT and 2 ul of the reservoir solution for the drop. The reservoir solution was 0.5 ml of 2 M (NH4)2SO4.	Resolution 3.01 Å R-free 0.277
7LIP X-ray structure of SPOP MATH domain (D140G) Deposited 2021-01-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 29–166（138 aa） Fragment：MATH domain	Mutation：D140G	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；Reservoir solution: 0.1 M sodium citrate tribasic dihydrate, pH 5.6, 0.2 M (NH4)2SO4, 1 M Li2SO4. Two ul of the protein at 24 mg/ml in 20 mM Tris-HCl, pH 7.6, 150 mM NaCl, 5 mM DTT was mixed with 2 ul of the reservoir solution. The reservoir solution was 0.5 ml.	Resolution 1.48 Å R-free 0.205
7LIQ X-ray structure of SPOP MATH domain (S119A) Deposited 2021-01-27	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 29–166（138 aa） Fragment：MATH domain	Mutation：S119A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；Crystals were grown by the hanging drop method, mixing 2 ul of the SPOP MATH S119A at 20 mg/ml in 20 mM Tris-HCl, pH 7.6, 150 mM NaCl, 5 mM DTT and 2 ul of the reservoir solution for the drop. The reservoir solution was 0.2 M (NH4)2SO4, 0.1 M BIS-Tris, pH 6.5, 25% (w/v) PEG 3,350).	Resolution 1.98 Å R-free 0.225
8DWS Full-length E47K SPOP Deposited 2022-08-02	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 7 PDB declaration: heptameric	Chain A 1–374（374 aa） Chain B 1–374（374 aa） Chain D 1–374（374 aa） Chain E 1–374（374 aa） Chain F 1–374（374 aa） Chain G 1–374（374 aa） Chain H 1–374（374 aa）	Mutation：E47K Mutation：E47K Mutation：E47K Mutation：E47K Mutation：E47K Mutation：E47K Mutation：E47K	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；20 mM HEPES pH 7.5, 400 mM NaCl, 5 mM DTT cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.73 Å
8DWT SPOP W22R Form 2 Deposited 2022-08-02	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 12 PDB declaration: dodecameric	Chain A 2–374（373 aa） Chain B 2–374（373 aa） Chain C 2–374（373 aa） Chain D 2–374（373 aa） Chain E 2–374（373 aa） Chain F 2–374（373 aa） Chain G 2–374（373 aa） Chain H 2–374（373 aa） Chain I 2–374（373 aa） Chain J 2–374（373 aa） Chain K 2–374（373 aa） Chain L 2–374（373 aa）	Mutation：W22R Mutation：W22R Mutation：W22R Mutation：W22R Mutation：W22R Mutation：W22R Mutation：W22R Mutation：W22R Mutation：W22R Mutation：W22R Mutation：W22R Mutation：W22R	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；20 mM HEPES pH 7.5, 400 mM NaCl, 5 mM DTT cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.20 Å
8DWU SPOP W22R Form 1 Deposited 2022-08-02	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 9 PDB declaration: nonameric	Chain A 1–374（374 aa） Chain B 1–374（374 aa） Chain C 1–374（374 aa） Chain D 1–374（374 aa） Chain E 1–374（374 aa） Chain F 1–374（374 aa） Chain H 1–374（374 aa） Chain I 1–374（374 aa） Chain J 1–374（374 aa）	Mutation：W22R Mutation：W22R Mutation：W22R Mutation：W22R Mutation：W22R Mutation：W22R Mutation：W22R Mutation：W22R Mutation：W22R	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；20 mM HEPES pH 7.5, 400 mM NaCl, 5 mM DTT cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
8DWV Full-length wild type SPOP Deposited 2022-08-02	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 1–373（373 aa） Chain B 1–373（373 aa） Chain E 1–373（373 aa） Chain F 1–373（373 aa） Chain G 1–373（373 aa） Chain H 1–373（373 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；20 mM HEPES pH 7.5, 400 mM NaCl, 5 mM DTT cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
9HFV MyD88 peptide_2 bound to SPOP MATH domain Deposited 2024-11-18	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 28–166（139 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；10% w/v PEG 20,000, 20% v/v PEG MME 550, 0.03 M magnesium chloride, 0.03 M calcium chloride, 0.1 M MOPS/HEPES-Na pH 7.5	Resolution 1.45 Å R-free 0.214
9HGG SETD2 peptide bound to SPOP MATH domain Deposited 2024-11-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 28–166（139 aa）	Not recorded	MG MAGNESIUM ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；10% w/v PEG 20 000, 20% v/v PEG MME 550, 0.03 M sodium fluoride, 0.03 M sodium bromide, 0.1 M MES/imidazole pH 6.5	Resolution 1.90 Å R-free 0.256
9OUT SPOP double donut locally refined MATH domains Deposited 2025-05-29	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 15 PDB declaration: pentadecameric	Chain A 1–374（374 aa） Chain B 1–374（374 aa） Chain C 1–374（374 aa） Chain D 1–374（374 aa） Chain E 1–374（374 aa） Chain F 1–374（374 aa） Chain G 1–374（374 aa） Chain H 1–374（374 aa） Chain I 1–374（374 aa） Chain J 1–374（374 aa） Chain K 1–374（374 aa） Chain L 1–374（374 aa） Chain M 1–374（374 aa） Chain N 1–374（374 aa） Chain P 1–374（374 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.30 Å
9OUU SPOP double donut locally refined MATH domains Deposited 2025-05-29	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 15 PDB declaration: pentadecameric	Chain A 1–373（373 aa） Chain B 1–373（373 aa） Chain C 1–373（373 aa） Chain D 1–373（373 aa） Chain E 1–373（373 aa） Chain F 1–373（373 aa） Chain G 1–373（373 aa） Chain H 1–373（373 aa） Chain I 1–373（373 aa） Chain J 1–373（373 aa） Chain K 1–373（373 aa） Chain L 1–373（373 aa） Chain M 1–373（373 aa） Chain N 1–373（373 aa） Chain P 1–373（373 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.30 Å
9OUW SPOP double donut locally refined MATH domains Deposited 2025-05-29	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 1–373（373 aa） Chain B 1–373（373 aa） Chain D 1–373（373 aa） Chain F 1–373（373 aa） Chain H 1–373（373 aa） Chain I 1–373（373 aa） Chain J 1–373（373 aa） Chain L 1–373（373 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å

34 other PDB entries and 51 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SPOP_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–145； UniProt 177–319 Author chain C； PDBConstruct 3–145； UniProt 177–319

Cullin-3

Homo sapiens

UniProt Q13618

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain B； UniProt 20–381 Chain D； UniProt 20–381	Fragment：N-terminal domain from Cul3, unp residue 20-381 Mutation：I342R, L346D Non-standard monomer：Yes (specific site not provided by mmCIF)	Speckle-type POZ protein × 2 （O43791）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.025M Hepes pH 6.5, 0.1M MgCl2, 13% PEG 2000, 11% 2,4-Methyl-2-Pentanediol, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.40 Å R-free 0.263
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 20–381	Fragment：N-terminal domain from Cul3, unp residue 20-381 Mutation：I342R, L346D Non-standard monomer：Yes (specific site not provided by mmCIF)	Speckle-type POZ protein × 1 （O43791）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.025M Hepes pH 6.5, 0.1M MgCl2, 13% PEG 2000, 11% 2,4-Methyl-2-Pentanediol, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.40 Å R-free 0.263
3	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain D； UniProt 20–381	Fragment：N-terminal domain from Cul3, unp residue 20-381 Mutation：I342R, L346D Non-standard monomer：Yes (specific site not provided by mmCIF)	Speckle-type POZ protein × 1 （O43791）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.025M Hepes pH 6.5, 0.1M MgCl2, 13% PEG 2000, 11% 2,4-Methyl-2-Pentanediol, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.40 Å R-free 0.263

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 4EOZ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2MYL Cullin3 - BTB interface: a novel target for stapled peptides Deposited 2015-01-27	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 49–68（20 aa） Fragment：UNP residues 49-68	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 3；298 K；Pressure ambient NMR sample composition 1 mM Cul349-68EN, trifluoroethanol/water \| trifluoroethanol/water	Resolution not provided
2MYM Cullin3 - BTB interface: a novel target for stapled peptides Deposited 2015-01-27	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 49–68（20 aa） Fragment：UNP residues 49-68	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 3；298 K；Pressure ambient NMR sample composition 1 mM Cul349-68LA, trifluoroethanol/water \| trifluoroethanol/water	Resolution not provided
4AP2 Crystal structure of the human KLHL11-Cul3 complex at 2.8A resolution Deposited 2012-03-30	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–388（388 aa） Fragment：N-TERMINAL DOMAIN, RESIDUES 1-388	Mutation：YES	EDO 1,2-ETHANEDIOL × 4 IOD IODIDE ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions 25% PEG3350, 0.15M NAI, 8% ETHGLY	Resolution 2.80 Å R-free 0.236
4APF Crystal structure of the human KLHL11-Cul3 complex at 3.1A resolution Deposited 2012-04-02	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 23–388（366 aa） Fragment：N-TERMINAL DOMAIN, RESIDUES 23-388	Mutation：YES	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions 0.12 M K CITRATE; 17% PEG 3350; 10% ETHYLENE GLYCOL; PH 6.5 BIS TRIS PROPANE	Resolution 3.10 Å R-free 0.222
4HXI Crystal structure of KLHL3/Cul3 complex Deposited 2012-11-10	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 20–381（362 aa） Fragment：NTD	Mutation：K274R, I342R, L346D	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.2M ammonium tartrate, 14% PEG 3350, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 3.51 Å R-free 0.278
5NLB Crystal structure of human CUL3 N-terminal domain bound to KEAP1 BTB and 3-box Deposited 2017-04-04	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 26–381（356 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；15% PEG3350, 10% ethylene glycol, 0.2M potassium citrate tribasic	Resolution 3.45 Å R-free 0.288
6I2M Crystal structure of vaccinia virus protein A55 BTB-Back domain in complex with human Cullin-3 N-terminus Deposited 2018-11-01	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 23–388（366 aa）	Mutation：I342R and L346D	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；3.29% tacsimate pH 6.5, 9.92% PEG3350	Resolution 2.30 Å R-free 0.282
8GQ6 Cryo-EM Structure of the KBTBD2-CUL3-Rbx1 dimeric complex Deposited 2022-08-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain C 1–768（768 aa） Chain F 1–768（768 aa）	Not recorded	ZN ZINC ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.96 Å
8H33 Cryo-EM Structure of the KBTBD2-Cul3-Rbx1 tetrameric complex Deposited 2022-10-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain C 1–768（768 aa） Chain F 1–768（768 aa） Chain H 1–768（768 aa） Chain I 1–768（768 aa）	Not recorded	ZN ZINC ION × 12	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.86 Å
8H34 Cryo-EM Structure of the KBTBD2-Cul3-Rbx1 hexameric complex Deposited 2022-10-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric	Chain C 1–768（768 aa） Chain F 1–768（768 aa） Chain H 1–768（768 aa） Chain I 1–768（768 aa） Chain M 1–768（768 aa） Chain O 1–768（768 aa）	Not recorded	ZN ZINC ION × 18	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.99 Å
8H35 Cryo-EM Structure of the KBTBD2-Cul3-Rbx1 octameric complex Deposited 2022-10-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric	Chain C 1–768（768 aa） Chain F 1–768（768 aa） Chain H 1–768（768 aa） Chain I 1–768（768 aa） Chain M 1–768（768 aa） Chain O 1–768（768 aa） Chain T 1–768（768 aa） Chain V 1–768（768 aa）	Not recorded	ZN ZINC ION × 24	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.41 Å
8H36 Cryo-EM Structure of the KBTBD2-CUL3-Rbx1-p85a dimeric complex Deposited 2022-10-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain C 1–768（768 aa） Chain F 1–768（768 aa）	Not recorded	ZN ZINC ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.60 Å
8H37 Cryo-EM Structure of the KBTBD2-CUL3-Rbx1-p85a tetrameric complex Deposited 2022-10-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain C 1–768（768 aa） Chain F 1–768（768 aa） Chain M 1–768（768 aa） Chain O 1–768（768 aa）	Not recorded	ZN ZINC ION × 12	ELECTRON MICROSCOPY cryo-EM buffer pH 8.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.52 Å
8H38 Cryo-EM Structure of the KBTBD2-CRL3~N8-CSN(mutate) complex Deposited 2022-10-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric	Chain L 1–768（768 aa）	Not recorded	ZN ZINC ION × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8	Resolution 4.25 Å
8H3A Cryo-EM Structure of the KBTBD2-CRL3~N8(removed)-CSN complex Deposited 2022-10-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain L 1–768（768 aa）	Not recorded	ZN ZINC ION × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.51 Å
8H3F Cryo-EM Structure of the KBTBD2-CRL3-CSN complex Deposited 2022-10-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain L 1–768（768 aa）	Not recorded	ZN ZINC ION × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.73 Å
8H3Q Cryo-EM Structure of the CAND1-Cul3-Rbx1 complex Deposited 2022-10-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–768（768 aa）	Not recorded	ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.76 Å
8H3R Cryo-EM Structure of the KBTBD2-CRL3~N8 dimeric complex Deposited 2022-10-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain C 1–768（768 aa） Chain F 1–768（768 aa）	Not recorded	ZN ZINC ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.36 Å
8I79 Cryo-EM structure of KCTD7 in complex with Cullin3 Deposited 2023-01-31	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain B 22–388（367 aa） Chain C 22–388（367 aa） Chain E 22–388（367 aa） Chain H 22–388（367 aa） Chain J 22–388（367 aa）	Mutation：I342R, L346D Mutation：I342R, L346D Mutation：I342R, L346D Mutation：I342R, L346D Mutation：I342R, L346D	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
8K8T Structure of CUL3-RBX1-KLHL22 complex Deposited 2023-07-31	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–768（768 aa） Chain D 1–768（768 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
8K9I Structure of CUL3-RBX1-KLHL22 complex without CUL3 NA motif Deposited 2023-08-01	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 25–768（744 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.20 Å
8KHP CULLIN3-KLHL22-RBX1 E3 ligase Deposited 2023-08-22	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain C 1–768（768 aa） Chain D 1–768（768 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.67 Å
8U80 KCTD5/Cullin3/Gbeta1gamma2 Complex: Local Refinment of KCTD5(BTB)/Cullin3(NTD) Deposited 2023-09-15	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain C1 1–381（381 aa） Chain C2 1–381（381 aa） Chain C3 1–381（381 aa） Chain C4 1–381（381 aa） Chain C5 1–381（381 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
8U81 KCTD5/Cullin3/Gbeta1gamma2 Complex: State A From Composite RELION Multi-body Refinement Map Deposited 2023-09-15	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric	Chain C1 1–381（381 aa） Chain C2 1–381（381 aa） Chain C3 1–381（381 aa） Chain C4 1–381（381 aa） Chain C5 1–381（381 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.82 Å
8U82 KCTD5/Cullin3/Gbeta1gamma2 Complex: State B From Composite RELION Multi-body Refinement Map Deposited 2023-09-15	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric	Chain C1 2–381（380 aa） Chain C2 2–381（380 aa） Chain C3 2–381（380 aa） Chain C4 2–381（380 aa） Chain C5 2–381（380 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.84 Å
8U83 KCTD5/Cullin3/Gbeta1gamma2 Complex: State C From Composite RELION Multi-body Refinement Map Deposited 2023-09-15	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric	Chain C1 1–381（381 aa） Fragment：UNP residues 1-381 Chain C2 1–381（381 aa） Fragment：UNP residues 1-381 Chain C3 1–381（381 aa） Fragment：UNP residues 1-381 Chain C4 1–381（381 aa） Fragment：UNP residues 1-381 Chain C5 1–381（381 aa） Fragment：UNP residues 1-381	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.98 Å
8U84 KCTD5/Cullin3/Gbeta1gamma2 Complex: State D From Composite RELION Multi-body Refinement Map Deposited 2023-09-15	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric	Chain C1 1–381（381 aa） Chain C2 1–381（381 aa） Chain C3 1–381（381 aa） Chain C4 1–381（381 aa） Chain C5 1–381（381 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.88 Å
9EGL Cryo-EM structure of COP9 signalosome precatalytic state with neddylated cullin-3 Deposited 2024-11-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric	Chain J 1–768（768 aa）	Not recorded	ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.93 Å
9RWZ ZSWIM8-CUL3 complex bound to AGO2-miR-7-CYRANO Deposited 2025-07-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 9 PDB declaration: 11-meric	Chain H 1–390（390 aa） Chain I 1–390（390 aa）	Mutation：I342R, L346D Mutation：I342R, L346D	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8；25 mM HEPES, 50 mM NaCl, 1 mM TCEP, pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.10 Å

29 other PDB entries and 29 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CUL3_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 3–364； UniProt 20–381 Author chain D； PDBConstruct 3–364； UniProt 20–381

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

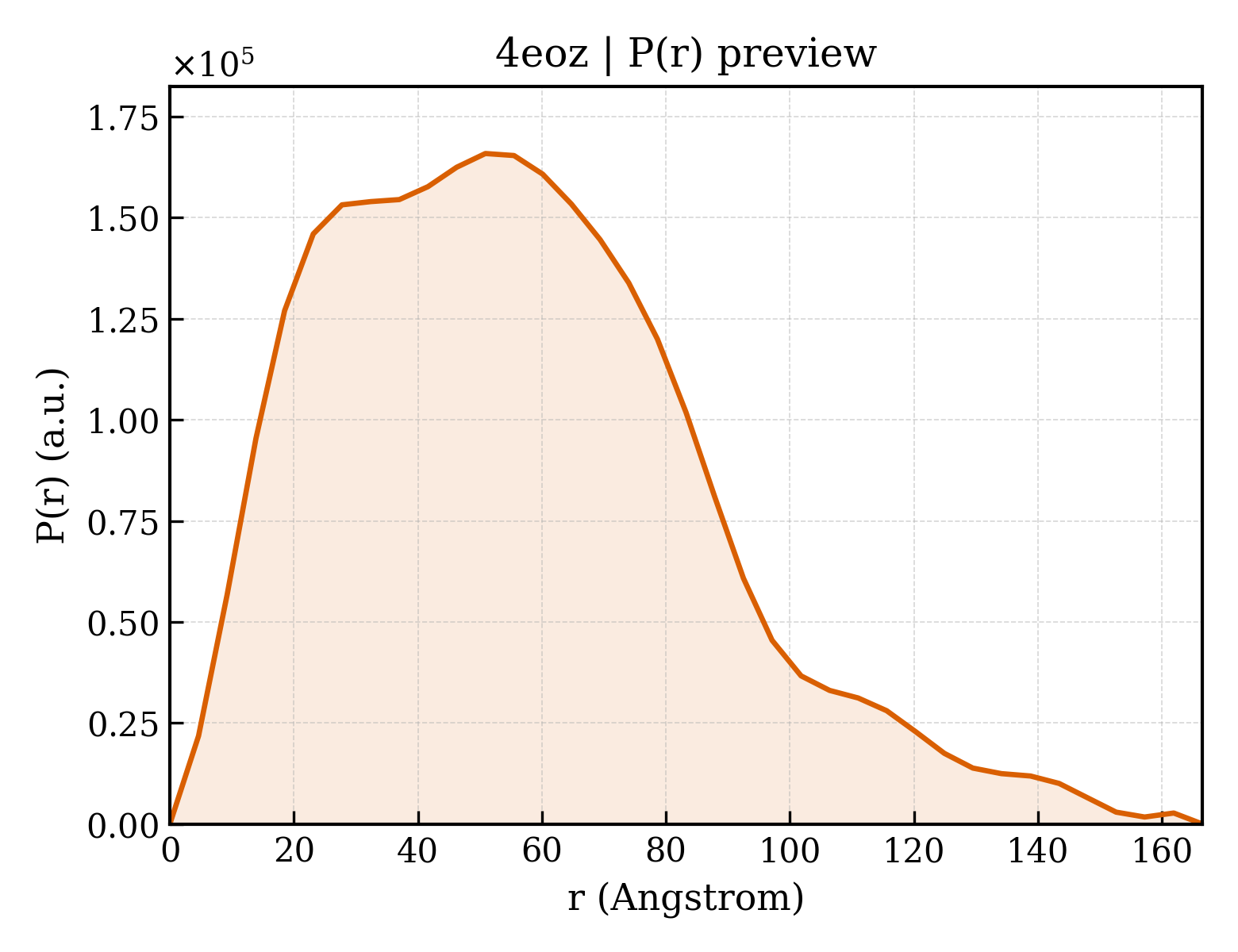

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4eoz
Deposition date deposition_date	2012-04-16
Structure title title	Crystal structure of the SPOP BTB domain complexed with the Cul3 N-terminal domain
Keywords keywords	E3 Ubiquitin Ligase, Nucleus, PROTEIN BINDING; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	44.12 Å
Radius of gyration Rg (electron density) rg_electron	44.51 Å
Forward intensity I(0) i0	162330000.00
Molecular weight molecular_weight	98305.0 kDa
Excluded volume excluded_volume	120580 Å³
Envelope volume envelope_volume	180530 Å³
Hydration-shell volume shell_volume	39074 Å³
Envelope diameter envelope_diameter	176.8 Å
Shell Rg shell_rg	41.40 Å
Envelope Rg envelope_rg	44.39 Å
Shape Rg shape_rg	44.34 Å
Total Rg total_rg	44.88 Å
Total atoms total_atoms	6739
Residues n_residues	797
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	166.5 Å
Rg (real space) rg_real	44.78 Å
Rg uncertainty (real space) rg_real_error	2.50 Å
I(0) (real space) i0_real	1.6230e+08
I(0) uncertainty (real space) i0_real_error	3.0890e+06
Rg (reciprocal space) rg_reciprocal	44.13 Å
I(0) (reciprocal space) i0_reciprocal	162200000.0000
Solution quality estimate total_estimate	0.7499
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	50.9 Å
Skewness Skewness skewness	0.647
Kurtosis Kurtosis kurtosis	0.198
Angular range angular_range	— – 0.1800 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	5973000.0000
Real-space data points n_real_points	37
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.541; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.512; Smooth: 0.611

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Speckle-type POZ protein
Molecular weight formula_weight	16167.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	6785

GSNMVKVPECRLADELGGLWENSRFTDCCLCVAGQEFQAHKAILAARSPVFSAMFEHEMEESKKNRVEINDVEPEVFKEMMCFIYTGKAPNLDKMADDLLAAADKYALERLKVMCEDALCSNLSVENAAEILILADLHSADQLKT

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Cullin-3
Molecular weight formula_weight	43461.7 kDa
Mutation mutation	I342R, L346D
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

GSAFPMTMDEKYVNSIWDLLKNAIQEIQRKNNSGLSFEELYRNAYTMVLHKHGEKLYTGLREVVTEHLINKVREDVLNSLNNNFLQTLNQAWNDHQTAMVMIRDILMYMDRVYVQQNNVENVYNLGLIIFRDQVVRYGCIRDHLRQTLLDMIARERKGEVVDRGAIRNACQMLMILGLEGRSVYEEDFEAPFLEMSAEFFQMESQKFLAENSASVYIKKVEARINEEIERVMHCLDKSTEEPIVKVVERELISKHMKTIVEMENSGLVHMLKNGKTEDLGCMYKLFSRVPNGLKTMCECMSSYLREQGKALVSEEGEGKNPVDYRQGLDDLKSRFDRFLLESFNNDRLFKQTIAGDFEYFLNLN

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	46

▼

7. Fold Classification (SCOP + CATH) 8 domains

CATH v4.4 (8 domains)

Domain ID domain_id	4eozA00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	710 — Potassium Channel Kv1.1; Chain A
Homologous superfamily homologous superfamily	10 — Potassium Channel Kv1.1; Chain A

Domain ID domain_id	4eozB01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1310 — 5 helical Cullin repeat like
Homologous superfamily homologous superfamily	10 — Cullin Repeats

Domain ID domain_id	4eozB02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1310 — 5 helical Cullin repeat like
Homologous superfamily homologous superfamily	10 — Cullin Repeats

Domain ID domain_id	4eozB03
Class class	6 — Special
Architecture architecture	10 — Helix non-globular
Topology topology	280 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
Homologous superfamily homologous superfamily	240 —

Domain ID domain_id	4eozC00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	710 — Potassium Channel Kv1.1; Chain A
Homologous superfamily homologous superfamily	10 — Potassium Channel Kv1.1; Chain A

Domain ID domain_id	4eozD01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1310 — 5 helical Cullin repeat like
Homologous superfamily homologous superfamily	10 — Cullin Repeats

Domain ID domain_id	4eozD02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1310 — 5 helical Cullin repeat like
Homologous superfamily homologous superfamily	10 — Cullin Repeats

Domain ID domain_id	4eozD03
Class class	6 — Special
Architecture architecture	10 — Helix non-globular
Topology topology	280 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
Homologous superfamily homologous superfamily	240 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	213.166 Å
Unit-cell length b length_b	76.944 Å
Unit-cell length c length_c	85.834 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	108.34 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	19.610 Å
R factor r_factor	0.2137
R_work r_work	0.2110
R_free r_free	0.2627

fit	/app/data/saxs_computation/eo/4eoz/4eoz.fit
pddf	/app/data/pr_computation/eo/4eoz/4eoz.pr.out
profile	/app/data/saxs_computation/eo/4eoz/4eoz.dat

Crystal structure of the SPOP BTB domain complexed with the Cul3 N-terminal domain

1. Protein Identity and Related Structures Protein Identity & Related Structures

Speckle-type POZ protein

State in the Current Structure

Other States of the Same Protein in the Database

Cullin-3

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 water

7. Fold Classification (SCOP + CATH) 8 domains

CATH v4.4 (8 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
