Cryo-EM Structure of FBOX22-BACH1BTB

Method: ELECTRON MICROSCOPY Dmax: 104.0 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

F-box only protein 22

Homo sapiens

UniProt Q8NEZ5

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count Chain C； UniProt 1–403 Not recorded Transcription regulator protein BACH1 × 2 （O14867） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.80 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8UA3 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
29HG Cryo-EM structure of the CUL1-RBX1-SKP1-FBXO22 SCF ubiquition ligase in complex with NSD2 via UNC10088 Deposited 2026-03-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–403（403 aa）
Not recorded A1J20 ~{N}-cyclopropyl-~{N}-[[4-[[2-(6-oxidanylhexanoyl)-1~{H}-isoquinolin-6-yl]carbamoyl]phenyl]methyl]-3-oxidanylidene-4~{H}-1,4-benzoxazine-7-carboxamide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
29HH Cryo-EM structure of the CUL1-RBX1-SKP1-FBXO22 SCF ubiquition ligase in complex with NSD2, UNC10088 and Bach1 Deposited 2026-03-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–403（403 aa）
Not recorded A1J20 ~{N}-cyclopropyl-~{N}-[[4-[[2-(6-oxidanylhexanoyl)-1~{H}-isoquinolin-6-yl]carbamoyl]phenyl]methyl]-3-oxidanylidene-4~{H}-1,4-benzoxazine-7-carboxamide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
29HI Cryo-EM structure of the CUL1-RBX1-SKP1-FBXO22 SCF ubiquition ligase in complex with NSD2 via UNC10415667 Deposited 2026-03-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–403（403 aa）
Not recorded A1J21 4-[[cyclopropyl-[(~{Z})-2-methyl-4-(5-oxidanylidene-2~{H}-1,4-oxazin-3-yl)but-3-enoyl]amino]methyl]-~{N}-[3-[2-[[4-(hydroxymethyl)phenyl]carbonyl-methyl-amino]ethyl]phenyl]benzamide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.90 Å
8S7D Cryo-EM structure of SKP1-FBXO22 in complex with a BACH1 BTB dimer at 3.2A resolution Deposited 2024-02-29 Different construct Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 12–403（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8S7E Cryo-EM structure of SKP1-FBXO22 Deposited 2024-02-29 Different construct Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 12–403（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8UA6 Cryo-EM Structure of SCF-FBOX22-BACH1BTB Deposited 2023-09-20 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain C 1–403（403 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å

6 other PDB entries and 6 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name FBX22_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain C； PDBConstruct 1–403； UniProt 1–403

Transcription regulator protein BACH1

Homo sapiens

UniProt O14867

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count Chain D； UniProt 7–128 Chain E； UniProt 7–128 Fragment：BTB domain (UNP residues 7-128) F-box only protein 22 × 1 （Q8NEZ5） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.80 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8UA3 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
29HH Cryo-EM structure of the CUL1-RBX1-SKP1-FBXO22 SCF ubiquition ligase in complex with NSD2, UNC10088 and Bach1 Deposited 2026-03-11 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain G 1–736（736 aa）
Chain H 1–736（736 aa）
Not recorded A1J20 ~{N}-cyclopropyl-~{N}-[[4-[[2-(6-oxidanylhexanoyl)-1~{H}-isoquinolin-6-yl]carbamoyl]phenyl]methyl]-3-oxidanylidene-4~{H}-1,4-benzoxazine-7-carboxamide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
2IHC Crystal structure of the bric-a-brac (BTB) domain of human BACH1 Deposited 2006-09-26 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 7–128（122 aa）
Chain B 7–128（122 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；20 % PEG3350, 200 mM MgCl2, 0.1M Tris buffer, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.44 Å R-free 0.278
2IHC Crystal structure of the bric-a-brac (BTB) domain of human BACH1 Deposited 2006-09-26 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 7–128（122 aa）
Chain D 7–128（122 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；20 % PEG3350, 200 mM MgCl2, 0.1M Tris buffer, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.44 Å R-free 0.278
2IHC Crystal structure of the bric-a-brac (BTB) domain of human BACH1 Deposited 2006-09-26 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 7–128（122 aa）
Chain B 7–128（122 aa）
Chain C 7–128（122 aa）
Chain D 7–128（122 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；20 % PEG3350, 200 mM MgCl2, 0.1M Tris buffer, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.44 Å R-free 0.278
8S7D Cryo-EM structure of SKP1-FBXO22 in complex with a BACH1 BTB dimer at 3.2A resolution Deposited 2024-02-29 Different construct Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 7–128（122 aa）
Chain B 7–128（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8UA6 Cryo-EM Structure of SCF-FBOX22-BACH1BTB Deposited 2023-09-20 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain D 7–128（122 aa） Fragment：BTB domain (UNP residues 7-128)
Chain E 7–128（122 aa） Fragment：BTB domain (UNP residues 7-128)
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
8UAH Structure of BACH1 BTB domain-bound FBXL17 ubiquitin ligase Deposited 2023-09-21 Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 7–132（126 aa） Fragment：BTB domain (UNP residues 7-132)
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
8UBT Structure of SCF-FBXL17-BACH1BTB E3 ligase complex Deposited 2023-09-24 Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 7–128（122 aa） Fragment：BTB domain (UNP residues 7-128)
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
8UBU Cryo-EM structure of dimeric SCF-FBXL17-BACH1BTB E3 ligase complex close conformation Deposited 2023-09-25 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain E 7–128（122 aa） Fragment：BTB domain (UNP residues 7-128)
Chain L 7–128（122 aa） Fragment：BTB domain (UNP residues 7-128)
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
8UBV Cryo-EM structure of dimeric FBXL17-BACH1BTB E3 ubiquitin ligase complex Deposited 2023-09-25 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 7–128（122 aa） Fragment：BTB domain (UNP residues 7-128)
Chain I 7–128（122 aa） Fragment：BTB domain (UNP residues 7-128)
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
9GP5 Homodimer of BACH1 F9A mutant BTB domain Deposited 2024-09-06 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 7–128（122 aa）
Chain D 7–128（122 aa）
Mutation：F9A Mutation：F9A No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；294 K；0.02 M HEPES, 0.15 M NaCl, 5% (w/v) glycerol, 0.001 M TCEP
Resolution 1.90 Å R-free 0.226
9GR9 Homodimer of BACH1 BTB domain Deposited 2024-09-11 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 7–128（122 aa）
Chain B 7–128（122 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；294 K；0.1 M Tris-HCL, 0.2 M Li2SO4, 30 % (w/v) PEG4000
Resolution 2.25 Å R-free 0.246
9GR9 Homodimer of BACH1 BTB domain Deposited 2024-09-11 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 7–128（122 aa）
Chain D 7–128（122 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；294 K；0.1 M Tris-HCL, 0.2 M Li2SO4, 30 % (w/v) PEG4000
Resolution 2.25 Å R-free 0.246
9GRA Homodimer of BACH1 BTB domain in complex with 2-Methyl-2,4-pentanediol Deposited 2024-09-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 7–128（122 aa）
Chain B 7–128（122 aa）
Not recorded MRD (4R)-2-METHYLPENTANE-2,4-DIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；294 K；0.16 M Ammonium sulfate, 0.08 M Tris-HCl, 14.4 % (w/v) PEG3350, 6 % (v/v) MPD
Resolution 1.47 Å R-free 0.234

11 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name BACH1_HUMAN
Isoform —
PDB entities 2
Chains and sequence ranges Author chain D； PDBConstruct 1–122； UniProt 7–128 Author chain E； PDBConstruct 1–122； UniProt 7–128

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

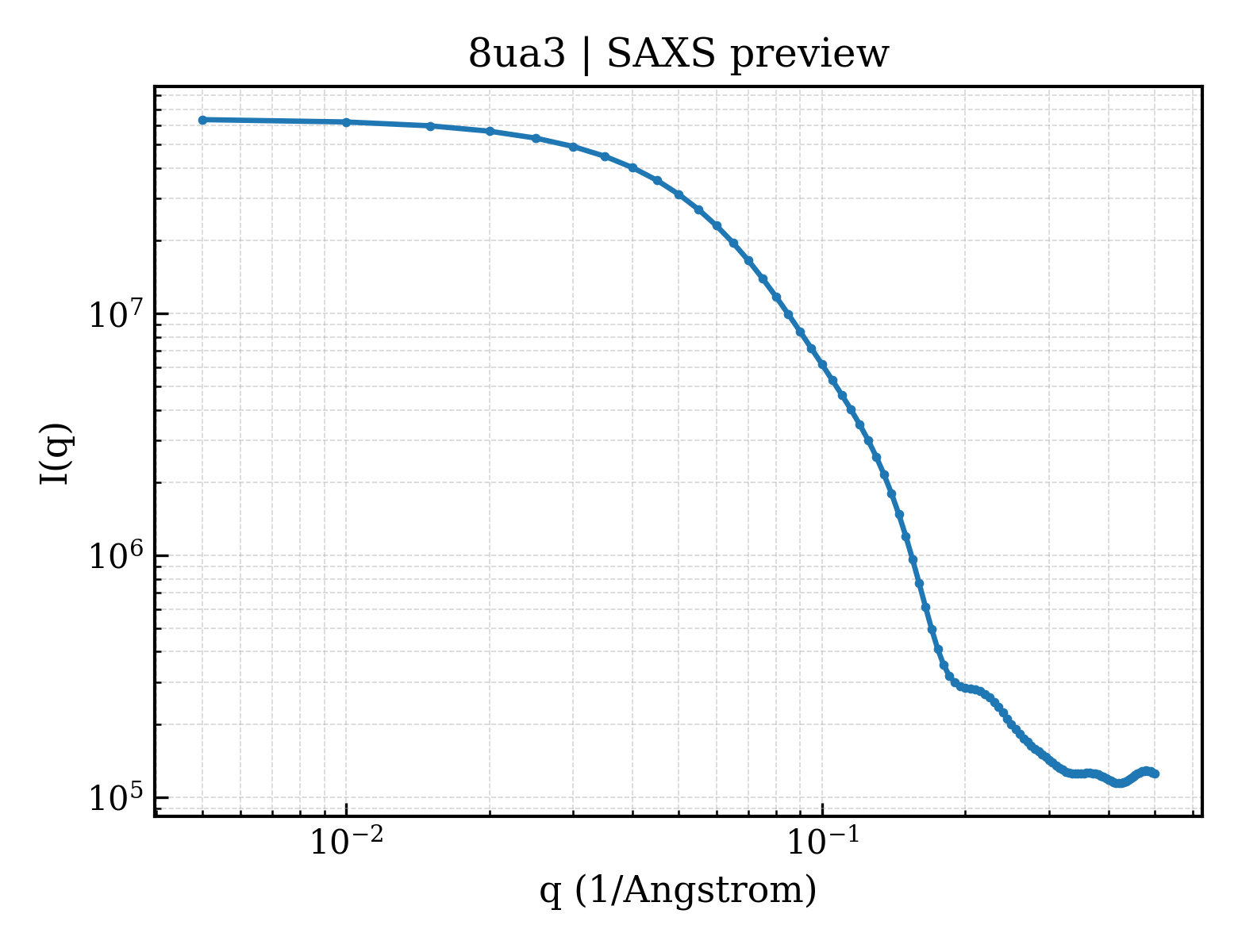

SAXS scattering curve SAXS Profile

SAXS profile for 8ua3

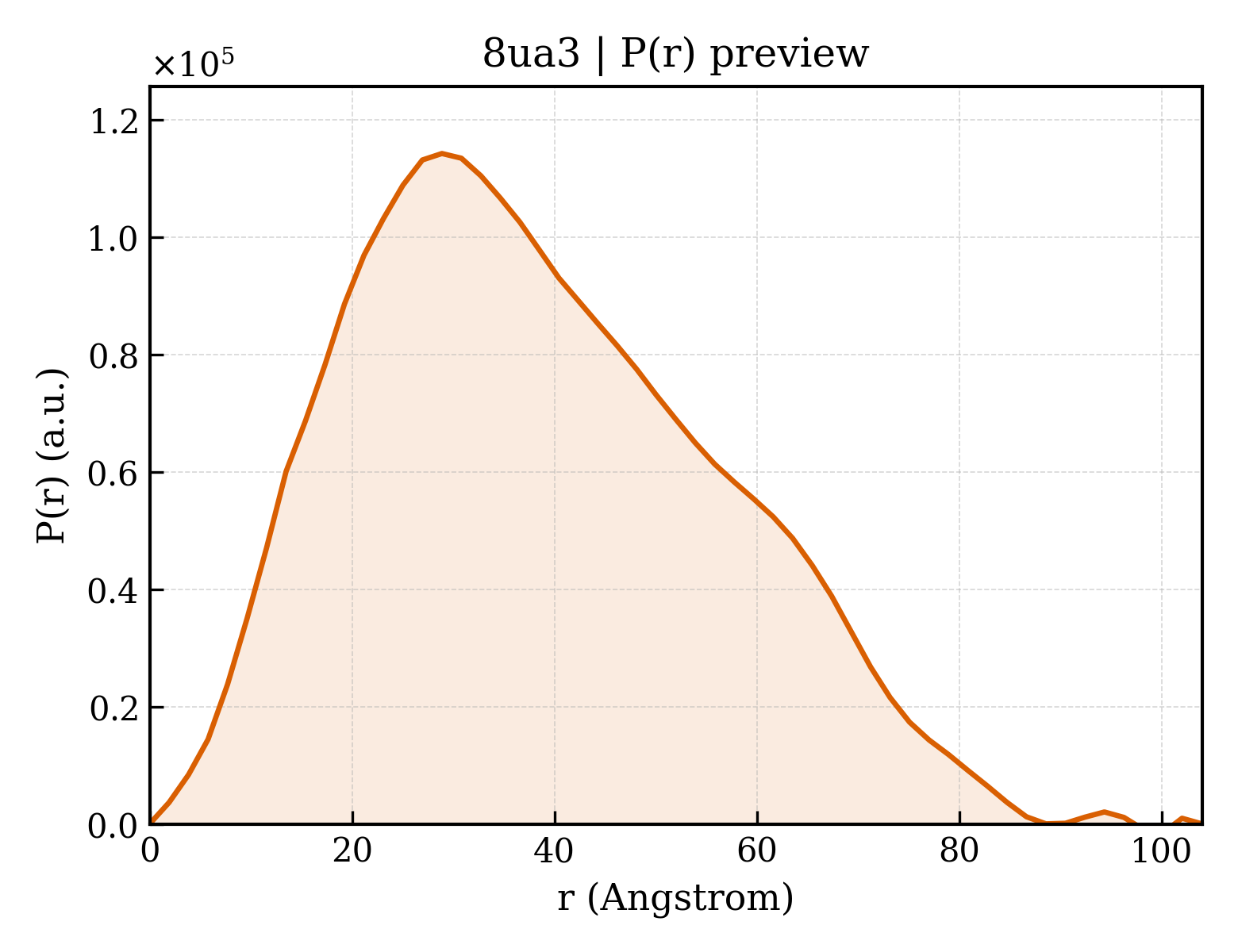

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 8ua3
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id8ua3
Deposition date deposition_date2023-09-20
Structure title titleCryo-EM Structure of FBOX22-BACH1BTB
Keywords keywordsF-box protein, FBXO22, BACH1, LIGASE; LIGASE
Experimental Method methodELECTRON MICROSCOPY
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier29.58 Å
Radius of gyration Rg (electron density) rg_electron28.86 Å
Forward intensity I(0) i063786500.00
Molecular weight molecular_weight63243.0 kDa
Excluded volume excluded_volume79491 ų
Envelope volume envelope_volume102340 ų
Hydration-shell volume shell_volume30290 ų
Envelope diameter envelope_diameter99.6 Å
Shell Rg shell_rg35.20 Å
Envelope Rg envelope_rg28.88 Å
Shape Rg shape_rg28.85 Å
Total Rg total_rg29.53 Å
Total atoms total_atoms4450
Residues n_residues570
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax104.0 Å
Rg (real space) rg_real29.66 Å
Rg uncertainty (real space) rg_real_error1.14 Å
I(0) (real space) i0_real6.3790e+07
I(0) uncertainty (real space) i0_real_error1.0850e+06
Rg (reciprocal space) rg_reciprocal29.63 Å
I(0) (reciprocal space) i0_reciprocal63780000.0000
Solution quality estimate total_estimate0.7720
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks3
Primary peak position r_peak_primary28.9 Å
Skewness Skewness skewness0.377
Kurtosis Kurtosis kurtosis-0.540
Angular range angular_range— – 0.2700 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha18160000.0000
Real-space data points n_real_points55
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.717; Stabil: 0.996; Sysdev: 1.000; Positv: 1.000; Valcen: 0.894; Smooth: 0.000
▶
