9lwl

HBx-Smc5/6 ubiquitination complex

Method: ELECTRON MICROSCOPY D_max: 271.0 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9lwl
沉积日期 deposition_date	2025-02-15
结构标题 title	HBx-Smc5/6 ubiquitination complex
关键词 keywords	HBx, Smc5/6, Cul4A-RBx, HBV, ANTIVIRAL PROTEIN; ANTIVIRAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	— Å
回转半径 Rg (电子) rg_electron	133.80 Å
零角强度 I(0) i0	4449850000.00
分子量 molecular_weight	566250.0 kDa
排除体积 excluded_volume	708420 Å³
包络体积 envelope_volume	1531500 Å³
水化壳体积 shell_volume	115020 Å³
包络直径 envelope_diameter	454.6 Å
壳层 Rg shell_rg	85.27 Å
包络 Rg envelope_rg	140.70 Å
形状 Rg shape_rg	133.80 Å
总 Rg total_rg	133.30 Å
总原子数 total_atoms	39737
残基数 n_residues	4914
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

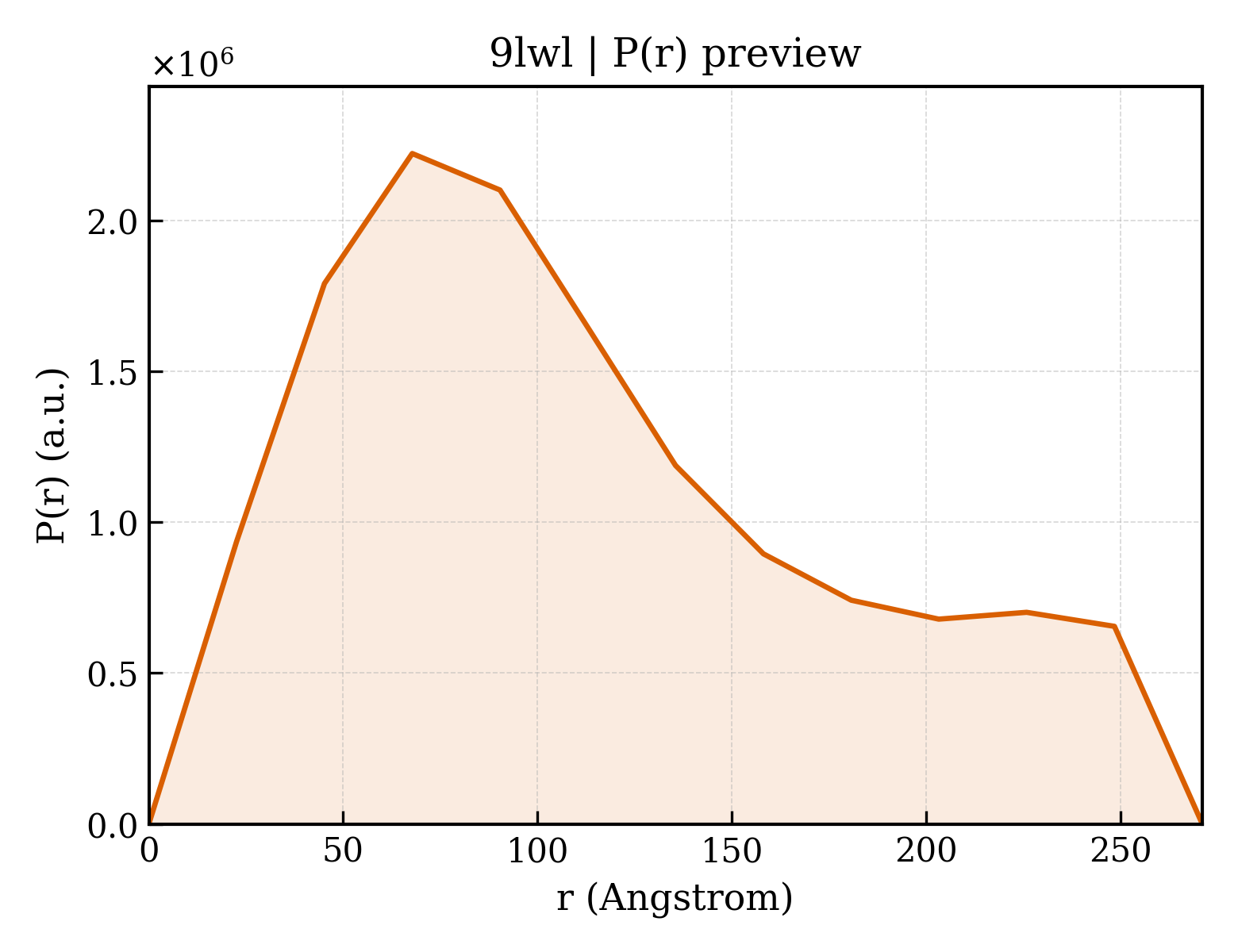

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	271.0 Å
Rg (实空间) rg_real	91.11 Å
Rg 误差 (实空间) rg_real_error	2.20 Å
I(0) (实空间) i0_real	3.8470e+09
I(0) 误差 (实空间) i0_real_error	8.9710e+07
Rg (倒空间) rg_reciprocal	86.73 Å
I(0) (倒空间) i0_reciprocal	3969000000.0000
解质量估计 total_estimate	0.8415
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	67.8 Å
偏度 Skewness skewness	0.612
峰度 Kurtosis kurtosis	-0.595
角度范围 angular_range	— – 0.0600 Å⁻¹
当前正则化参数 α current_alpha	0.1849
最高正则化参数 α highest_alpha	114700000.0000
实空间数据点数 n_real_points	13
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.147; Oscil: 0.764; Stabil: 0.949; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.803

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (11)

Entity 1 polymer

描述 description	Structural maintenance of chromosomes protein 6
分子量 formula_weight	126530.9 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	39737

MAKRKEENFSSPKNAKRPRQEELEDFDKDGDEDECKGTTLTAAEVGIIESIHLKNFMCHSMLGPFKFGSNVNFVVGNNGSGKSAVLTALIVGLGGRAVATNRGSSLKGFVKDGQNSADISITLRNRGDDAFKASVYGNSILIQQHISIDGSRSYKLKSATGSVVSTRKEELIAILDHFNIQVDNPVSVLTQEMSKQFLQSKNEGDKYKFFMKATQLEQMKEDYSYIMETKERTKEQIHQGEERLTELKRQCVEKEERFQSIAGLSTMKTNLESLKHEMAWAVVNEIEKQLNAIRDNIKIGEDRAARLDRKMEEQQVRLNEAEQKYKDIQDKLEKISEETNARAPECMALKADVVAKKRAYNEAEVLYNRSLNEYKALKKDDEQLCKRIEELKKSTDQSLEPERLERQKKISWLKERVKAFQNQENSVNQEIEQFQQAIEKDKEEHGKIKREELDVKHALSYNQRQLKELKDSKTDRLKRFGPNVPALLEAIDDAYRQGHFTYKPVGPLGACIHLRDPELALAIESCLKGLLQAYCCHNHADERVLQALMKRFYLPGTSRPPIIVSEFRNEIYDVRHRAAYHPDFPTVLTALEIDNAVVANSLIDMRGIETVLLIKNNSVARAVMQSQKPPKNCREAFTADGDQVFAGRYYSSENTRPKFLSRDVDSEISDLENEVENKTAQILNLQQHLSALEKDIKHNEELLKRCQLHYKELKMKIRKNISEIRELENIEEHQSVDIATLEDEAQENKSKMKMVEEHMEQQKENMEHLKSLKIEAENKYDAIKFKINQLSELADPLKDELNLADSEVDNQKRGKRHYEEKQKEHLDTLNKKKRELDMKEKELEEKMSQARQICPERIEVEKSASILDKEINRLRQKIQAEHASHGDREEIMRQYQEARETYLDLDSKVRTLKKFIKLLGEIMEHRFKTYQQFRRCLTLRCKLYFDNLLSQRAYCGKMNFDHKNETLSISVQPGEGNKAAFNDMRALSGGERSFSTVCFILSLWSIAESPFRCLDEFDVYMDMVNRRIAMDLILKMADSQRFRQFILLTPQSMSSLPSSKLIRILRMSDPERGQTTLPFRPVTQEEDDDQR

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 polymer

描述 description	DNA damage-binding protein 1
分子量 formula_weight	127097.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MSYNYVVTAQKPTAVNGCVTGHFTSAEDLNLLIAKNTRLEIYVVTAEGLRPVKEVGMYGKIAVMELFRPKGESKDLLFILTAKYNACILEYKQSGESIDIITRAHGNVQDRIGRPSETGIIGIIDPECRMIGLRLYDGLFKVIPLDRDNKELKAFNIRLEELHVIDVKFLYGCQAPTICFVYQDPQGRHVKTYEVSLREKEFNKGPWKQENVEAEASMVIAVPEPFGGAIIIGQESITYHNGDKYLAIAPPIIKQSTIVCHNRVDPNGSRYLLGDMEGRLFMLLLEKEEQMDGTVTLKDLRVELLGETSIAECLTYLDNGVVFVGSRLGDSQLVKLNVDSNEQGSYVVAMETFTNLGPIVDMCVVDLERQGQGQLVTCSGAFKEGSLRIIRNGIGIHEHASIDLPGIKGLWPLRSDPNRETDDTLVLSFVGQTRVLMLNGEEVEETELMGFVDDQQTFFCGNVAHQQLIQITSASVRLVSQEPKALVSEWKEPQAKNISVASCNSSQVVVAVGRALYYLQIHPQELRQISHTEMEHEVACLDITPLGDSNGLSPLCAIGLWTDISARILKLPSFELLHKEMLGGEIIPRSILMTTFESSHYLLCALGDGALFYFGLNIETGLLSDRKKVTLGTQPTVLRTFRSLSTTNVFACSDRPTVIYSSNHKLVFSNVNLKEVNYMCPLNSDGYPDSLALANNSTLTIGTIDEIQKLHIRTVPLYESPRKICYQEVSQCFGVLSSRIEVQDTSGGTTALRPSASTQALSSSVSSSKLFSSSTAPHETSFGEEVEVHNLLIIDQHTFEVLHAHQFLQNEYALSLVSCKLGKDPNTYFIVGTAMVYPEEAEPKQGRIVVFQYSDGKLQTVAEKEVKGAVYSMVEFNGKLLASINSTVRLYEWTTEKELRTECNHYNNIMALYLKTKGDFILVGDLMRSVLLLAYKPMEGNFEEIARDFNPNWMSAVEILDDDNFLGAENAFNLFVCQKDSAATTDEERQHLQEVGLFHLGEFVNVFCHGSLVMQNLGETSTPTQGSVLFGTVNGMIGLVTSLSESWYNLLLDMQNRLNKVIKSVGKIEHSFWRSFHTERKTEPATGFIDGDLIESFLDISRPKMQEVVANLQYDDGSGMKREATADDLIKVVEELTRIH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 3 polymer

描述 description	Protein X
分子量 formula_weight	16587.3 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MAARLCCQLDPARDVLCLRPVGAESCGRPFSGSLGTLSSPSPSAVPTDHGAHLSLRGLPVCAFSSAGPCALRFTSARRMETTVNAHQILPKVLHKRTLGLSAMSTTDLEAYFKDCLFKDWEELGEEIRLKVFVLGGCRHKLVCAPAPCNFFTSA

来源 Source

来源生物 organism	Hepatitis B virus
NCBI 分类编号 ncbi_taxonomy_id	10407
宿主生物 host_organism	Spodoptera frugiperda

Entity 4 polymer

描述 description	EP300-interacting inhibitor of differentiation 3
分子量 formula_weight	38213.3 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MKMDVSVRAAGCSDDLSSGEADVDPKLLELTADEEKCRSIRRQYRQLMYCVRQNREDIVSSANNSLTEALEEANVLFDGVSRTREAALDARFLVMASDLGKEKAKQLNSDMNFFNQLAFCDFLFLFVGLNWMEGDPDKLSDCDDSIALSFWKAIEKEATSWMVKAETFHFVFGSFKLERSAPKPRLEHQKKVRKMEENGNMPTKLQKLDLSSYPEATEKNVERILGLLQTYFRKYPDTPVSYFEFVIDPNSFSRTVENIFYVSFIVRDGFARIRLDEDRLPILEPMNVNQMGEGNDSSCHGRKQGVISLTLQEWKNIVAAFEISEAMITYSSY

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 5 polymer

描述 description	Non-structural maintenance of chromosomes element 3 homolog
分子量 formula_weight	34361.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MLQKPRNRGRSGGQAERDRDWSHSGNPGASRAGEDARVLRDGFAEEAPSTSRGPGGSQGSQGPSPQGARRAQAAPAVGPRSQKQLELKVSELVQFLLIKDQKKIPIKRADILKHVIGDYKDIFPDLFKRAAERLQYVFGYKLVELEPKSNTYILINTLEPVEEDAEMRGDQGTPTTGLLMIVLGLIFMKGNTIKETEAWDFLRRLGVYPTKKHLIFGDPKKLITEDFVRQRYLEYRRIPHTDPVDYEFQWGPRTNLETSKMKVLKFVAKVHNQDPKDWPAQYCEALADEENRARPQPSGPAPSS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 6 polymer

描述 description	Non-structural maintenance of chromosomes element 1 homolog
分子量 formula_weight	30903.5 kDa
EC 编号 ec_number	2.3.2.27
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

MQGSTRRMGVMTDVHRRFLQLLMTHGVLEEWDVKRLQTHCYKVHDRNATVDKLEDFINNINSVLESLYIEIKRGVTEDDGRPIYALVNLATTSISKMATDFAENELDLFRKALELIIDSETGFASSTNILNLVDQLKGKKMRKKEAEQVLQKFVQNKWLIEKEGEFTLHGRAILEMEQYIRETYPDAVKICNICHSLLIQGQSCETCGIRMHLPCVAKYFQSNAEPRCPHCNDYWPHEIPKVFDPEKERESGVLKSNKKSLRSRQH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 7 polymer

描述 description	Cullin-4A
分子量 formula_weight	87871.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

MADEAPRKGSFSALVGRTNGLTKPAALAAAPAKPGGAGGSKKLVIKNFRDRPRLPDNYTQDTWRKLHEAVRAVQSSTSIRYNLEELYQAVENLCSHKVSPMLYKQLRQACEDHVQAQILPFREDSLDSVLFLKKINTCWQDHCRQMIMIRSIFLFLDRTYVLQNSTLPSIWDMGLELFRTHIISDKMVQSKTIDGILLLIERERSGEAVDRSLLRSLLGMLSDLQVYKDSFELKFLEETNCLYAAEGQRLMQEREVPEYLNHVSKRLEEEGDRVITYLDHSTQKPLIACVEKQLLGEHLTAILQKGLDHLLDENRVPDLAQMYQLFSRVRGGQQALLQHWSEYIKTFGTAIVINPEKDKDMVQDLLDFKDKVDHVIEVCFQKNERFVNLMKESFETFINKRPNKPAELIAKHVDSKLRAGNKEATDEELERTLDKIMILFRFIHGKDVFEAFYKKDLAKRLLVGKSASVDAEKSMLSKLKHECGAAFTSKLEGMFKDMELSKDIMVHFKQHMQNQSDSGPIDLTVNILTMGYWPTYTPMEVHLTPEMIKLQEVFKAFYLGKHSGRKLQWQTTLGHAVLKAEFKEGKKEFQVSLFQTLVLLMFNEGDGFSFEEIKMATGIEDSELRRTLQSLACGKARVLIKSPKGKEVEDGDKFIFNGEFKHKLFRIKINQIQMKETVEEQVSTTERVFQDRQYQIDAAIVRIMKMRKTLGHNLLVSELYNQLKFPVKPGDLKKRIESLIDRDYMERDKDNPNQYHYVAG

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 8 polymer

描述 description	E3 ubiquitin-protein ligase RBX1
分子量 formula_weight	12290.0 kDa
EC 编号 ec_number	2.3.2.27,2.3.2.32
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MAAAMDVDTPSGTNSGAGKKRFEVKKWNAVALWAWDIVVDNCAICRNHIMDLCIECQANQASATSEECTVAWGVCNHAFHFHCISRWLKTRQVCPLDNREWEFQKYGH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 9 polymer

描述 description	Structural maintenance of chromosomes protein 5
分子量 formula_weight	129014.6 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I

MATPSKKTSTPSPQPSKRALPRDPSSEVPSKRKNSAPQLPLLQSSGPFVEGSIVRISMENFLTYDICEVSPGPHLNMIVGANGTGKSSIVCAICLGLAGKPAFMGRADKVGFFVKRGCSRGMVEIELFRASGNLVITREIDVAKNQSFWFINKKSTTQKIVEEKVAALNIQVGNLCQFLPQDKVGEFAKLSKIELLEATEKSIGPPEMHKYHCELKNLREKEKQLETSCKEKTEYLQKMVQRNERYKQDVERFYERKRHLDLIEMLEAKRPWVEYENVRQEYEEVKLVRDRVKEEVRKLKEGQIPVTCRIEEMENERHNLEARIKEKATDIKEASQKCKQKQDVIERKDKHIEELQQALIVKQNEELDRQRRIGNTRKMIEDLQNELKTTENCENLQPQIDAITNDLRRIQDEKALCEGEIIDKRRERETLEKEKKSVDDHIVRFDNLMNQKEDKLRQRFRDTYDAVLWLRNNRDKFKQRVCEPIMLTINMKDNKNAKYIENHIPSNDLRAFVFESQEDMEVFLKEVRDNKKLRVNAVIAPKSSYADKAPSRSLNELKQYGFFSYLRELFDAPDPVMSYLCCQYHIHEVPVGTEKTRERIERVIQETRLKQIYTAEEKYVVKTSFYSNKVISSNTSLKVAQFLTVTVDLEQRRHLEEQLKEIHRKLQAVDSGLIALRETSKHLEHKDNELRQKKKELLERKTKKRQLEQKISSKLGSLKLMEQDTCNLEEEERKASTKIKEINVQKAKLVTELTNLIKICTSLHIQKVDLILQNTTVISEKNKLESDYMAASSQLRLTEQHFIELDENRQRLLQKCKELMKRARQVCNLGAEQTLPQEYQTQVPTIPNGHNSSLPMVFQDLPNTLDEIDALLTEERSRASCFTGLNPTIVQEYTKREEEIEQLTEELKGKKVELDQYRENISQVKERWLNPLKELVEKINEKFSNFFSSMQCAGEVDLHTENEEDYDKYGIRIRVKFRSSTQLHELTPHHQSGGERSVSTMLYLMALQELNRCPFRVVDEINQGMDPINERRVFEMVVNTACKENTSQYFFITPKLLQNLPYSEKMTVLFVYNGPHMLEPNTWNLKAFQRRRRRITFTQPS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 10 polymer

描述 description	E3 SUMO-protein ligase NSE2
分子量 formula_weight	27977.6 kDa
EC 编号 ec_number	2.3.2.-
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MPGRSSSNSGSTGFISFSGVESALSSLKNFQACINSGMDTASSVALDLVESQTEVSSEYSMDKAMVEFATLDRQLNHYVKAVQSTINHVKEERPEKIPDLKLLVEKKFLALQSKNSDADFQNNEKFVQFKQQLKELKKQCGLQADREADGTEGVDEDIIVTQSQTNFTCPITKEEMKKPVKNKVCGHTYEEDAIVRMIESRQKRKKKAYCPQIGCSHTDIRKSDLIQDEALRRAIENHNKKRHRHSE

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 11 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	7.25 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	69510

fit	/app/data/saxs_computation/lw/9lwl/9lwl.fit
pddf	/app/data/pr_computation/lw/9lwl/9lwl.pr.out
profile	/app/data/saxs_computation/lw/9lwl/9lwl.dat
