SAXSdb — 9pvh

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cullin-4A

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 37–759	Not recorded	Cullin-associated NEDD8-dissociated protein 2 × 1 （O75155）	ELECTRON MICROSCOPY mmCIF provides none of the parsed experimental conditions	Resolution 4.38 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9PVH	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2HYE Crystal Structure of the DDB1-Cul4A-Rbx1-SV5V Complex Deposited 2006-08-05	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–759（759 aa）	Not recorded	ZN ZINC ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；100mM NaHEPES, 7-9% PEG4000, 10% iso-propanol, 5mM DTT, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.10 Å R-free 0.316
4A0K STRUCTURE OF DDB1-DDB2-CUL4A-RBX1 BOUND TO A 12 BP ABASIC SITE CONTAINING DNA-DUPLEX Deposited 2011-09-09	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain A 38–759（722 aa） Fragment：RESIDUES 38-759	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.3；100MM TRIS-HCL PH 8.3, 33% PEG 200	Resolution 5.93 Å R-free 0.270
7OKQ Cryo-EM Structure of the DDB1-DCAF1-CUL4A-RBX1 Complex Deposited 2021-05-18	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: Hexadecameric	Chain C 35–759（725 aa） Chain G 35–759（725 aa） Chain K 35–759（725 aa） Chain O 35–759（725 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.40 Å
7OPC Pol II-CSB-CRL4CSA-UVSSA-SPT6-PAF (Structure 4) Deposited 2021-05-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 25 PDB declaration: 28-meric	Chain e 1–759（759 aa）	Not recorded	ZN ZINC ION × 8 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
7OPD Pol II-CSB-CRL4CSA-UVSSA-SPT6-PAF (Structure 5) Deposited 2021-05-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 25 PDB declaration: 28-meric	Chain e 1–759（759 aa）	Not recorded	ZN ZINC ION × 8 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
8B3G C(N)RL4CSA-UVSSA-E2-ubiquitin complex. Deposited 2022-09-16	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain e 1–759（759 aa）	Not recorded	ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.40 Å
8B3I CRL4CSA-E2-Ub (state 2) Deposited 2022-09-16	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain e 1–759（759 aa）	Not recorded	ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
9EG8 Cryo-EM structure of COP9 signalosome precatalytic state with neddylated cullin-4A Deposited 2024-11-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric	Chain J 1–759（759 aa）	Not recorded	ZN ZINC ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.39 Å
9LWI The head region of HBx-Smc5/6 ubiquitination complex Deposited 2025-02-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric	Chain G 1–759（759 aa）	Not recorded	ZN ZINC ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.12 Å
9LWJ The head-arm region of HBx-Smc5/6 ubiquitination complex Deposited 2025-02-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain G 1–759（759 aa）	Not recorded	ZN ZINC ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.19 Å
9LWL HBx-Smc5/6 ubiquitination complex Deposited 2025-02-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain G 1–759（759 aa）	Not recorded	ZN ZINC ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.25 Å
9UUM Cryo-EM structure of mezigdomide-organized CRL4-DDB1-CRBN-IKZF3(ZF2-ZF3)-UbcH5a-Ub ubiquitylation assembly Deposited 2025-05-07	Different construct Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 2–759（758 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.41 Å
9V0A Cryo-EM structure of pomalidomide-organized CRL4-DDB1-CRBN-IKZF3(ZF2-ZF3)-UbcH5a-Ub ubiquitylation assembly Deposited 2025-05-17	Different construct Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 2–759（758 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.69 Å
9V0B Cryo-EM structure of avadomide-organized CRL4-DDB1-CRBN-IKZF3(ZF2-ZF3)-UbcH5a-Ub ubiquitylation assembly Deposited 2025-05-17	Different construct Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 2–759（758 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.54 Å
9V0F Cryo-EM structure of cemsidomide-organized CRL4-DDB1-CRBN-IKZF3(ZF2-ZF3)-UbcH5a-Ub ubiquitylation assembly Deposited 2025-05-17	Different construct Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 2–759（758 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 3.71 Å

15 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CUL4A_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–726； UniProt 37–759

Cullin-associated NEDD8-dissociated protein 2

Homo sapiens

UniProt O75155

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 1–1236	Not recorded	Cullin-4A × 1 （Q13619）	ELECTRON MICROSCOPY mmCIF provides none of the parsed experimental conditions	Resolution 4.38 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9PVH	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8VVY Human Cullin-1 in complex with CAND2 Deposited 2024-01-31	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–1236（1236 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.49 Å

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CAND2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 12–1247； UniProt 1–1236

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9pvh
Deposition date deposition_date	2025-08-01
Structure title title	Human Cullin-4 in complex with CAND2
Keywords keywords	Complex, LIGASE; LIGASE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	47.70 Å
Radius of gyration Rg (electron density) rg_electron	47.44 Å
Forward intensity I(0) i0	615945000.00
Molecular weight molecular_weight	207680.0 kDa
Excluded volume excluded_volume	261780 Å³
Envelope volume envelope_volume	415510 Å³
Hydration-shell volume shell_volume	74150 Å³
Envelope diameter envelope_diameter	160.9 Å
Shell Rg shell_rg	51.36 Å
Envelope Rg envelope_rg	45.65 Å
Shape Rg shape_rg	47.45 Å
Total Rg total_rg	47.58 Å
Total atoms total_atoms	14580
Residues n_residues	1862
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	157.6 Å
Rg (real space) rg_real	49.27 Å
Rg uncertainty (real space) rg_real_error	0.55 Å
I(0) (real space) i0_real	6.1330e+08
I(0) uncertainty (real space) i0_real_error	9.8050e+06
Rg (reciprocal space) rg_reciprocal	47.70 Å
I(0) (reciprocal space) i0_reciprocal	616000000.0000
Solution quality estimate total_estimate	0.6959
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	52.5 Å
Skewness Skewness skewness	0.397
Kurtosis Kurtosis kurtosis	-0.277
Angular range angular_range	— – 0.1650 Å⁻¹
Current regularization parameter α current_alpha	1.4740
Highest regularization parameter α highest_alpha	53910000.0000
Real-space data points n_real_points	34
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.937; Stabil: 0.899; Sysdev: 0.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.584

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Cullin-4A
Molecular weight formula_weight	84592.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	14580

SASAGGSKKLVIKNFRDRPRLPDNYTQDTWRKLHEAVRAVQSSTSIRYNLEELYQAVENLCSHKVSPMLYKQLRQACEDHVQAQILPFREDSLDSVLFLKKINTCWQDHCRQMIMIRSIFLFLDRTYVLQNSTLPSIWDMGLELFRTHIISDKMVQSKTIDGILLLIERERSGEAVDRSLLRSLLGMLSDLQVYKDSFELKFLEETNCLYAAEGQRLMQEREVPEYLNHVSKRLEEEGDRVITYLDHSTQKPLIACVEKQLLGEHLTAILQKGLDHLLDENRVPDLAQMYQLFSRVRGGQQALLQHWSEYIKTFGTAIVINPEKDKDMVQDLLDFKDKVDHVIEVCFQKNERFVNLMKESFETFINKRPNKPAELIAKHVDSKLRAGNKEATDEELERTLDKIMILFRFIHGKDVFEAFYKKDLAKRLLVGKSASVDAEKSMLSKLKHECGAAFTSKLEGMFKDMELSKDIMVHFKQHMQNQSDSGPIDLTVNILTMGYWPTYTPMEVHLTPEMIKLQEVFKAFYLGKHSGRKLQWQTTLGHAVLKAEFKEGKKEFQVSLFQTLVLLMFNEGDGFSFEEIKMATGIEDSELRRTLQSLACGKARVLIKSPKGKEVEDGDKFIFNGEFKHKLFRIKINQIQMKETVEEQVSTTERVFQDRQYQIDAAIVRIMKMRKTLGHNLLVSELYNQLKFPVKPGDLKKRIESLIDRDYMERDKDNPNQYHYVA

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Cullin-associated NEDD8-dissociated protein 2
Molecular weight formula_weight	136669.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

SAGWSHPQFEKMSTAAFHISSLLEKMTSSDKDFRFMATSDLMSELQKDSIQLDEDSERKVVKMLLRLLEDKNGEVQNLAVKCLGPLVVKVKEYQVETIVDTLCTNMRSDKEQLRDIAGIGLKTVLSELPPAATGSGLATNVCRKITGQLTSAIAQQEDVAVQLEALDILSDMLSRLGVPLGAFHASLLHCLLPQLSSPRLAVRKRAVGALGHLAAACSTDLFVELADHLLDRLPGPRVPTSPTAIRTLIQCLGSVGRQAGHRLGAHLDRLVPLVEDFCNLDDDELRESCLQAFEAFLRKCPKEMGPHVPNVTSLCLQYIKHDPNYNYDSDEDEEQMETEDSEFSEQESEDEYSDDDDMSWKVRRAAAKCIAALISSRPDLLPDFHCTLAPVLIRRFKEREENVKADVFTAYIVLLRQTQPPKGWLEAMEEPTQTGSNLHMLRGQVPLVVKALQRQLKDRSVRARQGCFSLLTELAGVLPGSLAEHMPVLVSGIIFSLADRSSSSTIRMDALAFLQGLLGTEPAEAFHPHLPILLPPVMACVADSFYKIAAEALVVLQELVRALWPLHRPRMLDPEPYVGEMSAVTLARLRATDLDQEVKERAISCMGHLVGHLGDRLGDDLEPTLLLLLDRLRNEITRLPAIKALTLVAVSPLQLDLQPILAEALHILASFLRKNQRALRLATLAALDALAQSQGLSLPPSAVQAVLAELPALVNESDMHVAQLAVDFLATVTQAQPASLVEVSGPVLSELLRLLRSPLLPAGVLAAAEGFLQALVGTRPPCVDYAKLISLLTAPVYEQAVDGGPGLHKQVFHSLARCVAALSAACPQEAASTASRLVCDARSPHSSTGVKVLAFLSLAEVGQVAGPGHQRELKAVLLEALGSPSEDVRAAASYALGRVGAGSLPDFLPFLLEQIEAEPRRQYLLLHSLREALGAAQPDSLKPYAEDIWALLFQRCEGAEEGTRGVVAECIGKLVLVNPSFLLPRLRKQLAAGRPHTRSTVITAVKFLISDQPHPIDPLLKSFIGEFMESLQDPDLNVRRATLAFFNSAVHNKPSLVRDLLDDILPLLYQETKIRRDLIREVEMGPFKHTVDDGLDVRKAAFECMYSLLESCLGQLDICEFLNHVEDGLKDHYDIRMLTFIMVARLATLCPAPVLQRVDRLIEPLRATCTAKVKAGSVKQEFEKQDELKRSAMRAVAALLTIPEVGKSPIMADFSSQIRSNPELAALFESIQKDSASAPSTDSMELS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	4.380 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	4.38 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	46496

fit	/app/data/saxs_computation/pv/9pvh/9pvh.fit
pddf	/app/data/pr_computation/pv/9pvh/9pvh.pr.out
profile	/app/data/saxs_computation/pv/9pvh/9pvh.dat

Human Cullin-4 in complex with CAND2

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cullin-4A

State in the Current Structure

Other States of the Same Protein in the Database

Cullin-associated NEDD8-dissociated protein 2

State in the Current Structure

Other States of the Same Protein in the Database

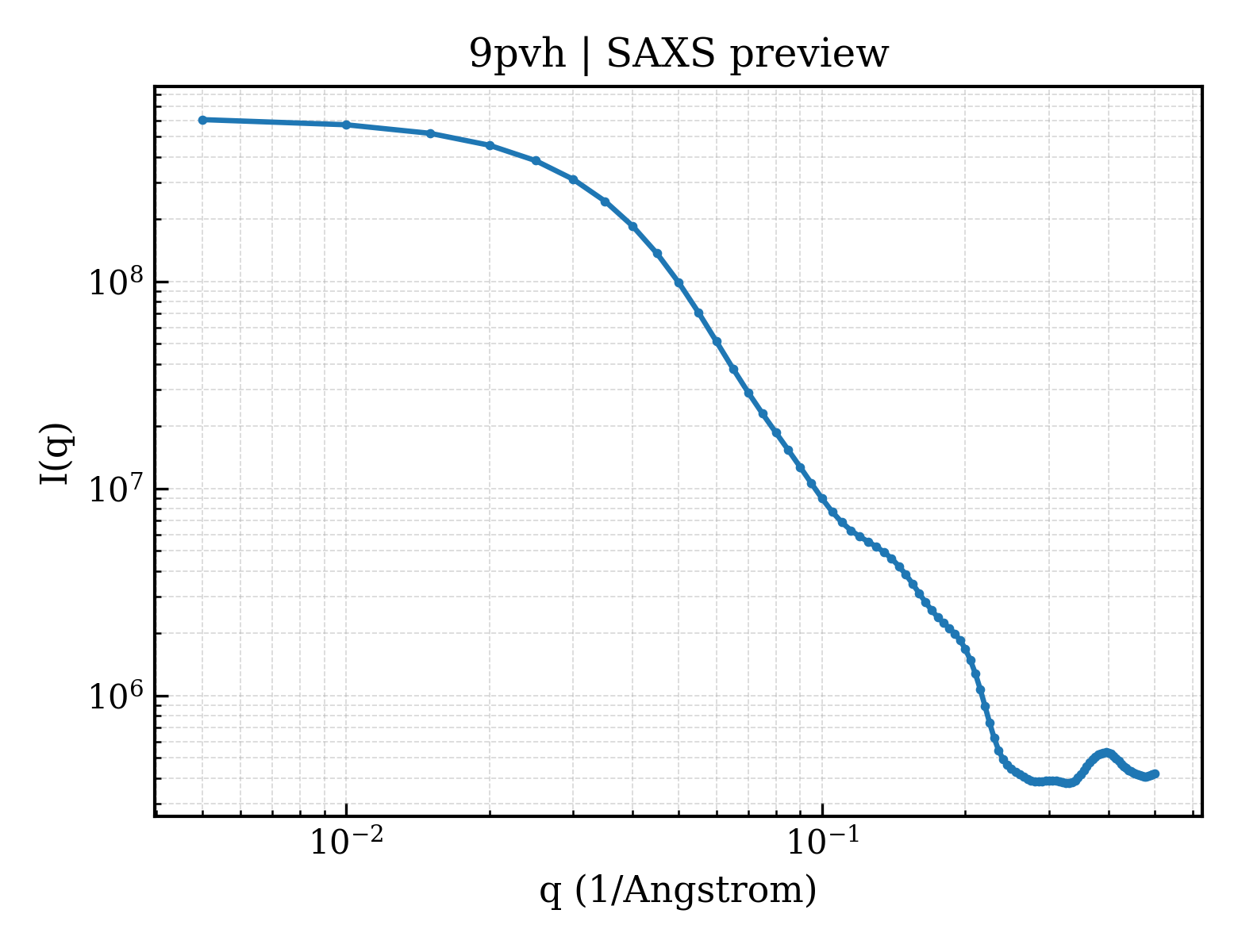

SAXS scattering curve SAXS Profile
