9lwi

The head region of HBx-Smc5/6 ubiquitination complex

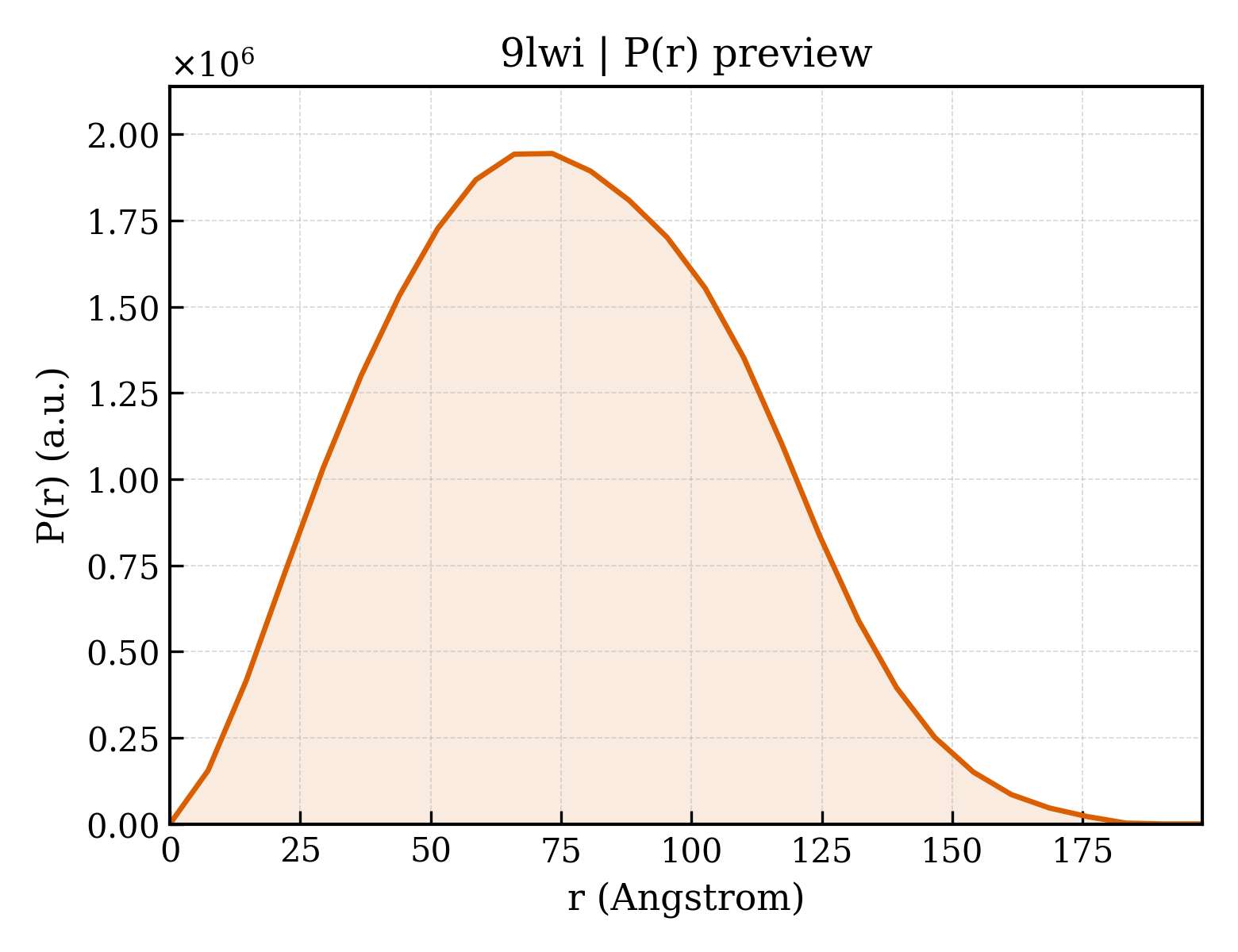

Method: ELECTRON MICROSCOPY Dmax: 197.9 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Structural maintenance of chromosomes protein 6

Homo sapiens

UniProt Q96SB8

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 9 PDB declaration: nonameric（9） Consistent with protein copy count Chain A； UniProt 1–1091 Not recorded DNA damage-binding protein 1 × 1 （Q16531） Protein X × 1 （Q2F514） EP300-interacting inhibitor of differentiation 3 × 1 （Q8N140） Non-structural maintenance of chromosomes element 3 homolog × 1 （Q96MG7） Non-structural maintenance of chromosomes element 1 homolog × 1 （Q8WV22） Cullin-4A × 1 （Q13619） E3 ubiquitin-protein ligase RBX1 × 1 （P62877） Structural maintenance of chromosomes protein 5 × 1 （Q8IY18） ZN ZINC ION × 6 ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.12 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9LWI Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
9LWJ The head-arm region of HBx-Smc5/6 ubiquitination complex Deposited 2025-02-15 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain A 1–1091（1091 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.19 Å
9LWK The hinge-arm region of HBx-Smc5/6 ubiquitination complex Deposited 2025-02-15 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–1091（1091 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.32 Å
9LWL HBx-Smc5/6 ubiquitination complex Deposited 2025-02-15 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain A 1–1091（1091 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.25 Å

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name SMC6_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–1091； UniProt 1–1091

DNA damage-binding protein 1

Homo sapiens

UniProt Q16531

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 9 PDB declaration: nonameric（9） Consistent with protein copy count Chain B； UniProt 1–1140 Not recorded Structural maintenance of chromosomes protein 6 × 1 （Q96SB8） Protein X × 1 （Q2F514） EP300-interacting inhibitor of differentiation 3 × 1 （Q8N140） Non-structural maintenance of chromosomes element 3 homolog × 1 （Q96MG7） Non-structural maintenance of chromosomes element 1 homolog × 1 （Q8WV22） Cullin-4A × 1 （Q13619） E3 ubiquitin-protein ligase RBX1 × 1 （P62877） Structural maintenance of chromosomes protein 5 × 1 （Q8IY18） ZN ZINC ION × 6 ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.12 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9LWI Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
10AY Cryo-EM structure of CRBN-DDB1 in complex with HBS1L and TNG961 Deposited 2026-01-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 1–1140（1140 aa）
Chain F 1–1140（1140 aa）
Not recorded A1C4S N-{6-[(3R)-2,6-dioxopiperidin-3-yl]naphthalen-1-yl}-N'-{2-[6-(trifluoromethyl)-1-benzothiophen-2-yl]propan-2-yl}urea × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；0.1 M HEPES (pH 7.5), 0.24 M sodium chloride, 3 mM TCEP, 0.2 % n-octylglucoside
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
2HYE Crystal Structure of the DDB1-Cul4A-Rbx1-SV5V Complex Deposited 2006-08-05 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–1140（1140 aa）
Not recorded ZN ZINC ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；100mM NaHEPES, 7-9% PEG4000, 10% iso-propanol, 5mM DTT, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.10 Å R-free 0.316
3E0C Crystal Structure of DNA Damage-Binding protein 1(DDB1) Deposited 2008-07-31 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–1140（1140 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.1 M Bis tris, pH 6.5,0.2 M Lithium sulfate, 25% PEG 3350, 1:6000 Protein:Chymotrypsin , VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.41 Å R-free 0.283
3EI1 Structure of hsDDB1-drDDB2 bound to a 14 bp 6-4 photoproduct containing DNA-duplex Deposited 2008-09-15 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric
Chain A 1–1140（1140 aa）
Not recorded PG4 TETRAETHYLENE GLYCOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；298 K；100mM Ca-Acetate, 100mM MES pH 5.7, 12-14 % PEG 400, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.80 Å R-free 0.278
3EI2 Structure of hsDDB1-drDDB2 bound to a 16 bp abasic site containing DNA-duplex Deposited 2008-09-15 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric
Chain A 1–1140（1140 aa）
Not recorded PG4 TETRAETHYLENE GLYCOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；298 K；100mM Ca-Acetate, 100mM MES pH 5.7, 12-14% PEG 400, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.60 Å R-free 0.268
3EI3 Structure of the hsDDB1-drDDB2 complex Deposited 2008-09-15 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–1140（1140 aa）
Not recorded PG4 TETRAETHYLENE GLYCOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；298 K；100mM Ca-Acetate, 100mM MES pH 5.7, 12-14% PEG 400, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.30 Å R-free 0.251
3EI4 Structure of the hsDDB1-hsDDB2 complex Deposited 2008-09-15 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–1140（1140 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；298 K；200 mM (NH4)2SO4; 800 mM LiSO2; 100 mM Na-Citrate pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.30 Å R-free 0.288
3EI4 Structure of the hsDDB1-hsDDB2 complex Deposited 2008-09-15 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 1–1140（1140 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；298 K；200 mM (NH4)2SO4; 800 mM LiSO2; 100 mM Na-Citrate pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.30 Å R-free 0.288
3EI4 Structure of the hsDDB1-hsDDB2 complex Deposited 2008-09-15 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 1–1140（1140 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；298 K；200 mM (NH4)2SO4; 800 mM LiSO2; 100 mM Na-Citrate pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.30 Å R-free 0.288
3I7H Crystal Structure of DDB1 in Complex with the H-Box Motif of HBX Deposited 2009-07-08 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–1140（1140 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；16% PEG 4000, 0.2M SODIUM CHLORIDE, 0.1M MES, 0.005M DTT, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.90 Å R-free 0.279
3I7K Crystal Structure of DDB1 in Complex with the H-Box Motif of WHX Deposited 2009-07-08 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–1140（1140 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；16% PEG 4000, 0.2M SODIUM CHLORIDE, 0.1M MES, 0.005 M DTT, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.80 Å R-free 0.271
3I7L Crystal Structure of DDB1 in Complex with the H-Box Motif of DDB2 Deposited 2009-07-08 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–1140（1140 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；16% PEG 4000, 0.2M SODIUM CHLORIDE, 0.1M MES, 0.005 M DTT, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.80 Å R-free 0.289
3I7N Crystal Structure of DDB1 in Complex with the H-Box Motif of WDTC1 Deposited 2009-07-08 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–1140（1140 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；16% PEG 4000, 0.2M SODIUM CHLORIDE, 0.1M MES, 0.005M DTT, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.80 Å R-free 0.290
3I7O Crystal Structure of DDB1 in Complex with the H-Box Motif of IQWD1 Deposited 2009-07-08 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–1140（1140 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；16% PEG 4000, 0.2M SODIUM CHLORIDE, 0.1M MES, 0.005M DTT, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.80 Å R-free 0.320
3I7P Crystal Structure of DDB1 in Complex with the H-Box Motif of WDR40A Deposited 2009-07-08 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–1140（1140 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；16% PEG 4000, 0.2M SODIUM CHLORIDE, 0.1M MES, 0.005M DTT, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.00 Å R-free 0.301
3I89 Crystal Structure of DDB1 in Complex with the H-Box Motif of WDR22 Deposited 2009-07-09 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–1140（1140 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；16% PEG 4000, 0.2M SODIUM CHLORIDE, 0.1M MES, 0.005M DTT, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.00 Å R-free 0.304
3I8C Crystal Structure of DDB1 in Complex with the H-Box Motif of WDR21A Deposited 2009-07-09 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–1140（1140 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；16% PEG 4000, 0.2M SODIUM CHLORIDE, 0.1M MES, 0.005M DTT, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.80 Å R-free 0.308
3I8E Crystal Structure of DDB1 in Complex with the H-Box Motif of WDR42A Deposited 2009-07-09 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–1140（1140 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；16% PEG 4000, 0.2M SODIUM CHLORIDE, 0.1M MES, 0.005M DTT , pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.40 Å R-free 0.338
3I8E Crystal Structure of DDB1 in Complex with the H-Box Motif of WDR42A Deposited 2009-07-09 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–1140（1140 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；16% PEG 4000, 0.2M SODIUM CHLORIDE, 0.1M MES, 0.005M DTT , pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.40 Å R-free 0.338
4A08 Structure of hsDDB1-drDDB2 bound to a 13 bp CPD-duplex (purine at D-1 position) at 3.0 A resolution (CPD 1) Deposited 2011-09-08 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric
Chain A 1–1140（1140 aa）
Mutation：YES MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2 CA CALCIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.6；100 MM MES, 25 MM NAOH, 18% PEG 350MME., pH 5.6
Resolution 3.00 Å R-free 0.294
4A09 Structure of hsDDB1-drDDB2 bound to a 15 bp CPD-duplex (purine at D-1 position) at 3.1 A resolution (CPD 2) Deposited 2011-09-08 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric
Chain A 1–1140（1140 aa）
Mutation：YES CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.3；100 MM MES, 15 MM NAOH, 21% PEG 200, pH 5.3
Resolution 3.10 Å R-free 0.308
4A0A Structure of hsDDB1-drDDB2 bound to a 16 bp CPD-duplex (pyrimidine at D-1 position) at 3.6 A resolution (CPD 3) Deposited 2011-09-08 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric
Chain A 1–1140（1140 aa）
Mutation：YES CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.6；100 MM MES, 28 MM NAOH, 16% PEG 350MME., pH 5.6
Resolution 3.60 Å R-free 0.347
4A0B Structure of hsDDB1-drDDB2 bound to a 16 bp CPD-duplex (pyrimidine at D-1 position) at 3.8 A resolution (CPD 4) Deposited 2011-09-08 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric
Chain A 1–1140（1140 aa）
Mutation：YES No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.3；100 MM MES, 15 MM NAOH, 18% PEG 350MME., pH 5.3
Resolution 3.80 Å R-free 0.319
4A0B Structure of hsDDB1-drDDB2 bound to a 16 bp CPD-duplex (pyrimidine at D-1 position) at 3.8 A resolution (CPD 4) Deposited 2011-09-08 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric
Chain C 1–1140（1140 aa）
Mutation：YES No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.3；100 MM MES, 15 MM NAOH, 18% PEG 350MME., pH 5.3
Resolution 3.80 Å R-free 0.319
4A0K STRUCTURE OF DDB1-DDB2-CUL4A-RBX1 BOUND TO A 12 BP ABASIC SITE CONTAINING DNA-DUPLEX Deposited 2011-09-09 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric
Chain C 1–1140（1140 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.3；100MM TRIS-HCL PH 8.3, 33% PEG 200
Resolution 5.93 Å R-free 0.270
4A0L Structure of DDB1-DDB2-CUL4B-RBX1 bound to a 12 bp abasic site containing DNA-duplex Deposited 2011-09-09 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric
Chain A 1–1140（1140 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.2；100MM MES PH 6.2, 3.1% PEG 6000, 4% ETHYLENEGLYCOL
Resolution 7.40 Å R-free 0.320
4A0L Structure of DDB1-DDB2-CUL4B-RBX1 bound to a 12 bp abasic site containing DNA-duplex Deposited 2011-09-09 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric
Chain C 1–1140（1140 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.2；100MM MES PH 6.2, 3.1% PEG 6000, 4% ETHYLENEGLYCOL
Resolution 7.40 Å R-free 0.320
4A11 Structure of the hsDDB1-hsCSA complex Deposited 2011-09-13 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–1140（1140 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 8；1.4-1.58 M NAKPO4, 0.1 M NAMALONATE, 0-0.1 M LI2SO4, pH 8.0
Resolution 3.31 Å R-free 0.233
4CI1 Structure of the DDB1-CRBN E3 ubiquitin ligase bound to thalidomide Deposited 2013-12-05 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–1140（1140 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 1 EF2 S-Thalidomide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6；PROTEIN WAS CRYSTALLIZED FROM 100 MM NA-CACODYLATE; 80 MM NAH2PO4; 120 MM K2HPO4; 800 MM TRI-NA CITRATE., pH 6
Resolution 2.98 Å R-free 0.233
4CI2 Structure of the DDB1-CRBN E3 ubiquitin ligase bound to lenalidomide Deposited 2013-12-05 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–1140（1140 aa）
Not recorded ZN ZINC ION × 1 LVY S-Lenalidomide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；PROTEIN WAS CRYSTALLIZED FROM 100 MM NA-CACODYLATE PH 6.2, 80 MM NAH2PO4, 120 MM K2HPO4, 950 MM TRI-NA CITRATE.
Resolution 2.95 Å R-free 0.234
4CI3 Structure of the DDB1-CRBN E3 ubiquitin ligase bound to Pomalidomide Deposited 2013-12-05 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–1140（1140 aa）
Not recorded ZN ZINC ION × 1 Y70 S-Pomalidomide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；PROTEIN WAS CRYSTALLIZED FROM 100 MM NA-CACOCYLATE, 80 MM NAH2PO4, 120 MM K2HPO4, 700 MM TRI-NA CITRATE., pH 6.5
Resolution 3.50 Å R-free 0.235
4E54 Damaged DNA induced UV-damaged DNA-binding protein (UV-DDB) dimerization and its roles in chromatinized DNA repair Deposited 2012-03-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric
Chain A 2–1140（1139 aa） Fragment：DNA DAMAGE-BINDING PROTEIN 1 (DDB1; p127)
Mutation：NT-His10-DDB1 No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；277 K；20mM Tris pH 7.5, 2mM MgCl2, 1mM EDTA, 2mM TECP, 5% Glycerol, 0.02% azide. UV-DDB-AP24 complex (molar ratio of 1:3 UV-DDB:DNA) at 2.5 mg/mL. 'AP24' refers to synthetic DNA substrate of 24-bpr with a central abasic site mimic., VAPOR DIFFUSION, temperature 277K
Resolution 2.85 Å R-free 0.281
4E5Z Damaged DNA induced UV-damaged DNA-binding protein (UV-DDB) dimerization and its roles in chromatinized DNA repair Deposited 2012-03-15 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric
Chain A 2–1140（1139 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；277 K；20mM Tris pH 7.5, 2mM MgCl2, 1mM EDTA, 2mM TECP, 5% Glycerol, 0.02% azide. UV-DDB-AP24 complex (molar ratio of 1:3 UV-DDB:DNA) at 2.5 mg/mL. 'AP24' refers to synthetic DNA substrate of 24-bpr with a central abasic site mimic., VAPOR DIFFUSION, temperature 277K
Resolution 3.22 Å R-free 0.284
4TZ4 Crystal Structure of Human Cereblon in Complex with DDB1 and Lenalidomide Deposited 2014-07-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 2–1140（1139 aa）
Not recorded ZN ZINC ION × 1 LVY S-Lenalidomide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；100mM HEPES pH 7.5, 18% PEG 10K
Resolution 3.01 Å R-free 0.271
5FQD Structural basis of Lenalidomide induced CK1a degradation by the crl4crbn ubiquitin ligase Deposited 2015-12-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 709–1140（432 aa）
Not recorded ZN ZINC ION × 1 LVY S-Lenalidomide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 70 MM TRIS PH 7.0 140 MM MGCL2 7% W/V PEG 8000
Resolution 2.45 Å R-free 0.210
5FQD Structural basis of Lenalidomide induced CK1a degradation by the crl4crbn ubiquitin ligase Deposited 2015-12-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–395（395 aa）
Chain D 709–1140（432 aa）
Not recorded ZN ZINC ION × 1 LVY S-Lenalidomide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 70 MM TRIS PH 7.0 140 MM MGCL2 7% W/V PEG 8000
Resolution 2.45 Å R-free 0.210
5HXB Cereblon in complex with DDB1, CC-885, and GSPT1 Deposited 2016-01-30 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain Y 1–1140（1140 aa）
Not recorded ZN ZINC ION × 1 85C 1-(3-chloro-4-methylphenyl)-3-({2-[(3S)-2,6-dioxopiperidin-3-yl]-1-oxo-2,3-dihydro-1H-isoindol-5-yl}methyl)urea × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；280 K；200mM Sodium Citrate, Tris pH 8.5, 18% PEG 3350
Resolution 3.60 Å R-free 0.273
5HXB Cereblon in complex with DDB1, CC-885, and GSPT1 Deposited 2016-01-30 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–1140（1140 aa）
Not recorded ZN ZINC ION × 1 85C 1-(3-chloro-4-methylphenyl)-3-({2-[(3S)-2,6-dioxopiperidin-3-yl]-1-oxo-2,3-dihydro-1H-isoindol-5-yl}methyl)urea × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；280 K；200mM Sodium Citrate, Tris pH 8.5, 18% PEG 3350
Resolution 3.60 Å R-free 0.273
5JK7 The X-ray structure of the DDB1-DCAF1-Vpr-UNG2 complex Deposited 2016-04-26 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–1140（1140 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions BATCH MODE；289.15 K；100 mM Na Ctrate, pH 5.6, 11% PEG 20000
Resolution 3.49 Å R-free 0.206
5JK7 The X-ray structure of the DDB1-DCAF1-Vpr-UNG2 complex Deposited 2016-04-26 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–1140（1140 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions BATCH MODE；289.15 K；100 mM Na Ctrate, pH 5.6, 11% PEG 20000
Resolution 3.49 Å R-free 0.206
5V3O Cereblon in complex with DDB1 and CC-220 Deposited 2017-03-07 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–1140（1140 aa）
Not recorded 8W7 (3S)-3-[4-({4-[(morpholin-4-yl)methyl]phenyl}methoxy)-1-oxo-1,3-dihydro-2H-isoindol-2-yl]piperidine-2,6-dione × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；200mM NaCl, 20% PEG 3350
Resolution 3.20 Å R-free 0.267
6BN7 Crystal structure of DDB1-CRBN-BRD4(BD1) complex bound to dBET23 PROTAC. Deposited 2017-11-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 706–1140（435 aa）
Not recorded ZN ZINC ION × 1 RN3 methyl {(6S)-4-(4-chlorophenyl)-2-[(8-{[({2-[(3S)-2,6-dioxopiperidin-3-yl]-1,3-dioxo-2,3-dihydro-1H-isoindol-4-yl}oxy)acetyl]amino}octyl)carbamoyl]-3,9-dimethyl-6H-thieno[3,2-f][1,2,4]triazolo[4,3-a][1,4]diazepin-6-yl}acetate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；9% (w/v) PEG20K, 18% (v/v) PEG MME 550, 0.09M BICINE pH8.5, 9% Silver bullet B5 (0.33% w/v 2,7-Naphthalenedisulfonic acid disodium salt, 0.33% w/v Azelaic acid, 0.33% w/v trans-Cinnamic acid, 0.02 M HEPES sodium pH 6.8)
Resolution 3.50 Å R-free 0.256
6BN8 Crystal structure of DDB1-CRBN-BRD4(BD1) complex bound to dBET55 PROTAC. Deposited 2017-11-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 706–1140（435 aa）
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；9% PEG20K, 18% PEG MME 550, 0.09M BICINE pH8.5, 9% Silver bullet G4 (0.16% w/v 3-Indolebutyric acid, 0.16% w/v Hexadecanedioic acid, 0.16% w/v Oxamic acid, 0.16% w/v Pyromellitic acid, 0.16% w/v Sebacic acid, 0.16% w/v Suberic acid, 0.02 M HEPES sodium pH 6.8)
Resolution 3.99 Å R-free 0.333
6BN9 Crystal structure of DDB1-CRBN-BRD4(BD1) complex bound to dBET70 PROTAC Deposited 2017-11-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 706–1140（435 aa）
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；10% (w/v) PEG20K, 20% (v/v) PEG MME 550, 0.1M BICINE pH8.5, Silver Bullet F2 (0.2% w/v D-Fructose 1,6-bisphosphate trisodium salt hydrate, 0.2% w/v Glycerol phosphate disodium salt hydrate, 0.2% w/v L-O-Phosphoserine, 0.2% w/v O-Phospho-L-tyrosine, 0.2% w/v Phytic acid sodium salt hydrate, 0.02 M HEPES sodium pH 6.8)
Resolution 4.38 Å R-free 0.301
6BNB Crystal structure of DDB1-CRBN-BRD4(BD1) complex bound to dBET57 PROTAC Deposited 2017-11-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 706–1140（435 aa）
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.34M NaH2PO4, 0.33M K2HPO4
Resolution 6.34 Å R-free 0.381
6BOY Crystal structure of DDB1-CRBN-BRD4(BD1) complex bound to dBET6 PROTAC. Deposited 2017-11-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 706–1140（435 aa）
Not recorded ZN ZINC ION × 1 RN6 2-[(6S)-4-(4-chlorophenyl)-2,3,9-trimethyl-6H-thieno[3,2-f][1,2,4]triazolo[4,3-a][1,4]diazepin-6-yl]-N-(8-{[({2-[(3S)-2,6-dioxopiperidin-3-yl]-1,3-dioxo-2,3-dihydro-1H-isoindol-4-yl}oxy)acetyl]amino}octyl)acetamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；9% (w/v) PEG20K, 18% (v/v) PEG MME 550, 0.09M BICINE pH8.5, 9% (v/v) Silver bullet D11 (0.25% w/v 2,6-Naphthalenedisulfonic acid disodium salt, 0.25% w/v 4-Aminobenzoic acid, 0.25% w/v 5-Sulfosalicylic acid dihydrate, 0.25% w/v Naphthalene-1,3,6-trisulfonic acid trisodium salt hydrate, 0.02 M HEPES sodium pH 6.8)
Resolution 3.33 Å R-free 0.234
6DSZ Crystal structure of DDB1 in complex with DET1- and DDB1-associated protein 1 (DDA1) Deposited 2018-06-14 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–1140（1140 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M MES monohydrate, pH 6.5, 20% (w/v) PEG4000, 180 mM NaCl, 5 mM DTT
Resolution 3.09 Å R-free 0.307
6DSZ Crystal structure of DDB1 in complex with DET1- and DDB1-associated protein 1 (DDA1) Deposited 2018-06-14 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–1140（1140 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M MES monohydrate, pH 6.5, 20% (w/v) PEG4000, 180 mM NaCl, 5 mM DTT
Resolution 3.09 Å R-free 0.307
6FCV Structure of the human DDB1-CSA complex Deposited 2017-12-21 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–1140（1140 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M sodium citrate, 24% PEG 3350, 0.1 M bis-tris propane pH 8.0, 3% glycerol
Resolution 2.92 Å R-free 0.245
6H0G Structure of the DDB1-CRBN-pomalidomide complex bound to ZNF692(ZF4) Deposited 2018-07-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 706–1140（435 aa）
Mutation：;Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG) ; Mutation：;Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG) ; ZN ZINC ION × 2 Y70 S-Pomalidomide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；293 K；Protein-drug solution: 350 uM ZNF692-ZF4, 70 uM DDB1/CRBN, 80 uM pomalidomide and in 50 mM HEPES pH 7.4, 200 mM NaCl, 0.25 mM TCEP Crystallisation solution: 14.1% (w/v) PEG 5K MME and 70 mM Tris-HCl pH 7.5
Resolution 4.25 Å R-free 0.256
6H0G Structure of the DDB1-CRBN-pomalidomide complex bound to ZNF692(ZF4) Deposited 2018-07-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–395（395 aa）
Chain D 706–1140（435 aa）
Mutation：;Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG) ; Mutation：;Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG),Central WD40 propeller domain (516-725 aa) replaced with a linker (sequence GNGNSG) ; ZN ZINC ION × 2 Y70 S-Pomalidomide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；293 K；Protein-drug solution: 350 uM ZNF692-ZF4, 70 uM DDB1/CRBN, 80 uM pomalidomide and in 50 mM HEPES pH 7.4, 200 mM NaCl, 0.25 mM TCEP Crystallisation solution: 14.1% (w/v) PEG 5K MME and 70 mM Tris-HCl pH 7.5
Resolution 4.25 Å R-free 0.256
6PAI Structure of the human DDB1-DDA1-DCAF15 E3 ubiquitin ligase bound to RBM39 and sulfonamide E7820 Deposited 2019-06-11 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–1140（1140 aa）
Not recorded EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 2 O6M 3-cyano-N-(3-cyano-4-methyl-1H-indol-7-yl)benzene-1-sulfonamide × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；0.1 M sodium HEPES, pH 7.0, 15% w/v PEG4000
Resolution 2.90 Å R-free 0.252
6Q0R Structure of DDB1-DDA1-DCAF15 complex bound to E7820 and RBM39 Deposited 2019-08-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–395（395 aa） Fragment：internal deletion of the BPB domain
Chain A 706–1140（435 aa） Fragment：internal deletion of the BPB domain
Not recorded OXM OXAMIC ACID × 1 O6M 3-cyano-N-(3-cyano-4-methyl-1H-indol-7-yl)benzene-1-sulfonamide × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；300 K；20% PEG 4000
Resolution 2.90 Å R-free 0.251
6Q0V Structure of DDB1-DDA1-DCAF15 complex bound to tasisulam and RBM39 Deposited 2019-08-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–395（395 aa） Fragment：internal deletion of the BPB domain
Chain A 706–1140（435 aa） Fragment：internal deletion of the BPB domain
Not recorded P7M N-[(5-bromothiophen-2-yl)sulfonyl]-2,4-dichlorobenzamide × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；300 K；20% PEG 4000
Resolution 2.90 Å R-free 0.242
6Q0W Structure of DDB1-DDA1-DCAF15 complex bound to Indisulam and RBM39 Deposited 2019-08-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–395（395 aa） Fragment：internal deletion of the BPB domain
Chain A 706–1140（435 aa） Fragment：internal deletion of the BPB domain
Not recorded EF6 N~1~-(3-chloro-1H-indol-7-yl)benzene-1,4-disulfonamide × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；300 K；20% PEG 4000
Resolution 2.90 Å R-free 0.264
6R8Y Cryo-EM structure of NCP-6-4PP(-1)-UV-DDB Deposited 2019-04-02 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain K 1–1140（1140 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.30 Å
6R8Z Cryo-EM structure of NCP_THF2(-1)-UV-DDB Deposited 2019-04-02 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain K 1–1140（1140 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
6R90 Cryo-EM structure of NCP-THF2(+1)-UV-DDB class A Deposited 2019-04-02 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain K 1–1140（1140 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
6R91 Cryo-EM structure of NCP_THF2(-3)-UV-DDB Deposited 2019-04-02 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain K 1–1140（1140 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
6R92 Cryo-EM structure of NCP-THF2(+1)-UV-DDB class B Deposited 2019-04-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain K 1–395（395 aa）
Chain K 706–1140（435 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
6SJ7 Structure of the human DDB1-DDA1-DCAF15 E3 ubiquitin ligase bound to RBM39 and Indisulam Deposited 2019-08-12 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–1140（1140 aa）
Not recorded EF6 N~1~-(3-chloro-1H-indol-7-yl)benzene-1,4-disulfonamide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.54 Å
6TD3 Structure of DDB1 bound to CR8-engaged CDK12-cyclinK Deposited 2019-11-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 708–1140（433 aa）
Not recorded RC8 (2R)-2-({9-(1-methylethyl)-6-[(4-pyridin-2-ylbenzyl)amino]-9H-purin-2-yl}amino)butan-1-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；292 K；0.9 M ammonium citrate tribasic
Resolution 3.46 Å R-free 0.220
6TD3 Structure of DDB1 bound to CR8-engaged CDK12-cyclinK Deposited 2019-11-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–395（395 aa）
Chain D 708–1140（433 aa）
Not recorded RC8 (2R)-2-({9-(1-methylethyl)-6-[(4-pyridin-2-ylbenzyl)amino]-9H-purin-2-yl}amino)butan-1-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；292 K；0.9 M ammonium citrate tribasic
Resolution 3.46 Å R-free 0.220
6TD3 Structure of DDB1 bound to CR8-engaged CDK12-cyclinK Deposited 2019-11-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–395（395 aa）
Chain G 708–1140（433 aa）
Not recorded RC8 (2R)-2-({9-(1-methylethyl)-6-[(4-pyridin-2-ylbenzyl)amino]-9H-purin-2-yl}amino)butan-1-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；292 K；0.9 M ammonium citrate tribasic
Resolution 3.46 Å R-free 0.220
6UD7 Crystal structure of full-length human DCAF15-DDB1(deltaBPB)-DDA1-RBM39 in complex with indisulam Deposited 2019-09-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–395（395 aa）
Chain B 706–1140（435 aa）
Not recorded GOL GLYCEROL × 2 EF6 N~1~-(3-chloro-1H-indol-7-yl)benzene-1,4-disulfonamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；2% (v:v) TacsimateTM, pH 5.0, 0.1 M sodium citrate tribasic dihydrate, pH 5.6, and 10-20% (w:v) polyethylene glycol 3350
Resolution 2.30 Å R-free 0.248
6UE5 Crystal structure of full-length human DCAF15-DDB1-deltaPBP-DDA1-RBM39 in complex with 4-(aminomethyl)-N-(3-cyano-4-methyl-1H-indol-7-yl)benzenesulfonamide Deposited 2019-09-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–395（395 aa）
Chain B 706–1140（435 aa）
Not recorded Q5J 4-(aminomethyl)-N-(3-cyano-4-methyl-1H-indol-7-yl)benzene-1-sulfonamide × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；291.5 K；2% (v:v) TacsimateTM, pH 5.0, 0.1 M sodium citrate tribasic 676 dihydrate, pH 5.6, and 10-20% (w:v) polyethylene glycol 3350
Resolution 2.61 Å R-free 0.266
6UML Structural Basis for Thalidomide Teratogenicity Revealed by the Cereblon-DDB1-SALL4-Pomalidomide Complex Deposited 2019-10-09 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–1140（1140 aa）
Not recorded ZN ZINC ION × 2 Y70 S-Pomalidomide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；10% PEG MME 500, 8% PEG 20K, 210mM calcium acetate, 100mM tris pH 7.5
Resolution 3.58 Å R-free 0.267
6XK9 Cereblon in complex with DDB1, CC-90009, and GSPT1 Deposited 2020-06-25 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain Y 1–1140（1140 aa）
Not recorded V4M 2-(4-chlorophenyl)-N-({2-[(3S)-2,6-dioxopiperidin-3-yl]-1-oxo-2,3-dihydro-1H-isoindol-5-yl}methyl)-2,2-difluoroacetamide × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；20% PEG 3350, 100mM Tris-HCl (pH 7.5), 300mM sodium citrate
Resolution 3.64 Å R-free 0.245
6XK9 Cereblon in complex with DDB1, CC-90009, and GSPT1 Deposited 2020-06-25 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–1140（1140 aa）
Not recorded V4M 2-(4-chlorophenyl)-N-({2-[(3S)-2,6-dioxopiperidin-3-yl]-1-oxo-2,3-dihydro-1H-isoindol-5-yl}methyl)-2,2-difluoroacetamide × 1 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；20% PEG 3350, 100mM Tris-HCl (pH 7.5), 300mM sodium citrate
Resolution 3.64 Å R-free 0.245
6ZUE Crystal structure of human DDB1 bound to human DCAF1 (amino acid residues 1046-1396) Deposited 2020-07-22 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–1140（1140 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；291 K；100 mM Tri-Na citrate pH 5.5 18% PEG 1000
Resolution 3.09 Å R-free 0.279
6ZX9 Crystal structure of SIV Vpr,fused to T4 lysozyme, isolated from moustached monkey, bound to human DDB1 and human DCAF1 (amino acid residues 1046-1396) Deposited 2020-07-29 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–1140（1140 aa）
Not recorded GOL GLYCEROL × 8 ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；8-10% PEG 4000 (w/v), 200 mM MgCl2, 100 mM HEPES-NaOH, pH 7.0-8.2.
Resolution 2.52 Å R-free 0.260
7LPS Crystal structure of DDB1-CRBN-ALV1 complex bound to Helios (IKZF2 ZF2) Deposited 2021-02-12 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–1140（1140 aa）
Not recorded ZN ZINC ION × 2 RN9 3-[3-[[1-[(3~{S})-2,6-bis(oxidanylidene)piperidin-3-yl]-2,5-bis(oxidanylidene)pyrrol-3-yl]amino]phenyl]-~{N}-(3-chloranyl-4-methyl-phenyl)propanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.57；293 K；30% (w/v) PEG3350, 0.1 M Tris pH 8.57
Resolution 3.78 Å R-free 0.303
7LPS Crystal structure of DDB1-CRBN-ALV1 complex bound to Helios (IKZF2 ZF2) Deposited 2021-02-12 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–1140（1140 aa）
Not recorded ZN ZINC ION × 2 RN9 3-[3-[[1-[(3~{S})-2,6-bis(oxidanylidene)piperidin-3-yl]-2,5-bis(oxidanylidene)pyrrol-3-yl]amino]phenyl]-~{N}-(3-chloranyl-4-methyl-phenyl)propanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.57；293 K；30% (w/v) PEG3350, 0.1 M Tris pH 8.57
Resolution 3.78 Å R-free 0.303
7LPS Crystal structure of DDB1-CRBN-ALV1 complex bound to Helios (IKZF2 ZF2) Deposited 2021-02-12 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–1140（1140 aa）
Not recorded ZN ZINC ION × 2 RN9 3-[3-[[1-[(3~{S})-2,6-bis(oxidanylidene)piperidin-3-yl]-2,5-bis(oxidanylidene)pyrrol-3-yl]amino]phenyl]-~{N}-(3-chloranyl-4-methyl-phenyl)propanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.57；293 K；30% (w/v) PEG3350, 0.1 M Tris pH 8.57
Resolution 3.78 Å R-free 0.303
7LPS Crystal structure of DDB1-CRBN-ALV1 complex bound to Helios (IKZF2 ZF2) Deposited 2021-02-12 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–1140（1140 aa）
Not recorded ZN ZINC ION × 2 RN9 3-[3-[[1-[(3~{S})-2,6-bis(oxidanylidene)piperidin-3-yl]-2,5-bis(oxidanylidene)pyrrol-3-yl]amino]phenyl]-~{N}-(3-chloranyl-4-methyl-phenyl)propanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.57；293 K；30% (w/v) PEG3350, 0.1 M Tris pH 8.57
Resolution 3.78 Å R-free 0.303
7OKQ Cryo-EM Structure of the DDB1-DCAF1-CUL4A-RBX1 Complex Deposited 2021-05-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: Hexadecameric
Chain A 1–1140（1140 aa）
Chain E 1–1140（1140 aa）
Chain I 1–1140（1140 aa）
Chain M 1–1140（1140 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.40 Å
7OO3 Pol II-CSB-CSA-DDB1-UVSSA (Structure1) Deposited 2021-05-26 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 17 PDB declaration: eicosameric
Chain d 1–1140（1140 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
7OOB Pol II-CSB-CSA-DDB1-UVSSA-ADPBeF3 (Structure2) Deposited 2021-05-27 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 15 PDB declaration: octadecameric
Chain d 1–1140（1140 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.70 Å
7OOP Pol II-CSB-CSA-DDB1-UVSSA-PAF-SPT6 (Structure 3) Deposited 2021-05-28 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 26-meric
Chain d 1–1140（1140 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
7OPC Pol II-CSB-CRL4CSA-UVSSA-SPT6-PAF (Structure 4) Deposited 2021-05-31 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 25 PDB declaration: 28-meric
Chain d 1–1140（1140 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
7OPD Pol II-CSB-CRL4CSA-UVSSA-SPT6-PAF (Structure 5) Deposited 2021-05-31 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 25 PDB declaration: 28-meric
Chain d 1–1140（1140 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
7U8F Ternary complex structure of Cereblon-DDB1 bound to IKZF2(ZF2) and the molecular glue DKY709 Deposited 2022-03-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–395（395 aa）
Chain B 706–1140（435 aa）
Not recorded ZN ZINC ION × 2 LWK (3S)-3-[5-(1-benzylpiperidin-4-yl)-1-oxo-1,3-dihydro-2H-isoindol-2-yl]piperidine-2,6-dione × 1 SO4 SULFATE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；1.6 M potassium/sodium phosphate, pH 6.5
Resolution 3.15 Å R-free 0.243
7U8F Ternary complex structure of Cereblon-DDB1 bound to IKZF2(ZF2) and the molecular glue DKY709 Deposited 2022-03-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 1–395（395 aa）
Chain E 706–1140（435 aa）
Not recorded ZN ZINC ION × 2 LWK (3S)-3-[5-(1-benzylpiperidin-4-yl)-1-oxo-1,3-dihydro-2H-isoindol-2-yl]piperidine-2,6-dione × 1 SO4 SULFATE ION × 4 EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；1.6 M potassium/sodium phosphate, pH 6.5
Resolution 3.15 Å R-free 0.243
7UKN Crystal Structure of DDB1 in Complex with the H-Box Motif of pUL145 Deposited 2022-04-01 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–1140（1140 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；100 mM MES (pH 6.5-6.7), 16% PEG 4000, 50 mM NaCl, 5 mM DTT
Resolution 2.90 Å R-free 0.261
7V7B CryoEM structure of DDB1-VprBP complex in ARM-up conformation Deposited 2021-08-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–1140（1140 aa）
Chain D 1–1140（1140 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
7V7C CryoEM structure of DDB1-VprBP-Vpr-UNG2(94-313) complex Deposited 2021-08-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain B 1–1140（1140 aa）
Chain F 1–1140（1140 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
7ZN7 Cryo-EM structure of RCMV-E E27 bound to human DDB1 (deltaBPB) and rat STAT2 CCD Deposited 2022-04-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–396（396 aa）
Chain A 706–1140（435 aa）
Mutation：delta396-705 GNGNSG Mutation：delta396-705 GNGNSG ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE；45 seconds adsorption 2 seconds blot
Resolution 3.78 Å
7ZNN Cryo-EM structure of RCMV-E E27 bound to human DDB1 (deltaBPB) and full-length rat STAT2 Deposited 2022-04-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–396（396 aa）
Chain A 706–1140（435 aa）
Mutation：Residues 396-705 have been replaced by a GNGNSG-linker Mutation：Residues 396-705 have been replaced by a GNGNSG-linker ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE；45 seconds adsorption 2 seconds blot
Resolution 4.80 Å
8AJM Structure of human DDB1-DCAF12 in complex with the C-terminus of CCT5 Deposited 2022-07-28 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–1140（1140 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.83 Å
8AJN Structure of the human DDB1-DCAF12 complex Deposited 2022-07-28 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–1140（1140 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
8AJO Negative-stain electron microscopy structure of DDB1-DCAF12-CCT5 Deposited 2022-07-28 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–1140（1140 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
Resolution 30.60 Å
8B3D Structure of the Pol II-TCR-ELOF1 complex. Deposited 2022-09-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 17 PDB declaration: eicosameric
Chain d 1–1140（1140 aa）
Not recorded ZN ZINC ION × 10 MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.60 Å
8B3F Pol II-CSB-CSA-DDB1-ELOF1 Deposited 2022-09-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 16 PDB declaration: nonadecameric
Chain d 1–1140（1140 aa）
Not recorded ZN ZINC ION × 9 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
8B3G C(N)RL4CSA-UVSSA-E2-ubiquitin complex. Deposited 2022-09-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain d 1–1140（1140 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.40 Å
8B3I CRL4CSA-E2-Ub (state 2) Deposited 2022-09-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain d 1–1140（1140 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8BU1 Structure of DDB1 bound to DS17-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 709–1140（432 aa）
Not recorded GOL GLYCEROL × 5 RQL (2~{R})-2-[[6-[[5,6-bis(chloranyl)-1~{H}-benzimidazol-2-yl]methylamino]-9-(1-methylpyrazol-4-yl)purin-2-yl]amino]butan-1-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.9 M ammonium citrate tribasic pH 7.0, NDSB-256 additive
Resolution 2.98 Å R-free 0.218
8BU1 Structure of DDB1 bound to DS17-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–395（395 aa）
Chain D 709–1140（432 aa）
Not recorded GOL GLYCEROL × 5 RQL (2~{R})-2-[[6-[[5,6-bis(chloranyl)-1~{H}-benzimidazol-2-yl]methylamino]-9-(1-methylpyrazol-4-yl)purin-2-yl]amino]butan-1-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.9 M ammonium citrate tribasic pH 7.0, NDSB-256 additive
Resolution 2.98 Å R-free 0.218
8BU1 Structure of DDB1 bound to DS17-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–395（395 aa）
Chain G 709–1140（432 aa）
Not recorded GOL GLYCEROL × 5 RQL (2~{R})-2-[[6-[[5,6-bis(chloranyl)-1~{H}-benzimidazol-2-yl]methylamino]-9-(1-methylpyrazol-4-yl)purin-2-yl]amino]butan-1-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.9 M ammonium citrate tribasic pH 7.0, NDSB-256 additive
Resolution 2.98 Å R-free 0.218
8BU2 Structure of DDB1 bound to DS18-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 12 RVQ ~{N}-[[5,6-bis(chloranyl)-1~{H}-benzimidazol-2-yl]methyl]-2-morpholin-4-yl-9-propan-2-yl-purin-6-amine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.30 M ammonium sulphate, 0.07 M HEPES, pH 6.8
Resolution 3.13 Å R-free 0.217
8BU2 Structure of DDB1 bound to DS18-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–395（395 aa）
Chain D 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 16 RVQ ~{N}-[[5,6-bis(chloranyl)-1~{H}-benzimidazol-2-yl]methyl]-2-morpholin-4-yl-9-propan-2-yl-purin-6-amine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.30 M ammonium sulphate, 0.07 M HEPES, pH 6.8
Resolution 3.13 Å R-free 0.217
8BU2 Structure of DDB1 bound to DS18-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–395（395 aa）
Chain G 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 13 RVQ ~{N}-[[5,6-bis(chloranyl)-1~{H}-benzimidazol-2-yl]methyl]-2-morpholin-4-yl-9-propan-2-yl-purin-6-amine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.30 M ammonium sulphate, 0.07 M HEPES, pH 6.8
Resolution 3.13 Å R-free 0.217
8BU3 Structure of DDB1 bound to DS19-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 706–1140（435 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 SO4 SULFATE ION × 6 RSI 2-morpholin-4-yl-9-propan-2-yl-~{N}-[(4-pyridin-2-ylphenyl)methyl]purin-6-amine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.49 M ammonium sulfate, ammonium citrate, 0.07 M HEPES pH 6.8
Resolution 3.42 Å R-free 0.213
8BU3 Structure of DDB1 bound to DS19-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–395（395 aa）
Chain D 706–1140（435 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 SO4 SULFATE ION × 5 RSI 2-morpholin-4-yl-9-propan-2-yl-~{N}-[(4-pyridin-2-ylphenyl)methyl]purin-6-amine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.49 M ammonium sulfate, ammonium citrate, 0.07 M HEPES pH 6.8
Resolution 3.42 Å R-free 0.213
8BU3 Structure of DDB1 bound to DS19-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–395（395 aa）
Chain G 706–1140（435 aa）
Not recorded SO4 SULFATE ION × 9 RSI 2-morpholin-4-yl-9-propan-2-yl-~{N}-[(4-pyridin-2-ylphenyl)methyl]purin-6-amine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.49 M ammonium sulfate, ammonium citrate, 0.07 M HEPES pH 6.8
Resolution 3.42 Å R-free 0.213
8BU4 Structure of DDB1 bound to DS22-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 5 RQL (2~{R})-2-[[6-[[5,6-bis(chloranyl)-1~{H}-benzimidazol-2-yl]methylamino]-9-(1-methylpyrazol-4-yl)purin-2-yl]amino]butan-1-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.07 M ammonium sulfate, 0.855 M ammonium citrate, 0.07 M HEPES pH 7
Resolution 3.09 Å R-free 0.223
8BU4 Structure of DDB1 bound to DS22-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–395（395 aa）
Chain D 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 6 RQL (2~{R})-2-[[6-[[5,6-bis(chloranyl)-1~{H}-benzimidazol-2-yl]methylamino]-9-(1-methylpyrazol-4-yl)purin-2-yl]amino]butan-1-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.07 M ammonium sulfate, 0.855 M ammonium citrate, 0.07 M HEPES pH 7
Resolution 3.09 Å R-free 0.223
8BU4 Structure of DDB1 bound to DS22-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–395（395 aa）
Chain G 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 3 RQL (2~{R})-2-[[6-[[5,6-bis(chloranyl)-1~{H}-benzimidazol-2-yl]methylamino]-9-(1-methylpyrazol-4-yl)purin-2-yl]amino]butan-1-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.07 M ammonium sulfate, 0.855 M ammonium citrate, 0.07 M HEPES pH 7
Resolution 3.09 Å R-free 0.223
8BU5 Structure of DDB1 bound to SR-4835-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 706–1140（435 aa）
Not recorded SO4 SULFATE ION × 1 RMF ~{N}-[[5,6-bis(chloranyl)-1~{H}-benzimidazol-2-yl]methyl]-9-(1-methylpyrazol-4-yl)-2-morpholin-4-yl-purin-6-amine × 1 CIT CITRIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.28 M ammonium sulphate, 0.72 M ammonium citrate tribasic pH 7.0, 0.07 M HEPES pH 7.0
Resolution 3.13 Å R-free 0.220
8BU5 Structure of DDB1 bound to SR-4835-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–395（395 aa）
Chain D 706–1140（435 aa）
Not recorded RMF ~{N}-[[5,6-bis(chloranyl)-1~{H}-benzimidazol-2-yl]methyl]-9-(1-methylpyrazol-4-yl)-2-morpholin-4-yl-purin-6-amine × 1 CIT CITRIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.28 M ammonium sulphate, 0.72 M ammonium citrate tribasic pH 7.0, 0.07 M HEPES pH 7.0
Resolution 3.13 Å R-free 0.220
8BU5 Structure of DDB1 bound to SR-4835-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–395（395 aa）
Chain G 706–1140（435 aa）
Not recorded SO4 SULFATE ION × 2 RMF ~{N}-[[5,6-bis(chloranyl)-1~{H}-benzimidazol-2-yl]methyl]-9-(1-methylpyrazol-4-yl)-2-morpholin-4-yl-purin-6-amine × 1 CIT CITRIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.28 M ammonium sulphate, 0.72 M ammonium citrate tribasic pH 7.0, 0.07 M HEPES pH 7.0
Resolution 3.13 Å R-free 0.220
8BU6 Structure of DDB1 bound to DS55-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–395（395 aa）
Chain G 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 2 RQE ~{N}-(1~{H}-benzimidazol-2-ylmethyl)-9-(1-methylpyrazol-4-yl)-2-morpholin-4-yl-purin-6-amine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.42 M ammonium sulphate, 0.07 M HEPES, pH 7.3
Resolution 3.45 Å R-free 0.249
8BU6 Structure of DDB1 bound to DS55-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–395（395 aa）
Chain D 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 2 RQE ~{N}-(1~{H}-benzimidazol-2-ylmethyl)-9-(1-methylpyrazol-4-yl)-2-morpholin-4-yl-purin-6-amine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.42 M ammonium sulphate, 0.07 M HEPES, pH 7.3
Resolution 3.45 Å R-free 0.249
8BU6 Structure of DDB1 bound to DS55-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 2 RQE ~{N}-(1~{H}-benzimidazol-2-ylmethyl)-9-(1-methylpyrazol-4-yl)-2-morpholin-4-yl-purin-6-amine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.42 M ammonium sulphate, 0.07 M HEPES, pH 7.3
Resolution 3.45 Å R-free 0.249
8BU7 Structure of DDB1 bound to 21195-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 706–1140（435 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 RS5 1-[2,6-bis(chloranyl)phenyl]-6-[[4-(2-hydroxyethyloxy)phenyl]methyl]-3-propan-2-yl-5H-pyrazolo[3,4-d]pyrimidin-4-one × 1 SO4 SULFATE ION × 10 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.33 M ammonium sulfate, 0.045 M ammonium citrate, 0.07M HEPES pH 7
Resolution 3.25 Å R-free 0.219
8BU7 Structure of DDB1 bound to 21195-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–395（395 aa）
Chain D 706–1140（435 aa）
Not recorded EDO 1,2-ETHANEDIOL × 2 RS5 1-[2,6-bis(chloranyl)phenyl]-6-[[4-(2-hydroxyethyloxy)phenyl]methyl]-3-propan-2-yl-5H-pyrazolo[3,4-d]pyrimidin-4-one × 1 SO4 SULFATE ION × 10 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.33 M ammonium sulfate, 0.045 M ammonium citrate, 0.07M HEPES pH 7
Resolution 3.25 Å R-free 0.219
8BU7 Structure of DDB1 bound to 21195-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–395（395 aa）
Chain G 706–1140（435 aa）
Not recorded RS5 1-[2,6-bis(chloranyl)phenyl]-6-[[4-(2-hydroxyethyloxy)phenyl]methyl]-3-propan-2-yl-5H-pyrazolo[3,4-d]pyrimidin-4-one × 1 SO4 SULFATE ION × 11 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.33 M ammonium sulfate, 0.045 M ammonium citrate, 0.07M HEPES pH 7
Resolution 3.25 Å R-free 0.219
8BU9 Structure of DDB1 bound to roscovitine-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 5 RRC R-ROSCOVITINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.42 M ammonium sulphate, 0.63 M ammonium citrate tribasic pH 7.0, 0.07 M HEPES pH 7.0
Resolution 3.51 Å R-free 0.223
8BU9 Structure of DDB1 bound to roscovitine-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–395（395 aa）
Chain D 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 5 RRC R-ROSCOVITINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.42 M ammonium sulphate, 0.63 M ammonium citrate tribasic pH 7.0, 0.07 M HEPES pH 7.0
Resolution 3.51 Å R-free 0.223
8BU9 Structure of DDB1 bound to roscovitine-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–395（395 aa）
Chain G 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 5 RRC R-ROSCOVITINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.42 M ammonium sulphate, 0.63 M ammonium citrate tribasic pH 7.0, 0.07 M HEPES pH 7.0
Resolution 3.51 Å R-free 0.223
8BUA Structure of DDB1 bound to 919278-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 706–1140（435 aa）
Not recorded CIT CITRIC ACID × 2 RVH (2~{R})-~{N}-(1~{H}-benzimidazol-2-yl)-2-(3-oxidanylidene-1~{H}-isoindol-2-yl)propanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.9 M ammonium citrate, 100 %w/v SB38D2, 0.07 M HEPES pH 7
Resolution 3.19 Å R-free 0.225
8BUA Structure of DDB1 bound to 919278-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–395（395 aa）
Chain D 706–1140（435 aa）
Not recorded CIT CITRIC ACID × 3 RVH (2~{R})-~{N}-(1~{H}-benzimidazol-2-yl)-2-(3-oxidanylidene-1~{H}-isoindol-2-yl)propanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.9 M ammonium citrate, 100 %w/v SB38D2, 0.07 M HEPES pH 7
Resolution 3.19 Å R-free 0.225
8BUA Structure of DDB1 bound to 919278-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–395（395 aa）
Chain G 706–1140（435 aa）
Not recorded CIT CITRIC ACID × 4 RVH (2~{R})-~{N}-(1~{H}-benzimidazol-2-yl)-2-(3-oxidanylidene-1~{H}-isoindol-2-yl)propanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.9 M ammonium citrate, 100 %w/v SB38D2, 0.07 M HEPES pH 7
Resolution 3.19 Å R-free 0.225
8BUB Structure of DDB1 bound to dCeMM4-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 709–1140（432 aa）
Not recorded CIT CITRIC ACID × 2 RNU ~{N}-(5-methyl-2,3-dihydro-1,3-thiazol-2-yl)-3-(5-methylfuran-2-yl)carbonyl-1,3-thiazolidine-4-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.9 M ammonium citrate tribasic pH 7.0, 1 M sodium malonate additive
Resolution 3.42 Å R-free 0.237
8BUB Structure of DDB1 bound to dCeMM4-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–395（395 aa）
Chain D 709–1140（432 aa）
Not recorded CIT CITRIC ACID × 3 RNU ~{N}-(5-methyl-2,3-dihydro-1,3-thiazol-2-yl)-3-(5-methylfuran-2-yl)carbonyl-1,3-thiazolidine-4-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.9 M ammonium citrate tribasic pH 7.0, 1 M sodium malonate additive
Resolution 3.42 Å R-free 0.237
8BUB Structure of DDB1 bound to dCeMM4-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–395（395 aa）
Chain G 709–1140（432 aa）
Not recorded CIT CITRIC ACID × 2 RNU ~{N}-(5-methyl-2,3-dihydro-1,3-thiazol-2-yl)-3-(5-methylfuran-2-yl)carbonyl-1,3-thiazolidine-4-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.9 M ammonium citrate tribasic pH 7.0, 1 M sodium malonate additive
Resolution 3.42 Å R-free 0.237
8BUC Structure of DDB1 bound to dCeMM3-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 4 RKO 2-(1~{H}-benzimidazol-2-ylsulfanyl)-~{N}-(5-chloranylpyridin-2-yl)ethanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.07 M ammonium sulfate, 0.855 ammonium citrate, 0.07 M HEPES pH 7
Resolution 3.85 Å R-free 0.224
8BUC Structure of DDB1 bound to dCeMM3-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–395（395 aa）
Chain D 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 1 RKO 2-(1~{H}-benzimidazol-2-ylsulfanyl)-~{N}-(5-chloranylpyridin-2-yl)ethanamide × 1 CIT CITRIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.07 M ammonium sulfate, 0.855 ammonium citrate, 0.07 M HEPES pH 7
Resolution 3.85 Å R-free 0.224
8BUC Structure of DDB1 bound to dCeMM3-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–395（395 aa）
Chain G 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 4 RKO 2-(1~{H}-benzimidazol-2-ylsulfanyl)-~{N}-(5-chloranylpyridin-2-yl)ethanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.07 M ammonium sulfate, 0.855 ammonium citrate, 0.07 M HEPES pH 7
Resolution 3.85 Å R-free 0.224
8BUD Structure of DDB1 bound to Z7-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 10 RP9 ~{N}-(5-bromanylpyridin-2-yl)-3-(4-oxidanylidenequinazolin-3-yl)propanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.50 M ammonium sulphate, 0.07 M HEPES, pH 7.0
Resolution 3.20 Å R-free 0.220
8BUD Structure of DDB1 bound to Z7-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–395（395 aa）
Chain D 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 15 RP9 ~{N}-(5-bromanylpyridin-2-yl)-3-(4-oxidanylidenequinazolin-3-yl)propanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.50 M ammonium sulphate, 0.07 M HEPES, pH 7.0
Resolution 3.20 Å R-free 0.220
8BUD Structure of DDB1 bound to Z7-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–395（395 aa）
Chain G 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 14 RP9 ~{N}-(5-bromanylpyridin-2-yl)-3-(4-oxidanylidenequinazolin-3-yl)propanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.50 M ammonium sulphate, 0.07 M HEPES, pH 7.0
Resolution 3.20 Å R-free 0.220
8BUE Structure of DDB1 bound to Z11-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 12 RVU ~{N}-(1~{H}-benzimidazol-2-yl)-1-(2-methoxy-5-methyl-phenyl)-5-oxidanylidene-pyrrolidine-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.45 M ammonium sulphate, 0.07 M HEPES, pH 7.1
Resolution 3.25 Å R-free 0.213
8BUE Structure of DDB1 bound to Z11-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–395（395 aa）
Chain D 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 16 RVU ~{N}-(1~{H}-benzimidazol-2-yl)-1-(2-methoxy-5-methyl-phenyl)-5-oxidanylidene-pyrrolidine-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.45 M ammonium sulphate, 0.07 M HEPES, pH 7.1
Resolution 3.25 Å R-free 0.213
8BUE Structure of DDB1 bound to Z11-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–395（395 aa）
Chain G 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 15 RVU ~{N}-(1~{H}-benzimidazol-2-yl)-1-(2-methoxy-5-methyl-phenyl)-5-oxidanylidene-pyrrolidine-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.45 M ammonium sulphate, 0.07 M HEPES, pH 7.1
Resolution 3.25 Å R-free 0.213
8BUF Structure of DDB1 bound to Z12-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 12 RW6 2-(6,7-dihydro-4~{H}-thieno[3,2-c]pyridin-5-ylmethyl)-6,7-dimethoxy-3~{H}-quinazolin-4-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.47 M amonium sulphate, 0.07 M HEPES, pH 7.0
Resolution 3.30 Å R-free 0.220
8BUF Structure of DDB1 bound to Z12-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–395（395 aa）
Chain D 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 17 RW6 2-(6,7-dihydro-4~{H}-thieno[3,2-c]pyridin-5-ylmethyl)-6,7-dimethoxy-3~{H}-quinazolin-4-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.47 M amonium sulphate, 0.07 M HEPES, pH 7.0
Resolution 3.30 Å R-free 0.220
8BUF Structure of DDB1 bound to Z12-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–395（395 aa）
Chain G 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 17 RW6 2-(6,7-dihydro-4~{H}-thieno[3,2-c]pyridin-5-ylmethyl)-6,7-dimethoxy-3~{H}-quinazolin-4-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.47 M amonium sulphate, 0.07 M HEPES, pH 7.0
Resolution 3.30 Å R-free 0.220
8BUG Structure of DDB1 bound to HQ461-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 709–1140（432 aa）
Not recorded CIT CITRIC ACID × 2 RPW 2-[2-[(6-methylpyridin-2-yl)amino]-1,3-thiazol-4-yl]-~{N}-(5-methyl-1,3-thiazol-2-yl)ethanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.9 M ammonium citrate tribasic pH 7.0, 0.1 M TMA additive
Resolution 3.53 Å R-free 0.231
8BUG Structure of DDB1 bound to HQ461-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–395（395 aa）
Chain D 709–1140（432 aa）
Not recorded CIT CITRIC ACID × 2 RPW 2-[2-[(6-methylpyridin-2-yl)amino]-1,3-thiazol-4-yl]-~{N}-(5-methyl-1,3-thiazol-2-yl)ethanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.9 M ammonium citrate tribasic pH 7.0, 0.1 M TMA additive
Resolution 3.53 Å R-free 0.231
8BUG Structure of DDB1 bound to HQ461-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–395（395 aa）
Chain G 709–1140（432 aa）
Not recorded CIT CITRIC ACID × 3 RPW 2-[2-[(6-methylpyridin-2-yl)amino]-1,3-thiazol-4-yl]-~{N}-(5-methyl-1,3-thiazol-2-yl)ethanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.9 M ammonium citrate tribasic pH 7.0, 0.1 M TMA additive
Resolution 3.53 Å R-free 0.231
8BUH Structure of DDB1 bound to WX3-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 5 RR9 6-[[[2-[[(2~{R})-1-oxidanylbutan-2-yl]amino]-9-propan-2-yl-purin-6-yl]amino]methyl]-3-pyridin-2-yl-1~{H}-pyridin-2-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.7 M ammonium sulfate, 0.45 M ammonium citrate, 0.07 M HEPES pH 7
Resolution 3.79 Å R-free 0.232
8BUH Structure of DDB1 bound to WX3-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–395（395 aa）
Chain D 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 3 RR9 6-[[[2-[[(2~{R})-1-oxidanylbutan-2-yl]amino]-9-propan-2-yl-purin-6-yl]amino]methyl]-3-pyridin-2-yl-1~{H}-pyridin-2-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.7 M ammonium sulfate, 0.45 M ammonium citrate, 0.07 M HEPES pH 7
Resolution 3.79 Å R-free 0.232
8BUH Structure of DDB1 bound to WX3-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–395（395 aa）
Chain G 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 4 RR9 6-[[[2-[[(2~{R})-1-oxidanylbutan-2-yl]amino]-9-propan-2-yl-purin-6-yl]amino]methyl]-3-pyridin-2-yl-1~{H}-pyridin-2-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.7 M ammonium sulfate, 0.45 M ammonium citrate, 0.07 M HEPES pH 7
Resolution 3.79 Å R-free 0.232
8BUI Structure of DDB1 bound to DRF-053-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 706–1140（435 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 SO4 SULFATE ION × 7 RV6 (2~{R})-2-[[9-propan-2-yl-6-[(4-pyridin-2-ylphenyl)amino]purin-2-yl]amino]butan-1-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.42 M ammonium sulphate, 0.07 M HEPES, pH 6.8
Resolution 3.50 Å R-free 0.221
8BUI Structure of DDB1 bound to DRF-053-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–395（395 aa）
Chain D 706–1140（435 aa）
Not recorded SO4 SULFATE ION × 7 RV6 (2~{R})-2-[[9-propan-2-yl-6-[(4-pyridin-2-ylphenyl)amino]purin-2-yl]amino]butan-1-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.42 M ammonium sulphate, 0.07 M HEPES, pH 6.8
Resolution 3.50 Å R-free 0.221
8BUI Structure of DDB1 bound to DRF-053-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–395（395 aa）
Chain G 706–1140（435 aa）
Not recorded SO4 SULFATE ION × 7 RV6 (2~{R})-2-[[9-propan-2-yl-6-[(4-pyridin-2-ylphenyl)amino]purin-2-yl]amino]butan-1-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.42 M ammonium sulphate, 0.07 M HEPES, pH 6.8
Resolution 3.50 Å R-free 0.221
8BUJ Structure of DDB1 bound to DS06-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 706–1140（435 aa）
Not recorded SO4 SULFATE ION × 5 RUW (2~{R})-2-[[6-(octylamino)-9-propan-2-yl-purin-2-yl]amino]butan-1-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.38 M ammonium sulphate, 0.07 M HEPES, pH 7.0
Resolution 3.62 Å R-free 0.206
8BUJ Structure of DDB1 bound to DS06-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–395（395 aa）
Chain D 706–1140（435 aa）
Not recorded SO4 SULFATE ION × 4 RUW (2~{R})-2-[[6-(octylamino)-9-propan-2-yl-purin-2-yl]amino]butan-1-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.38 M ammonium sulphate, 0.07 M HEPES, pH 7.0
Resolution 3.62 Å R-free 0.206
8BUJ Structure of DDB1 bound to DS06-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–395（395 aa）
Chain G 706–1140（435 aa）
Not recorded SO4 SULFATE ION × 5 RUW (2~{R})-2-[[6-(octylamino)-9-propan-2-yl-purin-2-yl]amino]butan-1-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.38 M ammonium sulphate, 0.07 M HEPES, pH 7.0
Resolution 3.62 Å R-free 0.206
8BUK Structure of DDB1 bound to DS08-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 7 RWE (2~{R})-2-[[6-(naphthalen-2-ylmethylamino)-9-propan-2-yl-purin-2-yl]amino]butan-1-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.84 M ammonium sulfate, 0.36 M ammonium citrate, 0.07 M HEPES pH 7
Resolution 3.41 Å R-free 0.210
8BUK Structure of DDB1 bound to DS08-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–395（395 aa）
Chain D 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 6 RWE (2~{R})-2-[[6-(naphthalen-2-ylmethylamino)-9-propan-2-yl-purin-2-yl]amino]butan-1-ol × 1 CIT CITRIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.84 M ammonium sulfate, 0.36 M ammonium citrate, 0.07 M HEPES pH 7
Resolution 3.41 Å R-free 0.210
8BUK Structure of DDB1 bound to DS08-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–395（395 aa）
Chain G 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 7 RWE (2~{R})-2-[[6-(naphthalen-2-ylmethylamino)-9-propan-2-yl-purin-2-yl]amino]butan-1-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.84 M ammonium sulfate, 0.36 M ammonium citrate, 0.07 M HEPES pH 7
Resolution 3.41 Å R-free 0.210
8BUL Structure of DDB1 bound to DS11-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 706–1140（435 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 SO4 SULFATE ION × 8 RSU (2~{R})-2-[[6-(3-phenylpropylamino)-9-propan-2-yl-purin-2-yl]amino]butan-1-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.30 M amonium sulphate, 0.07 M HEPES, pH 6.8
Resolution 3.40 Å R-free 0.215
8BUL Structure of DDB1 bound to DS11-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–395（395 aa）
Chain D 706–1140（435 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 SO4 SULFATE ION × 8 RSU (2~{R})-2-[[6-(3-phenylpropylamino)-9-propan-2-yl-purin-2-yl]amino]butan-1-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.30 M amonium sulphate, 0.07 M HEPES, pH 6.8
Resolution 3.40 Å R-free 0.215
8BUL Structure of DDB1 bound to DS11-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–395（395 aa）
Chain G 706–1140（435 aa）
Not recorded SO4 SULFATE ION × 9 RSU (2~{R})-2-[[6-(3-phenylpropylamino)-9-propan-2-yl-purin-2-yl]amino]butan-1-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.30 M amonium sulphate, 0.07 M HEPES, pH 6.8
Resolution 3.40 Å R-free 0.215
8BUM Structure of DDB1 bound to DS15-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 706–1140（435 aa）
Not recorded SO4 SULFATE ION × 11 T6X (2R)-2-[[6-(5-naphthalen-1-ylpentylamino)-9-propan-2-yl-purin-2-yl]amino]butan-1-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.50 M amonium sulphate, 0.07 M HEPES, pH 6.8
Resolution 3.36 Å R-free 0.212
8BUM Structure of DDB1 bound to DS15-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–395（395 aa）
Chain D 706–1140（435 aa）
Not recorded SO4 SULFATE ION × 15 T6X (2R)-2-[[6-(5-naphthalen-1-ylpentylamino)-9-propan-2-yl-purin-2-yl]amino]butan-1-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.50 M amonium sulphate, 0.07 M HEPES, pH 6.8
Resolution 3.36 Å R-free 0.212
8BUM Structure of DDB1 bound to DS15-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–395（395 aa）
Chain G 706–1140（435 aa）
Not recorded SO4 SULFATE ION × 13 T6X (2R)-2-[[6-(5-naphthalen-1-ylpentylamino)-9-propan-2-yl-purin-2-yl]amino]butan-1-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.50 M amonium sulphate, 0.07 M HEPES, pH 6.8
Resolution 3.36 Å R-free 0.212
8BUN Structure of DDB1 bound to DS16-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 10 RNF (2~{R})-2-[[6-[(4-phenylphenyl)methylamino]-9-propan-2-yl-purin-2-yl]amino]butan-1-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.40 M ammonium sulphate, 0.07 M HEPES, pH 6.8
Resolution 3.08 Å R-free 0.211
8BUN Structure of DDB1 bound to DS16-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–395（395 aa）
Chain D 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 12 RNF (2~{R})-2-[[6-[(4-phenylphenyl)methylamino]-9-propan-2-yl-purin-2-yl]amino]butan-1-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.40 M ammonium sulphate, 0.07 M HEPES, pH 6.8
Resolution 3.08 Å R-free 0.211
8BUN Structure of DDB1 bound to DS16-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–395（395 aa）
Chain G 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 12 RNF (2~{R})-2-[[6-[(4-phenylphenyl)methylamino]-9-propan-2-yl-purin-2-yl]amino]butan-1-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.40 M ammonium sulphate, 0.07 M HEPES, pH 6.8
Resolution 3.08 Å R-free 0.211
8BUO Structure of DDB1 bound to DS24-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 706–1140（435 aa）
Not recorded SO4 SULFATE ION × 9 RLC (2~{R})-2-[[6-[(3-fluoranyl-4-pyridin-2-yl-phenyl)methylamino]-9-propan-2-yl-purin-2-yl]amino]butan-1-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.47 M ammonium sulphate, 0.07 M HEPES, pH 6.8
Resolution 3.58 Å R-free 0.219
8BUO Structure of DDB1 bound to DS24-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 706–1140（435 aa）
Not recorded SO4 SULFATE ION × 7 RLC (2~{R})-2-[[6-[(3-fluoranyl-4-pyridin-2-yl-phenyl)methylamino]-9-propan-2-yl-purin-2-yl]amino]butan-1-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.47 M ammonium sulphate, 0.07 M HEPES, pH 6.8
Resolution 3.58 Å R-free 0.219
8BUO Structure of DDB1 bound to DS24-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 706–1140（435 aa）
Not recorded SO4 SULFATE ION × 10 RLC (2~{R})-2-[[6-[(3-fluoranyl-4-pyridin-2-yl-phenyl)methylamino]-9-propan-2-yl-purin-2-yl]amino]butan-1-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.47 M ammonium sulphate, 0.07 M HEPES, pH 6.8
Resolution 3.58 Å R-free 0.219
8BUP Structure of DDB1 bound to DS30-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 11 RWN (2~{R})-2-[[6-[3-(3-methylphenyl)propylamino]-9-propan-2-yl-purin-2-yl]amino]butan-1-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.44 M ammonium sulphate, 2.143 %v/v PEG 200, 0.07 M HEPES pH 7.5
Resolution 3.41 Å R-free 0.223
8BUP Structure of DDB1 bound to DS30-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–395（395 aa）
Chain D 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 22 RWN (2~{R})-2-[[6-[3-(3-methylphenyl)propylamino]-9-propan-2-yl-purin-2-yl]amino]butan-1-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.44 M ammonium sulphate, 2.143 %v/v PEG 200, 0.07 M HEPES pH 7.5
Resolution 3.41 Å R-free 0.223
8BUP Structure of DDB1 bound to DS30-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–395（395 aa）
Chain G 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 24 RWN (2~{R})-2-[[6-[3-(3-methylphenyl)propylamino]-9-propan-2-yl-purin-2-yl]amino]butan-1-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.44 M ammonium sulphate, 2.143 %v/v PEG 200, 0.07 M HEPES pH 7.5
Resolution 3.41 Å R-free 0.223
8BUQ Structure of DDB1 bound to DS43-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 709–1140（432 aa）
Not recorded CIT CITRIC ACID × 2 RQ9 (2~{R})-2-[[6-[[1-(3-chlorophenyl)pyrazol-3-yl]methylamino]-9-propan-2-yl-purin-2-yl]amino]butan-1-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.9 M ammonium citrate tribasic pH 7.0, Jeff600 additive
Resolution 3.20 Å R-free 0.216
8BUQ Structure of DDB1 bound to DS43-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–395（395 aa）
Chain D 709–1140（432 aa）
Not recorded CIT CITRIC ACID × 2 RQ9 (2~{R})-2-[[6-[[1-(3-chlorophenyl)pyrazol-3-yl]methylamino]-9-propan-2-yl-purin-2-yl]amino]butan-1-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.9 M ammonium citrate tribasic pH 7.0, Jeff600 additive
Resolution 3.20 Å R-free 0.216
8BUQ Structure of DDB1 bound to DS43-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–395（395 aa）
Chain G 709–1140（432 aa）
Not recorded CIT CITRIC ACID × 2 RQ9 (2~{R})-2-[[6-[[1-(3-chlorophenyl)pyrazol-3-yl]methylamino]-9-propan-2-yl-purin-2-yl]amino]butan-1-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.9 M ammonium citrate tribasic pH 7.0, Jeff600 additive
Resolution 3.20 Å R-free 0.216
8BUR Structure of DDB1 bound to DS50-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–395（395 aa）
Chain D 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 7 RQU ~{N}-[2-(2-methoxyphenyl)ethyl]-2-[[9-propan-2-yl-6-[(4-pyridin-2-ylphenyl)methylamino]purin-2-yl]amino]ethanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.42 M ammonium sulphate, 0.07 M HEPES, pH 7.0
Resolution 3.64 Å R-free 0.234
8BUR Structure of DDB1 bound to DS50-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 10 RQU ~{N}-[2-(2-methoxyphenyl)ethyl]-2-[[9-propan-2-yl-6-[(4-pyridin-2-ylphenyl)methylamino]purin-2-yl]amino]ethanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.42 M ammonium sulphate, 0.07 M HEPES, pH 7.0
Resolution 3.64 Å R-free 0.234
8BUR Structure of DDB1 bound to DS50-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–395（395 aa）
Chain G 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 7 RQU ~{N}-[2-(2-methoxyphenyl)ethyl]-2-[[9-propan-2-yl-6-[(4-pyridin-2-ylphenyl)methylamino]purin-2-yl]amino]ethanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.42 M ammonium sulphate, 0.07 M HEPES, pH 7.0
Resolution 3.64 Å R-free 0.234
8BUS Structure of DDB1 bound to DS59-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–395（395 aa）
Chain D 706–1140（435 aa）
Not recorded SO4 SULFATE ION × 5 RMX 1,3-dimethyl-5-[[[9-propan-2-yl-6-[(4-pyridin-2-ylphenyl)methylamino]purin-2-yl]amino]methyl]pyrazole-4-sulfonamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.40 M ammonium sulphate, 0.07 M HEPES, pH 7.0
Resolution 3.26 Å R-free 0.228
8BUS Structure of DDB1 bound to DS59-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 706–1140（435 aa）
Not recorded SO4 SULFATE ION × 3 RMX 1,3-dimethyl-5-[[[9-propan-2-yl-6-[(4-pyridin-2-ylphenyl)methylamino]purin-2-yl]amino]methyl]pyrazole-4-sulfonamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.40 M ammonium sulphate, 0.07 M HEPES, pH 7.0
Resolution 3.26 Å R-free 0.228
8BUS Structure of DDB1 bound to DS59-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–395（395 aa）
Chain G 706–1140（435 aa）
Not recorded SO4 SULFATE ION × 6 RMX 1,3-dimethyl-5-[[[9-propan-2-yl-6-[(4-pyridin-2-ylphenyl)methylamino]purin-2-yl]amino]methyl]pyrazole-4-sulfonamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.40 M ammonium sulphate, 0.07 M HEPES, pH 7.0
Resolution 3.26 Å R-free 0.228
8BUT Structure of DDB1 bound to DS61-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 7 RQ5 2-[[6-[[4-(2-hydroxyethyloxy)phenyl]methylamino]-9-propan-2-yl-purin-2-yl]amino]butan-1-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.374 M ammonium sulfate, 0.07 M HEPES pH 7.3
Resolution 3.25 Å R-free 0.217
8BUT Structure of DDB1 bound to DS61-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–395（395 aa）
Chain D 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 6 RQ5 2-[[6-[[4-(2-hydroxyethyloxy)phenyl]methylamino]-9-propan-2-yl-purin-2-yl]amino]butan-1-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.374 M ammonium sulfate, 0.07 M HEPES pH 7.3
Resolution 3.25 Å R-free 0.217
8BUT Structure of DDB1 bound to DS61-engaged CDK12-cyclin K Deposited 2022-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–395（395 aa）
Chain G 709–1140（432 aa）
Not recorded SO4 SULFATE ION × 8 RQ5 2-[[6-[[4-(2-hydroxyethyloxy)phenyl]methylamino]-9-propan-2-yl-purin-2-yl]amino]butan-1-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.374 M ammonium sulfate, 0.07 M HEPES pH 7.3
Resolution 3.25 Å R-free 0.217
8CVP Cereblon-DDB1 in the Apo form Deposited 2022-05-18 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–1140（1140 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7；20mM HEPES pH 7.0, 240mM NaCl, 3mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE；Manual plunge in 4? coldroom
Resolution 3.40 Å
8D7U Cereblon~DDB1 bound to CC-92480 with DDB1 in the linear conformation Deposited 2022-06-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–1140（1140 aa）
Not recorded ZN ZINC ION × 1 QFC Mezigdomide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7；20mM HEPES pH 7.0, 240mM NaCl, 3mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE；Manual plunge in 4 degree C cold room
Resolution 3.10 Å
8D7V Cereblon~DDB1 bound to CC-92480 with DDB1 in the twisted conformation Deposited 2022-06-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–1140（1140 aa）
Not recorded ZN ZINC ION × 1 QFC Mezigdomide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7；20mM HEPES pH 7.0, 240mM NaCl, 3mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE；Manual plunge in 4 degree C cold room
Resolution 3.20 Å
8D7W Cereblon~DDB1 bound to CC-92480 with DDB1 in the hinged conformation Deposited 2022-06-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–1140（1140 aa）
Not recorded ZN ZINC ION × 1 QFC Mezigdomide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7；20mM HEPES pH 7.0, 240mM NaCl, 3mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE；Manual plunge in 4 degree C cold room
Resolution 3.10 Å
8D7X Cereblon~DDB1 in the Apo form with DDB1 in the hinged conformation Deposited 2022-06-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–1140（1140 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7；20mM HEPES pH 7, 240mM NaCl, 3mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE；Manual plunge in 4 degree C cold room
Resolution 3.40 Å
8D7Y Cereblon-DDB1 in the Apo form with DDB1 in the twisted conformation Deposited 2022-06-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–1140（1140 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7；20mM HEPES pH 7.0, 240mM NaCl, 3mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE；Manual plunge in 4 degree C cold room
Resolution 3.40 Å
8D7Z Cereblon-DDB1 bound to CC-92480 and Ikaros ZF1-2-3 Deposited 2022-06-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–1140（1140 aa）
Not recorded ZN ZINC ION × 2 QFC Mezigdomide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7；20mM HEPES pH 7.0, 240mM NaCl, 3mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE；Manual plunge in 4 degree C cold room
Resolution 3.10 Å
8D80 Cereblon~DDB1 bound to Iberdomide and Ikaros ZF1-2-3 Deposited 2022-06-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–1140（1140 aa）
Not recorded ZN ZINC ION × 2 8W7 (3S)-3-[4-({4-[(morpholin-4-yl)methyl]phenyl}methoxy)-1-oxo-1,3-dihydro-2H-isoindol-2-yl]piperidine-2,6-dione × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7；20mM HEPES pH 7.0, 240mM NaCl, 3mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE；Manual plunge in 4 degree C cold room
Resolution 3.60 Å
8D81 Cereblon~DDB1 bound to Pomalidomide Deposited 2022-06-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–395（395 aa） Fragment：residues 396 through 706 deleted, substituted with GNGNSG,residues 396 through 706 deleted, substituted with GNGNSG
Chain A 706–1140（435 aa） Fragment：residues 396 through 706 deleted, substituted with GNGNSG,residues 396 through 706 deleted, substituted with GNGNSG
Not recorded ZN ZINC ION × 1 Y70 S-Pomalidomide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7；20mM HEPES pH 7, 240mM NaCl, 3mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE；Manual plunge in 4 degree C cold room
Resolution 3.90 Å
8DEY Ternary complex structure of Cereblon-DDB1 bound to IKZF2(ZF2,3) and the molecular glue DKY709 Deposited 2022-06-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–395（395 aa） Fragment：UNP residues 1-395,706-1140,UNP residues 1-395,706-1140
Chain B 706–1140（435 aa） Fragment：UNP residues 1-395,706-1140,UNP residues 1-395,706-1140
Not recorded ZN ZINC ION × 3 LWK (3S)-3-[5-(1-benzylpiperidin-4-yl)-1-oxo-1,3-dihydro-2H-isoindol-2-yl]piperidine-2,6-dione × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；1.6 M potassium/sodium phosphate, pH 6.5
Resolution 3.70 Å R-free 0.348
8DEY Ternary complex structure of Cereblon-DDB1 bound to IKZF2(ZF2,3) and the molecular glue DKY709 Deposited 2022-06-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 1–395（395 aa） Fragment：UNP residues 1-395,706-1140,UNP residues 1-395,706-1140
Chain E 706–1140（435 aa） Fragment：UNP residues 1-395,706-1140,UNP residues 1-395,706-1140
Not recorded ZN ZINC ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；1.6 M potassium/sodium phosphate, pH 6.5
Resolution 3.70 Å R-free 0.348
8G46 Cryo-EM structure of DDB1deltaB-DDA1-DCAF16-BRD4(BD2)-MMH2 Deposited 2023-02-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–395（395 aa） Fragment：UNP residues 1-395 + GNGNSG linker + UNP residues 706-1140
Chain A 706–1140（435 aa） Fragment：UNP residues 1-395 + GNGNSG linker + UNP residues 706-1140
Not recorded ZN ZINC ION × 1 YK3 tert-butyl [(6S,10P)-4-{4-[(ethanesulfonyl)amino]phenyl}-2,3,9-trimethyl-6H-thieno[3,2-f][1,2,4]triazolo[4,3-a][1,4]diazepin-6-yl]acetate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；50 mM HEPES pH 7.4, 200 mM NaCl, 2 mM TCEP, 0.011% LMNG
cryo-EM vitrification conditions Cryogen ETHANE；detergent added directly before grid application
Resolution 2.20 Å
8G66 Structure with SJ3149 Deposited 2023-02-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 706–1140（435 aa）
Not recorded ZN ZINC ION × 1 YOT (3S)-3-{5-[(1,2-benzoxazol-3-yl)amino]-1-oxo-1,3-dihydro-2H-isoindol-2-yl}piperidine-2,6-dione × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；70 MM TRIS PH 7.0, 140 MM MGCL2, 7% W/V PEG 8000
Resolution 3.45 Å R-free 0.272
8G66 Structure with SJ3149 Deposited 2023-02-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–395（395 aa）
Chain D 706–1140（435 aa）
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；70 MM TRIS PH 7.0, 140 MM MGCL2, 7% W/V PEG 8000
Resolution 3.45 Å R-free 0.272
8OIZ Crystal structure of human CRBN-DDB1 in complex with Pomalidomide Deposited 2023-03-23 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–1140（1140 aa）
Not recorded EDO 1,2-ETHANEDIOL × 6 ZN ZINC ION × 1 Y70 S-Pomalidomide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；291 K；0.8 microliter of CRBN-DDB1 complex at 25 mg/mL (including 1 mM compound and 2 % DMSO final) plus 0.8 microliter of a crystallisation solution consisting of 0.1 M Hepes pH 8.2, 0.2 M NaCl and 10-16 % PEG Smear Medium, plus 0.2 microliter of seeds (established from the same conditions), against 500 microliter of crystallisation solution.
Resolution 2.50 Å R-free 0.262
8OJH Crystal structure of human CRBN-DDB1 in complex with compound 4 Deposited 2023-03-24 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–1140（1140 aa）
Not recorded EDO 1,2-ETHANEDIOL × 9 ZN ZINC ION × 1 VP9 4-azanyl-2-[(3~{S})-2,6-bis(oxidanylidene)piperidin-3-yl]-7-methoxy-isoindole-1,3-dione × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；291 K；0.8 microliter of CRBN-DDB1 complex at 25 mg/mL (including 1 mM compound and 2 % DMSO final) plus 0.8 microliter of a crystallisation solution consisting of 0.1 M Hepes pH 8.2, 0.2 M NaCl and 10-16 % PEG Smear Medium, plus 0.2 microliter of seeds (established from the same conditions), against 500 microliter of crystallisation solution.
Resolution 2.72 Å R-free 0.254
8QH5 CryoEM structure of UVSSA(VHS)-CSA-DDB1-DDA1 Deposited 2023-09-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–1140（1140 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8ROX Structure of the human DDB1-DDA1-DCAF15 E3 ubiquitin ligase bound to compound furan 12 Deposited 2024-01-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–395（395 aa）
Chain B 706–1140（435 aa）
Not recorded A1H17 5-[[3,4-bis(chloranyl)-1~{H}-indol-7-yl]sulfamoyl]-~{N},~{N},3-trimethyl-furan-2-carboxamide;ethane × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
8ROY Structure of the human DDB1-DDA1-DCAF15 E3 ubiquitin ligase bound to compound furan 24 Deposited 2024-01-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–395（395 aa）
Chain B 706–1140（435 aa）
Not recorded A1H18 1-[5-[[3,4-bis(chloranyl)-1~{H}-indol-7-yl]sulfamoyl]-3-methyl-furan-2-yl]carbonyl-~{N}-methyl-piperidine-4-carboxamide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
8T9A CryoEM structure of human DDB1-DCAF12 in complex with MAGEA3 Deposited 2023-06-23 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–1140（1140 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.17 Å
8TL6 Cryo-EM structure of DDB1deltaB-DDA1-DCAF5 Deposited 2023-07-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 706–1140（435 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；25mM HEPES, pH 7.4, 200mM NaCl, 4mM TCEP
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 2.63 Å
8TNP Cryo-EM structure of DDB1dB:CRBN:Pomalidomide:SD40 Deposited 2023-08-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 706–1140（435 aa）
Mutation：residues 396-705 deleted Mutation：residues 396-705 deleted ZN ZINC ION × 2 Y70 S-Pomalidomide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7；20 mM HEPES/NaOH pH 7.0, 150 mM NaCl, and 3 mM TCEP. DMSO concentrations were kept below 2% (v/v)
cryo-EM vitrification conditions Cryogen ETHANE；Leica EM-GP plunge freezer with chamber conditions of 10 C and 90% relative humidity. Grids were first pre-incubated with 4 uL of 10 uM CRBN-agnostic IKZF1_140-196_Q146A,G151N for 1 minute and then blotted from behind for 4 s. Immediately, 4 uL of mixture 1 diluted 10-fold--with the dilution buffer during the 1-minute incubation time--was applied to the grids before blotting for 4 s and plunging into liquid ethane at -181 C.
Resolution 3.30 Å
8TNQ Cryo-EM structure of DDB1dB:CRBN:PT-179:SD40, conformation 1 Deposited 2023-08-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 706–1140（435 aa）
Mutation：residues 396-705 deleted Mutation：residues 396-705 deleted ZN ZINC ION × 2 MIQ 2-[(3S)-2,6-dioxopiperidin-3-yl]-5-(morpholin-4-yl)-1H-isoindole-1,3(2H)-dione × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7；20 mM HEPES/NaOH pH 7.0, 150 mM NaCl, and 3 mM TCEP. DMSO concentrations were kept below 2% (v/v)
cryo-EM vitrification conditions Cryogen ETHANE；Leica EM-GP plunge freezer with chamber conditions of 10 C and 90% relative humidity. Grids were first pre-incubated with 4 uL of 10 uM CRBN-agnostic IKZF1_140-196_Q146A,G151N for 1 minute and then blotted from behind for 4 s. Immediately, 4 uL of mixture 1 diluted 10-fold--with the dilution buffer during the 1-minute incubation time--was applied to the grids before blotting for 4 s and plunging into liquid ethane at -181 C.
Resolution 2.41 Å
8TNR Cryo-EM structure of DDB1dB:CRBN:PT-179:SD40, conformation 2 Deposited 2023-08-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 706–1140（435 aa）
Mutation：residues 396-705 deleted Mutation：residues 396-705 deleted ZN ZINC ION × 2 MIQ 2-[(3S)-2,6-dioxopiperidin-3-yl]-5-(morpholin-4-yl)-1H-isoindole-1,3(2H)-dione × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7；20 mM HEPES/NaOH pH 7.0, 150 mM NaCl, and 3 mM TCEP. DMSO concentrations were kept below 2% (v/v)
cryo-EM vitrification conditions Cryogen ETHANE；Leica EM-GP plunge freezer with chamber conditions of 10 C and 90% relative humidity. Grids were first pre-incubated with 4 uL of 10 uM CRBN-agnostic IKZF1_140-196_Q146A,G151N for 1 minute and then blotted from behind for 4 s. Immediately, 4 uL of mixture 1 diluted 10-fold--with the dilution buffer during the 1-minute incubation time--was applied to the grids before blotting for 4 s and plunging into liquid ethane at -181 C.
Resolution 2.50 Å
8TZX Ternary complex structure of Cereblon-DDB1 bound to WIZ(ZF7) and the molecular glue dWIZ-1 Deposited 2023-08-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–395（395 aa） Fragment：UNP residues 1-395,706-1140,UNP residues 1-395,706-1140
Chain B 706–1140（435 aa） Fragment：UNP residues 1-395,706-1140,UNP residues 1-395,706-1140
Not recorded ZN ZINC ION × 2 U3I (3S)-3-(5-{(1R)-1-[(2R)-1-ethylpiperidin-2-yl]ethoxy}-1-oxo-1,3-dihydro-2H-isoindol-2-yl)piperidine-2,6-dione × 1 SO4 SULFATE ION × 2 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；0.2 M Sodium Sulfate, 0.1 M Bis-Tris Propane pH 7.5, 20% w/v PEG 3350
Resolution 3.15 Å R-free 0.252
8TZX Ternary complex structure of Cereblon-DDB1 bound to WIZ(ZF7) and the molecular glue dWIZ-1 Deposited 2023-08-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 1–395（395 aa） Fragment：UNP residues 1-395,706-1140,UNP residues 1-395,706-1140
Chain E 706–1140（435 aa） Fragment：UNP residues 1-395,706-1140,UNP residues 1-395,706-1140
Not recorded ZN ZINC ION × 2 U3I (3S)-3-(5-{(1R)-1-[(2R)-1-ethylpiperidin-2-yl]ethoxy}-1-oxo-1,3-dihydro-2H-isoindol-2-yl)piperidine-2,6-dione × 1 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；0.2 M Sodium Sulfate, 0.1 M Bis-Tris Propane pH 7.5, 20% w/v PEG 3350
Resolution 3.15 Å R-free 0.252
8U16 The ternary complex structure of DDB1-CRBN-SALL4(ZF1,2)-short bound to Pomalidomide Deposited 2023-08-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–395（395 aa）
Chain B 706–1140（435 aa）
Not recorded ZN ZINC ION × 3 Y70 S-Pomalidomide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.2M Sodium malonate, 20% PEG 3350
Resolution 2.90 Å R-free 0.273
8U16 The ternary complex structure of DDB1-CRBN-SALL4(ZF1,2)-short bound to Pomalidomide Deposited 2023-08-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 1–395（395 aa）
Chain E 706–1140（435 aa）
Not recorded ZN ZINC ION × 3 Y70 S-Pomalidomide × 1 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.2M Sodium malonate, 20% PEG 3350
Resolution 2.90 Å R-free 0.273
8U17 The ternary complex structure of DDB1-CRBN-SALL4(ZF1,2)-long bound to Pomalidomide Deposited 2023-08-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–395（395 aa）
Chain B 706–1140（435 aa）
Not recorded ZN ZINC ION × 3 Y70 S-Pomalidomide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.2M Sodium malonate, 20% PEG 3350
Resolution 3.10 Å R-free 0.346
8U17 The ternary complex structure of DDB1-CRBN-SALL4(ZF1,2)-long bound to Pomalidomide Deposited 2023-08-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 1–395（395 aa）
Chain E 706–1140（435 aa）
Not recorded ZN ZINC ION × 3 Y70 S-Pomalidomide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.2M Sodium malonate, 20% PEG 3350
Resolution 3.10 Å R-free 0.346
8UH6 Degrader-induced complex between PTPN2 and CRBN-DDB1 Deposited 2023-10-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–1140（1140 aa）
Not recorded WO8 (5P)-3-(carboxymethoxy)-4-chloro-5-(3-{[(4S)-1-({3-[(4-{1-[(3R)-2,6-dioxopiperidin-3-yl]-3-methyl-2-oxo-2,3-dihydro-1H-benzimidazol-5-yl}piperidine-1-carbonyl)amino]phenyl}methanesulfonyl)-2,2-dimethylpiperidin-4-yl]amino}phenyl)thiophene-2-carboxylic acid × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
8WQR Structure of the DDB1-AMBRA1 E3 ligase receptor complex linked to cell cycle regulation Deposited 2023-10-12 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–1140（1140 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.08 Å
8ZSW Crystal Structure of Human DDB1, a Component of the E3 Ubiquitin Ligase Complex Deposited 2024-06-05 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–1140（1140 aa）
Not recorded ACT ACETATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；287 K；0.1M MES (pH 6.5), 0.1M sodium acetate, 27%(w/v) PEG 400
Resolution 2.25 Å R-free 0.229
9BBE Co-crystal structure of human DDB1 bound to fragment UB028668 Deposited 2024-04-05 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–1140（1140 aa）
Not recorded TLA L(+)-TARTARIC ACID × 2 A1AK9 5-(4-methoxyphenyl)-3-[(3S)-pyrrolidin-3-yl]-1,2,4-oxadiazole × 1 UNX UNKNOWN LIGAND × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；20% (v/w) PEG 3350, 0.2 M di-NH4tart
Resolution 2.00 Å R-free 0.239
9BBG Co-crystal structure of human DDB1 bound to fragment UB028671 Deposited 2024-04-05 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–1140（1140 aa）
Not recorded TLA L(+)-TARTARIC ACID × 2 A1ALA 1H-indol-6-amine × 1 EDO 1,2-ETHANEDIOL × 6 UNX UNKNOWN LIGAND × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；20% (v/w) PEG 3350, 0.2 M di-NH4tart
Resolution 1.70 Å R-free 0.218
9BBH Co-crystal structure of human DDB1 bound to fragment UB028670 Deposited 2024-04-05 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–1140（1140 aa）
Not recorded TLA L(+)-TARTARIC ACID × 2 VVP 4-methoxy-1H-indole × 2 EDO 1,2-ETHANEDIOL × 2 UNX UNKNOWN LIGAND × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；20% (v/w) PEG 3350, 0.2 M di-NH4tart
Resolution 2.00 Å R-free 0.232
9BBI Co-crystal structure of human DDB1 bound to fragment UB028669 Deposited 2024-04-05 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–1140（1140 aa）
Not recorded TLA L(+)-TARTARIC ACID × 2 A1ALB 3-([1,3]oxazolo[4,5-b]pyridin-2-yl)aniline × 1 UNX UNKNOWN LIGAND × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；20% (v/w) PEG 3350, 0.2 M di-NH4tart
Resolution 1.90 Å R-free 0.221
9BJZ Structure of the human DDD-Ube2e2 complex Deposited 2024-04-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–395（395 aa）
Chain A 706–1140（435 aa）
Mutation：residues 396-705 replaced with GNGNSG Mutation：residues 396-705 replaced with GNGNSG No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.83 Å
9BZ0 Structure of an STK19-containing TC-NER complex Deposited 2024-05-24 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 19 PDB declaration: 22-meric
Chain d 1–1140（1140 aa）
Not recorded ZN ZINC ION × 10 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 1.90 Å
9C5T Cryo EM structure of DCAF2 Deposited 2024-06-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–1140（1140 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.36 Å
9C5U Cryo EM structure of DCAF2:Compound 1 complex Deposited 2024-06-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–1140（1140 aa）
Not recorded A1AUM 1'-acetyl-1',4'-dihydro-3'H-spiro[cyclopentane-1,2'-quinoxalin]-3'-one × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.05 Å
9C5V Cryo EM structure of a DCAF2:degrader:BRD4 ternary complex Deposited 2024-06-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–1140（1140 aa）
Not recorded A1AUO N-({4-[(4-{[1'-(chloroacetyl)-3'-oxo-3',4'-dihydro-1'H-spiro[cyclopentane-1,2'-quinoxalin]-6'-yl]oxy}piperidin-1-yl)methyl]phenyl}methyl)-2-[(6S,10P)-4-(4-chlorophenyl)-2,3,9-trimethyl-6H-thieno[3,2-f][1,2,4]triazolo[4,3-a][1,4]diazepin-6-yl]acetamide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.36 Å
9D0W Cryo-EM structure of CDK2/CyclinE1 in complex with CRBN/DDB1 and Cpd 4 Deposited 2024-08-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–1140（1140 aa）
Not recorded ZN ZINC ION × 1 A1A1I (3R)-3-(5-{4-[(2-{4-[(8-cyclopentyl-7-oxo-7,8-dihydropyrido[2,3-d]pyrimidin-2-yl)amino]-3-methylbenzene-1-sulfonyl}-7-azaspiro[3.5]nonan-7-yl)methyl]piperidin-1-yl}-4-fluoro-3-methyl-2-oxo-2,3-dihydro-1H-1,3-benzimidazol-1-yl)piperidine-2,6-dione × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.95 Å
9DHD The ternary complex of DDB1, DDA1, DET1 Deposited 2024-09-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 2–1140（1139 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9DJT Ternary complex structure of Cereblon-DDB1 bound to WIZ(ZF7) and the molecular glue WIZ-5 Deposited 2024-09-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–395（395 aa）
Chain B 706–1140（435 aa）
Not recorded ZN ZINC ION × 2 SO4 SULFATE ION × 1 A1A5H (3S)-3-(5-{[(4R)-6-ethyl-6-azaspiro[2.5]octan-4-yl]oxy}-1-oxo-1,3-dihydro-2H-isoindol-2-yl)piperidine-2,6-dione × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；0.2 M Sodium Sulfate, 0.1 M Bis-Tris Propane pH 7.5, 20% w/v PEG 3350
Resolution 2.95 Å R-free 0.260
9DJT Ternary complex structure of Cereblon-DDB1 bound to WIZ(ZF7) and the molecular glue WIZ-5 Deposited 2024-09-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 1–395（395 aa）
Chain E 706–1140（435 aa）
Not recorded ZN ZINC ION × 2 SO4 SULFATE ION × 1 A1A5H (3S)-3-(5-{[(4R)-6-ethyl-6-azaspiro[2.5]octan-4-yl]oxy}-1-oxo-1,3-dihydro-2H-isoindol-2-yl)piperidine-2,6-dione × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；0.2 M Sodium Sulfate, 0.1 M Bis-Tris Propane pH 7.5, 20% w/v PEG 3350
Resolution 2.95 Å R-free 0.260
9DJX Ternary complex structure of Cereblon-DDB1 bound to WIZ(ZF7) and the molecular glue WIZ-6 Deposited 2024-09-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–395（395 aa）
Chain B 706–1140（435 aa）
Not recorded ZN ZINC ION × 2 SO4 SULFATE ION × 1 A1A5I (3S)-3-(5-{[(3R,6S)-1-ethyl-6-methylpiperidin-3-yl]oxy}-1-oxo-1,3-dihydro-2H-isoindol-2-yl)piperidine-2,6-dione × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；0.2 M Sodium Sulfate, 0.1M BIS-TRIS Propane pH 7.5, 20% PEG3350 (Qiagen PACT G8)
Resolution 3.35 Å R-free 0.271
9DJX Ternary complex structure of Cereblon-DDB1 bound to WIZ(ZF7) and the molecular glue WIZ-6 Deposited 2024-09-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 1–395（395 aa）
Chain E 706–1140（435 aa）
Not recorded ZN ZINC ION × 2 SO4 SULFATE ION × 2 A1A5I (3S)-3-(5-{[(3R,6S)-1-ethyl-6-methylpiperidin-3-yl]oxy}-1-oxo-1,3-dihydro-2H-isoindol-2-yl)piperidine-2,6-dione × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；0.2 M Sodium Sulfate, 0.1M BIS-TRIS Propane pH 7.5, 20% PEG3350 (Qiagen PACT G8)
Resolution 3.35 Å R-free 0.271
9DQD cryo-EM structure of human Cereblon/DDB1 in complex with a non-traditional CRBN binder Deposited 2024-09-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–395（395 aa）
Chain B 706–1140（435 aa）
Mutation：deletion of residues 396-705 Mutation：deletion of residues 396-705 ZN ZINC ION × 1 A1BEP (3R)-3-{1-methyl-6-[(piperidin-4-yl)amino]-1H-indazol-3-yl}piperidine-2,6-dione × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
9DWV Ternary complex of CRBN-DDB1-PPIL4 RRM domain with FPFT-2216 Deposited 2024-10-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–1140（1140 aa）
Not recorded ZN ZINC ION × 1 A1BC8 (3S)-3-[(4M)-4-(4-methoxythiophen-3-yl)-1H-1,2,3-triazol-1-yl]piperidine-2,6-dione × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9DWW Ternary complex of CRBN-DDB1-PDE6D with FPFT-2216 Deposited 2024-10-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–1140（1140 aa）
Not recorded ZN ZINC ION × 1 A1BC8 (3S)-3-[(4M)-4-(4-methoxythiophen-3-yl)-1H-1,2,3-triazol-1-yl]piperidine-2,6-dione × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9E2U Crystal structure of DDB1-CRBN-ALV1 complex bound to triple ZnF of Helios (IKZF2 ZF1-3) Deposited 2024-10-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain I 1–395（395 aa） Fragment：internal deletion of the BPB domain,internal deletion of the BPB domain
Chain I 706–1140（435 aa） Fragment：internal deletion of the BPB domain,internal deletion of the BPB domain
Not recorded RN9 3-[3-[[1-[(3~{S})-2,6-bis(oxidanylidene)piperidin-3-yl]-2,5-bis(oxidanylidene)pyrrol-3-yl]amino]phenyl]-~{N}-(3-chloranyl-4-methyl-phenyl)propanamide × 1 ZN ZINC ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20.455% PEG 3350, 0.214 M Li3 Cit
Resolution 4.11 Å R-free 0.289
9E2U Crystal structure of DDB1-CRBN-ALV1 complex bound to triple ZnF of Helios (IKZF2 ZF1-3) Deposited 2024-10-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa） Fragment：internal deletion of the BPB domain,internal deletion of the BPB domain
Chain A 706–1140（435 aa） Fragment：internal deletion of the BPB domain,internal deletion of the BPB domain
Not recorded RN9 3-[3-[[1-[(3~{S})-2,6-bis(oxidanylidene)piperidin-3-yl]-2,5-bis(oxidanylidene)pyrrol-3-yl]amino]phenyl]-~{N}-(3-chloranyl-4-methyl-phenyl)propanamide × 1 ZN ZINC ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20.455% PEG 3350, 0.214 M Li3 Cit
Resolution 4.11 Å R-free 0.289
9E2U Crystal structure of DDB1-CRBN-ALV1 complex bound to triple ZnF of Helios (IKZF2 ZF1-3) Deposited 2024-10-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–395（395 aa） Fragment：internal deletion of the BPB domain,internal deletion of the BPB domain
Chain C 706–1140（435 aa） Fragment：internal deletion of the BPB domain,internal deletion of the BPB domain
Not recorded RN9 3-[3-[[1-[(3~{S})-2,6-bis(oxidanylidene)piperidin-3-yl]-2,5-bis(oxidanylidene)pyrrol-3-yl]amino]phenyl]-~{N}-(3-chloranyl-4-methyl-phenyl)propanamide × 1 ZN ZINC ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20.455% PEG 3350, 0.214 M Li3 Cit
Resolution 4.11 Å R-free 0.289
9E2U Crystal structure of DDB1-CRBN-ALV1 complex bound to triple ZnF of Helios (IKZF2 ZF1-3) Deposited 2024-10-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 1–395（395 aa） Fragment：internal deletion of the BPB domain,internal deletion of the BPB domain
Chain E 706–1140（435 aa） Fragment：internal deletion of the BPB domain,internal deletion of the BPB domain
Not recorded RN9 3-[3-[[1-[(3~{S})-2,6-bis(oxidanylidene)piperidin-3-yl]-2,5-bis(oxidanylidene)pyrrol-3-yl]amino]phenyl]-~{N}-(3-chloranyl-4-methyl-phenyl)propanamide × 1 ZN ZINC ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20.455% PEG 3350, 0.214 M Li3 Cit
Resolution 4.11 Å R-free 0.289
9E2U Crystal structure of DDB1-CRBN-ALV1 complex bound to triple ZnF of Helios (IKZF2 ZF1-3) Deposited 2024-10-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–395（395 aa） Fragment：internal deletion of the BPB domain,internal deletion of the BPB domain
Chain G 706–1140（435 aa） Fragment：internal deletion of the BPB domain,internal deletion of the BPB domain
Not recorded RN9 3-[3-[[1-[(3~{S})-2,6-bis(oxidanylidene)piperidin-3-yl]-2,5-bis(oxidanylidene)pyrrol-3-yl]amino]phenyl]-~{N}-(3-chloranyl-4-methyl-phenyl)propanamide × 1 ZN ZINC ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20.455% PEG 3350, 0.214 M Li3 Cit
Resolution 4.11 Å R-free 0.289
9E2U Crystal structure of DDB1-CRBN-ALV1 complex bound to triple ZnF of Helios (IKZF2 ZF1-3) Deposited 2024-10-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 6 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain K 1–395（395 aa） Fragment：internal deletion of the BPB domain,internal deletion of the BPB domain
Chain K 706–1140（435 aa） Fragment：internal deletion of the BPB domain,internal deletion of the BPB domain
Not recorded RN9 3-[3-[[1-[(3~{S})-2,6-bis(oxidanylidene)piperidin-3-yl]-2,5-bis(oxidanylidene)pyrrol-3-yl]amino]phenyl]-~{N}-(3-chloranyl-4-methyl-phenyl)propanamide × 1 ZN ZINC ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20.455% PEG 3350, 0.214 M Li3 Cit
Resolution 4.11 Å R-free 0.289
9E2U Crystal structure of DDB1-CRBN-ALV1 complex bound to triple ZnF of Helios (IKZF2 ZF1-3) Deposited 2024-10-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 7 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain M 1–395（395 aa） Fragment：internal deletion of the BPB domain,internal deletion of the BPB domain
Chain M 706–1140（435 aa） Fragment：internal deletion of the BPB domain,internal deletion of the BPB domain
Not recorded RN9 3-[3-[[1-[(3~{S})-2,6-bis(oxidanylidene)piperidin-3-yl]-2,5-bis(oxidanylidene)pyrrol-3-yl]amino]phenyl]-~{N}-(3-chloranyl-4-methyl-phenyl)propanamide × 1 ZN ZINC ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20.455% PEG 3350, 0.214 M Li3 Cit
Resolution 4.11 Å R-free 0.289
9E2U Crystal structure of DDB1-CRBN-ALV1 complex bound to triple ZnF of Helios (IKZF2 ZF1-3) Deposited 2024-10-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 8 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain O 1–395（395 aa） Fragment：internal deletion of the BPB domain,internal deletion of the BPB domain
Chain O 706–1140（435 aa） Fragment：internal deletion of the BPB domain,internal deletion of the BPB domain
Not recorded RN9 3-[3-[[1-[(3~{S})-2,6-bis(oxidanylidene)piperidin-3-yl]-2,5-bis(oxidanylidene)pyrrol-3-yl]amino]phenyl]-~{N}-(3-chloranyl-4-methyl-phenyl)propanamide × 1 ZN ZINC ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20.455% PEG 3350, 0.214 M Li3 Cit
Resolution 4.11 Å R-free 0.289
9EJQ Crystal structure of DDB1 in complex with XS381952 Deposited 2024-11-28 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–1140（1140 aa）
Not recorded TLA L(+)-TARTARIC ACID × 2 GOL GLYCEROL × 6 A1BIX (4S)-4-(3-ethoxyphenyl)-3-methyl-1-[(4R)-[1,2,4]triazolo[4,3-b]pyridazin-6-yl]-1,4,5,7-tetrahydro-6H-pyrazolo[3,4-b]pyridin-6-one × 1 EDO 1,2-ETHANEDIOL × 5 SO4 SULFATE ION × 7 UNX UNKNOWN LIGAND × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；20.0 P3350, 0.2 di-NH4tart
Resolution 1.87 Å R-free 0.220
9ER2 PolII-TCR-STK19 structure. Deposited 2024-03-22 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 19 PDB declaration: 22-meric
Chain d 1–1140（1140 aa）
Not recorded ZN ZINC ION × 11 MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9FD2 Structure of Pol II-TC-NER-STK19 complex Deposited 2024-05-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 19 PDB declaration: 22-meric
Chain b 1–1140（1140 aa）
Not recorded ZN ZINC ION × 10 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9FJX Crystal structure of human CRBN-DDB1 in complex with Lenalidomide Deposited 2024-05-31 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–1140（1140 aa）
Not recorded EDO 1,2-ETHANEDIOL × 5 DMS DIMETHYL SULFOXIDE × 3 ZN ZINC ION × 1 LVY S-Lenalidomide × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；291 K；0.8 microliter of CRBN-DDB1 complex at 25 mg/mL (including 1 mM compound and 2 % DMSO final) plus 0.8 microliter of a crystallisation solution consisting of 0.1 M Hepes pH 8.2, 0.2 M NaCl and 10-16 % PEG Smear Medium, plus 0.2 microliter of seeds (established from the same conditions), against 500 microliter of crystallisation solution.
Resolution 2.00 Å R-free 0.232
9FMR Structure of DDB1/Cdk12/Cyclin K with molecular glue SR-4835 Deposited 2024-06-07 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain A 1–391（391 aa）
Chain A 708–1140（433 aa）
Chain D 1–391（391 aa）
Chain D 708–1140（433 aa）
Chain G 1–391（391 aa）
Chain G 708–1140（433 aa）
Not recorded RMF ~{N}-[[5,6-bis(chloranyl)-1~{H}-benzimidazol-2-yl]methyl]-9-(1-methylpyrazol-4-yl)-2-morpholin-4-yl-purin-6-amine × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；283 K；1 M potassium citrate and 15% glycerol
Resolution 3.90 Å R-free 0.250
9H59 Cryo-EM structure of DDB1-CRBN in complex with NK7-902 and NEK7 Deposited 2024-10-22 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–1140（1140 aa）
Not recorded A1ISP 2-[(3S)-2,6-bis(oxidanylidene)piperidin-3-yl]-5-[(1S,2R,5S)-2-(ethylamino)-8-azabicyclo[3.2.1]octan-8-yl]isoindole-1,3-dione × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9HNE Cereblon in complex with DDB1, GSPT1 and Compound-1 Deposited 2024-12-10 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–1140（1140 aa）
Not recorded ZN ZINC ION × 1 A1IWG 2-[(3~{S})-2,6-bis(oxidanylidene)piperidin-3-yl]-6-fluoranyl-1-oxidanylidene-3~{H}-isoindole-5-carboxylic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；292 K；0.2 M Sodium citrate, 0.1 M Bis-Tris propane pH 7.5, 20% w/v PEG 3350
Resolution 3.90 Å R-free 0.336
9HNE Cereblon in complex with DDB1, GSPT1 and Compound-1 Deposited 2024-12-10 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 1–1140（1140 aa）
Not recorded ZN ZINC ION × 1 A1IWG 2-[(3~{S})-2,6-bis(oxidanylidene)piperidin-3-yl]-6-fluoranyl-1-oxidanylidene-3~{H}-isoindole-5-carboxylic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；292 K；0.2 M Sodium citrate, 0.1 M Bis-Tris propane pH 7.5, 20% w/v PEG 3350
Resolution 3.90 Å R-free 0.336
9HPI Cryo-EM structure of DDB1dB-CRBN-MRT-0031619, conformation 1 Deposited 2024-12-13 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–1140（1140 aa）
Mutation：aa396-705 replaced with GNGNSG ZN ZINC ION × 2 A1IW1 (3~{S})-3-[3-oxidanylidene-5-[8-(phenylcarbonyl)-2,8-diazaspiro[4.5]decan-2-yl]-1~{H}-isoindol-2-yl]piperidine-2,6-dione × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；Sample supplemented with DDM directly before vitrification
cryo-EM vitrification conditions Cryogen ETHANE；LEICA EMGP2
Resolution 2.93 Å
9HPJ Cryo-EM structure of DDB1dB-CRBN-MRT-0031619, conformation 2 Deposited 2024-12-13 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–1140（1140 aa）
Mutation：aa396-705 replaced with GNGNSG ZN ZINC ION × 2 A1IW1 (3~{S})-3-[3-oxidanylidene-5-[8-(phenylcarbonyl)-2,8-diazaspiro[4.5]decan-2-yl]-1~{H}-isoindol-2-yl]piperidine-2,6-dione × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；Sample supplemented with DDM directly before vitrification
cryo-EM vitrification conditions Cryogen ETHANE；LEICA EMGP2
Resolution 3.10 Å
9HWG Structure of the transcribing Pol II-TCR-RECQL5 complex Deposited 2025-01-03 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 18 PDB declaration: 21-meric
Chain d 1–1140（1140 aa）
Not recorded ZN ZINC ION × 10 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；20 mM HEPES pH 7.5, 50 mM KCl, 4 mM MgCl2, 1 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9IVD Cryo-EM structure of CyclinD1 bound AMBRA1-DDB1 Deposited 2024-07-23 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–1140（1140 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.55 Å
9J6J HBx fused DDB1 4M mutant Deposited 2024-08-16 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–1140（1140 aa）
Mutation：A583D,W774K,I770D,R772E No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.86 Å
9J6K HBx complexed with DDB1 Deposited 2024-08-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–1140（1140 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.68 Å
9LTJ Cryo-EM structure of DDB1-DDA1-DET1 complex Deposited 2025-02-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–1140（1140 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.65 Å
9LTL Cryo-EM structure of DDB1-DDA1-DET1 complex Deposited 2025-02-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–1140（1140 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.93 Å
9LTO Cryo-EM structure of DDB1-DDA1-DET1-Ube2e2 complex Deposited 2025-02-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain S 1–1140（1140 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.92 Å
9LTR Cryo-EM structure of dimeric DDB1-DDA1-DET1-Ube2e2-COP1 complex Deposited 2025-02-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain B 1–1140（1140 aa）
Chain E 1–1140（1140 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.03 Å
9LTW protein structure of DDB1-DDA1-DET1 Deposited 2025-02-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–1140（1140 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.25 Å
9LTZ protein structure of DDB1-DDA1-DET1-Ube2e2 complex Deposited 2025-02-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain S 1–1140（1140 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.26 Å
9LU1 protein structure of DDB1-DDA1-DET1-Ube2e2 bound to COP1 dimer Deposited 2025-02-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain S 1–1140（1140 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.62 Å
9LUL Local refinement of stacked like DDB1-DDA1-DET1-Ube2e2-COP1 complex (layer 1) Deposited 2025-02-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain c 1–1140（1140 aa）
Chain f 1–1140（1140 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.99 Å
9LWJ The head-arm region of HBx-Smc5/6 ubiquitination complex Deposited 2025-02-15 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain B 1–1140（1140 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.19 Å
9LWL HBx-Smc5/6 ubiquitination complex Deposited 2025-02-15 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain B 1–1140（1140 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.25 Å
9M0Y Local refinement of stacked like DDB1-DDA1-DET1-Ube2e2-COP1 complex (layer 2) Deposited 2025-02-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain S 1–1140（1140 aa）
Chain V 1–1140（1140 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.25 Å
9NFQ Crystal structure of CRBN-DDB1 and MRT-3486 in complex with NEK7 Deposited 2025-02-21 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–1140（1140 aa）
Not recorded A1BX6 (3S)-N-{[(4R)-3-(2,4-dioxo-1,3-diazinan-1-yl)imidazo[1,2-a]pyridin-7-yl]methyl}-2-(phenylmethanesulfonyl)-1,2,3,4-tetrahydroisoquinoline-3-carboxamide × 1 ZN ZINC ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.029 M HEPES salt, 0.071 M MOPS acid, 0.06 M NaNO3, 0.06 M Na2HPO4, 0.06 M (NH4)2SO4, 11 % (w/v) PEG 8,000 and 25 % (v/v) ethylene glycol.
Resolution 3.25 Å R-free 0.261
9NFR Crystal structure of CRBN-DDB1 and MRT-23227 in complex with VAV1 Deposited 2025-02-21 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–1140（1140 aa）
Not recorded ZN ZINC ION × 1 A1BYX (3R)-3-{2-chloro-4'-[(1-methyl-1H-pyrazol-3-yl)methoxy][1,1'-biphenyl]-3-yl}piperidine-2,6-dione × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；2.6 % PEG Smear Low, 6.1 % PEG Smear Medium, 4.3 % PEG Smear High, 5 % glycerol, 0.1 M CaCl2, and 0.1 M MES pH 5.8
Resolution 3.40 Å R-free 0.271
9NGT Crystal structure of CRBN-DDB1 and FPFT-2216 in complex with mTOR Deposited 2025-02-22 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–1140（1140 aa）
Not recorded ZN ZINC ION × 1 A1BC8 (3S)-3-[(4M)-4-(4-methoxythiophen-3-yl)-1H-1,2,3-triazol-1-yl]piperidine-2,6-dione × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；70 mM MES pH 6.0, 1.8-3.2 % (w/v) PEG 3,000, and 13-24 % (w/v) PEG 200
Resolution 2.95 Å R-free 0.260
9NR3 CRBN-DDB1 in complex with GLUL-cN Deposited 2025-03-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–393（393 aa）
Chain A 709–1140（432 aa）
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；8% v/v TacsimateTM pH 6.0, 20% w/v Polyethylene glycol 3,350
Resolution 2.93 Å R-free 0.278
9NWS Cryo-EM structure of DDB1dB:CRBN:mezigdomide:SALL4(392-449) Deposited 2025-03-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 706–1140（435 aa）
Not recorded ZN ZINC ION × 2 QFC Mezigdomide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；50 mM HEPES/NaOH pH 7.4, 150 mM NaCl, 3 mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE；UltrAuFoil R 0.6/1 300 mesh grids were glow-discharged for 2 min at 20 mA and 39 Pa, pre-incubated with 4 uL of 10 uM FLAG-IKZF1(140-196;Q146A/G151N) for 1 min, and blotted from behind for 4 s. 4 uL of the sample was then applied to the grid. Grids were vitrified using an EM GP plunge freezer operated at 90% humidity and 10 C with 0 s pre-blot, 4 s blot, and 0 s post-blot.
Resolution 2.70 Å
9NWT Cryo-EM structure of DDB1dB:CRBN:mezigdomide:SALL4(392-449;G416A) Deposited 2025-03-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 706–1140（435 aa）
Not recorded ZN ZINC ION × 2 QFC Mezigdomide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；50 mM HEPES/NaOH pH 7.4, 150 mM NaCl, 3 mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE；UltrAuFoil R 0.6/1 300 mesh grids were glow-discharged for 2 min at 20 mA and 39 Pa, pre-incubated with 4 uL of 10 uM FLAG-IKZF1(140-196;Q146A/G151N) for 1 min, and blotted from behind for 4 s. 4 uL of the sample was then applied to the grid. Grids were vitrified using an EM GP plunge freezer operated at 90% humidity and 10 C with 0 s pre-blot, 4 s blot, and 0 s post-blot.
Resolution 2.70 Å
9NYR Cryo-EM structure of CDK2/CyclinE1 in complex with CRBN/DDB1 and Cpd 24 Deposited 2025-03-28 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–1140（1140 aa）
Not recorded A1B7G N-{(1R,4S)-4-[(4-{3-chloro-4-[(3R)-2,6-dioxo-1,2,3,6-tetrahydropyridin-3-yl]phenyl}piperazin-1-yl)methyl]cyclohexyl}-4-({4-[(3S)-3-hydroxy-3-methylpiperidin-1-yl]-5-(trifluoromethyl)pyrimidin-2-yl}amino)-3-methylbenzene-1-sulfonamide × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；50mM HEPES, pH 7.5, 150mM NaCl, 2mM TCEP, 2 mM FFC8, protein = 13.4 mg/ml
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
9OS2 Cryo-EM structure of the DDB1/CRBN-MRT-5702-G3BP2 ternary complex Deposited 2025-05-23 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–1140（1140 aa）
Not recorded ZN ZINC ION × 1 A1CED (1S,3S)-2-[(2-chlorophenyl)methanesulfonyl]-N-{[(4R)-3-(2,4-dioxo-1,3-diazinan-1-yl)imidazo[1,2-a]pyridin-7-yl]methyl}-1-methyl-1,2,3,4-tetrahydroisoquinoline-3-carboxamide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.50 Å
9OTY DDB1-CRBN with CK1 alpha, SB-405483, and DEG-47: composite map and model submission Deposited 2025-05-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–391（391 aa）
Chain A 710–1140（431 aa）
Not recorded ZN ZINC ION × 1 A1CEH N-{2-[(3R)-2,6-dioxopiperidin-3-yl]-1-oxo-2,3-dihydro-1H-isoindol-5-yl}benzamide × 1 A1CEG N-[3-(benzyloxy)pyridin-2-yl]-N'-(4-cyano-2-hydroxyphenyl)urea × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7；10mM HEPES, 240mM NaCl, 3mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
9OUK DDB1-CRBN with Ikaros(ZF2) and DEG-47: composite map and model submission Deposited 2025-05-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 706–1140（435 aa）
Not recorded ZN ZINC ION × 2 A1CEK N-{2-[(3S)-2,6-dioxopiperidin-3-yl]-1-oxo-2,3-dihydro-1H-isoindol-5-yl}benzamide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7；10mM HEPES, 240mM NaCl, 3mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.69 Å
9OUL DDB1-CRBN with Ikaros(ZF2), SB-405483, and DEG-47: composite map and model submission Deposited 2025-05-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–395（395 aa）
Chain A 706–1140（435 aa）
Not recorded ZN ZINC ION × 1 A1CEG N-[3-(benzyloxy)pyridin-2-yl]-N'-(4-cyano-2-hydroxyphenyl)urea × 1 A1CEK N-{2-[(3S)-2,6-dioxopiperidin-3-yl]-1-oxo-2,3-dihydro-1H-isoindol-5-yl}benzamide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7；10mM HEPES, 240mM NaCl, 3mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.97 Å
9Q22 Crystal structure of ternary complex Helios-ZF2:I-19:CRBN:DDB1 Deposited 2025-08-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–381（381 aa） Fragment：UNP residues 1-381,706-1140
Chain A 706–1140（435 aa） Fragment：UNP residues 1-381,706-1140
Not recorded A1CNP (3S)-3-[5-(1-benzyl-4-hydroxypiperidin-4-yl)-1-oxo-1,3-dihydro-2H-isoindol-2-yl]piperidine-2,6-dione × 1 ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；0.148 M lithium citrate, 0.1 M Tris, pH 7.5, 19.4% PEG3350
Resolution 3.41 Å R-free 0.252
9Q2D Cryo-EM structure of ternary complex Ikaros-ZF2:CC-885:CRBN:DDB1 (molecular glue degrader) Deposited 2025-08-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–395（395 aa） Fragment：UNP residues 1-395,706-1140
Chain C 706–1140（435 aa） Fragment：UNP residues 1-395,706-1140
Not recorded ZN ZINC ION × 2 85C 1-(3-chloro-4-methylphenyl)-3-({2-[(3S)-2,6-dioxopiperidin-3-yl]-1-oxo-2,3-dihydro-1H-isoindol-5-yl}methyl)urea × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE；blot time 4 sec blot force 4
Resolution 2.94 Å
9S3R Ternary complex structure of compound 1 bound to SMARCA2 bromodomain and DCAF16:DDB1deltaBPB Deposited 2025-07-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–1140（1140 aa）
Not recorded ZN ZINC ION × 1 A1JLV 2-[6-azanyl-5-[(1~{S},5~{R})-8-[2-[(~{E})-3-(azepan-1-yl)prop-1-enyl]pyridin-4-yl]-3,8-diazabicyclo[3.2.1]octan-3-yl]pyridazin-3-yl]phenol × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；Applied 3.5 uL of sample to grid. wait = 10 sec, drain = 0 sec, blot = 4 sec, blotForce = 4
Resolution 3.30 Å
9SAF Ternary PROTAC-mediated complex of BRD4-BD1/CRBN/DDB1 and JQ1-AcQ bifunctional degrader Deposited 2025-08-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–1140（1140 aa）
Not recorded ZN ZINC ION × 1 A1JM8 ~{N}-[(2~{S})-1-[[(3~{S})-2,6-bis(oxidanylidene)piperidin-3-yl]amino]-1-oxidanylidene-propan-2-yl]-9-[2-[(9~{S})-7-(4-chlorophenyl)-4,5,13-trimethyl-3-thia-1,8,11,12-tetrazatricyclo[8.3.0.0^{2,6}]trideca-2(6),4,10,12-tetraen-9-yl]ethanoylamino]nonanamide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.55 Å
9SAI Ternary PROTAC-mediated complex consisting of Cereblon, DDB1 and BRD4-BD1, non-covalently linked by JQ1-AcN Deposited 2025-08-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–395（395 aa）
Chain A 706–1140（435 aa）
Not recorded ZN ZINC ION × 1 A1JM3 N-[(2S)-1-[[(3S)-2,5-bis(oxidanylidene)pyrrolidin-3-yl]amino]-1-oxidanylidene-propan-2-yl]-9-[2-[(9S)-7-(4-chlorophenyl)-4,5,13-trimethyl-3-thia-1,8,11,12-tetrazatricyclo[8.3.0.0^{2,6}]trideca-2(6),4,7,10,12-pentaen-9-yl]ethanoylamino]nonanamide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；20 mM HEPES, 100 mM NaCl, 0.25 mM TCEP, pH: 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.66 Å
9SFM Crystal structure of Cereblon-DDB1 in complex with SB-405483 and Lenalidomide Deposited 2025-08-19 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–1140（1140 aa）
Not recorded EDO 1,2-ETHANEDIOL × 6 ZN ZINC ION × 1 LVY S-Lenalidomide × 1 A1CEG N-[3-(benzyloxy)pyridin-2-yl]-N'-(4-cyano-2-hydroxyphenyl)urea × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；291 K；20% w/v PEG 4000 0.1 M TRIS pH 8.2, 0.2 M
Resolution 2.39 Å R-free 0.244
9U7T Structure of the human DCAF8-DDB1 complex Deposited 2025-03-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–1140（1140 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9UUM Cryo-EM structure of mezigdomide-organized CRL4-DDB1-CRBN-IKZF3(ZF2-ZF3)-UbcH5a-Ub ubiquitylation assembly Deposited 2025-05-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain B 1–1140（1140 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 3.41 Å
9UWG Structure of the human DCAF2-DDB1 complex Deposited 2025-05-12 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–1140（1140 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.21 Å
9V0A Cryo-EM structure of pomalidomide-organized CRL4-DDB1-CRBN-IKZF3(ZF2-ZF3)-UbcH5a-Ub ubiquitylation assembly Deposited 2025-05-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain B 1–1140（1140 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 3.69 Å
9V0B Cryo-EM structure of avadomide-organized CRL4-DDB1-CRBN-IKZF3(ZF2-ZF3)-UbcH5a-Ub ubiquitylation assembly Deposited 2025-05-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain B 1–1140（1140 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 3.54 Å
9V0F Cryo-EM structure of cemsidomide-organized CRL4-DDB1-CRBN-IKZF3(ZF2-ZF3)-UbcH5a-Ub ubiquitylation assembly Deposited 2025-05-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain B 1–1140（1140 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 3.71 Å
9W2F Cryo-EM structure of DDB1-CRBN in complex with dHuR-2 and HuR Deposited 2025-07-27 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–1140（1140 aa）
Not recorded ZN ZINC ION × 1 A1EUN (3S)-3-[6-[1-[(4-methoxyphenyl)methyl]pyrazol-4-yl]-1-benzofuran-3-yl]piperidine-2,6-dione × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9W90 DDB1-DDA1-DET1-Ube2e2-COP1-c-Jun-STK40 complex Deposited 2025-08-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain B 1–1140（1140 aa）
Chain E 1–1140（1140 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
9ZXM DDB1 delta with compound 6 Deposited 2026-01-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–393（393 aa）
Chain A 706–1140（435 aa）
Not recorded A1C4E (3S,5S)-1-{(4P)-4-(2,2-difluoro-2H-1,3-benzodioxol-4-yl)-3-[(propan-2-yl)oxy]benzene-1-carbonyl}-N-methyl-5-phenylpiperidine-3-carboxamide × 1 GOL GLYCEROL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2M ammonium acetate, 0.1M Bis Tris pH 5.5-6.5, and 25% PEG 3350
Resolution 2.19 Å R-free 0.246
9ZXN DDB1 delta with compound 26 Deposited 2026-01-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–393（393 aa）
Chain A 706–1140（435 aa）
Not recorded A1C4F (3S,5S)-1-{(4P)-4-(2,2-difluoro-2H-1,3-benzodioxol-4-yl)-1-methyl-5-[(propan-2-yl)oxy]-1H-1,3-benzimidazole-7-carbonyl}-N-methyl-5-phenylpiperidine-3-carboxamide × 1 GOL GLYCEROL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2M ammonium acetate, 0.1M Bis Tris pH 5.5-6.5, and 25% PEG 3350
Resolution 2.07 Å R-free 0.235

202 other PDB entries and 290 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name DDB1_HUMAN
Isoform —
PDB entities 2
Chains and sequence ranges Author chain B； PDBConstruct 1–1140； UniProt 1–1140

Protein X

Hepatitis B virus

UniProt Q2F514

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 9 PDB declaration: nonameric（9） Consistent with protein copy count Chain C； UniProt 1–154 Not recorded Structural maintenance of chromosomes protein 6 × 1 （Q96SB8） DNA damage-binding protein 1 × 1 （Q16531） EP300-interacting inhibitor of differentiation 3 × 1 （Q8N140） Non-structural maintenance of chromosomes element 3 homolog × 1 （Q96MG7） Non-structural maintenance of chromosomes element 1 homolog × 1 （Q8WV22） Cullin-4A × 1 （Q13619） E3 ubiquitin-protein ligase RBX1 × 1 （P62877） Structural maintenance of chromosomes protein 5 × 1 （Q8IY18） ZN ZINC ION × 6 ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.12 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9LWI Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
9LWJ The head-arm region of HBx-Smc5/6 ubiquitination complex Deposited 2025-02-15 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain C 1–154（154 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.19 Å
9LWL HBx-Smc5/6 ubiquitination complex Deposited 2025-02-15 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain C 1–154（154 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.25 Å

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name Q2F514_HBV
Isoform —
PDB entities 3
Chains and sequence ranges Author chain C； PDBConstruct 1–154； UniProt 1–154

EP300-interacting inhibitor of differentiation 3

Homo sapiens

UniProt Q8N140

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 9 PDB declaration: nonameric（9） Consistent with protein copy count Chain D； UniProt 1–333 Not recorded Structural maintenance of chromosomes protein 6 × 1 （Q96SB8） DNA damage-binding protein 1 × 1 （Q16531） Protein X × 1 （Q2F514） Non-structural maintenance of chromosomes element 3 homolog × 1 （Q96MG7） Non-structural maintenance of chromosomes element 1 homolog × 1 （Q8WV22） Cullin-4A × 1 （Q13619） E3 ubiquitin-protein ligase RBX1 × 1 （P62877） Structural maintenance of chromosomes protein 5 × 1 （Q8IY18） ZN ZINC ION × 6 ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.12 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9LWI Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
9LWJ The head-arm region of HBx-Smc5/6 ubiquitination complex Deposited 2025-02-15 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain D 1–333（333 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.19 Å
9LWL HBx-Smc5/6 ubiquitination complex Deposited 2025-02-15 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain D 1–333（333 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.25 Å

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name EID3_HUMAN
Isoform —
PDB entities 4
Chains and sequence ranges Author chain D； PDBConstruct 1–333； UniProt 1–333

Non-structural maintenance of chromosomes element 3 homolog

Homo sapiens

UniProt Q96MG7

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 9 PDB declaration: nonameric（9） Consistent with protein copy count Chain E； UniProt 1–304 Not recorded Structural maintenance of chromosomes protein 6 × 1 （Q96SB8） DNA damage-binding protein 1 × 1 （Q16531） Protein X × 1 （Q2F514） EP300-interacting inhibitor of differentiation 3 × 1 （Q8N140） Non-structural maintenance of chromosomes element 1 homolog × 1 （Q8WV22） Cullin-4A × 1 （Q13619） E3 ubiquitin-protein ligase RBX1 × 1 （P62877） Structural maintenance of chromosomes protein 5 × 1 （Q8IY18） ZN ZINC ION × 6 ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.12 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9LWI Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
5HVQ Alternative model of the MAGE-G1 NSE-1 complex Deposited 2016-01-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 78–294（217 aa）
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；277 K；As for entry 3nw0
Resolution 2.92 Å R-free 0.268
5WY5 Crystal structure of MAGEG1 and NSE1 complex Deposited 2017-01-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 78–294（217 aa） Fragment：UNP RESIDUES 78-294
Mutation：I193L, T258L MG MAGNESIUM ION × 2 ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 5.5；291 K；22%(V/V) PEG 500, 0.1M SODIUM CITRATR PH5.5, 2%(V/V) 1,1,1,3,3,3-HEXAFLUORO-2-PROPANOL, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 291K
Resolution 2.92 Å R-free 0.270
9LWJ The head-arm region of HBx-Smc5/6 ubiquitination complex Deposited 2025-02-15 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain E 1–304（304 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.19 Å
9LWL HBx-Smc5/6 ubiquitination complex Deposited 2025-02-15 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain E 1–304（304 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.25 Å

4 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name NSE3_HUMAN
Isoform —
PDB entities 5
Chains and sequence ranges Author chain E； PDBConstruct 1–304； UniProt 1–304

Non-structural maintenance of chromosomes element 1 homolog

Homo sapiens

UniProt Q8WV22

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 9 PDB declaration: nonameric（9） Consistent with protein copy count Chain F； UniProt 1–266 Not recorded Structural maintenance of chromosomes protein 6 × 1 （Q96SB8） DNA damage-binding protein 1 × 1 （Q16531） Protein X × 1 （Q2F514） EP300-interacting inhibitor of differentiation 3 × 1 （Q8N140） Non-structural maintenance of chromosomes element 3 homolog × 1 （Q96MG7） Cullin-4A × 1 （Q13619） E3 ubiquitin-protein ligase RBX1 × 1 （P62877） Structural maintenance of chromosomes protein 5 × 1 （Q8IY18） ZN ZINC ION × 6 ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.12 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9LWI Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2CT0 Solution structure of the RING domain of the Non-SMC element 1 protein Deposited 2005-05-23 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 171–231（61 aa） Fragment：RING domain
Not recorded ZN ZINC ION × 2 SOLUTION NMR
NMR measurement conditions pH 7；296 K；Ionic strength (raw mmCIF value) 120；Pressure ambient
NMR sample composition 1.27mM RING domain U-13C,15N; 20mM d-Tris-HCl(pH7.0); 100mM NaCl; 1mM d-DTT; 0.02% NaN3; 0.05mM ZNCl2; 0.1mM NTA; 90% H2O, 10% D2O | 90% H2O/10% D2O
Resolution not provided
5HVQ Alternative model of the MAGE-G1 NSE-1 complex Deposited 2016-01-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 9–246（238 aa）
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；277 K；As for entry 3nw0
Resolution 2.92 Å R-free 0.268
5WY5 Crystal structure of MAGEG1 and NSE1 complex Deposited 2017-01-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 9–246（238 aa） Fragment：UNP RESIDUES 9-246
Mutation：YES MG MAGNESIUM ION × 2 ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 5.5；291 K；22%(V/V) PEG 500, 0.1M SODIUM CITRATR PH5.5, 2%(V/V) 1,1,1,3,3,3-HEXAFLUORO-2-PROPANOL, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 291K
Resolution 2.92 Å R-free 0.270
9LWJ The head-arm region of HBx-Smc5/6 ubiquitination complex Deposited 2025-02-15 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain F 1–266（266 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.19 Å
9LWL HBx-Smc5/6 ubiquitination complex Deposited 2025-02-15 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain F 1–266（266 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.25 Å

5 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name NSE1_HUMAN
Isoform —
PDB entities 6
Chains and sequence ranges Author chain F； PDBConstruct 1–266； UniProt 1–266

Cullin-4A

Homo sapiens

UniProt Q13619

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 9 PDB declaration: nonameric（9） Consistent with protein copy count Chain G； UniProt 1–759 Not recorded Structural maintenance of chromosomes protein 6 × 1 （Q96SB8） DNA damage-binding protein 1 × 1 （Q16531） Protein X × 1 （Q2F514） EP300-interacting inhibitor of differentiation 3 × 1 （Q8N140） Non-structural maintenance of chromosomes element 3 homolog × 1 （Q96MG7） Non-structural maintenance of chromosomes element 1 homolog × 1 （Q8WV22） E3 ubiquitin-protein ligase RBX1 × 1 （P62877） Structural maintenance of chromosomes protein 5 × 1 （Q8IY18） ZN ZINC ION × 6 ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.12 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9LWI Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2HYE Crystal Structure of the DDB1-Cul4A-Rbx1-SV5V Complex Deposited 2006-08-05 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–759（759 aa）
Not recorded ZN ZINC ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；100mM NaHEPES, 7-9% PEG4000, 10% iso-propanol, 5mM DTT, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.10 Å R-free 0.316
4A0K STRUCTURE OF DDB1-DDB2-CUL4A-RBX1 BOUND TO A 12 BP ABASIC SITE CONTAINING DNA-DUPLEX Deposited 2011-09-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric
Chain A 38–759（722 aa） Fragment：RESIDUES 38-759
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.3；100MM TRIS-HCL PH 8.3, 33% PEG 200
Resolution 5.93 Å R-free 0.270
7OKQ Cryo-EM Structure of the DDB1-DCAF1-CUL4A-RBX1 Complex Deposited 2021-05-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: Hexadecameric
Chain C 35–759（725 aa）
Chain G 35–759（725 aa）
Chain K 35–759（725 aa）
Chain O 35–759（725 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.40 Å
7OPC Pol II-CSB-CRL4CSA-UVSSA-SPT6-PAF (Structure 4) Deposited 2021-05-31 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 25 PDB declaration: 28-meric
Chain e 1–759（759 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
7OPD Pol II-CSB-CRL4CSA-UVSSA-SPT6-PAF (Structure 5) Deposited 2021-05-31 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 25 PDB declaration: 28-meric
Chain e 1–759（759 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
8B3G C(N)RL4CSA-UVSSA-E2-ubiquitin complex. Deposited 2022-09-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain e 1–759（759 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.40 Å
8B3I CRL4CSA-E2-Ub (state 2) Deposited 2022-09-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain e 1–759（759 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9EG8 Cryo-EM structure of COP9 signalosome precatalytic state with neddylated cullin-4A Deposited 2024-11-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain J 1–759（759 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.39 Å
9LWJ The head-arm region of HBx-Smc5/6 ubiquitination complex Deposited 2025-02-15 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain G 1–759（759 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.19 Å
9LWL HBx-Smc5/6 ubiquitination complex Deposited 2025-02-15 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain G 1–759（759 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.25 Å
9PVH Human Cullin-4 in complex with CAND2 Deposited 2025-08-01 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 37–759（723 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 4.38 Å
9UUM Cryo-EM structure of mezigdomide-organized CRL4-DDB1-CRBN-IKZF3(ZF2-ZF3)-UbcH5a-Ub ubiquitylation assembly Deposited 2025-05-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 2–759（758 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 3.41 Å
9V0A Cryo-EM structure of pomalidomide-organized CRL4-DDB1-CRBN-IKZF3(ZF2-ZF3)-UbcH5a-Ub ubiquitylation assembly Deposited 2025-05-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 2–759（758 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 3.69 Å
9V0B Cryo-EM structure of avadomide-organized CRL4-DDB1-CRBN-IKZF3(ZF2-ZF3)-UbcH5a-Ub ubiquitylation assembly Deposited 2025-05-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 2–759（758 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 3.54 Å
9V0F Cryo-EM structure of cemsidomide-organized CRL4-DDB1-CRBN-IKZF3(ZF2-ZF3)-UbcH5a-Ub ubiquitylation assembly Deposited 2025-05-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 2–759（758 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 3.71 Å

15 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CUL4A_HUMAN
Isoform —
PDB entities 7
Chains and sequence ranges Author chain G； PDBConstruct 1–759； UniProt 1–759

E3 ubiquitin-protein ligase RBX1

Homo sapiens

UniProt P62877

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 9 PDB declaration: nonameric（9） Consistent with protein copy count Chain H； UniProt 1–108 Not recorded Structural maintenance of chromosomes protein 6 × 1 （Q96SB8） DNA damage-binding protein 1 × 1 （Q16531） Protein X × 1 （Q2F514） EP300-interacting inhibitor of differentiation 3 × 1 （Q8N140） Non-structural maintenance of chromosomes element 3 homolog × 1 （Q96MG7） Non-structural maintenance of chromosomes element 1 homolog × 1 （Q8WV22） Cullin-4A × 1 （Q13619） Structural maintenance of chromosomes protein 5 × 1 （Q8IY18） ZN ZINC ION × 6 ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.12 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9LWI Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1LDJ Structure of the Cul1-Rbx1-Skp1-F boxSkp2 SCF Ubiquitin Ligase Complex Deposited 2002-04-08 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 19–108（90 aa） Fragment：Residues 19-108
Not recorded ZN ZINC ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；10% Ethanol, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.00 Å R-free 0.288
1LDK Structure of the Cul1-Rbx1-Skp1-F boxSkp2 SCF Ubiquitin Ligase Complex Deposited 2002-04-08 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain C 19–108（90 aa）
Not recorded ZN ZINC ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；peg4k, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.10 Å R-free 0.331
1LDK Structure of the Cul1-Rbx1-Skp1-F boxSkp2 SCF Ubiquitin Ligase Complex Deposited 2002-04-08 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain C 19–108（90 aa）
Not recorded ZN ZINC ION × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；peg4k, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.10 Å R-free 0.331
1U6G Crystal Structure of The Cand1-Cul1-Roc1 Complex Deposited 2004-07-29 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–108（108 aa）
Not recorded ZN ZINC ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；PEG 8000, sodium chloride, DTT, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.10 Å R-free 0.317
29HG Cryo-EM structure of the CUL1-RBX1-SKP1-FBXO22 SCF ubiquition ligase in complex with NSD2 via UNC10088 Deposited 2026-03-11 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain E 1–108（108 aa）
Not recorded A1J20 ~{N}-cyclopropyl-~{N}-[[4-[[2-(6-oxidanylhexanoyl)-1~{H}-isoquinolin-6-yl]carbamoyl]phenyl]methyl]-3-oxidanylidene-4~{H}-1,4-benzoxazine-7-carboxamide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
29HH Cryo-EM structure of the CUL1-RBX1-SKP1-FBXO22 SCF ubiquition ligase in complex with NSD2, UNC10088 and Bach1 Deposited 2026-03-11 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain E 1–108（108 aa）
Not recorded A1J20 ~{N}-cyclopropyl-~{N}-[[4-[[2-(6-oxidanylhexanoyl)-1~{H}-isoquinolin-6-yl]carbamoyl]phenyl]methyl]-3-oxidanylidene-4~{H}-1,4-benzoxazine-7-carboxamide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
29HI Cryo-EM structure of the CUL1-RBX1-SKP1-FBXO22 SCF ubiquition ligase in complex with NSD2 via UNC10415667 Deposited 2026-03-11 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain E 1–108（108 aa）
Not recorded A1J21 4-[[cyclopropyl-[(~{Z})-2-methyl-4-(5-oxidanylidene-2~{H}-1,4-oxazin-3-yl)but-3-enoyl]amino]methyl]-~{N}-[3-[2-[[4-(hydroxymethyl)phenyl]carbonyl-methyl-amino]ethyl]phenyl]benzamide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.90 Å
2HYE Crystal Structure of the DDB1-Cul4A-Rbx1-SV5V Complex Deposited 2006-08-05 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 1–108（108 aa）
Not recorded ZN ZINC ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；100mM NaHEPES, 7-9% PEG4000, 10% iso-propanol, 5mM DTT, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.10 Å R-free 0.316
2LGV Rbx1 Deposited 2011-08-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 12–108（97 aa） Fragment：sequence database residues 12-108
Mutation：W27S, V30S, L32Q, W33S ZN ZINC ION × 3 SOLUTION NMR
NMR measurement conditions pH 7.5；298 K；Ionic strength (raw mmCIF value) 0.120；Pressure ambient
NMR sample composition 20 mM sodium phosphate, 100 mM sodium chloride, 1 mM DTT, 700 uM [U-98% 15N] protein, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 20 mM sodium phosphate, 100 mM sodium chloride, 1 mM DTT, 700 uM [U-98% 13C; U-98% 15N] protein, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 20 mM sodium phosphate, 100 mM sodium chloride, 1 mM DTT, 700 uM [U-98% 13C; U-98% 15N] protein, 100% D2O | 100% D2O
Resolution not provided
3DPL Structural Insights into NEDD8 Activation of Cullin-RING Ligases: Conformational Control of Conjugation. Deposited 2008-07-08 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain R 5–108（104 aa）
Not recorded ZN ZINC ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8；277 K；2% PEG 3350, 0.1M HEPES, 0.2M L-proline, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.60 Å R-free 0.277
3DQV Structural Insights into NEDD8 Activation of Cullin-RING Ligases: Conformational Control of Conjugation Deposited 2008-07-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain R 5–108（104 aa） Fragment：Rbx1 residues 5-108
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions 277 K；with ~19% PEG3350, 275mM (NH4)2PO4, 5mM DTT, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.00 Å R-free 0.299
3DQV Structural Insights into NEDD8 Activation of Cullin-RING Ligases: Conformational Control of Conjugation Deposited 2008-07-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain Y 5–108（104 aa） Fragment：Rbx1 residues 5-108
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions 277 K；with ~19% PEG3350, 275mM (NH4)2PO4, 5mM DTT, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.00 Å R-free 0.299
3DQV Structural Insights into NEDD8 Activation of Cullin-RING Ligases: Conformational Control of Conjugation Deposited 2008-07-09 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 5–108（104 aa） Fragment：Rbx1 residues 5-108
Chain Y 5–108（104 aa） Fragment：Rbx1 residues 5-108
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 6 X-RAY DIFFRACTION
X-ray crystallization conditions 277 K；with ~19% PEG3350, 275mM (NH4)2PO4, 5mM DTT, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.00 Å R-free 0.299
3RTR A RING E3-substrate complex poised for ubiquitin-like protein transfer: structural insights into cullin-RING ligases Deposited 2011-05-03 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 5–108（104 aa） Fragment：UNP residues 5-108
Not recorded ZN ZINC ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；17% PEG 3350, 100 mM Tris pH 7.5, 200 mM Sodium/Postassium Tartrate, 2% Benzamidine Hydrochloride, 1% Glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.21 Å R-free 0.282
3RTR A RING E3-substrate complex poised for ubiquitin-like protein transfer: structural insights into cullin-RING ligases Deposited 2011-05-03 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 5–108（104 aa） Fragment：UNP residues 5-108
Not recorded ZN ZINC ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；17% PEG 3350, 100 mM Tris pH 7.5, 200 mM Sodium/Postassium Tartrate, 2% Benzamidine Hydrochloride, 1% Glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.21 Å R-free 0.282
3RTR A RING E3-substrate complex poised for ubiquitin-like protein transfer: structural insights into cullin-RING ligases Deposited 2011-05-03 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 5–108（104 aa） Fragment：UNP residues 5-108
Not recorded ZN ZINC ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；17% PEG 3350, 100 mM Tris pH 7.5, 200 mM Sodium/Postassium Tartrate, 2% Benzamidine Hydrochloride, 1% Glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.21 Å R-free 0.282
3RTR A RING E3-substrate complex poised for ubiquitin-like protein transfer: structural insights into cullin-RING ligases Deposited 2011-05-03 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 5–108（104 aa） Fragment：UNP residues 5-108
Not recorded ZN ZINC ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；17% PEG 3350, 100 mM Tris pH 7.5, 200 mM Sodium/Postassium Tartrate, 2% Benzamidine Hydrochloride, 1% Glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.21 Å R-free 0.282
4F52 Structure of a Glomulin-RBX1-CUL1 complex Deposited 2012-05-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 5–108（104 aa） Fragment：UNP residues 5-108
Not recorded ZN ZINC ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；18-21% PEG3350, 0.3-0.45M ammonium citrate, 10mM DTT, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.00 Å R-free 0.289
4F52 Structure of a Glomulin-RBX1-CUL1 complex Deposited 2012-05-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 5–108（104 aa） Fragment：UNP residues 5-108
Not recorded ZN ZINC ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；18-21% PEG3350, 0.3-0.45M ammonium citrate, 10mM DTT, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.00 Å R-free 0.289
4P5O Structure of an RBX1-UBC12~NEDD8-CUL1-DCN1 complex: a RING-E3-E2~ubiquitin-like protein-substrate intermediate trapped in action Deposited 2014-03-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 3–108（106 aa）
Not recorded ZN ZINC ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；11% PEG3350, 0.2M ammonium citrate, 10mM ATP
Resolution 3.11 Å R-free 0.284
4P5O Structure of an RBX1-UBC12~NEDD8-CUL1-DCN1 complex: a RING-E3-E2~ubiquitin-like protein-substrate intermediate trapped in action Deposited 2014-03-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain D 3–108（106 aa）
Not recorded ZN ZINC ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；11% PEG3350, 0.2M ammonium citrate, 10mM ATP
Resolution 3.11 Å R-free 0.284
5N4W Crystal structure of the Cul2-Rbx1-EloBC-VHL ubiquitin ligase complex Deposited 2017-02-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain R 1–102（102 aa）
Not recorded ZN ZINC ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；293 K；0.1 M Tris pH 7.6, 0.15 M ammonium sulphate, 15% polyethyleneglycol 4000 and 3% 1,4-dioxane or 4% acetonitrile. The sample was crystallised in the presence of a 19-mer peptide mimicking the substrate HIF-1alpha - residues 559-577 (DEALAPYIPMDDDFQLRSF, with the mutations L559D and M561A and P564 is hydroxyproline).
Resolution 3.90 Å R-free 0.346
6TTU Ubiquitin Ligation to substrate by a cullin-RING E3 ligase at 3.7A resolution: NEDD8-CUL1-RBX1 N98R-SKP1-monomeric b-TRCP1dD-IkBa-UB~UBE2D2 Deposited 2019-12-30 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain R 1–108（108 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.70 Å
7B5L Ubiquitin ligation to F-box protein substrates by SCF-RBR E3-E3 super-assembly: NEDD8-CUL1-RBX1-SKP1-SKP2-CKSHS1-Cyclin A-CDK2-p27-UBE2L3~Ub~ARIH1. Transition State 1 Deposited 2020-12-04 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain R 1–108（108 aa）
Not recorded ZN ZINC ION × 9 SY8 5-azanylpentan-2-one × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
7B5M Ubiquitin ligation to F-box protein substrates by SCF-RBR E3-E3 super-assembly: CUL1-RBX1-SKP1-SKP2-CKSHS1-p27~Ub~ARIH1. Transition State 2 Deposited 2020-12-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain R 1–108（108 aa）
Not recorded ZN ZINC ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.91 Å
7B5N Ubiquitin ligation to F-box protein substrates by SCF-RBR E3-E3 super-assembly: NEDD8-CUL1-RBX1-UBE2L3~Ub~ARIH1. Deposited 2020-12-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 1–108（108 aa）
Not recorded ZN ZINC ION × 9 SY8 5-azanylpentan-2-one × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
7B5S Ubiquitin ligation to F-box protein substrates by SCF-RBR E3-E3 super-assembly: CUL1-RBX1-ARIH1 Ariadne. Transition State 1 Deposited 2020-12-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain R 1–108（108 aa）
Not recorded ZN ZINC ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
7OKQ Cryo-EM Structure of the DDB1-DCAF1-CUL4A-RBX1 Complex Deposited 2021-05-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: Hexadecameric
Chain D 1–108（108 aa）
Chain H 1–108（108 aa）
Chain L 1–108（108 aa）
Chain P 1–108（108 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.40 Å
7PLO H. sapiens replisome-CUL2/LRR1 complex Deposited 2021-09-01 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 24 PDB declaration: 26-meric
Chain T 1–108（108 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 3 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 3 SO4 SULFATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
7Z8B Structure of CRL7FBXW8 reveals coupling with CUL1-RBX1/ROC1 for multi-cullin-RING E3-catalyzed ubiquitin ligation Deposited 2022-03-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain R 1–108（108 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
7Z8R CAND1-CUL1-RBX1 Deposited 2022-03-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain R 5–108（104 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.70 Å
7Z8T CAND1-SCF-SKP2 CAND1 engaged SCF rocked Deposited 2022-03-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain R 5–108（104 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
7Z8V CAND1-SCF-SKP2 (SKP1deldel) CAND1 engaged SCF rocked Deposited 2022-03-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain R 5–108（104 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.70 Å
7ZBW CAND1-SCF-SKP2 CAND1 rolling-2 SCF engaged Deposited 2022-03-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain R 5–108（104 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8B3G C(N)RL4CSA-UVSSA-E2-ubiquitin complex. Deposited 2022-09-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain R 1–108（108 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.40 Å
8B3I CRL4CSA-E2-Ub (state 2) Deposited 2022-09-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain R 1–108（108 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8CDJ CAND1 b-hairpin++-SCF-SKP2 CAND1 rolling SCF engaged Deposited 2023-01-31 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain R 5–108（104 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8CDK CAND1 b-hairpin++-SCF-SKP2 CAND1 partly engaged SCF partly rocked Deposited 2023-01-31 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain R 5–108（104 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.32 Å
8GQ6 Cryo-EM Structure of the KBTBD2-CUL3-Rbx1 dimeric complex Deposited 2022-08-29 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 1–108（108 aa）
Chain E 1–108（108 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.96 Å
8H33 Cryo-EM Structure of the KBTBD2-Cul3-Rbx1 tetrameric complex Deposited 2022-10-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain D 1–108（108 aa）
Chain E 1–108（108 aa）
Chain K 1–108（108 aa）
Chain L 1–108（108 aa）
Not recorded ZN ZINC ION × 12 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.86 Å
8H34 Cryo-EM Structure of the KBTBD2-Cul3-Rbx1 hexameric complex Deposited 2022-10-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain D 1–108（108 aa）
Chain E 1–108（108 aa）
Chain K 1–108（108 aa）
Chain L 1–108（108 aa）
Chain Q 1–108（108 aa）
Chain R 1–108（108 aa）
Not recorded ZN ZINC ION × 18 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.99 Å
8H35 Cryo-EM Structure of the KBTBD2-Cul3-Rbx1 octameric complex Deposited 2022-10-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain D 1–108（108 aa）
Chain E 1–108（108 aa）
Chain K 1–108（108 aa）
Chain L 1–108（108 aa）
Chain Q 1–108（108 aa）
Chain R 1–108（108 aa）
Chain W 1–108（108 aa）
Chain X 1–108（108 aa）
Not recorded ZN ZINC ION × 24 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.41 Å
8H36 Cryo-EM Structure of the KBTBD2-CUL3-Rbx1-p85a dimeric complex Deposited 2022-10-08 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain D 1–108（108 aa）
Chain E 1–108（108 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
8H37 Cryo-EM Structure of the KBTBD2-CUL3-Rbx1-p85a tetrameric complex Deposited 2022-10-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain D 1–108（108 aa）
Chain E 1–108（108 aa）
Chain Q 1–108（108 aa）
Chain R 1–108（108 aa）
Not recorded ZN ZINC ION × 12 ELECTRON MICROSCOPY
cryo-EM buffer pH 8.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.52 Å
8H38 Cryo-EM Structure of the KBTBD2-CRL3~N8-CSN(mutate) complex Deposited 2022-10-08 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain R 1–108（108 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
Resolution 4.25 Å
8H3A Cryo-EM Structure of the KBTBD2-CRL3~N8(removed)-CSN complex Deposited 2022-10-08 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain R 1–108（108 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.51 Å
8H3F Cryo-EM Structure of the KBTBD2-CRL3-CSN complex Deposited 2022-10-08 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain R 1–108（108 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.73 Å
8H3Q Cryo-EM Structure of the CAND1-Cul3-Rbx1 complex Deposited 2022-10-09 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 1–108（108 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.76 Å
8H3R Cryo-EM Structure of the KBTBD2-CRL3~N8 dimeric complex Deposited 2022-10-09 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 1–108（108 aa）
Chain E 1–108（108 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.36 Å
8IJ1 Protomer 1 and 2 of the asymmetry trimer of the Cul2-Rbx1-EloBC-FEM1B ubiquitin ligase complex Deposited 2023-02-24 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain R 1–108（108 aa）
Not recorded ZN ZINC ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
8JAQ Structure of CRL2APPBP2 bound with RxxGP degron (tetramer) Deposited 2023-05-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain R 1–108（108 aa）
Chain V 1–108（108 aa）
Not recorded ZN ZINC ION × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.26 Å
8JAS Structure of CRL2APPBP2 bound with RxxGPAA degron (tetramer) Deposited 2023-05-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain R 1–108（108 aa）
Chain V 1–108（108 aa）
Not recorded ZN ZINC ION × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.54 Å
8JAV Structure of CRL2APPBP2 bound with the C-degron of MRPL28 (tetramer) Deposited 2023-05-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain R 1–108（108 aa）
Chain V 1–108（108 aa）
Not recorded ZN ZINC ION × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.44 Å
8JE1 An asymmetry dimer of the Cul2-Rbx1-EloBC-FEM1B ubiquitin ligase complexed with BEX2 Deposited 2023-05-15 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain R 1–108（108 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.95 Å
8K9I Structure of CUL3-RBX1-KLHL22 complex without CUL3 NA motif Deposited 2023-08-01 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain R 1–108（108 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
8KHP CULLIN3-KLHL22-RBX1 E3 ligase Deposited 2023-08-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain E 1–108（108 aa）
Chain F 1–108（108 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.67 Å
8OR0 CAND1-CUL1-RBX1-SKP1-SKP2-CKS1-CDK2 Deposited 2023-04-12 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 1–108（108 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
8OR2 CAND1-CUL1-RBX1-DCNL1 Deposited 2023-04-12 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–108（108 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8OR3 CAND1-CUL1-RBX1-SKP1-SKP2-DCNL1 Deposited 2023-04-13 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 1–108（108 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
8OR4 Partially dissociated CAND1-CUL1-RBX1-SKP1-SKP2-CKS1-CDK2 Deposited 2023-04-13 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 1–108（108 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8PQL K48-linked ubiquitin chain formation with a cullin-RING E3 ligase and Cdc34: NEDD8-CUL2-RBX1-ELOB/C-FEM1C with trapped UBE2R2-donor UB-acceptor UB-SIL1 peptide Deposited 2023-07-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: nonameric
Chain K 1–108（108 aa）
Not recorded SY8 5-azanylpentan-2-one × 1 ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.76 Å
8Q7E Structure of CUL9-RBX1 ubiquitin E3 ligase complex - hexameric assembly Deposited 2023-08-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain C 1–108（108 aa）
Chain D 1–108（108 aa）
Chain G 1–108（108 aa）
Chain H 1–108（108 aa）
Chain K 1–108（108 aa）
Chain L 1–108（108 aa）
Mutation：p.M1_A4del Mutation：p.M1_A4del Mutation：p.M1_A4del Mutation：p.M1_A4del Mutation：p.M1_A4del Mutation：p.M1_A4del No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.40 Å
8Q7H Structure of CUL9-RBX1 ubiquitin E3 ligase complex in unneddylated and neddylated conformation - focused cullin dimer Deposited 2023-08-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 1–108（108 aa）
Chain D 1–108（108 aa）
Mutation：p.M1_A4del Mutation：p.M1_A4del ZN ZINC ION × 10 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
8Q7R Ubiquitin ligation to substrate by a cullin-RING E3 ligase & Cdc34: NEDD8-CUL2-RBX1-ELOB/C-FEM1C with trapped UBE2R2~donor UB-Sil1 peptide Deposited 2023-08-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain R 1–108（108 aa）
Not recorded U9O 5-azanyl-1-oxidanyl-pentan-2-one × 1 ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.71 Å
8QU8 PROTAC-mediated complex of KRAS with VHL/Elongin-B/Elongin-C/Cullin-2/Rbx1 Deposited 2023-10-14 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain E 2–108（107 aa）
Not recorded ZN ZINC ION × 2 GDP GUANOSINE-5'-DIPHOSPHATE × 1 WYL (2S,4R)-1-[(2S)-2-[4-[4-[(3S)-4-[4-[5-[(4S)-2-azanyl-3-cyano-4-methyl-6,7-dihydro-5H-1-benzothiophen-4-yl]-1,2,4-oxadiazol-3-yl]pyrimidin-2-yl]-3-methyl-1,4-diazepan-1-yl]butoxy]-1,2,3-triazol-1-yl]-3-methyl-butanoyl]-N-[(1R)-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]-2-oxidanyl-ethyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8R5H Ubiquitin ligation to neosubstrate by a cullin-RING E3 ligase & Cdc34: NEDD8-CUL2-RBX1-ELOB/C-VHL-MZ1 with trapped UBE2R2~donor UB-BRD4 BD2 Deposited 2023-11-16 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain R 5–108（104 aa）
Not recorded ZN ZINC ION × 3 SY8 5-azanylpentan-2-one × 1 759 (2~{S},4~{R})-1-[(2~{S})-2-[2-[2-[2-[2-[2-[(9~{S})-7-(4-chlorophenyl)-4,5,13-trimethyl-3-thia-1,8,11,12-tetrazatricyclo[8.3.0.0^{2,6}]trideca-2(6),4,7,10,12-pentaen-9-yl]ethanoylamino]ethoxy]ethoxy]ethoxy]ethanoylamino]-3,3-dimethyl-butanoyl]-~{N}-[[4-(4-methyl-2,3-dihydro-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.44 Å
8RHZ Structure of CUL9-RBX1 ubiquitin E3 ligase complex in unneddylated conformation - symmetry expanded unneddylated dimer Deposited 2023-12-17 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–108（108 aa）
Chain D 1–108（108 aa）
Mutation：p.M1_A4del Mutation：p.M1_A4del ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.37 Å
8RWZ Open non-crosslinked structure Brd4BD2-MZ1-(NEDD8)-CRL2VHL Deposited 2024-02-05 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 16–108（93 aa）
Not recorded 759 (2~{S},4~{R})-1-[(2~{S})-2-[2-[2-[2-[2-[2-[(9~{S})-7-(4-chlorophenyl)-4,5,13-trimethyl-3-thia-1,8,11,12-tetrazatricyclo[8.3.0.0^{2,6}]trideca-2(6),4,7,10,12-pentaen-9-yl]ethanoylamino]ethoxy]ethoxy]ethoxy]ethanoylamino]-3,3-dimethyl-butanoyl]-~{N}-[[4-(4-methyl-2,3-dihydro-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8RX0 (NEDD8)-CRL2VHL-MZ1-Brd4BD2-Ub(G76S, K48C)-UBE2R1(C93K, S138C, C191S, C223S)-Ub Deposited 2024-02-05 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain R 16–108（93 aa）
Not recorded 759 (2~{S},4~{R})-1-[(2~{S})-2-[2-[2-[2-[2-[2-[(9~{S})-7-(4-chlorophenyl)-4,5,13-trimethyl-3-thia-1,8,11,12-tetrazatricyclo[8.3.0.0^{2,6}]trideca-2(6),4,7,10,12-pentaen-9-yl]ethanoylamino]ethoxy]ethoxy]ethoxy]ethanoylamino]-3,3-dimethyl-butanoyl]-~{N}-[[4-(4-methyl-2,3-dihydro-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
8UBU Cryo-EM structure of dimeric SCF-FBXL17-BACH1BTB E3 ligase complex close conformation Deposited 2023-09-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain B 16–108（93 aa）
Chain I 16–108（93 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
8WDK The complex structure of Cul2-VCB-Protac-Wee1 Deposited 2023-09-15 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 21–102（82 aa）
Not recorded W6U (2S,4R)-1-[(2S)-3,3-dimethyl-2-[3-[4-[4-[4-[[3-oxidanylidene-1-[6-(2-oxidanylpropan-2-yl)pyridin-2-yl]-2-prop-2-enyl-pyrazolo[3,4-d]pyrimidin-6-yl]amino]phenyl]piperazin-1-yl]butoxy]propanoylamino]butanoyl]-N-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.64 Å
8WQA Cryo-EM structure of CUL2-RBX1-ELOB-ELOC-FEM1B bound with the C-degron of CCDC89 (conformation 1) Deposited 2023-10-11 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain I 16–108（93 aa）
Chain J 16–108（93 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.39 Å
8WQB Cryo-EM structure of CUL2-RBX1-ELOB-ELOC-FEM1B bound with the C-degron of CCDC89 (conformation 2) Deposited 2023-10-11 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain E 16–108（93 aa）
Chain I 16–108（93 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.37 Å
8WQC cryo-EM structure of neddylated CUL2-RBX1-ELOB-ELOC-FEM1B bound with the C-degron of CDK5R1 Deposited 2023-10-11 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain F 16–108（93 aa）
Chain J 16–108（93 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.54 Å
8WQE Cryo-EM structure of CUL2-RBX1-ELOB-ELOC-FEM1B bound with the C-degron of CUX1 (conformation 1) Deposited 2023-10-11 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain I 16–108（93 aa）
Chain J 16–108（93 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.38 Å
8WQF cryo-EM structure of CUL2-RBX1-ELOB-ELOC-FEM1B bound with the C-degron of CUX1 (conformation 2) Deposited 2023-10-11 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain E 16–108（93 aa）
Chain I 16–108（93 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.27 Å
8WQG cryo-EM structure of neddylated CUL2-RBX1-ELOB-ELOC-FEM1B bound with the C-degron of CCDC89 (conformation 1) Deposited 2023-10-11 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain F 16–108（93 aa）
Chain J 16–108（93 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.09 Å
8WQH cryo-EM structure of neddylated CUL2-RBX1-ELOB-ELOC-FEM1B bound with the C-degron of CCDC89 (conformation 2) Deposited 2023-10-11 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain B 16–108（93 aa）
Chain J 16–108（93 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.44 Å
9BJ8 human CRL2-ZYG11B complex Deposited 2024-04-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain R 1–108（108 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.78 Å
9BJ9 Human CRL-2 ZYG11B binding to human NLRP1 Gly/N degron Deposited 2024-04-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain R 1–108（108 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
9EFM Cryo-EM structure of COP9 signalosome precatalytic state with neddylated cullin-1 Deposited 2024-11-20 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain K 1–108（108 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.16 Å
9EFQ Cryo-EM structure of COP9 signalosome precatalytic state with neddylated cullin-2 Deposited 2024-11-20 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain K 1–108（108 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.96 Å
9EFV Cryo-EM structure of CSN-N8CUL1 in complex with CSN5i-3 Deposited 2024-11-20 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain K 1–108（108 aa）
Not recorded 6LT 3-(difluoromethyl)-N-{6-[(5S,6S)-6-hydroxy-6,7,8,9-tetrahydro-5H-imidazo[1,5-a]azepin-5-yl][1,1'-biphenyl]-3-yl}-1-(propan-2-yl)-1H-pyrazole-5-carboxamide × 1 ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.03 Å
9EG8 Cryo-EM structure of COP9 signalosome precatalytic state with neddylated cullin-4A Deposited 2024-11-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain K 1–108（108 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.39 Å
9EGL Cryo-EM structure of COP9 signalosome precatalytic state with neddylated cullin-3 Deposited 2024-11-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain K 1–108（108 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.93 Å
9J63 Cryo-EM structure of neddylated Cul2-Rbx1-EloBC-FEM1B homodimer Deposited 2024-08-14 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain E 1–108（108 aa）
Chain H 1–108（108 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.93 Å
9J64 Cryo-EM structure of neddylated Cul2-Rbx1-EloBC-FEM1B homodimer complexed with FNIP1 degron Deposited 2024-08-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain E 1–108（108 aa）
Chain H 1–108（108 aa）
Not recorded ZN ZINC ION × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.28 Å
9J77 Cryo-EM structure of CRL2-FEM1B (dimer 1) Deposited 2024-08-18 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain E 16–108（93 aa）
Chain I 16–108（93 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.56 Å
9J78 Cryo-EM structure of CRL2-FEM1B (dimer 2) Deposited 2024-08-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain E 16–108（93 aa）
Chain I 16–108（93 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.88 Å
9J79 Cryo-EM structure of CRL2-FEM1B bound with TOM20(tetramer) Deposited 2024-08-18 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: 19-meric
Chain I 16–108（93 aa）
Chain N 16–108（93 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.08 Å
9JKB Cryo-EM structure of the CUL1-RBX1-SKP1-FBXO4 SCF ubiquition ligase complex Deposited 2024-09-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain R 16–108（93 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.93 Å
9KBD Cryo-EM structure of the CUL1-RBX1-SKP1-FBXO3 SCF ubiquition ligase complex Deposited 2024-10-30 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain R 1–108（108 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
9LKY Dimer of CRL2-FEM1B bound with PLD6 Deposited 2025-01-17 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: 11-meric
Chain E 16–108（93 aa）
Chain I 16–108（93 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.93 Å
9LWJ The head-arm region of HBx-Smc5/6 ubiquitination complex Deposited 2025-02-15 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain H 1–108（108 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.19 Å
9LWL HBx-Smc5/6 ubiquitination complex Deposited 2025-02-15 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain H 1–108（108 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.25 Å
9QO0 Pre-activated 9-subunit COP9 signalosome and neddylated SCF (Skp1-Skp2-Cks1) complex structure Deposited 2025-03-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: 15-meric
Chain J 1–108（108 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；15 mM Hepes pH 7.5, 120 mM NaCl, 0.5 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.26 Å
9QO1 Activated 9-subunit COP9 signalosome and neddylated SCF (SKP1-SKP2-CKS1) complex structure Deposited 2025-03-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain J 1–108（108 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.23 Å
9QO2 Dissociation-state-1 of 9-subunit CSN and SCF (SKP1-SKP2-CKS1) complex Deposited 2025-03-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: 14-meric
Chain J 1–108（108 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；15 mM Hepes pH 7.5, 120 mM NaCl, 0.5 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
9QO4 Dissociation-state-3 of 9-subunit CSN and SCF (SKP1-SKP2-CKS1) complex Deposited 2025-03-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: 14-meric
Chain J 1–108（108 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；15 mM Hepes pH 7.5, 120 mM NaCl, 0.5 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.95 Å
9QO5 Dissociation-state-4 of 9-subunit CSN and SCF (SKP1-SKP2-CKS1) complex Deposited 2025-03-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: 14-meric
Chain J 1–108（108 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；15 mM Hepes pH 7.5, 120 mM NaCl, 0.5 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
9T32 The Cullin 2 RING VHL E3 ligase dimerised by the homoPROTAC CM11 Deposited 2025-10-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain R 20–108（89 aa）
Chain S 20–108（89 aa）
Not recorded A1JTC (2~{S},4~{R})-1-[(2~{S})-2-[2-[2-[2-[2-[2-[2-[2-[[(2~{S})-3,3-dimethyl-1-[(2~{S},4~{R})-2-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methylcarbamoyl]-4-oxidanyl-pyrrolidin-1-yl]-1-oxidanylidene-butan-2-yl]amino]-2-oxidanylidene-ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethanoylamino]-3,3-dimethyl-butanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.90 Å
9UUM Cryo-EM structure of mezigdomide-organized CRL4-DDB1-CRBN-IKZF3(ZF2-ZF3)-UbcH5a-Ub ubiquitylation assembly Deposited 2025-05-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain R 2–108（107 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 3.41 Å
9V0A Cryo-EM structure of pomalidomide-organized CRL4-DDB1-CRBN-IKZF3(ZF2-ZF3)-UbcH5a-Ub ubiquitylation assembly Deposited 2025-05-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain R 2–108（107 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 3.69 Å
9V0B Cryo-EM structure of avadomide-organized CRL4-DDB1-CRBN-IKZF3(ZF2-ZF3)-UbcH5a-Ub ubiquitylation assembly Deposited 2025-05-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain R 2–108（107 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 3.54 Å
9V0F Cryo-EM structure of cemsidomide-organized CRL4-DDB1-CRBN-IKZF3(ZF2-ZF3)-UbcH5a-Ub ubiquitylation assembly Deposited 2025-05-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain R 2–108（107 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 3.71 Å
9XZJ Cryo-EM structure of F-box helicase 1 (FBH1) bound to an SCF ubiquitin ligase complex and a 3-way DNA fork (consensus structure) Deposited 2025-08-27 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: octameric
Chain R 1–108（108 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.13 Å
9XZK Cryo-EM structure of F-box helicase 1 (FBH1) bound to an SCF ubiquitin ligase complex and a 3-way DNA fork (head structure) Deposited 2025-08-27 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain R 1–108（108 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.91 Å

99 other PDB entries and 107 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name RBX1_HUMAN
Isoform —
PDB entities 8
Chains and sequence ranges Author chain H； PDBConstruct 1–108； UniProt 1–108

Structural maintenance of chromosomes protein 5

Homo sapiens

UniProt Q8IY18

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 9 PDB declaration: nonameric（9） Consistent with protein copy count Chain I； UniProt 1–1101 Not recorded Structural maintenance of chromosomes protein 6 × 1 （Q96SB8） DNA damage-binding protein 1 × 1 （Q16531） Protein X × 1 （Q2F514） EP300-interacting inhibitor of differentiation 3 × 1 （Q8N140） Non-structural maintenance of chromosomes element 3 homolog × 1 （Q96MG7） Non-structural maintenance of chromosomes element 1 homolog × 1 （Q8WV22） Cullin-4A × 1 （Q13619） E3 ubiquitin-protein ligase RBX1 × 1 （P62877） ZN ZINC ION × 6 ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.12 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9LWI Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
9LWJ The head-arm region of HBx-Smc5/6 ubiquitination complex Deposited 2025-02-15 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain I 1–1101（1101 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.19 Å
9LWK The hinge-arm region of HBx-Smc5/6 ubiquitination complex Deposited 2025-02-15 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 1–1101（1101 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.32 Å
9LWL HBx-Smc5/6 ubiquitination complex Deposited 2025-02-15 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain I 1–1101（1101 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.25 Å

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name SMC5_HUMAN
Isoform —
PDB entities 9
Chains and sequence ranges Author chain I； PDBConstruct 1–1101； UniProt 1–1101

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 9lwi

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 9lwi
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id9lwi
Deposition date deposition_date2025-02-15
Structure title titleThe head region of HBx-Smc5/6 ubiquitination complex
Keywords keywordsHBx, Smc5/6, Cul4A-RBx, HBV, ANTIVIRAL PROTEIN; ANTIVIRAL PROTEIN
Experimental Method methodELECTRON MICROSCOPY
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier59.07 Å
Radius of gyration Rg (electron density) rg_electron58.94 Å
Forward intensity I(0) i02250360000.00
Molecular weight molecular_weight400680.0 kDa
Excluded volume excluded_volume502610 ų
Envelope volume envelope_volume777200 ų
Hydration-shell volume shell_volume110400 ų
Envelope diameter envelope_diameter198.1 Å
Shell Rg shell_rg60.99 Å
Envelope Rg envelope_rg57.16 Å
Shape Rg shape_rg58.94 Å
Total Rg total_rg58.98 Å
Total atoms total_atoms28124
Residues n_residues3502
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax197.9 Å
Rg (real space) rg_real58.94 Å
Rg uncertainty (real space) rg_real_error1.98 Å
I(0) (real space) i0_real2.2500e+09
I(0) uncertainty (real space) i0_real_error4.8690e+07
Rg (reciprocal space) rg_reciprocal59.15 Å
I(0) (reciprocal space) i0_reciprocal2251000000.0000
Solution quality estimate total_estimate0.8838
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks1
Primary peak position r_peak_primary73.3 Å
Skewness Skewness skewness0.194
Kurtosis Kurtosis kurtosis-0.521
Angular range angular_range— – 0.1350 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha133800000.0000
Real-space data points n_real_points28
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.901; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.782
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (10)

▶

8. Citations (1)

▶

9. Files and Curves (10)
