SAXSdb — 6ud7

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DDB1- and CUL4-associated factor 15

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	DNA damage-binding protein 1,DNA damage-binding protein 1 × 1 （Q16531） RNA-binding motif protein 39 × 1 （Q7Z3L0） DET1- and DDB1-associated protein 1 × 1 （Q9BW61） GLYCEROL × 2 N~1~-(3-chloro-1H-indol-7-yl)benzene-1,4-disulfonamide × 1 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DCA15_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–601； UniProt 2–600

DNA damage-binding protein 1,DNA damage-binding protein 1

Homo sapiens

UniProt Q16531

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	DDB1- and CUL4-associated factor 15 × 1 （Q66K64） RNA-binding motif protein 39 × 1 （Q7Z3L0） DET1- and DDB1-associated protein 1 × 1 （Q9BW61） GLYCEROL × 2 N~1~-(3-chloro-1H-indol-7-yl)benzene-1,4-disulfonamide × 1 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DDB1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–395； UniProt 1–395 Author chain B； PDBConstruct 402–836； UniProt 706–1140

RNA-binding motif protein 39

Homo sapiens

UniProt Q7Z3L0

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	DDB1- and CUL4-associated factor 15 × 1 （Q66K64） DNA damage-binding protein 1,DNA damage-binding protein 1 × 1 （Q16531） DET1- and DDB1-associated protein 1 × 1 （Q9BW61） GLYCEROL × 2 N~1~-(3-chloro-1H-indol-7-yl)benzene-1,4-disulfonamide × 1 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q7Z3L0_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–81； UniProt 91–171

DET1- and DDB1-associated protein 1

Homo sapiens

UniProt Q9BW61

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	DDB1- and CUL4-associated factor 15 × 1 （Q66K64） DNA damage-binding protein 1,DNA damage-binding protein 1 × 1 （Q16531） RNA-binding motif protein 39 × 1 （Q7Z3L0） GLYCEROL × 2 N~1~-(3-chloro-1H-indol-7-yl)benzene-1,4-disulfonamide × 1 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DDA1_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–101； UniProt 2–102

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6ud7
Deposition date deposition_date	2019-09-18
Structure title title	Crystal structure of full-length human DCAF15-DDB1(deltaBPB)-DDA1-RBM39 in complex with indisulam
Keywords keywords	E3 ligase, neosubstrate, LIGASE; LIGASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6ud7__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

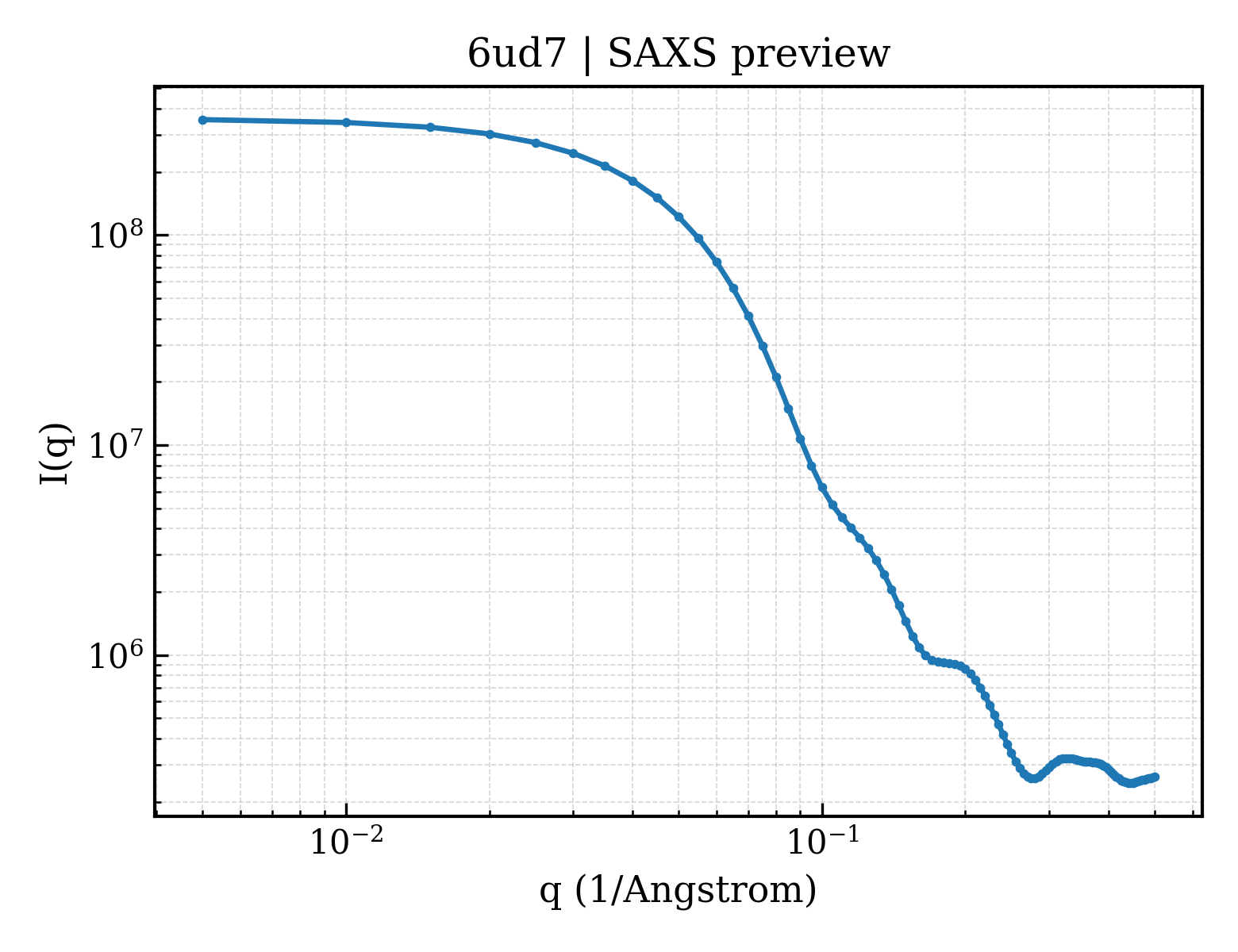

6ud7__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

6ud7__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	35.45 Å
Rg (electron density)	34.45 Å
Total Rg	35.05 Å
Atom count	10844
Residues	1386
Excluded volume	193420 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6ud7__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	DDB1- and CUL4-associated factor 15
Molecular weight formula_weight	66563.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	11635

GPAPSSKSERNSGAGSGGGGPGGAGGKRAAGRRREHVLKQLERVKISGQLSPRLFRKLPPRVCVSLKNIVDEDFLYAGHIFLGFSKCGRYVLSYTSSSGDDDFSFYIYHLYWWEFNVHSKLKLVRQVRLFQDEEIYSDLYLTVCEWPSDASKVIVFGFNTRSANGMLMNMMMMSDENHRDIYVSTVAVPPPGRCAACQDASRAHPGDPNAQCLRHGFMLHTKYQVVYPFPTFQPAFQLKKDQVVLLNTSYSLVACAVSVHSAGDRSFCQILYDHSTCPLAPASPPEPQSPELPPALPSFCPEAAPARSSGSPEPSPAIAKAKEFVADIFRRAKEAKGGVPEEARPALCPGPSGSRCRAHSEPLALCGETAPRDSPPASEAPASEPGYVNYTKLYYVLESGEGTEPEDELEDDKISLPFVVTDLRGRNLRPMRERTAVQGQYLTVEQLTLDFEYVINEVIRHDATWGHQFCSFSDYDIVILEVCPETNQVLINIGLLLLAFPSPTEEGQLRPKTYHTSLKVAWDLNTGIFETVSVGDLTEVKGQTSGSVWSSYRKSCVDMVMKWLVPESSGRYVNRMTNEALHKGCSLKVLADSERYTWIVL

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	DNA damage-binding protein 1,DNA damage-binding protein 1
Molecular weight formula_weight	93347.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MSYNYVVTAQKPTAVNGCVTGHFTSAEDLNLLIAKNTRLEIYVVTAEGLRPVKEVGMYGKIAVMELFRPKGESKDLLFILTAKYNACILEYKQSGESIDIITRAHGNVQDRIGRPSETGIIGIIDPECRMIGLRLYDGLFKVIPLDRDNKELKAFNIRLEELHVIDVKFLYGCQAPTICFVYQDPQGRHVKTYEVSLREKEFNKGPWKQENVEAEASMVIAVPEPFGGAIIIGQESITYHNGDKYLAIAPPIIKQSTIVCHNRVDPNGSRYLLGDMEGRLFMLLLEKEEQMDGTVTLKDLRVELLGETSIAECLTYLDNGVVFVGSRLGDSQLVKLNVDSNEQGSYVVAMETFTNLGPIVDMCVVDLERQGQGQLVTCSGAFKEGSLRIIRNGIGGNGNSGEIQKLHIRTVPLYESPRKICYQEVSQCFGVLSSRIEVQDTSGGTTALRPSASTQALSSSVSSSKLFSSSTAPHETSFGEEVEVHNLLIIDQHTFEVLHAHQFLQNEYALSLVSCKLGKDPNTYFIVGTAMVYPEEAEPKQGRIVVFQYSDGKLQTVAEKEVKGAVYSMVEFNGKLLASINSTVRLYEWTTEKELRTECNHYNNIMALYLKTKGDFILVGDLMRSVLLLAYKPMEGNFEEIARDFNPNWMSAVEILDDDNFLGAENAFNLFVCQKDSAATTDEERQHLQEVGLFHLGEFVNVFCHGSLVMQNLGETSTPTQGSVLFGTVNGMIGLVTSLSESWYNLLLDMQNRLNKVIKSVGKIEHSFWRSFHTERKTEPATGFIDGDLIESFLDISRPKMQEVVANLQYDDGSGMKREATADDLIKVVEELTRIH

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 3 Entity 3 polymer

Description description	RNA-binding motif protein 39
Molecular weight formula_weight	9085.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

GPMRLYVGSLHFNITEDMLRGIFEPFGRIESIQLMMDSETGRSKGYGFITFSDSECAKKALEQLNGFELAGRPMKVGHVTE

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	DET1- and DDB1-associated protein 1
Molecular weight formula_weight	11724.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

ADFLKGLPVYNKSNFSRFHADSVCKASNRRPSVYLPTREYPSEQIIVTEKTNILLRYLHQQWDKKNAAKKRDQEQVELEGESSAPPRKVARTDSPDMHEDT

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 5 Entity 5 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 non-polymer

Description description	N~1~-(3-chloro-1H-indol-7-yl)benzene-1,4-disulfonamide
Molecular weight formula_weight	385.8 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	744

▼

6. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d6ud7c_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.7 — RNA-binding domain, RBD, aka RNA recognition motif (RRM)
Family Family family	d.58.7.0 — automated matches

CATH v4.4 (4 domains)

Domain ID domain_id	6ud7B01
Class class	2 — Mainly Beta
Architecture architecture	130 — 7 Propeller
Topology topology	10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

Domain ID domain_id	6ud7B02
Class class	2 — Mainly Beta
Architecture architecture	130 — 7 Propeller
Topology topology	10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

Domain ID domain_id	6ud7B03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	150 — DNA polymerase; domain 1
Homologous superfamily homologous superfamily	910 —

Domain ID domain_id	6ud7C00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	330 — RRM (RNA recognition motif) domain

▶

Unit-cell length a length_a	81.032 Å
Unit-cell length b length_b	93.778 Å
Unit-cell length c length_c	264.639 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	69.100 Å
R factor r_factor	0.2070
R_work r_work	0.2050
R_free r_free	0.2480

Crystal structure of full-length human DCAF15-DDB1(deltaBPB)-DDA1-RBM39 in complex with indisulam
