SAXSdb — 8qh5

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

UV-stimulated scaffold protein A

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	DNA excision repair protein ERCC-8 × 1 （Q13216） DNA damage-binding protein 1 × 1 （Q16531） DET1- and DDB1-associated protein 1 × 1 （Q9BW61）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	UVSSA_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain D； PDBConstruct 21–729； UniProt 1–709

DNA excision repair protein ERCC-8

Homo sapiens

UniProt Q13216

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	UV-stimulated scaffold protein A × 1 （Q2YD98） DNA damage-binding protein 1 × 1 （Q16531） DET1- and DDB1-associated protein 1 × 1 （Q9BW61）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ERCC8_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 1–396； UniProt 1–396

DNA damage-binding protein 1

Homo sapiens

UniProt Q16531

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	UV-stimulated scaffold protein A × 1 （Q2YD98） DNA excision repair protein ERCC-8 × 1 （Q13216） DET1- and DDB1-associated protein 1 × 1 （Q9BW61）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DDB1_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain B； PDBConstruct 21–1160； UniProt 1–1140

DET1- and DDB1-associated protein 1

Homo sapiens

UniProt Q9BW61

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	UV-stimulated scaffold protein A × 1 （Q2YD98） DNA excision repair protein ERCC-8 × 1 （Q13216） DNA damage-binding protein 1 × 1 （Q16531）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DDA1_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain C； PDBConstruct 1–102； UniProt 1–102

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8qh5
Deposition date deposition_date	2023-09-06
Structure title title	CryoEM structure of UVSSA(VHS)-CSA-DDB1-DDA1
Keywords keywords	Ubiquitin ligase, DNA repair, LIGASE; LIGASE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8qh5__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8qh5__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

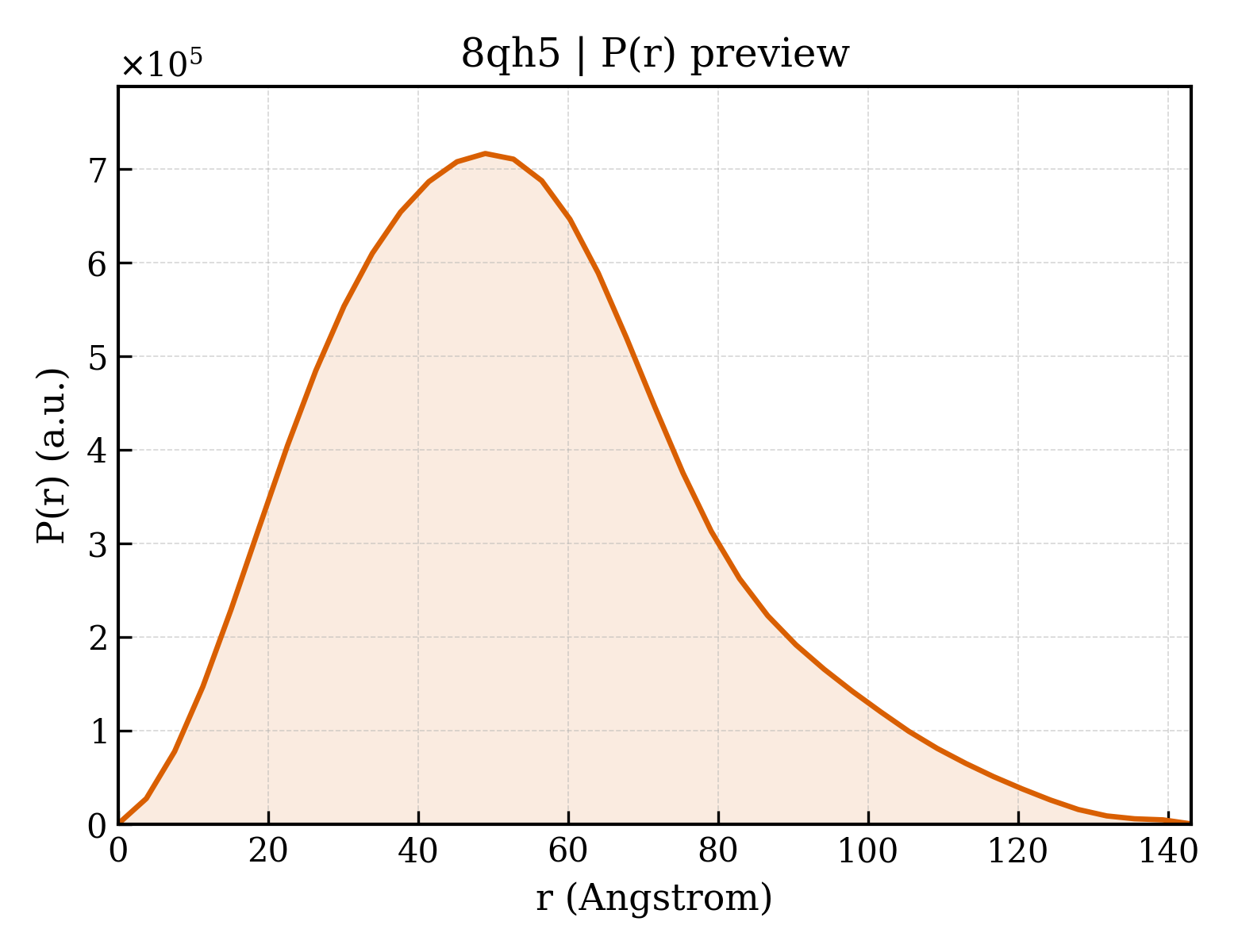

8qh5__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	41.28 Å
Rg (electron density)	40.98 Å
Total Rg	41.24 Å
Atom count	22744
Residues	1687
Excluded volume	236900 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8qh5__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	UV-stimulated scaffold protein A
Molecular weight formula_weight	82923.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D
Atom count atom_count	22744

MAHHHHHHSAALEVLFQGPGMDQKLSKLVEELTTSGEPRLNPEKMKELKKICKSSEEQLSRAYRLLIAQLTQEHAEIRLSAFQIVEELFVRSHQFRMLVVSNFQEFLELTLGTDPAQPLPPPREAAQRLRQATTRAVEGWNEKFGEAYKKLALGYHFLRHNKKVDFQDTNARSLAERKREEEKQKHLDKIYQERASQAEREMQEMSGEIESCLTEVESCFRLLVPFDFDPNPETESLGMASGMSDALRSSCAGQVGPCRSGTPDPRDGEQPCCSRDLPASAGHPRAGGGAQPSQTATGDPSDEDEDSDLEEFVRSHGLGSHKYTLDVELCSEGLKVQENEDNLALIHAARDTLKLIRNKFLPAVCSWIQRFTRVGTHGGCLKRAIDLKAELELVLRKYKELDIEPEGGERRRTEALGDAEEDEDDEDFVEVPEKEGYEPHIPDHLRPEYGLEAAPEKDTVVRCLRTRTRMDEEVSDPTSAAAQLRQLRDHLPPPSSASPSRALPEPQEAQKLAAERARAPVVPYGVDLHYWGQELPTAGKIVKSDSQHRFWKPSEVEEEVVNADISEMLRSRHITFAGKFEPVQHWCRAPRPDGRLCERQDRLKCPFHGKIVPRDDEGRPLDPEDRAREQRRQLQKQERPEWQDPELMRDVEAATGQDLGSSRYSGKGRGKKRRYPSLTNLKAQADTARARIGRKVFAKAAVRRVVAAMNRMDQKKHEKFSNQFNYALN

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	DNA excision repair protein ERCC-8
Molecular weight formula_weight	45465.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

MLGFLSARQTGLEDPLRLRRAESTRRVLGLELNKDRDVERIHGGGINTLDIEPVEGRYMLSGGSDGVIVLYDLENSSRQSYYTCKAVCSIGRDHPDVHRYSVETVQWYPHDTGMFTSSSFDKTLKVWDTNTLQTADVFNFEETVYSHHMSPVSTKHCLVAVGTRGPKVQLCDLKSGSCSHILQGHRQEILAVSWSPRYDYILATASADSRVKLWDVRRASGCLITLDQHNGKKSQAVESANTAHNGKVNGLCFTSDGLHLLTVGTDNRMRLWNSSNGENTLVNYGKVCNNSKKGLKFTVSCGCSSEFVFVPYGSTIAVYTVYSGEQITMLKGHYKTVDCCVFQSNFQELYSGSRDCNILAWVPSLYEPVPDDDETTTKSQLNPAFEDAWSSSDEEGGTSAWSHPQFEK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 3 Entity 3 polymer

Description description	DNA damage-binding protein 1
Molecular weight formula_weight	129298.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MAHHHHHHSAALEVLFQGPGMSYNYVVTAQKPTAVNGCVTGHFTSAEDLNLLIAKNTRLEIYVVTAEGLRPVKEVGMYGKIAVMELFRPKGESKDLLFILTAKYNACILEYKQSGESIDIITRAHGNVQDRIGRPSETGIIGIIDPECRMIGLRLYDGLFKVIPLDRDNKELKAFNIRLEELHVIDVKFLYGCQAPTICFVYQDPQGRHVKTYEVSLREKEFNKGPWKQENVEAEASMVIAVPEPFGGAIIIGQESITYHNGDKYLAIAPPIIKQSTIVCHNRVDPNGSRYLLGDMEGRLFMLLLEKEEQMDGTVTLKDLRVELLGETSIAECLTYLDNGVVFVGSRLGDSQLVKLNVDSNEQGSYVVAMETFTNLGPIVDMCVVDLERQGQGQLVTCSGAFKEGSLRIIRNGIGIHEHASIDLPGIKGLWPLRSDPNRETDDTLVLSFVGQTRVLMLNGEEVEETELMGFVDDQQTFFCGNVAHQQLIQITSASVRLVSQEPKALVSEWKEPQAKNISVASCNSSQVVVAVGRALYYLQIHPQELRQISHTEMEHEVACLDITPLGDSNGLSPLCAIGLWTDISARILKLPSFELLHKEMLGGEIIPRSILMTTFESSHYLLCALGDGALFYFGLNIETGLLSDRKKVTLGTQPTVLRTFRSLSTTNVFACSDRPTVIYSSNHKLVFSNVNLKEVNYMCPLNSDGYPDSLALANNSTLTIGTIDEIQKLHIRTVPLYESPRKICYQEVSQCFGVLSSRIEVQDTSGGTTALRPSASTQALSSSVSSSKLFSSSTAPHETSFGEEVEVHNLLIIDQHTFEVLHAHQFLQNEYALSLVSCKLGKDPNTYFIVGTAMVYPEEAEPKQGRIVVFQYSDGKLQTVAEKEVKGAVYSMVEFNGKLLASINSTVRLYEWTTEKELRTECNHYNNIMALYLKTKGDFILVGDLMRSVLLLAYKPMEGNFEEIARDFNPNWMSAVEILDDDNFLGAENAFNLFVCQKDSAATTDEERQHLQEVGLFHLGEFVNVFCHGSLVMQNLGETSTPTQGSVLFGTVNGMIGLVTSLSESWYNLLLDMQNRLNKVIKSVGKIEHSFWRSFHTERKTEPATGFIDGDLIESFLDISRPKMQEVVANLQYDDGSGMKREATADDLIKVVEELTRIH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 4 Entity 4 polymer

Description description	DET1- and DDB1-associated protein 1
Molecular weight formula_weight	16997.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MADFLKGLPVYNKSNFSRFHADSVCKASNRRPSVYLPTREYPSEQIIVTEKTNILLRYLHQQWDKKNAAKKRDQEQVELEGESSAPPRKVARTDSPDMHEDTDVLFQGPGAWSHPQFEKGGGSGGGSGGGSWSHPQFEKGASGEDYKDDDDK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.40 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	294142
