7oop

Pol II-CSB-CSA-DDB1-UVSSA-PAF-SPT6 (Structure 3)

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA-directed RNA polymerase II subunit RPB1

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 23 DNA 2 RNA 1	DNA-directed RNA polymerase subunit beta × 1 （I3LGP4） DNA-directed RNA polymerase II subunit RPB3 × 1 （I3LCH3） RPOL4c domain-containing protein × 1 （A0A287ADR4） DNA-directed RNA polymerase II subunit E × 1 （I3LSI7） DNA-directed RNA polymerase II subunit F × 1 （F1SKN8） DNA-directed RNA polymerase II subunit RPB7 × 1 （I3LJZ9） DNA-directed RNA polymerases I, II, and III subunit RPABC3 × 1 （A0A4X1ULF2） DNA-directed RNA polymerase II subunit RPB9 × 1 （P60899） DNA-directed RNA polymerases I, II, and III subunit RPABC5 × 1 （A0A4X1VYD0） RNA_pol_L_2 domain-containing protein × 1 （A0A4X1UK25） RNA polymerase II subunit K × 1 （I3LN51） Transcription elongation factor SPT6 × 1 （Q7KZ85） NTS × 1 RNA × 1 LEO1 helix × 1 RNA polymerase-associated protein CTR9 homolog × 1 （Q6PD62） TS × 1 RNA polymerase-associated protein LEO1 × 1 （Q8WVC0） RNA polymerase II-associated factor 1 homolog × 1 （Q8N7H5） WD repeat-containing protein 61 × 1 （Q9GZS3） Parafibromin × 1 （Q6P1J9） DNA excision repair protein ERCC-8 × 1 （Q13216） DNA excision repair protein ERCC-6 × 1 （Q03468） UV-stimulated scaffold protein A × 1 （Q2YD98） DNA damage-binding protein 1 × 1 （Q16531） ZINC ION × 8 MAGNESIUM ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RPB1_CRIGR
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–1970； UniProt 1–1970

DNA-directed RNA polymerase subunit beta

OrganismNot specified

UniProt I3LGP4

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 23 DNA 2 RNA 1	DNA-directed RNA polymerase II subunit RPB1 × 1 （P11414） DNA-directed RNA polymerase II subunit RPB3 × 1 （I3LCH3） RPOL4c domain-containing protein × 1 （A0A287ADR4） DNA-directed RNA polymerase II subunit E × 1 （I3LSI7） DNA-directed RNA polymerase II subunit F × 1 （F1SKN8） DNA-directed RNA polymerase II subunit RPB7 × 1 （I3LJZ9） DNA-directed RNA polymerases I, II, and III subunit RPABC3 × 1 （A0A4X1ULF2） DNA-directed RNA polymerase II subunit RPB9 × 1 （P60899） DNA-directed RNA polymerases I, II, and III subunit RPABC5 × 1 （A0A4X1VYD0） RNA_pol_L_2 domain-containing protein × 1 （A0A4X1UK25） RNA polymerase II subunit K × 1 （I3LN51） Transcription elongation factor SPT6 × 1 （Q7KZ85） NTS × 1 RNA × 1 LEO1 helix × 1 RNA polymerase-associated protein CTR9 homolog × 1 （Q6PD62） TS × 1 RNA polymerase-associated protein LEO1 × 1 （Q8WVC0） RNA polymerase II-associated factor 1 homolog × 1 （Q8N7H5） WD repeat-containing protein 61 × 1 （Q9GZS3） Parafibromin × 1 （Q6P1J9） DNA excision repair protein ERCC-8 × 1 （Q13216） DNA excision repair protein ERCC-6 × 1 （Q03468） UV-stimulated scaffold protein A × 1 （Q2YD98） DNA damage-binding protein 1 × 1 （Q16531） ZINC ION × 8 MAGNESIUM ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	I3LGP4_PIG
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–1174； UniProt 78–1251

DNA-directed RNA polymerase II subunit RPB3

OrganismNot specified

UniProt I3LCH3

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 23 DNA 2 RNA 1	DNA-directed RNA polymerase II subunit RPB1 × 1 （P11414） DNA-directed RNA polymerase subunit beta × 1 （I3LGP4） RPOL4c domain-containing protein × 1 （A0A287ADR4） DNA-directed RNA polymerase II subunit E × 1 （I3LSI7） DNA-directed RNA polymerase II subunit F × 1 （F1SKN8） DNA-directed RNA polymerase II subunit RPB7 × 1 （I3LJZ9） DNA-directed RNA polymerases I, II, and III subunit RPABC3 × 1 （A0A4X1ULF2） DNA-directed RNA polymerase II subunit RPB9 × 1 （P60899） DNA-directed RNA polymerases I, II, and III subunit RPABC5 × 1 （A0A4X1VYD0） RNA_pol_L_2 domain-containing protein × 1 （A0A4X1UK25） RNA polymerase II subunit K × 1 （I3LN51） Transcription elongation factor SPT6 × 1 （Q7KZ85） NTS × 1 RNA × 1 LEO1 helix × 1 RNA polymerase-associated protein CTR9 homolog × 1 （Q6PD62） TS × 1 RNA polymerase-associated protein LEO1 × 1 （Q8WVC0） RNA polymerase II-associated factor 1 homolog × 1 （Q8N7H5） WD repeat-containing protein 61 × 1 （Q9GZS3） Parafibromin × 1 （Q6P1J9） DNA excision repair protein ERCC-8 × 1 （Q13216） DNA excision repair protein ERCC-6 × 1 （Q03468） UV-stimulated scaffold protein A × 1 （Q2YD98） DNA damage-binding protein 1 × 1 （Q16531） ZINC ION × 8 MAGNESIUM ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	I3LCH3_PIG
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–275； UniProt 1–275

RPOL4c domain-containing protein

OrganismNot specified

UniProt A0A287ADR4

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 23 DNA 2 RNA 1	DNA-directed RNA polymerase II subunit RPB1 × 1 （P11414） DNA-directed RNA polymerase subunit beta × 1 （I3LGP4） DNA-directed RNA polymerase II subunit RPB3 × 1 （I3LCH3） DNA-directed RNA polymerase II subunit E × 1 （I3LSI7） DNA-directed RNA polymerase II subunit F × 1 （F1SKN8） DNA-directed RNA polymerase II subunit RPB7 × 1 （I3LJZ9） DNA-directed RNA polymerases I, II, and III subunit RPABC3 × 1 （A0A4X1ULF2） DNA-directed RNA polymerase II subunit RPB9 × 1 （P60899） DNA-directed RNA polymerases I, II, and III subunit RPABC5 × 1 （A0A4X1VYD0） RNA_pol_L_2 domain-containing protein × 1 （A0A4X1UK25） RNA polymerase II subunit K × 1 （I3LN51） Transcription elongation factor SPT6 × 1 （Q7KZ85） NTS × 1 RNA × 1 LEO1 helix × 1 RNA polymerase-associated protein CTR9 homolog × 1 （Q6PD62） TS × 1 RNA polymerase-associated protein LEO1 × 1 （Q8WVC0） RNA polymerase II-associated factor 1 homolog × 1 （Q8N7H5） WD repeat-containing protein 61 × 1 （Q9GZS3） Parafibromin × 1 （Q6P1J9） DNA excision repair protein ERCC-8 × 1 （Q13216） DNA excision repair protein ERCC-6 × 1 （Q03468） UV-stimulated scaffold protein A × 1 （Q2YD98） DNA damage-binding protein 1 × 1 （Q16531） ZINC ION × 8 MAGNESIUM ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A287ADR4_PIG
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–142； UniProt 43–184

DNA-directed RNA polymerase II subunit E

OrganismNot specified

UniProt I3LSI7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 23 DNA 2 RNA 1	DNA-directed RNA polymerase II subunit RPB1 × 1 （P11414） DNA-directed RNA polymerase subunit beta × 1 （I3LGP4） DNA-directed RNA polymerase II subunit RPB3 × 1 （I3LCH3） RPOL4c domain-containing protein × 1 （A0A287ADR4） DNA-directed RNA polymerase II subunit F × 1 （F1SKN8） DNA-directed RNA polymerase II subunit RPB7 × 1 （I3LJZ9） DNA-directed RNA polymerases I, II, and III subunit RPABC3 × 1 （A0A4X1ULF2） DNA-directed RNA polymerase II subunit RPB9 × 1 （P60899） DNA-directed RNA polymerases I, II, and III subunit RPABC5 × 1 （A0A4X1VYD0） RNA_pol_L_2 domain-containing protein × 1 （A0A4X1UK25） RNA polymerase II subunit K × 1 （I3LN51） Transcription elongation factor SPT6 × 1 （Q7KZ85） NTS × 1 RNA × 1 LEO1 helix × 1 RNA polymerase-associated protein CTR9 homolog × 1 （Q6PD62） TS × 1 RNA polymerase-associated protein LEO1 × 1 （Q8WVC0） RNA polymerase II-associated factor 1 homolog × 1 （Q8N7H5） WD repeat-containing protein 61 × 1 （Q9GZS3） Parafibromin × 1 （Q6P1J9） DNA excision repair protein ERCC-8 × 1 （Q13216） DNA excision repair protein ERCC-6 × 1 （Q03468） UV-stimulated scaffold protein A × 1 （Q2YD98） DNA damage-binding protein 1 × 1 （Q16531） ZINC ION × 8 MAGNESIUM ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	I3LSI7_PIG
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain E； PDBConstruct 1–210； UniProt 1–210

DNA-directed RNA polymerase II subunit F

OrganismNot specified

UniProt F1SKN8

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 23 DNA 2 RNA 1	DNA-directed RNA polymerase II subunit RPB1 × 1 （P11414） DNA-directed RNA polymerase subunit beta × 1 （I3LGP4） DNA-directed RNA polymerase II subunit RPB3 × 1 （I3LCH3） RPOL4c domain-containing protein × 1 （A0A287ADR4） DNA-directed RNA polymerase II subunit E × 1 （I3LSI7） DNA-directed RNA polymerase II subunit RPB7 × 1 （I3LJZ9） DNA-directed RNA polymerases I, II, and III subunit RPABC3 × 1 （A0A4X1ULF2） DNA-directed RNA polymerase II subunit RPB9 × 1 （P60899） DNA-directed RNA polymerases I, II, and III subunit RPABC5 × 1 （A0A4X1VYD0） RNA_pol_L_2 domain-containing protein × 1 （A0A4X1UK25） RNA polymerase II subunit K × 1 （I3LN51） Transcription elongation factor SPT6 × 1 （Q7KZ85） NTS × 1 RNA × 1 LEO1 helix × 1 RNA polymerase-associated protein CTR9 homolog × 1 （Q6PD62） TS × 1 RNA polymerase-associated protein LEO1 × 1 （Q8WVC0） RNA polymerase II-associated factor 1 homolog × 1 （Q8N7H5） WD repeat-containing protein 61 × 1 （Q9GZS3） Parafibromin × 1 （Q6P1J9） DNA excision repair protein ERCC-8 × 1 （Q13216） DNA excision repair protein ERCC-6 × 1 （Q03468） UV-stimulated scaffold protein A × 1 （Q2YD98） DNA damage-binding protein 1 × 1 （Q16531） ZINC ION × 8 MAGNESIUM ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	F1SKN8_PIG
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain F； PDBConstruct 1–127； UniProt 1–127

DNA-directed RNA polymerase II subunit RPB7

OrganismNot specified

UniProt I3LJZ9

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 23 DNA 2 RNA 1	DNA-directed RNA polymerase II subunit RPB1 × 1 （P11414） DNA-directed RNA polymerase subunit beta × 1 （I3LGP4） DNA-directed RNA polymerase II subunit RPB3 × 1 （I3LCH3） RPOL4c domain-containing protein × 1 （A0A287ADR4） DNA-directed RNA polymerase II subunit E × 1 （I3LSI7） DNA-directed RNA polymerase II subunit F × 1 （F1SKN8） DNA-directed RNA polymerases I, II, and III subunit RPABC3 × 1 （A0A4X1ULF2） DNA-directed RNA polymerase II subunit RPB9 × 1 （P60899） DNA-directed RNA polymerases I, II, and III subunit RPABC5 × 1 （A0A4X1VYD0） RNA_pol_L_2 domain-containing protein × 1 （A0A4X1UK25） RNA polymerase II subunit K × 1 （I3LN51） Transcription elongation factor SPT6 × 1 （Q7KZ85） NTS × 1 RNA × 1 LEO1 helix × 1 RNA polymerase-associated protein CTR9 homolog × 1 （Q6PD62） TS × 1 RNA polymerase-associated protein LEO1 × 1 （Q8WVC0） RNA polymerase II-associated factor 1 homolog × 1 （Q8N7H5） WD repeat-containing protein 61 × 1 （Q9GZS3） Parafibromin × 1 （Q6P1J9） DNA excision repair protein ERCC-8 × 1 （Q13216） DNA excision repair protein ERCC-6 × 1 （Q03468） UV-stimulated scaffold protein A × 1 （Q2YD98） DNA damage-binding protein 1 × 1 （Q16531） ZINC ION × 8 MAGNESIUM ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	I3LJZ9_PIG
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain G； PDBConstruct 1–172； UniProt 1–172

DNA-directed RNA polymerases I, II, and III subunit RPABC3

OrganismNot specified

UniProt A0A4X1ULF2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 23 DNA 2 RNA 1	DNA-directed RNA polymerase II subunit RPB1 × 1 （P11414） DNA-directed RNA polymerase subunit beta × 1 （I3LGP4） DNA-directed RNA polymerase II subunit RPB3 × 1 （I3LCH3） RPOL4c domain-containing protein × 1 （A0A287ADR4） DNA-directed RNA polymerase II subunit E × 1 （I3LSI7） DNA-directed RNA polymerase II subunit F × 1 （F1SKN8） DNA-directed RNA polymerase II subunit RPB7 × 1 （I3LJZ9） DNA-directed RNA polymerase II subunit RPB9 × 1 （P60899） DNA-directed RNA polymerases I, II, and III subunit RPABC5 × 1 （A0A4X1VYD0） RNA_pol_L_2 domain-containing protein × 1 （A0A4X1UK25） RNA polymerase II subunit K × 1 （I3LN51） Transcription elongation factor SPT6 × 1 （Q7KZ85） NTS × 1 RNA × 1 LEO1 helix × 1 RNA polymerase-associated protein CTR9 homolog × 1 （Q6PD62） TS × 1 RNA polymerase-associated protein LEO1 × 1 （Q8WVC0） RNA polymerase II-associated factor 1 homolog × 1 （Q8N7H5） WD repeat-containing protein 61 × 1 （Q9GZS3） Parafibromin × 1 （Q6P1J9） DNA excision repair protein ERCC-8 × 1 （Q13216） DNA excision repair protein ERCC-6 × 1 （Q03468） UV-stimulated scaffold protein A × 1 （Q2YD98） DNA damage-binding protein 1 × 1 （Q16531） ZINC ION × 8 MAGNESIUM ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A4X1ULF2_PIG
Isoform	—
PDB entities	8
Chains and sequence ranges	Author chain H； PDBConstruct 1–150； UniProt 1–150

DNA-directed RNA polymerase II subunit RPB9

OrganismNot specified

UniProt P60899

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 23 DNA 2 RNA 1	DNA-directed RNA polymerase II subunit RPB1 × 1 （P11414） DNA-directed RNA polymerase subunit beta × 1 （I3LGP4） DNA-directed RNA polymerase II subunit RPB3 × 1 （I3LCH3） RPOL4c domain-containing protein × 1 （A0A287ADR4） DNA-directed RNA polymerase II subunit E × 1 （I3LSI7） DNA-directed RNA polymerase II subunit F × 1 （F1SKN8） DNA-directed RNA polymerase II subunit RPB7 × 1 （I3LJZ9） DNA-directed RNA polymerases I, II, and III subunit RPABC3 × 1 （A0A4X1ULF2） DNA-directed RNA polymerases I, II, and III subunit RPABC5 × 1 （A0A4X1VYD0） RNA_pol_L_2 domain-containing protein × 1 （A0A4X1UK25） RNA polymerase II subunit K × 1 （I3LN51） Transcription elongation factor SPT6 × 1 （Q7KZ85） NTS × 1 RNA × 1 LEO1 helix × 1 RNA polymerase-associated protein CTR9 homolog × 1 （Q6PD62） TS × 1 RNA polymerase-associated protein LEO1 × 1 （Q8WVC0） RNA polymerase II-associated factor 1 homolog × 1 （Q8N7H5） WD repeat-containing protein 61 × 1 （Q9GZS3） Parafibromin × 1 （Q6P1J9） DNA excision repair protein ERCC-8 × 1 （Q13216） DNA excision repair protein ERCC-6 × 1 （Q03468） UV-stimulated scaffold protein A × 1 （Q2YD98） DNA damage-binding protein 1 × 1 （Q16531） ZINC ION × 8 MAGNESIUM ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RPB9_PIG
Isoform	—
PDB entities	9
Chains and sequence ranges	Author chain I； PDBConstruct 1–125； UniProt 1–125

DNA-directed RNA polymerases I, II, and III subunit RPABC5

OrganismNot specified

UniProt A0A4X1VYD0

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 23 DNA 2 RNA 1	DNA-directed RNA polymerase II subunit RPB1 × 1 （P11414） DNA-directed RNA polymerase subunit beta × 1 （I3LGP4） DNA-directed RNA polymerase II subunit RPB3 × 1 （I3LCH3） RPOL4c domain-containing protein × 1 （A0A287ADR4） DNA-directed RNA polymerase II subunit E × 1 （I3LSI7） DNA-directed RNA polymerase II subunit F × 1 （F1SKN8） DNA-directed RNA polymerase II subunit RPB7 × 1 （I3LJZ9） DNA-directed RNA polymerases I, II, and III subunit RPABC3 × 1 （A0A4X1ULF2） DNA-directed RNA polymerase II subunit RPB9 × 1 （P60899） RNA_pol_L_2 domain-containing protein × 1 （A0A4X1UK25） RNA polymerase II subunit K × 1 （I3LN51） Transcription elongation factor SPT6 × 1 （Q7KZ85） NTS × 1 RNA × 1 LEO1 helix × 1 RNA polymerase-associated protein CTR9 homolog × 1 （Q6PD62） TS × 1 RNA polymerase-associated protein LEO1 × 1 （Q8WVC0） RNA polymerase II-associated factor 1 homolog × 1 （Q8N7H5） WD repeat-containing protein 61 × 1 （Q9GZS3） Parafibromin × 1 （Q6P1J9） DNA excision repair protein ERCC-8 × 1 （Q13216） DNA excision repair protein ERCC-6 × 1 （Q03468） UV-stimulated scaffold protein A × 1 （Q2YD98） DNA damage-binding protein 1 × 1 （Q16531） ZINC ION × 8 MAGNESIUM ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A4X1VYD0_PIG
Isoform	—
PDB entities	10
Chains and sequence ranges	Author chain J； PDBConstruct 1–67； UniProt 1–67

RNA_pol_L_2 domain-containing protein

OrganismNot specified

UniProt A0A4X1UK25

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 23 DNA 2 RNA 1	DNA-directed RNA polymerase II subunit RPB1 × 1 （P11414） DNA-directed RNA polymerase subunit beta × 1 （I3LGP4） DNA-directed RNA polymerase II subunit RPB3 × 1 （I3LCH3） RPOL4c domain-containing protein × 1 （A0A287ADR4） DNA-directed RNA polymerase II subunit E × 1 （I3LSI7） DNA-directed RNA polymerase II subunit F × 1 （F1SKN8） DNA-directed RNA polymerase II subunit RPB7 × 1 （I3LJZ9） DNA-directed RNA polymerases I, II, and III subunit RPABC3 × 1 （A0A4X1ULF2） DNA-directed RNA polymerase II subunit RPB9 × 1 （P60899） DNA-directed RNA polymerases I, II, and III subunit RPABC5 × 1 （A0A4X1VYD0） RNA polymerase II subunit K × 1 （I3LN51） Transcription elongation factor SPT6 × 1 （Q7KZ85） NTS × 1 RNA × 1 LEO1 helix × 1 RNA polymerase-associated protein CTR9 homolog × 1 （Q6PD62） TS × 1 RNA polymerase-associated protein LEO1 × 1 （Q8WVC0） RNA polymerase II-associated factor 1 homolog × 1 （Q8N7H5） WD repeat-containing protein 61 × 1 （Q9GZS3） Parafibromin × 1 （Q6P1J9） DNA excision repair protein ERCC-8 × 1 （Q13216） DNA excision repair protein ERCC-6 × 1 （Q03468） UV-stimulated scaffold protein A × 1 （Q2YD98） DNA damage-binding protein 1 × 1 （Q16531） ZINC ION × 8 MAGNESIUM ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A4X1UK25_PIG
Isoform	—
PDB entities	11
Chains and sequence ranges	Author chain K； PDBConstruct 1–117； UniProt 1–117

RNA polymerase II subunit K

OrganismNot specified

UniProt I3LN51

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 23 DNA 2 RNA 1	DNA-directed RNA polymerase II subunit RPB1 × 1 （P11414） DNA-directed RNA polymerase subunit beta × 1 （I3LGP4） DNA-directed RNA polymerase II subunit RPB3 × 1 （I3LCH3） RPOL4c domain-containing protein × 1 （A0A287ADR4） DNA-directed RNA polymerase II subunit E × 1 （I3LSI7） DNA-directed RNA polymerase II subunit F × 1 （F1SKN8） DNA-directed RNA polymerase II subunit RPB7 × 1 （I3LJZ9） DNA-directed RNA polymerases I, II, and III subunit RPABC3 × 1 （A0A4X1ULF2） DNA-directed RNA polymerase II subunit RPB9 × 1 （P60899） DNA-directed RNA polymerases I, II, and III subunit RPABC5 × 1 （A0A4X1VYD0） RNA_pol_L_2 domain-containing protein × 1 （A0A4X1UK25） Transcription elongation factor SPT6 × 1 （Q7KZ85） NTS × 1 RNA × 1 LEO1 helix × 1 RNA polymerase-associated protein CTR9 homolog × 1 （Q6PD62） TS × 1 RNA polymerase-associated protein LEO1 × 1 （Q8WVC0） RNA polymerase II-associated factor 1 homolog × 1 （Q8N7H5） WD repeat-containing protein 61 × 1 （Q9GZS3） Parafibromin × 1 （Q6P1J9） DNA excision repair protein ERCC-8 × 1 （Q13216） DNA excision repair protein ERCC-6 × 1 （Q03468） UV-stimulated scaffold protein A × 1 （Q2YD98） DNA damage-binding protein 1 × 1 （Q16531） ZINC ION × 8 MAGNESIUM ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	I3LN51_PIG
Isoform	—
PDB entities	12
Chains and sequence ranges	Author chain L； PDBConstruct 1–58； UniProt 1–58

Transcription elongation factor SPT6

Homo sapiens

UniProt Q7KZ85

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 23 DNA 2 RNA 1	DNA-directed RNA polymerase II subunit RPB1 × 1 （P11414） DNA-directed RNA polymerase subunit beta × 1 （I3LGP4） DNA-directed RNA polymerase II subunit RPB3 × 1 （I3LCH3） RPOL4c domain-containing protein × 1 （A0A287ADR4） DNA-directed RNA polymerase II subunit E × 1 （I3LSI7） DNA-directed RNA polymerase II subunit F × 1 （F1SKN8） DNA-directed RNA polymerase II subunit RPB7 × 1 （I3LJZ9） DNA-directed RNA polymerases I, II, and III subunit RPABC3 × 1 （A0A4X1ULF2） DNA-directed RNA polymerase II subunit RPB9 × 1 （P60899） DNA-directed RNA polymerases I, II, and III subunit RPABC5 × 1 （A0A4X1VYD0） RNA_pol_L_2 domain-containing protein × 1 （A0A4X1UK25） RNA polymerase II subunit K × 1 （I3LN51） NTS × 1 RNA × 1 LEO1 helix × 1 RNA polymerase-associated protein CTR9 homolog × 1 （Q6PD62） TS × 1 RNA polymerase-associated protein LEO1 × 1 （Q8WVC0） RNA polymerase II-associated factor 1 homolog × 1 （Q8N7H5） WD repeat-containing protein 61 × 1 （Q9GZS3） Parafibromin × 1 （Q6P1J9） DNA excision repair protein ERCC-8 × 1 （Q13216） DNA excision repair protein ERCC-6 × 1 （Q03468） UV-stimulated scaffold protein A × 1 （Q2YD98） DNA damage-binding protein 1 × 1 （Q16531） ZINC ION × 8 MAGNESIUM ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SPT6H_HUMAN
Isoform	—
PDB entities	13
Chains and sequence ranges	Author chain M； PDBConstruct 1–1726； UniProt 1–1726

RNA polymerase-associated protein CTR9 homolog

Homo sapiens

UniProt Q6PD62

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 23 DNA 2 RNA 1	DNA-directed RNA polymerase II subunit RPB1 × 1 （P11414） DNA-directed RNA polymerase subunit beta × 1 （I3LGP4） DNA-directed RNA polymerase II subunit RPB3 × 1 （I3LCH3） RPOL4c domain-containing protein × 1 （A0A287ADR4） DNA-directed RNA polymerase II subunit E × 1 （I3LSI7） DNA-directed RNA polymerase II subunit F × 1 （F1SKN8） DNA-directed RNA polymerase II subunit RPB7 × 1 （I3LJZ9） DNA-directed RNA polymerases I, II, and III subunit RPABC3 × 1 （A0A4X1ULF2） DNA-directed RNA polymerase II subunit RPB9 × 1 （P60899） DNA-directed RNA polymerases I, II, and III subunit RPABC5 × 1 （A0A4X1VYD0） RNA_pol_L_2 domain-containing protein × 1 （A0A4X1UK25） RNA polymerase II subunit K × 1 （I3LN51） Transcription elongation factor SPT6 × 1 （Q7KZ85） NTS × 1 RNA × 1 LEO1 helix × 1 TS × 1 RNA polymerase-associated protein LEO1 × 1 （Q8WVC0） RNA polymerase II-associated factor 1 homolog × 1 （Q8N7H5） WD repeat-containing protein 61 × 1 （Q9GZS3） Parafibromin × 1 （Q6P1J9） DNA excision repair protein ERCC-8 × 1 （Q13216） DNA excision repair protein ERCC-6 × 1 （Q03468） UV-stimulated scaffold protein A × 1 （Q2YD98） DNA damage-binding protein 1 × 1 （Q16531） ZINC ION × 8 MAGNESIUM ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CTR9_HUMAN
Isoform	—
PDB entities	17
Chains and sequence ranges	Author chain S； PDBConstruct 1–1173； UniProt 1–1173

RNA polymerase-associated protein LEO1

Homo sapiens

UniProt Q8WVC0

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 23 DNA 2 RNA 1	DNA-directed RNA polymerase II subunit RPB1 × 1 （P11414） DNA-directed RNA polymerase subunit beta × 1 （I3LGP4） DNA-directed RNA polymerase II subunit RPB3 × 1 （I3LCH3） RPOL4c domain-containing protein × 1 （A0A287ADR4） DNA-directed RNA polymerase II subunit E × 1 （I3LSI7） DNA-directed RNA polymerase II subunit F × 1 （F1SKN8） DNA-directed RNA polymerase II subunit RPB7 × 1 （I3LJZ9） DNA-directed RNA polymerases I, II, and III subunit RPABC3 × 1 （A0A4X1ULF2） DNA-directed RNA polymerase II subunit RPB9 × 1 （P60899） DNA-directed RNA polymerases I, II, and III subunit RPABC5 × 1 （A0A4X1VYD0） RNA_pol_L_2 domain-containing protein × 1 （A0A4X1UK25） RNA polymerase II subunit K × 1 （I3LN51） Transcription elongation factor SPT6 × 1 （Q7KZ85） NTS × 1 RNA × 1 LEO1 helix × 1 RNA polymerase-associated protein CTR9 homolog × 1 （Q6PD62） TS × 1 RNA polymerase II-associated factor 1 homolog × 1 （Q8N7H5） WD repeat-containing protein 61 × 1 （Q9GZS3） Parafibromin × 1 （Q6P1J9） DNA excision repair protein ERCC-8 × 1 （Q13216） DNA excision repair protein ERCC-6 × 1 （Q03468） UV-stimulated scaffold protein A × 1 （Q2YD98） DNA damage-binding protein 1 × 1 （Q16531） ZINC ION × 8 MAGNESIUM ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	LEO1_HUMAN
Isoform	—
PDB entities	19
Chains and sequence ranges	Author chain U； PDBConstruct 1–666； UniProt 1–666

RNA polymerase II-associated factor 1 homolog

Homo sapiens

UniProt Q8N7H5

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 23 DNA 2 RNA 1	DNA-directed RNA polymerase II subunit RPB1 × 1 （P11414） DNA-directed RNA polymerase subunit beta × 1 （I3LGP4） DNA-directed RNA polymerase II subunit RPB3 × 1 （I3LCH3） RPOL4c domain-containing protein × 1 （A0A287ADR4） DNA-directed RNA polymerase II subunit E × 1 （I3LSI7） DNA-directed RNA polymerase II subunit F × 1 （F1SKN8） DNA-directed RNA polymerase II subunit RPB7 × 1 （I3LJZ9） DNA-directed RNA polymerases I, II, and III subunit RPABC3 × 1 （A0A4X1ULF2） DNA-directed RNA polymerase II subunit RPB9 × 1 （P60899） DNA-directed RNA polymerases I, II, and III subunit RPABC5 × 1 （A0A4X1VYD0） RNA_pol_L_2 domain-containing protein × 1 （A0A4X1UK25） RNA polymerase II subunit K × 1 （I3LN51） Transcription elongation factor SPT6 × 1 （Q7KZ85） NTS × 1 RNA × 1 LEO1 helix × 1 RNA polymerase-associated protein CTR9 homolog × 1 （Q6PD62） TS × 1 RNA polymerase-associated protein LEO1 × 1 （Q8WVC0） WD repeat-containing protein 61 × 1 （Q9GZS3） Parafibromin × 1 （Q6P1J9） DNA excision repair protein ERCC-8 × 1 （Q13216） DNA excision repair protein ERCC-6 × 1 （Q03468） UV-stimulated scaffold protein A × 1 （Q2YD98） DNA damage-binding protein 1 × 1 （Q16531） ZINC ION × 8 MAGNESIUM ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PAF1_HUMAN
Isoform	—
PDB entities	20
Chains and sequence ranges	Author chain V； PDBConstruct 1–531； UniProt 1–531

WD repeat-containing protein 61

Homo sapiens

UniProt Q9GZS3

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 23 DNA 2 RNA 1	DNA-directed RNA polymerase II subunit RPB1 × 1 （P11414） DNA-directed RNA polymerase subunit beta × 1 （I3LGP4） DNA-directed RNA polymerase II subunit RPB3 × 1 （I3LCH3） RPOL4c domain-containing protein × 1 （A0A287ADR4） DNA-directed RNA polymerase II subunit E × 1 （I3LSI7） DNA-directed RNA polymerase II subunit F × 1 （F1SKN8） DNA-directed RNA polymerase II subunit RPB7 × 1 （I3LJZ9） DNA-directed RNA polymerases I, II, and III subunit RPABC3 × 1 （A0A4X1ULF2） DNA-directed RNA polymerase II subunit RPB9 × 1 （P60899） DNA-directed RNA polymerases I, II, and III subunit RPABC5 × 1 （A0A4X1VYD0） RNA_pol_L_2 domain-containing protein × 1 （A0A4X1UK25） RNA polymerase II subunit K × 1 （I3LN51） Transcription elongation factor SPT6 × 1 （Q7KZ85） NTS × 1 RNA × 1 LEO1 helix × 1 RNA polymerase-associated protein CTR9 homolog × 1 （Q6PD62） TS × 1 RNA polymerase-associated protein LEO1 × 1 （Q8WVC0） RNA polymerase II-associated factor 1 homolog × 1 （Q8N7H5） Parafibromin × 1 （Q6P1J9） DNA excision repair protein ERCC-8 × 1 （Q13216） DNA excision repair protein ERCC-6 × 1 （Q03468） UV-stimulated scaffold protein A × 1 （Q2YD98） DNA damage-binding protein 1 × 1 （Q16531） ZINC ION × 8 MAGNESIUM ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	WDR61_HUMAN
Isoform	—
PDB entities	21
Chains and sequence ranges	Author chain Y； PDBConstruct 1–305； UniProt 1–305

Parafibromin

Homo sapiens

UniProt Q6P1J9

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 23 DNA 2 RNA 1	DNA-directed RNA polymerase II subunit RPB1 × 1 （P11414） DNA-directed RNA polymerase subunit beta × 1 （I3LGP4） DNA-directed RNA polymerase II subunit RPB3 × 1 （I3LCH3） RPOL4c domain-containing protein × 1 （A0A287ADR4） DNA-directed RNA polymerase II subunit E × 1 （I3LSI7） DNA-directed RNA polymerase II subunit F × 1 （F1SKN8） DNA-directed RNA polymerase II subunit RPB7 × 1 （I3LJZ9） DNA-directed RNA polymerases I, II, and III subunit RPABC3 × 1 （A0A4X1ULF2） DNA-directed RNA polymerase II subunit RPB9 × 1 （P60899） DNA-directed RNA polymerases I, II, and III subunit RPABC5 × 1 （A0A4X1VYD0） RNA_pol_L_2 domain-containing protein × 1 （A0A4X1UK25） RNA polymerase II subunit K × 1 （I3LN51） Transcription elongation factor SPT6 × 1 （Q7KZ85） NTS × 1 RNA × 1 LEO1 helix × 1 RNA polymerase-associated protein CTR9 homolog × 1 （Q6PD62） TS × 1 RNA polymerase-associated protein LEO1 × 1 （Q8WVC0） RNA polymerase II-associated factor 1 homolog × 1 （Q8N7H5） WD repeat-containing protein 61 × 1 （Q9GZS3） DNA excision repair protein ERCC-8 × 1 （Q13216） DNA excision repair protein ERCC-6 × 1 （Q03468） UV-stimulated scaffold protein A × 1 （Q2YD98） DNA damage-binding protein 1 × 1 （Q16531） ZINC ION × 8 MAGNESIUM ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CDC73_HUMAN
Isoform	—
PDB entities	22
Chains and sequence ranges	Author chain Z； PDBConstruct 1–531； UniProt 1–531

DNA excision repair protein ERCC-8

Homo sapiens

UniProt Q13216

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 23 DNA 2 RNA 1	DNA-directed RNA polymerase II subunit RPB1 × 1 （P11414） DNA-directed RNA polymerase subunit beta × 1 （I3LGP4） DNA-directed RNA polymerase II subunit RPB3 × 1 （I3LCH3） RPOL4c domain-containing protein × 1 （A0A287ADR4） DNA-directed RNA polymerase II subunit E × 1 （I3LSI7） DNA-directed RNA polymerase II subunit F × 1 （F1SKN8） DNA-directed RNA polymerase II subunit RPB7 × 1 （I3LJZ9） DNA-directed RNA polymerases I, II, and III subunit RPABC3 × 1 （A0A4X1ULF2） DNA-directed RNA polymerase II subunit RPB9 × 1 （P60899） DNA-directed RNA polymerases I, II, and III subunit RPABC5 × 1 （A0A4X1VYD0） RNA_pol_L_2 domain-containing protein × 1 （A0A4X1UK25） RNA polymerase II subunit K × 1 （I3LN51） Transcription elongation factor SPT6 × 1 （Q7KZ85） NTS × 1 RNA × 1 LEO1 helix × 1 RNA polymerase-associated protein CTR9 homolog × 1 （Q6PD62） TS × 1 RNA polymerase-associated protein LEO1 × 1 （Q8WVC0） RNA polymerase II-associated factor 1 homolog × 1 （Q8N7H5） WD repeat-containing protein 61 × 1 （Q9GZS3） Parafibromin × 1 （Q6P1J9） DNA excision repair protein ERCC-6 × 1 （Q03468） UV-stimulated scaffold protein A × 1 （Q2YD98） DNA damage-binding protein 1 × 1 （Q16531） ZINC ION × 8 MAGNESIUM ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ERCC8_HUMAN
Isoform	—
PDB entities	23
Chains and sequence ranges	Author chain a； PDBConstruct 1–396； UniProt 1–396

DNA excision repair protein ERCC-6

Homo sapiens

UniProt Q03468

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 23 DNA 2 RNA 1	DNA-directed RNA polymerase II subunit RPB1 × 1 （P11414） DNA-directed RNA polymerase subunit beta × 1 （I3LGP4） DNA-directed RNA polymerase II subunit RPB3 × 1 （I3LCH3） RPOL4c domain-containing protein × 1 （A0A287ADR4） DNA-directed RNA polymerase II subunit E × 1 （I3LSI7） DNA-directed RNA polymerase II subunit F × 1 （F1SKN8） DNA-directed RNA polymerase II subunit RPB7 × 1 （I3LJZ9） DNA-directed RNA polymerases I, II, and III subunit RPABC3 × 1 （A0A4X1ULF2） DNA-directed RNA polymerase II subunit RPB9 × 1 （P60899） DNA-directed RNA polymerases I, II, and III subunit RPABC5 × 1 （A0A4X1VYD0） RNA_pol_L_2 domain-containing protein × 1 （A0A4X1UK25） RNA polymerase II subunit K × 1 （I3LN51） Transcription elongation factor SPT6 × 1 （Q7KZ85） NTS × 1 RNA × 1 LEO1 helix × 1 RNA polymerase-associated protein CTR9 homolog × 1 （Q6PD62） TS × 1 RNA polymerase-associated protein LEO1 × 1 （Q8WVC0） RNA polymerase II-associated factor 1 homolog × 1 （Q8N7H5） WD repeat-containing protein 61 × 1 （Q9GZS3） Parafibromin × 1 （Q6P1J9） DNA excision repair protein ERCC-8 × 1 （Q13216） UV-stimulated scaffold protein A × 1 （Q2YD98） DNA damage-binding protein 1 × 1 （Q16531） ZINC ION × 8 MAGNESIUM ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ERCC6_HUMAN
Isoform	—
PDB entities	24
Chains and sequence ranges	Author chain b； PDBConstruct 1–1493； UniProt 1–1493

UV-stimulated scaffold protein A

Homo sapiens

UniProt Q2YD98

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 23 DNA 2 RNA 1	DNA-directed RNA polymerase II subunit RPB1 × 1 （P11414） DNA-directed RNA polymerase subunit beta × 1 （I3LGP4） DNA-directed RNA polymerase II subunit RPB3 × 1 （I3LCH3） RPOL4c domain-containing protein × 1 （A0A287ADR4） DNA-directed RNA polymerase II subunit E × 1 （I3LSI7） DNA-directed RNA polymerase II subunit F × 1 （F1SKN8） DNA-directed RNA polymerase II subunit RPB7 × 1 （I3LJZ9） DNA-directed RNA polymerases I, II, and III subunit RPABC3 × 1 （A0A4X1ULF2） DNA-directed RNA polymerase II subunit RPB9 × 1 （P60899） DNA-directed RNA polymerases I, II, and III subunit RPABC5 × 1 （A0A4X1VYD0） RNA_pol_L_2 domain-containing protein × 1 （A0A4X1UK25） RNA polymerase II subunit K × 1 （I3LN51） Transcription elongation factor SPT6 × 1 （Q7KZ85） NTS × 1 RNA × 1 LEO1 helix × 1 RNA polymerase-associated protein CTR9 homolog × 1 （Q6PD62） TS × 1 RNA polymerase-associated protein LEO1 × 1 （Q8WVC0） RNA polymerase II-associated factor 1 homolog × 1 （Q8N7H5） WD repeat-containing protein 61 × 1 （Q9GZS3） Parafibromin × 1 （Q6P1J9） DNA excision repair protein ERCC-8 × 1 （Q13216） DNA excision repair protein ERCC-6 × 1 （Q03468） DNA damage-binding protein 1 × 1 （Q16531） ZINC ION × 8 MAGNESIUM ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	UVSSA_HUMAN
Isoform	—
PDB entities	25
Chains and sequence ranges	Author chain c； PDBConstruct 1–709； UniProt 1–709

DNA damage-binding protein 1

Homo sapiens

UniProt Q16531

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 23 DNA 2 RNA 1	DNA-directed RNA polymerase II subunit RPB1 × 1 （P11414） DNA-directed RNA polymerase subunit beta × 1 （I3LGP4） DNA-directed RNA polymerase II subunit RPB3 × 1 （I3LCH3） RPOL4c domain-containing protein × 1 （A0A287ADR4） DNA-directed RNA polymerase II subunit E × 1 （I3LSI7） DNA-directed RNA polymerase II subunit F × 1 （F1SKN8） DNA-directed RNA polymerase II subunit RPB7 × 1 （I3LJZ9） DNA-directed RNA polymerases I, II, and III subunit RPABC3 × 1 （A0A4X1ULF2） DNA-directed RNA polymerase II subunit RPB9 × 1 （P60899） DNA-directed RNA polymerases I, II, and III subunit RPABC5 × 1 （A0A4X1VYD0） RNA_pol_L_2 domain-containing protein × 1 （A0A4X1UK25） RNA polymerase II subunit K × 1 （I3LN51） Transcription elongation factor SPT6 × 1 （Q7KZ85） NTS × 1 RNA × 1 LEO1 helix × 1 RNA polymerase-associated protein CTR9 homolog × 1 （Q6PD62） TS × 1 RNA polymerase-associated protein LEO1 × 1 （Q8WVC0） RNA polymerase II-associated factor 1 homolog × 1 （Q8N7H5） WD repeat-containing protein 61 × 1 （Q9GZS3） Parafibromin × 1 （Q6P1J9） DNA excision repair protein ERCC-8 × 1 （Q13216） DNA excision repair protein ERCC-6 × 1 （Q03468） UV-stimulated scaffold protein A × 1 （Q2YD98） ZINC ION × 8 MAGNESIUM ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DDB1_HUMAN
Isoform	—
PDB entities	26
Chains and sequence ranges	Author chain d； PDBConstruct 1–1140； UniProt 1–1140

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7oop
Deposition date deposition_date	2021-05-28
Structure title title	Pol II-CSB-CSA-DDB1-UVSSA-PAF-SPT6 (Structure 3)
Keywords keywords	transcription, DNA repair, TCR; TRANSCRIPTION
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7oop__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

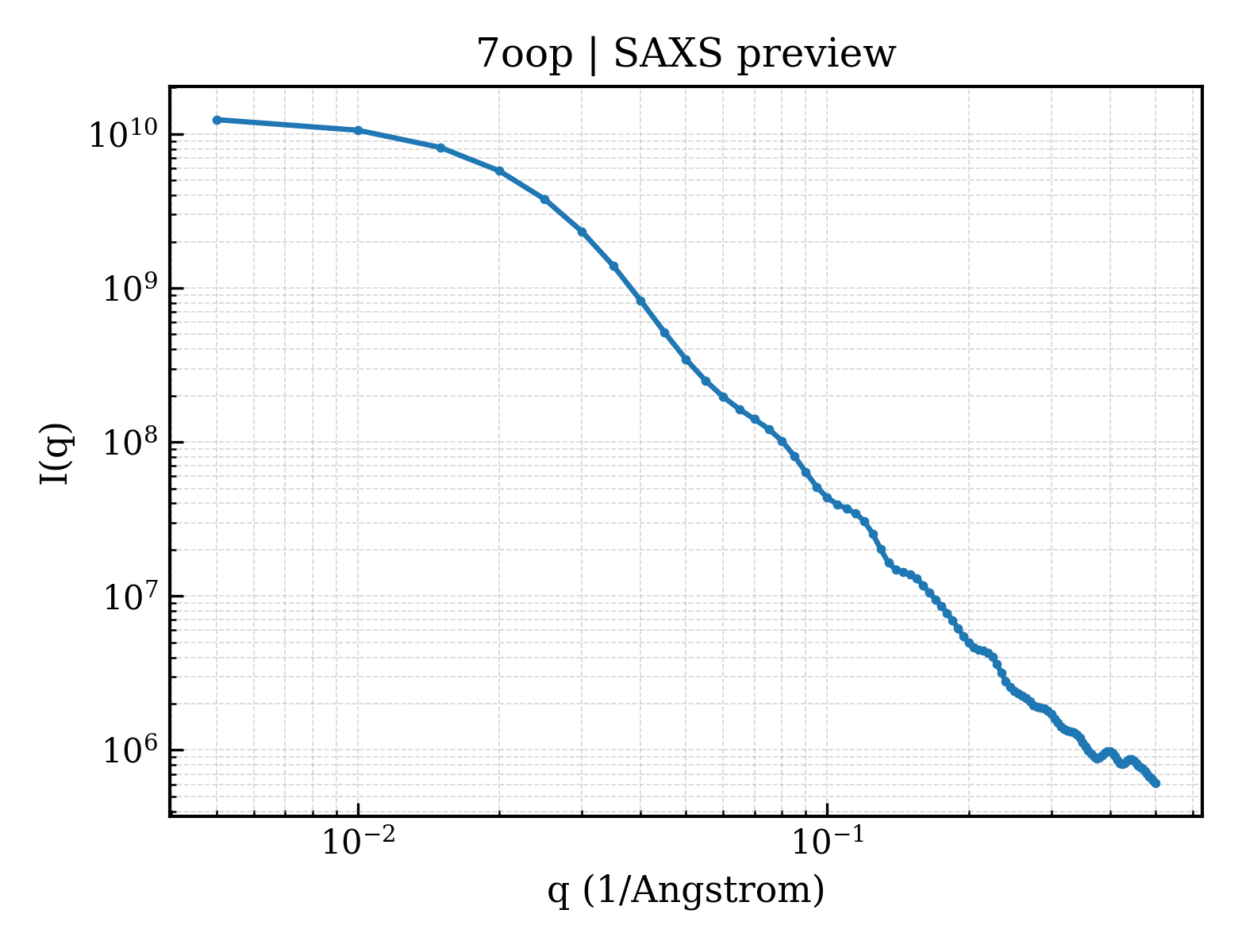

7oop__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

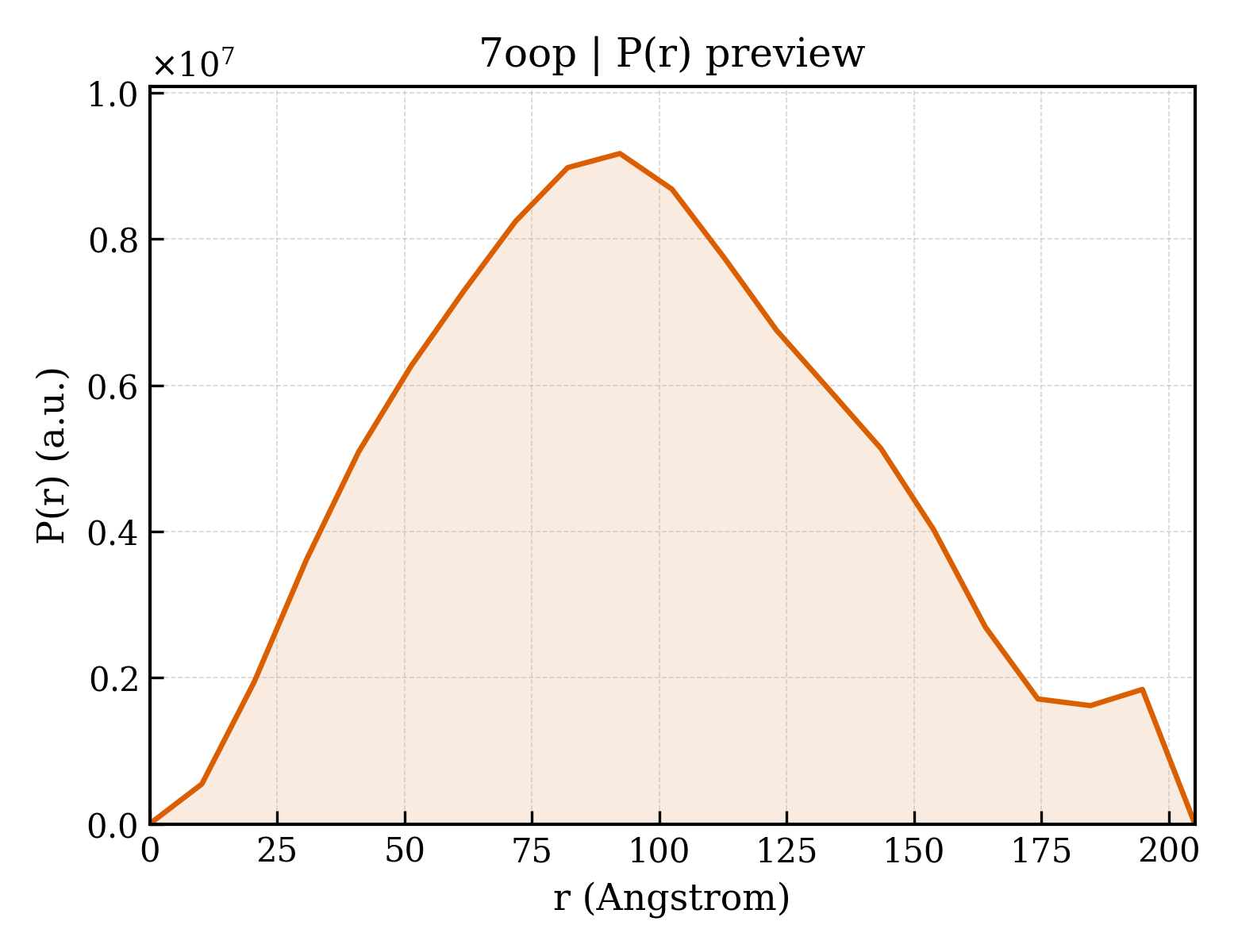

7oop__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	79.74 Å
Rg (electron density)	78.26 Å
Total Rg	77.28 Å
Atom count	62441
Residues	8529
Excluded volume	1078600 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7oop__assembly_1__model_1`	26-meric （26）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (28)

Entity 1 Entity 1 polymer

Description description	DNA-directed RNA polymerase II subunit RPB1
Molecular weight formula_weight	217450.1 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	62441

MHGGGPPSGDSACPLRTIKRVQFGVLSPDELKRMSVTEGGIKYPETTEGGRPKLGGLMDPRQGVIERTGRCQTCAGNMTECPGHFGHIELAKPVFHVGFLVKTMKVLRCVCFFCSKLLVDSNNPKIKDILAKSKGQPKKRLTHVYDLCKGKNICEGGEEMDNKFGVEQPEGDEDLTKEKGHGGCGRYQPRIRRSGLELYAEWKHVNEDSQEKKILLSPERVHEIFKRISDEECFVLGMEPRYARPEWMIVTVLPVPPLSVRPAVVMQGSARNQDDLTHKLADIVKINNQLRRNEQNGAAAHVIAEDVKLLQFHVATMVDNELPGLPRAMQKSGRPLKSLKQRLKGKEGRVRGNLMGKRVDFSARTVITPDPNLSIDQVGVPRSIAANMTFAEIVTPFNIDRLQELVRRGNSQYPGAKYIIRDNGDRIDLRFHPKPSDLHLQTGYKVERHMCDGDIVIFNRQPTLHKMSMMGHRVRILPWSTFRLNLSVTTPYNADFDGDEMNLHLPQSLETRAEIQELAMVPRMIVTPQSNRPVMGIVQDTLTAVRKFTKRDVFLERGEVMNLLMFLSTWDGKVPQPAILKPRPLWTGKQIFSLIIPGHINCIRTHSTHPDDEDSGPYKHISPGDTKVVVENGELIMGILCKKSLGTSAGSLVHISYLEMGHDITRLFYSNIQTVINNWLLIEGHTIGIGDSIADSKTYQDIQNTIKKAKQDVIEVIEKAHNNELEPTPGNTLRQTFENQVNRILNDARDKTGSSAQKSLSEYNNFKSMVVSGAKGSKINISQVIAVVGQQNVEGKRIPFGFKHRTLPHFIKDDYGPESRGFVENSYLAGLTPTEFFFHAMGGREGLIDTAVKTAETGYIQRRLIKSMESVMVKYDATVRNSINQVVQLRYGEDGLAGESVEFQNLATLKPSNKAFEKKFRFDYTNERALRRTLQEDLVKDVLSNAHIQNELEREFERMREDREVLRVIFPTGDSKVVLPCNLLRMIWNAQKIFHINPRLPSDLHPIKVVEGVKELSKKLVIVNGDDPLSRQAQENATLLFNIHLRSTLCSRRMAEEFRLSGEAFDWLLGEIESKFNQAIAHPGEMVGALAAQSLGEPATQMTLNTFHYAGVSAKNVTLGVPRLKELINISKKPKTPSLTVFLLGQSARDAERAKDILCRLEHTTLRKVTANTAIYYDPNPQSTVVAEDQEWVNVYYEMPDFDVARISPWLLRVELDRKHMTDRKLTMEQIAEKINAGFGDDLNCIFNDDNAEKLVLRIRIMNSDENKMQEEEEVVDKMDDDVFLRCIESNMLTDMTLQGIEQISKVYMHLPQTDNKKKIIITEDGEFKALQEWILETDGVSLMRVLSEKDVDPVRTTSNDIVEIFTVLGIEAVRKALERELYHVISFDGSYVNYRHLALLCDTMTCRGHLMAITRHGVNRQDTGPLMKCSFEETVDVLMEAAAHGESDPMKGVSENIMLGQLAPAGTGCFDLLLDAEKCKYGMEIPTNIPGLGAAGPTGMFFGSAPSPMGGISPAMTPWNQGATPAYGAWSPSVGSGMTPGAAGFSPSAASDASGFSPGYSPAWSPTPGSPGSPGPSSPYIPSPGGAMSPSYSPTSPAYEPRSPGGYTPQSPSYSPTSPSYSPTSPSYSPTSPNYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPNYSPTSPNYTPTSPSYSPTSPSYSPTSPNYTPTSPNYSPTSPSYSPTSPSYSPTSPSYSPSSPRYTPQSPTYTPSSPSYSPSSPSYSPTSPKYTPTSPSYSPSSPEYTPTSPKYSPTSPKYSPTSPKYSPTSPTYSPTTPKYSPTSPTYSPTSPVYTPTSPKYSPTSPTYSPTSPKYSPTSPTYSPTSPKGSTYSPTSPGYSPTSPTYSLTSPAISPDDSDEEN

Entity 2 Entity 2 polymer

Description description	DNA-directed RNA polymerase subunit beta
Molecular weight formula_weight	134041.4 kDa
EC 编号 ec_number	2.7.7.6
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MYDADEDMQYDEDDDEITPDLWQEACWIVISSYFDEKGLVRQQLDSFDEFIQMSVQRIVEDAPPIDLQAEAQHASGEVEEPPRYLLKFEQIYLSKPTHWERDGAPSPMMPNEARLRNLTYSAPLYVDITKTVIKEGEEQLQTQHQKTFIGKIPIMLRSTYCLLNGLTDRDLCELNECPLDPGGYFIINGSEKVLIAQEKMATNTVYVFAKKDSKYAYTGECRSCLENSSRPTSTIWVSMLARGGQGAKKSAIGQRIVATLPYIKQEVPIIIVFRALGFVSDRDILEHIIYDFEDPEMMEMVKPSLDEAFVIQEQNVALNFIGSRGAKPGVTKEKRIKYAKEVLQKEMLPHVGVSDFCETKKAYFLGYMVHRLLLAALGRRELDDRDHYGNKRLDLAGPLLAFLFRGMFKNLLKEVRIYAQKFIDRGKDFNLELAIKTRIISDGLKYSLATGNWGDQKKAHQARAGVSQVLNRLTFASTLSHLRRLNSPIGRDGKLAKPRQLHNTLWGMVCPAETPEGHAVGLVKNLALMAYISVGSQPSPILEFLEEWSMENLEEISPAAIADATKIFVNGCWVGIHKDPEQLMNTLRKLRRQMDIIVSEVSMIRDIREREIRIYTDAGRICRPLLIVEKQKLLLKKRHIDQLKEREYNNYSWQDLVASGVVEYIDTLEEETVMLAMTPDDLQEKEVAYCSTYTHCEIHPSMILGVCASIIPFPDHNQSPRNTYQSAMGKQAMGVYITNFHVRMDTLAHVLYYPQKPLVTTRSMEYLRFRELPAGINSIVAIASYTGYNQEDSVIMNRSAVDRGFFRSVFYRSYKEQESKKGFDQEEVFEKPTRETCQGMRHAIYDKLDDDGLIAPGVRVSGDDVIIGKTVTLPENEDELEGTNRRYTKRDCSTFLRTSETGIVDQVMVTLNQEGYKFCKIRVRSVRIPQIGDKFASRHGQKGTCGIQYRQEDMPFTCEGITPDIIINPHAIPSRMTIGHLIECLQGKVSANKGEIGDATPFNDAVNVQKISNLLSDYGYHLRGNEVLYNGFTGRKITSQIFIGPTYYQRLKHMVDDKIHSRARGPIQILNRQPMEGRSRDGGLRFGEMERDCQIAHGAAQFLRERLFEASDPYQVHVCNLCGIMAIANTRTHTYECRGCRNKTQISLVRMPYACKLLFQELMSMSIAPRMMSV

Entity 3 Entity 3 polymer

Description description	DNA-directed RNA polymerase II subunit RPB3
Molecular weight formula_weight	31439.1 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MPYANQPTVRITELTDENVKFIIENTDLAVANSIRRVFIAEVPIIAIDWVQIDANSSVLHDEFIAHRLGLIPLTSDDIVDKLQYSRDCTCEEFCPECSVEFTLDVRCNEDQTRHVTSRDLISNSPRVIPVTSRNRDNDPSDYVEQDDILIVKLRKGQELRLRAYAKKGFGKEHAKWNPTAGVAFEYDPDNALRHTVYPKPEEWPKSEYSELDEDESQAPYDPNGKPERFYYNVESCGSLRPETIVLSALSGLKKKLSDLQTQLSHEIQSDVLTIN

Entity 4 Entity 4 polymer

Description description	RPOL4c domain-containing protein
Molecular weight formula_weight	16331.3 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MAAGGSDPRAGDVEEDASQLIFPKEFETAETLLNSEVHMLLEHRKQQNESAEDEQELSEVFMKTLNYTARFSRFKNRETIASVRSLLLQKKLHKFELACLANLCPETAEESKALIPSLEGRFEDEELQQILDDIQTKRSFQY

Entity 5 Entity 5 polymer

Description description	DNA-directed RNA polymerase II subunit E
Molecular weight formula_weight	24644.3 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MDDEEETYRLWKIRKTIMQLCHDRGYLVTQDELDQTLEEFKAQFGDKPSEGRPRRTDLTVLVAHNDDPTDQMFVFFPEEPKVGIKTIKVYCQRMQEENITRALIVVQQGMTPSAKQSLVDMAPKYILEQFLQQELLINITEHELVPEHVVMTKEEVTELLARYKLRENQLPRIQAGDPVARYFGIKRGQVVKIIRPSETAGRYITYRLVQ

Entity 6 Entity 6 polymer

Description description	DNA-directed RNA polymerase II subunit F
Molecular weight formula_weight	14477.0 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

MSDNEDNFDGDDFDDVEEDEGLDDLENAEEEGQENVEILPSGERPQANQKRITTPYMTKYERARVLGTRALQIAMCAPVMVELEGETDPLLIAMKELKARKIPIIIRRYLPDGSYEDWGVDELIISD

Entity 7 Entity 7 polymer

Description description	DNA-directed RNA polymerase II subunit RPB7
Molecular weight formula_weight	19314.3 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

MFYHISLEHEILLHPRYFGPNLLNTVKQKLFTEVEGTCTGKYGFVIAVTTIDNIGAGVIQPGRGFVLYPVKYKAIVFRPFKGEVVDAVVTQVNKVGLFTEIGPMSCFISRHSIPSEMEFDPNSNPPCYKTMDEDIVIQQDDEIRLKIVGTRVDKNDIFAIGSLMDDYLGLVS

Entity 8 Entity 8 polymer

Description description	DNA-directed RNA polymerases I, II, and III subunit RPABC3
Molecular weight formula_weight	17162.3 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

MAGILFEDIFDVKDIDPEGKKFDRVSRLHCESESFKMDLILDVNIQIYPVDLGDKFRLVIASTLYEDGTLDDGEYNPTDDRPSRADQFEYVMYGKVYRIEGDETSTEAATRLSAYVSYGGLLMRLQGDANNLHGFEVDSRVYLLMKKLAF

Entity 9 Entity 9 polymer

Description description	DNA-directed RNA polymerase II subunit RPB9
Molecular weight formula_weight	14541.2 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I

MEPDGTYEPGFVGIRFCQECNNMLYPKEDKENRILLYACRNCDYQQEADNSCIYVNKITHEVDELTQIIADVSQDPTLPRTEDHPCQKCGHKEAVFFQSHSARAEDAMRLYYVCTAPHCGHRWTE

Entity 10 Entity 10 polymer

Description description	DNA-directed RNA polymerases I, II, and III subunit RPABC5
Molecular weight formula_weight	7655.1 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	J

MIIPVRCFTCGKIVGNKWEAYLGLLQAEYTEGDALDALGLKRYCCRRMLLAHVDLIEKLLNYAPLEK

Entity 11 Entity 11 polymer

Description description	RNA_pol_L_2 domain-containing protein
Molecular weight formula_weight	13310.3 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K

MNAPPAFESFLLFEGEKKITINKDTKVPNACLFTINKEDHTLGNIIKSQLLKDPQVLFAGYKVPHPLEHKIIIRVQTTPDYSPQEAFTNAITDLISELSLLEERFRVAIKDKQEGIE

Entity 12 Entity 12 polymer

Description description	RNA polymerase II subunit K
Molecular weight formula_weight	7018.2 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

MDTQKDVQPPKQQPMIYICGECHTENEIKSRDPIRCRECGYRIMYKKRTKRLVVFDAR

Entity 13 Entity 13 polymer

Description description	Transcription elongation factor SPT6
Molecular weight formula_weight	199330.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M

MSDFVESEAEESEEEYNDEGEVVPRVTKKFVEEEDDDEEEEEENLDDQDEQGNLKGFINDDDDEDEGEEDEGSDSGDSEDDVGHKKRKRTSFDDRLEDDDFDLIEENLGVKVKRGQKYRRVKKMSDDEDDDEEEYGKEEHEKEAIAEEIFQDGEGEEGQEAMEAPMAPPEEEEEDDEESDIDDFIVDDDGQPLKKPKWRKKLPGYTDAALQEAQEIFGVDFDYDEFEKYNEYDEELEEEYEYEDDEAEGEIRVRPKKTTKKRVSRRSIFEMYEPSELESSHLTDQDNEIRATDLPERFQLRSIPVKGAEDDELEEEADWIYRNAFATPTISLQESCDYLDRGQPASSFSRKGPSTIQKIKEALGFMRNQHFEVPFIAFYRKEYVEPELHINDLWRVWQWDEKWTQLRIRKENLTRLFEKMQAYQYEQISADPDKPLADGIRALDTTDMERLKDVQSMDELKDVYNHFLLYYGRDIPKMQNAAKASRKKLKRVREEGDEEGEGDEAEDEEQRGPELKQASRRDMYTICQSAGLDGLAKKFGLTPEQFGENLRDSYQRHETEQFPAEPLELAKDYVCSQFPTPEAVLEGARYMVALQIAREPLVRQVLRQTFQERAKLNITPTKKGRKDVDEAHYAYSFKYLKNKPVKELRDDQFLKICLAEDEGLLTTDISIDLKGVEGYGNDQTYFEEIKQFYYRDEFSHQVQEWNRQRTMAIERALQQFLYVQMAKELKNKLLAEAKEYVIKACSRKLYNWLRVAPYRPDQQVEEDDDFMDENQGKGIRVLGIAFSSARDHPVFCALVNGEGEVTDFLRLPHFTKRRTAWREEEREKKAQDIETLKKFLLNKKPHVVTVAGENRDAQMLIEDVKRIVHELDQGQQLSSIGVELVDNELAILYMNSKKSEAEFRDYPPVLRQAVSLARRIQDPLIEFAQVCSSDEDILCLKFHPLQEHVVKEELLNALYCEFINRVNEVGVDVNRAIAHPYSQALIQYVCGLGPRKGTHLLKILKQNNTRLESRTQLVTMCHMGPKVFMNCAGFLKIDTASLGDSTDSYIEVLDGSRVHPETYEWARKMAVDALEYDESAEDANPAGALEEILENPERLKDLDLDAFAEELERQGYGDKHITLYDIRAELSCRYKDLRTAYRSPNTEEIFNMLTKETPETFYIGKLIICNVTGIAHRRPQGESYDQAIRNDETGLWQCPFCQQDNFPELSEVWNHFDSGSCPGQAIGVKTRLDNGVTGFIPTKFLSDKVVKRPEERVKVGMTVHCRIMKIDIEKFSADLTCRTSDLMDRNNEWKLPKDTYYDFDAEAADHKQEEDMKRKQQRTTYIKRVIAHPSFHNINFKQAEKMMETMDQGDVIIRPSSKGENHLTVTWKVSDGIYQHVDVREEGKENAFSLGATLWINSEEFEDLDEIVARYVQPMASFARDLLNHKYYQDCSGGDRKKLEELLIKTKKEKPTFIPYFICACKELPGKFLLGYQPRGKPRIEYVTVTPEGFRYRGQIFPTVNGLFRWFKDHYQDPVPGITPSSSSRTRTPASINATPANINLADLTRAVNALPQNMTSQMFSAIAAVTGQGQNPNATPAQWASSQYGYGGSGGGSSAYHVFPTPAQQPVATPLMTPSYSYTTPSQPITTPQYHQLQASTTPQSAQAQPQPSSSSRQRQQQPKSNSHAAIDWGKMAEQWLQEKEAERRKQKQRLTPRPSPSPMIESTPMSIAGDATPLLDEMDR

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 14 Entity 14 polymer

Description description	NTS
Molecular weight formula_weight	14494.3 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	N

CTAGTTGATCTCATATTTCATTCCTACTCAGGAGAAGGAGCAGAGCG

Entity 15 Entity 15 polymer

Description description	RNA
Molecular weight formula_weight	14490.8 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	P

ACAUCAUAACAUUUGAACAAGAAUAUAUAUACAAAAUCGAGAGGA

Entity 16 Entity 16 polymer

Description description	LEO1 helix
Molecular weight formula_weight	3422.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	R

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 17 Entity 17 polymer

Description description	RNA polymerase-associated protein CTR9 homolog
Molecular weight formula_weight	133715.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	S

MSRGSIEIPLRDTDEVIELDFDQLPEGDEVISILKQEHTQLHIWIALALEYYKQGKTEEFVKLLEAARIDGNLDYRDHEKDQMTCLDTLAAYYVQQARKEKNKDNKKDLITQATLLYTMADKIIMYDQNHLLGRACFCLLEGDKMDQADAQFHFVLNQSPNNIPALLGKACISFNKKDYRGALAYYKKALRTNPGCPAEVRLGMGHCFVKLNKLEKARLAFSRALELNSKCVGALVGLAVLELNNKEADSIKNGVQLLSRAYTIDPSNPMVLNHLANHFFFKKDYSKVQHLALHAFHNTEVEAMQAESCYQLARSFHVQEDYDQAFQYYYQATQFASSSFVLPFFGLGQMYIYRGDKENASQCFEKVLKAYPNNYETMKILGSLYAASEDQEKRDIAKGHLKKVTEQYPDDVEAWIELAQILEQTDIQGALSAYGTATRILQEKVQADVPPEILNNVGALHFRLGNLGEAKKYFLASLDRAKAEAEHDEHYYNAISVTTSYNLARLYEAMCEFHEAEKLYKNILREHPNYVDCYLRLGAMARDKGNFYEASDWFKEALQINQDHPDAWSLIGNLHLAKQEWGPGQKKFERILKQPSTQSDTYSMLALGNVWLQTLHQPTRDREKEKRHQDRALAIYKQVLRNDAKNLYAANGIGAVLAHKGYFREARDVFAQVREATADISDVWLNLAHIYVEQKQYISAVQMYENCLRKFYKHQNTEVVLYLARALFKCGKLQECKQTLLKARHVAPSDTVLMFNVALVLQRLATSVLKDEKSNLKEVLNAVKELELAHRYFSYLSKVGDKMRFDLALAATEARQCSDLLSQAQYHVARARKQDEEERELRAKQEQEKELLRQKLLKEQEEKRLREKEEQKKLLEQRAQYVEKTKNILMFTGETEATKEKKRGGGGGRRSKKGGEFDEFVNDDTDDDLPISKKKKRRKGSGSEQEGEDEEGGERKKKKRRRHPKGEEGSDDDETENGPKPKKRRPPKAEKKKAPKPERLPPSMKGKIKSKAIISSSDDSSDEDKLKIADEGHPRNSNSNSDSDEDEQRKKCASSESDSDENQNKSGSEAGSPRRPRRQRSDQDSDSDQPSRKRRPSGSEQSDNESVQSGRSHSGVSENDSRPASPSAESDHESERGSDNEGSGQGSGNESEPEGSNNEASDRGSEHGSDDSD

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 18 Entity 18 polymer

Description description	TS
Molecular weight formula_weight	14269.1 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	T

CGCTCTGCTCCTTCTCCCATCCTCTCGATGGCTATGAGATCAACTAG

Entity 19 Entity 19 polymer

Description description	RNA polymerase-associated protein LEO1
Molecular weight formula_weight	75514.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	U

MADMEDLFGSDADSEAERKDSDSGSDSDSDQENAASGSNASGSESDQDERGDSGQPSNKELFGDDSEDEGASHHSGSDNHSERSDNRSEASERSDHEDNDPSDVDQHSGSEAPNDDEDEGHRSDGGSHHSEAEGSEKAHSDDEKWGREDKSDQSDDEKIQNSDDEERAQGSDEDKLQNSDDDEKMQNTDDEERPQLSDDERQQLSEEEKANSDDERPVASDNDDEKQNSDDEEQPQLSDEEKMQNSDDERPQASDEEHRHSDDEEEQDHKSESARGSDSEDEVLRMKRKNAIASDSEADSDTEVPKDNSGTMDLFGGADDISSGSDGEDKPPTPGQPVDENGLPQDQQEEEPIPETRIEVEIPKVNTDLGNDLYFVKLPNFLSVEPRPFDPQYYEDEFEDEEMLDEEGRTRLKLKVENTIRWRIRRDEEGNEIKESNARIVKWSDGSMSLHLGNEVFDVYKAPLQGDHNHLFIRQGTGLQGQAVFKTKLTFRPHSTDSATHRKMTLSLADRCSKTQKIRILPMAGRDPECQRTEMIKKEEERLRASIRRESQQRRMREKQHQRGLSASYLEPDRYDEEEEGEESISLAAIKNRYKGGIREERARIYSSDSDEGSEEDKAQRLLKAKKLTSDEEGEPSGKRKAEDDDKANKKHKKYVISDEEEEDDD

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 20 Entity 20 polymer

Description description	RNA polymerase II-associated factor 1 homolog
Molecular weight formula_weight	60052.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	V

MAPTIQTQAQREDGHRPNSHRTLPERSGVVCRVKYCNSLPDIPFDPKFITYPFDQNRFVQYKATSLEKQHKHDLLTEPDLGVTIDLINPDTYRIDPNVLLDPADEKLLEEEIQAPTSSKRSQQHAKVVPWMRKTEYISTEFNRYGISNEKPEVKIGVSVKQQFTEEEIYKDRDSQITAIEKTFEDAQKSISQHYSKPRVTPVEVMPVFPDFKMWINPCAQVIFDSDPAPKDTSGAAALEMMSQAMIRGMMDEEGNQFVAYFLPVEETLKKRKRDQEEEMDYAPDDVYDYKIAREYNWNVKNKASKGYEENYFFIFREGDGVYYNELETRVRLSKRRAKAGVQSGTNALLVVKHRDMNEKELEAQEARKAQLENHEPEEEEEEEMETEEKEAGGSDEEQEKGSSSEKEGSEDEHSGSESEREEGDRDEASDKSGSGEDESSEDEARAARDKEEIFGSDADSEDDADSDDEDRGQAQGGSDNDSDSGSNGGGQRSRSHSRSASPFPSGSEHSAQEDGSEAAASDSSEADSDSD

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 21 Entity 21 polymer

Description description	WD repeat-containing protein 61
Molecular weight formula_weight	33617.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Y

MTNQYGILFKQEQAHDDAIWSVAWGTNKKENSETVVTGSLDDLVKVWKWRDERLDLQWSLEGHQLGVVSVDISHTLPIAASSSLDAHIRLWDLENGKQIKSIDAGPVDAWTLAFSPDSQYLATGTHVGKVNIFGVESGKKEYSLDTRGKFILSIAYSPDGKYLASGAIDGIINIFDIATGKLLHTLEGHAMPIRSLTFSPDSQLLVTASDDGYIKIYDVQHANLAGTLSGHASWVLNVAFCPDDTHFVSSSSDKSVKVWDVGTRTCVHTFFDHQDQVWGVKYNGNGSKIVSVGDDQEIHIYDCPI

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 22 Entity 22 polymer

Description description	Parafibromin
Molecular weight formula_weight	60673.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Z

MADVLSVLRQYNIQKKEIVVKGDEVIFGEFSWPKNVKTNYVVWGTGKEGQPREYYTLDSILFLLNNVHLSHPVYVRRAATENIPVVRRPDRKDLLGYLNGEASTSASIDRSAPLEIGLQRSTQVKRAADEVLAEAKKPRIEDEECVRLDKERLAARLEGHKEGIVQTEQIRSLSEAMSVEKIAAIKAKIMAKKRSTIKTDLDDDITALKQRSFVDAEVDVTRDIVSRERVWRTRTTILQSTGKNFSKNIFAILQSVKAREEGRAPEQRPAPNAAPVDPTLRTKQPIPAAYNRYDQERFKGKEETEGFKIDTMGTYHGMTLKSVTEGASARKTQTPAAQPVPRPVSQARPPPNQKKGSRTPIIIIPAATTSLITMLNAKDLLQDLKFVPSDEKKKQGCQRENETLIQRRKDQMQPGGTAISVTVPYRVVDQPLKLMPQDWDRVVAVFVQGPAWQFKGWPWLLPDGSPVDIFAKIKAFHLKYDEVRLDPNVQKWDVTVLELSYHKRHLDRPVFLRFWETLDRYMVKHKSHLRF

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 23 Entity 23 polymer

Description description	DNA excision repair protein ERCC-8
Molecular weight formula_weight	44107.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	a

MLGFLSARQTGLEDPLRLRRAESTRRVLGLELNKDRDVERIHGGGINTLDIEPVEGRYMLSGGSDGVIVLYDLENSSRQSYYTCKAVCSIGRDHPDVHRYSVETVQWYPHDTGMFTSSSFDKTLKVWDTNTLQTADVFNFEETVYSHHMSPVSTKHCLVAVGTRGPKVQLCDLKSGSCSHILQGHRQEILAVSWSPRYDYILATASADSRVKLWDVRRASGCLITLDQHNGKKSQAVESANTAHNGKVNGLCFTSDGLHLLTVGTDNRMRLWNSSNGENTLVNYGKVCNNSKKGLKFTVSCGCSSEFVFVPYGSTIAVYTVYSGEQITMLKGHYKTVDCCVFQSNFQELYSGSRDCNILAWVPSLYEPVPDDDETTTKSQLNPAFEDAWSSSDEEG

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 24 Entity 24 polymer

Description description	DNA excision repair protein ERCC-6
Molecular weight formula_weight	168701.6 kDa
EC 编号 ec_number	3.6.4.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	b

MPNEGIPHSSQTQEQDCLQSQPVSNNEEMAIKQESGGDGEVEEYLSFRSVGDGLSTSAVGCASAAPRRGPALLHIDRHQIQAVEPSAQALELQGLGVDVYDQDVLEQGVLQQVDNAIHEASRASQLVDVEKEYRSVLDDLTSCTTSLRQINKIIEQLSPQAATSRDINRKLDSVKRQKYNKEQQLKKITAKQKHLQAILGGAEVKIELDHASLEEDAEPGPSSLGSMLMPVQETAWEELIRTGQMTPFGTQIPQKQEKKPRKIMLNEASGFEKYLADQAKLSFERKKQGCNKRAARKAPAPVTPPAPVQNKNKPNKKARVLSKKEERLKKHIKKLQKRALQFQGKVGLPKARRPWESDMRPEAEGDSEGEESEYFPTEEEEEEEDDEVEGAEADLSGDGTDYELKPLPKGGKRQKKVPVQEIDDDFFPSSGEEAEAASVGEGGGGGRKVGRYRDDGDEDYYKQRLRRWNKLRLQDKEKRLKLEDDSEESDAEFDEGFKVPGFLFKKLFKYQQTGVRWLWELHCQQAGGILGDEMGLGRTIQIIAFLAGLSYSKIRTRGSNYRFEGLGPTVIVCPTTVMHQWVKEFHTWWPPFRVAILHETGSYTHKKEKLIRDVAHCHGILITSYSYIRLMQDDISRYDWHYVILDEGHKIRNPNAAVTLACKQFRTPHRIILSGSPMQNNLRELWSLFDFIFPGKLGTLPVFMEQFSVPITMGGYSNASPVQVKTAYKCACVLRDTINPYLLRRMKSDVKMSLSLPDKNEQVLFCRLTDEQHKVYQNFVDSKEVYRILNGEMQIFSGLIALRKICNHPDLFSGGPKNLKGLPDDELEEDQFGYWKRSGKMIVVESLLKIWHKQGQRVLLFSQSRQMLDILEVFLRAQKYTYLKMDGTTTIASRQPLITRYNEDTSIFVFLLTTRVGGLGVNLTGANRVVIYDPDWNPSTDTQARERAWRIGQKKQVTVYRLLTAGTIEEKIYHRQIFKQFLTNRVLKDPKQRRFFKSNDLYELFTLTSPDASQSTETSAIFAGTGSDVQTPKCHLKRRIQPAFGADHDVPKRKKFPASNISVNDATSSEEKSEAKGAEVNAVTSNRSDPLKDDPHMSSNVTSNDRLGEETNAVSGPEELSVISGNGECSNSSGTGKTSMPSGDESIDEKLGLSYKRERPSQAQTEAFWENKQMENNFYKHKSKTKHHSVAEEETLEKHLRPKQKPKNSKHCRDAKFEGTRIPHLVKKRRYQKQDSENKSEAKEQSNDDYVLEKLFKKSVGVHSVMKHDAIMDGASPDYVLVEAEANRVAQDALKALRLSRQRCLGAVSGVPTWTGHRGISGAPAGKKSRFGKKRNSNFSVQHPSSTSPTEKCQDGIMKKEGKDNVPEHFSGRAEDADSSSGPLASSSLLAKMRARNHLILPERLESESGHLQEASALLPTTEHDDLLVEMRNFIAFQAHTDGQASTREILQEFESKLSASQSCVFRELLRNLCTFHRTSGGEGIWKLKPEYC

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 25 Entity 25 polymer

Description description	UV-stimulated scaffold protein A
Molecular weight formula_weight	80721.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	c

MDQKLSKLVEELTTSGEPRLNPEKMKELKKICKSSEEQLSRAYRLLIAQLTQEHAEIRLSAFQIVEELFVRSHQFRMLVVSNFQEFLELTLGTDPAQPLPPPREAAQRLRQATTRAVEGWNEKFGEAYKKLALGYHFLRHNKKVDFQDTNARSLAERKREEEKQKHLDKIYQERASQAEREMQEMSGEIESCLTEVESCFRLLVPFDFDPNPETESLGMASGMSDALRSSCAGQVGPCRSGTPDPRDGEQPCCSRDLPASAGHPRAGGGAQPSQTATGDPSDEDEDSDLEEFVRSHGLGSHKYTLDVELCSEGLKVQENEDNLALIHAARDTLKLIRNKFLPAVCSWIQRFTRVGTHGGCLKRAIDLKAELELVLRKYKELDIEPEGGERRRTEALGDAEEDEDDEDFVEVPEKEGYEPHIPDHLRPEYGLEAAPEKDTVVRCLRTRTRMDEEVSDPTSAAAQLRQLRDHLPPPSSASPSRALPEPQEAQKLAAERARAPVVPYGVDLHYWGQELPTAGKIVKSDSQHRFWKPSEVEEEVVNADISEMLRSRHITFAGKFEPVQHWCRAPRPDGRLCERQDRLKCPFHGKIVPRDDEGRPLDPEDRAREQRRQLQKQERPEWQDPELMRDVEAATGQDLGSSRYSGKGRGKKRRYPSLTNLKAQADTARARIGRKVFAKAAVRRVVAAMNRMDQKKHEKFSNQFNYALN

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 26 Entity 26 polymer

Description description	DNA damage-binding protein 1
Molecular weight formula_weight	127097.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	d

MSYNYVVTAQKPTAVNGCVTGHFTSAEDLNLLIAKNTRLEIYVVTAEGLRPVKEVGMYGKIAVMELFRPKGESKDLLFILTAKYNACILEYKQSGESIDIITRAHGNVQDRIGRPSETGIIGIIDPECRMIGLRLYDGLFKVIPLDRDNKELKAFNIRLEELHVIDVKFLYGCQAPTICFVYQDPQGRHVKTYEVSLREKEFNKGPWKQENVEAEASMVIAVPEPFGGAIIIGQESITYHNGDKYLAIAPPIIKQSTIVCHNRVDPNGSRYLLGDMEGRLFMLLLEKEEQMDGTVTLKDLRVELLGETSIAECLTYLDNGVVFVGSRLGDSQLVKLNVDSNEQGSYVVAMETFTNLGPIVDMCVVDLERQGQGQLVTCSGAFKEGSLRIIRNGIGIHEHASIDLPGIKGLWPLRSDPNRETDDTLVLSFVGQTRVLMLNGEEVEETELMGFVDDQQTFFCGNVAHQQLIQITSASVRLVSQEPKALVSEWKEPQAKNISVASCNSSQVVVAVGRALYYLQIHPQELRQISHTEMEHEVACLDITPLGDSNGLSPLCAIGLWTDISARILKLPSFELLHKEMLGGEIIPRSILMTTFESSHYLLCALGDGALFYFGLNIETGLLSDRKKVTLGTQPTVLRTFRSLSTTNVFACSDRPTVIYSSNHKLVFSNVNLKEVNYMCPLNSDGYPDSLALANNSTLTIGTIDEIQKLHIRTVPLYESPRKICYQEVSQCFGVLSSRIEVQDTSGGTTALRPSASTQALSSSVSSSKLFSSSTAPHETSFGEEVEVHNLLIIDQHTFEVLHAHQFLQNEYALSLVSCKLGKDPNTYFIVGTAMVYPEEAEPKQGRIVVFQYSDGKLQTVAEKEVKGAVYSMVEFNGKLLASINSTVRLYEWTTEKELRTECNHYNNIMALYLKTKGDFILVGDLMRSVLLLAYKPMEGNFEEIARDFNPNWMSAVEILDDDNFLGAENAFNLFVCQKDSAATTDEERQHLQEVGLFHLGEFVNVFCHGSLVMQNLGETSTPTQGSVLFGTVNGMIGLVTSLSESWYNLLLDMQNRLNKVIKSVGKIEHSFWRSFHTERKTEPATGFIDGDLIESFLDISRPKMQEVVANLQYDDGSGMKREATADDLIKVVEELTRIH

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 27 Entity 27 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 28 Entity 28 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

▼

6. Fold Classification (SCOP + CATH) 5 domains

CATH v4.4 (5 domains)

Domain ID domain_id	7oopA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	274 — Enzyme I; Chain A, domain 2
Homologous superfamily homologous superfamily	100 — RNA polymerase Rpb1, domain 3

Domain ID domain_id	7oopA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1360 — Gyrase A; domain 2
Homologous superfamily homologous superfamily	140 —

Domain ID domain_id	7oopB01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1110 — Dna-directed Rna Polymerase Ii 140kd Polypeptide; Chain: B; domain 3
Homologous superfamily homologous superfamily	10 — RNA polymerase Rpb2, domain 2

Domain ID domain_id	7oopd01
Class class	2 — Mainly Beta
Architecture architecture	130 — 7 Propeller
Topology topology	10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

Domain ID domain_id	7oopd02
Class class	2 — Mainly Beta
Architecture architecture	130 — 7 Propeller
Topology topology	10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.90 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	100000

Pol II-CSB-CSA-DDB1-UVSSA-PAF-SPT6 (Structure 3)

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA-directed RNA polymerase II subunit RPB1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

DNA-directed RNA polymerase subunit beta

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

DNA-directed RNA polymerase II subunit RPB3

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

RPOL4c domain-containing protein

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

DNA-directed RNA polymerase II subunit E

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

DNA-directed RNA polymerase II subunit F

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

DNA-directed RNA polymerase II subunit RPB7

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

DNA-directed RNA polymerases I, II, and III subunit RPABC3

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

DNA-directed RNA polymerase II subunit RPB9

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

DNA-directed RNA polymerases I, II, and III subunit RPABC5

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer
