9egz

RNA polymerase II-DSIF-SPT6-PAF1c-TFIIS-IWS1-SETD2-nucleosome, bp +27

Method: ELECTRON MICROSCOPY D_max: 227.7 Å Quality: EXCELLENT

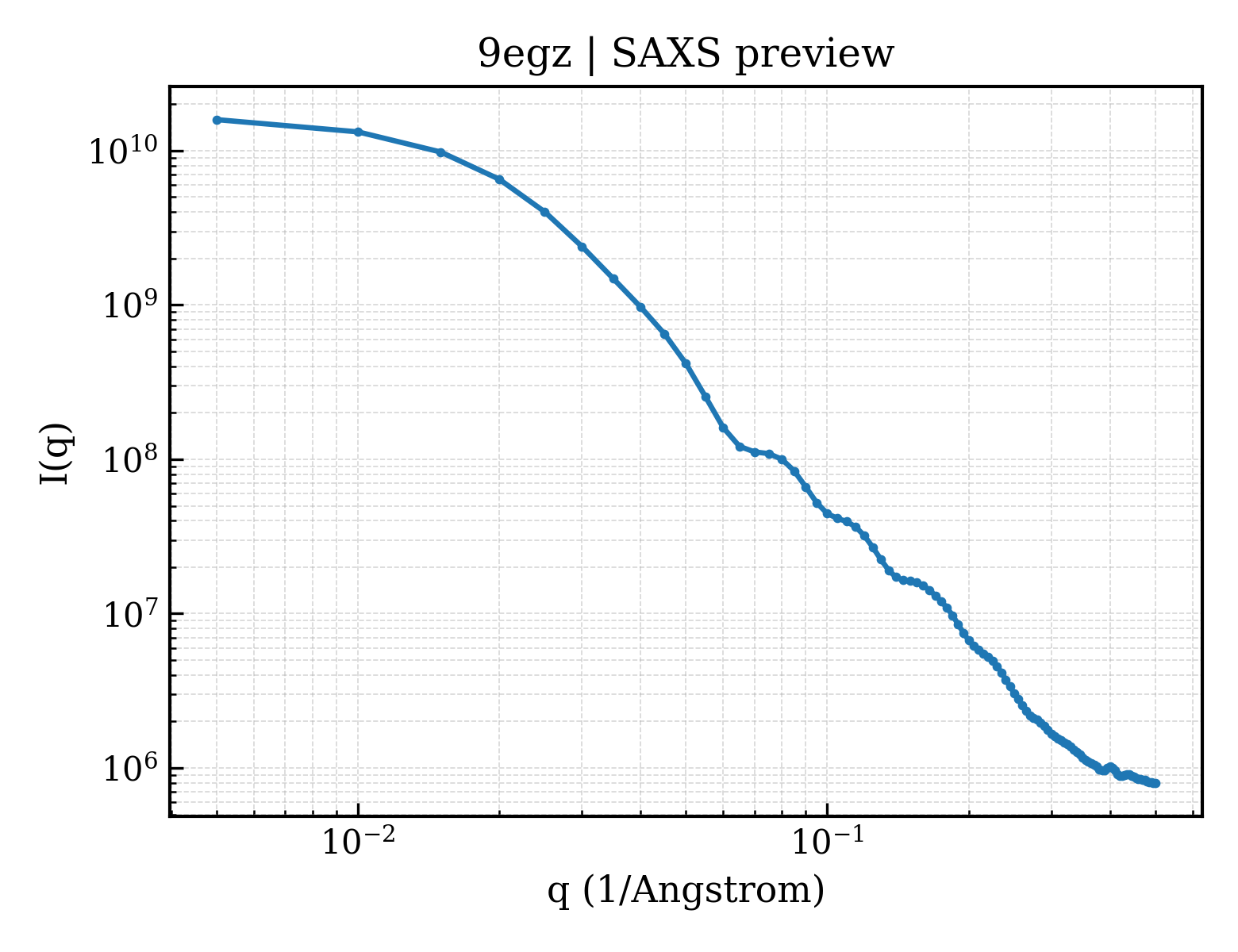

SAXS 散射曲线 SAXS Profile

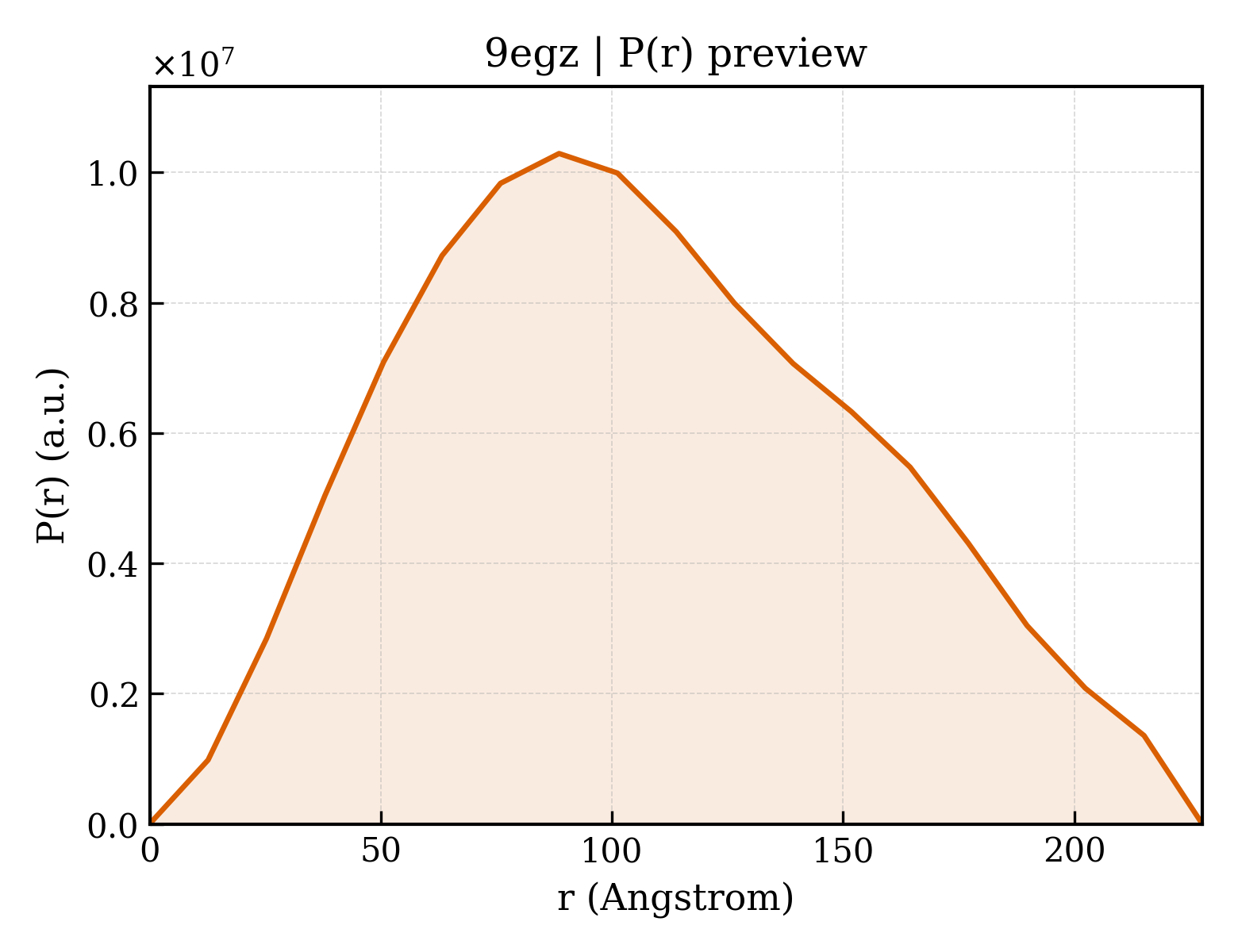

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9egz
沉积日期 deposition_date	2024-11-21
结构标题 title	RNA polymerase II-DSIF-SPT6-PAF1c-TFIIS-IWS1-SETD2-nucleosome, bp +27
关键词 keywords	SETD2, Transcription, H3K36me3, TRANSFERASE-RNA-DNA complex; TRANSCRIPTION, TRANSFERASE/RNA/DNA
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	85.49 Å
回转半径 Rg (电子) rg_electron	83.23 Å
零角强度 I(0) i0	16893300000.00
分子量 molecular_weight	982630.0 kDa
排除体积 excluded_volume	1178900 Å³
包络体积 envelope_volume	2243200 Å³
水化壳体积 shell_volume	225610 Å³
包络直径 envelope_diameter	330.2 Å
壳层 Rg shell_rg	78.80 Å
包络 Rg envelope_rg	83.80 Å
形状 Rg shape_rg	83.27 Å
总 Rg total_rg	83.05 Å
总原子数 total_atoms	68741
残基数 n_residues	8976
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	227.7 Å
Rg (实空间) rg_real	82.18 Å
Rg 误差 (实空间) rg_real_error	0.61 Å
I(0) (实空间) i0_real	1.6140e+10
I(0) 误差 (实空间) i0_real_error	2.9080e+08
Rg (倒空间) rg_reciprocal	84.47 Å
I(0) (倒空间) i0_reciprocal	16840000000.0000
解质量估计 total_estimate	0.9117
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	88.6 Å
偏度 Skewness skewness	0.256
峰度 Kurtosis kurtosis	-0.670
角度范围 angular_range	— – 0.0900 Å⁻¹
当前正则化参数 α current_alpha	1.1060
最高正则化参数 α highest_alpha	1057000000.0000
实空间数据点数 n_real_points	19
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 1.000; Stabil: 0.968; Sysdev: 1.000; Positv: 1.000; Valcen: 0.951; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (33)

Entity 1 polymer

描述 description	DNA-directed RNA polymerase subunit
分子量 formula_weight	219049.5 kDa
EC 编号 ec_number	2.7.7.6
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	68741

MHGGGPPSGDSACPLRTIKRVQFGVLSPDELKRMSVTEGGIKYPETTEGGRPKLGGLMDPRQGVIERTGRCQTCAGNMTECPGHFGHIELAKPVFHVGFLVKTMKVLRCVCFFCSKLLVDSNNPKIKDILAKSKGQPKKRLTHVYDLCKGKNICEGGEEMDNKFGVEQPEGDEDLTKEKGHGGCGRYQPRIRRSGLELYAEWKHVNEDSQEKKILLSPERVHEIFKRISDEECFVLGMEPRYARPEWMIVTVLPVPPLSVRPAVVMQGSARNQDDLTHKLADIVKINNQLRRNEQNGAAAHVIAEDVKLLQFHVATMVDNELPGLPRAMQKSGRPLKSLKQRLKGKEGRVRGNLMGKRVDFSARTVITPDPNLSIDQVGVPRSIAANMTFAEIVTPFNIDRLQELVRRGNSQYPGAKYIIRDNGDRIDLRFHPKPSDLHLQTGYKVERHMCDGDIVIFNRQPTLHKMSMMGHRVRILPWSTFRLNLSVTTPYNADFDGDEMNLHLPQSLETRAEIQELAMVPRMIVTPQSNRPVMGIVQDTLTAVRKFTKRDVFLERGEVMNLLMFLSTWDGKVPQPAILKPRPLWTGKQIFSLIIPGHINCIRTHSTHPDDEDSGPYKHISPGDTKVVVENGELIMGILCKKSLGTSAGSLVHISYLEMGHDITRLFYSNIQTVINNWLLIEGHTIGIGDSIADSKTYQDIQNTIKKAKQDVIEVIEKAHNNELEPTPGNTLRQTFENQVNRILNDARDKTGSSAQKSLSEYNNFKSMVVSGAKGSKINISQVIAVVGQQNVEGKRIPFGFKHRTLPHFIKDDYGPESRGFVENSYLAGLTPTEFFFHAMGGREGLIDTAVKTAETGYIQRRLIKSMESVMVKYDATVRNSINQVVQLRYGEDGLAGESVEFQNLATLKPSNKAFEKKFRFDYTNERALRRTLQEDLVKDVLSNAHIQNELEREFERMREDREVLRVIFPTGDSKVVLPCNLLRMIWNAQKIFHINPRLPSDLHPIKVVEGVKELSKKLVIVNGDDPLSRQAQENATLLFNIHLRSTLCSRRMAEEFRLSGEAFDWLLGEIESKFNQAIAHPGEMVGALAAQSLGEPATQMTLNTFHYAGVSAKNVTLGVPRLKELINISKKPKTPSLTVFLLGQSARDAERAKDILCRLEHTTLRKVTANTAIYYDPNPQSTVVAEDQEWVNVYYEMPDFDVARISPWLLRVELDRKHMTDRKLTMEQIAEKINAGFGDDLNCIFNDDNAEKLVLRIRIMNSDENKMQEEEEVVDKMDDDVFLRCIESNMLTDMTLQGIEQISKVYMHLPQTDNKKKIIITEDGEFKALQEWILETDGVSLMRVLSEKDVDPVRTTSNDIVEIFTVLGIEAVRKALERELYHVISFDGSYVNYRHLALLCDTMTCRGHLMAITRHGVNRQDTGPLMKCSFEETVDVLMEAAAHGESDPMKGVSENIMLGQLAPAGTGCFDLLLDAEKCKYGMEIPTNIPGLGAAGPTGMFFGSAPSPMGGISPAMTPWNQGATPAYGAWSPSVGSGMTPGAAGFSPSAASDASGFSPGYSPAWSPTPGSPGSPGPSSPYIPSPGGAMSPSYSPTSPAYEPRSPGGYTPQSPSYSPTSPSYSPTSPSYSPTSPNYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPSYSPTSPNYSPTSPNYTPTSPSYSPTSPSYSPTSPNYTPTSPNYSPTSPSYSPTSPSYSPTSPSYSPSSPRYTPQSPTYTPSSPSYSPSSPSYSPTSPKYTPTSPSYSPSSPEYTPTSPKYSPTSPKYSPTSPKYSPTSPTYSPTTPKYSPTSPTYSPTSPVYTPTSPKYSPTSPTYSPTSPKYSPTSPTYSPTSPKGSTYSPTSPGYSPTSPTYSLTSPAISPDDSDEEN

Entity 2 polymer

描述 description	DNA-directed RNA polymerase subunit beta
分子量 formula_weight	142426.1 kDa
EC 编号 ec_number	2.7.7.6
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MCSTNLSQALAYFRAGANLTAASLWAGFRGSRRIFWERRKRKSLCLALRPGGACWRWLLAVSCVSLRGLGAPGSCANMYDADEDMQYDEDDDEITPDLWQEACWIVISSYFDEKGLVRQQLDSFDEFIQMSVQRIVEDAPPIDLQAEAQHASGEVEEPPRYLLKFEQIYLSKPTHWERDGAPSPMMPNEARLRNLTYSAPLYVDITKTVIKEGEEQLQTQHQKTFIGKIPIMLRSTYCLLNGLTDRDLCELNECPLDPGGYFIINGSEKVLIAQEKMATNTVYVFAKKDSKYAYTGECRSCLENSSRPTSTIWVSMLARGGQGAKKSAIGQRIVATLPYIKQEVPIIIVFRALGFVSDRDILEHIIYDFEDPEMMEMVKPSLDEAFVIQEQNVALNFIGSRGAKPGVTKEKRIKYAKEVLQKEMLPHVGVSDFCETKKAYFLGYMVHRLLLAALGRRELDDRDHYGNKRLDLAGPLLAFLFRGMFKNLLKEVRIYAQKFIDRGKDFNLELAIKTRIISDGLKYSLATGNWGDQKKAHQARAGVSQVLNRLTFASTLSHLRRLNSPIGRDGKLAKPRQLHNTLWGMVCPAETPEGHAVGLVKNLALMAYISVGSQPSPILEFLEEWSMENLEEISPAAIADATKIFVNGCWVGIHKDPEQLMNTLRKLRRQMDIIVSEVSMIRDIREREIRIYTDAGRICRPLLIVEKQKLLLKKRHIDQLKEREYNNYSWQDLVASGVVEYIDTLEEETVMLAMTPDDLQEKEVAYCSTYTHCEIHPSMILGVCASIIPFPDHNQSPRNTYQSAMGKQAMGVYITNFHVRMDTLAHVLYYPQKPLVTTRSMEYLRFRELPAGINSIVAIASYTGYNQEDSVIMNRSAVDRGFFRSVFYRSYKEQESKKGFDQEEVFEKPTRETCQGMRHAIYDKLDDDGLIAPGVRVSGDDVIIGKTVTLPENEDELEGTNRRYTKRDCSTFLRTSETGIVDQVMVTLNQEGYKFCKIRVRSVRIPQIGDKFASRHGQKGTCGIQYRQEDMPFTCEGITPDIIINPHAIPSRMTIGHLIECLQGKVSANKGEIGDATPFNDAVNVQKISNLLSDYGYHLRGNEVLYNGFTGRKITSQIFIGPTYYQRLKHMVDDKIHSRARGPIQILNRQPMEGRSRDGGLRFGEMERDCQIAHGAAQFLRERLFEASDPYQVHVCNLCGIMAIANTRTHTYECRGCRNKTQISLVRMPYACKLLFQELMSMSIAPRMMSV

Entity 3 polymer

描述 description	DNA-directed RNA polymerase II subunit RPB3
分子量 formula_weight	31439.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MPYANQPTVRITELTDENVKFIIENTDLAVANSIRRVFIAEVPIIAIDWVQIDANSSVLHDEFIAHRLGLIPLTSDDIVDKLQYSRDCTCEEFCPECSVEFTLDVRCNEDQTRHVTSRDLISNSPRVIPVTSRNRDNDPSDYVEQDDILIVKLRKGQELRLRAYAKKGFGKEHAKWNPTAGVAFEYDPDNALRHTVYPKPEEWPKSEYSELDEDESQAPYDPNGKPERFYYNVESCGSLRPETIVLSALSGLKKKLSDLQTQLSHEIQSDVLTIN

Entity 4 polymer

描述 description	RNA polymerase Rpb4/RPC9 core domain-containing protein
分子量 formula_weight	16331.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MAAGGSDPRAGDVEEDASQLIFPKEFETAETLLNSEVHMLLEHRKQQNESAEDEQELSEVFMKTLNYTARFSRFKNRETIASVRSLLLQKKLHKFELACLANLCPETAEESKALIPSLEGRFEDEELQQILDDIQTKRSFQY

Entity 5 polymer

描述 description	DNA-directed RNA polymerase II subunit E
分子量 formula_weight	24644.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MDDEEETYRLWKIRKTIMQLCHDRGYLVTQDELDQTLEEFKAQFGDKPSEGRPRRTDLTVLVAHNDDPTDQMFVFFPEEPKVGIKTIKVYCQRMQEENITRALIVVQQGMTPSAKQSLVDMAPKYILEQFLQQELLINITEHELVPEHVVMTKEEVTELLARYKLRENQLPRIQAGDPVARYFGIKRGQVVKIIRPSETAGRYITYRLVQ

Entity 6 polymer

描述 description	DNA-directed RNA polymerases I, II, and III subunit RPABC2
分子量 formula_weight	14477.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

MSDNEDNFDGDDFDDVEEDEGLDDLENAEEEGQENVEILPSGERPQANQKRITTPYMTKYERARVLGTRALQIAMCAPVMVELEGETDPLLIAMKELKARKIPIIIRRYLPDGSYEDWGVDELIISD

Entity 7 polymer

描述 description	DNA-directed RNA polymerase II subunit RPB7
分子量 formula_weight	19314.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

MFYHISLEHEILLHPRYFGPNLLNTVKQKLFTEVEGTCTGKYGFVIAVTTIDNIGAGVIQPGRGFVLYPVKYKAIVFRPFKGEVVDAVVTQVNKVGLFTEIGPMSCFISRHSIPSEMEFDPNSNPPCYKTMDEDIVIQQDDEIRLKIVGTRVDKNDIFAIGSLMDDYLGLVS

Entity 8 polymer

描述 description	DNA-directed RNA polymerases I, II, and III subunit RPABC3
分子量 formula_weight	17162.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MAGILFEDIFDVKDIDPEGKKFDRVSRLHCESESFKMDLILDVNIQIYPVDLGDKFRLVIASTLYEDGTLDDGEYNPTDDRPSRADQFEYVMYGKVYRIEGDETSTEAATRLSAYVSYGGLLMRLQGDANNLHGFEVDSRVYLLMKKLAF

Entity 9 polymer

描述 description	DNA-directed RNA polymerase II subunit RPB9
分子量 formula_weight	14541.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I

MEPDGTYEPGFVGIRFCQECNNMLYPKEDKENRILLYACRNCDYQQEADNSCIYVNKITHEVDELTQIIADVSQDPTLPRTEDHPCQKCGHKEAVFFQSHSARAEDAMRLYYVCTAPHCGHRWTE

Entity 10 polymer

描述 description	DNA-directed RNA polymerases I, II, and III subunit RPABC5
分子量 formula_weight	7655.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MIIPVRCFTCGKIVGNKWEAYLGLLQAEYTEGDALDALGLKRYCCRRMLLAHVDLIEKLLNYAPLEK

Entity 11 polymer

描述 description	RNA polymerase II subunit J
分子量 formula_weight	13310.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K

MNAPPAFESFLLFEGEKKITINKDTKVPNACLFTINKEDHTLGNIIKSQLLKDPQVLFAGYKVPHPLEHKIIIRVQTTPDYSPQEAFTNAITDLISELSLLEERFRVAIKDKQEGIE

Entity 12 polymer

描述 description	RNA polymerase II subunit K
分子量 formula_weight	7018.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

MDTQKDVQPPKQQPMIYICGECHTENEIKSRDPIRCRECGYRIMYKKRTKRLVVFDAR

Entity 13 polymer

描述 description	Transcription elongation factor SPT6
分子量 formula_weight	199603.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

SNAMSDFVESEAEESEEEYNDEGEVVPRVTKKFVEEEDDDEEEEEENLDDQDEQGNLKGFINDDDDEDEGEEDEGSDSGDSEDDVGHKKRKRTSFDDRLEDDDFDLIEENLGVKVKRGQKYRRVKKMSDDEDDDEEEYGKEEHEKEAIAEEIFQDGEGEEGQEAMEAPMAPPEEEEEDDEESDIDDFIVDDDGQPLKKPKWRKKLPGYTDAALQEAQEIFGVDFDYDEFEKYNEYDEELEEEYEYEDDEAEGEIRVRPKKTTKKRVSRRSIFEMYEPSELESSHLTDQDNEIRATDLPERFQLRSIPVKGAEDDELEEEADWIYRNAFATPTISLQESCDYLDRGQPASSFSRKGPSTIQKIKEALGFMRNQHFEVPFIAFYRKEYVEPELHINDLWRVWQWDEKWTQLRIRKENLTRLFEKMQAYQYEQISADPDKPLADGIRALDTTDMERLKDVQSMDELKDVYNHFLLYYGRDIPKMQNAAKASRKKLKRVREEGDEEGEGDEAEDEEQRGPELKQASRRDMYTICQSAGLDGLAKKFGLTPEQFGENLRDSYQRHETEQFPAEPLELAKDYVCSQFPTPEAVLEGARYMVALQIAREPLVRQVLRQTFQERAKLNITPTKKGRKDVDEAHYAYSFKYLKNKPVKELRDDQFLKICLAEDEGLLTTDISIDLKGVEGYGNDQTYFEEIKQFYYRDEFSHQVQEWNRQRTMAIERALQQFLYVQMAKELKNKLLAEAKEYVIKACSRKLYNWLRVAPYRPDQQVEEDDDFMDENQGKGIRVLGIAFSSARDHPVFCALVNGEGEVTDFLRLPHFTKRRTAWREEEREKKAQDIETLKKFLLNKKPHVVTVAGENRDAQMLIEDVKRIVHELDQGQQLSSIGVELVDNELAILYMNSKKSEAEFRDYPPVLRQAVSLARRIQDPLIEFAQVCSSDEDILCLKFHPLQEHVVKEELLNALYCEFINRVNEVGVDVNRAIAHPYSQALIQYVCGLGPRKGTHLLKILKQNNTRLESRTQLVTMCHMGPKVFMNCAGFLKIDTASLGDSTDSYIEVLDGSRVHPETYEWARKMAVDALEYDESAEDANPAGALEEILENPERLKDLDLDAFAEELERQGYGDKHITLYDIRAELSCRYKDLRTAYRSPNTEEIFNMLTKETPETFYIGKLIICNVTGIAHRRPQGESYDQAIRNDETGLWQCPFCQQDNFPELSEVWNHFDSGSCPGQAIGVKTRLDNGVTGFIPTKFLSDKVVKRPEERVKVGMTVHCRIMKIDIEKFSADLTCRTSDLMDRNNEWKLPKDTYYDFDAEAADHKQEEDMKRKQQRTTYIKRVIAHPSFHNINFKQAEKMMETMDQGDVIIRPSSKGENHLTVTWKVSDGIYQHVDVREEGKENAFSLGATLWINSEEFEDLDEIVARYVQPMASFARDLLNHKYYQDCSGGDRKKLEELLIKTKKEKPTFIPYFICACKELPGKFLLGYQPRGKPRIEYVTVTPEGFRYRGQIFPTVNGLFRWFKDHYQDPVPGITPSSSSRTRTPASINATPANINLADLTRAVNALPQNMTSQMFSAIAAVTGQGQNPNATPAQWASSQYGYGGSGGGSSAYHVFPTPAQQPVATPLMTPSYSYTTPSQPITTPQYHQLQASTTPQSAQAQPQPSSSSRQRQQQPKSNSHAAIDWGKMAEQWLQEKEAERRKQKQRLTPRPSPSPMIESTPMSIAGDATPLLDEMDR

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 14 polymer

描述 description	Non-template DNA
分子量 formula_weight	63931.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	N

TTGTGTTTGGTGTGTCTGGGTGGTGGCCGTTTTCGTTGTTTTTTTCTGTCTCGTGCCAGGAGACTAGGGAGTAATCCCCTTGGCGGTTAAAACGCGGGGGACAGCGCGTACGTGCGTTTAAGCGGTGCTAGAGCTGTCTACGACCAATTGAGCGGCCTCGGCACCGGGATTCTGATATCGCGCGTGATCTTACGGCATTATACGTA

Entity 15 polymer

描述 description	Protein IWS1 homolog
分子量 formula_weight	92235.9 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O

SNADSEYYSGDQSDDGGATPVQDERDSGSDGEDDVNEQHSGSDTGSVERHSENETSDREDGLPKGHHVTDSENDEPLNLNASDSESEELHRQKDSDSESEERAEPPASDSENEDVNQHGSDSESEETRKLPGSDSENEELLNGHASDSENEDVGKHPASDSEIEELQKSPASDSETEDALKPQISDSESEEPPRHQASDSENEEPPKPRMSDSESEELPKPQVSDSESEEPPRHQASDSENEELPKPRISDSESEDPPRHQASDSENEELPKPRISDSESEDPPRNQASDSENEELPKPRVSDSESEGPQKGPASDSETEDASRHKQKPESDDDSDRENKGEDTEMQNDSFHSDSHMDRKKFHSSDSEEEEHKKQKMDSDEDEKEGEEEKVAKRKAAVLSDSEDEEKASAKKSRVVSDADDSDSDAVSDKSGKREKTIASDSEEEAGKELSDKKNEEKDLFGSDSESGNEEENLIADIFGESGDEEEEEFTGFNQEDLEEEKGETQVKEAEDSDSDDNIKRGKHMDFLSDFEMMLQRKKSMSGKRRRNRDGGTFISDADDVVSAMIVKMNEAAEEDRQLNNQKKPALKKLTLLPAVVMHLKKQDLKETFIDSGVMSAIKEWLSPLPDRSLPALKIREELLKILQELPSVSQETLKHSGIGRAVMYLYKHPKESRSNKDMAGKLINEWSRPIFGLTSNYKGMTREEREQRDLEQMPQRRRMNSTGGQTPRRDLEKVLTGEEKALRPGDPGFCARARVPMPSNKDYVVRPKWNVEMESSRFQATSKKGISRLDKQMRKFTDIRKKSRSAHAVKISIEGNKMPL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 16 polymer

描述 description	RNA
分子量 formula_weight	6535.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	P

UGUUUUUUUCUGUCUCGUGCC

Entity 17 polymer

描述 description	RNA polymerase-associated protein CTR9 homolog
分子量 formula_weight	134510.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q

MSRGSIEIPLRDTDEVIELDFDQLPEGDEVISILKQEHTQLHIWIALALEYYKQGKTEEFVKLLEAARIDGNLDYRDHEKDQMTCLDTLAAYYVQQARKEKNKDNKKDLITQATLLYTMADKIIMYDQNHLLGRACFCLLEGDKMDQADAQFHFVLNQSPNNIPALLGKACISFNKKDYRGALAYYKKALRTNPGCPAEVRLGMGHCFVKLNKLEKARLAFSRALELNSKCVGALVGLAVLELNNKEADSIKNGVQLLSRAYTIDPSNPMVLNHLANHFFFKKDYSKVQHLALHAFHNTEVEAMQAESCYQLARSFHVQEDYDQAFQYYYQATQFASSSFVLPFFGLGQMYIYRGDKENASQCFEKVLKAYPNNYETMKILGSLYAASEDQEKRDIAKGHLKKVTEQYPDDVEAWIELAQILEQTDIQGALSAYGTATRILQEKVQADVPPEILNNVGALHFRLGNLGEAKKYFLASLDRAKAEAEHDEHYYNAISVTTSYNLARLYEAMCEFHEAEKLYKNILREHPNYVDCYLRLGAMARDKGNFYEASDWFKEALQINQDHPDAWSLIGNLHLAKQEWGPGQKKFERILKQPSTQSDTYSMLALGNVWLQTLHQPTRDREKEKRHQDRALAIYKQVLRNDAKNLYAANGIGAVLAHKGYFREARDVFAQVREATADISDVWLNLAHIYVEQKQYISAVQMYENCLRKFYKHQNTEVVLYLARALFKCGKLQECKQTLLKARHVAPSDTVLMFNVALVLQRLATSVLKDEKSNLKEVLNAVKELELAHRYFSYLSKVGDKMRFDLALAATEARQCSDLLSQAQYHVARARKQDEEERELRAKQEQEKELLRQKLLKEQEEKRLREKEEQKKLLEQRAQYVEKTKNILMFTGETEATKEKKRGGGGGRRSKKGGEFDEFVNDDTDDDLPISKKKKRRKGSGSEQEGEDEEGGERKKKKRRRHPKGEEGSDDDETENGPKPKKRRPPKAEKKKAPKPERLPPSMKGKIKSKAIISSSDDSSDEDKLKIADEGHPRNSNSNSDSDEDEQRKKCASSESDSDENQNKSGSEAGSPRRPRRQRSDQDSDSDQPSRKRRPSGSEQSDNESVQSGRSHSGVSENDSRPASPSAESDHESERGSDNEGSGQGSGNESEPEGSNNEASDRGSEHGSDDSDENLYFQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 18 polymer

描述 description	RNA polymerase-associated protein RTF1 homolog
分子量 formula_weight	80733.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	R

SNAMRGRLCVGRAAAAAAAVAVPLAGGQEGSPGGGRRGSRGTTMVKKRKGRVVIDSDTEDSGSDENLDQELLSLAKRKRSDSEEKEPPVSQPAASSDSETSDSDDEWTFGSNKNKKKGKARKIEKKGTMKKQANKTASSGSSDKDSSAESSAPEEGEVSDSDSNSSSSSSDSDSSSEDEEFHDGYGEDLMGDEEDRARLEQMTEKEREQELFNRIEKREVLKRRFEIKKKLKTAKKKEKKEKKKKQEEEQEKKKLTQIQESQVTSHNKERRSKRDEKLDKKSQAMEELKAEREKRKNRTAELLAKKQPLKTSEVYSDDEEEEEDDKSSEKSDRSSRTSSSDEEEEKEEIPPKSQPVSLPEELNRVRLSRHKLERWCHMPFFAKTVTGCFVRIGIGNHNSKPVYRVAEITGVVETAKVYQLGGTRTNKGLQLRHGNDQRVFRLEFVSNQEFTESEFMKWKEAMFSAGMQLPTLDEINKKELSIKEALNYKFNDQDIEEIVKEKERFRKAPPNYAMKKTQLLKEKAMAEDLGDQDKAKQIQDQLNELEERAEALDRQRTKNISAISYINQRNREWNIVESEKALVAESHNMKNQQMDPFTRRQCKPTIVSNSRDPAVQAAILAQLNAKYGSGVLPDAPKEMSKGQGKDKDLNSKSASDLSEDLFKVHDFDVKIDLQVPSSESKALAITSKAPPAKDGAPRRSLNLEDYKKRRGLI

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 19 polymer

描述 description	Transcription elongation factor A protein 1
分子量 formula_weight	34295.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S

SNAMEDEVVRFAKKMDKMVQKKNAAGALDLLKELKNIPMTLELLQSTRIGMSVNAIRKQSTDEEVTSLAKSLIKSWKKLLDGPSTEKDLDEKKKEPAITSQNSPEAREESTSSGNVSNRKDETNARDTYVSSFPRAPSTSDSVRLKCREMLAAALRTGDDYIAIGADEEELGSQIEEAIYQEIRNTDMKYKNRVRSRISNLKDAKNPNLRKNVLCGNIPPDLFARMTAEEMASDELKEMRKNLTKEAIREHQMAKTGGTQTDLFTCGKCKKKNCTYTQVQTRSADEPMTTFVVCNECGNRWKFC

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 20 polymer

描述 description	Template DNA
分子量 formula_weight	66097.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	T

TACGTATAATGCCGTAAGATCACGCGCGATATCAGAATCCCGGTGCCGAGGCCGCTCAATTGGTCGTAGACAGCTCTAGCACCGCTTAAACGCACGTACGCGCTGTCCCCCGCGTTTTAACCGCCAAGGGGATTACTCCCTAGTCTCCTGGCACGAGACAGAAAAAAACAACGAAAACGGCCACCACCCAGACACACCAAACACAAGACAGTGAT

Entity 21 polymer

描述 description	RNA polymerase-associated protein LEO1
分子量 formula_weight	75514.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	U

MADMEDLFGSDADSEAERKDSDSGSDSDSDQENAASGSNASGSESDQDERGDSGQPSNKELFGDDSEDEGASHHSGSDNHSERSDNRSEASERSDHEDNDPSDVDQHSGSEAPNDDEDEGHRSDGGSHHSEAEGSEKAHSDDEKWGREDKSDQSDDEKIQNSDDEERAQGSDEDKLQNSDDDEKMQNTDDEERPQLSDDERQQLSEEEKANSDDERPVASDNDDEKQNSDDEEQPQLSDEEKMQNSDDERPQASDEEHRHSDDEEEQDHKSESARGSDSEDEVLRMKRKNAIASDSEADSDTEVPKDNSGTMDLFGGADDISSGSDGEDKPPTPGQPVDENGLPQDQQEEEPIPETRIEVEIPKVNTDLGNDLYFVKLPNFLSVEPRPFDPQYYEDEFEDEEMLDEEGRTRLKLKVENTIRWRIRRDEEGNEIKESNARIVKWSDGSMSLHLGNEVFDVYKAPLQGDHNHLFIRQGTGLQGQAVFKTKLTFRPHSTDSATHRKMTLSLADRCSKTQKIRILPMAGRDPECQRTEMIKKEEERLRASIRRESQQRRMREKQHQRGLSASYLEPDRYDEEEEGEESISLAAIKNRYKGGIREERARIYSSDSDEGSEEDKAQRLLKAKKLTSDEEGEPSGKRKAEDDDKANKKHKKYVISDEEEEDDD

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 22 polymer

描述 description	RNA polymerase II-associated factor 1 homolog
分子量 formula_weight	60052.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	V

MAPTIQTQAQREDGHRPNSHRTLPERSGVVCRVKYCNSLPDIPFDPKFITYPFDQNRFVQYKATSLEKQHKHDLLTEPDLGVTIDLINPDTYRIDPNVLLDPADEKLLEEEIQAPTSSKRSQQHAKVVPWMRKTEYISTEFNRYGISNEKPEVKIGVSVKQQFTEEEIYKDRDSQITAIEKTFEDAQKSISQHYSKPRVTPVEVMPVFPDFKMWINPCAQVIFDSDPAPKDTSGAAALEMMSQAMIRGMMDEEGNQFVAYFLPVEETLKKRKRDQEEEMDYAPDDVYDYKIAREYNWNVKNKASKGYEENYFFIFREGDGVYYNELETRVRLSKRRAKAGVQSGTNALLVVKHRDMNEKELEAQEARKAQLENHEPEEEEEEEMETEEKEAGGSDEEQEKGSSSEKEGSEDEHSGSESEREEGDRDEASDKSGSGEDESSEDEARAARDKEEIFGSDADSEDDADSDDEDRGQAQGGSDNDSDSGSNGGGQRSRSHSRSASPFPSGSEHSAQEDGSEAAASDSSEADSDSD

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 23 polymer

描述 description	WDR61
分子量 formula_weight	33617.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	W

MTNQYGILFKQEQAHDDAIWSVAWGTNKKENSETVVTGSLDDLVKVWKWRDERLDLQWSLEGHQLGVVSVDISHTLPIAASSSLDAHIRLWDLENGKQIKSIDAGPVDAWTLAFSPDSQYLATGTHVGKVNIFGVESGKKEYSLDTRGKFILSIAYSPDGKYLASGAIDGIINIFDIATGKLLHTLEGHAMPIRSLTFSPDSQLLVTASDDGYIKIYDVQHANLAGTLSGHASWVLNVAFCPDDTHFVSSSSDKSVKVWDVGTRTCVHTFFDHQDQVWGVKYNGNGSKIVSVGDDQEIHIYDCPI

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 24 polymer

描述 description	Parafibromin
分子量 formula_weight	60673.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	X

MADVLSVLRQYNIQKKEIVVKGDEVIFGEFSWPKNVKTNYVVWGTGKEGQPREYYTLDSILFLLNNVHLSHPVYVRRAATENIPVVRRPDRKDLLGYLNGEASTSASIDRSAPLEIGLQRSTQVKRAADEVLAEAKKPRIEDEECVRLDKERLAARLEGHKEGIVQTEQIRSLSEAMSVEKIAAIKAKIMAKKRSTIKTDLDDDITALKQRSFVDAEVDVTRDIVSRERVWRTRTTILQSTGKNFSKNIFAILQSVKAREEGRAPEQRPAPNAAPVDPTLRTKQPIPAAYNRYDQERFKGKEETEGFKIDTMGTYHGMTLKSVTEGASARKTQTPAAQPVPRPVSQARPPPNQKKGSRTPIIIIPAATTSLITMLNAKDLLQDLKFVPSDEKKKQGCQRENETLIQRRKDQMQPGGTAISVTVPYRVVDQPLKLMPQDWDRVVAVFVQGPAWQFKGWPWLLPDGSPVDIFAKIKAFHLKYDEVRLDPNVQKWDVTVLELSYHKRHLDRPVFLRFWETLDRYMVKHKSHLRF

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 25 polymer

描述 description	Transcription elongation factor SPT4
分子量 formula_weight	13508.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Y

GPGSMALETVPKDLRHLRACLLCSLVKTIDQFEYDGCDNCDAYLQMKGNREMVYDCTSSSFDGIIAMMSPEDSWVSKWQRVSNFKPGVYAVSVTGRLPQGIVRELKSRGVAYKSRDTAIKT

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 26 polymer

描述 description	Transcription elongation factor SPT5
分子量 formula_weight	121225.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Z

MSDSEDSNFSEEEDSERSSDGEEAEVDEERRSAAGSEKEEEPEDEEEEEEEEEYDEEEEEEDDDRPPKKPRHGGFILDEADVDDEYEDEDQWEDGAEDILEKEEIEASNIDNVVLDEDRSGARRLQNLWRDQREEELGEYYMKKYAKSSVGETVYGGSDELSDDITQQQLLPGVKDPNLWTVKCKIGEERATAISLMRKFIAYQFTDTPLQIKSVVAPEHVKGYIYVEAYKQTHVKQAIEGVGNLRLGYWNQQMVPIKEMTDVLKVVKEVANLKPKSWVRLKRGIYKDDIAQVDYVEPSQNTISLKMIPRIDYDRIKARMSLKDWFAKRKKFKRPPQRLFDAEKIRSLGGDVASDGDFLIFEGNRYSRKGFLFKSFAMSAVITEGVKPTLSELEKFEDQPEGIDLEVVTESTGKEREHNFQPGDNVEVCEGELINLQGKILSVDGNKITIMPKHEDLKDMLEFPAQELRKYFKMGDHVKVIAGRFEGDTGLIVRVEENFVILFSDLTMHELKVLPRDLQLCSETASGVDVGGQHEWGELVQLDPQTVGVIVRLERETFQVLNMYGKVVTVRHQAVTRKKDNRFAVALDSEQNNIHVKDIVKVIDGPHSGREGEIRHLFRSFAFLHCKKLVENGGMFVCKTRHLVLAGGSKPRDVTNFTVGGFAPMSPRISSPMHPSAGGQRGGFGSPGGGSGGMSRGRGRRDNELIGQTVRISQGPYKGYIGVVKDATESTARVELHSTCQTISVDRQRLTTVGSRRPGGMTSTYGRTPMYGSQTPMYGSGSRTPMYGSQTPLQDGSRTPHYGSQTPLHDGSRTPAQSGAWDPNNPNTPSRAEEEYEYAFDDEPTPSPQAYGGTPNPQTPGYPDPSSPQVNPQYNPQTPGTPAMYNTDQFSPYAAPSPQGSYQPSPSPQSYHQVAPSPAGYQNTHSPASYHPTPSPMAYQASPSPSPVGYSPMTPGAPSPGGYNPHTPGSGIEQNSSDWVTTDIQVKVRDTYLDTQVVGQTGVIRSVTGGMCSVYLKDSEKVVSISSEHLEPITPTKNNKVKVILGEDREATGVLLSIDGEDGIVRMDLDEQLKILNLRFLGKLLEA

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 27 polymer

描述 description	Histone H3
分子量 formula_weight	15437.1 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	a,e

MARTKQTARKSTGGKAPRKQLATKAARKSAPATGGVMKPHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEASEAYLVALFEDTNLCAIHAKRVTIMPKDIQLARRIRGERA

来源 Source

来源生物 organism	Xenopus laevis
通用名 common_name	African clawed frog
NCBI 分类编号 ncbi_taxonomy_id	8355
宿主生物 host_organism	Escherichia coli

Entity 28 polymer

描述 description	Histone H4
分子量 formula_weight	11394.4 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	b,f

MSGRGKGGKGLGKGGAKRHRKVLRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG

来源 Source

来源生物 organism	Xenopus laevis
通用名 common_name	African clawed frog
NCBI 分类编号 ncbi_taxonomy_id	8355
宿主生物 host_organism	Escherichia coli

Entity 29 polymer

描述 description	Histone H2A type 1
分子量 formula_weight	14109.4 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	c,g

MSGRGKQGGKTRAKAKTRSSRAGLQFPVGRVHRLLRKGNYAERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAVRNDEELNKLLGRVTIAQGGVLPNIQSVLLPKKTESSKSAKSK

来源 Source

来源生物 organism	Xenopus laevis
通用名 common_name	African clawed frog
NCBI 分类编号 ncbi_taxonomy_id	8355
宿主生物 host_organism	Escherichia coli

Entity 30 polymer

描述 description	Histone H2B 1.1
分子量 formula_weight	13655.9 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	d,h

MAKSAPAPKKGSKKAVTKTQKKDGKKRRKTRKESYAIYVYKVLKQVHPDTGISSKAMSIMNSFVNDVFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSAK

来源 Source

来源生物 organism	Xenopus laevis
通用名 common_name	African clawed frog
NCBI 分类编号 ncbi_taxonomy_id	8355
宿主生物 host_organism	Escherichia coli

Entity 31 polymer

描述 description	Histone-lysine N-methyltransferase SETD2
分子量 formula_weight	127887.3 kDa
EC 编号 ec_number	2.1.1.359,2.1.1.-
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	l

SNAETSVPPGSALVGPSCVMDDFRDPQRWKECAKQGKMPCYFDLIEENVYLTERKKNKSHRDIKRMQCECTPLSKDERAQGEIACGEDCLNRLLMIECSSRCPNGDYCSNRRFQRKQHADVEVILTEKKGWGLRAAKDLPSNTFVLEYCGEVLDHKEFKARVKEYARNKNIHYYFMALKNDEIIDATQKGNCSRFMNHSCEPNCETQKWTVNGQLRVGFFTTKLVPSGSELTFDYQFQRYGKEAQKCFCGSANCRGYLGGENRVSIRAAGGKMKKERSRKKDSVDGELEALMENGEGLSDKNQVLSLSRLMVRIETLEQKLTCLELIQNTHSQSCLKSFLERHGLSLLWIWMAELGDGRESNQKLQEEIIKTLEHLPIPTKNMLEESKVLPIIQRWSQTKTAVPPLSEGDGYSSENTSRAHTPLNTPDPSTKLSTEADTDTPKKLMFRRLKIISENSMDSAISDATSELEGKDGKEDLDQLENVPVEEEEELQSQQLLPQQLPECKVDSETNIEASKLPTSEPEADAEIELKESNGTKLEEPINEETPSQDEEEGVSDVESERSQEQPDKTVDISDLATKLLDSWKDLKEVYRIPKKSQTEKENTTTERGRDAVGFRDQTPAPKTPNRSRERDPDKQTQNKEKRKRRSSLSPPSSAYERGTKRPDDRYDTPTSKKKVRIKDRNKLSTEERRKLFEQEVAQREAQKQQQQMQNLGMTSPLPYDSLGYNAPHHPFAGYPPGYPMQAYVDPSNPNAGKVLLPTPSMDPVCSPAPYDHAQPLVGHSTEPLSAPPPVPVVPHVAAPVEVSSSQYVAQSDGVVHQDSSVAVLPVPAPGPVQGQNYSVWDSNQQSVSVQQQYSPAQSQATIYYQGQTCPTVYGVTSPYSQTTPPIVQSYAQPSLQYIQGQQIFTAHPQGVVVQPAAAVTTIVAPGQPQPLQPSEMVVTNNLLDLPPPSPPKPKTIVLPPNWKTARDPEGKIYYYHVITRQTQWDPPTWESPGDDASLEHEAEMDLGTPTYDENPMKASKKPKTAEADTSSELAKKSKEVFRKEMSQFIVQCLNPYRKPDCKVGRITTTEDFKHLARKLTHGVMNKELKYCKNPEDLECNENVKHKTKEYIKKYMQKFGAVYKPKEDTELE

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 32 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	12

Entity 33 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.90 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	1139653

fit	/app/data/saxs_computation/eg/9egz/9egz.fit
pddf	/app/data/pr_computation/eg/9egz/9egz.pr.out
profile	/app/data/saxs_computation/eg/9egz/9egz.dat

RNA polymerase II-DSIF-SPT6-PAF1c-TFIIS-IWS1-SETD2-nucleosome, bp +27

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

冷冻电镜 EM 3D

5. 实体与聚合体信息 (33)

Entity 1 polymer

聚合体 Polymer

Entity 2 polymer

聚合体 Polymer

Entity 3 polymer

聚合体 Polymer

Entity 4 polymer

聚合体 Polymer

Entity 5 polymer

聚合体 Polymer

Entity 6 polymer

聚合体 Polymer

Entity 7 polymer

聚合体 Polymer

Entity 8 polymer

聚合体 Polymer

Entity 9 polymer

聚合体 Polymer

Entity 10 polymer

聚合体 Polymer

Entity 11 polymer

聚合体 Polymer

Entity 12 polymer

聚合体 Polymer

Entity 13 polymer

聚合体 Polymer

来源 Source

Entity 14 polymer

聚合体 Polymer

Entity 15 polymer

聚合体 Polymer

来源 Source

Entity 16 polymer

聚合体 Polymer

Entity 17 polymer

聚合体 Polymer

来源 Source

Entity 18 polymer

聚合体 Polymer

来源 Source

Entity 19 polymer

聚合体 Polymer

来源 Source

Entity 20 polymer

聚合体 Polymer

Entity 21 polymer

聚合体 Polymer

来源 Source

Entity 22 polymer

聚合体 Polymer

来源 Source

Entity 23 polymer

聚合体 Polymer

来源 Source

Entity 24 polymer

聚合体 Polymer

来源 Source

Entity 25 polymer

聚合体 Polymer

来源 Source

Entity 26 polymer

聚合体 Polymer

来源 Source

Entity 27 polymer

聚合体 Polymer

来源 Source

Entity 28 polymer

聚合体 Polymer

来源 Source
