1p3o

;Crystallographic Studies of Nucleosome Core Particles containing Histone 'Sin' Mutants ;

Method: X-RAY DIFFRACTION D_max: 110.1 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1p3o
沉积日期 deposition_date	2003-04-17
结构标题 title	;Crystallographic Studies of Nucleosome Core Particles containing Histone 'Sin' Mutants ;
关键词 keywords	Sin mutants, Nucleosome Core Particle, chromatin, protein/DNA interaction, STRUCTURAL PROTEIN-DNA COMPLEX; STRUCTURAL PROTEIN/DNA
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	39.86 Å
回转半径 Rg (电子) rg_electron	37.13 Å
零角强度 I(0) i0	818871000.00
分子量 molecular_weight	175080.0 kDa
排除体积 excluded_volume	194400 Å³
包络体积 envelope_volume	285220 Å³
水化壳体积 shell_volume	62339 Å³
包络直径 envelope_diameter	119.3 Å
壳层 Rg shell_rg	44.82 Å
包络 Rg envelope_rg	36.57 Å
形状 Rg shape_rg	36.96 Å
总 Rg total_rg	37.85 Å
总原子数 total_atoms	11944
残基数 n_residues	1045
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

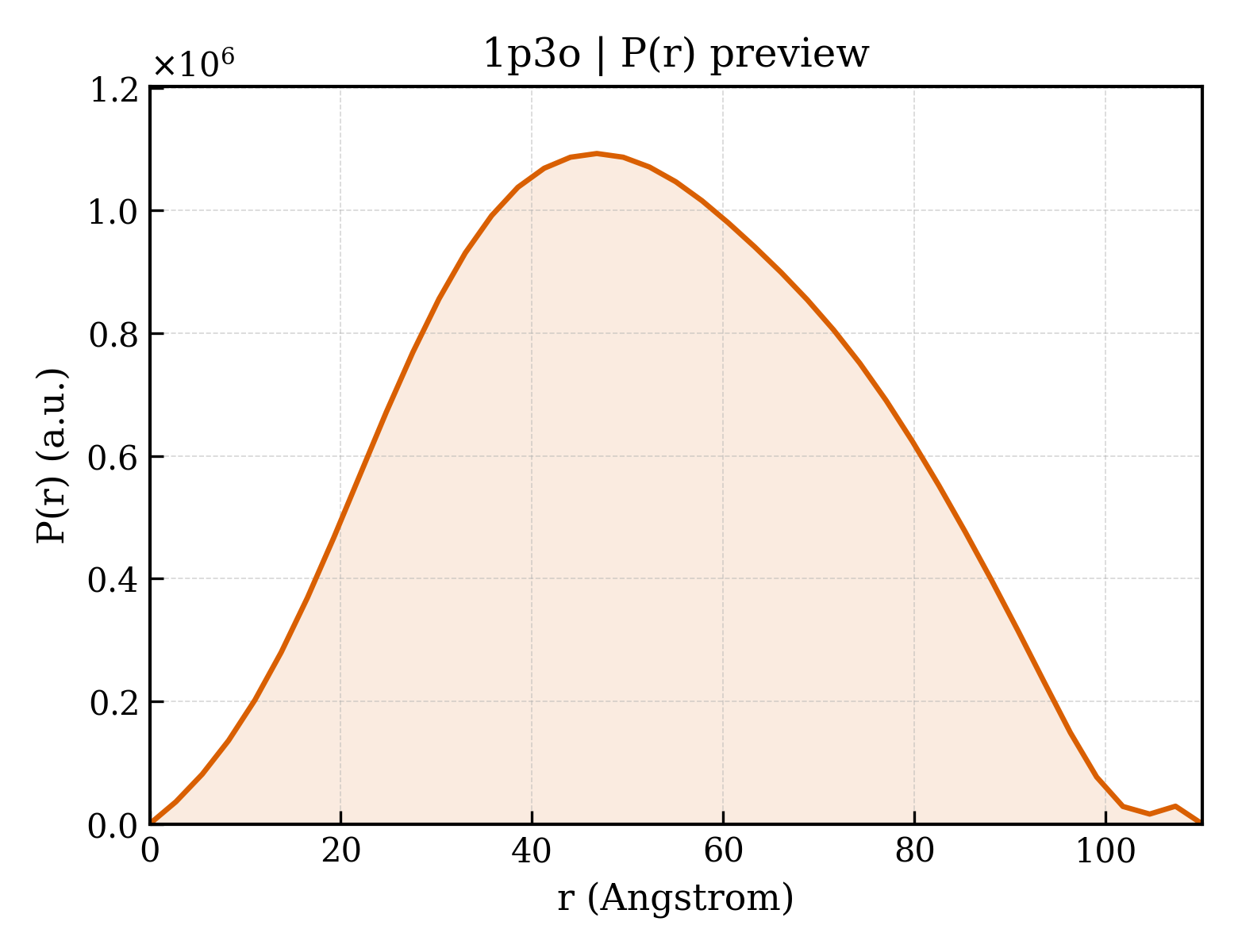

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	110.1 Å
Rg (实空间) rg_real	39.59 Å
Rg 误差 (实空间) rg_real_error	0.54 Å
I(0) (实空间) i0_real	8.1890e+08
I(0) 误差 (实空间) i0_real_error	1.2190e+07
Rg (倒空间) rg_reciprocal	39.76 Å
I(0) (倒空间) i0_reciprocal	819000000.0000
解质量估计 total_estimate	0.8487
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	46.8 Å
偏度 Skewness skewness	0.086
峰度 Kurtosis kurtosis	-0.699
角度范围 angular_range	— – 0.2000 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	65150000.0000
实空间数据点数 n_real_points	41
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.999; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.035

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	Palindromic 146bp Human Alpha-Satellite DNA fragment
分子量 formula_weight	45054.8 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	I,J
原子数 atom_count	12182

ATCAATATCCACCTGCAGATTCTACCAAAAGTGTATTTGGAAACTGCTCCATCAAAAGGCATGTTCAGCGGAATTCCGCTGAACATGCCTTTTGATGGAGCAGTTTCCAAATACACTTTTGGTAGAATCTGCAGGTGGATATTGAT

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	Histone H3
分子量 formula_weight	15363.9 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,E

ARTKQTARKSTGGKAPRKQLATKAARKSAPATGESKKPHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEASEAYLVALFEDTNLCAIHAKRVTIMPKDIQLARRIRGERA

来源 Source

来源生物 organism	Xenopus laevis
通用名 common_name	African clawed frog
NCBI 分类编号 ncbi_taxonomy_id	8355
宿主生物 host_organism	Escherichia coli

Entity 3 polymer

描述 description	Histone H4
分子量 formula_weight	11235.2 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,F

SGRGKGGKGLGKGGAKRHRKVLRDNIQGITKPAIRRLARRGGAKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG

来源 Source

来源生物 organism	Xenopus laevis
通用名 common_name	African clawed frog
NCBI 分类编号 ncbi_taxonomy_id	8355
宿主生物 host_organism	Escherichia coli

Entity 4 polymer

描述 description	Histone H2A
分子量 formula_weight	13962.2 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,G

SGRGKQGGKTRAKAKTRSSRAGLQFPVGRVHRLLRKGNYAERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAVRNDEELNKLLGRVTIAQGGVLPNIQSVLLPKKTESAKSAKSK

来源 Source

来源生物 organism	Xenopus laevis
通用名 common_name	African clawed frog
NCBI 分类编号 ncbi_taxonomy_id	8355
宿主生物 host_organism	Escherichia coli

Entity 5 polymer

描述 description	Histone H2B
分子量 formula_weight	13834.1 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D,H

PEPAKSAPAPKKGSKKAVTKTQKKDGKKRRKSRKESYAIYVYKVLKQVHPDTGISSKAMSIMNSFVNDVFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSAK

来源 Source

来源生物 organism	Xenopus laevis
通用名 common_name	African clawed frog
NCBI 分类编号 ncbi_taxonomy_id	8355
宿主生物 host_organism	Escherichia coli

Entity 6 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	238

▼

6. 折叠分类 (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d1p3oa_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.22 — Histone-fold
超家族 Superfamily superfamily	a.22.1 — Histone-fold
家族 Family family	a.22.1.1 — Nucleosome core histones

结构域编号 domain_id	d1p3ob_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.22 — Histone-fold
超家族 Superfamily superfamily	a.22.1 — Histone-fold
家族 Family family	a.22.1.1 — Nucleosome core histones

结构域编号 domain_id	d1p3oc_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.22 — Histone-fold
超家族 Superfamily superfamily	a.22.1 — Histone-fold
家族 Family family	a.22.1.1 — Nucleosome core histones

结构域编号 domain_id	d1p3od_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.22 — Histone-fold
超家族 Superfamily superfamily	a.22.1 — Histone-fold
家族 Family family	a.22.1.1 — Nucleosome core histones

结构域编号 domain_id	d1p3oe_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.22 — Histone-fold
超家族 Superfamily superfamily	a.22.1 — Histone-fold
家族 Family family	a.22.1.1 — Nucleosome core histones

结构域编号 domain_id	d1p3of_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.22 — Histone-fold
超家族 Superfamily superfamily	a.22.1 — Histone-fold
家族 Family family	a.22.1.1 — Nucleosome core histones

结构域编号 domain_id	d1p3og_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.22 — Histone-fold
超家族 Superfamily superfamily	a.22.1 — Histone-fold
家族 Family family	a.22.1.1 — Nucleosome core histones

结构域编号 domain_id	d1p3oh_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.22 — Histone-fold
超家族 Superfamily superfamily	a.22.1 — Histone-fold
家族 Family family	a.22.1.1 — Nucleosome core histones

CATH v4.4 (8 domains)

结构域编号 domain_id	1p3oA00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	20 — Histone, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Histone, subunit A

结构域编号 domain_id	1p3oB00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	20 — Histone, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Histone, subunit A

结构域编号 domain_id	1p3oC00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	20 — Histone, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Histone, subunit A

结构域编号 domain_id	1p3oD00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	20 — Histone, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Histone, subunit A

结构域编号 domain_id	1p3oE00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	20 — Histone, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Histone, subunit A

结构域编号 domain_id	1p3oF00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	20 — Histone, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Histone, subunit A

结构域编号 domain_id	1p3oG00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	20 — Histone, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Histone, subunit A

结构域编号 domain_id	1p3oH00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	20 — Histone, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Histone, subunit A

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	105.973 Å
晶胞边长 b length_b	109.827 Å
晶胞边长 c length_c	181.671 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	2.750 Å
最低分辨率 resolution_low	50.000 Å
R 因子 r_factor	—
R_work r_work	0.2240
R_free r_free	0.2760

fit	/app/data/saxs_computation/p3/1p3o/1p3o.fit
pddf	/app/data/pr_computation/p3/1p3o/1p3o.pr.out
profile	/app/data/saxs_computation/p3/1p3o/1p3o.dat
