1f66

2.6 A CRYSTAL STRUCTURE OF A NUCLEOSOME CORE PARTICLE CONTAINING THE VARIANT HISTONE H2A.Z

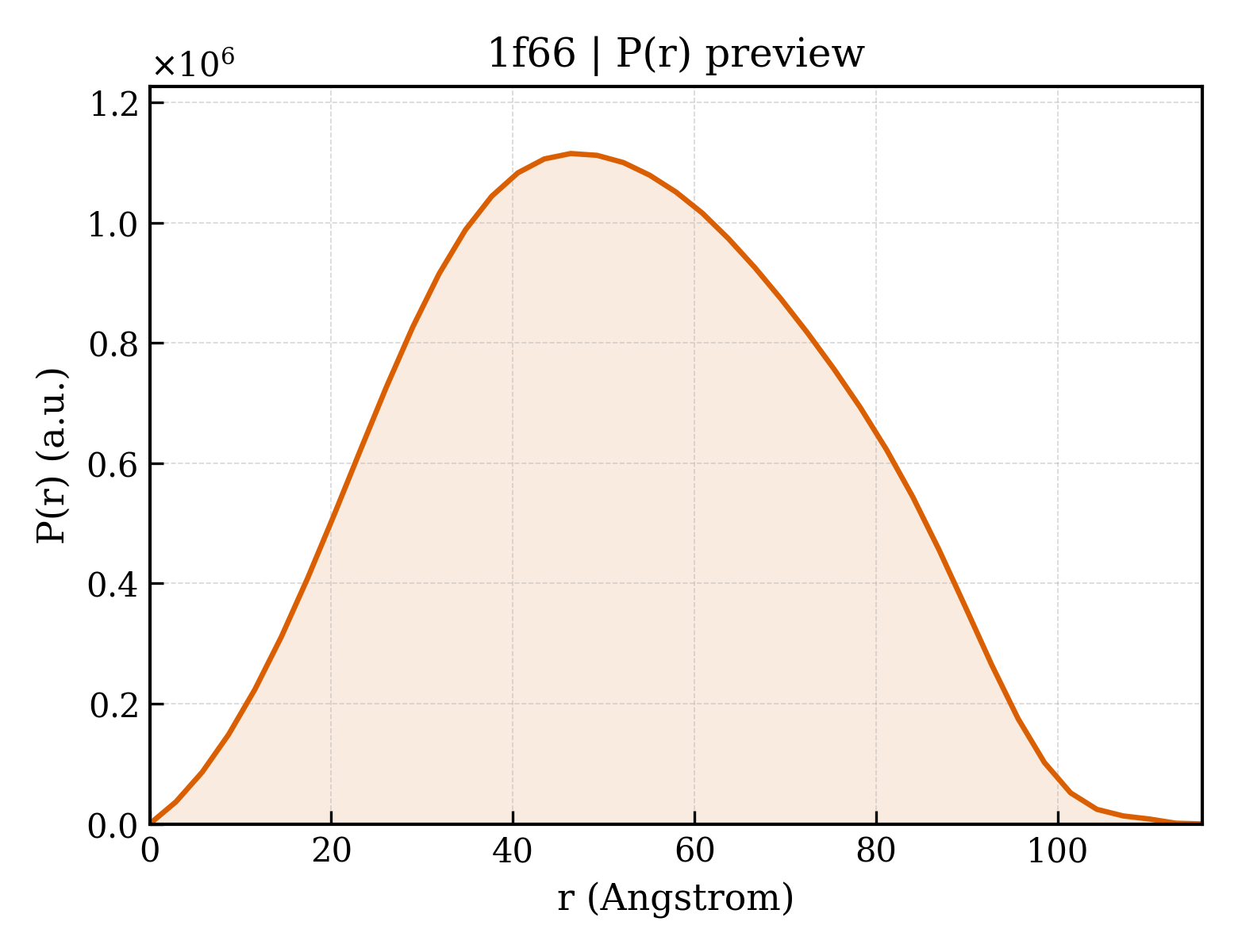

Method: X-RAY DIFFRACTION Dmax: 115.9 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HISTONE H3

Xenopus laevis

UniProt Q7ZT64

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein–DNA Heteromer Protein × 8 DNA 2 PDB declaration: decameric（10） Consistent with all polymer counts Chain A； UniProt 1–136 Chain E； UniProt 1–136 Not recorded PALINDROMIC 146 BASE PAIR DNA FRAGMENT × 2 HISTONE H4 × 2 （P62806） HISTONE H2A.Z × 2 （P17317） HISTONE H2B × 2 （P02281） MN MANGANESE (II) ION × 15 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；MnCl2, KCl, cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；MnCl2, KCl, cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；MnCl2, KCl, cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K Resolution 2.60 Å R-free 0.249

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 1F66 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1P34 Crystallographic Studies of Nucleosome Core Particles containing Histone 'Sin' Mutants Deposited 2003-04-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；MnCl2, KCl, Potassium cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K
Resolution 2.70 Å R-free 0.270
1P3A Crystallographic Studies of Nucleosome Core Particles containing Histone 'Sin' Mutants Deposited 2003-04-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；MnCl2, KCl, Potassium cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K
Resolution 3.00 Å R-free 0.260
1P3B Crystallographic Studies of Nucleosome Core Particles containing Histone 'Sin' Mutants Deposited 2003-04-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；MnCl2, KCl, Potassium cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K
Resolution 3.00 Å R-free 0.286
1P3F Crystallographic Studies of Nucleosome Core Particles containing Histone 'Sin' Mutants Deposited 2003-04-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；MnCl2, KCl, Potassium cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K
Resolution 2.90 Å R-free 0.272
1P3G Crystallographic Studies of Nucleosome Core Particles containing Histone 'Sin' Mutants Deposited 2003-04-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；MnCl2, KCl, Potassium cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K
Resolution 2.70 Å R-free 0.265
1P3I Crystallographic Studies of Nucleosome Core Particles containing Histone 'Sin' Mutants Deposited 2003-04-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；MnCl2, KCl, Potassium cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K
Resolution 2.30 Å R-free 0.275
1P3K Crystallographic Studies of Nucleosome Core Particles containing Histone 'Sin' Mutants Deposited 2003-04-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；MnCl2, KCl, Potassium cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K
Resolution 2.90 Å R-free 0.291
1P3L Crystallographic Studies of Nucleosome Core Particles containing Histone 'Sin' Mutants Deposited 2003-04-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；MnCl2, KCl, Potassium cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K
Resolution 2.40 Å R-free 0.265
1P3M Crystallographic Studies of Nucleosome Core Particles containing Histone 'Sin' Mutants Deposited 2003-04-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；MnCl2, KCl, Potassium cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K
Resolution 2.90 Å R-free 0.270
1P3O Crystallographic Studies of Nucleosome Core Particles containing Histone 'Sin' Mutants Deposited 2003-04-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；MnCl2, KCl, Potassium cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K
Resolution 2.75 Å R-free 0.276
1P3P Crystallographic Studies of Nucleosome Core Particles containing Histone 'Sin' Mutants Deposited 2003-04-17 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain A 2–136（135 aa）
Chain E 2–136（135 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；MnCl2, KCl, Potassium cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K
Resolution 2.70 Å R-free 0.268

11 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name Q7ZT64_9ZZZZ
Isoform —
PDB entities 2
Chains and sequence ranges Author chain A； PDBConstruct 1–136； UniProt 1–136 Author chain E； PDBConstruct 1–36； UniProt 1–136

HISTONE H4

Mus musculus

UniProt P62806

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein–DNA Heteromer Protein × 8 DNA 2 PDB declaration: decameric（10） Consistent with all polymer counts Chain B； UniProt 1–102 Chain F； UniProt 1–102 Not recorded PALINDROMIC 146 BASE PAIR DNA FRAGMENT × 2 HISTONE H3 × 2 （Q7ZT64） HISTONE H2A.Z × 2 （P17317） HISTONE H2B × 2 （P02281） MN MANGANESE (II) ION × 15 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；MnCl2, KCl, cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；MnCl2, KCl, cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；MnCl2, KCl, cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K Resolution 2.60 Å R-free 0.249

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 1F66 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2WP2 Structure of Brdt bromodomain BD1 bound to a diacetylated histone H4 peptide. Deposited 2009-08-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain P 2–21（20 aa） Fragment：RESIDUES 2-21
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；15 MG/ML BRDT-BD1 PROTEIN WAS MIXED WITH H4-ACK5/K8 PEPTIDE IN A 1:20 MOLAR RATIO. CRYSTALLIZATION WAS BY THE HANGING DROP VAPOUR DIFFUSION METHOD FROM 2.4 M AMMONIUM SULFATE, 0.1 M HEPES PH 7.
Resolution 2.37 Å R-free 0.261
2WP2 Structure of Brdt bromodomain BD1 bound to a diacetylated histone H4 peptide. Deposited 2009-08-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain Q 2–21（20 aa） Fragment：RESIDUES 2-21
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；15 MG/ML BRDT-BD1 PROTEIN WAS MIXED WITH H4-ACK5/K8 PEPTIDE IN A 1:20 MOLAR RATIO. CRYSTALLIZATION WAS BY THE HANGING DROP VAPOUR DIFFUSION METHOD FROM 2.4 M AMMONIUM SULFATE, 0.1 M HEPES PH 7.
Resolution 2.37 Å R-free 0.261
4AU7 The structure of the Suv4-20h2 ternary complex with histone H4 Deposited 2012-05-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 18–26（9 aa） Fragment：RESIDUES 18-26
Non-standard monomer：Yes (specific site not provided by mmCIF) SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 ZN ZINC ION × 2 EDO 1,2-ETHANEDIOL × 8 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8；PROTEIN WAS CRYSTALLIZED FROM 9% PEG 3350, 0.1 M HEPES PH 6.5
Resolution 2.07 Å R-free 0.240
4DOW Structure of mouse ORC1 BAH domain bound to H4K20me2 Deposited 2012-02-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 15–26（12 aa） Fragment：UNP residues 15-26
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；292 K；0.2 M sodium bromide, 25% PEG3350, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 292K
Resolution 1.95 Å R-free 0.257
4DOW Structure of mouse ORC1 BAH domain bound to H4K20me2 Deposited 2012-02-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 15–26（12 aa） Fragment：UNP residues 15-26
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；292 K；0.2 M sodium bromide, 25% PEG3350, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 292K
Resolution 1.95 Å R-free 0.257
5B1L The mouse nucleosome structure containing H3t Deposited 2015-12-08 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain B 1–103（103 aa）
Chain F 1–103（103 aa）
Not recorded CL CHLORIDE ION × 4 MN MANGANESE (II) ION × 13 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；potassium cacodylate, potassium chloride, manganese chloride
Resolution 2.35 Å R-free 0.243
5B1M The mouse nucleosome structure containing H3.1 Deposited 2015-12-08 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain B 1–103（103 aa）
Chain F 1–103（103 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；potassium cacodylate, potassium chloride, manganese chloride
Resolution 2.34 Å R-free 0.259
5XM0 The mouse nucleosome structure containing H2A, H2B type3-A, H3.3, and H4 Deposited 2017-05-12 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain B 1–103（103 aa）
Chain F 1–103（103 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；potassium cacodylate, potassium chloride, manganese chloride
Resolution 2.87 Å R-free 0.255
5XM1 The mouse nucleosome structure containing H2A, H2B type3-A, H3mm7, and H4 Deposited 2017-05-12 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain B 1–103（103 aa）
Chain F 1–103（103 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；potassium cacodylate, potassium chloride, manganese chloride
Resolution 3.45 Å R-free 0.254
7DBH The mouse nucleosome structure containing H3mm18 Deposited 2020-10-20 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain B 1–103（103 aa）
Chain F 1–103（103 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
7VBM The mouse nucleosome structure containing H3mm18 aided by PL2-6 scFv Deposited 2021-08-31 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain B 1–103（103 aa）
Chain F 1–103（103 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.40 Å
8PKI Cryo-EM structure of NR5A2-nucleosome complex SHL+5.5 Deposited 2023-06-26 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: 11-meric
Chain B 1–103（103 aa）
Chain F 1–103（103 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.58 Å

10 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name H4_MOUSE
Isoform —
PDB entities 3
Chains and sequence ranges Author chain B； PDBConstruct 1–103； UniProt 1–102 Author chain F； PDBConstruct 1–103； UniProt 1–102

HISTONE H2A.Z

Homo sapiens

UniProt P17317

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein–DNA Heteromer Protein × 8 DNA 2 PDB declaration: decameric（10） Consistent with all polymer counts Chain C； UniProt 1–127 Chain G； UniProt 1–127 Not recorded PALINDROMIC 146 BASE PAIR DNA FRAGMENT × 2 HISTONE H3 × 2 （Q7ZT64） HISTONE H4 × 2 （P62806） HISTONE H2B × 2 （P02281） MN MANGANESE (II) ION × 15 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；MnCl2, KCl, cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；MnCl2, KCl, cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；MnCl2, KCl, cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K Resolution 2.60 Å R-free 0.249

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence
UniProt name H2AZ_HUMAN
Isoform —
PDB entities 4
Chains and sequence ranges Author chain C； PDBConstruct 2–128； UniProt 1–127 Author chain G； PDBConstruct 2–128； UniProt 1–127

HISTONE H2B

Xenopus laevis

UniProt P02281

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein–DNA Heteromer Protein × 8 DNA 2 PDB declaration: decameric（10） Consistent with all polymer counts Chain D； UniProt 1–125 Chain H； UniProt 1–125 Not recorded PALINDROMIC 146 BASE PAIR DNA FRAGMENT × 2 HISTONE H3 × 2 （Q7ZT64） HISTONE H4 × 2 （P62806） HISTONE H2A.Z × 2 （P17317） MN MANGANESE (II) ION × 15 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；MnCl2, KCl, cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；MnCl2, KCl, cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；MnCl2, KCl, cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K Resolution 2.60 Å R-free 0.249

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 1F66 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1AOI COMPLEX BETWEEN NUCLEOSOME CORE PARTICLE (H3,H4,H2A,H2B) AND 146 BP LONG DNA FRAGMENT Deposited 1997-07-03 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 27–125（99 aa） Fragment：HISTONE H2B
Chain H 27–125（99 aa） Fragment：HISTONE H2B
Mutation：A7P Mutation：A7P MN MANGANESE (II) ION × 6 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.80 Å R-free 0.302
1KX3 X-Ray Structure of the Nucleosome Core Particle, NCP146, at 2.0 A Resolution Deposited 2002-01-31 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 1–125（125 aa）
Chain H 1–125（125 aa）
Not recorded MN MANGANESE (II) ION × 13 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；manganese chloride, potassium chloride, potassium cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.00 Å R-free 0.275
1KX4 X-Ray Structure of the Nucleosome Core Particle, NCP146b, at 2.6 A Resolution Deposited 2002-01-31 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 1–125（125 aa）
Chain H 1–125（125 aa）
Not recorded MN MANGANESE (II) ION × 6 CL CHLORIDE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；manganese chloride, potassium chloride, potassium cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.60 Å R-free 0.300
1KX5 X-Ray Structure of the Nucleosome Core Particle, NCP147, at 1.9 A Resolution Deposited 2002-01-31 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 1–125（125 aa）
Chain H 1–125（125 aa）
Not recorded MN MANGANESE (II) ION × 14 CL CHLORIDE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；manganese chloride, potassium chloride, potassium cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 1.94 Å R-free 0.275
1M18 LIGAND BINDING ALTERS THE STRUCTURE AND DYNAMICS OF NUCLEOSOMAL DNA Deposited 2002-06-18 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 1–125（125 aa）
Chain H 1–125（125 aa）
Not recorded MN MANGANESE (II) ION × 11 1SZ N-[5-[[4-[[5-[[5-[[5-[[5-[[3-[3-(dimethylamino)propylamino]-3-oxidanylidene-propyl]carbamoyl]-1-methyl-pyrrol-3-yl]carbamoyl]-1-methyl-pyrrol-3-yl]carbamoyl]-1-methyl-pyrrol-3-yl]carbamoyl]-1-methyl-pyrrol-3-yl]amino]-4-oxidanylidene-butyl]carbamoyl]-1-methyl-pyrrol-3-yl]-1-methyl-4-[[1-methyl-4-[(1-methylimidazol-2-yl)carbonylamino]pyrrol-2-yl]carbonylamino]imidazole-2-carboxamide × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；Manganese chloride, potassium chloride, potassium cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K
Resolution 2.45 Å R-free 0.257
1P34 Crystallographic Studies of Nucleosome Core Particles containing Histone 'Sin' Mutants Deposited 2003-04-17 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 1–125（125 aa）
Chain H 1–125（125 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；MnCl2, KCl, Potassium cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K
Resolution 2.70 Å R-free 0.270
1P3A Crystallographic Studies of Nucleosome Core Particles containing Histone 'Sin' Mutants Deposited 2003-04-17 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 1–125（125 aa）
Chain H 1–125（125 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；MnCl2, KCl, Potassium cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K
Resolution 3.00 Å R-free 0.260
1P3B Crystallographic Studies of Nucleosome Core Particles containing Histone 'Sin' Mutants Deposited 2003-04-17 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 1–125（125 aa）
Chain H 1–125（125 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；MnCl2, KCl, Potassium cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K
Resolution 3.00 Å R-free 0.286
1P3F Crystallographic Studies of Nucleosome Core Particles containing Histone 'Sin' Mutants Deposited 2003-04-17 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 1–125（125 aa）
Chain H 1–125（125 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；MnCl2, KCl, Potassium cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K
Resolution 2.90 Å R-free 0.272
1P3G Crystallographic Studies of Nucleosome Core Particles containing Histone 'Sin' Mutants Deposited 2003-04-17 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 1–125（125 aa）
Chain H 1–125（125 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；MnCl2, KCl, Potassium cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K
Resolution 2.70 Å R-free 0.265
1P3I Crystallographic Studies of Nucleosome Core Particles containing Histone 'Sin' Mutants Deposited 2003-04-17 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 1–125（125 aa）
Chain H 1–125（125 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；MnCl2, KCl, Potassium cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K
Resolution 2.30 Å R-free 0.275
1P3K Crystallographic Studies of Nucleosome Core Particles containing Histone 'Sin' Mutants Deposited 2003-04-17 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 1–125（125 aa）
Chain H 1–125（125 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；MnCl2, KCl, Potassium cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K
Resolution 2.90 Å R-free 0.291
1P3L Crystallographic Studies of Nucleosome Core Particles containing Histone 'Sin' Mutants Deposited 2003-04-17 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 1–125（125 aa）
Chain H 1–125（125 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；MnCl2, KCl, Potassium cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K
Resolution 2.40 Å R-free 0.265
1P3M Crystallographic Studies of Nucleosome Core Particles containing Histone 'Sin' Mutants Deposited 2003-04-17 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 1–125（125 aa）
Chain H 1–125（125 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；MnCl2, KCl, Potassium cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K
Resolution 2.90 Å R-free 0.270
1P3O Crystallographic Studies of Nucleosome Core Particles containing Histone 'Sin' Mutants Deposited 2003-04-17 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 1–125（125 aa）
Chain H 1–125（125 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；MnCl2, KCl, Potassium cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K
Resolution 2.75 Å R-free 0.276
1P3P Crystallographic Studies of Nucleosome Core Particles containing Histone 'Sin' Mutants Deposited 2003-04-17 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 1–125（125 aa）
Chain H 1–125（125 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；MnCl2, KCl, Potassium cacodylate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K
Resolution 2.70 Å R-free 0.268
1ZBB Structure of the 4_601_167 Tetranucleosome Deposited 2005-04-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 32 PDB declaration: 36-meric
Chain D 1–125（125 aa）
Chain H 1–125（125 aa）
Chain d 1–125（125 aa）
Chain h 1–125（125 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.75；294 K；magnesium chloride, potassium chloride, potassium cacodylate, trisCl, pH 6.75, VAPOR DIFFUSION, SITTING DROP, temperature 294K
Resolution 9.00 Å
2F8N 2.9 Angstrom X-ray structure of hybrid macroH2A nucleosomes Deposited 2005-12-02 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain H 4–125（122 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；34 to 37.5mM KCl and 40-45mM MnCl2, 5mM Potassium Cacodylate, Sample concentration: 8-12 mg/ml, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 292K
Resolution 2.90 Å R-free 0.269
2FJ7 Crystal structure of Nucleosome Core Particle Containing a Poly (dA.dT) Sequence Element Deposited 2005-12-31 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 1–125（125 aa）
Chain H 1–125（125 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；292 K；20 to 35 mM KCl, 34 to 48 mM MnCl2, and 5mM K-cacodylate pH 6.0 , VAPOR DIFFUSION, SITTING DROP, temperature 292K
Resolution 3.20 Å R-free 0.350
2NZD Nucleosome core particle containing 145 bp of DNA Deposited 2006-11-23 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 1–125（125 aa）
Chain H 1–125（125 aa）
Not recorded MN MANGANESE (II) ION × 11 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；85 mM MnCl2, 60 mM KCl, 20 mM K-Cacodylate, 4 mg/ml NCP over well with 1/2 conc., pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.65 Å R-free 0.283
3B6F Nucleosome core particle treated with cisplatin Deposited 2007-10-29 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 2–126（125 aa）
Chain H 2–126（125 aa）
Not recorded MN MANGANESE (II) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6；291 K；MnCl2, KCl, K-Cacodylate, pH 6.0, vapor diffusion, temperature 291K
Resolution 3.45 Å R-free 0.402
3B6G Nucleosome core particle treated with oxaliplatin Deposited 2007-10-29 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 2–126（125 aa）
Chain H 2–126（125 aa）
Not recorded MN MANGANESE (II) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6；291 K；MnCl2, KCl, K-Cacodylate, pH 6.0, vapor diffusion, temperature 291K
Resolution 3.45 Å R-free 0.435
3KWQ Structural characterization of H3K56Q nucleosomes and nucleosomal arrays Deposited 2009-12-01 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 34–126（93 aa） Fragment：UNP residues 34-126
Chain H 34–126（93 aa） Fragment：UNP residues 34-126
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 3.50 Å R-free 0.315
3KXB Structural characterization of H3K56Q nucleosomes and nucleosomal arrays Deposited 2009-12-02 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Mutation：S33T Mutation：S33T No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；Crystals were grown by vapor diffusion in 8 20 days at 20 C using a droplet containing 4.0 mg ml−1 core particle 50 mM KCl, 70 75 mM MnCl , and 20 mM potassium cacodylate, pH 6.0, surrounded by silicon oil DC200 (110mPa s; Fluka) and equilibrated against 40 46 mM MnCl2, 35 40 mM KCl and 20 mM potassium cacodylate, pH 6.0, VAPOR DIFFUSION, temperature 293K
Resolution 3.20 Å R-free 0.292
3LEL Structural Insight into the Sequence-Dependence of Nucleosome Positioning Deposited 2010-01-15 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 2–126（125 aa）
Chain H 2–126（125 aa）
Not recorded MN MANGANESE (II) ION × 15 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；85mM MnCl2, 60mM KCl, 20mM K-Cacodylate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.95 Å R-free 0.300
3LEL Structural Insight into the Sequence-Dependence of Nucleosome Positioning Deposited 2010-01-15 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain N 2–126（125 aa）
Chain R 2–126（125 aa）
Not recorded MN MANGANESE (II) ION × 19 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；85mM MnCl2, 60mM KCl, 20mM K-Cacodylate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.95 Å R-free 0.300
3LJA Using Soft X-Rays for a Detailed Picture of Divalent Metal Binding in the Nucleosome Deposited 2010-01-26 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded SO4 SULFATE ION × 3 MN MANGANESE (II) ION × 45 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；85 mM MnCl2, 60 mM KCl, 20 mM K-Cacodylate, 4 mg/ml NCP over well with 1/2 conc., pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K, EVAPORATION
Resolution 2.75 Å R-free 0.259
3LZ0 Crystal Structure of Nucleosome Core Particle Composed of the Widom 601 DNA Sequence (orientation 1) Deposited 2010-03-01 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 2–126（125 aa）
Chain H 2–126（125 aa）
Not recorded MN MANGANESE (II) ION × 8 CL CHLORIDE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；K cacodylate, KCl, MnCl2, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.50 Å R-free 0.318
3LZ1 Crystal Structure of Nucleosome Core Particle Composed of the Widom 601 DNA Sequence (orientation 2) Deposited 2010-03-01 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 2–126（125 aa）
Chain H 2–126（125 aa）
Not recorded MN MANGANESE (II) ION × 6 CL CHLORIDE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；Kcacodylate, KCl, MnCl2, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.50 Å R-free 0.319
3MGP Binding of Cobalt ions to the Nucleosome Core Particle Deposited 2010-04-07 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 2–126（125 aa）
Chain H 2–126（125 aa）
Not recorded CL CHLORIDE ION × 4 CO COBALT (II) ION × 43 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6；291 K；85mM MnCl2, 60mM KCl, 40mM K-cacodylate, pH 6.0, VAPOR DIFFUSION, temperature 291K
Resolution 2.44 Å R-free 0.282
3MGQ Binding of Nickel ions to the Nucleosome Core Particle Deposited 2010-04-07 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 2–126（125 aa）
Chain H 2–126（125 aa）
Not recorded NI NICKEL (II) ION × 47 CL CHLORIDE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6；291 K；85mM MnCl2, 60mM KCl, 40mM K-cacodylate , pH 6.0, VAPOR DIFFUSION, temperature 291K
Resolution 2.65 Å R-free 0.276
3MGR Binding of Rubidium ions to the Nucleosome Core Particle Deposited 2010-04-07 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 2–126（125 aa）
Chain H 2–126（125 aa）
Not recorded CL CHLORIDE ION × 4 RB RUBIDIUM ION × 5 MN MANGANESE (II) ION × 14 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6；291 K；85mM MnCl2, 60mM KCl, 40mM K-cacodylate , pH 6.0, VAPOR DIFFUSION, temperature 291K
Resolution 2.30 Å R-free 0.267
3MGS Binding of Cesium ions to the Nucleosome Core particle Deposited 2010-04-07 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 2–126（125 aa）
Chain H 2–126（125 aa）
Not recorded CL CHLORIDE ION × 4 CS CESIUM ION × 12 MN MANGANESE (II) ION × 14 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6；291 K；85mM MnCl2, 60mM KCl, 40mM K-cacodylate , pH 6.0, VAPOR DIFFUSION, temperature 291K
Resolution 3.15 Å R-free 0.238
3MNN A Ruthenium Antitumour Agent Forms Specific Histone Protein Adducts in the Nucleosome Core Deposited 2010-04-22 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 2–126（125 aa）
Chain H 2–126（125 aa）
Not recorded SO4 SULFATE ION × 3 MG MAGNESIUM ION × 1 RU RUTHENIUM ION × 3 MML 1-methyl-4-(1-methylethyl)benzene × 3 PTW 1,3,5-triaza-7-phosphatricyclo[3.3.1.1~3,7~]decane × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6；291 K；55mM KCl, 85mM MnCl2, 20mM K-Cacodylate, pH 6, VAPOR DIFFUSION, temperature 291K
Resolution 2.50 Å R-free 0.277
3MVD Crystal structure of the chromatin factor RCC1 in complex with the nucleosome core particle Deposited 2010-05-04 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；294 K；25 mM sodium acetate buffer, 25 mM sodium citrate, 1 mM DTT, 6 % PEG2000-MME, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 294K
Resolution 2.90 Å R-free 0.215
3O62 Nucleosome core particle modified with a cisplatin 1,3-cis-{Pt(NH3)2}2+-d(GpTpG) intrastrand cross-link Deposited 2010-07-28 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded CPT Cisplatin × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；40-46 mM MnCl2, 30-45 mM KCl, and 20 mM potassium cacodylate pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 3.22 Å R-free 0.306
3REH 2.5 Angstrom Crystal Structure of the Nucleosome Core Particle Assembled with a 145 bp Alpha-Satellite DNA (NCP145) Deposited 2011-04-04 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded SO4 SULFATE ION × 3 MN MANGANESE (II) ION × 15 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；289 K；KCl, MnCl2, K-Cacodylate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 2.50 Å R-free 0.270
3REI 2.65 Angstrom Crystal Structure of the Nucleosome Core Particle Assembled with a 145 bp Alpha-Satellite DNA (NCP145) Derivatized with Triamminechloroplatinum(II) Chloride Deposited 2011-04-04 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded PT PLATINUM (II) ION × 49 SO4 SULFATE ION × 3 MN MANGANESE (II) ION × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.65 Å R-free 0.276
3REJ 2.55 Angstrom Crystal Structure of the Nucleosome Core Particle Assembled with a 146 bp Alpha-Satellite DNA (NCP146b) Deposited 2011-04-04 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded MN MANGANESE (II) ION × 13 SO4 SULFATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.55 Å R-free 0.262
3REK 2.6 Angstrom Crystal Structure of the Nucleosome Core Particle Assembled with a 146 bp Alpha-Satellite DNA (NCP146b) Derivatized with Oxaliplatin Deposited 2011-04-04 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded MN MANGANESE (II) ION × 2 PT PLATINUM (II) ION × 40 SO4 SULFATE ION × 3 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.60 Å R-free 0.281
3REL 2.7 Angstrom Crystal Structure of the Nucleosome Core Particle Assembled with a 146 bp Alpha-Satellite DNA (NCP146b) Derivatized with Triamminechloroplatinum(II) Chloride Deposited 2011-04-04 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded MN MANGANESE (II) ION × 2 PT PLATINUM (II) ION × 48 SO4 SULFATE ION × 3 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.70 Å R-free 0.302
3TU4 Crystal structure of the Sir3 BAH domain in complex with a nucleosome core particle. Deposited 2011-09-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；294 K；pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 3.00 Å R-free 0.241
3TU4 Crystal structure of the Sir3 BAH domain in complex with a nucleosome core particle. Deposited 2011-09-15 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；294 K；pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 294K
Resolution 3.00 Å R-free 0.241
3UT9 Crystal Structure of Nucleosome Core Particle Assembled with a Palindromic Widom '601' Derivative (NCP-601L) Deposited 2011-11-25 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 2–126（125 aa）
Chain H 2–126（125 aa）
Not recorded CL CHLORIDE ION × 2 MN MANGANESE (II) ION × 29 K POTASSIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；K-cacodylate, KCl, MnCl2, pH 6.0, temperature 291K, VAPOR DIFFUSION, HANGING DROP
Resolution 2.20 Å R-free 0.289
3UTA Crystal Structure of Nucleosome Core Particle Assembled with an Alpha-Satellite Sequence Containing Two TTAAA elements (NCP-TA2) Deposited 2011-11-25 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 2–126（125 aa）
Chain H 2–126（125 aa）
Not recorded CL CHLORIDE ION × 4 MN MANGANESE (II) ION × 17 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；K-cacodylate, KCl, MnCl2, pH 6.0, temperature 291K, VAPOR DIFFUSION, HANGING DROP
Resolution 2.07 Å R-free 0.266
3UTB Crystal Structure of Nucleosome Core Particle Assembled with the 146b Alpha-Satellite Sequence (NCP146b) Deposited 2011-11-25 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 2–126（125 aa）
Chain H 2–126（125 aa）
Not recorded MN MANGANESE (II) ION × 21 SO4 SULFATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；K-cacodylate, KCl, MnCl2, pH 6.0, temperature 291K, VAPOR DIFFUSION, HANGING DROP
Resolution 2.20 Å R-free 0.275
4J8U X-ray structure of NCP145 with chlorido(eta-6-p-cymene)(N-phenyl-2-pyridinecarbothioamide)osmium(II) Deposited 2013-02-15 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 2–126（125 aa）
Chain H 2–126（125 aa）
Not recorded SO4 SULFATE ION × 3 ELJ chlorido(eta-6-p-cymene)(N-phenyl-2-pyridinecarbothioamide)osmium(II) × 3 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；40 mM MnCl2, 30 mM KCl, 20 mM K-Cacodylate pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.38 Å R-free 0.280
4J8V X-ray structure of NCP145 with bound chlorido(eta-6-p-cymene)(N-phenyl-2-pyridinecarbothioamide)ruthenium(II) Deposited 2013-02-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: pentameric
Chain D 2–126（125 aa）
Not recorded SO4 SULFATE ION × 1 RU7 PARA-CYMENE RUTHENIUM CHLORIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；40 mM MnCl2, 30 mM KCl, 20 mM K-Cacodylate pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.58 Å R-free 0.273
4J8V X-ray structure of NCP145 with bound chlorido(eta-6-p-cymene)(N-phenyl-2-pyridinecarbothioamide)ruthenium(II) Deposited 2013-02-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 4 PDB declaration: pentameric
Chain H 2–126（125 aa）
Not recorded SO4 SULFATE ION × 2 RU7 PARA-CYMENE RUTHENIUM CHLORIDE × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；40 mM MnCl2, 30 mM KCl, 20 mM K-Cacodylate pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.58 Å R-free 0.273
4J8V X-ray structure of NCP145 with bound chlorido(eta-6-p-cymene)(N-phenyl-2-pyridinecarbothioamide)ruthenium(II) Deposited 2013-02-15 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 2–126（125 aa）
Chain H 2–126（125 aa）
Not recorded SO4 SULFATE ION × 3 RU7 PARA-CYMENE RUTHENIUM CHLORIDE × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；40 mM MnCl2, 30 mM KCl, 20 mM K-Cacodylate pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.58 Å R-free 0.273
4J8W X-ray structure of NCP145 with chlorido(eta-6-p-cymene)(N-fluorophenyl-2-pyridinecarbothioamide)osmium(II) Deposited 2013-02-15 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 2–126（125 aa）
Chain H 2–126（125 aa）
Not recorded SO4 SULFATE ION × 3 1MK chlorido(eta-6-p-cymene)(N-fluorophenyl-2-pyridinecarbothioamide)osmium(II) × 3 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；40 mM MnCl2, 30 mM KCl, 20 mM K-Cacodylate pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.41 Å R-free 0.275
4J8X X-ray structure of NCP145 with bound chlorido(eta-6-p-cymene)(N-fluorophenyl-2-pyridinecarbothioamide)ruthenium(II) Deposited 2013-02-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: pentameric
Chain D 2–126（125 aa）
Not recorded SO4 SULFATE ION × 1 RU7 PARA-CYMENE RUTHENIUM CHLORIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；40 mM MnCl2, 30 mM KCl, 20 mM K-Cacodylate pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.87 Å R-free 0.280
4J8X X-ray structure of NCP145 with bound chlorido(eta-6-p-cymene)(N-fluorophenyl-2-pyridinecarbothioamide)ruthenium(II) Deposited 2013-02-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 4 PDB declaration: pentameric
Chain H 2–126（125 aa）
Not recorded SO4 SULFATE ION × 2 RU7 PARA-CYMENE RUTHENIUM CHLORIDE × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；40 mM MnCl2, 30 mM KCl, 20 mM K-Cacodylate pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.87 Å R-free 0.280
4J8X X-ray structure of NCP145 with bound chlorido(eta-6-p-cymene)(N-fluorophenyl-2-pyridinecarbothioamide)ruthenium(II) Deposited 2013-02-15 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 2–126（125 aa）
Chain H 2–126（125 aa）
Not recorded SO4 SULFATE ION × 3 RU7 PARA-CYMENE RUTHENIUM CHLORIDE × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；40 mM MnCl2, 30 mM KCl, 20 mM K-Cacodylate pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.87 Å R-free 0.280
4KGC Nucleosome Core Particle Containing (ETA6-P-CYMENE)-(1, 2-ETHYLENEDIAMINE)-RUTHENIUM Deposited 2013-04-29 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Not recorded HRU (ethane-1,2-diamine-kappa~2~N,N')[(1,2,3,4,5,6-eta)-1-methyl-4-(propan-2-yl)cyclohexane-1,2,3,4,5,6-hexayl]ruthenium × 4 SO4 SULFATE ION × 3 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；40 mM MnCl2, 30 mM KCl, 20 mM K-Cacodylate , pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.69 Å R-free 0.282
4KHA Structural basis of histone H2A-H2B recognition by the essential chaperone FACT Deposited 2013-04-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 34–126（93 aa） Fragment：UNP residues 652-945 and 34-126
Not recorded CL CHLORIDE ION × 2 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；277 K；manual setup 1ul protein (15 mg / ml) plus 1 ul crystallization buffer (7.25% [vol/vol] PEG8000, 0.2 M MgCl2, 0.1 M Tris pH 7.8), VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.35 Å R-free 0.229
4LD9 Crystal structure of the N-terminally acetylated BAH domain of Sir3 bound to the nucleosome core particle Deposited 2013-06-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；293.15 K；50 mM MES pH 6.5, 12% PEG 400, 12 mM MnCl2, 100 mM NaCl, 10 mM EDTA, VAPOR DIFFUSION, temperature 293.15K
Resolution 3.31 Å R-free 0.295
4R8P Crystal structure of the Ring1B/Bmi1/UbcH5c PRC1 ubiquitylation module bound to the nucleosome core particle Deposited 2014-09-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded ZN ZINC ION × 8 X-RAY DIFFRACTION
X-ray crystallization conditions Modified micro batch under oil；pH 7.5；294 K；25 mM HEPES pH 7.5, 80 mM NH4NO3, 3 % PEG2000-MME, Modified micro batch under oil, temperature 294K
Resolution 3.28 Å R-free 0.245
4WU8 Structure of trPtNAP-NCP145 Deposited 2014-10-31 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 2–126（125 aa）
Chain H 2–126（125 aa）
Mutation：S29T Mutation：S29T CX3 [2-(3-{bis[2-(amino-kappaN)ethyl]amino-kappaN}propyl)-1H-benzo[de]isoquinoline-1,3(2H)-dionato(2-)]platinum(1+) × 2 SO4 SULFATE ION × 2 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291.15 K；Manganese chloride, potassium chloride, potassium cacodylate
Resolution 2.45 Å R-free 0.263
4WU9 Structure of cisPtNAP-NCP145 Deposited 2014-10-31 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 2–126（125 aa）
Chain H 2–126（125 aa）
Mutation：S29T Mutation：S29T SO4 SULFATE ION × 2 MG MAGNESIUM ION × 1 CX8 [2-{3-[(2-{[2-(amino-kappaN)ethyl]amino-kappaN}ethyl)amino-kappaN]propyl}-1H-benzo[de]isoquinoline-1,3(2H)-dionato(3-)]platinum × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291.15 K；Manganese chloride, potassium chloride, potassium cacodylate
Resolution 2.60 Å R-free 0.273
4XUJ Nucleosome core particle containing adducts from treatment with a thiomorpholine-substituted [(eta-6-p-cymene)Ru(3-hydroxy-2-pyridone)Cl] compound Deposited 2015-01-26 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 2–126（125 aa） Fragment：UNP residues 2-126
Chain H 2–126（125 aa） Fragment：UNP residues 2-126
Not recorded SO4 SULFATE ION × 3 4A6 [(1,2,3,4,5,6-eta)-1-methyl-4-(propan-2-yl)benzene]ruthenium × 3 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；40mM MnCl2, 30mM KCl, 20mM K-Cacodylate
Resolution 3.18 Å R-free 0.299
4XZQ Nucleosome disassembly by RSC and SWI/SNF is enhanced by H3 acetylation near the nucleosome dyad axis Deposited 2015-02-04 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 34–126（93 aa） Fragment：residues 34-126
Chain H 34–126（93 aa） Fragment：residues 34-126
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；292.15 K；potassium chloride, potassium cacodylate, manganese chloride
Resolution 2.40 Å R-free 0.299
4YS3 Nucleosome disassembly by RSC and SWI/SNF is enhanced by H3 acetylation near the nucleosome dyad axis Deposited 2015-03-16 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 34–126（93 aa） Fragment：residues 34-126
Chain H 34–126（93 aa） Fragment：residues 34-126
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.9；292.15 K；postassium chloride, manganese chloride, cacodylate
Resolution 3.00 Å R-free 0.279
4Z66 Nucleosome disassembly by RSC and SWI/SNF is enhanced by H3 acetylation near the nucleosome dyad axis Deposited 2015-04-03 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 33–126（94 aa）
Chain H 33–126（94 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；292.15 K；potassium chloride, potassium cacodylate, manganese chloride
Resolution 2.50 Å R-free 0.296
4ZUX SAGA DUB module Ubp8/Sgf11/Sus1/Sgf73 bound to ubiqitinated nucleosome Deposited 2015-05-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded ZN ZINC ION × 16 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；50 mM Tris-acetate pH 7.4, 50 mM sodium acetate, 5 mM Mg-acetate, 5% sucrose and 5% 2-propanol
Resolution 3.82 Å R-free 0.256
4ZUX SAGA DUB module Ubp8/Sgf11/Sus1/Sgf73 bound to ubiqitinated nucleosome Deposited 2015-05-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric
Chain N 5–126（122 aa）
Chain R 5–126（122 aa）
Not recorded ZN ZINC ION × 16 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；50 mM Tris-acetate pH 7.4, 50 mM sodium acetate, 5 mM Mg-acetate, 5% sucrose and 5% 2-propanol
Resolution 3.82 Å R-free 0.256
5CP6 Nucleosome Core Particle with Adducts from the Anticancer Compound, [(eta6-5,8,9,10-tetrahydroanthracene)Ru(ethylenediamine)Cl][PF6] Deposited 2015-07-21 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 2–126（125 aa）
Chain H 2–126（125 aa）
Not recorded RUH (ethane6-5,8,9,10-tetrahydroanthracene)Ru(II)(ethylene-diamine)Cl × 3 SO4 SULFATE ION × 3 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；40 mM MnCl2, 30 mM KCl, 20 mM K-Cacodylate , pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.60 Å R-free 0.251
5DNM Nucleosome core particle containing adducts of ruthenium(II)-toluene PTA complex Deposited 2015-09-10 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 2–126（125 aa）
Chain H 2–126（125 aa）
Not recorded SO4 SULFATE ION × 3 MG MAGNESIUM ION × 1 RAX dichloro[(1,2,3,4,5,6-eta)-6-methylbenzene]1,3,5-triaza-7lambda~5~-phosphatricyclo[3.3.1.1~3,7~]dec-7-ylruthenium × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；40 mM MnCl2, 30 mM KCl, 20 mM K-Cacodylate
Resolution 2.81 Å R-free 0.241
5DNN Nucleosome core particle containing adducts of gold(I)-triethylphosphane and ruthenium(II)-toluene PTA complexes Deposited 2015-09-10 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 2–126（125 aa）
Chain H 2–126（125 aa）
Not recorded AUF triethylphosphanuidylgold(1+) × 2 SO4 SULFATE ION × 3 MG MAGNESIUM ION × 1 RAX dichloro[(1,2,3,4,5,6-eta)-6-methylbenzene]1,3,5-triaza-7lambda~5~-phosphatricyclo[3.3.1.1~3,7~]dec-7-ylruthenium × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；40 mM MnCl2, 30 mM KCl, 20 mM K-Cacodylate
Resolution 2.80 Å R-free 0.236
5E5A Crystal structure of the chromatin-tethering domain of Human cytomegalovirus IE1 protein bound to the nucleosome core particle Deposited 2015-10-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded MG MAGNESIUM ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.2；289 K；sodium cacodylate, magnesium acetate, 2-methyl-2,4-pentanediol
Resolution 2.81 Å R-free 0.242
5F99 X-ray Structure of the MMTV-A Nucleosome Core Particle Deposited 2015-12-09 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded CL CHLORIDE ION × 4 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；295 K；sample was mixed 1:1 with 10 mM K-cacodylate, pH 6.0, 180 mM MgCl2, 50 mM KCl and equilibrated against a 1:4 dilution of the same solution
Resolution 2.63 Å R-free 0.252
5G2E Structure of the Nap1 H2A H2B complex Deposited 2016-04-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain L 28–126（99 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions 10-15% W/V PEG3350; 200 MM LICL
Resolution 6.70 Å R-free 0.310
5G2E Structure of the Nap1 H2A H2B complex Deposited 2016-04-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain H 28–126（99 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions 10-15% W/V PEG3350; 200 MM LICL
Resolution 6.70 Å R-free 0.310
5G2E Structure of the Nap1 H2A H2B complex Deposited 2016-04-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 28–126（99 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions 10-15% W/V PEG3350; 200 MM LICL
Resolution 6.70 Å R-free 0.310
5G2E Structure of the Nap1 H2A H2B complex Deposited 2016-04-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain T 28–126（99 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions 10-15% W/V PEG3350; 200 MM LICL
Resolution 6.70 Å R-free 0.310
5G2E Structure of the Nap1 H2A H2B complex Deposited 2016-04-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain X 28–126（99 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions 10-15% W/V PEG3350; 200 MM LICL
Resolution 6.70 Å R-free 0.310
5G2E Structure of the Nap1 H2A H2B complex Deposited 2016-04-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 6 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain P 28–126（99 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions 10-15% W/V PEG3350; 200 MM LICL
Resolution 6.70 Å R-free 0.310
5HQ2 Structural model of Set8 histone H4 Lys20 methyltransferase bound to nucleosome core particle Deposited 2016-01-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: hexadecameric
Chain H 5–126（122 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 5.5；277 K；25 mM sodium acetate pH 5.5, 40 mM sodium citrate,1 mM DTT, 6% PEG2000-MME
Resolution 4.50 Å R-free 0.397
5NL0 Crystal structure of a 197-bp palindromic 601L nucleosome in complex with linker histone H1 Deposited 2017-04-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；293.15 K；Mix of equal volumes of the nucleosome/H1 complex (25-30 microM) and a crystallization solution composed of MPD (6% v/v), 50 mM NaCl, and 50 mM sodium potassium phosphate pH 6.4.
Resolution 5.40 Å R-free 0.265
5NL0 Crystal structure of a 197-bp palindromic 601L nucleosome in complex with linker histone H1 Deposited 2017-04-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric
Chain N 5–126（122 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；293.15 K；Mix of equal volumes of the nucleosome/H1 complex (25-30 microM) and a crystallization solution composed of MPD (6% v/v), 50 mM NaCl, and 50 mM sodium potassium phosphate pH 6.4.
Resolution 5.40 Å R-free 0.265
5O9G Structure of nucleosome-Chd1 complex Deposited 2017-06-19 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–125（121 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
5OMX X-ray Structure of the H2A-N38C Nucleosome Core Particle Deposited 2017-08-02 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded MN MANGANESE (II) ION × 33 CL CHLORIDE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；295 K；8 mg/ml sample was mixed 1:1 with 10 mM K-Cacodylate (pH 6.0), 140-150 mM MnCl2, 100 KCl. and equilibrated against a 1:4 dilution of the same solution
Resolution 2.32 Å R-free 0.259
5ONG X-Ray crystal structure of a nucleosome core particle with its DNA site-specifically crosslinked to the histone octamer Deposited 2017-08-03 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded MN MANGANESE (II) ION × 20 CL CHLORIDE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；295 K；Sample was mixed in a 1:1 ratio with 10 mM Na-cacodylate, pH 6.0, 130-180 mM MnCl2, 100-160 mM KCl and equilibrated against a 1:4 dilution of the same solution
Resolution 2.80 Å R-free 0.247
5ONW X-Ray crystal structure of a nucleosome core particle with its DNA site-specifically crosslinked to the histone octamer and the two H2A/H2B dimers crosslinked via H2A N38C Deposited 2017-08-04 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded MN MANGANESE (II) ION × 20 CL CHLORIDE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；295 K；Sample was mixed in a 1:1 ratio with 10 mM Na-cacodylate, pH 6.0, 160-210 mM MnCl2, 140-200 mM KCl and equilibrated against a 1:4 dilution of the same solution
Resolution 2.80 Å R-free 0.254
5OXV Structure of the 4_601_157 tetranucleosome (C2 form) Deposited 2017-09-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: octadecameric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Chain N 1–126（126 aa）
Chain R 1–126（126 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6；291 K；30-60 mM KCl, 90-110 mM MgCl2 and 5 mM Na-cacodylate, pH 6
Resolution 6.72 Å R-free 0.352
5OY7 Structure of the 4_601_157 tetranucleosome (P1 form) Deposited 2017-09-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 32 PDB declaration: 34-meric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Chain L 1–126（126 aa）
Chain P 1–126（126 aa）
Chain T 1–126（126 aa）
Chain X 1–126（126 aa）
Chain b 1–126（126 aa）
Chain f 1–126（126 aa）
Not recorded CL CHLORIDE ION × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；30-60 mM KCl, 90-110 mM MgCl2 and 5 mM Na-cacodyalte, pH 6.0
Resolution 5.77 Å R-free 0.238
5X0X Complex of Snf2-Nucleosome complex with Snf2 bound to position +6 of the nucleosome Deposited 2017-01-23 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 2–126（125 aa）
Chain H 2–126（125 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.97 Å
5X0Y Complex of Snf2-Nucleosome complex with Snf2 bound to SHL2 of the nucleosome Deposited 2017-01-23 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.69 Å
5XF6 Nucleosome core particle with an adduct of a binuclear RAPTA (Ru-arene-phosphaadamantane) compound having an ethylenediamine linker Deposited 2017-04-07 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 2–126（125 aa）
Chain H 2–126（125 aa）
Not recorded SO4 SULFATE ION × 3 MG MAGNESIUM ION × 1 RUD [ethane6-3-(p-tolyl)propanoic acid]Ru(1,3,5-triaza-7-phosphaadamantane)Cl2 × 2 EDN ETHANE-1,2-DIAMINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；40 mM MnCl2, 30 mM KCl, 20 mM K-Cacodylate , pH 6.0
Resolution 2.63 Å R-free 0.254
5Z3L Structure of Snf2-nucleosome complex in apo state Deposited 2018-01-08 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.31 Å
5Z3O Structure of Snf2-nucleosome complex in ADP state Deposited 2018-01-08 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.62 Å
5Z3U Structure of Snf2-nucleosome complex at shl2 in ADP BeFx state Deposited 2018-01-08 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.31 Å
5Z3V Structure of Snf2-nucleosome complex at shl-2 in ADP BeFx state Deposited 2018-01-08 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.22 Å
6ESF Nucleosome : Class 1 Deposited 2017-10-20 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
6ESG Nucleosome breathing : Class 2 Deposited 2017-10-20 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.40 Å
6ESH Nucleosome breathing : Class 3 Deposited 2017-10-20 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.10 Å
6ESI Nucleosome breathing : Class 4 Deposited 2017-10-20 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.30 Å
6I84 Structure of transcribing RNA polymerase II-nucleosome complex Deposited 2018-11-19 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 20 PDB declaration: 23-meric
Chain R 5–126（122 aa）
Chain W 5–126（122 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.40 Å
6IRO the crosslinked complex of ISWI-nucleosome in the ADP-bound state Deposited 2018-11-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
6J99 Cryo-EM structure of human DOT1L in complex with an H2B-monoubiquitinated nucleosome Deposited 2019-01-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Mutation：S29T, K117C Mutation：S29T, K117C SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
6JM9 cryo-EM structure of DOT1L bound to unmodified nucleosome Deposited 2019-03-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 34–126（93 aa）
Chain H 34–126（93 aa）
Not recorded SAM S-ADENOSYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.30 Å
6JMA cryo-EM structure of DOT1L bound to H2B ubiquitinated nucleosome Deposited 2019-03-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain D 34–126（93 aa）
Chain H 34–126（93 aa）
Not recorded SAM S-ADENOSYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.80 Å
6JYL The crosslinked complex of ISWI-nucleosome in the ADP.BeF-bound state Deposited 2019-04-26 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8.5
cryo-EM vitrification conditions Cryogen ETHANE；blot 1.5s
Resolution 3.37 Å
6K01 Crystal structure of xH2A-H2B Deposited 2019-05-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 28–126（99 aa）
Mutation：S30T No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.2M Ammonium sulfate, 0.1M HEPES pH=7.5, 25% PEG 3350
Resolution 2.84 Å R-free 0.278
6K1P The complex of ISWI-nucleosome in the ADP.BeF-bound state Deposited 2019-05-10 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8.5；10 mM Tris, 50 mM NaCl
cryo-EM vitrification conditions Cryogen ETHANE；blot for 1.5s
Resolution 3.87 Å
6KIU Cryo-EM structure of human MLL1-ubNCP complex (3.2 angstrom) Deposited 2019-07-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 13 PDB declaration: pentadecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Mutation：S29T/K117T Mutation：S29T/K117T SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 ZN ZINC ION × 1 LYS LYSINE × 1 GLN GLUTAMINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
6KIV Cryo-EM structure of human MLL1-ubNCP complex (4.0 angstrom) Deposited 2019-07-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 13 PDB declaration: pentadecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Mutation：S29T/K117C Mutation：S29T/K117C SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
6KIW Cryo-EM structure of human MLL3-ubNCP complex (4.0 angstrom) Deposited 2019-07-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 13 PDB declaration: pentadecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Mutation：S29T/K117C Mutation：S29T/K117C ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
6KIX Cryo-EM structure of human MLL1-NCP complex, binding mode1 Deposited 2019-07-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Mutation：S29T/K117C Mutation：S29T/K117C SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 ZN ZINC ION × 1 LYS LYSINE × 1 GLN GLUTAMINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
6KIZ Cryo-EM structure of human MLL1-NCP complex, binding mode2 Deposited 2019-07-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Mutation：S29T/K117C Mutation：S29T/K117C SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
6N1Z Importin-9 bound to H2A-H2B Deposited 2018-11-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 5–126（122 aa） Fragment：HISTONE H2B 1.1
Mutation：S33T No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.04 M MES, 0.11 M potassium acetate, 2 mM magnesium acetate, 2 mM DTT, 3.0 M potassium formate, 25% glycerol
Resolution 2.70 Å R-free 0.238
6N1Z Importin-9 bound to H2A-H2B Deposited 2018-11-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain F 5–126（122 aa） Fragment：HISTONE H2B 1.1
Mutation：S33T No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.04 M MES, 0.11 M potassium acetate, 2 mM magnesium acetate, 2 mM DTT, 3.0 M potassium formate, 25% glycerol
Resolution 2.70 Å R-free 0.238
6NJ9 Active state Dot1L bound to the H2B-Ubiquitinated nucleosome, 2-to-1 complex Deposited 2019-01-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Mutation：S32T, K120C Mutation：S32T, K120C SAM S-ADENOSYLMETHIONINE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；Solutions were prepared on the day of freezing and filtered though a 0.2 um filter prior to use.
cryo-EM vitrification conditions Cryogen ETHANE；Blot once for 3.5 seconds before freezing.
Resolution 2.96 Å
6NN6 Structure of Dot1L-H2BK120ub nucleosome complex Deposited 2019-01-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Mutation：S33T, K121C Mutation：S33T, K121C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
6NOG Poised-state Dot1L bound to the H2B-Ubiquitinated nucleosome Deposited 2019-01-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Mutation：S32T, K120C Mutation：S32T, K120C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；Solutions were prepared on the day of freezing and filtered though a 0.2 um filter prior to use.
cryo-EM vitrification conditions Cryogen ETHANE；Blot once for 3.5 seconds before freezing
Resolution 3.90 Å
6NQA Active state Dot1L bound to the H2B-Ubiquitinated nucleosome, 1-to-1 complex Deposited 2019-01-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Mutation：S32T, K120C Mutation：S32T, K120C SAM S-ADENOSYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；Solutions were prepared on the day of freezing and filtered though a 0.2 um filter prior to use.
cryo-EM vitrification conditions Cryogen ETHANE；Blot once for 3.5 seconds before freezing.
Resolution 3.54 Å
6NZO Set2 bound to nucleosome Deposited 2019-02-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Mutation：S29T Mutation：S29T ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
6O96 Dot1L bound to the H2BK120 Ubiquitinated nucleosome Deposited 2019-03-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Mutation：K120C, S32T Mutation：K120C, S32T SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen PROPANE；blotted for 3s before plunging
Resolution 3.50 Å
6OM3 Crystal structure of the Orc1 BAH domain in complex with a nucleosome core particle Deposited 2019-04-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Mutation：S32T Mutation：S32T No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；277.15 K；6 mM Na-Cacodylate pH 6.0, 0.4 mM Spermine-HCl, 2 mM MgCl2 and 1.75% v/v PEG 400
Resolution 3.30 Å R-free 0.250
6OM3 Crystal structure of the Orc1 BAH domain in complex with a nucleosome core particle Deposited 2019-04-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain P 1–126（126 aa）
Chain T 1–126（126 aa）
Mutation：S32T Mutation：S32T No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；277.15 K；6 mM Na-Cacodylate pH 6.0, 0.4 mM Spermine-HCl, 2 mM MgCl2 and 1.75% v/v PEG 400
Resolution 3.30 Å R-free 0.250
6PA7 The cryo-EM structure of the human DNMT3A2-DNMT3B3 complex bound to nucleosome. Deposited 2019-06-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded CL CHLORIDE ION × 3 SAH S-ADENOSYL-L-HOMOCYSTEINE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.94 Å
6PWV Cryo-EM structure of MLL1 core complex bound to the nucleosome Deposited 2019-07-23 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: hexadecameric
Chain J 5–126（122 aa）
Chain N 5–126（122 aa）
Not recorded SAH S-ADENOSYL-L-HOMOCYSTEINE × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.20 Å
6PWW Cryo-EM structure of MLL1 in complex with RbBP5 and WDR5 bound to the nucleosome Deposited 2019-07-23 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain J 5–126（122 aa）
Chain N 5–126（122 aa）
Not recorded SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.40 Å
6PWX Cryo-EM structure of RbBP5 bound to the nucleosome Deposited 2019-07-23 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain J 5–126（122 aa）
Chain N 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
6PX1 Set2 bound to nucleosome Deposited 2019-07-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: decameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Mutation：S29T Mutation：S29T No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
6PX3 Set2 bound to nucleosome Deposited 2019-07-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Mutation：S29T Mutation：S29T ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
6R1U Structure of LSD2/NPAC-linker/nucleosome core particle complex: Class 2 Deposited 2019-03-15 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded FAD FLAVIN-ADENINE DINUCLEOTIDE × 1 ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.36 Å
6RYR Nucleosome-CHD4 complex structure (single CHD4 copy) Deposited 2019-06-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
6RYU Nucleosome-CHD4 complex structure (two CHD4 copies) Deposited 2019-06-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2 ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
6S01 Structure of LEDGF PWWP domain bound H3K36 methylated nucleosome Deposited 2019-06-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；Solution were made from stock solution
cryo-EM vitrification conditions Cryogen ETHANE；blot for 4 seconds before plunging
Resolution 3.20 Å
6T9L SAGA DUB module bound to a ubiqitinated nucleosome Deposited 2019-10-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 13 PDB declaration: pentadecameric
Chain D 5–126（122 aa）
Not recorded ZN ZINC ION × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；Solution were made from stock solution
cryo-EM vitrification conditions Cryogen ETHANE；blot for 4 seconds before plunging
Resolution 3.60 Å
6TDA Structure of SWI/SNF chromatin remodeler RSC bound to a nucleosome Deposited 2019-11-08 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 21 PDB declaration: 23-meric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 15.00 Å
6TEM CENP-A nucleosome core particle with 145 base pairs of the Widom 601 sequence by cryo-EM Deposited 2019-11-12 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 2–126（125 aa）
Chain H 2–126（125 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.90 Å
6UGM Structural basis of COMPASS eCM recognition of an unmodified nucleosome Deposited 2019-09-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: octadecameric
Chain H 2–126（125 aa）
Not recorded SAM S-ADENOSYLMETHIONINE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
6UXW SWI/SNF nucleosome complex with ADP-BeFx Deposited 2019-11-08 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 26 PDB declaration: 28-meric
Chain U 5–126（122 aa）
Chain Y 5–126（122 aa）
Not recorded PO4 PHOSPHATE ION × 12 ADP ADENOSINE-5'-DIPHOSPHATE × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9；10 mM HEPES, pH 7.9, 10 mM MgCl2, 50 mM KCl, 1 mM DTT, 5% glycerol, 0.05% NP-40
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.96 Å
6VEN Yeast COMPASS in complex with a ubiquitinated nucleosome Deposited 2020-01-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: octadecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Mutation：K120C, S30T Mutation：K120C, S30T ZN ZINC ION × 1 SAM S-ADENOSYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；blot force 5 3.5 sec blot time
Resolution 3.37 Å
6VYP Crystal structure of the LSD1/CoREST histone demethylase bound to its nucleosome substrate Deposited 2020-02-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Mutation：S32T Mutation：S32T FAD FLAVIN-ADENINE DINUCLEOTIDE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 7.5；277 K；25 mM HEPES pH7.5, 75 mM triammonium citrate, 10% PEG2000-MME, Modified Microbatch under oil
Resolution 4.99 Å R-free 0.277
6VYP Crystal structure of the LSD1/CoREST histone demethylase bound to its nucleosome substrate Deposited 2020-02-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain d 5–126（122 aa）
Chain h 5–126（122 aa）
Mutation：S32T Mutation：S32T FAD FLAVIN-ADENINE DINUCLEOTIDE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 7.5；277 K；25 mM HEPES pH7.5, 75 mM triammonium citrate, 10% PEG2000-MME, Modified Microbatch under oil
Resolution 4.99 Å R-free 0.277
6W4L The crystal structure of a single chain H2B-H2A histone chimera from Xenopus laevis Deposited 2020-03-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 34–126（93 aa）
Not recorded PPV PYROPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6.9；291 K；0.2M sodium thiocyanate, 20% PEG3350
Resolution 1.31 Å R-free 0.206
6W5I Cryo-EM structure of MLL1 in complex with RbBP5, WDR5, SET1, and ASH2L bound to the nucleosome (Class01) Deposited 2020-03-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain J 5–126（122 aa）
Chain N 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.90 Å
6W5M Cryo-EM structure of MLL1 in complex with RbBP5, WDR5, SET1, and ASH2L bound to the nucleosome (Class02) Deposited 2020-03-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain J 5–126（122 aa）
Chain N 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
6W5N Cryo-EM structure of MLL1 in complex with RbBP5, WDR5, SET1, and ASH2L bound to the nucleosome (Class05) Deposited 2020-03-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain J 5–126（122 aa）
Chain N 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.00 Å
6WKR PRC2-AEBP2-JARID2 bound to H2AK119ub1 nucleosome Deposited 2020-04-16 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 17 PDB declaration: octadecameric
Chain M 1–126（126 aa）
Chain S 1–126（126 aa）
Not recorded MG MAGNESIUM ION × 1 SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
6WZ5 Bridging of double-strand DNA break activates PARP2/HPF1 to modify chromatin Deposited 2020-05-13 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.20 Å
6WZ9 Bridging of double-strand DNA break activates PARP2/HPF1 to modify chromatin Deposited 2020-05-13 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
6X0N Bridging of double-strand DNA break activates PARP2/HPF1 to modify chromatin Deposited 2020-05-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 19 PDB declaration: 23-meric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Chain d 5–126（122 aa）
Chain h 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 10.00 Å
6ZHX Cryo-EM structure of the regulatory linker of ALC1 bound to the nucleosome's acidic patch: nucleosome class. Deposited 2020-06-24 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；Blot time 2.5 s, blot force 0. Two sample applications and blots were performed before vitrification.
Resolution 2.50 Å
6ZHY Cryo-EM structure of the regulatory linker of ALC1 bound to the nucleosome's acidic patch: hexasome class. Deposited 2020-06-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 7 PDB declaration: nonameric
Chain D 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；Blot time 2.5 s, blot force 0. Two sample applications and blots were performed before vitrification.
Resolution 3.00 Å
7AT8 Histone H3 recognition by nucleosome-bound PRC2 subunit EZH2. Deposited 2020-10-29 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain G 5–126（122 aa）
Chain K 5–126（122 aa）
Not recorded ZN ZINC ION × 7 SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 4.40 Å
7E8I Structural insight into BRCA1-BARD1 complex recruitment to damaged chromatin Deposited 2021-03-01 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
7EG6 Snf5 Finger Helix bound to the nucleosome Deposited 2021-03-24 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
7EGP The structure of SWI/SNF-nucleosome complex Deposited 2021-03-24 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 19 PDB declaration: 21-meric
Chain R 5–126（122 aa）
Chain V 5–126（122 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.90 Å
7ENN The structure of ALC1 bound to the nucleosome Deposited 2021-04-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
7K6P Active state Dot1 bound to the unacetylated H4 nucleosome Deposited 2020-09-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain D 33–125（93 aa）
Chain H 33–125（93 aa）
Mutation：K120C,S32T Mutation：K120C,S32T SAM S-ADENOSYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7K6Q Active state Dot1 bound to the H4K16ac nucleosome Deposited 2020-09-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain D 33–125（93 aa）
Chain H 33–125（93 aa）
Mutation：K120C, S32T Mutation：K120C, S32T SAM S-ADENOSYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
7KBD Nucleosome in interphase chromosome formed in Xenopus egg extract (oligo fraction) Deposited 2020-10-02 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.38 Å
7KBE Nucleosome isolated from metaphase chromosome formed in Xenopus egg extract (oligo fraction) Deposited 2020-10-02 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
7KBF H1.8 bound nucleosome isolated from metaphase chromosome in Xenopus egg extract (oligo fraction) Deposited 2020-10-02 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.42 Å
7M1X Cryo-EM Structure of Nucleosome containing mouse histone variant H2A.Z Deposited 2021-03-15 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；blot for 4.5 seconds before plunging
Resolution 3.70 Å
7MBM Cryo-EM structure of MLL1-NCP (H3K4M) complex, mode01 Deposited 2021-04-01 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain J 5–126（122 aa）
Chain N 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.76 Å
7MBN Cryo-EM structure of MLL1-NCP (H3K4M) complex, mode02 Deposited 2021-04-01 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain J 5–126（122 aa）
Chain N 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.02 Å
7NKX RNA polymerase II-Spt4/5-nucleosome-Chd1 structure Deposited 2021-02-19 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 26-meric
Chain d 5–126（122 aa）
Chain h 5–126（122 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
7NKY RNA Polymerase II-Spt4/5-nucleosome-FACT structure Deposited 2021-02-19 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 24 PDB declaration: 27-meric
Chain d 5–126（122 aa）
Chain h 5–126（122 aa）
Not recorded ZN ZINC ION × 9 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7OH9 Nucleosome with TBP and TFIIA bound at SHL -6 Deposited 2021-05-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
7OHA nucleosome with TBP and TFIIA bound at SHL +2 Deposited 2021-05-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
7OHB TBP-nucleosome complex Deposited 2021-05-10 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
7OHC Cryo-EM structure of nucleosome core particle composed of the Widom 601 DNA sequence Deposited 2021-05-10 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.50 Å
7OTQ Cryo-EM structure of ALC1/CHD1L bound to a PARylated nucleosome Deposited 2021-06-10 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；3 uL were applied on grid and immediately blotted for 2.5 s at blot force 0.
Resolution 4.80 Å
7UD5 Complex between MLL1-WRAD and an H2B-ubiquitinated nucleosome Deposited 2022-03-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 15 PDB declaration: heptadecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Mutation：S32T, K120C Mutation：S32T, K120C SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.25 Å
7UNC Pol II-DSIF-SPT6-PAF1c-TFIIS complex with rewrapped nucleosome Deposited 2022-04-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 29 PDB declaration: 32-meric
Chain d 5–126（122 aa）
Chain h 5–126（122 aa）
Mutation：S29T Mutation：S29T ZN ZINC ION × 8 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
7UND Pol II-DSIF-SPT6-PAF1c-TFIIS-nucleosome complex (stalled at +38) Deposited 2022-04-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 30 PDB declaration: 33-meric
Chain d 5–126（122 aa）
Chain h 5–126（122 aa）
Mutation：S29T Mutation：S29T ZN ZINC ION × 9 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
7VDT The motor-nucleosome module of human chromatin remodeling PBAF-nucleosome complex Deposited 2021-09-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Not recorded BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
7VDV The overall structure of human chromatin remodeling PBAF-nucleosome complex Deposited 2021-09-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 22 PDB declaration: 24-meric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Not recorded BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
7VVU NuA4 HAT module bound to the nucleosome Deposited 2021-11-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 13 PDB declaration: pentadecameric
Chain D 1–126（126 aa）
Chain U 1–126（126 aa）
Not recorded CMC CARBOXYMETHYL COENZYME *A × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.40 Å
7VVZ NuA4 bound to the nucleosome Deposited 2021-11-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 19 PDB declaration: 21-meric
Chain D 1–126（126 aa）
Chain U 1–126（126 aa）
Not recorded CMC CARBOXYMETHYL COENZYME *A × 1 MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 8.80 Å
7X3T Cryo-EM structure of ISW1a-dinucleosome Deposited 2022-03-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Chain N 1–126（126 aa）
Chain R 1–126（126 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.40 Å
7X3V Cryo-EM structure of IOC3-N2 nucleosome Deposited 2022-03-01 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: 11-meric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.09 Å
7X3W Cryo-EM structure of ISW1-N1 nucleosome Deposited 2022-03-01 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: 11-meric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
7X3X Cryo-EM structure of N1 nucleosome-RA Deposited 2022-03-01 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: 11-meric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7XFC Structure of nucleosome-DI complex (-30I, Apo state) Deposited 2022-04-01 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 2.90 Å
7XFH Structure of nucleosome-AAG complex (A-30I, post-catalytic state) Deposited 2022-04-01 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 2.90 Å
7XFI Structure of nucleosome-DI complex (-50I, Apo state) Deposited 2022-04-01 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 2.90 Å
7XFJ Structure of nucleosome-AAG complex (T-50I, post-catalytic state) Deposited 2022-04-01 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.00 Å
7XFL Structure of nucleosome-AAG complex (A-53I, free state) Deposited 2022-04-01 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 2.80 Å
7XFM Structure of nucleosome-AAG complex (A-53I, post-catalytic state) Deposited 2022-04-01 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.10 Å
7XFN Structure of nucleosome-DI complex (-55I, Apo state) Deposited 2022-04-01 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 2.80 Å
7XNP Structure of nucleosome-AAG complex (A-55I, post-catalytic state) Deposited 2022-04-29 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 2.90 Å
7XPX Cryo-EM structure of the histone methyltransferase SET8 bound to H4K20Ecx-nucleosome Deposited 2022-05-06 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded SAM S-ADENOSYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7YI1 Cryo-EM structure of Eaf3 CHD bound to H3K36me3 nucleosome Deposited 2022-07-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Mutation：S29T Mutation：S29T No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
7YI4 Cryo-EM structure of Rpd3S complex bound to H3K36me3 nucleosome in close state Deposited 2022-07-14 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: hexadecameric
Chain J 5–126（122 aa）
Chain N 5–126（122 aa）
Not recorded ZN ZINC ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.96 Å
7YI5 Cryo-EM structure of Rpd3S complex bound to H3K36me3 nucleosome in loose state Deposited 2022-07-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: hexadecameric
Chain J 5–126（122 aa）
Chain N 5–126（122 aa）
Mutation：S29T Mutation：S29T ZN ZINC ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.96 Å
7YRD histone methyltransferase Deposited 2022-08-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 32–126（95 aa）
Chain H 32–126（95 aa）
Not recorded ZN ZINC ION × 1 SAM S-ADENOSYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7YRG histone methyltransferase Deposited 2022-08-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain D 32–126（95 aa）
Chain H 32–126（95 aa）
Mutation：S33T Mutation：S33T ZN ZINC ION × 2 SAM S-ADENOSYLMETHIONINE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
7ZS9 Yeast RNA polymerase II transcription pre-initiation complex with the +1 nucleosome (complex A) Deposited 2022-05-06 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 36 PDB declaration: 38-meric
Chain d 2–126（125 aa）
Chain h 2–126（125 aa）
Not recorded ZN ZINC ION × 17 MG MAGNESIUM ION × 1 SF4 IRON/SULFUR CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
7ZSA Yeast RNA polymerase II transcription pre-initiation complex with the +1 nucleosome and NTP (complex B) Deposited 2022-05-06 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 36 PDB declaration: 38-meric
Chain d 2–126（125 aa）
Chain h 2–126（125 aa）
Not recorded ZN ZINC ION × 17 MG MAGNESIUM ION × 1 SF4 IRON/SULFUR CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
7ZSB Yeast RNA polymerase II transcription pre-initiation complex with the +1 nucleosome and NTP, complex C Deposited 2022-05-06 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 36 PDB declaration: 38-meric
Chain d 2–126（125 aa）
Chain h 2–126（125 aa）
Not recorded ZN ZINC ION × 17 MG MAGNESIUM ION × 1 SF4 IRON/SULFUR CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.60 Å
8B0A Cryo-EM structure of ALC1 bound to an asymmetric, site-specifically PARylated nucleosome Deposited 2022-09-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
8BVW RNA polymerase II pre-initiation complex with the distal +1 nucleosome (PIC-Nuc18W) Deposited 2022-12-20 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 40 PDB declaration: 42-meric
Chain d 1–126（126 aa）
Chain h 1–126（126 aa）
Not recorded SF4 IRON/SULFUR CLUSTER × 1 ZN ZINC ION × 17 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8BYQ RNA polymerase II pre-initiation complex with the proximal +1 nucleosome (PIC-Nuc10W) Deposited 2022-12-14 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 38 PDB declaration: 40-meric
Chain d 1–126（126 aa）
Chain h 1–126（126 aa）
Not recorded SF4 IRON/SULFUR CLUSTER × 1 ZN ZINC ION × 16 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
8BZ1 RNA polymerase II core pre-initiation complex with the proximal +1 nucleosome (cPIC-Nuc10W) Deposited 2022-12-14 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 26 PDB declaration: 28-meric
Chain d 1–126（126 aa）
Chain h 1–126（126 aa）
Not recorded ZN ZINC ION × 9 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8CBN structure of LEDGF/p75 PWWP domain bound to the H3K36 trimethylated dinucleosome Deposited 2023-01-25 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.34 Å
8CBQ structure of LEDGF/p75 PWWP domain bound to the H3K36 trimethylated dinucleosome Deposited 2023-01-25 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8DU4 Complex between RbBP5-WDR5 and an H2B-ubiquitinated nucleosome Deposited 2022-07-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Mutation：S32T, K120C Mutation：S32T, K120C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.55 Å
8ETT Class1 of the INO80-Hexasome complex Deposited 2022-10-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain D 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen OTHER
Resolution 6.68 Å
8ETV Class2 of the INO80-Hexasome complex Deposited 2022-10-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain D 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen OTHER
Resolution 3.16 Å
8EU2 Class3 of the INO80-Hexasome complex Deposited 2022-10-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain D 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen OTHER
Resolution 2.93 Å
8F86 SIRT6 bound to an H3K9Ac nucleosome Deposited 2022-11-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded ZSL [(2R,3S,4R,5R)-5-(6-amino-9H-purin-9-yl)-3,4-dihydroxyoxolan-2-yl]methyl [(3aR,5R,6R,6aR)-6-hydroxytetrahydro-2H-furo[2,3-d][1,3]oxathiol-5-yl]methyl dihydrogen diphosphate (non-preferred name) × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
8G6G H2BK120ub+H3K79me2-modified nucleosome ubiquitin position 5 Deposited 2023-02-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: 11-meric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Mutation：S33T, K120C Mutation：S33T, K120C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.93 Å
8G6H H2BK120ub+H3K79me2-modified nucleosome ubiquitin position 6 Deposited 2023-02-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: 11-meric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Mutation：S33T, K120C Mutation：S33T, K120C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.06 Å
8G6Q H2AK119ub-modified nucleosome ubiquitin position 1 Deposited 2023-02-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: 11-meric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Mutation：S33T Mutation：S33T No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.41 Å
8G6S H2AK119ub-modified nucleosome ubiquitin position 2 Deposited 2023-02-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: 11-meric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Mutation：S33T Mutation：S33T No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.47 Å
8G86 Human Oct4 bound to nucleosome with human nMatn1 sequence (focused refinement of nucleosome) Deposited 2023-02-17 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；50 mM HEPES pH 7.5, 1 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.30 Å
8G88 Human Oct4 bound to nucleosome with human nMatn1 sequence Deposited 2023-02-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；50 mM HEPES pH 7.5, 1 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.30 Å
8G8B Nucleosome with human nMatn1 sequence in complex with Human Oct4 Deposited 2023-02-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；50 mM HEPES pH 7.5, 1 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.30 Å
8G8G Interaction of H3 tail in LIN28B nucleosome with Oct4 Deposited 2023-02-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；50 mM HEPES pH 7.5, 1 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8GPN Human menin in complex with H3K79Me2 nucleosome Deposited 2022-08-26 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8KD2 Rpd3S in complex with 187bp nucleosome Deposited 2023-08-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: hexadecameric
Chain R 5–126（122 aa）
Chain V 5–126（122 aa）
Mutation：S29T Mutation：S29T No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.02 Å
8KD3 Rpd3S in complex with nucleosome with H3K36MLA modification, H3K9Q mutation and 187bp DNA Deposited 2023-08-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: hexadecameric
Chain R 5–126（122 aa）
Chain V 5–126（122 aa）
Mutation：S29T Mutation：S29T ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
8KD4 Rpd3S in complex with nucleosome with H3K36MLA modification and 187bp DNA, class1 Deposited 2023-08-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: hexadecameric
Chain R 5–126（122 aa）
Chain V 5–126（122 aa）
Mutation：S29T Mutation：S29T ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.93 Å
8KD5 Rpd3S in complex with nucleosome with H3K36MLA modification and 187bp DNA, class2 Deposited 2023-08-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: 16-meric
Chain R 5–126（122 aa）
Chain V 5–126（122 aa）
Mutation：S29T Mutation：S29T ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
8KD6 Rpd3S in complex with nucleosome with H3K36MLA modification and 187bp DNA, class3 Deposited 2023-08-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: hexadecameric
Chain R 5–126（122 aa）
Chain V 5–126（122 aa）
Mutation：S29T Mutation：S29T ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.07 Å
8KD7 Rpd3S in complex with nucleosome with H3K36MLA modification and 167bp DNA Deposited 2023-08-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: hexadecameric
Chain R 5–126（122 aa）
Chain V 5–126（122 aa）
Mutation：S29T Mutation：S29T No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.09 Å
8PC5 H3K36me3 nucleosome-LEDGF/p75 PWWP domain complex Deposited 2023-06-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.02 Å
8PC6 H3K36me3 nucleosome-LEDGF/p75 PWWP domain complex - pose 2 Deposited 2023-06-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.04 Å
8PEO H3K36me2 nucleosome-LEDGF/p75 PWWP domain complex Deposited 2023-06-14 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.69 Å
8PEP H3K36me2 nucleosome-LEDGF/p75 PWWP domain complex - pose 2 Deposited 2023-06-14 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: 12-meric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.33 Å
8RUP Chromosome Passenger Complex (CPC) localization module in complex with H3.T3p-nucleosome Deposited 2024-01-31 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: 13-meric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；10 mM TRIS-HCl, pH 7.5, 150 mM NaCl, 2 mM DTT, 0.3% n-octyl-beta-D-glucoside
cryo-EM vitrification conditions Cryogen ETHANE；3 s blotting time, -10 force, no wait time.
Resolution 2.42 Å
8RUQ Borealin N-terminus in complex with H3.T3p-nucleosome Deposited 2024-01-31 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；10 mM TRIS-HCl, pH 7.5, 150 mM NaCl, 2 mM DTT, 0.3% n-octyl-beta-D-glucoside
cryo-EM vitrification conditions Cryogen ETHANE；3 s blotting time, -10 force, no wait time.
Resolution 2.29 Å
8SIY Origin Recognition Complex Associated (ORCA) protein bound to H4K20me3-nucleosome Deposited 2023-04-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain F 5–126（122 aa）
Chain J 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
8SKZ Cryo-EM structure of DDM1-HELLS chimera bound to the nucleosome Deposited 2023-04-20 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8SVF BAP1/ASXL1 bound to the H2AK119Ub Nucleosome Deposited 2023-05-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: 13-meric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Mutation：S33T Mutation：S33T No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8T3T Structure of Bre1-nucleosome complex - state3 Deposited 2023-06-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；20 mM HEPES pH 7.5, 50 mM NaCl, 1 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.21 Å
8T3W Structure of Bre1-nucleosome complex - state2 Deposited 2023-06-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；20 mM HEPES pH 7.5, 50 mM NaCl, 1 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.25 Å
8T3Y Structure of Bre1-nucleosome complex - state1 Deposited 2023-06-08 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；20 mM HEPES, pH 7.5, 50 mM NaCl, 1 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.47 Å
8T9F Catalytic and non-catalytic mechanisms of histone H4 lysine 20 methyltransferase SUV420H1 Deposited 2023-06-23 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded SAM S-ADENOSYLMETHIONINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9；50 mM HEPES pH 7.9, 100 mM NaCl, 2 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.60 Å
8T9G Automethylated PRC2 dimer bound to nucleosome Deposited 2023-06-23 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 19 PDB declaration: 21-meric
Chain S 5–126（122 aa）
Chain V 5–126（122 aa）
Not recorded SAH S-ADENOSYL-L-HOMOCYSTEINE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.20 Å
8T9H Catalytic and non-catalytic mechanisms of histone H4 lysine 20 methyltransferase SUV420H1 Deposited 2023-06-24 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9；50 mM HEPES pH 7.9, 100 mM NaCl, 2 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.37 Å
8TAS PRC2 monomer bound to nucleosome Deposited 2023-06-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 13 PDB declaration: pentadecameric
Chain S 5–126（122 aa）
Chain V 5–126（122 aa）
Not recorded SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
8TB9 PRC2-J119-450 monomer bound to H1-nucleosome Deposited 2023-06-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 15 PDB declaration: heptadecameric
Chain S 5–126（122 aa）
Chain V 5–126（122 aa）
Not recorded SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8THU Catalytic and non-catalytic mechanisms of histone H4 lysine 20 methyltransferase SUV420H1 Deposited 2023-07-18 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9；50 mM HEPES pH 7.9, 100 mM NaCl, 2 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
8TOF Rpd3S bound to an H3K36Cme3 modified nucleosome Deposited 2023-08-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: octadecameric
Chain d 5–126（122 aa）
Chain h 5–126（122 aa）
Mutation：S29T Mutation：S29T ZN ZINC ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8U5H Cryo-EM structure of human DNMT3A UDR bound to H2AK119ub1-modified nucleosome Deposited 2023-09-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric
Chain M 5–126（122 aa）
Chain S 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.23 Å
8UW1 Cryo-EM structure of DNMT3A1 UDR in complex with H2AK119Ub-nucleosome Deposited 2023-11-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9；50 mM HEPES pH 7.9, 100 mM NaCl, 2 mM DTT
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.88 Å
8UXQ Structure of Heterochromatin Protein 1 (HP1) alpha in complex with an H2A.Z nucleosome Deposited 2023-11-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: 12-meric
Chain H 2–126（125 aa）
Chain N 2–126（125 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.30 Å
8V25 H2BK120ub-modified nucleosome ubiquitin position 1 Deposited 2023-11-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Mutation：S29T, K117C Mutation：S29T, K117C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.32 Å
8V26 H2BK120ub-modified nucleosome ubiquitin position 2 Deposited 2023-11-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Mutation：S29T, K117C Mutation：S29T, K117C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.33 Å
8V27 H2BK120ub-modified nucleosome ubiquitin position 3 Deposited 2023-11-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Mutation：S29T, K117C Mutation：S29T, K117C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.34 Å
8V28 H2BK120ub-modified nucleosome ubiquitin position 4 Deposited 2023-11-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Mutation：S29T, K117C Mutation：S29T, K117C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.36 Å
8V4Y Cryo-EM structure of singly-bound SNF2h-nucleosome complex with SNF2h at inactive SHL2 (conformation 1) Deposited 2023-11-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Mutation：S29T Mutation：S29T ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；12.5 mM HEPES-KOH, pH 7.5, 60 mM KCl, 5 mM MgCl2, 2 mM ADP, 2 mM BeSO4, 10 mM NaF, 1.5% glycerol
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8V6V Cryo-EM structure of doubly-bound SNF2h-nucleosome complex Deposited 2023-12-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Mutation：S29T Mutation：S29T ADP ADENOSINE-5'-DIPHOSPHATE × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；12.5 mM HEPES-KOH, pH 7.5, 60 mM KCl, 5 mM MgCl2, 2 mM ADP, 2 mM BeSO4, 10 mM NaF, 1.5% glycerol
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8V7L Cryo-EM structure of singly-bound SNF2h-nucleosome complex with SNF2h at inactive SHL2 (conformation 2) Deposited 2023-12-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Mutation：S29T Mutation：S29T ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；12.5 mM HEPES-KOH, pH 7.5, 60 mM KCl, 5 mM MgCl2, 2 mM ADP, 2 mM BeSO4, 10 mM NaF, 1.5% glycerol
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
8VO0 H3K36me3-modified nucleosome bound to PRC2_AJ1-450 with histone H3 tail disengaged Deposited 2024-01-14 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain M 40–126（87 aa）
Chain S 38–126（89 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
8VOB H3K36me3-modified nucleosome bound to PRC2_AJ1-450 Deposited 2024-01-14 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain M 31–126（96 aa）
Chain S 31–126（96 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
8VX5 Nucleosome core particle containing an 8-oxoG damage site Deposited 2024-02-03 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Mutation：S29T Mutation：S29T No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
8VX6 Human OGG1 bound at the nucleosomal DNA entry site Deposited 2024-02-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Mutation：S29T Mutation：S29T No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8XAA Structure of NAP1 in complex with H2A-H2B Deposited 2023-12-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain J 28–126（99 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.1 M Tris, pH 8.0, 25 % v/v PEG 400
Resolution 3.35 Å R-free 0.261
8XAA Structure of NAP1 in complex with H2A-H2B Deposited 2023-12-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain L 28–126（99 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.1 M Tris, pH 8.0, 25 % v/v PEG 400
Resolution 3.35 Å R-free 0.261
8XJV Structural basis for the linker histone H5-nucleosome binding and chromatin compaction Deposited 2023-12-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 108 PDB declaration: 110-meric
Chain Aa 5–126（122 aa）
Chain Ab 5–126（122 aa）
Chain Ac 5–126（122 aa）
Chain Ad 5–126（122 aa）
Chain Af 5–126（122 aa）
Chain Ag 5–126（122 aa）
Chain At 5–126（122 aa）
Chain J 5–126（122 aa）
Chain M 5–126（122 aa）
Chain N 5–126（122 aa）
Chain O 5–126（122 aa）
Chain P 5–126（122 aa）
Chain Q 5–126（122 aa）
Chain R 5–126（122 aa）
Chain S 5–126（122 aa）
Chain T 5–126（122 aa）
Chain U 5–126（122 aa）
Chain V 5–126（122 aa）
Chain W 5–126（122 aa）
Chain av 5–126（122 aa）
Chain aw 5–126（122 aa）
Chain ax 5–126（122 aa）
Chain ay 5–126（122 aa）
Chain az 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.60 Å
8ZVY Alpha-Synuclein with H2a-H2b dimer complex structure. Deposited 2024-06-12 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 34–126（93 aa）
Chain B 34–126（93 aa）
Not recorded CL CHLORIDE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291.15 K；100 mM Tris pH 8.0 and 10% PEG 8000.
Resolution 1.72 Å R-free 0.220
9B2S Haspin bound to nucleosome in position 1 Deposited 2024-03-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Mutation：S33T Mutation：S33T No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.01 Å
9B2T Haspin bound to nucleosome in position 2 Deposited 2024-03-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: 11-meric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Mutation：S33T Mutation：S33T No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.99 Å
9B3P The cryo-EM structure of the H2A.Z-H3.3 double-variant nucleosome Deposited 2024-03-19 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；20mM Tris-HCl, 5mM NaCl
cryo-EM vitrification conditions Cryogen ETHANE；Freezing condition: blot force 0, blot time 4.5 second
Resolution 3.00 Å
9C9X S.c INO80 in complex with Xenopus 0/80 nucleosome, Nucleosome Deposited 2024-06-16 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen OTHER
Resolution 2.83 Å
9CA7 Cryo-EM structure of human SRCAP-nucleosome complex in the fully-engaged state (composite structure) Deposited 2024-06-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain R 2–126（125 aa）
Chain T 2–126（125 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 5 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.35 Å
9CA8 Cryo-EM structure of human SRCAP-nucleosome complex in the partially-engaged state (composite structure) Deposited 2024-06-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain R 2–126（125 aa）
Chain T 2–126（125 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 5 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.92 Å
9CAA Cryo-EM structure of human SRCAP-nucleosome complex in the pre-engaged state (composite structure) Deposited 2024-06-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain R 2–126（125 aa）
Chain T 2–126（125 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 4 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.04 Å
9CAB Cryo-EM structure of human SRCAP-nucleosome complex in the encounter state (composite structure) Deposited 2024-06-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain R 2–126（125 aa）
Chain T 2–126（125 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 5 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.94 Å
9CAN S.c INO80 in complex with Xenopus 0/40 nucleosome Deposited 2024-06-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen OTHER
Resolution 3.30 Å
9CG9 Cryo-EM structure of an HMGB1 box bound to nucleosome at SHL-2 Deposited 2024-06-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Mutation：S32T Mutation：S32T No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；3 uL of sample was applied to grid.
Resolution 2.94 Å
9DBY ncPRC1RYBP bound to singly modified H2AK119Ub nucleosome Deposited 2024-08-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Mutation：S33T Mutation：S33T ZN ZINC ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
9DDE ncPRC1RYBP bound to H2AK119Ub/H1.4 chromatosome Deposited 2024-08-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 13 PDB declaration: 15-meric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Mutation：S33T Mutation：S33T ZN ZINC ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9DG3 ncPRC1RYBP Delta-linker mutant bound to singly modified H2AK119Ub nucleosome Deposited 2024-09-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: 12-meric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Mutation：S33T Mutation：S33T ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.46 Å
9DGG ncPRC1RYBP bound to unmodified nucleosome Deposited 2024-09-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: 12-meric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Mutation：S33T Mutation：S33T ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.98 Å
9E1L Snf2h bound nucleosome complex - ClassA1 Deposited 2024-10-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.15 Å
9E1M Snf2h bound nucleosome complex - ClassA2 Deposited 2024-10-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.25 Å
9E1N Snf2h bound nucleosome complex-ClassA3 Deposited 2024-10-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: 11-meric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9E1O Snf2h bound nucleosome complex - ClassB1 Deposited 2024-10-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: 11-meric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9E1P Snf2h bound nucleosome complex - ClassB2 Deposited 2024-10-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: 11-meric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.25 Å
9E1Q Snf2h bound nucleosome complex - ClassB3 Deposited 2024-10-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: 11-meric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9E1R Snf2h bound nucleosome complex - ClassB4 Deposited 2024-10-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: 11-meric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9E1U Snf2h bound nucleosome complex - ClassC1 Deposited 2024-10-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: 11-meric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9E1V Snf2h bound nucleosome complex - ClassC2 Deposited 2024-10-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: 11-meric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9E1W Snf2h bound nucleosome complex - ClassC3 Deposited 2024-10-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: 11-meric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9E1X Snf2h bound nucleosome complex - ClassD1 Deposited 2024-10-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: 11-meric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9E1Y Empty Nucleosome with 601 widom sequence Deposited 2024-10-21 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.60 Å
9EGX RNA polymerase II-DSIF-SPT6-PAF1c-TFIIS-IWS1-hexasome, bp +27 Deposited 2024-11-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 29 PDB declaration: 32-meric
Chain d 5–126（122 aa）
Not recorded ZN ZINC ION × 9 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9EGY RNA polymerase II-DSIF-SPT6-PAF1c-TFIIS-IWS1-nucleosome, bp +27 Deposited 2024-11-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 31 PDB declaration: 34-meric
Chain d 5–126（122 aa）
Chain h 5–126（122 aa）
Not recorded ZN ZINC ION × 9 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9EGZ RNA polymerase II-DSIF-SPT6-PAF1c-TFIIS-IWS1-SETD2-nucleosome, bp +27 Deposited 2024-11-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 32 PDB declaration: 35-meric
Chain d 5–126（122 aa）
Chain h 5–126（122 aa）
Not recorded ZN ZINC ION × 12 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9EH0 RNA polymerase II-DSIF-SPT6-PAF1c-TFIIS-IWS1-SETD2-nucleosome, 30 bp upstream Deposited 2024-11-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 32 PDB declaration: 35-meric
Chain d 5–126（122 aa）
Chain h 5–126（122 aa）
Not recorded ZN ZINC ION × 9 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
9EH1 RNA polymerase II-DSIF-SPT6-PAF1c-TFIIS-IWS1-SETD2-nucleosome, 20 bp upstream Deposited 2024-11-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 32 PDB declaration: 35-meric
Chain d 5–126（122 aa）
Chain h 5–126（122 aa）
Not recorded ZN ZINC ION × 9 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9EH2 RNA polymerase II-DSIF-SPT6-PAF1c-TFIIS-IWS1-SETD2-FACT nucleosome upstream Deposited 2024-11-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 32 PDB declaration: 35-meric
Chain h 5–126（122 aa）
Not recorded ZN ZINC ION × 9 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9EIL SIRT6 bound to an H3K27Ac nucleosome Deposited 2024-11-26 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded ZSL [(2R,3S,4R,5R)-5-(6-amino-9H-purin-9-yl)-3,4-dihydroxyoxolan-2-yl]methyl [(3aR,5R,6R,6aR)-6-hydroxytetrahydro-2H-furo[2,3-d][1,3]oxathiol-5-yl]methyl dihydrogen diphosphate (non-preferred name) × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9F0O The molecular basis and modulation of lamin-specific chromatin interaction Deposited 2024-04-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain D 30–126（97 aa）
Chain H 30–126（97 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.30 Å
9FH9 Structure of CyclinB1 N-terminus bound to the NCP Deposited 2024-05-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: 12-meric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.50 Å
9GD0 Structure of a hexasome-nucleosome complex with a dyad-to-dyad distance of 103 bp. Deposited 2024-08-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: 16-meric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Chain N 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
9GD1 Structure of Chd1 bound to a hexasome-nucleosome complex with a dyad-to-dyad distance of 103 bp. Deposited 2024-08-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 15 PDB declaration: 17-meric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Chain N 5–126（122 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
9GD2 Structure of Chd1 bound to a dinucleosome with a dyad-to-dyad distance of 103 bp. Deposited 2024-08-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 19 PDB declaration: 21-meric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Chain N 5–126（122 aa）
Chain Q 5–126（122 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
9GD3 Structure of a mononucleosome bound by one copy of Chd1 with the DBD on the exit-side DNA. Deposited 2024-08-04 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: 12-meric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
9GEN Recombinant Myeloperoxidase bound to nucleosome core particle Deposited 2024-08-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: 11-meric
Chain D 30–125（96 aa）
Chain H 30–125（96 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.76 Å
9GEO Nucleosome core particle Deposited 2024-08-07 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 30–125（96 aa）
Chain H 30–125（96 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.79 Å
9GEP Native monomeric Myeloperoxidase bound to nucleosome core particle Deposited 2024-08-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: 12-meric
Chain D 30–125（96 aa）
Chain H 30–125（96 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.89 Å
9GEQ Native dimeric Myeloperoxidase bound to nucleosome core particle; composite map Deposited 2024-08-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain D 30–125（96 aa）
Chain H 30–125（96 aa）
Not recorded CL CHLORIDE ION × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 CA CALCIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.12 Å
9GER Native dimeric Myeloperoxidase bound to nucleosome core particle, intermediate state; composite map Deposited 2024-08-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain D 30–125（96 aa）
Chain H 30–125（96 aa）
Not recorded CL CHLORIDE ION × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 CA CALCIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.58 Å
9IGJ structure of two human ELF2 transcription factors in complex with a nucleosome Deposited 2025-02-19 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: 12-meric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；1 mM EDTA, 30 mM NaCl, 2 mM DTT in 20 mM HEPES, pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
9IHD Nucleosome core particle bound by one molecule of DTT-reduced native monomeric myeloperoxidase Deposited 2025-02-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: 12-meric
Chain D 30–125（96 aa）
Chain H 30–125（96 aa）
Not recorded HEM PROTOPORPHYRIN IX CONTAINING FE × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.97 Å
9IHE Nucleosome core particle bound by two molecules of DTT-reduced native monomeric myeloperoxidase Deposited 2025-02-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain D 30–125（96 aa）
Chain H 30–125（96 aa）
Not recorded HEM PROTOPORPHYRIN IX CONTAINING FE × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.95 Å
9IHF Nucleosome core particle bound by one monomer and one dimer of of DTT-reduced native myeloperoxidase Deposited 2025-02-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: 16-meric
Chain D 30–125（96 aa）
Chain H 30–125（96 aa）
Not recorded HEM PROTOPORPHYRIN IX CONTAINING FE × 3 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.16 Å
9JAO The structure of SMARCAD1 bound to the hexasome in the presence of ADP-BeFx Deposited 2024-08-25 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain H 5–126（122 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9M76 UHRF1 bound to a mononucleosome in its pre-active state, with the RING domain bound to the SRA domain. Deposited 2025-03-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Not recorded ZN ZINC ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
9M77 The activated state of human UHRF1 bound to a mononucleosome, with the finger loop ordered and linker 4 disordered. Deposited 2025-03-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
9MPP The cryo-EM structure of nucleosome-bound DNA methyltransferases DNMT3A2 and DNMT3L Deposited 2024-12-31 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded ZN ZINC ION × 6 SAH S-ADENOSYL-L-HOMOCYSTEINE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9N6H 2.54 A S.cerevisiae Chd1[L886G/L889G/L891G]-nucleosome 1:1 complex Deposited 2025-02-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 33–126（94 aa）
Chain H 33–126（94 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.54 Å
9N6I 2.61 A S.cerevisiae Chd1[L886G/L889G/L891G]-nucleosome 2:1 complex Deposited 2025-02-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain D 33–126（94 aa）
Chain H 33–126（94 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.61 Å
9NH8 CHD1-nucleosome complex (anchored state) Deposited 2025-02-24 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: 12-meric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded ARG ARGININE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9NY4 USP21 bound to H2AK119ub nucleosome Deposited 2025-03-26 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: 12-meric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.98 Å
9Q7U Composite map for Cryo-EM structure of DNMT3A2-DNMT3B3 tetramer bound to 167H3K36me2-nucleosome Deposited 2025-08-25 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded ZN ZINC ION × 9 SAO 5'-S-[(3S)-3-azaniumyl-3-carboxypropyl]-5'-thioadenosine × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9QAJ Structure of the nucleosome-bound human BCL7A Deposited 2025-02-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: 14-meric
Chain D 2–126（125 aa）
Chain H 2–126（125 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.95 Å
9QIK M2 nucleosome Deposited 2025-03-17 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain C 1–126（126 aa）
Chain D 1–126（126 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.03 Å
9R5K Structural characterisation of chromatin remodelling intermediates supports linker DNA dependent product inhibition as a mechanism for nucleosome spacing. Deposited 2025-05-09 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；20mM Hepes, 120mM Nacl
cryo-EM vitrification conditions Cryogen ETHANE；Vitrified carried out in climate chamber with 100% humidity
Resolution 4.20 Å
9R5S Structural characterisation of chromatin remodelling intermediates supports linker DNA dependent product inhibition as a mechanism for nucleosome spacing. Deposited 2025-05-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: 11-meric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；20mM Hepes, 120mM Nacl
cryo-EM vitrification conditions Cryogen ETHANE；Vitrified carried out in climate chamber with 100% humidity
Resolution 3.80 Å
9R5W Structural characterisation of chromatin remodelling intermediates supports linker DNA dependent product inhibition as a mechanism for nucleosome spacing. Deposited 2025-05-10 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric
Chain D 1–126（126 aa）
Chain H 1–126（126 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；20mM Hepes, 120mM Nacl
cryo-EM vitrification conditions Cryogen ETHANE；Vitrified carried out in climate chamber with 100% humidity
Resolution 3.80 Å
9T4V ALC1/CHD1L in an intermediate conformation, bound to a PARylated nucleosome Deposited 2025-11-02 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: 11-meric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；3 uL were applied on grid and immediately blotted for 2.5 s at blot force 0.
Resolution 6.60 Å
9W74 Cryo-EM structure of the close-packed di-hexasome (CPDH) Deposited 2025-08-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain D 5–126（122 aa）
Chain N 5–126（122 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.94 Å
9WBZ The structure of NCP-motor-ARP module of ncBAF-nucleosome complex Deposited 2025-08-15 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain D 2–126（125 aa）
Chain H 2–126（125 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9WC0 The structure of NCP-RA module of ncBAF-nucleosome complex Deposited 2025-08-15 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain D 2–126（125 aa）
Chain H 2–126（125 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å
9XYC Pol II-DSIF-SPT6-PAF1c-TFIIS-IWS1-ELOF1-LEDGF-nucleosome LEDGF+nucleosome map Q Deposited 2025-08-25 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain d 1–126（126 aa）
Chain h 1–126（126 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9Y4P Cryo-EM structure of DNMT3A2/3B3 in complex with H3K36me2 di-nucleosome with eight base pair linker Deposited 2025-09-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 24 PDB declaration: 26-meric
Chain D 5–126（122 aa）
Chain H 5–126（122 aa）
Chain P 5–126（122 aa）
Chain T 5–126（122 aa）
Not recorded ZN ZINC ION × 18 SAH S-ADENOSYL-L-HOMOCYSTEINE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.84 Å

310 other PDB entries and 327 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name H2B1_XENLA
Isoform —
PDB entities 5
Chains and sequence ranges Author chain D； PDBConstruct 2–126； UniProt 1–125 Author chain H； PDBConstruct 2–126； UniProt 1–125

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 1f66

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 1f66
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id1f66
Deposition date deposition_date2000-06-20
Structure title title2.6 A CRYSTAL STRUCTURE OF A NUCLEOSOME CORE PARTICLE CONTAINING THE VARIANT HISTONE H2A.Z
Keywords keywords;NUCLEOSOME, CHROMATIN, HISTONE, HISTONE VARIANT, PROTEIN DNA INTERACTION, NUCLEOPROTEIN, SUPERCOILED DNA, COMPLEX (NUCLEOSOME CORE-DNA), STRUCTURAL PROTEIN-DNA COMPLEX ;; STRUCTURAL PROTEIN/DNA
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier39.98 Å
Radius of gyration Rg (electron density) rg_electron37.44 Å
Forward intensity I(0) i0843736000.00
Molecular weight molecular_weight177520.0 kDa
Excluded volume excluded_volume196870 ų
Envelope volume envelope_volume292300 ų
Hydration-shell volume shell_volume63283 ų
Envelope diameter envelope_diameter119.6 Å
Shell Rg shell_rg45.19 Å
Envelope Rg envelope_rg36.84 Å
Shape Rg shape_rg37.27 Å
Total Rg total_rg38.16 Å
Total atoms total_atoms12072
Residues n_residues1061
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax115.9 Å
Rg (real space) rg_real39.80 Å
Rg uncertainty (real space) rg_real_error0.66 Å
I(0) (real space) i0_real8.4370e+08
I(0) uncertainty (real space) i0_real_error1.2790e+07
Rg (reciprocal space) rg_reciprocal39.98 Å
I(0) (reciprocal space) i0_reciprocal843900000.0000
Solution quality estimate total_estimate0.8900
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks1
Primary peak position r_peak_primary46.4 Å
Skewness Skewness skewness0.079
Kurtosis Kurtosis kurtosis-0.699
Angular range angular_range— – 0.2000 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha66850000.0000
Real-space data points n_real_points41
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.988; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.988; Smooth: 0.613
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (7)

▼

7. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_idd1f66a_
Class classa — All alpha proteins
Fold Fold folda.22 — Histone-fold
Superfamily Superfamily superfamilya.22.1 — Histone-fold
Family Family familya.22.1.1 — Nucleosome core histones
Domain ID domain_idd1f66b_
Class classa — All alpha proteins
Fold Fold folda.22 — Histone-fold
Superfamily Superfamily superfamilya.22.1 — Histone-fold
Family Family familya.22.1.1 — Nucleosome core histones
Domain ID domain_idd1f66c_
Class classa — All alpha proteins
Fold Fold folda.22 — Histone-fold
Superfamily Superfamily superfamilya.22.1 — Histone-fold
Family Family familya.22.1.1 — Nucleosome core histones
Domain ID domain_idd1f66d_
Class classa — All alpha proteins
Fold Fold folda.22 — Histone-fold
Superfamily Superfamily superfamilya.22.1 — Histone-fold
Family Family familya.22.1.1 — Nucleosome core histones
Domain ID domain_idd1f66e_
Class classa — All alpha proteins
Fold Fold folda.22 — Histone-fold
Superfamily Superfamily superfamilya.22.1 — Histone-fold
Family Family familya.22.1.1 — Nucleosome core histones
Domain ID domain_idd1f66f_
Class classa — All alpha proteins
Fold Fold folda.22 — Histone-fold
Superfamily Superfamily superfamilya.22.1 — Histone-fold
Family Family familya.22.1.1 — Nucleosome core histones
Domain ID domain_idd1f66g_
Class classa — All alpha proteins
Fold Fold folda.22 — Histone-fold
Superfamily Superfamily superfamilya.22.1 — Histone-fold
Family Family familya.22.1.1 — Nucleosome core histones
Domain ID domain_idd1f66h_
Class classa — All alpha proteins
Fold Fold folda.22 — Histone-fold
Superfamily Superfamily superfamilya.22.1 — Histone-fold
Family Family familya.22.1.1 — Nucleosome core histones

CATH v4.4 (8 domains)

Domain ID domain_id1f66A00
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology20 — Histone, subunit A
Homologous superfamily homologous superfamily10 — Histone, subunit A
Domain ID domain_id1f66B00
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology20 — Histone, subunit A
Homologous superfamily homologous superfamily10 — Histone, subunit A
Domain ID domain_id1f66C00
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology20 — Histone, subunit A
Homologous superfamily homologous superfamily10 — Histone, subunit A
Domain ID domain_id1f66D00
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology20 — Histone, subunit A
Homologous superfamily homologous superfamily10 — Histone, subunit A
Domain ID domain_id1f66E00
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology20 — Histone, subunit A
Homologous superfamily homologous superfamily10 — Histone, subunit A
Domain ID domain_id1f66F00
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology20 — Histone, subunit A
Homologous superfamily homologous superfamily10 — Histone, subunit A
Domain ID domain_id1f66G00
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology20 — Histone, subunit A
Homologous superfamily homologous superfamily10 — Histone, subunit A
Domain ID domain_id1f66H00
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology20 — Histone, subunit A
Homologous superfamily homologous superfamily10 — Histone, subunit A
▶

8. Citations (1)

▶

9. Files and Curves (10)
