1kx5

X-Ray Structure of the Nucleosome Core Particle, NCP147, at 1.9 A Resolution

Method: X-RAY DIFFRACTION D_max: 151.6 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

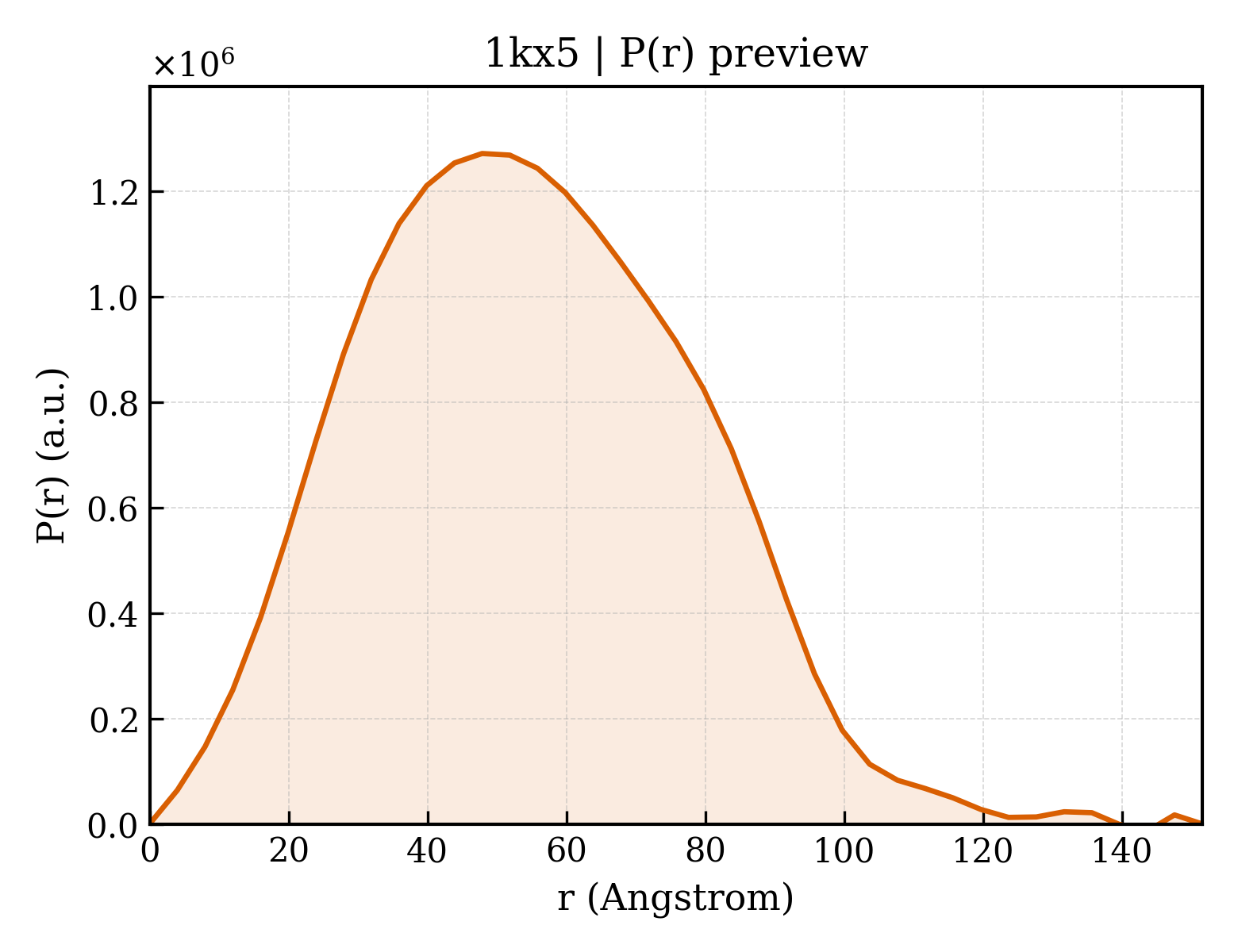

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1kx5
沉积日期 deposition_date	2002-01-31
结构标题 title	X-Ray Structure of the Nucleosome Core Particle, NCP147, at 1.9 A Resolution
关键词 keywords	;NUCLEOSOME, CHROMATIN, HISTONE, PROTEIN-DNA INTERACTION, NUCLEOPROTEIN, SUPERCOILED DNA, NUCLEOSOME CORE, PROTEIN-DNA COMPLEX, DNA BENDING, DNA CURVATURE, DNA-CATION BINDING, DNA-METAL BINDING, DNA SOLVATION, STRUCTURAL PROTEIN-DNA COMPLEX ;; STRUCTURAL PROTEIN/DNA
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	41.96 Å
回转半径 Rg (电子) rg_electron	40.45 Å
零角强度 I(0) i0	1011070000.00
分子量 molecular_weight	199810.0 kDa
排除体积 excluded_volume	224620 Å³
包络体积 envelope_volume	348610 Å³
水化壳体积 shell_volume	69487 Å³
包络直径 envelope_diameter	171.6 Å
壳层 Rg shell_rg	47.31 Å
包络 Rg envelope_rg	41.80 Å
形状 Rg shape_rg	40.32 Å
总 Rg total_rg	41.03 Å
总原子数 total_atoms	13625
残基数 n_residues	1268
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	151.6 Å
Rg (实空间) rg_real	41.87 Å
Rg 误差 (实空间) rg_real_error	1.33 Å
I(0) (实空间) i0_real	1.0110e+09
I(0) 误差 (实空间) i0_real_error	1.9070e+07
Rg (倒空间) rg_reciprocal	41.96 Å
I(0) (倒空间) i0_reciprocal	1011000000.0000
解质量估计 total_estimate	0.7744
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	3
主峰位置 r_peak_primary	47.9 Å
偏度 Skewness skewness	0.277
峰度 Kurtosis kurtosis	-0.233
角度范围 angular_range	— – 0.1900 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	115800000.0000
实空间数据点数 n_real_points	39
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.688; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (9)

Entity 1 polymer

描述 description	;DNA (5'(ATCAATATCCACCTGCAGATACTACCAAAAGTGTATTTGGAAACTGCTCCATCAAAAGGCATGTTCAGCTGGAATCCAGCTGAACATGCCTTTTGATGGAGCAGTTTCCAAATACACTTTTGGTAGTATCTGCAGGTGGATATTGAT)3') ;
分子量 formula_weight	45368.1 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	I
原子数 atom_count	16755

ATCAATATCCACCTGCAGATACTACCAAAAGTGTATTTGGAAACTGCTCCATCAAAAGGCATGTTCAGCTGGAATCCAGCTGAACATGCCTTTTGATGGAGCAGTTTCCAAATACACTTTTGGTAGTATCTGCAGGTGGATATTGAT

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	;DNA (5'(ATCAATATCCACCTGCAGATACTACCAAAAGTGTATTTGGAAACTGCTCCATCAAAAGGCATGTTCAGCTGGATTCCAGCTGAACATGCCTTTTGATGGAGCAGTTTCCAAATACACTTTTGGTAGTATCTGCAGGTGGATATTGAT)3') ;
分子量 formula_weight	45359.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	J

ATCAATATCCACCTGCAGATACTACCAAAAGTGTATTTGGAAACTGCTCCATCAAAAGGCATGTTCAGCTGGATTCCAGCTGAACATGCCTTTTGATGGAGCAGTTTCCAAATACACTTTTGGTAGTATCTGCAGGTGGATATTGAT

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 polymer

描述 description	histone H3
分子量 formula_weight	15303.9 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,E

ARTKQTARKSTGGKAPRKQLATKAARKSAPATGGVKKPHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEASEAYLVALFEDTNLCAIHAKRVTIMPKDIQLARRIRGERA

来源 Source

来源生物 organism	Xenopus laevis
通用名 common_name	African clawed frog
NCBI 分类编号 ncbi_taxonomy_id	8355
宿主生物 host_organism	Escherichia coli

Entity 4 polymer

描述 description	histone H4
分子量 formula_weight	11263.2 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,F

SGRGKGGKGLGKGGAKRHRKVLRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG

来源 Source

来源生物 organism	Xenopus laevis
通用名 common_name	African clawed frog
NCBI 分类编号 ncbi_taxonomy_id	8355
宿主生物 host_organism	Escherichia coli

Entity 5 polymer

描述 description	histone H2A.1
分子量 formula_weight	13907.2 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,G

SGRGKQGGKTRAKAKTRSSRAGLQFPVGRVHRLLRKGNYAERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAVRNDEELNKLLGRVTIAQGGVLPNIQSVLLPKKTESSKSKSK

来源 Source

来源生物 organism	Xenopus laevis
通用名 common_name	African clawed frog
NCBI 分类编号 ncbi_taxonomy_id	8355
宿主生物 host_organism	Escherichia coli

Entity 6 polymer

描述 description	histone H2B.2
分子量 formula_weight	13848.1 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D,H

PEPAKSAPAPKKGSKKAVTKTQKKDGKKRRKTRKESYAIYVYKVLKQVHPDTGISSKAMSIMNSFVNDVFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSAK

来源 Source

来源生物 organism	Xenopus laevis
通用名 common_name	African clawed frog
NCBI 分类编号 ncbi_taxonomy_id	8355
宿主生物 host_organism	Escherichia coli

Entity 7 non-polymer

描述 description	MANGANESE (II) ION
分子量 formula_weight	54.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	14

Entity 8 non-polymer

描述 description	CHLORIDE ION
分子量 formula_weight	35.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 9 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	3130

▼

6. 折叠分类 (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d1kx5a_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.22 — Histone-fold
超家族 Superfamily superfamily	a.22.1 — Histone-fold
家族 Family family	a.22.1.1 — Nucleosome core histones

结构域编号 domain_id	d1kx5b_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.22 — Histone-fold
超家族 Superfamily superfamily	a.22.1 — Histone-fold
家族 Family family	a.22.1.1 — Nucleosome core histones

结构域编号 domain_id	d1kx5c_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.22 — Histone-fold
超家族 Superfamily superfamily	a.22.1 — Histone-fold
家族 Family family	a.22.1.1 — Nucleosome core histones

结构域编号 domain_id	d1kx5d_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.22 — Histone-fold
超家族 Superfamily superfamily	a.22.1 — Histone-fold
家族 Family family	a.22.1.1 — Nucleosome core histones

结构域编号 domain_id	d1kx5e_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.22 — Histone-fold
超家族 Superfamily superfamily	a.22.1 — Histone-fold
家族 Family family	a.22.1.1 — Nucleosome core histones

结构域编号 domain_id	d1kx5f_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.22 — Histone-fold
超家族 Superfamily superfamily	a.22.1 — Histone-fold
家族 Family family	a.22.1.1 — Nucleosome core histones

结构域编号 domain_id	d1kx5g_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.22 — Histone-fold
超家族 Superfamily superfamily	a.22.1 — Histone-fold
家族 Family family	a.22.1.1 — Nucleosome core histones

结构域编号 domain_id	d1kx5h_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.22 — Histone-fold
超家族 Superfamily superfamily	a.22.1 — Histone-fold
家族 Family family	a.22.1.1 — Nucleosome core histones

CATH v4.4 (8 domains)

结构域编号 domain_id	1kx5A00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	20 — Histone, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Histone, subunit A

结构域编号 domain_id	1kx5B00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	20 — Histone, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Histone, subunit A

结构域编号 domain_id	1kx5C00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	20 — Histone, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Histone, subunit A

结构域编号 domain_id	1kx5D00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	20 — Histone, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Histone, subunit A

结构域编号 domain_id	1kx5E00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	20 — Histone, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Histone, subunit A

结构域编号 domain_id	1kx5F00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	20 — Histone, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Histone, subunit A

结构域编号 domain_id	1kx5G00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	20 — Histone, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Histone, subunit A

结构域编号 domain_id	1kx5H00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	20 — Histone, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Histone, subunit A

▶

7. 引用文献 (4)

▶

晶胞边长 a length_a	105.950 Å
晶胞边长 b length_b	181.170 Å
晶胞边长 c length_c	109.490 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	1.940 Å
最低分辨率 resolution_low	6.000 Å
R 因子 r_factor	0.2090
R_work r_work	0.2080
R_free r_free	0.2750

fit	/app/data/saxs_computation/kx/1kx5/1kx5.fit
pddf	/app/data/pr_computation/kx/1kx5/1kx5.pr.out
profile	/app/data/saxs_computation/kx/1kx5/1kx5.dat
