8svf

BAP1/ASXL1 bound to the H2AK119Ub Nucleosome

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Histone H3.2

Xenopus laevis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 11 DNA 2	Histone H4 × 2 （P62799） Histone H2A type 1 × 2 （P06897） Histone H2B 1.1 × 2 （P02281） DNA/RNA (187-MER) × 1 DNA/RNA (327-MER) × 1 Ubiquitin carboxyl-terminal hydrolase BAP1 × 1 （Q92560） Polycomb group protein ASXL1 × 1 （Q8IXJ9） Ubiquitin × 1 （P0CG48）	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H32_XENLA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–136； UniProt 1–136 Author chain E； PDBConstruct 1–136； UniProt 1–136

Histone H4

Xenopus laevis

UniProt P62799

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 11 DNA 2	Histone H3.2 × 2 （P84233） Histone H2A type 1 × 2 （P06897） Histone H2B 1.1 × 2 （P02281） DNA/RNA (187-MER) × 1 DNA/RNA (327-MER) × 1 Ubiquitin carboxyl-terminal hydrolase BAP1 × 1 （Q92560） Polycomb group protein ASXL1 × 1 （Q8IXJ9） Ubiquitin × 1 （P0CG48）	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H4_XENLA
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–103； UniProt 1–103 Author chain F； PDBConstruct 1–103； UniProt 1–103

Histone H2A type 1

Xenopus laevis

UniProt P06897

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 11 DNA 2	Histone H3.2 × 2 （P84233） Histone H4 × 2 （P62799） Histone H2B 1.1 × 2 （P02281） DNA/RNA (187-MER) × 1 DNA/RNA (327-MER) × 1 Ubiquitin carboxyl-terminal hydrolase BAP1 × 1 （Q92560） Polycomb group protein ASXL1 × 1 （Q8IXJ9） Ubiquitin × 1 （P0CG48）	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H2A1_XENLA
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–130； UniProt 1–130 Author chain G； PDBConstruct 1–130； UniProt 1–130

Histone H2B 1.1

Xenopus laevis

UniProt P02281

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 11 DNA 2	Histone H3.2 × 2 （P84233） Histone H4 × 2 （P62799） Histone H2A type 1 × 2 （P06897） DNA/RNA (187-MER) × 1 DNA/RNA (327-MER) × 1 Ubiquitin carboxyl-terminal hydrolase BAP1 × 1 （Q92560） Polycomb group protein ASXL1 × 1 （Q8IXJ9） Ubiquitin × 1 （P0CG48）	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H2B11_XENLA
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–126； UniProt 1–126 Author chain H； PDBConstruct 1–126； UniProt 1–126

Ubiquitin carboxyl-terminal hydrolase BAP1

Homo sapiens

UniProt Q92560

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 11 DNA 2	Histone H3.2 × 2 （P84233） Histone H4 × 2 （P62799） Histone H2A type 1 × 2 （P06897） Histone H2B 1.1 × 2 （P02281） DNA/RNA (187-MER) × 1 DNA/RNA (327-MER) × 1 Polycomb group protein ASXL1 × 1 （Q8IXJ9） Ubiquitin × 1 （P0CG48）	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BAP1_HUMAN
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain K； PDBConstruct 1–729； UniProt 1–729

Polycomb group protein ASXL1

Homo sapiens

UniProt Q8IXJ9

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 11 DNA 2	Histone H3.2 × 2 （P84233） Histone H4 × 2 （P62799） Histone H2A type 1 × 2 （P06897） Histone H2B 1.1 × 2 （P02281） DNA/RNA (187-MER) × 1 DNA/RNA (327-MER) × 1 Ubiquitin carboxyl-terminal hydrolase BAP1 × 1 （Q92560） Ubiquitin × 1 （P0CG48）	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ASXL1_HUMAN
Isoform	—
PDB entities	8
Chains and sequence ranges	Author chain L； PDBConstruct 1–1541； UniProt 1–1541

Ubiquitin

Homo sapiens

UniProt P0CG48

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 11 DNA 2	Histone H3.2 × 2 （P84233） Histone H4 × 2 （P62799） Histone H2A type 1 × 2 （P06897） Histone H2B 1.1 × 2 （P02281） DNA/RNA (187-MER) × 1 DNA/RNA (327-MER) × 1 Ubiquitin carboxyl-terminal hydrolase BAP1 × 1 （Q92560） Polycomb group protein ASXL1 × 1 （Q8IXJ9）	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	UBC_HUMAN
Isoform	—
PDB entities	9
Chains and sequence ranges	Author chain M； PDBConstruct 1–76； UniProt 1–76

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8svf
Deposition date deposition_date	2023-05-16
Structure title title	BAP1/ASXL1 bound to the H2AK119Ub Nucleosome
Keywords keywords	DNA complex protein, hydrolase, structural protein, NUCLEAR PROTEIN-DNA-RNA complex; NUCLEAR PROTEIN/DNA/RNA
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8svf__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8svf__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

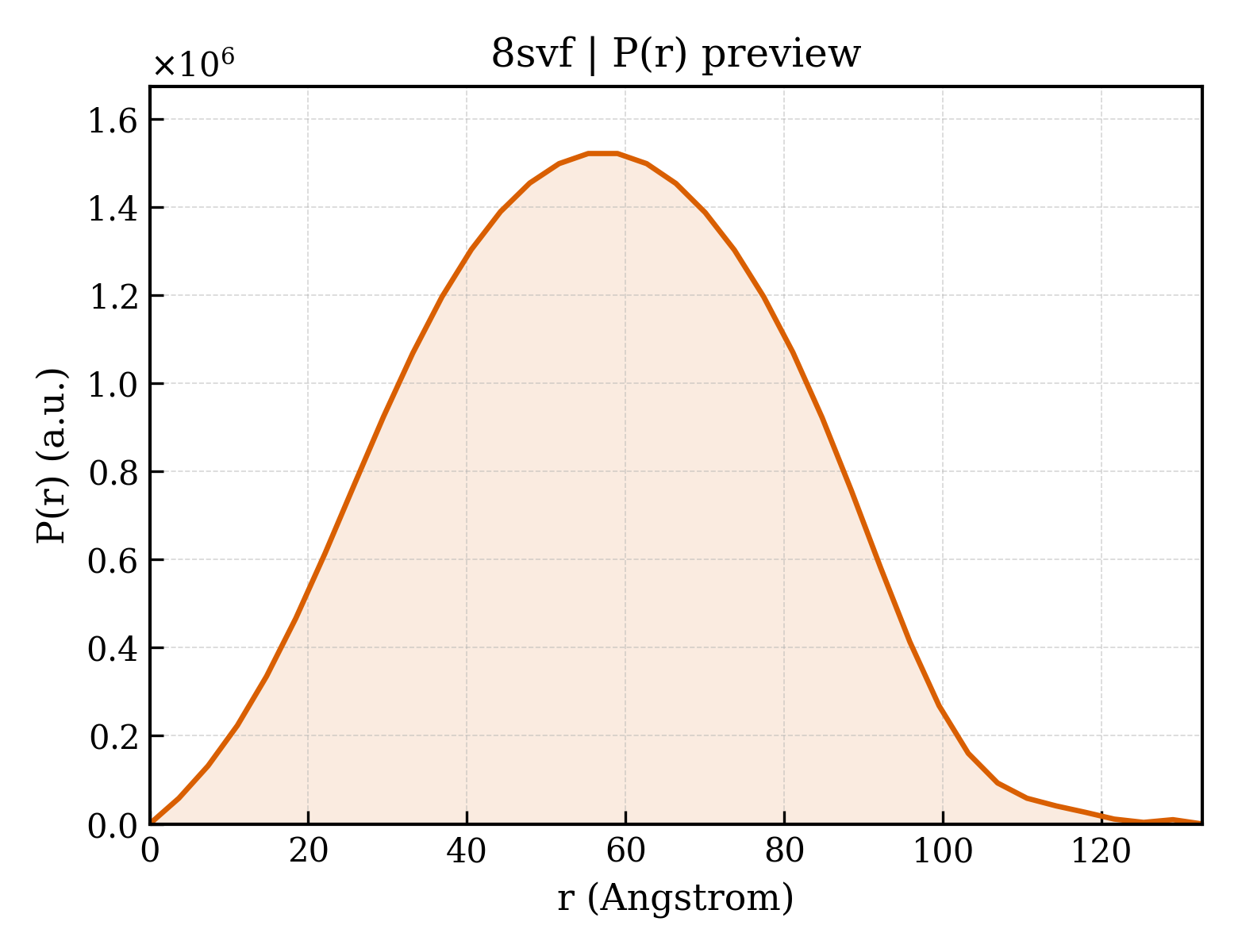

8svf__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	43.46 Å
Rg (electron density)	41.36 Å
Total Rg	41.94 Å
Atom count	15254
Residues	1484
Excluded volume	252010 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8svf__assembly_1__model_1`	13-meric （13）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	Histone H3.2
Molecular weight formula_weight	15435.1 kDa
Mutation mutation	G103A
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,E
Atom count atom_count	15254

MARTKQTARKSTGGKAPRKQLATKAARKSAPATGGVKKPHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEASEAYLVALFEDTNLCAIHAKRVTIMPKDIQLARRIRGERA

Source Source

Source organism organism	Xenopus laevis
Common name common_name	African clawed frog
NCBI taxonomy ID ncbi_taxonomy_id	8355
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Histone H4
Molecular weight formula_weight	11394.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,F

MSGRGKGGKGLGKGGAKRHRKVLRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG

Source Source

Source organism organism	Xenopus laevis
Common name common_name	African clawed frog
NCBI taxonomy ID ncbi_taxonomy_id	8355
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Histone H2A type 1
Molecular weight formula_weight	14093.4 kDa
Mutation mutation	G100R, K120C
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,G

MSGRGKQGGKTRAKAKTRSSRAGLQFPVGRVHRLLRKGNYAERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAVRNDEELNKLLGRVTIAQGGVLPNIQSVLLPKKTESAKSAKSK

Source Source

Source organism organism	Xenopus laevis
Common name common_name	African clawed frog
NCBI taxonomy ID ncbi_taxonomy_id	8355
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Histone H2B 1.1
Molecular weight formula_weight	13979.3 kDa
Mutation mutation	S33T
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,H

MPEPAKSAPAPKKGSKKAVTKTQKKDGKKRRKTRKESYAIYVYKVLKQVHPDTGISSKAMSIMNSFVNDVFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSAK

Source Source

Source organism organism	Xenopus laevis
Common name common_name	African clawed frog
NCBI taxonomy ID ncbi_taxonomy_id	8355
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	DNA/RNA (187-MER)
Molecular weight formula_weight	58568.8 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide/polyribonucleotide hybrid
Chain IDs strand_id	I

AUCUGAUAUCGCGACACCGGCACTGGAACAGGATGTATATATCTGACACGTGCCTGGAGACTAGGGAGTAATCCCCTTGGCGGTTAAAACGCGGGGGACAGCGCGTACGTGCGTTTAAGCGGTGCTAGAGCTGTCTACGACCAATTGAGCGGCCTCGGCACCGGGATTCTCCAGGGGAUCGGGCAUC

Entity 6 Entity 6 polymer

Description description	DNA/RNA (327-MER)
Molecular weight formula_weight	102866.5 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide/polyribonucleotide hybrid
Chain IDs strand_id	J

GAUGCCCGAUCCCCUGGAGAAUCCCGGTGCCGAGGCCGCTCAATTGGTCGTAGACAGCTCTAGCACCGCTTAAACGCACGTACGCGCTGTCCCCCGCGTTTTAACCGCCAAGGGGATTACTCCCTAGTCTCCAGGCACGTGTCAGATATATACATCCTGTTCCAGGGUGCCGAGGCCGCUCAAUUGGUCGUAGACAGCUCUAGCACCGCUUAAACGCACGUACGCGCUGUCCCCCGCGUUUUAACCGCCAAGGGGAUUACUCCCUAGUCUCCAGGCACGUGUCAGAUAUAUACAUCCUGUUCCAGUGCCGGUGUCGCGAUAUCAGAU

Entity 7 Entity 7 polymer

Description description	Ubiquitin carboxyl-terminal hydrolase BAP1
Molecular weight formula_weight	80472.6 kDa
EC 编号 ec_number	3.4.19.12
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K

MNKGWLELESDPGLFTLLVEDFGVKGVQVEEIYDLQSKCQGPVYGFIFLFKWIEERRSRRKVSTLVDDTSVIDDDIVNNMFFAHQLIPNSCATHALLSVLLNCSSVDLGPTLSRMKDFTKGFSPESKGYAIGNAPELAKAHNSHARPEPRHLPEKQNGLSAVRTMEAFHFVSYVPITGRLFELDGLKVYPIDHGPWGEDEEWTDKARRVIMERIGLATAGEPYHDIRFNLMAVVPDRRIKYEARLHVLKVNRQTVLEALQQLIRVTQPELIQTHKSQESQLPEESKSASNKSPLVLEANRAPAASEGNHTDGAEEAAGSCAQAPSHSPPNKPKLVVKPPGSSLNGVHPNPTPIVQRLPAFLDNHNYAKSPMQEEEDLAAGVGRSRVPVRPPQQYSDDEDDYEDDEEDDVQNTNSALRYKGKGTGKPGALSGSADGQLSVLQPNTINVLAEKLKESQKDLSIPLSIKTSSGAGSPAVAVPTHSQPSPTPSNESTDTASEIGSAFNSPLRSPIRSANPTRPSSPVTSHISKVLFGEDDSLLRVDCIRYNRAVRDLGPVISTGLLHLAEDGVLSPLALTEGGKGSSPSIRPIQGSQGSSSPVEKEVVEATDSREKTGMVRPGEPLSGEKYSPKELLALLKCVEAEIANYEACLKEEVEKRKKFKIDDQRRTHNYDEFICTFISMLAQEGMLANLVEQNISVRRRQGVSIGRLHKQRKPDRRKRSRPYKAKRQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 8 Entity 8 polymer

Description description	Polycomb group protein ASXL1
Molecular weight formula_weight	165635.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

MKDKQKKKKERTWAEAARLVLENYSDAPMTPKQILQVIEAEGLKEMRSGTSPLACLNAMLHSNSRGGEGLFYKLPGRISLFTLKKDALQWSRHPATVEGEEPEDTADVESCGSNEASTVSGENDVSLDETSSNASCSTESQSRPLSNPRDSYRASSQANKQKKKTGVMLPRVVLTPLKVNGAHVESASGFSGCHADGESGSPSSSSSGSLALGSAAIRGQAEVTQDPAPLLRGFRKPATGQMKRNRGEEIDFETPGSILVNTNLRALINSRTFHALPSHFQQQLLFLLPEVDRQVGTDGLLRLSSSALNNEFFTHAAQSWRERLADGEFTHEMQVRIRQEMEKEKKVEQWKEKFFEDYYGQKLGLTKEESLQQNVGQEEAEIKSGLCVPGESVRIQRGPATRQRDGHFKKRSRPDLRTRARRNLYKKQESEQAGVAKDAKSVASDVPLYKDGEAKTDPAGLSSPHLPGTSSAAPDLEGPEFPVESVASRIQAEPDNLARASASPDRIPSLPQETVDQEPKDQKRKSFEQAASASFPEKKPRLEDRQSFRNTIESVHTEKPQPTKEEPKVPPIRIQLSRIKPPWVVKGQPTYQICPRIIPTTESSCRGWTGARTLADIKARALQVRGARGHHCHREAATTAIGGGGGPGGGGGGATDEGGGRGSSSGDGGEACGHPEPRGGPSTPGKCTSDLQRTQLLPPYPLNGEHTQAGTAMSRARREDLPSLRKEESCLLQRATVGLTDGLGDASQLPVAPTGDQPCQALPLLSSQTSVAERLVEQPQLHPDVRTECESGTTSWESDDEEQGPTVPADNGPIPSLVGDDTLEKGTGQALDSHPTMKDPVNVTPSSTPESSPTDCLQNRAFDDELGLGGSCPPMRESDTRQENLKTKALVSNSSLHWIPIPSNDEVVKQPKPESREHIPSVEPQVGEEWEKAAPTPPALPGDLTAEEGLDPLDSLTSLWTVPSRGGSDSNGSYCQQVDIEKLKINGDSEALSPHGESTDTASDFEGHLTEDSSEADTREAAVTKGSSVDKDEKPNWNQSAPLSKVNGDMRLVTRTDGMVAPQSWVSRVCAVRQKIPDSLLLASTEYQPRAVCLSMPGSSVEATNPLVMQLLQGSLPLEKVLPPAHDDSMSESPQVPLTKDQSHGSLRMGSLHGLGKNSGMVDGSSPSSLRALKEPLLPDSCETGTGLARIEATQAPGAPQKNCKAVPSFDSLHPVTNPITSSRKLEEMDSKEQFSSFSCEDQKEVRAMSQDSNSNAAPGKSPGDLTTSRTPRFSSPNVISFGPEQTGRALGDQSNVTGQGKKLFGSGNVAATLQRPRPADPMPLPAEIPPVFPSGKLGPSTNSMSGGVQTPREDWAPKPHAFVGSVKNEKTFVGGPLKANAENRKATGHSPLELVGHLEGMPFVMDLPFWKLPREPGKGLSEPLEPSSLPSQLSIKQAFYGKLSKLQLSSTSFNYSSSSPTFPKGLAGSVVQLSHKANFGASHSASLSLQMFTDSSTVESISLQCACSLKAMIMCQGCGAFCHDDCIGPSKLCVLCLVVR

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 9 Entity 9 polymer

Description description	Ubiquitin
Molecular weight formula_weight	8576.8 kDa
Mutation mutation	G76C
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M

MQIFVKTLTGKTITLEVEPSDTIENVKAKIQDKEGIPPDQQRLIFAGKQLEDGRTLSDYNIQKESTLHLVLRLRGG

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

▼

6. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	8svfM01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.20 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	39056

BAP1/ASXL1 bound to the H2AK119Ub Nucleosome

1. Protein Identity and Related Structures Protein Identity & Related Structures

Histone H3.2

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Histone H4

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Histone H2A type 1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Histone H2B 1.1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Ubiquitin carboxyl-terminal hydrolase BAP1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Polycomb group protein ASXL1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Ubiquitin

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

8svf__assembly_1__model_1

8svf__assembly_1__model_1 | I(q)

8svf__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

冷冻电镜 EM 3D

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 polymer

Polymer Polymer

Source Source

Entity 4 Entity 4 polymer

Polymer Polymer

Source Source
